Skid Plates - Who and What: for less corrosive than steel??

Discussion in '2nd Gen. Tacomas (2005-2015)' started by troy28, Jun 14, 2012.

  1. Jun 14, 2012 at 9:47 PM
    #1
    troy28

    troy28 [OP] Well-Known Member

    Joined:
    Dec 3, 2011
    Member:
    #68095
    Messages:
    130
    Gender:
    Male
    Capitol of Salty Roads
    Need help
    I have read pages of post from my searches here but have not really found a great direction for what I am looking for. Any suggestions, directions, or feedback is greatly appreciated!!

    Truck: 2012 DC LB
    If I get off road it is more of a cornfield/existing trail. I do not need plates that can with stand being smashed into and dragged across rocks on a regular basis. If I do accidentally catch something I would like it to protect the truck for a couple hits. I do like to play in deep snow. I also hope it will stave off catalytic converter thieves.

    My two hang ups with regular steel is its ability to easily rust (very salty roads) and it's weight. I like the idea of Aluminum or maybe a stainless steel. (I know they also will corrode just usually takes a little longer)

    I would like to plate from in front of the bottom of the radiator back past the transfer case.

    Why & What material and company do you recommend? Any personal experience/pics?

    Thank you for your help!

  2. Jun 14, 2012 at 9:50 PM
    #2
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    6,003
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Lockers, CBI/Relentless/Pelfrey armor, HAM radio
    Aluminum also corrodes in the presence of salt.

    Ask any salt-water sailor with an aluminum mast about what happens where fittings are attached.

  3. Jun 14, 2012 at 10:30 PM
    #3
    OZ-T

    OZ-T You chose ... poorly

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    45,935
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    This , I'm on my second set of factory Sport alloys and these ones are already bubbling too

  4. Jun 15, 2012 at 5:33 AM
    #4
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    34,533
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '18 Ford F-250 SCREW
    F-250 Land Yacht Mod
    Steel does rust easily but, if taken care of, properly prepped and painted recoated to cover trail damage, it'll hold up just fine. Plus, steel is relatively flexible as opposed to aluminum which is much lighter weight but tends to crack rather than dent.

    Stainless would be an option but, if you're going to spend the money, go high grade. I've got 309 stainless steel side bars and they've held up great for the last 5 years.

  5. Jun 15, 2012 at 9:24 AM
    #5
    maxamillion2345

    maxamillion2345 Leaves the bay but brings all its problems

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    8,169
    Gender:
    Male
    First Name:
    Max
    Nevada
    Vehicle:
    80 series Land Cruiser
    Cummins, tons, 40s
    Eric at Relentless Fab makes aluminum or steel skids from IFS to t-case (t-case only in steel though).

  6. Jun 15, 2012 at 9:40 AM
    #6
    XXXX

    XXXX Well-Known Member

    Joined:
    Sep 1, 2011
    Member:
    #62715
    Messages:
    20,895
    Gender:
    Male
    First Name:
    sKiP
    Vehicle:
    05 Prius
    Just get steel and be done with it. just about every one makes 3/16" skids.

    If your not scrapping it like you said you wouldn't you will have no issues once you paint them.

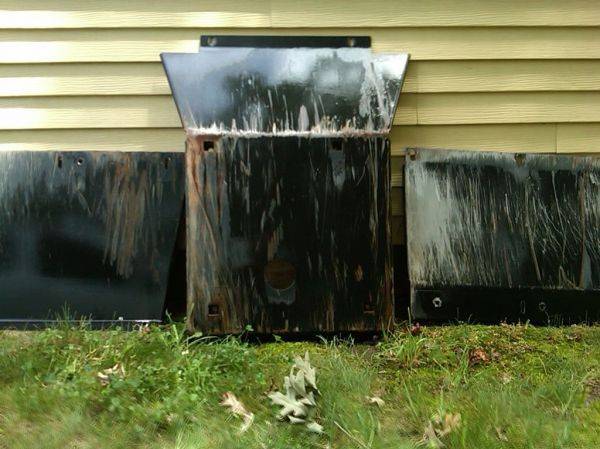

    After 2 years in the salt belt getting beat up my skids are fine. At this rate it would take them 30 years to have any rust caused structural issues.

    [​IMG]


    I would be far more worried about your frame then skid plates. At less then 1/8" thick it will rust away much quicker.

  7. Jun 15, 2012 at 9:42 AM
    #7
    XXXX

    XXXX Well-Known Member

    Joined:
    Sep 1, 2011
    Member:
    #62715
    Messages:
    20,895
    Gender:
    Male
    First Name:
    sKiP
    Vehicle:
    05 Prius
    and you can always get them galvanized or strap a anode to them :D

  8. Jun 15, 2012 at 9:45 AM
    #8
    Highland Logan

    Highland Logan UBIQUE

    Joined:
    Apr 11, 2011
    Member:
    #54752
    Messages:
    2,796
    Gender:
    Male
    First Name:
    Frank
    Nova Scotia, Canada
    Vehicle:
    2011 Black AC TRD Off Road w/ factory tow pkg
    Icon Stage 2 w/ overload left in, SPC LR UCA, 265/75 16 BFG KO2, front and rear Weathertech floor liners, OEM (Extang) solid fold tonneau, OEM bed mat, OEM front skid plate, OEM billet oil cap, "TOYOYA" tailgate decal
    I've never heard of that. Is this common with the factory alloys?

    Frank

  9. Jun 15, 2012 at 9:52 AM
    #9
    OZ-T

    OZ-T You chose ... poorly

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    45,935
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    It is here on the coast apparently , the service manager said they are constantly replacing them . They didn't even want to see the old ones on my truck before ordering me a new set under warranty when I called in .

  10. Jun 15, 2012 at 9:56 AM
    #10
    Highland Logan

    Highland Logan UBIQUE

    Joined:
    Apr 11, 2011
    Member:
    #54752
    Messages:
    2,796
    Gender:
    Male
    First Name:
    Frank
    Nova Scotia, Canada
    Vehicle:
    2011 Black AC TRD Off Road w/ factory tow pkg
    Icon Stage 2 w/ overload left in, SPC LR UCA, 265/75 16 BFG KO2, front and rear Weathertech floor liners, OEM (Extang) solid fold tonneau, OEM bed mat, OEM front skid plate, OEM billet oil cap, "TOYOYA" tailgate decal
    I'm surprised I haven't seen this on this coast... and with the amount of salt they throw down every Winter too. I'll look into this. Other than taking them off in Winter or frequent washing, is there anything to prevent or slow this? And do you have any pictures of your old ones?

    Frank

  11. Jun 15, 2012 at 10:01 AM
    #11
    XXXX

    XXXX Well-Known Member

    Joined:
    Sep 1, 2011
    Member:
    #62715
    Messages:
    20,895
    Gender:
    Male
    First Name:
    sKiP
    Vehicle:
    05 Prius

    Clear coat them yourself and that should help protect them.

    I'm on the East Coast and mine started to bubble as well. I just painted over them.

  12. Jun 15, 2012 at 10:44 AM
    #12
    OZ-T

    OZ-T You chose ... poorly

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    45,935
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Look here

    http://www.tacomaworld.com/forum/showthread.php?t=173667

  13. Jun 15, 2012 at 10:53 AM
    #13
    rleeharris

    rleeharris "Old Timer," compliments of 11Taco2.7

    Joined:
    Jan 16, 2011
    Member:
    #49326
    Messages:
    1,230
    Gender:
    Male
    First Name:
    Bob
    San Antonio, Texas
    Vehicle:
    '11 Tundra Crew Max TRD Off Road
    My recommendation is BudBuilt. Bud is great and his stuff is true plate steel. Heavy as hell but they will take an explosion and anything else you can throw at them. I don't live in a salt-rich area so it was never a problem, but just some good maintenance and maybe a once a year cleaning and resealing with a rust-inhibitor-type paint/clear coat should make them last a while. Good luck.

  14. Jun 15, 2012 at 11:01 AM
    #14
    mentello

    mentello Member

    Joined:
    May 15, 2012
    Member:
    #78879
    Messages:
    18
    Gender:
    Male
    California
    Vehicle:
    09 TRD off road 4x4
    old man emu heavy duty suspension kit, Budbuilt skid plates, B.A.M.F. sliders
    Call Bud....he is very knowledgeable. He makes them in 3/16", 1/8", Stainless, and Aluminum.

    He is the owner of Budbuilt.

  15. Jun 15, 2012 at 11:08 AM
    #15
    mentello

    mentello Member

    Joined:
    May 15, 2012
    Member:
    #78879
    Messages:
    18
    Gender:
    Male
    California
    Vehicle:
    09 TRD off road 4x4
    old man emu heavy duty suspension kit, Budbuilt skid plates, B.A.M.F. sliders
    I forgot to mention that I had the 3/16" steel on my prior hunting rig (a 99 4runner) and will be ordering another set for my new Tacoma. I may actually try the 1/8" this time. I really like the Budbuilt skids.

    Before install prime and paint with rustoleum industrial grade (both sides) and you should be fine.

    When I had the 3/16" I made several trips across the salty NV desert dry lake beds and struck a few rocks. Within a few weeks I saw rust appear where I impacted rocks. I used a wire brush, primed and paint the spots and it was all good. The frame accumulated way more rust then the skids.

  16. Jun 15, 2012 at 3:02 PM
    #16
    Highland Logan

    Highland Logan UBIQUE

    Joined:
    Apr 11, 2011
    Member:
    #54752
    Messages:
    2,796
    Gender:
    Male
    First Name:
    Frank
    Nova Scotia, Canada
    Vehicle:
    2011 Black AC TRD Off Road w/ factory tow pkg
    Icon Stage 2 w/ overload left in, SPC LR UCA, 265/75 16 BFG KO2, front and rear Weathertech floor liners, OEM (Extang) solid fold tonneau, OEM bed mat, OEM front skid plate, OEM billet oil cap, "TOYOYA" tailgate decal
  17. Jun 15, 2012 at 3:08 PM
    #17
    05sctaco

    05sctaco Well-Known Member

    Joined:
    Jun 18, 2007
    Member:
    #1868
    Messages:
    906
    Gender:
    Male
    First Name:
    Ken
    Santa Cruz
    Just go with steel, as long as you do the prep and paint right you'll just need to paint the underside. You can also rhino line the non exposed side, and prime and paint the exposed side as to not worry about rust getting under the rhino coating.

  18. Jun 16, 2012 at 6:26 PM
    #18
    troy28

    troy28 [OP] Well-Known Member

    Joined:
    Dec 3, 2011
    Member:
    #68095
    Messages:
    130
    Gender:
    Male
    Capitol of Salty Roads
    Need help
    Thank you for the feedback and information!!

    What is this magical anode you speak of?

  19. Jun 16, 2012 at 8:11 PM
    #19
    Highland Logan

    Highland Logan UBIQUE

    Joined:
    Apr 11, 2011
    Member:
    #54752
    Messages:
    2,796
    Gender:
    Male
    First Name:
    Frank
    Nova Scotia, Canada
    Vehicle:
    2011 Black AC TRD Off Road w/ factory tow pkg
    Icon Stage 2 w/ overload left in, SPC LR UCA, 265/75 16 BFG KO2, front and rear Weathertech floor liners, OEM (Extang) solid fold tonneau, OEM bed mat, OEM front skid plate, OEM billet oil cap, "TOYOYA" tailgate decal
    Cathodic Protection.

    Frank

  20. Jun 19, 2012 at 6:34 PM
    #20
    troy28

    troy28 [OP] Well-Known Member

    Joined:
    Dec 3, 2011
    Member:
    #68095
    Messages:
    130
    Gender:
    Male
    Capitol of Salty Roads
    Need help
    Did some calling around today on the Skids. I got a couple suggestions to do SS for the front skid. Then do AL the rest of the way back. They said this would still give me strength up front if there were ever an impact. Then the AL would help with not adding so much weight. Finally the whole package would provide a few extra years over the regular steel till I really had to pull them and repaint them.

    Any thoughts if this would be a good way to go?

    Anyone running AL or SS in a high salt area?
