Small off-road trailer project

Discussion in 'Other Builds' started by Wyckedan, Oct 18, 2021.

  1. Mar 11, 2022 at 11:59 AM
    #41
    Wyckedan

    Wyckedan [OP] Well-Known Member

    Joined:
    Oct 23, 2017
    Member:
    #233922
    Messages:
    5,487
    Gender:
    Male
    First Name:
    Dan
    Woodinville WA
    Vehicle:
    2014 Stormtrooper AC 2009 Ducati Hypermotard 1100s.
    1 fully operational Death Star

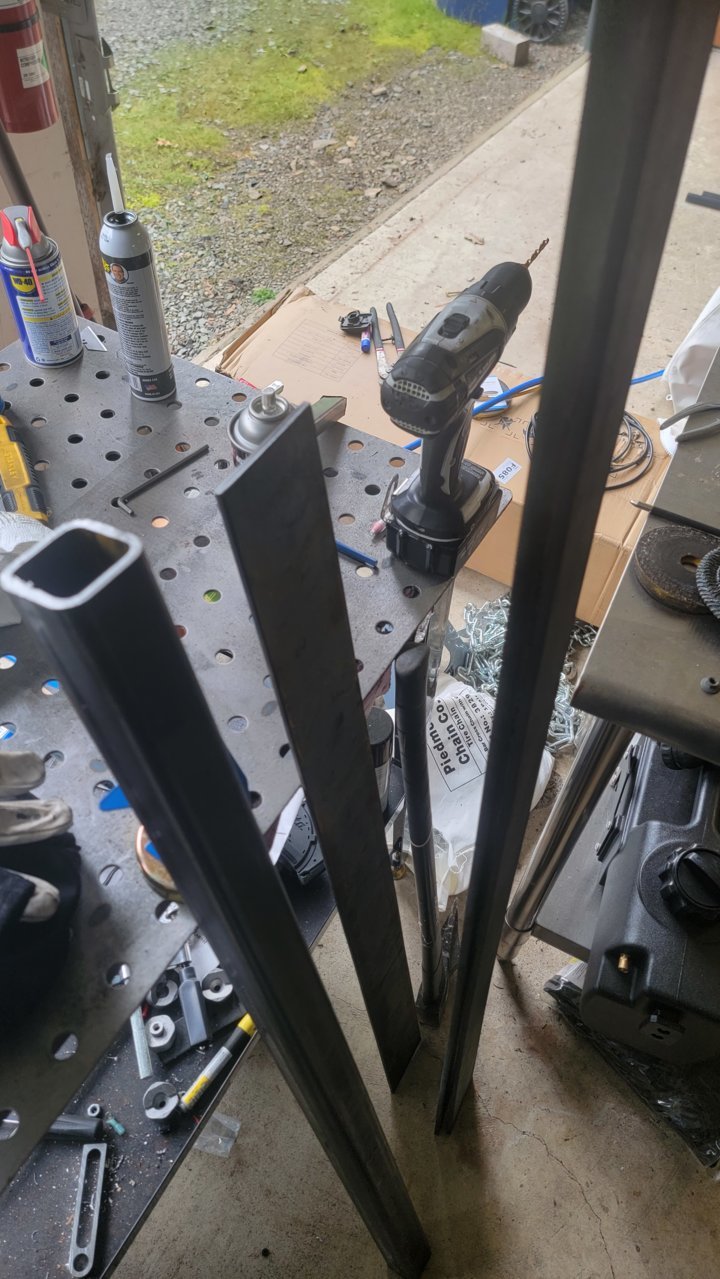

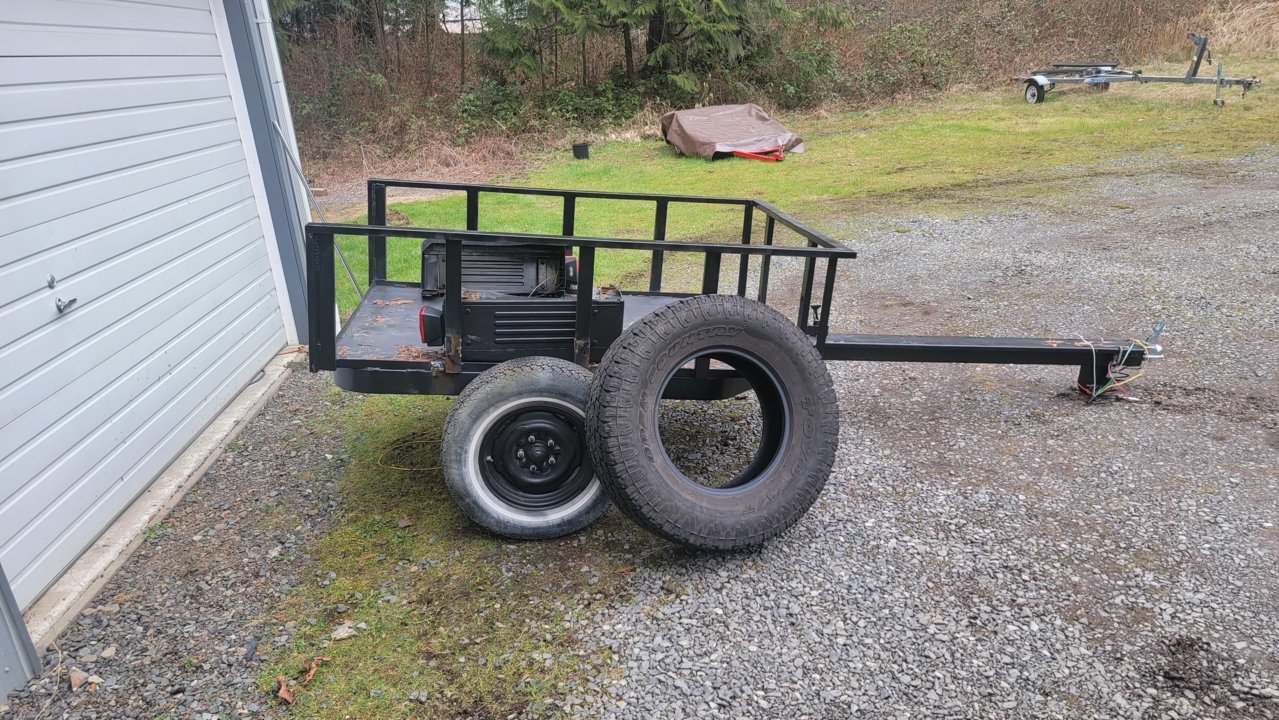

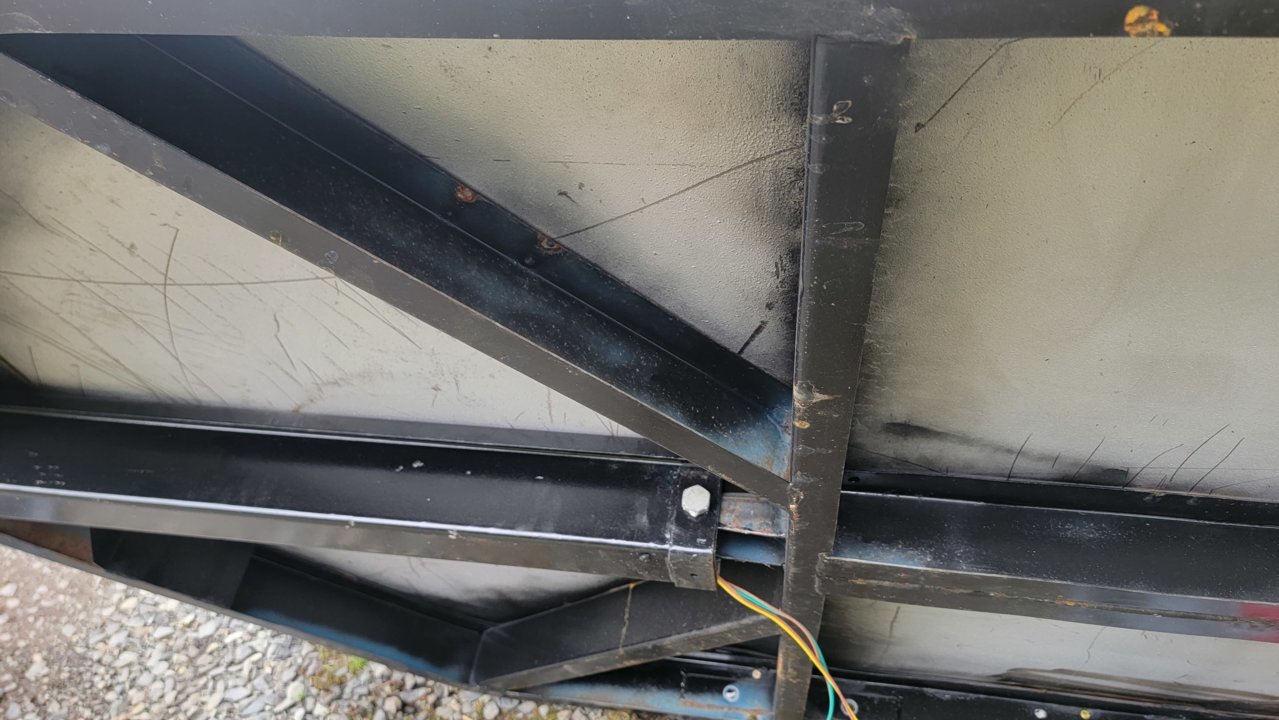

    Got a wild hair finally and plasma cut the fenders off. I have a love hate relationship with my plasma torch. It is super finicky, but it liquifies metal with zero prejudice. Have some 1/4" x 3.5" steel strap that I'm going to weld to the outer edge of the frame and across the back to give the timbren axles something significant to bolt to. Also got a thick wall 2x2 square tube to run across the axles for lateral support.


  2. Mar 11, 2022 at 12:10 PM
    #42
    Wyckedan

    Wyckedan [OP] Well-Known Member

    Joined:
    Oct 23, 2017
    Member:
    #233922
    Messages:
    5,487
    Gender:
    Male
    First Name:
    Dan
    Woodinville WA
    Vehicle:
    2014 Stormtrooper AC 2009 Ducati Hypermotard 1100s.
    1 fully operational Death Star

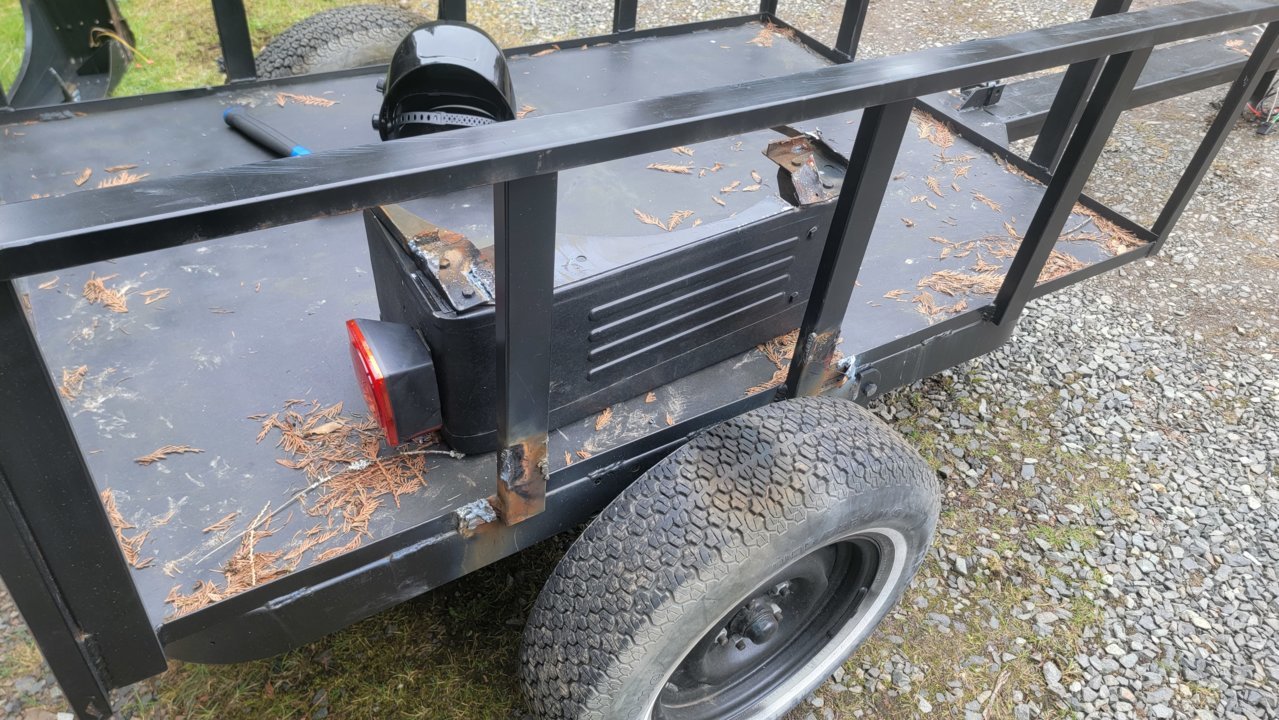

    I thought I had a line on some matching 34s to the truck, but fuckin Craigslist sellers man. Anywho, these 285s don't look so much different than what's on there now :rofl:


  3. Mar 11, 2022 at 1:05 PM
    #43
    Wyckedan

    Wyckedan [OP] Well-Known Member

    Joined:
    Oct 23, 2017
    Member:
    #233922
    Messages:
    5,487
    Gender:
    Male
    First Name:
    Dan
    Woodinville WA
    Vehicle:
    2014 Stormtrooper AC 2009 Ducati Hypermotard 1100s.
    1 fully operational Death Star

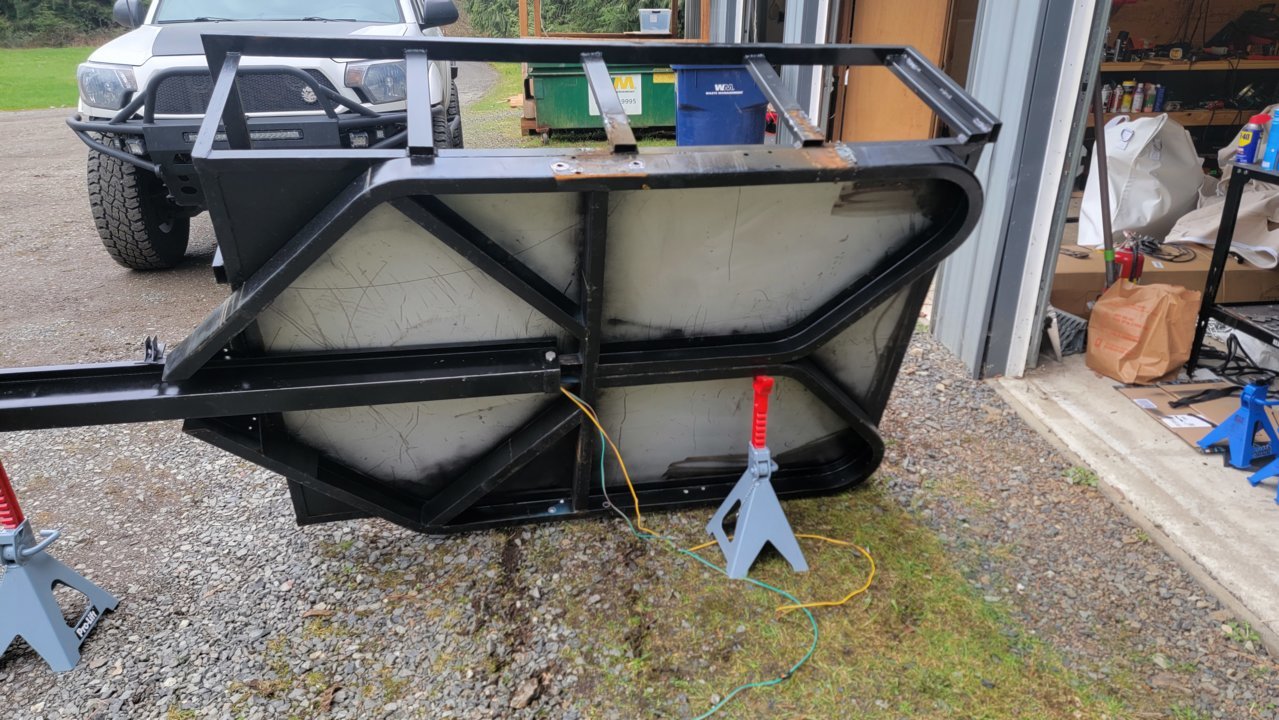

    Axle removed. The frame is this strange C-channel. I wouldn't call it strong, but it isn't weak either. Going to clean up the cut off welds and add my re-enforcement


    ohcaltexscar, Slashaar and koditten like this.
  4. Mar 12, 2022 at 1:46 PM
    #44
    Wyckedan

    Wyckedan [OP] Well-Known Member

    Joined:
    Oct 23, 2017
    Member:
    #233922
    Messages:
    5,487
    Gender:
    Male
    First Name:
    Dan
    Woodinville WA
    Vehicle:
    2014 Stormtrooper AC 2009 Ducati Hypermotard 1100s.
    1 fully operational Death Star

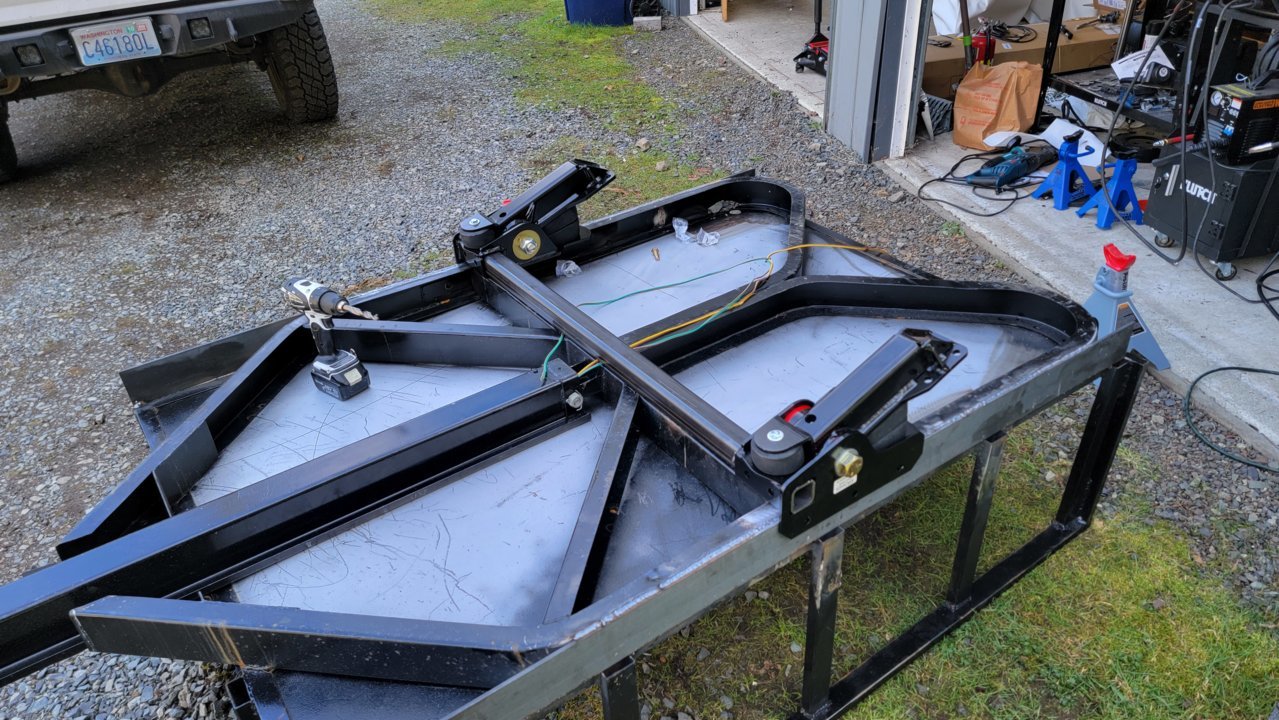

    Drilling holes for my Timbren axles. Ideally I would have had them about 6" forward, but the crossbar for the axles lined up with the crossbar of the trailer. I can't imagine anything being stronger. I'm off to drop tires and wheels off at my tire guy. I'm kinda stuck until I can temporarily get the wheels mounted to see how tall this is going to be. Then I can figure out 4 corner leveling system


    ohcaltexscar and Slashaar like this.
  5. Mar 12, 2022 at 2:23 PM
    #45
    koditten

    koditten Well-Known Member

    Joined:
    Sep 8, 2013
    Member:
    #112077
    Messages:
    19,767
    Gender:
    Male
    First Name:
    Kirk
    Central Michigan
    Vehicle:
    04 trd x-cab 4 x 4 3.4l
    Reserected from the dead.
    This gonna be one, stout trailer!

    Slashaar likes this.
  6. Mar 12, 2022 at 6:19 PM
    #46
    Wyckedan

    Wyckedan [OP] Well-Known Member

    Joined:
    Oct 23, 2017
    Member:
    #233922
    Messages:
    5,487
    Gender:
    Male
    First Name:
    Dan
    Woodinville WA
    Vehicle:
    2014 Stormtrooper AC 2009 Ducati Hypermotard 1100s.
    1 fully operational Death Star

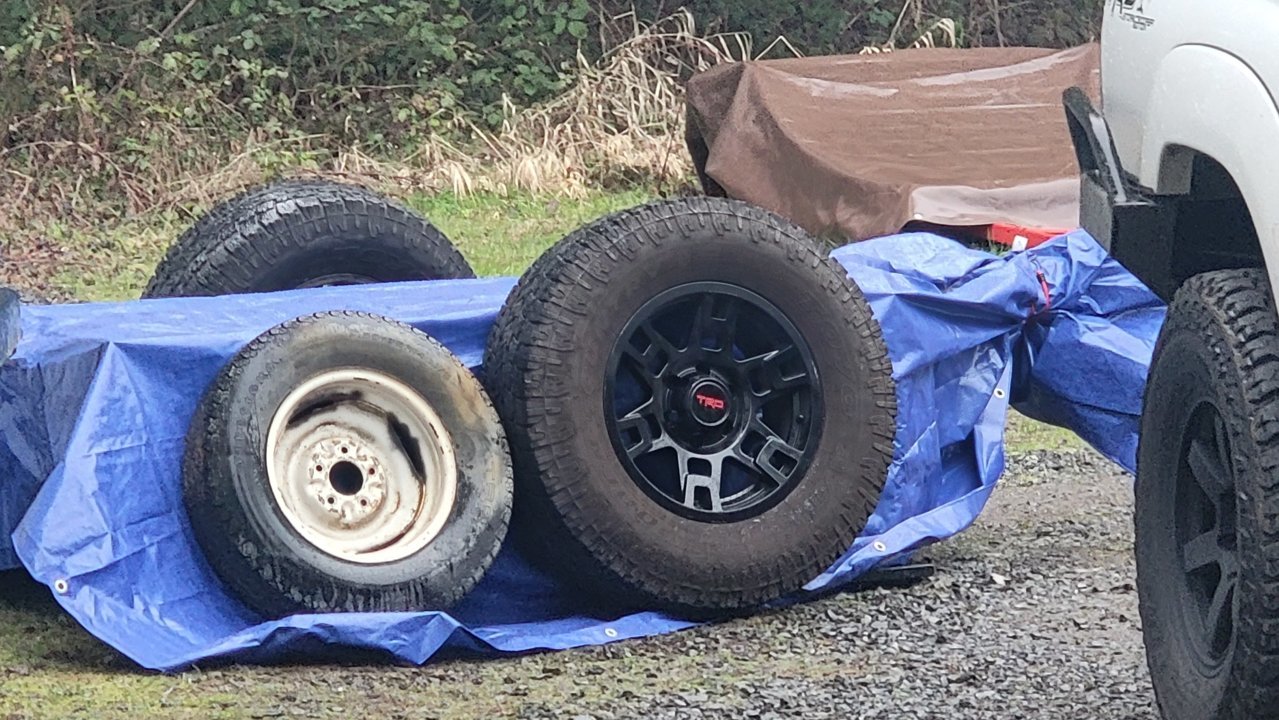

    My tire guy rocks. $40 and done in no time. Unfortunately it started raining, so project on hold


    Slashaar and koditten like this.
  7. Mar 15, 2022 at 3:30 PM
    #47
    Wyckedan

    Wyckedan [OP] Well-Known Member

    Joined:
    Oct 23, 2017
    Member:
    #233922
    Messages:
    5,487
    Gender:
    Male
    First Name:
    Dan
    Woodinville WA
    Vehicle:
    2014 Stormtrooper AC 2009 Ducati Hypermotard 1100s.
    1 fully operational Death Star

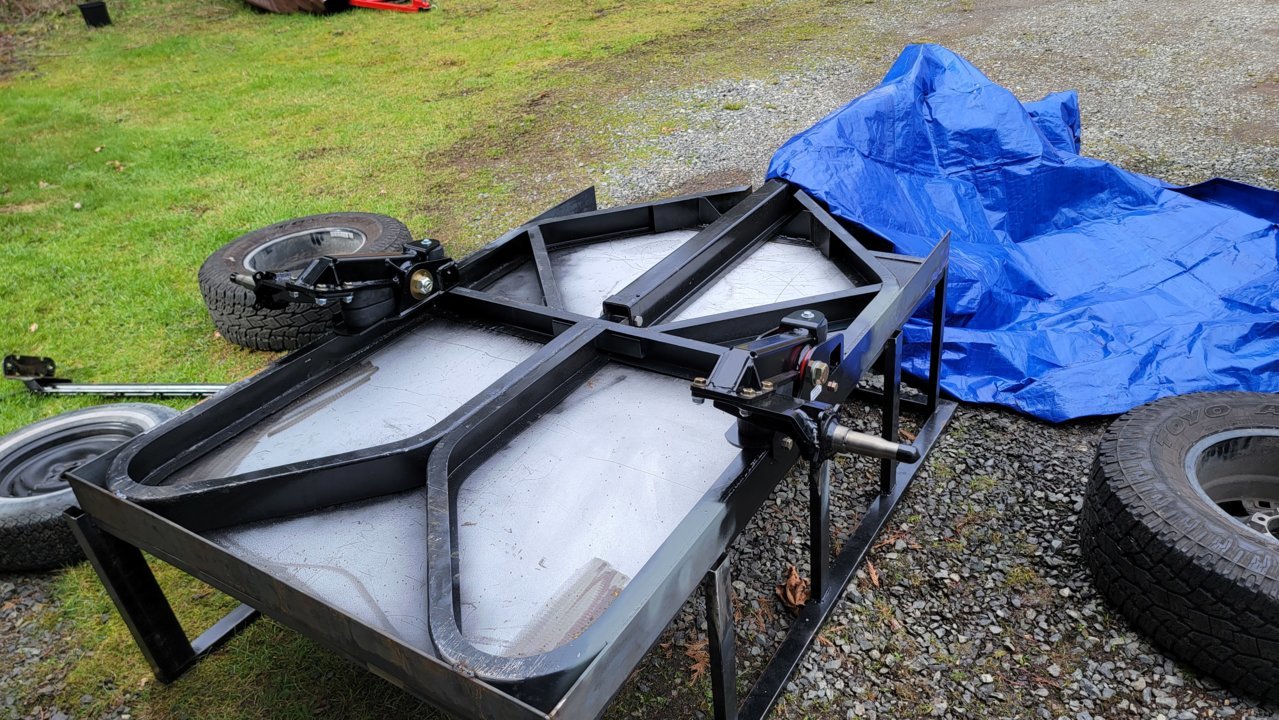

    Timbrens on. Was really hoping to get the tires on too, but I don't have any gloves and I need to pack the bearings still. Maybe later


    I also ran out of gas, I should just switch to flux core, I wish I would have thought of that from the beginning. So much welding, such a waste of expensive gas

    Last edited: Mar 15, 2022
  8. Mar 16, 2022 at 11:26 AM
    #48
    Wyckedan

    Wyckedan [OP] Well-Known Member

    Joined:
    Oct 23, 2017
    Member:
    #233922
    Messages:
    5,487
    Gender:
    Male
    First Name:
    Dan
    Woodinville WA
    Vehicle:
    2014 Stormtrooper AC 2009 Ducati Hypermotard 1100s.
    1 fully operational Death Star

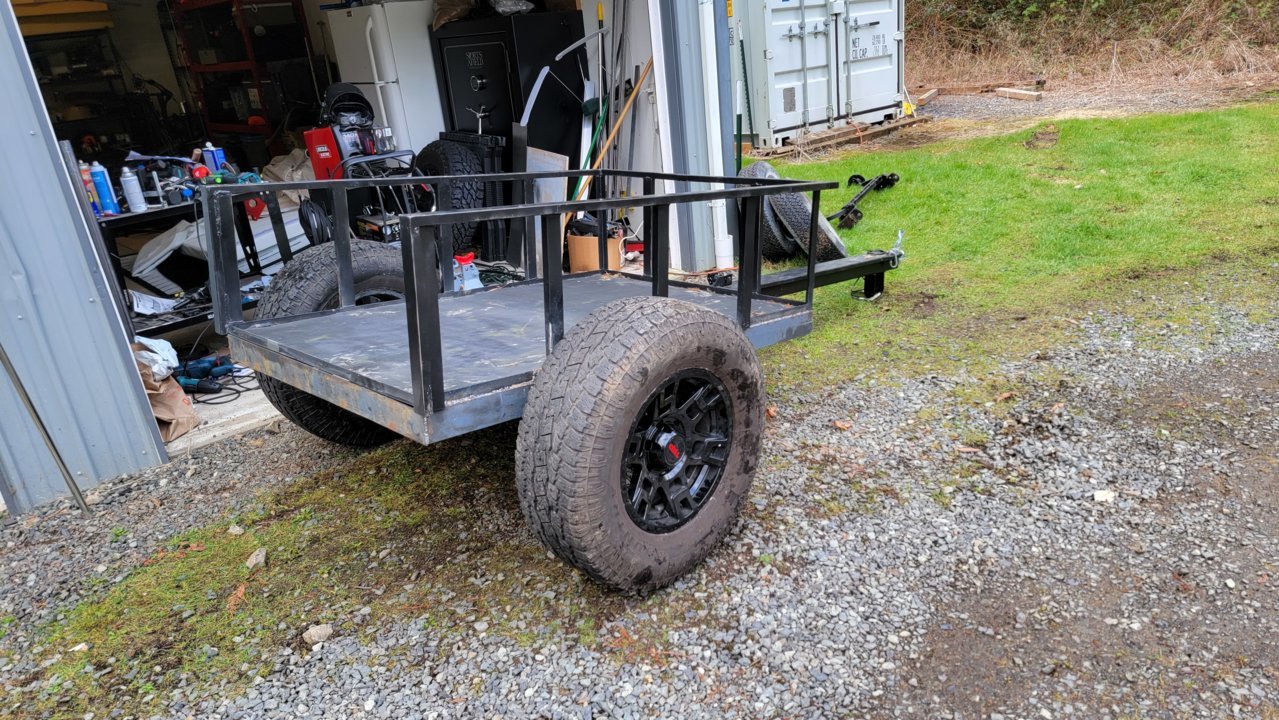

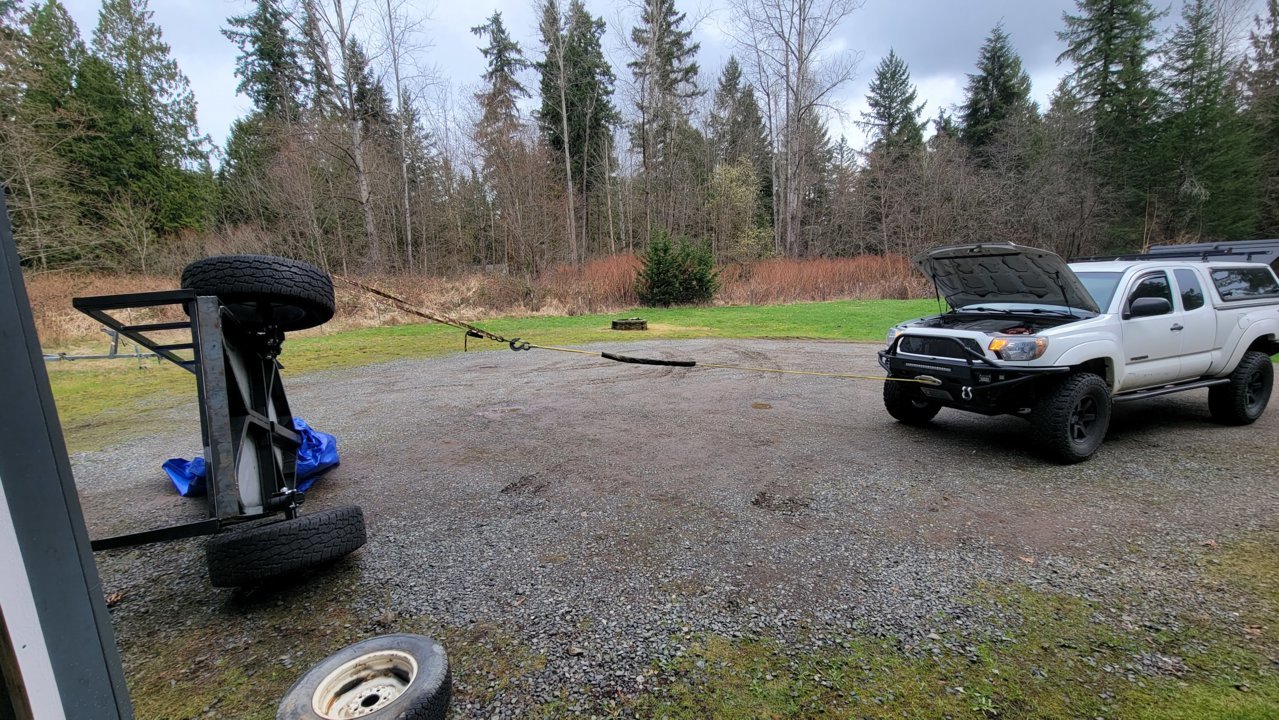

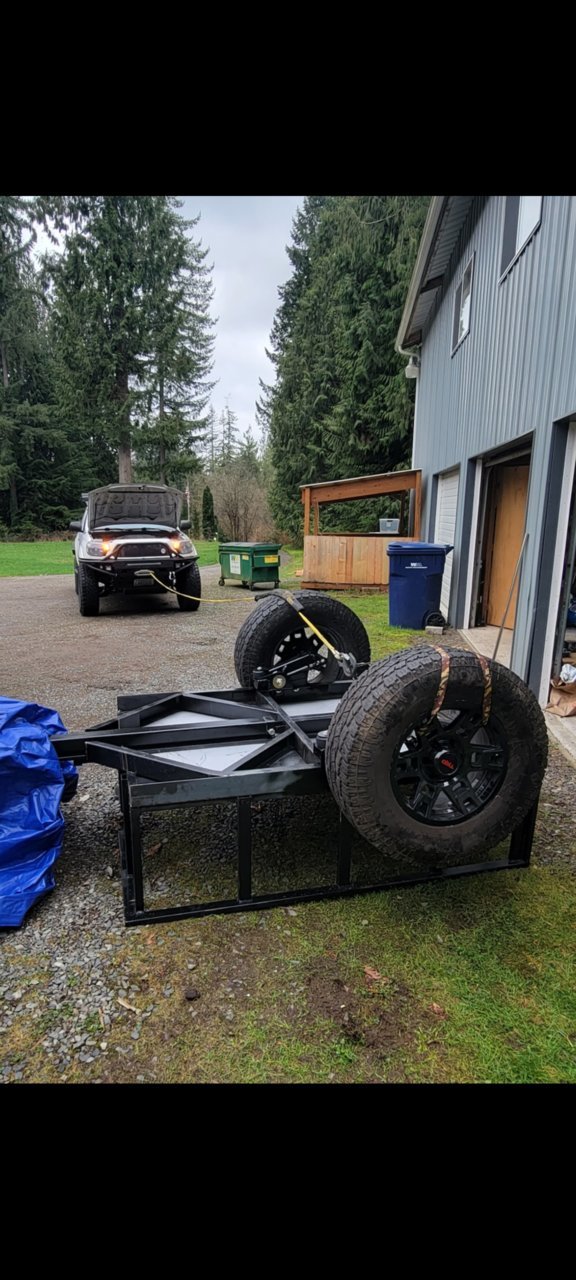

    Tires on. Found my winch helpful in getting it flipped over. Hitch sits about 23" off the ground, which is a bit lower than I hoped. My hitch on the truck is 29" so I need to account for a 6" drop on the lock-n-roll. They only off a 4" drop, so that makes my questioning decision to cut off that goofy 3" thin reciever tube and weld on a more sturdy 2" I can re-enforce and add a couple inches to. This is going to be a Frankenstein monster for sure now


    Last edited: Mar 16, 2022
  9. Apr 5, 2022 at 12:54 PM
    #49
    Wyckedan

    Wyckedan [OP] Well-Known Member

    Joined:
    Oct 23, 2017
    Member:
    #233922
    Messages:
    5,487
    Gender:
    Male
    First Name:
    Dan
    Woodinville WA
    Vehicle:
    2014 Stormtrooper AC 2009 Ducati Hypermotard 1100s.
    1 fully operational Death Star

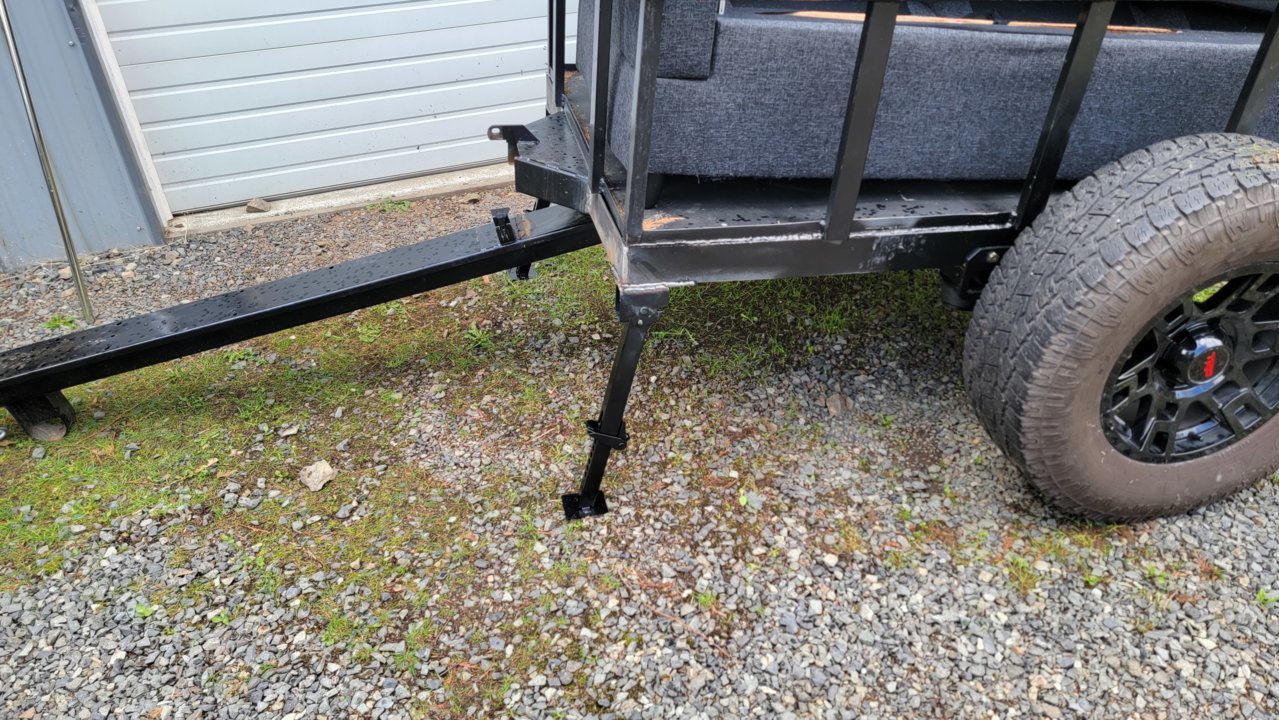

    I got stabilizer legs welded to all 4 corners. Tongue is getting replaced by a super stout .325" 2.5x2.5" tube, then I can finally get to making the rack for the tent


    ohcaltexscar and Slashaar like this.
  10. Apr 13, 2022 at 3:51 PM
    #50
    Wyckedan

    Wyckedan [OP] Well-Known Member

    Joined:
    Oct 23, 2017
    Member:
    #233922
    Messages:
    5,487
    Gender:
    Male
    First Name:
    Dan
    Woodinville WA
    Vehicle:
    2014 Stormtrooper AC 2009 Ducati Hypermotard 1100s.
    1 fully operational Death Star

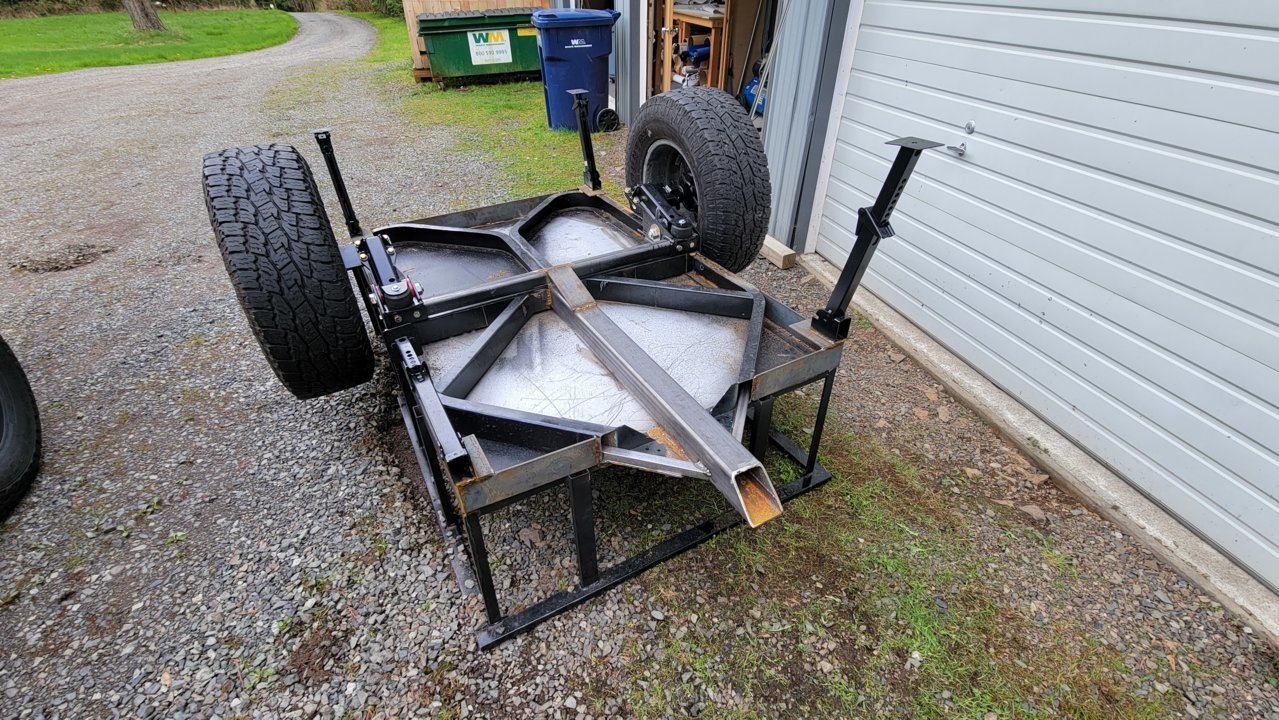

    Small update. New tongue has been welded in and supports added. I need to clean up the bottom and paint it finally. A 3x5x12 tube is going to be welded on top of the 3.5" tube that's on there now, then a 2.5" on that. That will get me to the height of the hitch on the truck. So much welding. Wish I had something a bit stronger than my 140, multiple passes on this 1/4 to try and get as much penetration as possible


    ohcaltexscar, Fohu and Slashaar like this.
  11. Apr 19, 2022 at 4:04 PM
    #51
    Wyckedan

    Wyckedan [OP] Well-Known Member

    Joined:
    Oct 23, 2017
    Member:
    #233922
    Messages:
    5,487
    Gender:
    Male
    First Name:
    Dan
    Woodinville WA
    Vehicle:
    2014 Stormtrooper AC 2009 Ducati Hypermotard 1100s.
    1 fully operational Death Star

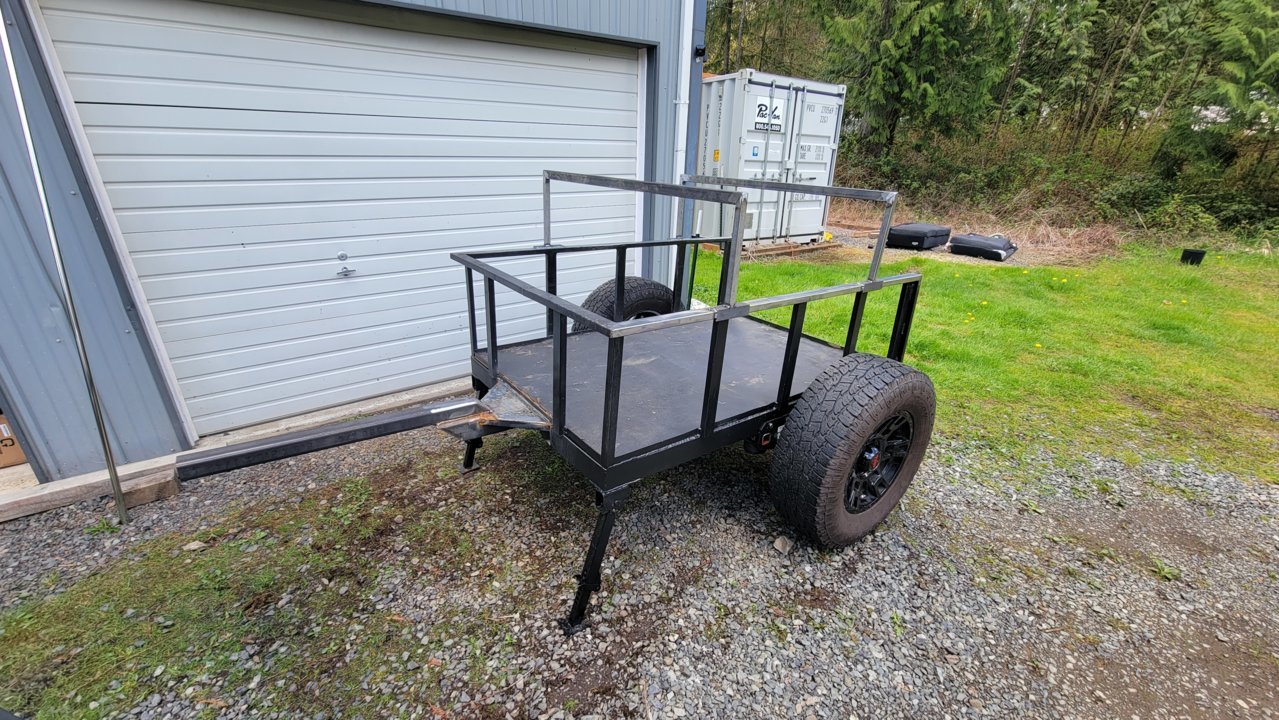

    Almost there. Tongue is on, crossbars are on. Just waiting on the hitch, need to weld in some gussets, get some boards and make a back piece.

    I think I might have to cut the crossbars off and do it again but taller. I'd like to fit a 4x4 in there, but I'll cross that road when I come to it


    Last edited: Apr 19, 2022
  12. Apr 22, 2022 at 12:30 PM
    #52
    Wyckedan

    Wyckedan [OP] Well-Known Member

    Joined:
    Oct 23, 2017
    Member:
    #233922
    Messages:
    5,487
    Gender:
    Male
    First Name:
    Dan
    Woodinville WA
    Vehicle:
    2014 Stormtrooper AC 2009 Ducati Hypermotard 1100s.
    1 fully operational Death Star

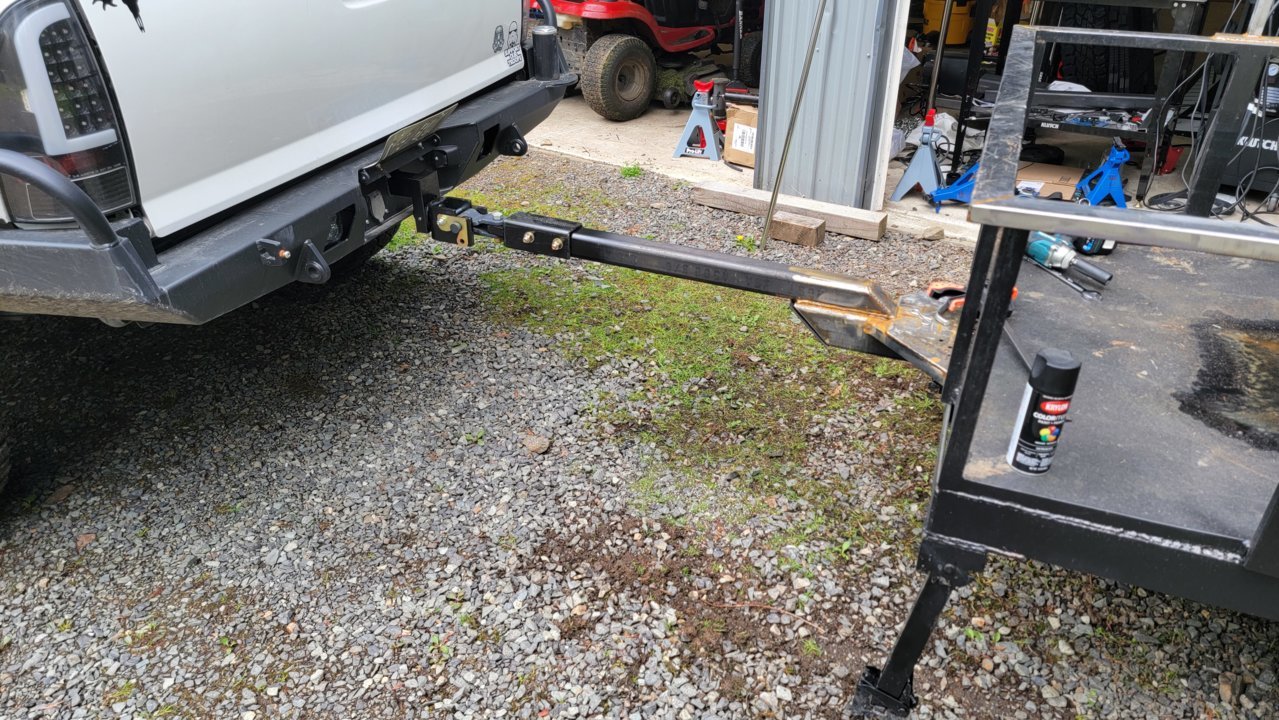

    Hitch arrived today. Got it bolted in, will weld the back as well.


  13. Apr 27, 2022 at 7:38 PM
    #53
    Wyckedan

    Wyckedan [OP] Well-Known Member

    Joined:
    Oct 23, 2017
    Member:
    #233922
    Messages:
    5,487
    Gender:
    Male
    First Name:
    Dan
    Woodinville WA
    Vehicle:
    2014 Stormtrooper AC 2009 Ducati Hypermotard 1100s.
    1 fully operational Death Star

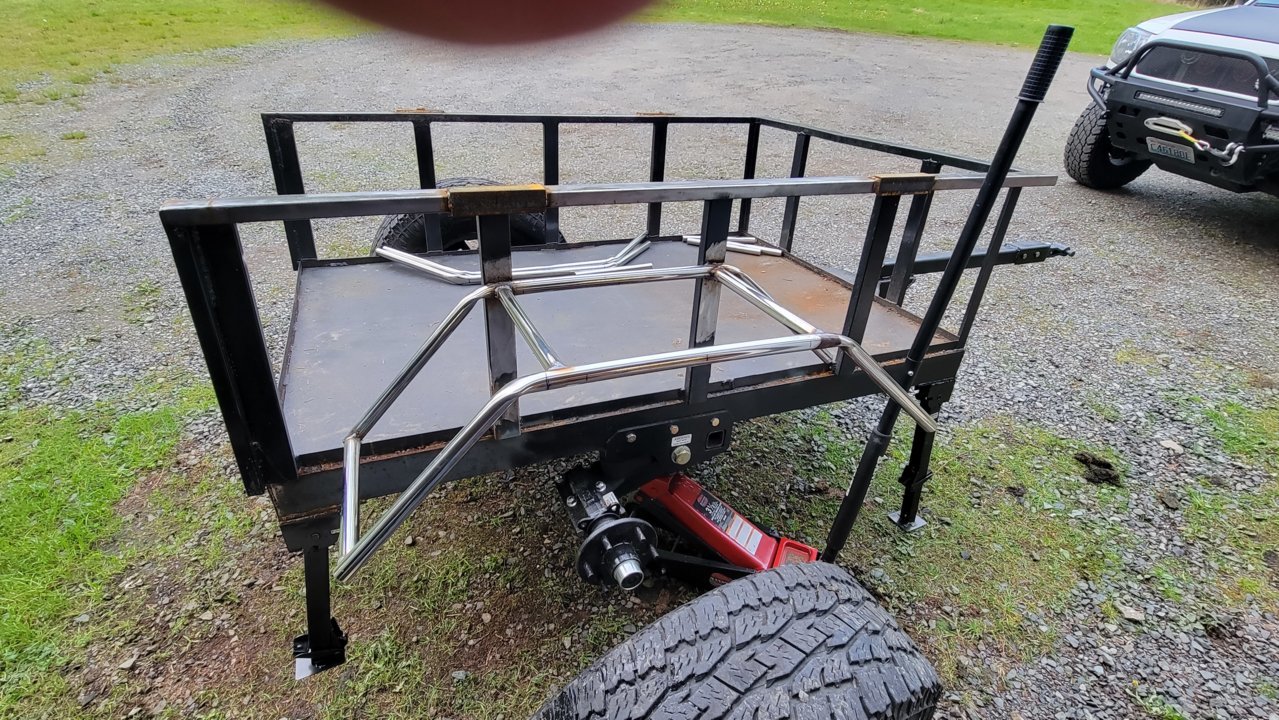

    Y'all might laugh, but I've been struggling to figure out how I wanted to do the fenders. I couldn't find anything big enough to just order. Well, my job leaves me with tons of "short" stainless tubing, so I cut 4 identical 48" pieces and 8 12" pieces. The long ones I stuck in my rock sliders and put a kink in each side as I had no other way of bending them. You can weld stainless to mild steel if you don't mind having to paint. So I welded the shit out of it and voila, fender.

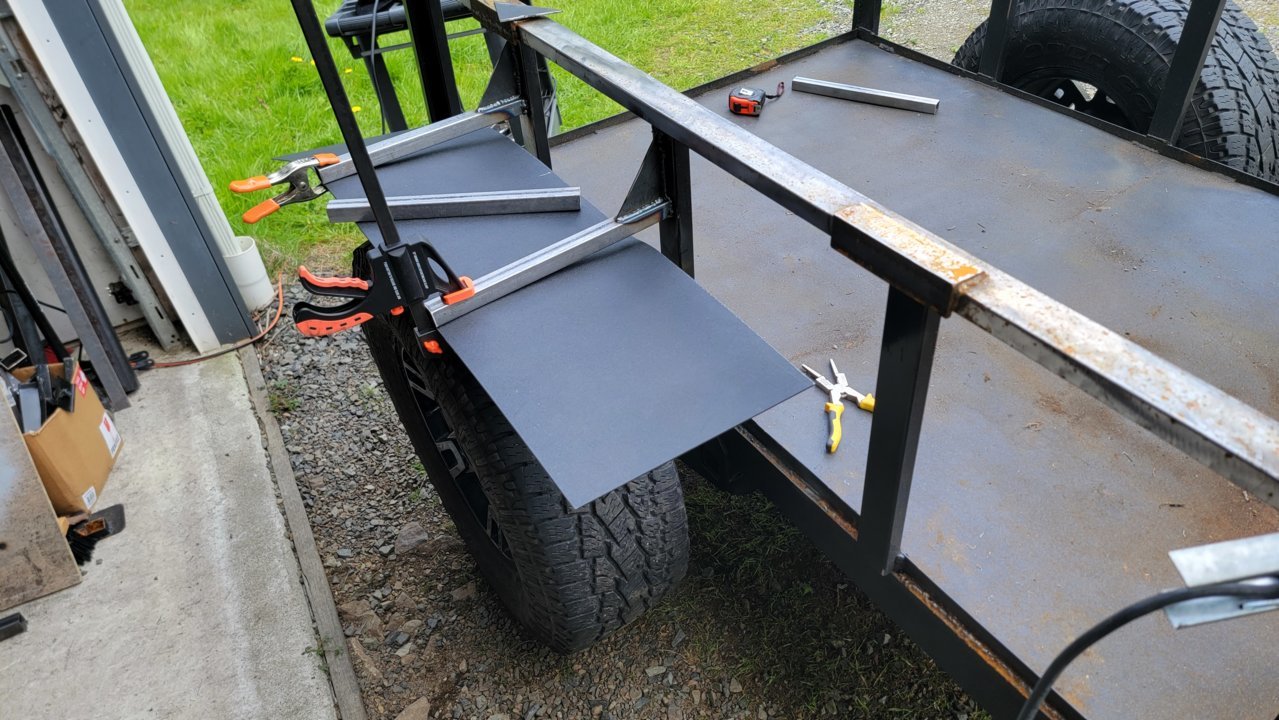

    I have some Kydex sheets from when I was making holsters, so that will skin it perfectly. Also, I cut off the crossbars. I have an idea on how to make it adjustable. Have some 1" internal diameter steel tube I'll pick up tomorrow


    ohcaltexscar, koditten and Slashaar like this.
  14. Apr 29, 2022 at 2:08 PM
    #54
    Wyckedan

    Wyckedan [OP] Well-Known Member

    Joined:
    Oct 23, 2017
    Member:
    #233922
    Messages:
    5,487
    Gender:
    Male
    First Name:
    Dan
    Woodinville WA
    Vehicle:
    2014 Stormtrooper AC 2009 Ducati Hypermotard 1100s.
    1 fully operational Death Star
    Bought some sheet metal, hammered it into shape, managed to weld it, then ripped it all off. Didn't like the fenders at all. Now I have a different idea, and it's going to allow the fenders to be steps into the rtt as well


    ohcaltexscar and Slashaar like this.
  15. Apr 29, 2022 at 2:13 PM
    #55
    Slashaar

    Slashaar Trail Limo Supreme & Certified Hole Massager

    Joined:
    Nov 23, 2017
    Member:
    #236717
    Messages:
    15,529
    Gender:
    Male
    First Name:
    Josh
    Kansas City, MO
    Vehicle:
    2015 Tacoma TRD-Sport DC LB
    Coastal HC Front, 6112s+650lb King Coils, JD 62 Swap + 14" Fox 2.0s
    That's what making something unique is all about, trial and error till you get the outcome you want.

  16. Apr 29, 2022 at 2:25 PM
    #56
    Wyckedan

    Wyckedan [OP] Well-Known Member

    Joined:
    Oct 23, 2017
    Member:
    #233922
    Messages:
    5,487
    Gender:
    Male
    First Name:
    Dan
    Woodinville WA
    Vehicle:
    2014 Stormtrooper AC 2009 Ducati Hypermotard 1100s.
    1 fully operational Death Star
    Heck yeah. I wanted something stronger anyways. Just means another trip to get more steel

    Slashaar[QUOTED] likes this.
  17. Apr 29, 2022 at 5:53 PM
    #57
    Wyckedan

    Wyckedan [OP] Well-Known Member

    Joined:
    Oct 23, 2017
    Member:
    #233922
    Messages:
    5,487
    Gender:
    Male
    First Name:
    Dan
    Woodinville WA
    Vehicle:
    2014 Stormtrooper AC 2009 Ducati Hypermotard 1100s.
    1 fully operational Death Star

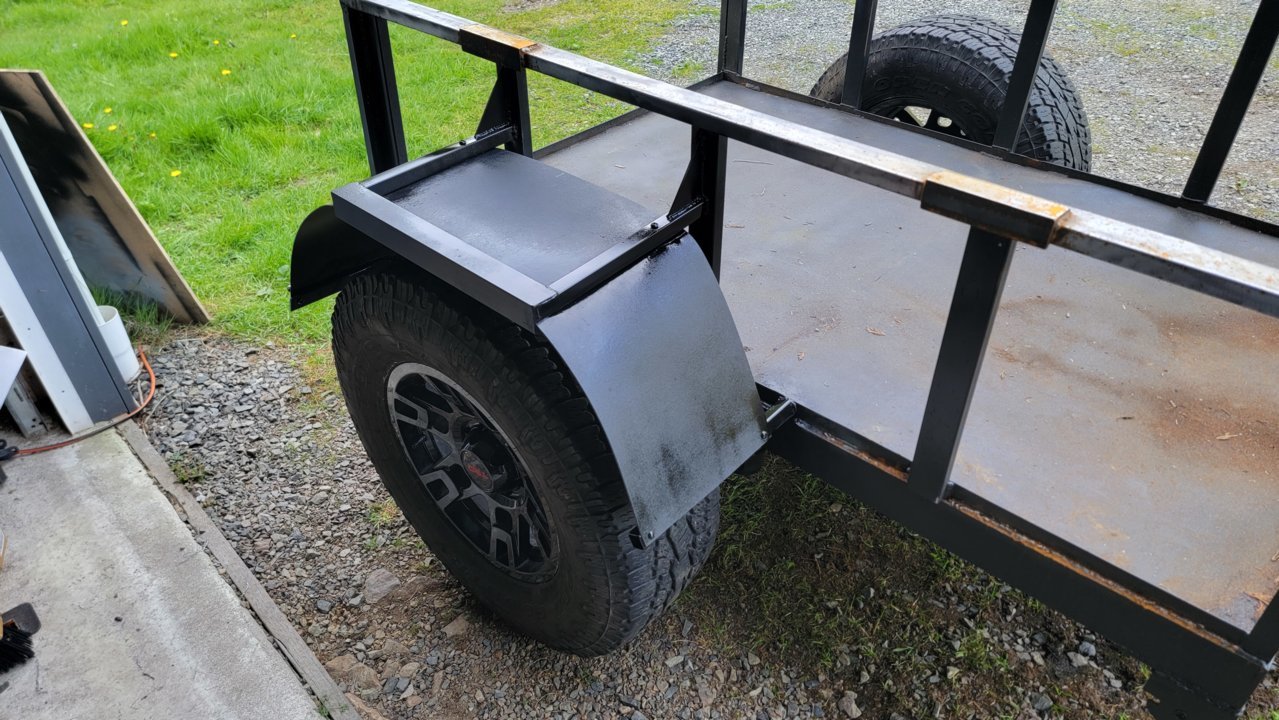

    Finished one side. Strong enough to step on, bash into rocks, drop off a cliff.


  18. Apr 29, 2022 at 6:04 PM
    #58
    Slashaar

    Slashaar Trail Limo Supreme & Certified Hole Massager

    Joined:
    Nov 23, 2017
    Member:
    #236717
    Messages:
    15,529
    Gender:
    Male
    First Name:
    Josh
    Kansas City, MO
    Vehicle:
    2015 Tacoma TRD-Sport DC LB
    Coastal HC Front, 6112s+650lb King Coils, JD 62 Swap + 14" Fox 2.0s
    Should add another step at the lips of the well, that's a bit of a step up to the top of the fender.

  19. Apr 29, 2022 at 6:15 PM
    #59
    Wyckedan

    Wyckedan [OP] Well-Known Member

    Joined:
    Oct 23, 2017
    Member:
    #233922
    Messages:
    5,487
    Gender:
    Male
    First Name:
    Dan
    Woodinville WA
    Vehicle:
    2014 Stormtrooper AC 2009 Ducati Hypermotard 1100s.
    1 fully operational Death Star
    Definitely. Good idea. One more thing on the list

    Slashaar[QUOTED] likes this.
  20. Apr 30, 2022 at 6:46 AM
    #60
    Thunder Fist

    Thunder Fist Well-Known Member

    Joined:
    Feb 11, 2017
    Member:
    #210312
    Messages:
    5,613
    Gender:
    Male
    First Name:
    David
    Birmingham, AL
    Vehicle:
    2017 MGM TRD OR DCSB
    Like, so many.
    This is a really cool project.
