Smittybilt Overlander Tent review.

Discussion in 'Off-Roading & Trails' started by Iasco, Jun 13, 2016.

  1. Jun 13, 2016 at 8:19 AM
    #1
    Iasco

    Iasco [OP] Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122211
    Messages:
    138
    Gender:
    Male
    Been posting around in the RTT forum, but I thought I would do an actual post in-case someone is thinking about getting this tent.

    I bought this tent at full retail ($800) off Amazon. I get amazon gift cards from work quite often so it was only really like 300$ of my actual money.

    I saw the smittybilt and an ARB side by side almost at a local off road expo, and the smittybilt at the expo looked every bit as good as the ARB.

    So I hashed out the pro's and cons and decided to pull the trigger on the Smittybilt, despite lack of, in my opinion, knowledge/reviews online. Purely based off of what I saw at the expo.

    So ill kind of start now.

    First off. Shipping was really fast. It was from Smittybilt directly, just sold through Amazon from what I could tell. It was scheduled for delivery on a friday, and it arrived to the local shipping center on monday. So I picked it up on a Tuesday, which in total only took 3 days to get to me from the initial shipping center in cali.

    Instructions weren't really necessary, its all pretty straight forward how it all goes together.

    When I was putting it together there were a bunch of small aluminum metal chips and shavings all over the mattress and floor of the tent. I just took a small shop vac and cleaned them all up. There arent any holes or anything from the chips, so it wasn't really an issue.

    After putting it all together, I just started looking over the tent, making sure there were no defects. What I found was just a lack of "care" in the machined parts. Almost every piece of metal had a burr on it. It was obvious the one at the expo had all the burrs removed.

    I wasn't too surprised as its a Chinese company basically. I just went through with a small file and removed all the burs, which took about 45 minutes. Not too bad.

    The ladder mounts were another thing that were corrected on the display at the expo, as mine were two completely different sizes and the ladder currently sits crooked. I called smittybilt and they are sending me new mounts. Kudos to them I guess.

    Everything works as far as function, its just lack of detail in the small pieces.

    I took it out this weekend, even though the forecast was nothing but rain. I really wanted to put this to the 'worst-case' test.

    Tent performance is flawless. It worked amazing in the nothing but wet weather and I really couldn't ask for more. Of-course there was some condensation, but it rained non stop. Ive never owned a tent that didnt get a little moist on the walls/roof, especially during rain.

    It sleeps two plus sized people (Im 250, and GF is about 210) VERY comfortably.

    Its pretty simple to put up and take down. The cover is a little finicky being velcro and tie downs to hold it on, but I'm getting better each time I put it up and take it down.

    Overall I am pleased with the purchase, and would recommend it to anyone, especially if you can get a good deal on it.

    Sorry if this is hard to read, I'm not the best at putting sentences together with correct punctuation and what not, and I have never done a product review.

    If you have any specific questions or anything, feel free to post or pm me!

  2. Jun 13, 2016 at 8:57 AM
    #2
    conifers4

    conifers4 Tired and Broke

    Joined:
    Dec 12, 2014
    Member:
    #144143
    Messages:
    830
    Gender:
    Male
    First Name:
    Brian
    Long Island, NY
    Vehicle:
    2010 DCLB 4X4
    Just wanted to say thanks for taking the time to share your experience with prospective buyers.

  3. Jun 13, 2016 at 5:46 PM
    #3
    503MIKE

    503MIKE Well-Known Member

    Joined:
    May 22, 2016
    Member:
    #187582
    Messages:
    316
    Gender:
    Male
    First Name:
    Mike
    Oregon
    Vehicle:
    2009 pyrite mica dcsb Tacoma
    Ome lift w/Dakar leafs, SCS f5s K02, prinsu roof rack, all pro apex sliders and head waters seat covers.
    Great review.

    hoverlover and BandanaBerg like this.
  4. Jun 13, 2016 at 7:07 PM
    #4
    JimBCa

    JimBCa Well-Known Member

    Joined:
    Aug 24, 2012
    Member:
    #85477
    Messages:
    575
    Gender:
    Male
    First Name:
    Jim
    Bay Area California
    Vehicle:
    2012 TRD Off Road
    Build Duratrac 265/75R16 Load rated E BAMF Rock Sliders, Pelfreybilt Front bumper and skid plates (3) Pro Runner front and rear shocks,Add-A-Leaf springs ATO (Armor Tech Offroad) hilift mounts, Famous Fabrication cb antenna/flag mount CoverKing Tactical seat covers, Flyzeye dash-light ARE Shell, backup light mod SumoSprings and Stops
    Thanks, this is the best kind of review, puts it all in perspective. Want to pay a little less, may have to do some finish work.. Thank you

    hoverlover and BandanaBerg like this.
  5. Jun 13, 2016 at 7:19 PM
    #5
    GHOST SHIP

    GHOST SHIP hates you.

    Joined:
    Mar 9, 2015
    Member:
    #150537
    Messages:
    19,803
    Gender:
    Male
    First Name:
    GHOST
    Thanks for the review, but how about some pictures? You could show one of the issues you had (or non-issues) with some closeups and maybe an overall view of it mounted to you rig.

    BandanaBerg and Iasco [OP] like this.
  6. Jun 13, 2016 at 7:23 PM
    #6
    SmittySmith

    SmittySmith Member

    Joined:
    Nov 30, 2015
    Member:
    #171037
    Messages:
    22
    Gender:
    Male
    First Name:
    Spencer
    Ft. Collins, CO
    Vehicle:
    2010 MGM AC 2.7l 5speed
    Just got same tent. Could not have said it better on the review. Great tent for the price.image.jpg

  7. Jun 13, 2016 at 7:27 PM
    #7
    ChamYota

    ChamYota Crash Bandicoot Or Groot, Just Depends

    Joined:
    Jul 6, 2011
    Member:
    #59431
    Messages:
    11,748
    Gender:
    Male
    First Name:
    Cam
    Columbia,South Cakalacky
    Vehicle:
    05' Taco 4x4 swapped/ 03' GX470
    H1 Morimoto projector with XB35 4300K bulbs with Mini-gatling gun shrouds, BHLM. Debadged,OEM roof rack,TW sticker,Sockmonkey Beside decals,265/70/16 Nitto terra grapplers with dick cepek DC'2 wheels,weathertech floor liners(front/back),USA Spec Ipod reader,Scanguage II,Bestop Supertopper and more in the works...
    BandanaBerg, Iasco [OP] and scottalot like this.
  8. Jun 13, 2016 at 7:28 PM
    #8
    ChamYota

    ChamYota Crash Bandicoot Or Groot, Just Depends

    Joined:
    Jul 6, 2011
    Member:
    #59431
    Messages:
    11,748
    Gender:
    Male
    First Name:
    Cam
    Columbia,South Cakalacky
    Vehicle:
    05' Taco 4x4 swapped/ 03' GX470
    H1 Morimoto projector with XB35 4300K bulbs with Mini-gatling gun shrouds, BHLM. Debadged,OEM roof rack,TW sticker,Sockmonkey Beside decals,265/70/16 Nitto terra grapplers with dick cepek DC'2 wheels,weathertech floor liners(front/back),USA Spec Ipod reader,Scanguage II,Bestop Supertopper and more in the works...
    Nevermind :anonymous: just read this.

    BandanaBerg, Iasco [OP] and scottalot like this.
  9. Jun 14, 2016 at 3:48 AM
    #9
    scottalot

    scottalot FooW

    Joined:
    Jun 1, 2013
    Member:
    #105349
    Messages:
    123,902
    First Name:
    Stockalot
    TW
    Vehicle:
    2018 tea four arghh Offroad 4x4 White LoveMachine
    Bone stock like Chicken in the Crock Pot .Dakkars,305/70/16 MT's, Extended length Fox Coilovers, Fox RR rear Shocks, Total Chaos UCA's, Dakar Leaf packs, LED Map and Dome, Breather relocate, Slimer from Ghost-busters starut up screen, Vent Visors, LED Pod's on Ditch Brackets soon, Level 8 Strike 6 Wheels, New MT Tars - Fierce Attitude, SOS front bumper -steel, SOS bed rack, LED white marker lights, LED reverse, TRD exhaust, Wheelers Super Bumps up front, SOS sliders bolt on with fill plates, Csjummper2003 White/Amber DTRL and white parking led bulbs, RTT rack basket Sold 2013, sold 2014 Tacoma. All listed stuff was on the '14 Bed Mat, WeatherTech Rain Guards, Ultra Gauge, TW Sticker amongst others, Useless Free OEM Bug Deflector, Flyzeye, OME Kit with 885's and Dakar and Nitro Shocks front and Rear . Tailgate mod, SOS Concepts 1/4" Skid Plate, White LED's interior Dome and Maps, Goodyear Wrangler MTR Kevlar 275/70/17, Wet Okole Seat Covers - full piping in Charcoal Grey, Lamin-X Green Fog light film, 17"x8 -10 offset Level 8 MK6 wheels in Gun Metal Finish, SOS Concepts Sliders W/ Kickout 12/21/14, Stubby antenna, LED reverse lights, lift removed 2/20/15 - making changes and trying to make up my mind
    Man I need 800.00 :)

  10. Jun 14, 2016 at 4:16 AM
    #10
    Iasco

    Iasco [OP] Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122211
    Messages:
    138
    Gender:
    Male

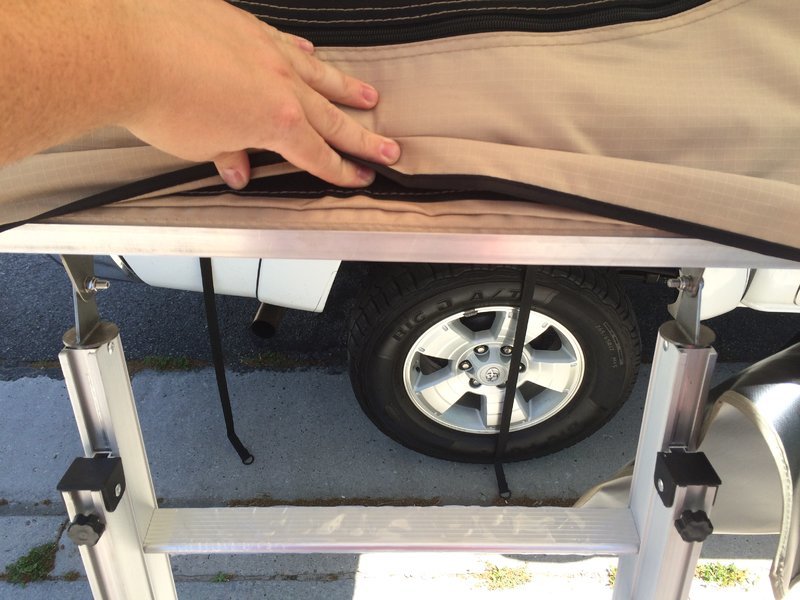

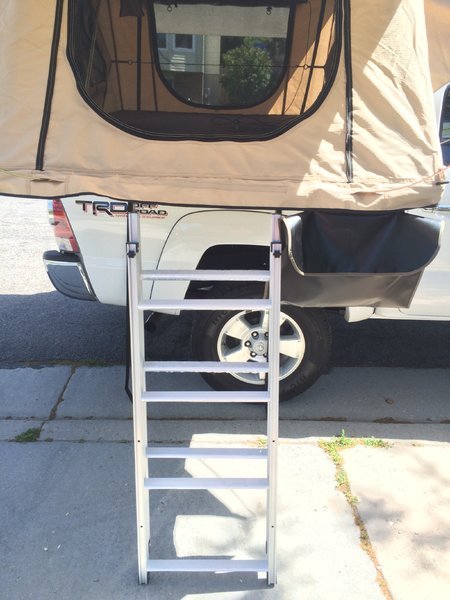

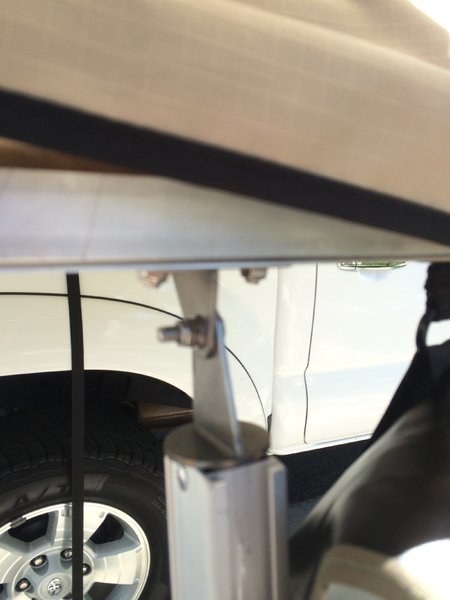

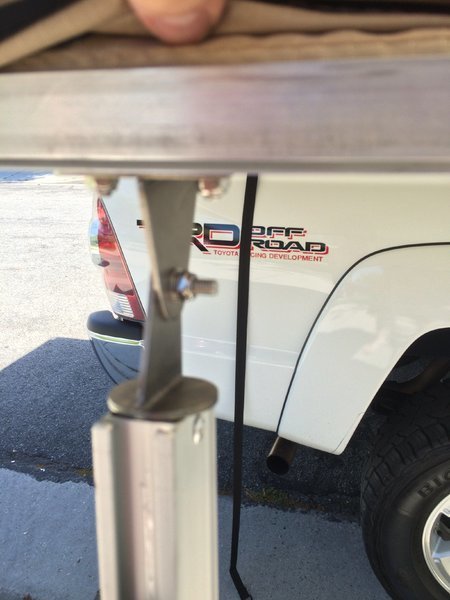

    IMG_0963.jpg IMG_0965.jpg IMG_0966.jpg IMG_0968.jpg

  11. Sep 8, 2016 at 2:03 PM
    #11
    ROCdermody

    ROCdermody Well-Known Member

    Joined:
    Oct 15, 2015
    Member:
    #166740
    Messages:
    1,055
    Gender:
    Male
    First Name:
    Steve
    Vehicle:
    '16 Quicksand DCSB TRD OR
    Great write up! Just linked here from the RTT Owners thread. This is going to be my entree into the RTT world. I haven't camped in 30 years or more, and I certainly wasn't going to drop $1,800 - $2,500 for my first RTT. The more I read about the Overland tent, the better it looks and may end up being quite the keeper.

    RNJNKE likes this.
  12. Nov 3, 2016 at 1:07 PM
    #12
    xpimpindistressx

    xpimpindistressx Well-Known Member

    Joined:
    May 18, 2013
    Member:
    #104427
    Messages:
    67
    Gender:
    Male
    *I have this tent and its wonderful for what you pay for. This guy's review is on point minus the ladder mount issue for mine.

    I do have two question for owners of this tent:

    -How much of an Angle should the RTT ladder be at?

    -Did you guys drill new locking holes into the ladder after finding correct length?



    **I temporary locked the ladder with a braided metal strap around 2 steps till I get my wheels/lift on then drill holes to permanently lock the ladder... is what I imagine will happen.
    [​IMG]

    RNJNKE likes this.
  13. Nov 7, 2016 at 8:11 AM
    #13
    SmittySmith

    SmittySmith Member

    Joined:
    Nov 30, 2015
    Member:
    #171037
    Messages:
    22
    Gender:
    Male
    First Name:
    Spencer
    Ft. Collins, CO
    Vehicle:
    2010 MGM AC 2.7l 5speed
    I have this tent and I'd say the ladder should be at least a 45* angle to the ground and I did have to drill new holes for the correct spot on the ladder.

  14. Nov 7, 2016 at 8:14 AM
    #14
    ROCdermody

    ROCdermody Well-Known Member

    Joined:
    Oct 15, 2015
    Member:
    #166740
    Messages:
    1,055
    Gender:
    Male
    First Name:
    Steve
    Vehicle:
    '16 Quicksand DCSB TRD OR
    My Overlander drops in my driveway today... :bananadance:

    AZeyeTIE likes this.
  15. Nov 7, 2016 at 8:20 AM
    #15
    SmittySmith

    SmittySmith Member

    Joined:
    Nov 30, 2015
    Member:
    #171037
    Messages:
    22
    Gender:
    Male
    First Name:
    Spencer
    Ft. Collins, CO
    Vehicle:
    2010 MGM AC 2.7l 5speed
    Sweet!!!! Your gonna love it

    BandanaBerg, AZeyeTIE and ROCdermody like this.
  16. Dec 9, 2017 at 6:52 AM
    #16
    NewTaco76

    NewTaco76 Well-Known Member

    Joined:
    Oct 27, 2013
    Member:
    #115373
    Messages:
    107
    Gender:
    Male
    Edmonton
    Vehicle:
    2012 Tacoma TRD T/X
    TRD exhaust, TRD rims
    Anyone put the Overland XL on a tacoma? I just picked one up. They are 76" long which is 3" longer than the bed. I don't believe that would be an issue since it'll be attached to a bed rack. Just curious? As i've only seen people put them on jeeps.

  17. Dec 11, 2017 at 3:20 PM
    #17
    SmittySmith

    SmittySmith Member

    Joined:
    Nov 30, 2015
    Member:
    #171037
    Messages:
    22
    Gender:
    Male
    First Name:
    Spencer
    Ft. Collins, CO
    Vehicle:
    2010 MGM AC 2.7l 5speed
    I don’t think it would be an issue, would just say make sure you make the tent fairly even on the bed bars.

  18. Dec 11, 2017 at 5:50 PM
    #18
    NewTaco76

    NewTaco76 Well-Known Member

    Joined:
    Oct 27, 2013
    Member:
    #115373
    Messages:
    107
    Gender:
    Male
    Edmonton
    Vehicle:
    2012 Tacoma TRD T/X
    TRD exhaust, TRD rims
    I took measurements. The end of the tailgate is around 75" so it should look fine.

  19. Dec 27, 2017 at 10:50 PM
    #19
    BandanaBerg

    BandanaBerg The Church Of @ODNAREM*

    Joined:
    Jan 11, 2017
    Member:
    #207231
    Messages:
    1,059
    Gender:
    Male
    First Name:
    Jason
    Tempe,AZ
    Vehicle:
    ‘06 PreRun TRD OR
    Up Front; 4” Lift Spindles, Icon 2.5 Extended w/ Fox 600s, eBay Suicide UCAs w/ Camburg Bushings/FK Uniball/Dirt King Misalignments, Pelfreybilt IFS Steel Skid... Out Back; All Pro Standard Pack,Icon 2.0 Resi, GMC Bump Stop Retro, G2 1.50” Spacers, All Pro U-Bolt Flip, All Pro Extended Brake Lines, Dif Breather Mod... Misc Bologna; Some Nice Falken Wildpeak M/Ts 315/75/16 on Pro Comp 5001 16" Custom Swing Tire Gate, CaliRaised LEDs Here and There, Anytime Fog Mod, US Off Road Hidden Winch Mount w/ Engo 9000lb, Relentless Bed Bars, Smittybilt Overlander RTT, Dual Battery Mod, LED bed lights, Amazon Cheap LEDs, Bed Light LEDs, Custom Switches, DIY Bed Rail Hi-Lift Mounts, RGB LED Stripper Pole...
    Just picked one of these up from 4wheelparts and it was on sale for about $250 Off! Not sure how long this sale price will last!
    Love It!
    Maiden Voyage this weekend for a little New Years Trip!
    There were some small metal shaving inside and under the mattress but nothing a little dust buster couldn’t fix.

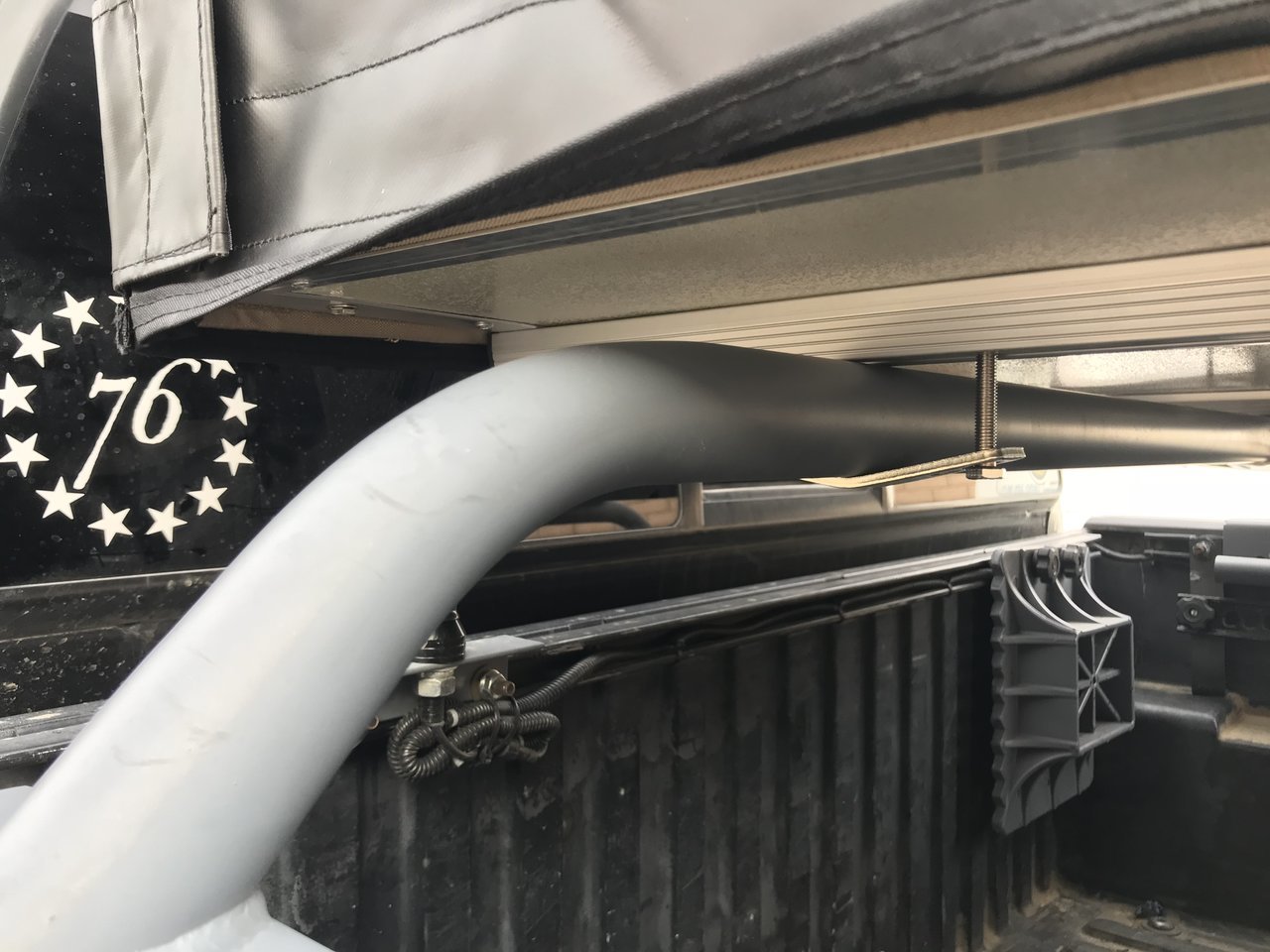

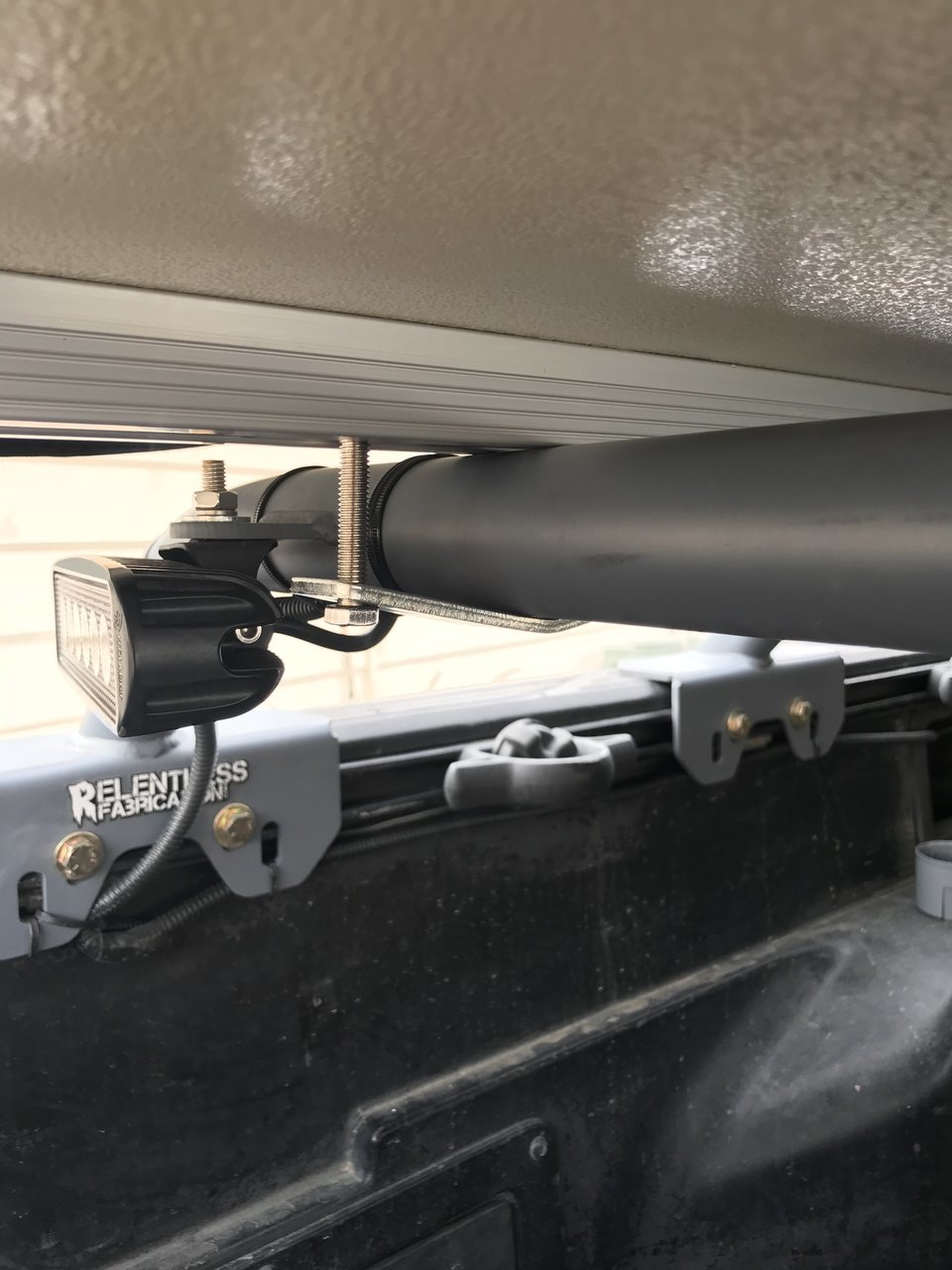

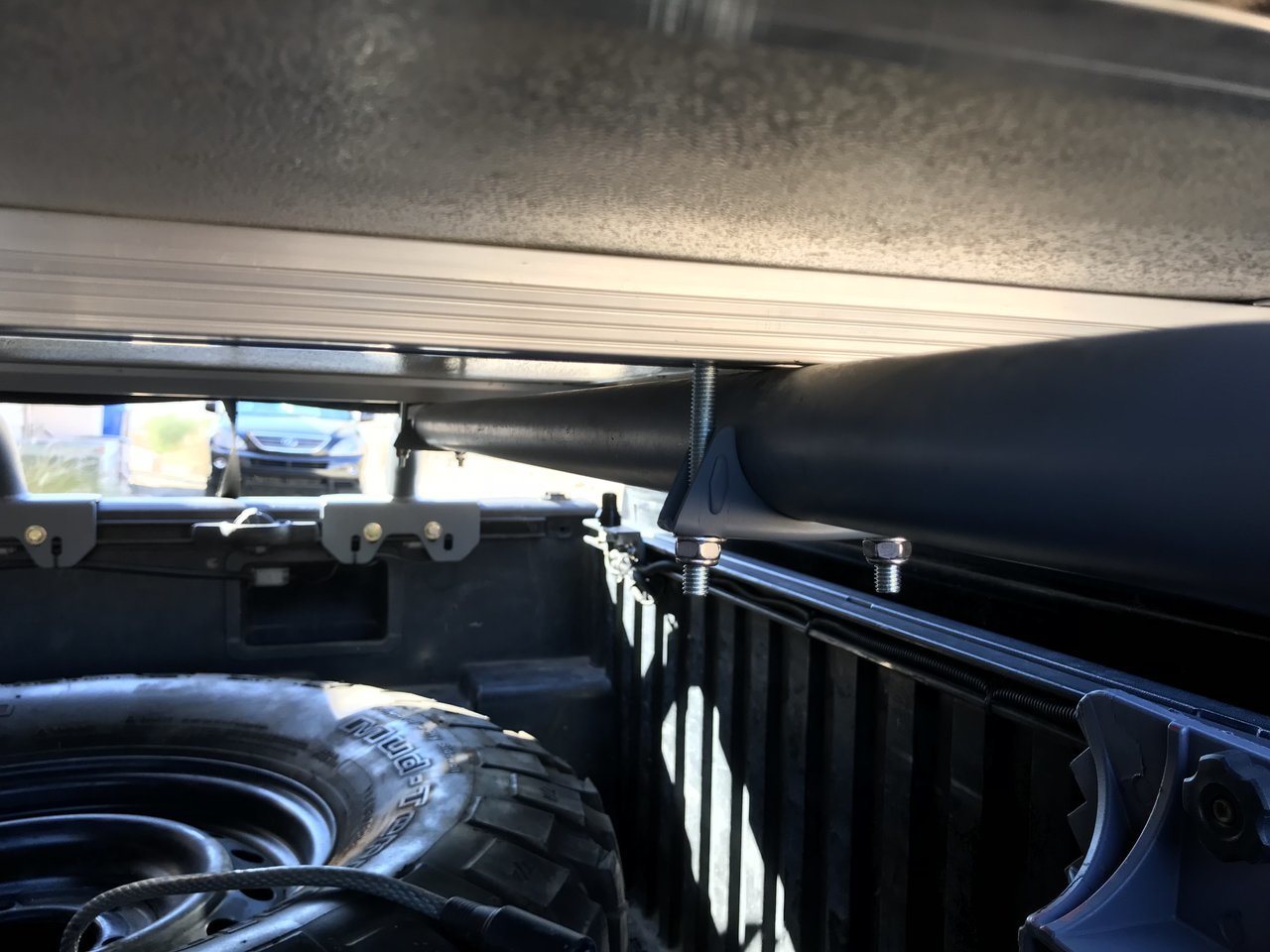

    I did have to bend the mounting brackets to get them to fit around my 1 3/4” bed bars but will be upgrading those to exhaust clamps soon... will post about the exhaust clamps as soon as I get them up & running!


    Last edited: Dec 27, 2017
  20. Jan 2, 2018 at 12:07 PM
    #20
    BandanaBerg

    BandanaBerg The Church Of @ODNAREM*

    Joined:
    Jan 11, 2017
    Member:
    #207231
    Messages:
    1,059
    Gender:
    Male
    First Name:
    Jason
    Tempe,AZ
    Vehicle:
    ‘06 PreRun TRD OR
    Up Front; 4” Lift Spindles, Icon 2.5 Extended w/ Fox 600s, eBay Suicide UCAs w/ Camburg Bushings/FK Uniball/Dirt King Misalignments, Pelfreybilt IFS Steel Skid... Out Back; All Pro Standard Pack,Icon 2.0 Resi, GMC Bump Stop Retro, G2 1.50” Spacers, All Pro U-Bolt Flip, All Pro Extended Brake Lines, Dif Breather Mod... Misc Bologna; Some Nice Falken Wildpeak M/Ts 315/75/16 on Pro Comp 5001 16" Custom Swing Tire Gate, CaliRaised LEDs Here and There, Anytime Fog Mod, US Off Road Hidden Winch Mount w/ Engo 9000lb, Relentless Bed Bars, Smittybilt Overlander RTT, Dual Battery Mod, LED bed lights, Amazon Cheap LEDs, Bed Light LEDs, Custom Switches, DIY Bed Rail Hi-Lift Mounts, RGB LED Stripper Pole...

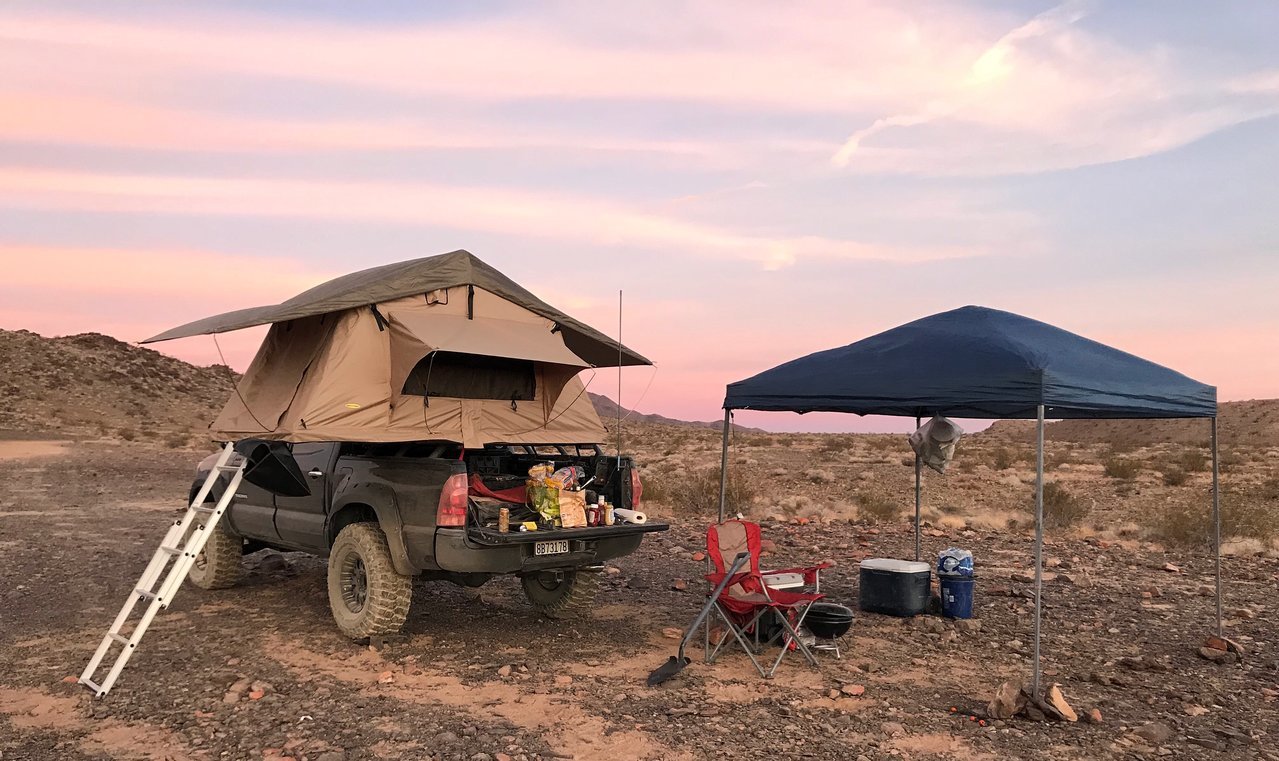

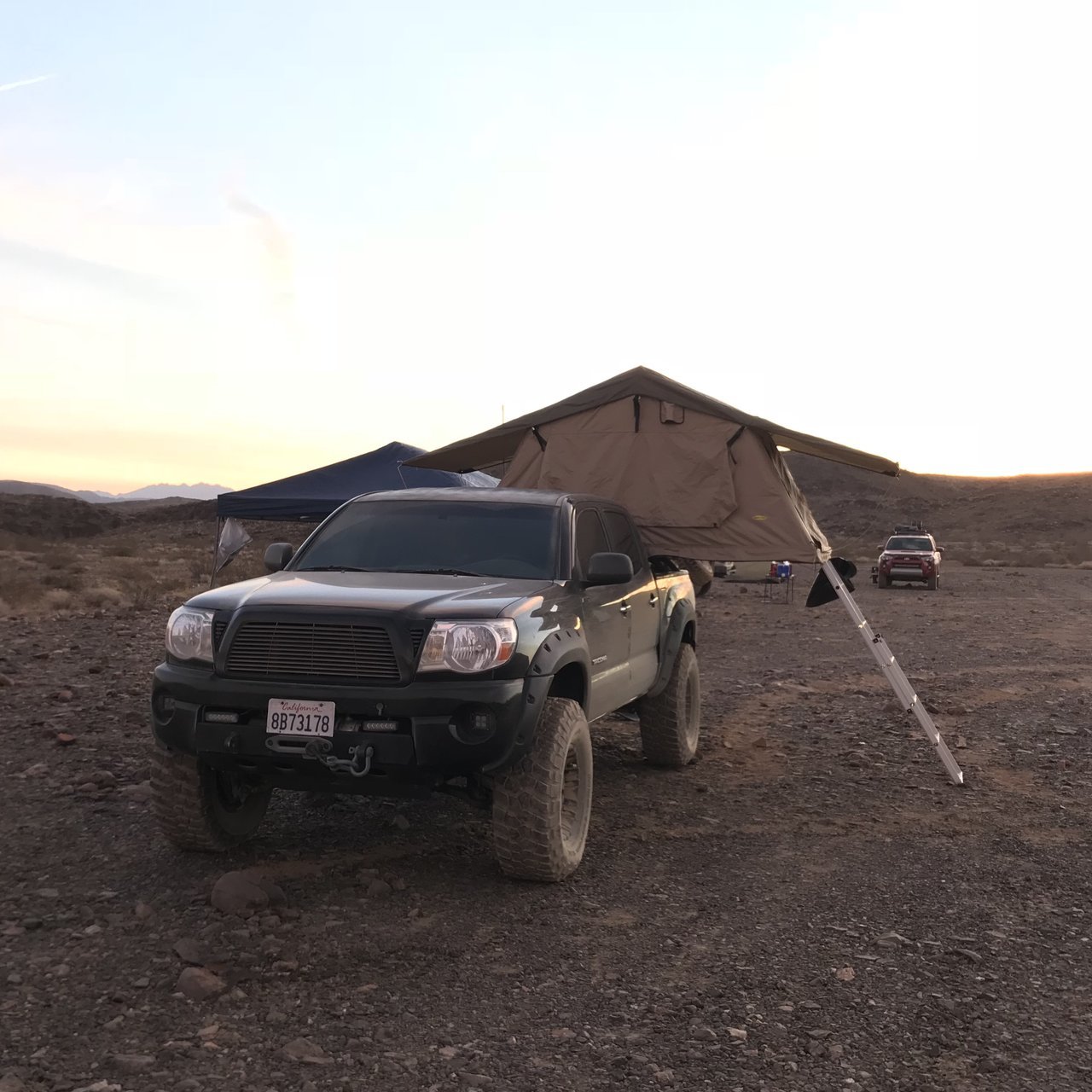

    Maiden Voyage Was a Success!

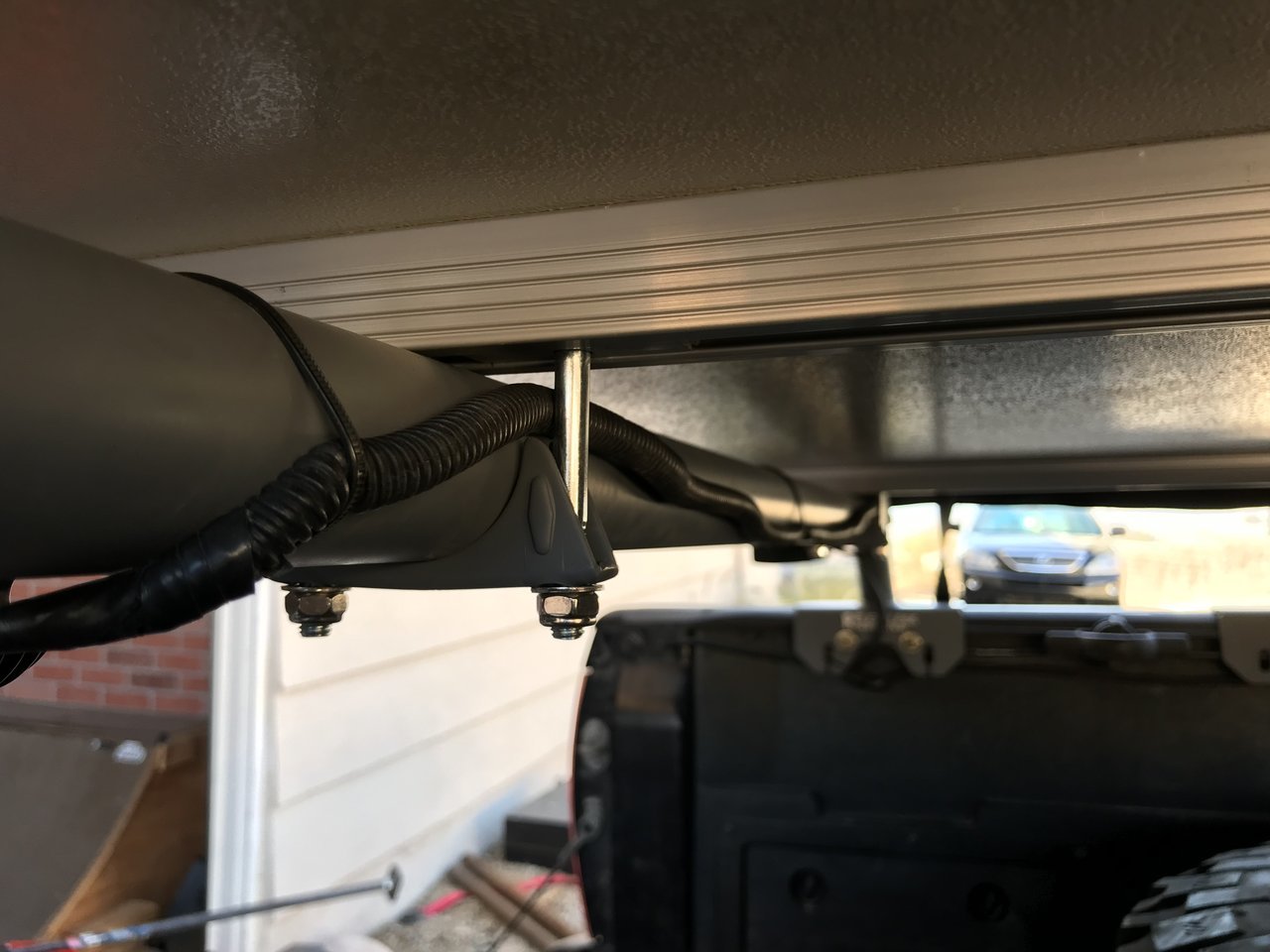

    Had a couple of issues with the mounting hardware coming loose... The hardware that connects the tent floor to the the rails rattled loose and caused a little wiggling but a quick tighten and back to normal. I plan to upgrade all of the hardware to a higher grade (Grade 8) and lock tight them all as well.

    All In All... Great Product! Great Price!
