SMKYTXN'S 2011 DCFBFTMFW Solid Axle Swap

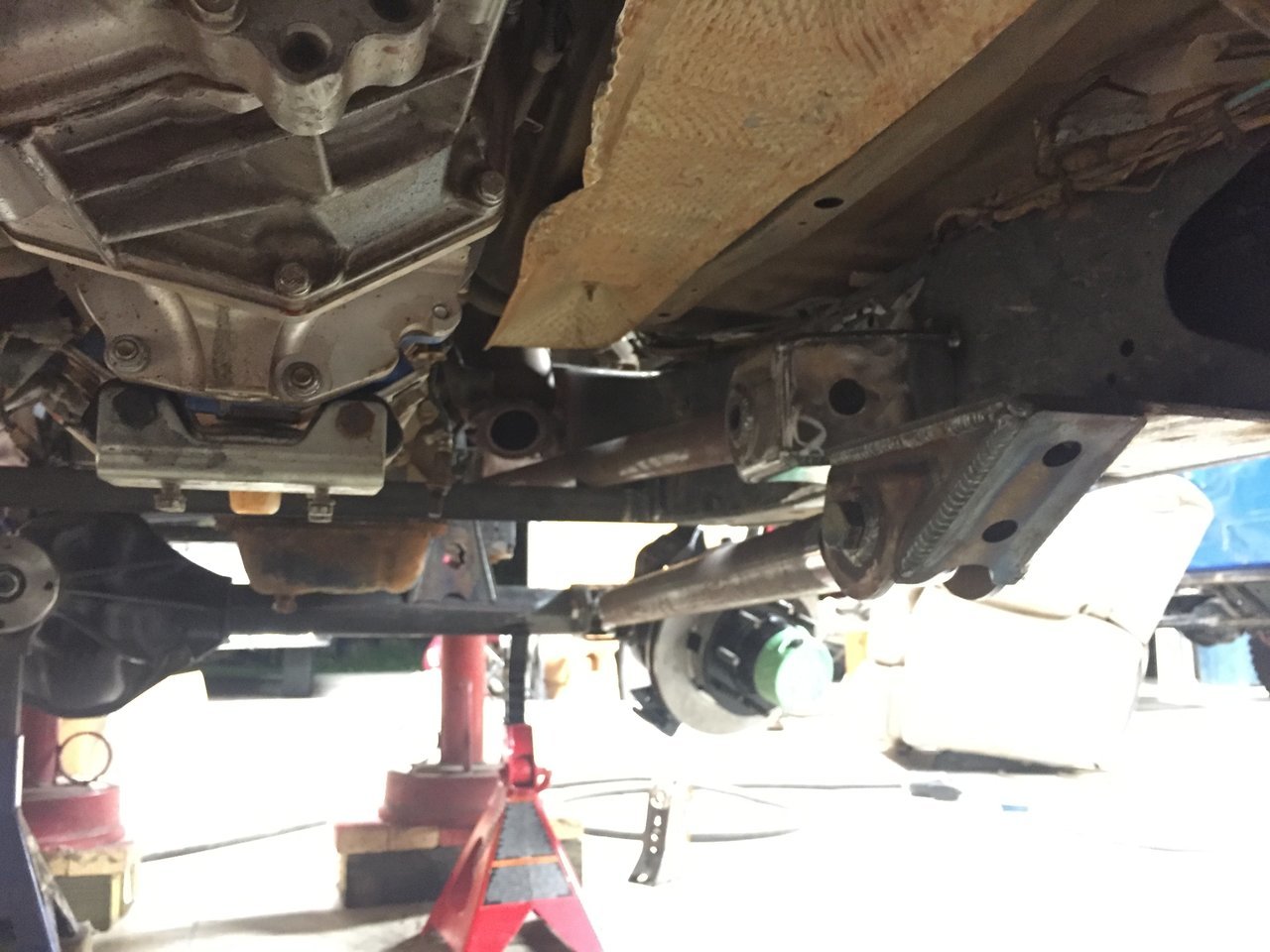

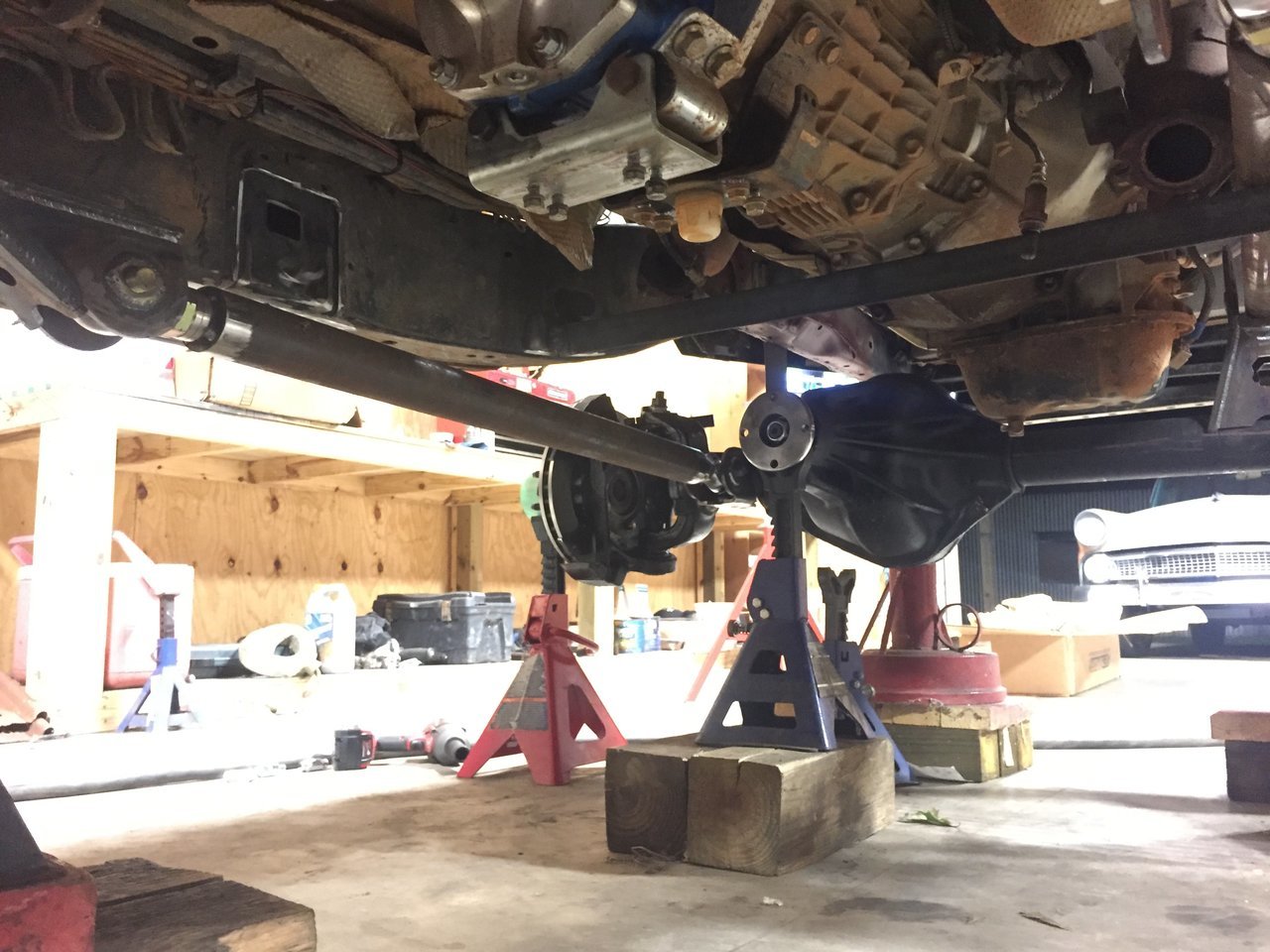

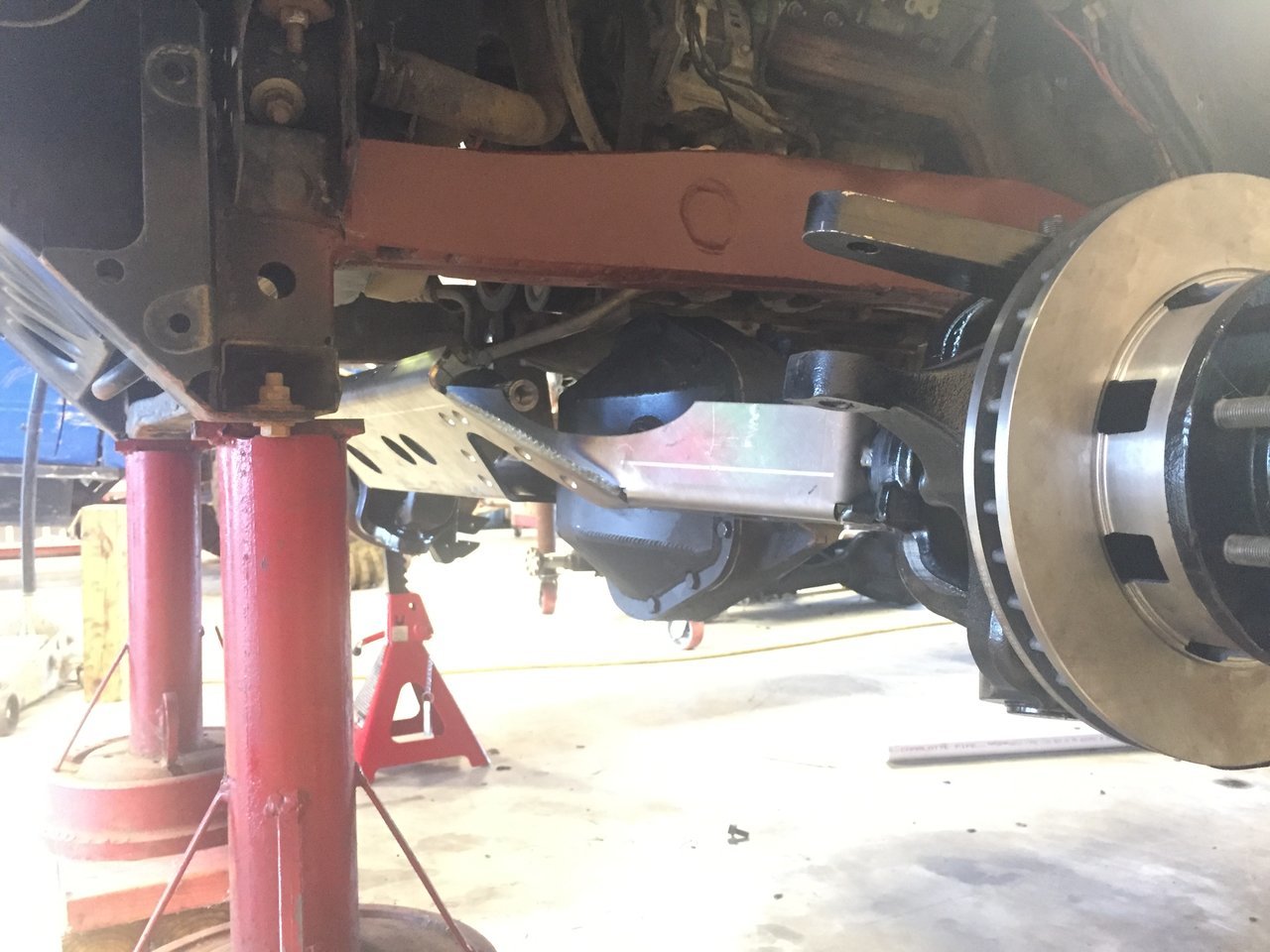

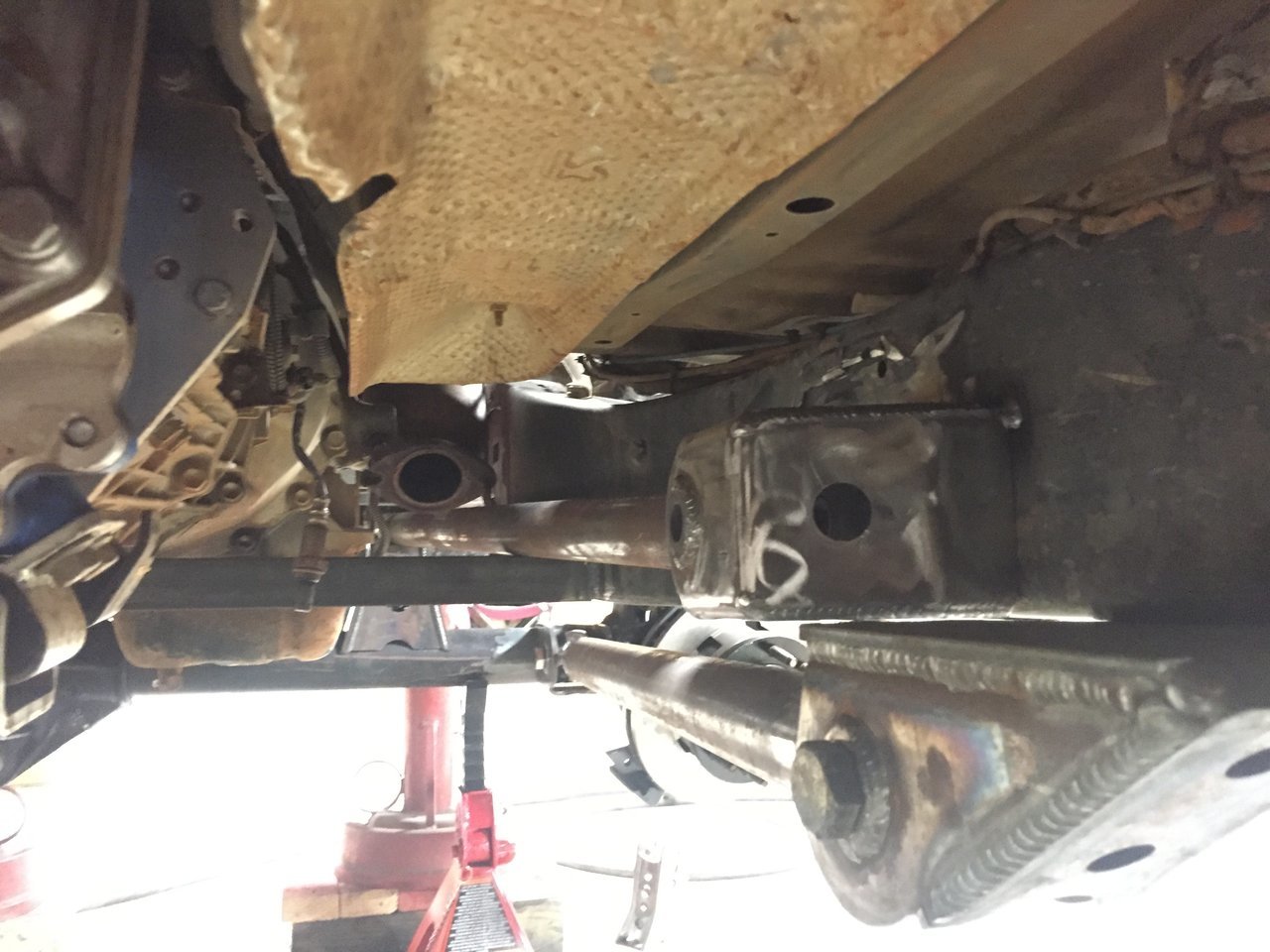

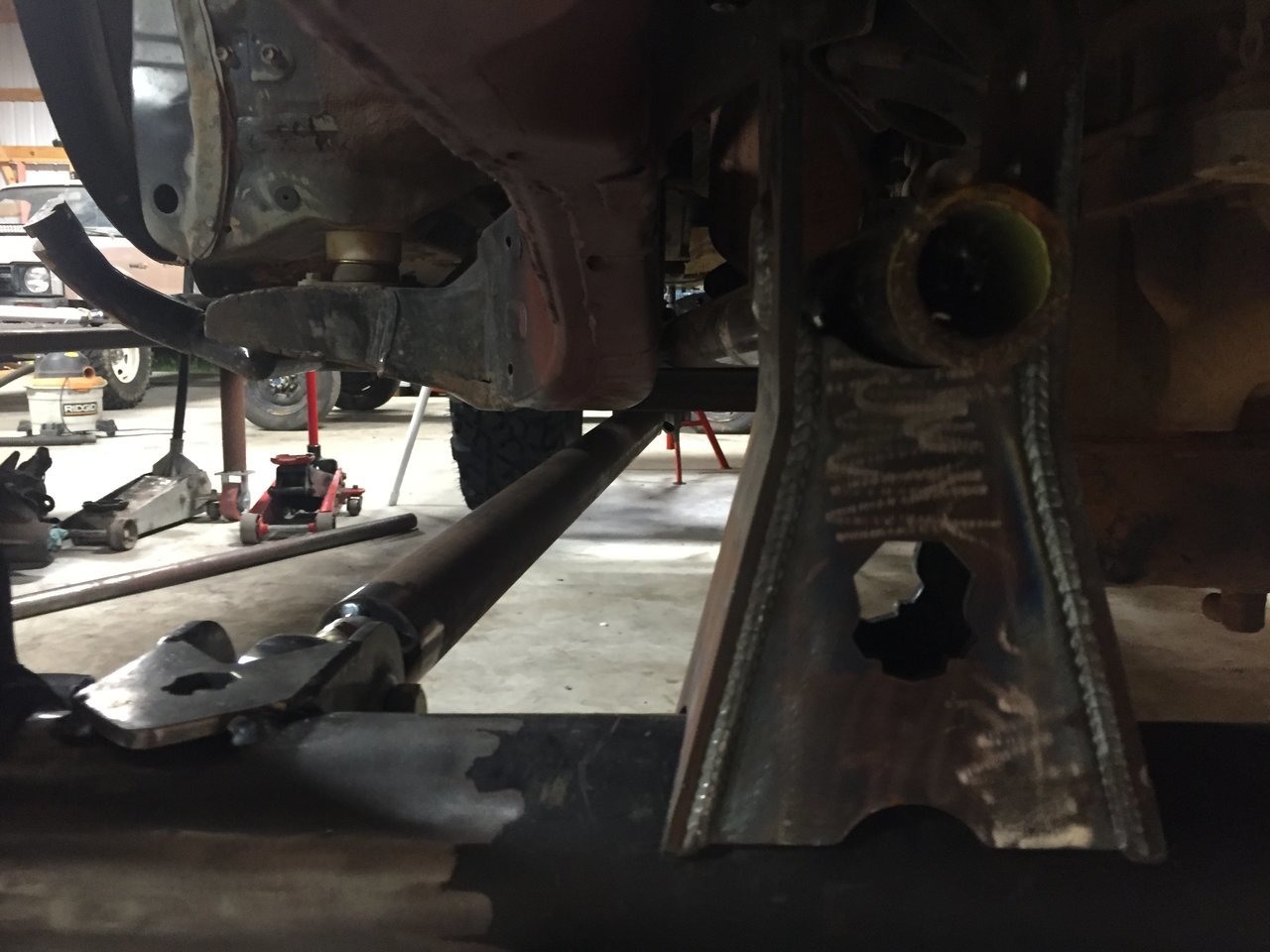

Passenger side. Now that I have my lowers in I'm going to push the axle as far up as possible and knock out the upper.

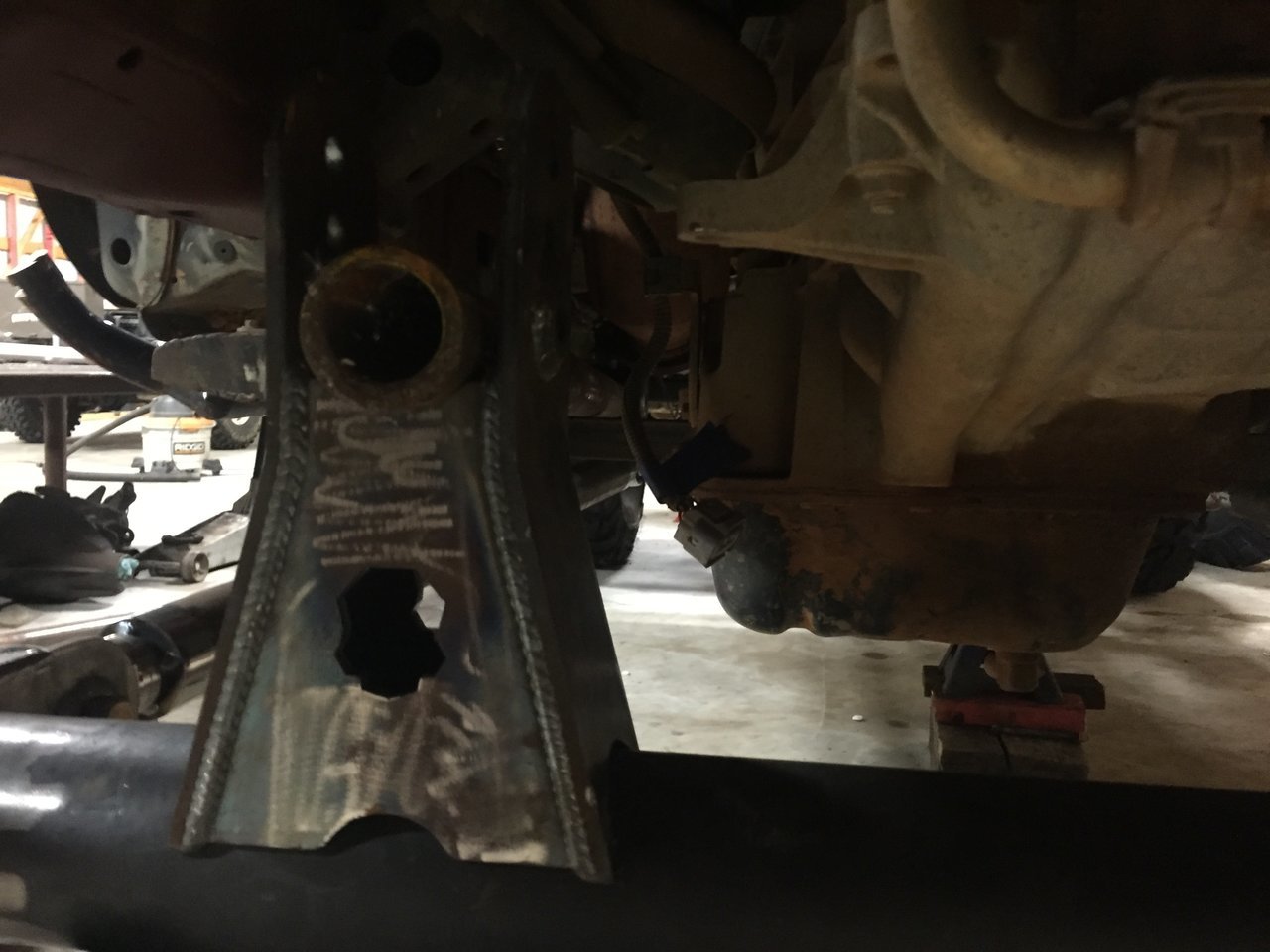

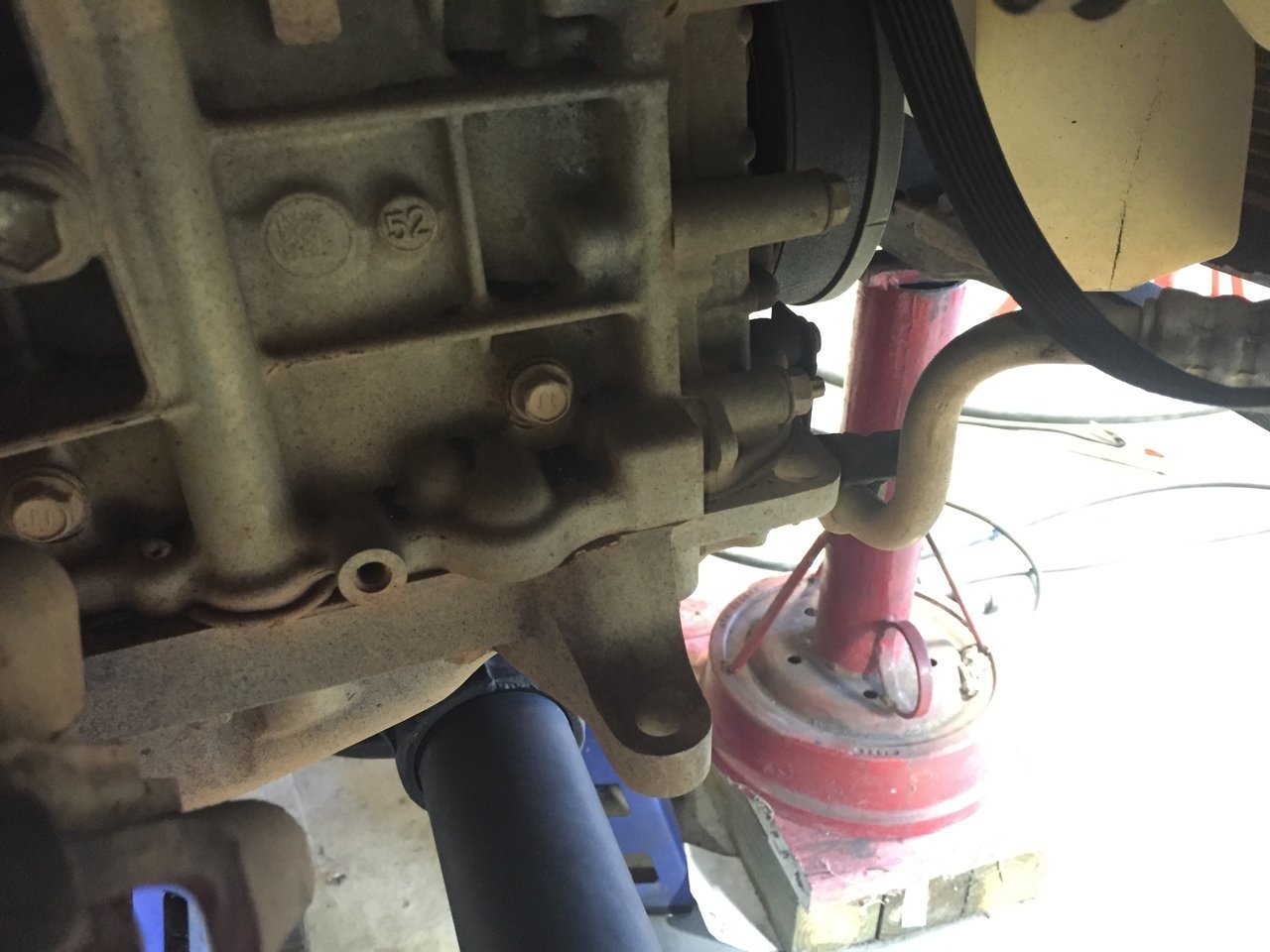

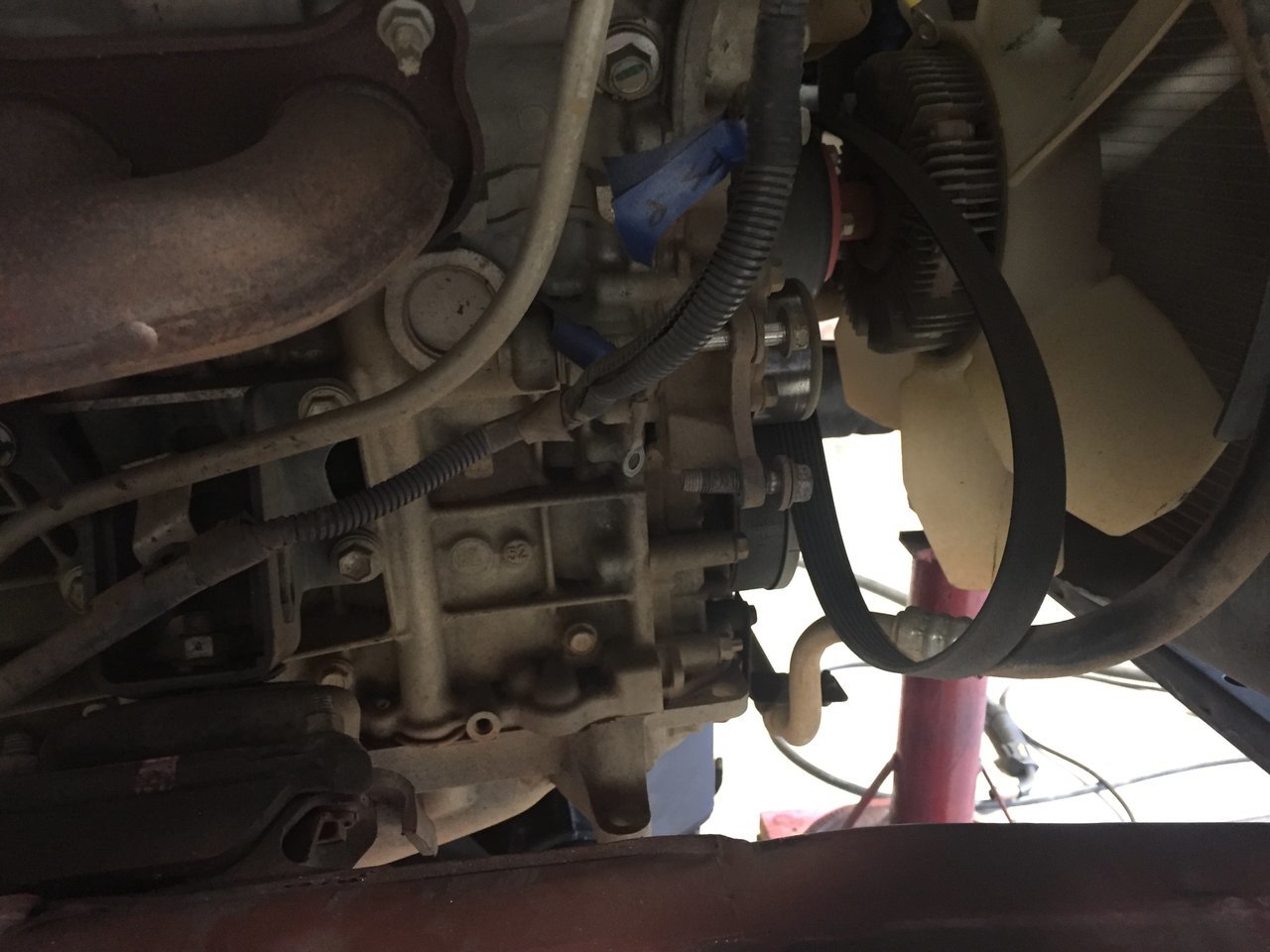

So who can tell me what this bracket is on the oil pan? It's not the PS pump as that sits up higher. It doesn't look like it's ever had a bolt in it, but I've taken a bunch of crap off so I'm not sure.

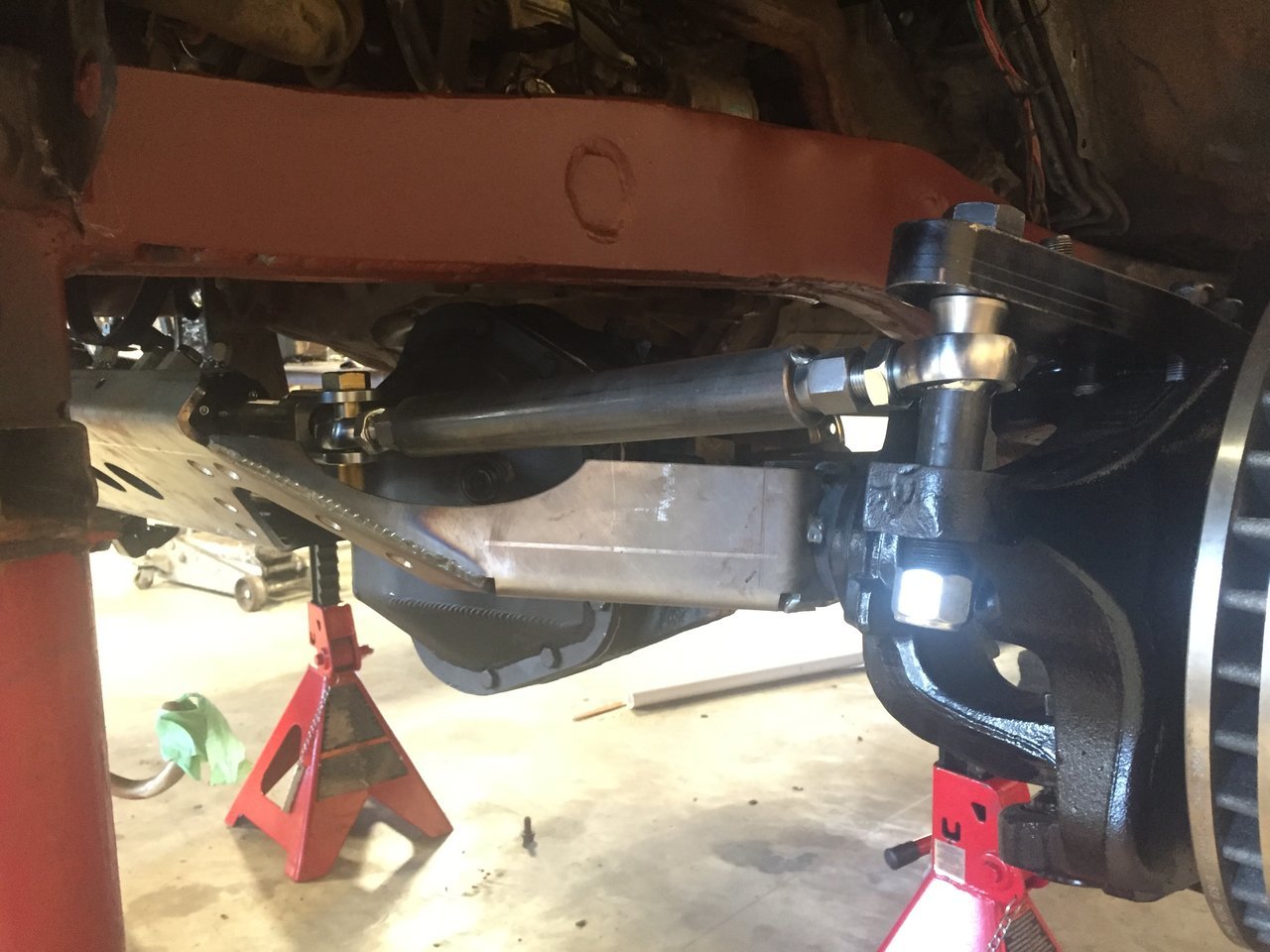

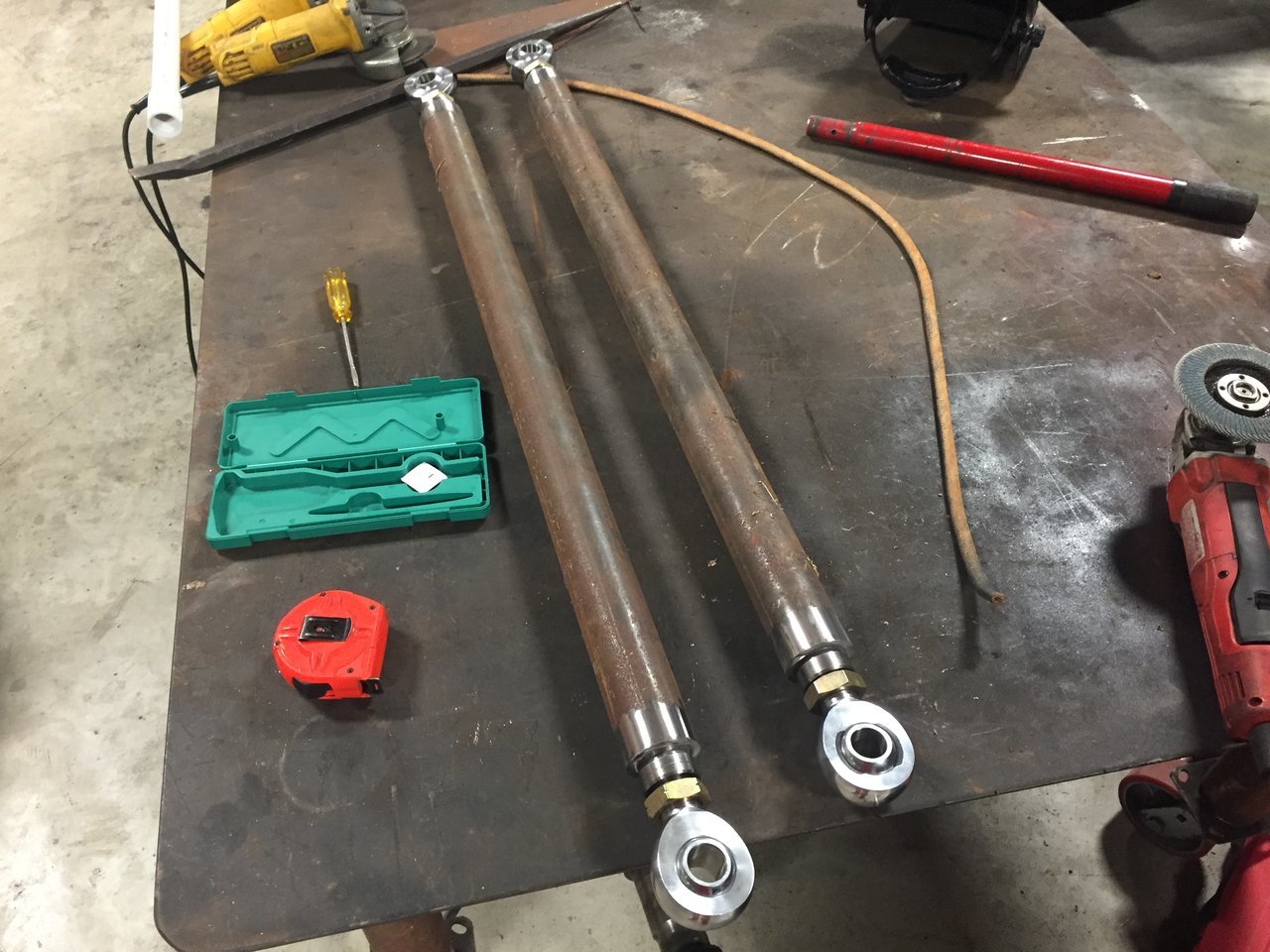

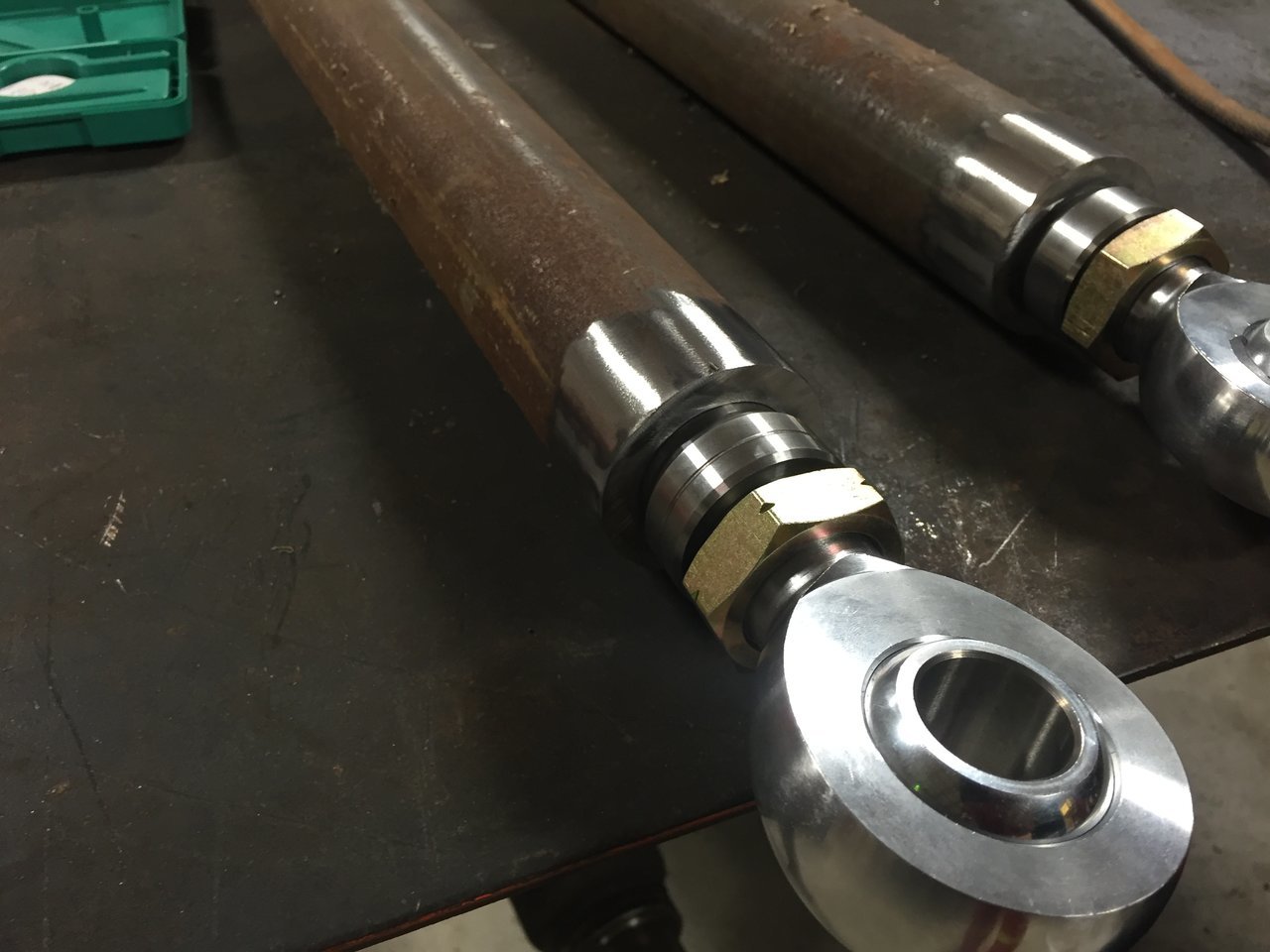

Real links this time! The PVC was to make sure my lengths where right before cutting up this high dollar DOM.

44" eye to eye
2.25" OD x 3/8" wall

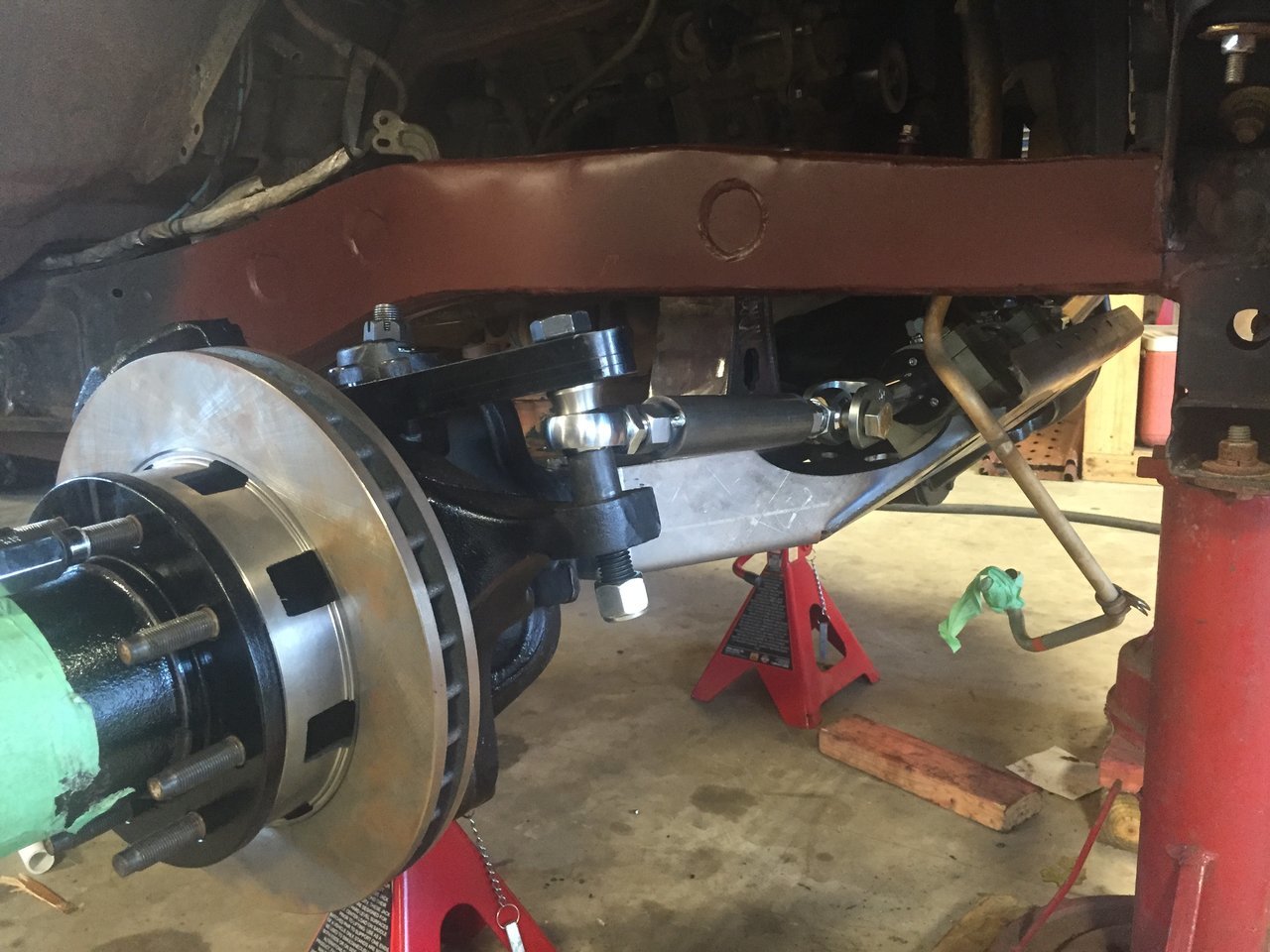

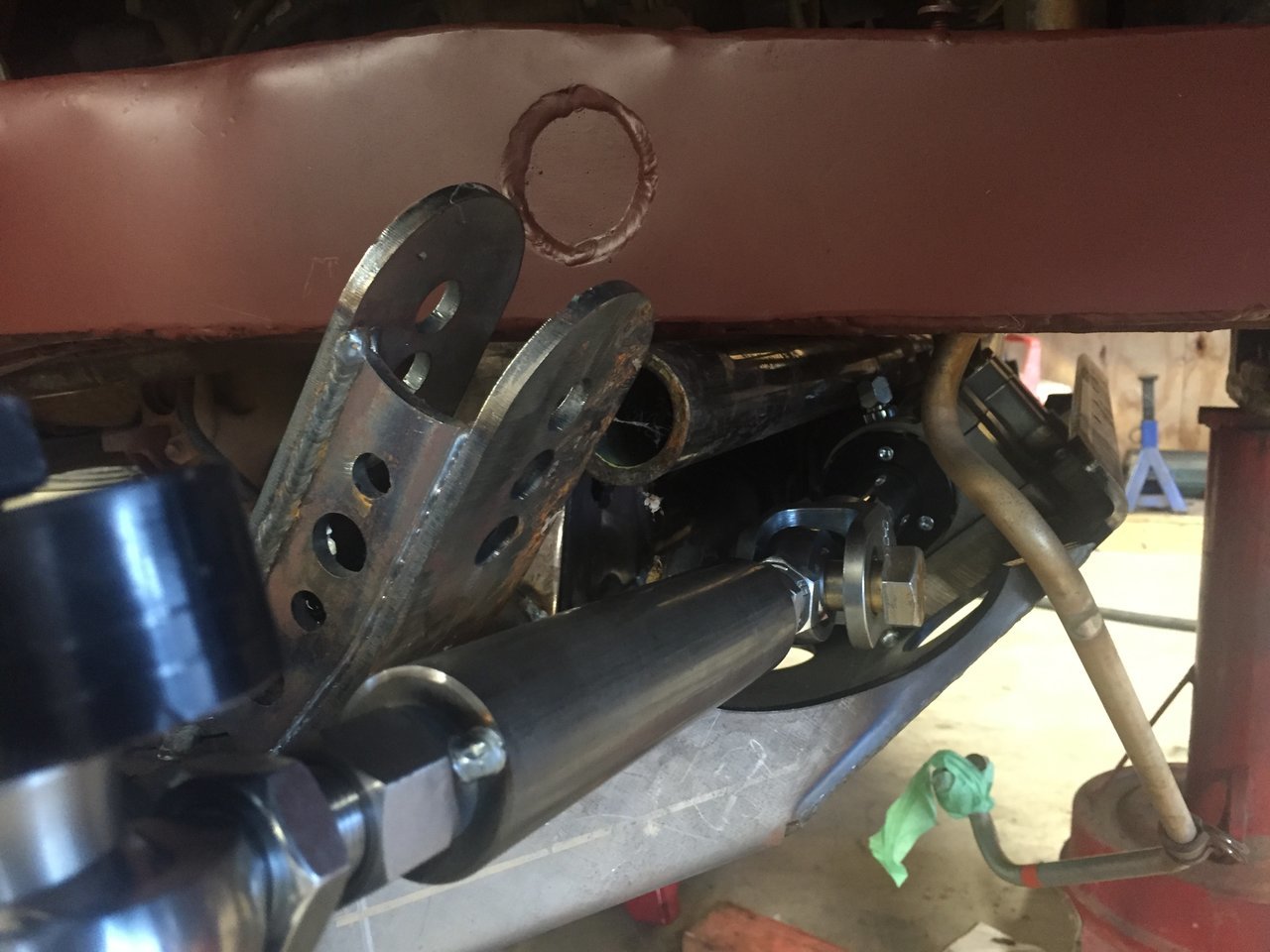

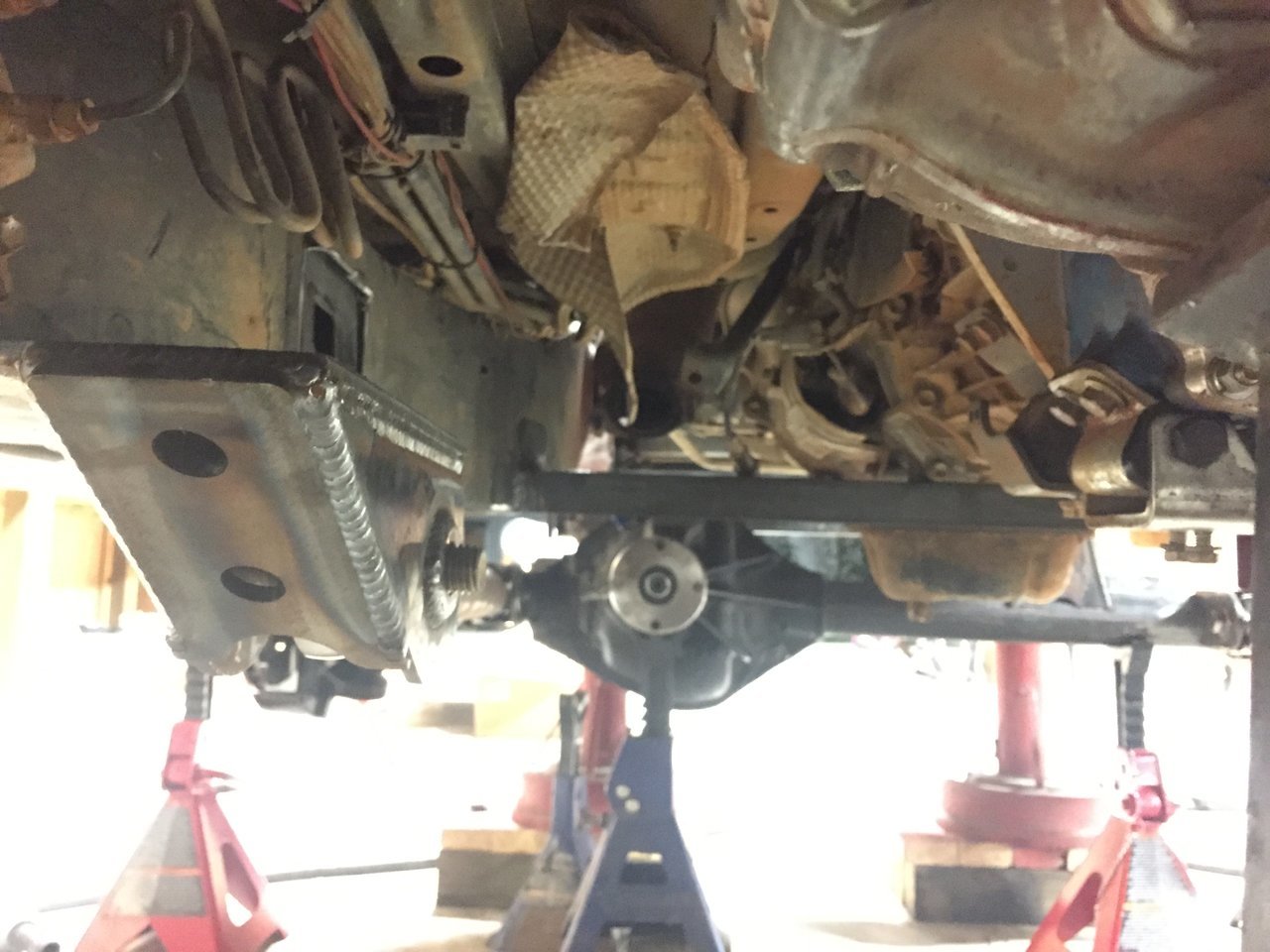

Lower links in place and mocking up the upper.



Hmmm so this is where my money is going....



Better than hookers and blow, right?



It's a close second haha



Nice build so far. For your link mounts did you buy or make them ?



Purchased through RST. They're ballistic fab for the most part.



Looking great man. With the axle pushed forward like that it will make for some nice approach angles



Keeping the flatbed or going a different route? Don't think I ever asked you this...



Pretty sure he is keeping it for now.



I think it's high time I added these into the mix. Who's got a guess as to what they are?

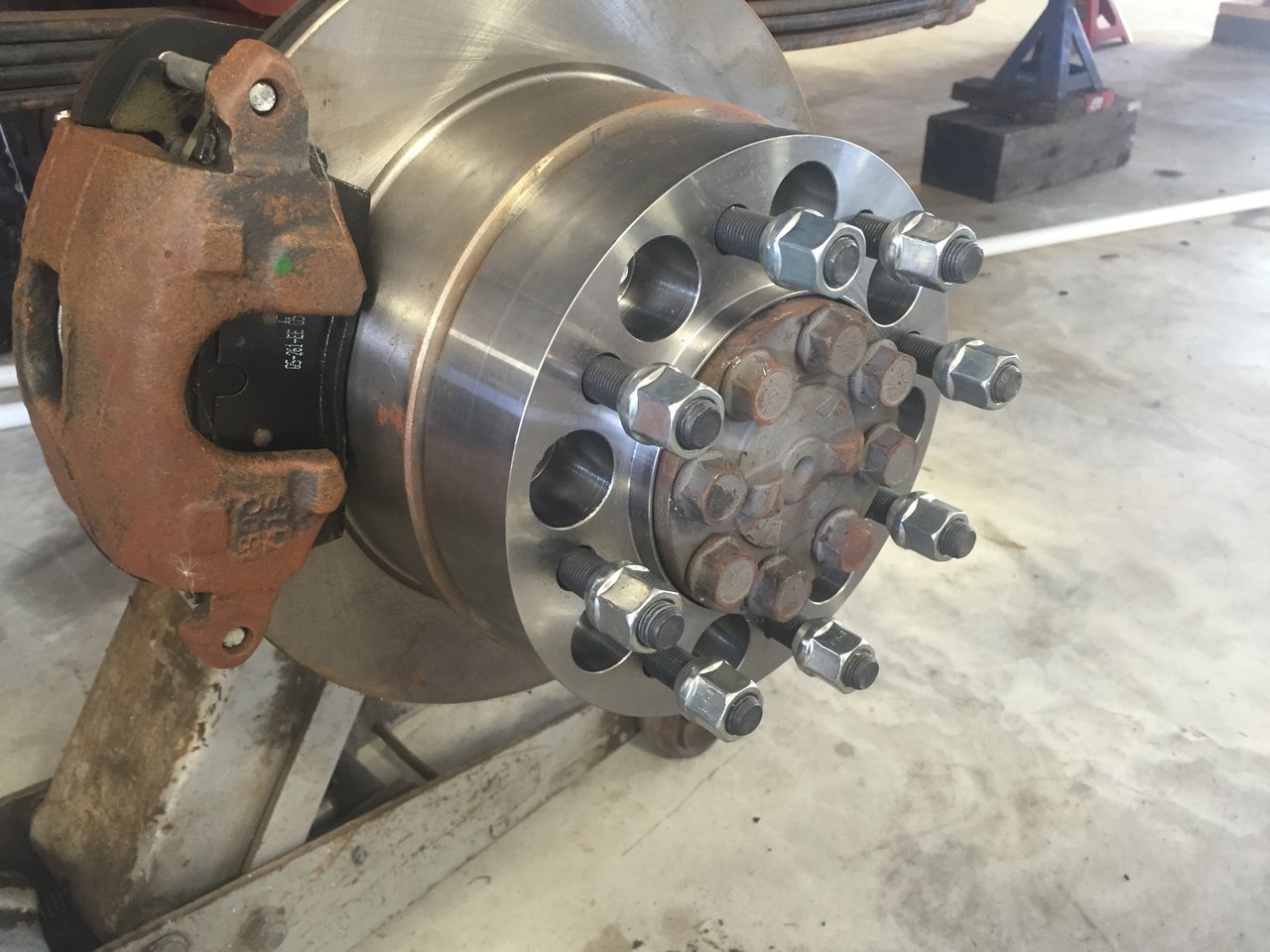

So it turns out the hutcheson's don't have a large enough center bore to fit over the hubs on the 60. I just figured that since they where 8 lug they'd fit, guess I was wrong. So step in wheeladapter.com. They machined me a set of 2" spacers for both the 14 bolt and the 60. The spacers in the rear will hopefully keep me from having to notch the frame. We'll see. The spacers are machined to be both hub and wheel centric and are machined from Timken bearing steel. They should do the job.

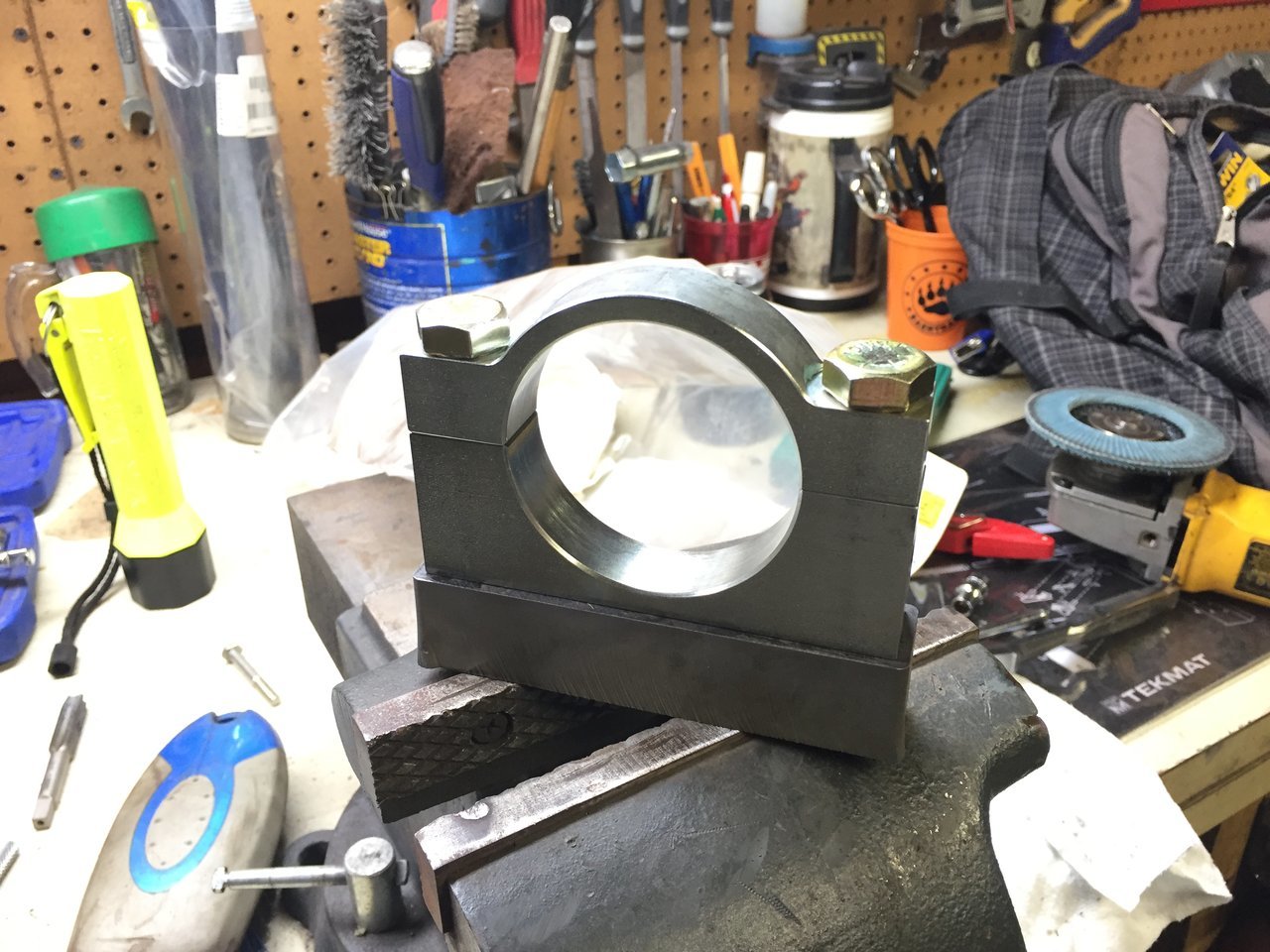

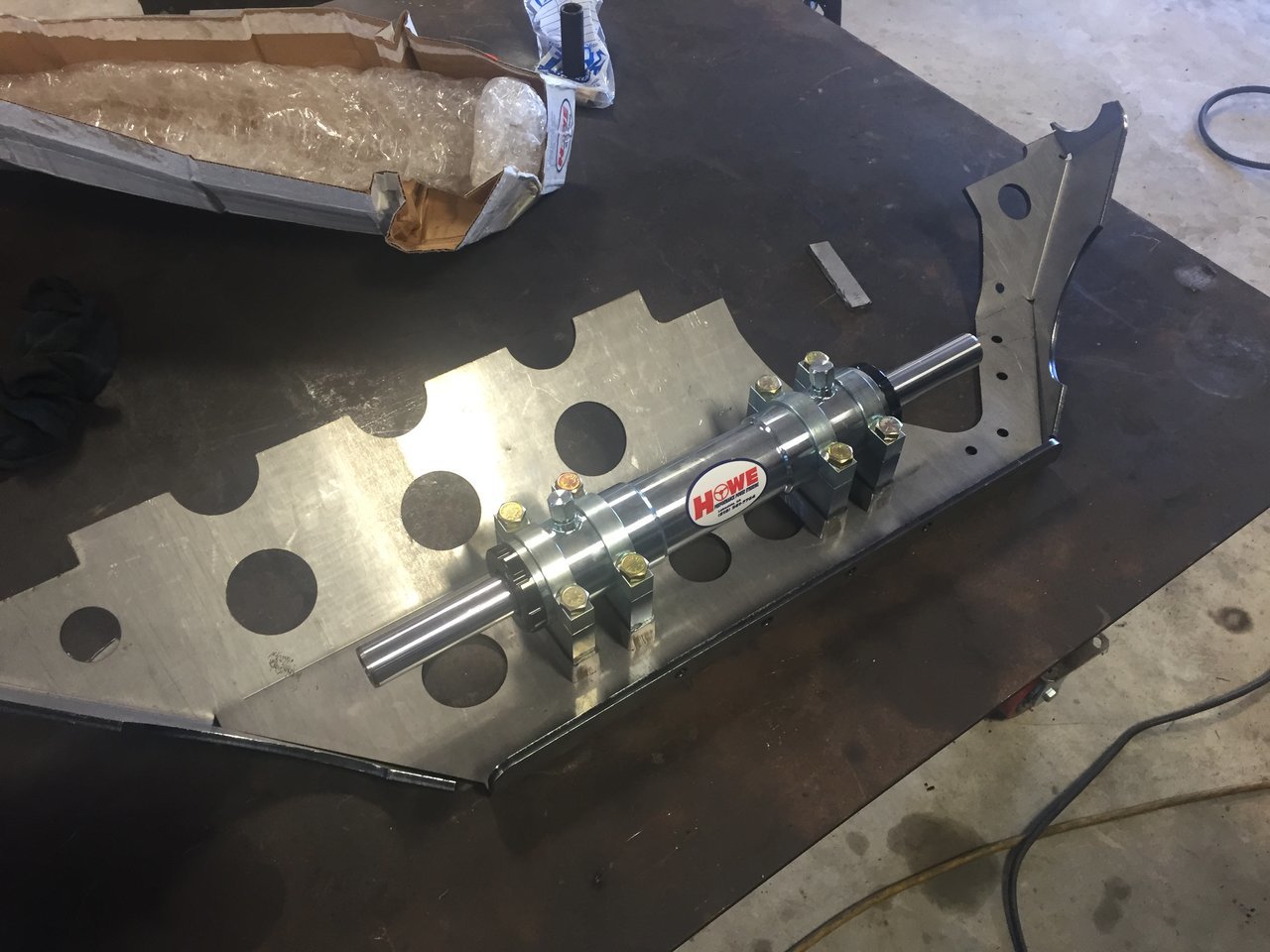

Now it's time to get the steering rolling. I had to make my own standoffs for the clamps on the Howe ram, that was fun.

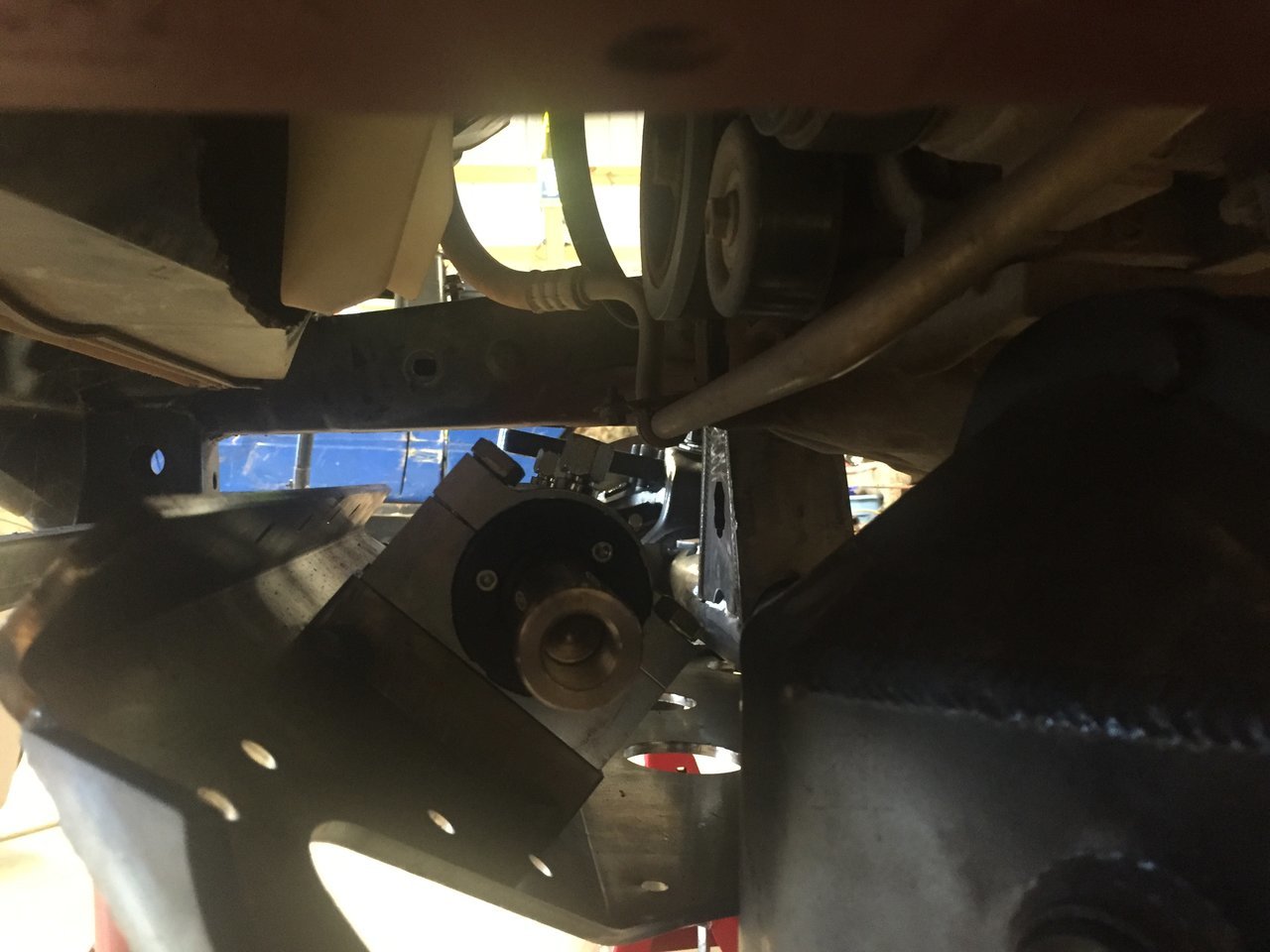

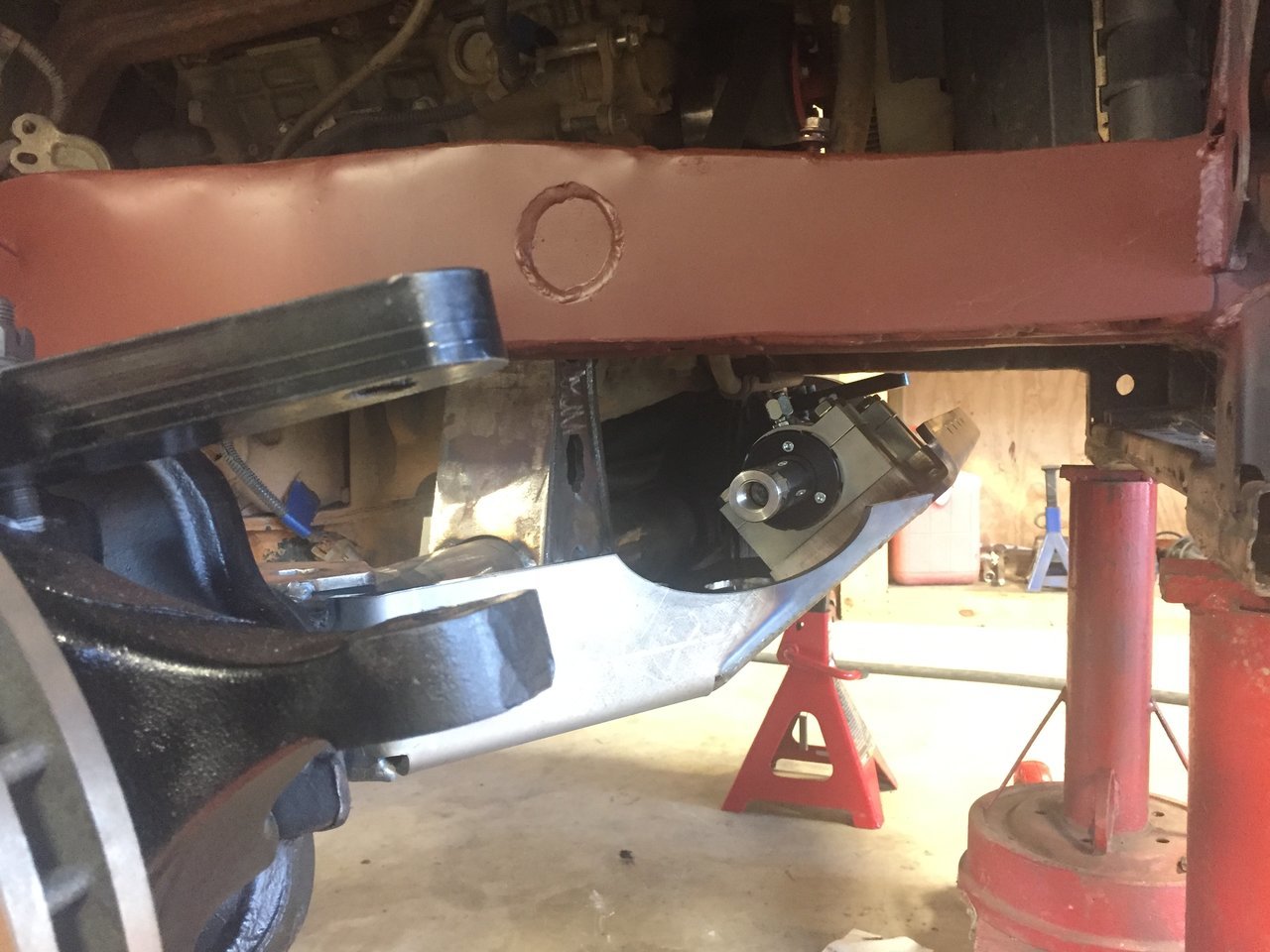

Mocking up the ram on the Artec ram mount.







The panhard placement is going to be a fun puzzle to sort out.



I would ask what is happening here... but I starting to think that you may not even know what is happening here at times.



Awesome work. Keep it up

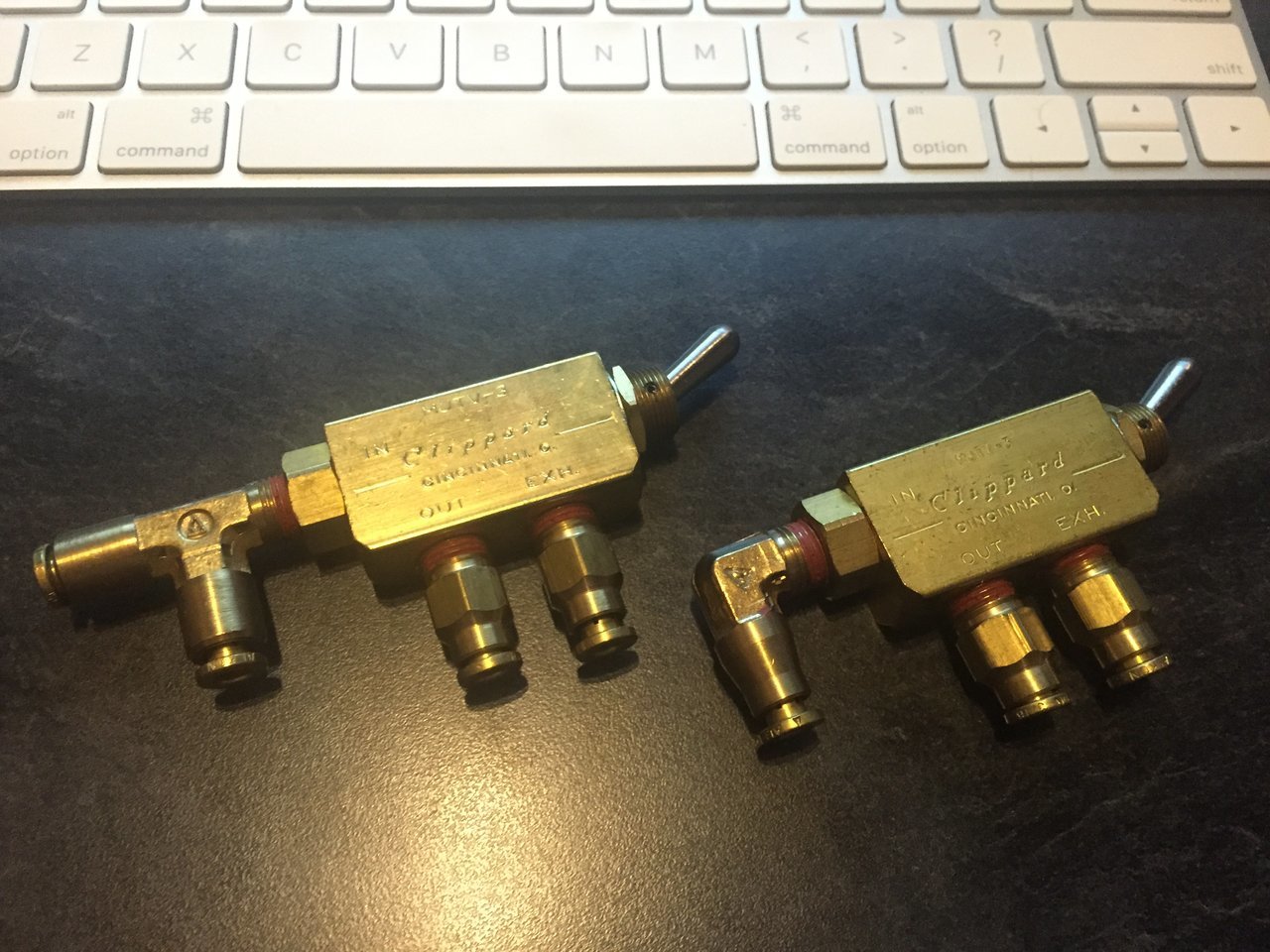

switches for air lockers?



looks more like air up/down



ORIs?



Ding ding ding!



Ive spent many sleepless nights on Pirate4x4.



I built my tierods today.





The panhard is going to be a bear to fit in place. The passenger side frame will have to be notched for starters.

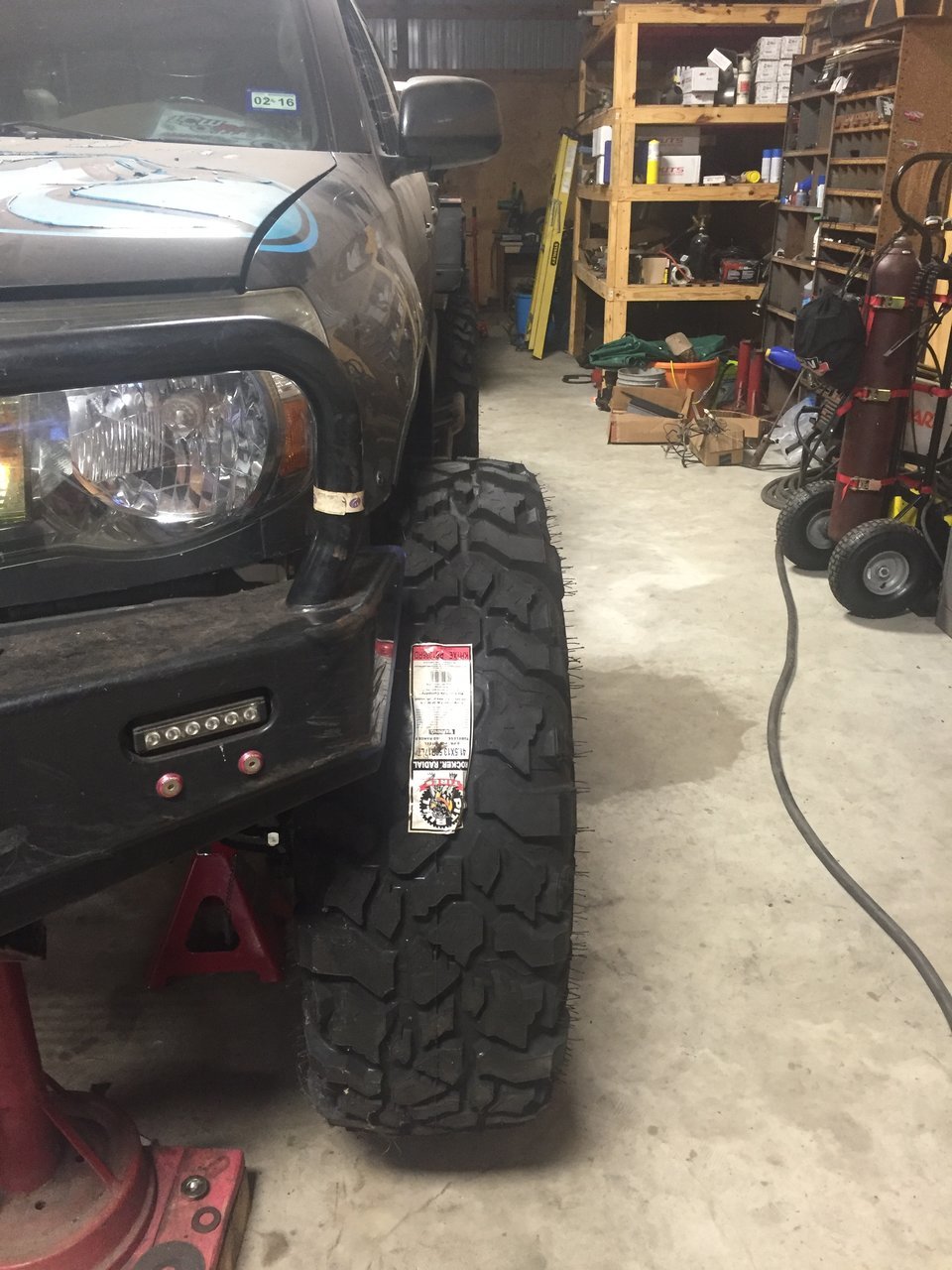

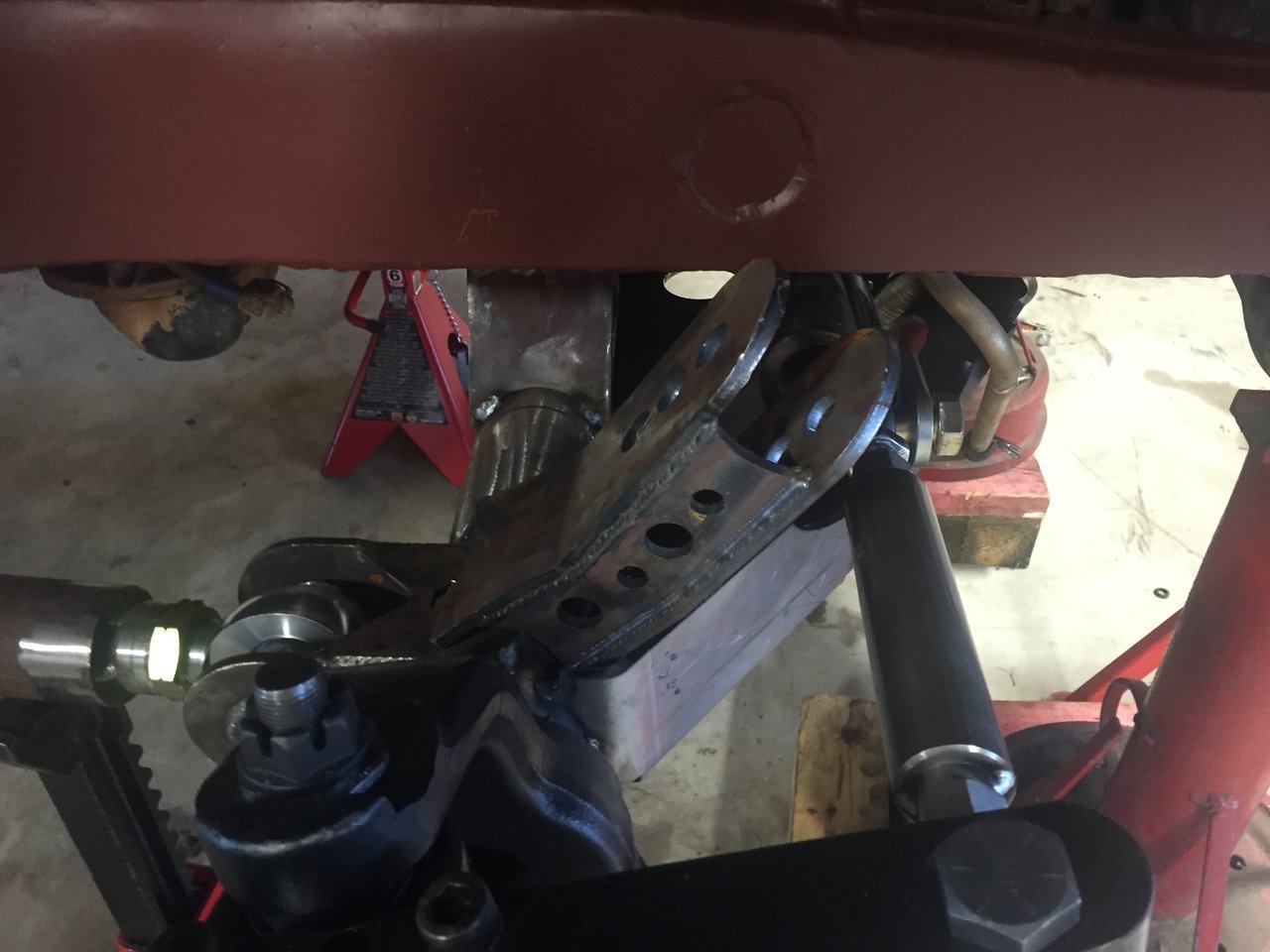

I put my spacers on and mounted the wheels and tires so I could cycle the steering. I needed to make sure that the tierods would clear the panhard mounts. She's going to be tight.

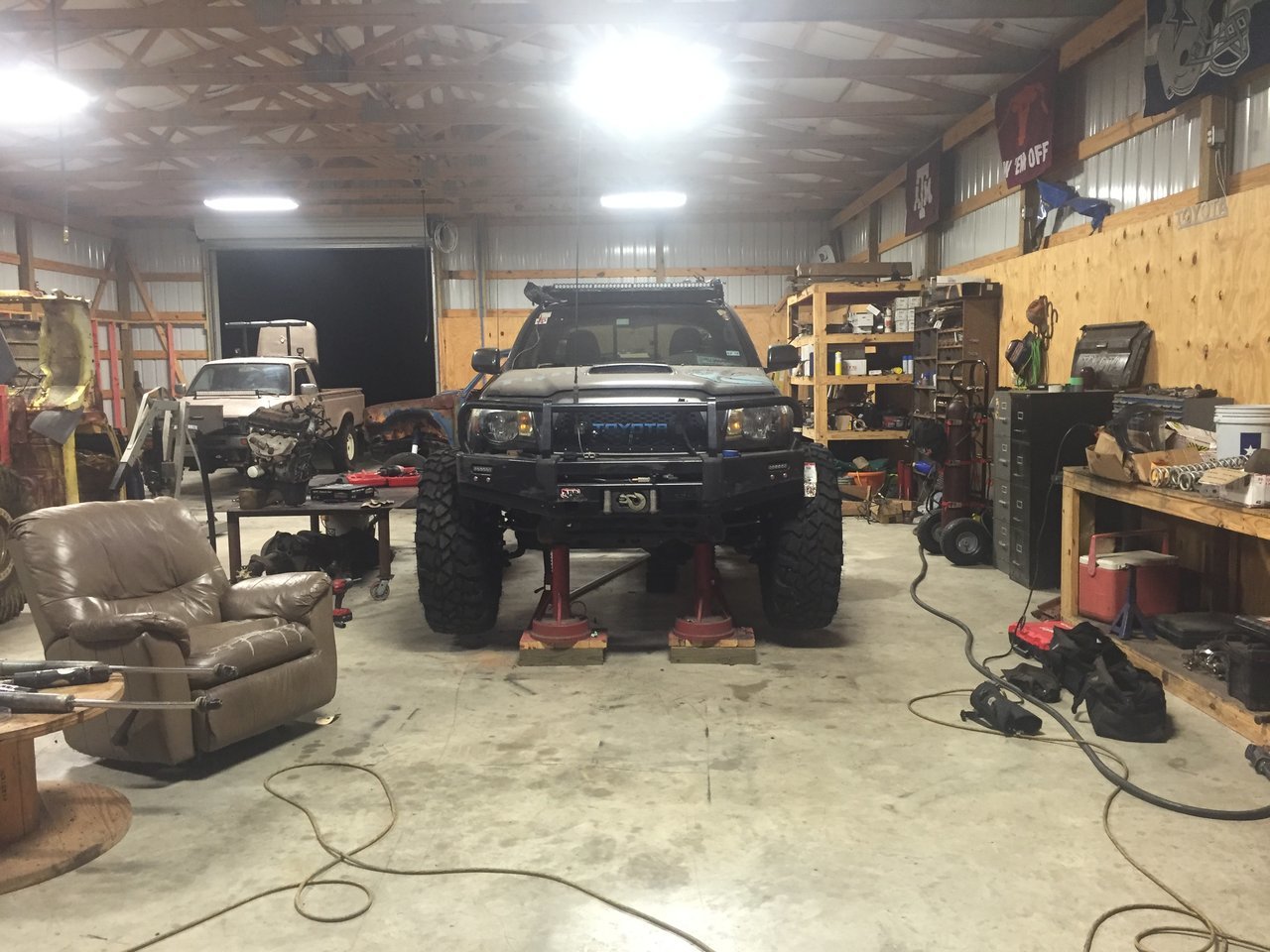

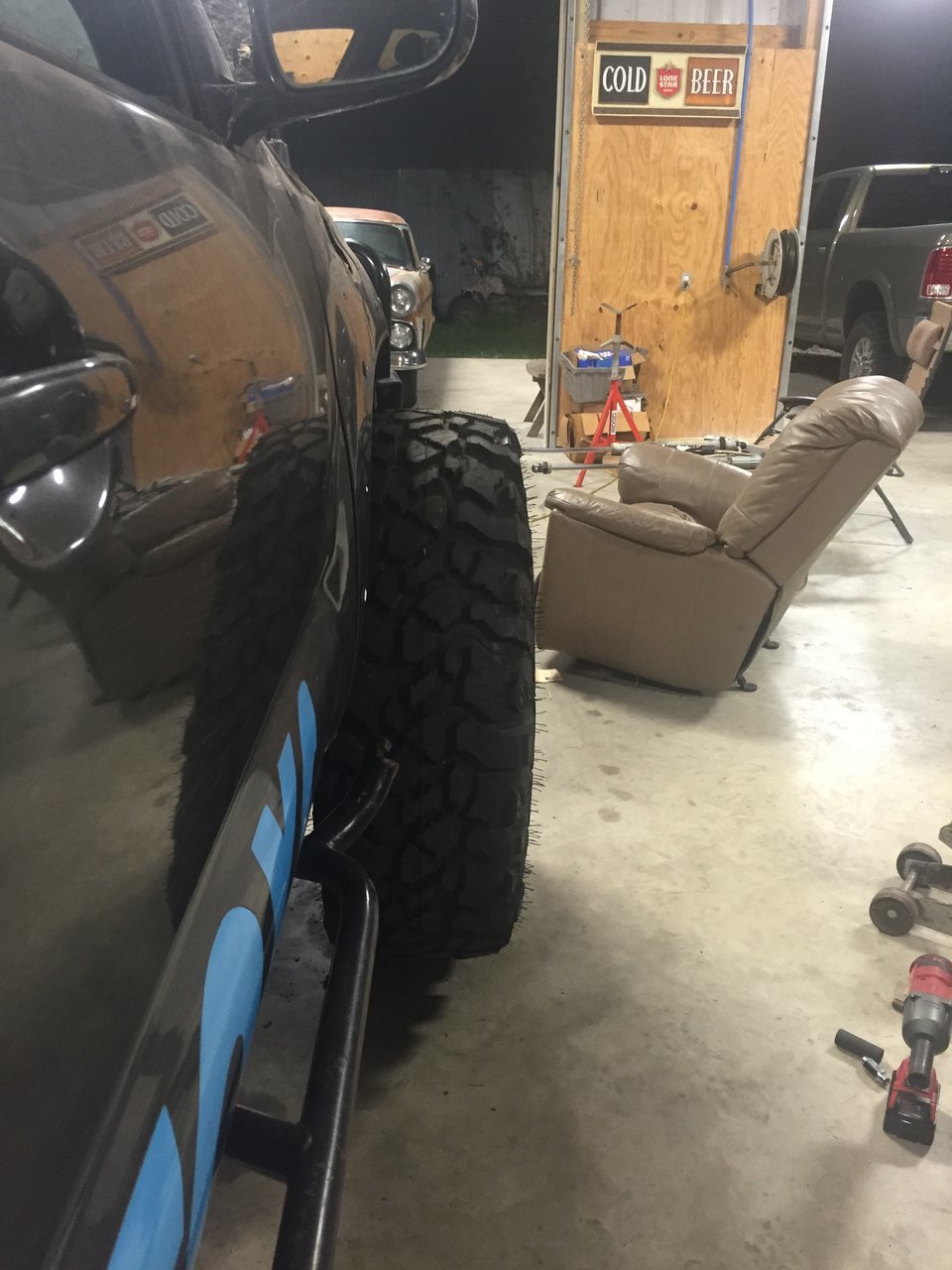

Oh, and Smokey is seriously wide. lol



I’ve seen a lot of people remake a smaller version of the front part of the frame to help clear everything.
