Smoke Test for EVAP Leak

Discussion in '1st Gen. Tacomas (1995-2004)' started by atvkid4eva, Aug 13, 2019.

  1. Aug 13, 2019 at 10:34 AM
    #1
    atvkid4eva

    atvkid4eva [OP] Member

    Joined:
    Jul 11, 2019
    Member:
    #298998
    Messages:
    13
    Gender:
    Male
    My 2003 Tacoma recently started throwing a CEL (P0441 & P0456). Initially I replaced the gas cap with a new OEM cap, cleared the CEL and after a couple days its now back. I've done some reading and it seems it can be something as simple as a cracked/dry-rotted hose in the EVAP path or around the canister, to a leak in the fuel tank due to rust.

    If I wanted to smoke test the EVAP system, do I just hook the smoke machine up to the green test port near the drivers side fender under the hood and run the smoke? With the car running or off? And do I need to actuate any valves for the smoke to travel through the entire system?

    I do notice a faint gas smell from the outside of the vehicle. I dont see any visible leaks around the tank etc. Im assuming these fumes i smell are related to this EVAP code.

    Any guidance would be appreciated. Thanks!

  2. Aug 13, 2019 at 12:36 PM
    #2
    Glamisman

    Glamisman Well-Known Member

    Joined:
    Oct 22, 2016
    Member:
    #200436
    Messages:
    2,087
    Gender:
    Male
    yes to the green test port.

    evap leaks are either found right away or they take hours, there doesnt seem to be a middle ground. Yes to the faint gas smell as the source... sometimes it is so small that you have to catch the light just right to see the wisp of smoke.

  3. Aug 13, 2019 at 12:42 PM
    #3
    atvkid4eva

    atvkid4eva [OP] Member

    Joined:
    Jul 11, 2019
    Member:
    #298998
    Messages:
    13
    Gender:
    Male
    Do you do the smoke test with the truck running or off?

    Just by connecting to the green test port, it will allow smoke to travel through the entire EVAP system? I dont need a scan took to signal any relays to open or anything?

  4. Aug 13, 2019 at 2:15 PM
    #4
    taco57

    taco57 Well-Known Member

    Joined:
    Jan 16, 2016
    Member:
    #175148
    Messages:
    285
    Gender:
    Male
    First Name:
    Jeff
    Vehicle:
    2003 Tacoma SR5 passed on to son
    Went down the smoke test path, twice. Was inconclusive both times. After I tore into the top of the gas tank after taking with the bed off and I found all rubber gaskets to be deteriorated, especially the large one for the fuel pump. Replaced three rubber gaskets on the tank and leak gone, no more codes.

    atvkid4eva [OP] and DrZ like this.
  5. Aug 13, 2019 at 8:23 PM
    #5
    turbodb

    turbodb Well-Known Member

    Joined:
    Feb 9, 2016
    Member:
    #177696
    Messages:
    3,675
    Gender:
    Male
    First Name:
    Dan
    PNW
    Vehicle:
    2000 Tacoma Xcab 4x4 SR5 V6 TRD
    AdventureTaco
    You can do it without the engine running. I tested mine (no leaks, ended up being a MAF and AFR sensor causing my codes) and wrote it up here:

    Chasing the P0171 Engine Light

    [​IMG]

    [​IMG]

    atvkid4eva [OP] likes this.
  6. Aug 14, 2019 at 12:08 PM
    #6
    atvkid4eva

    atvkid4eva [OP] Member

    Joined:
    Jul 11, 2019
    Member:
    #298998
    Messages:
    13
    Gender:
    Male
    Yeah, im going to do the smoke test to make sure its not a leaking hose somewhere in the EVAP path. But im guessing I will have to drop the tank and replace it along with any gaskets etc since they do appear to be a bit rusty.

  7. Aug 14, 2019 at 12:27 PM
    #7
    Glamisman

    Glamisman Well-Known Member

    Joined:
    Oct 22, 2016
    Member:
    #200436
    Messages:
    2,087
    Gender:
    Male
    as stated above it can be done either way but the prefered method is engine off. If the PCM commands a purge and you are smoke testing it all will get sucked into the engine/charcaol canister and and you will have no smoke in the sysytem.

    I do not know if the PCM in your year Tacoma is bi-directional, menaing can you command the purge valve to open from a scan tool... when I get a chance tonight I will check on my 98. If not you might have to pull the vacuum line(s) off and plug them individually and chase it that way... yes, it is a pain in the rear.

  8. Aug 15, 2019 at 4:59 AM
    #8
    wolfgang123

    wolfgang123 Well-Known Member

    Joined:
    Jul 7, 2009
    Member:
    #19369
    Messages:
    1,832
    Gender:
    Male
    First Name:
    Skyler
    Charlotte, NC
    Vehicle:
    1997 TACOMA - 4x4

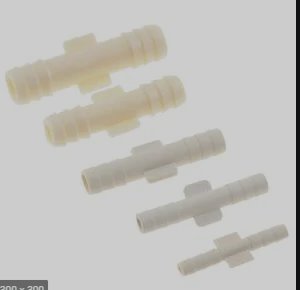

    I couldnt figure out how to get all the emissions valves to open when I did a smoke test. So I removed every valve and joined each line together with fitting like the one in the picture below to keep the system more or less intact. That was the only way I was able to find my leak when doing a smoke test. I didn't have the right computer program/device to manually manipulate the valves from closed to open.

    atvkid4eva [OP] likes this.
  9. Aug 15, 2019 at 5:07 AM
    #9
    Indy

    Indy Master of all I survey.

    Joined:
    Sep 15, 2013
    Member:
    #112518
    Messages:
    2,315
    Gender:
    Male
    It would have to be one hell of a leak to see with the engine running.

    Engine is off, seal the air intake by a plastic bag over the air cleaner. Get a $10 party style fog Machine and shoot it into the vacuum line of your master cylinder.
