Smw62891’s Sasquatch build!

Discussion in '2nd Gen. Builds (2005-2015)' started by smw62891, Sep 25, 2019.

  1. Sep 25, 2019 at 9:29 PM
    #1
    smw62891

    smw62891 [OP] Well-Known Member

    Joined:
    May 2, 2017
    Member:
    #218006
    Messages:
    709
    Gender:
    Male
    First Name:
    Stephen
    Santa Fe, NM
    Vehicle:
    09 Tacoma DCSB
    what’s up tacomaworld, I am finally getting around to starting a build thread for my 2nd gen tacoma. It has been a dream of mine for the last three years to build this truck to where it is and I can’t thank you guys enough for all the info/advice that have helped me along the way.

    “Sasquatch” was built with the idea of continuing to spend as much time as I can in the woods, camping, and enjoying the best of Mother Nature with my wife and two stepkids. Making memories and getting young teenagers off their phones, out of cell service and seeing how beautiful these lands can be. The truck was built to be dependable, reliable and self sufficient with a few fun goodies here and there.

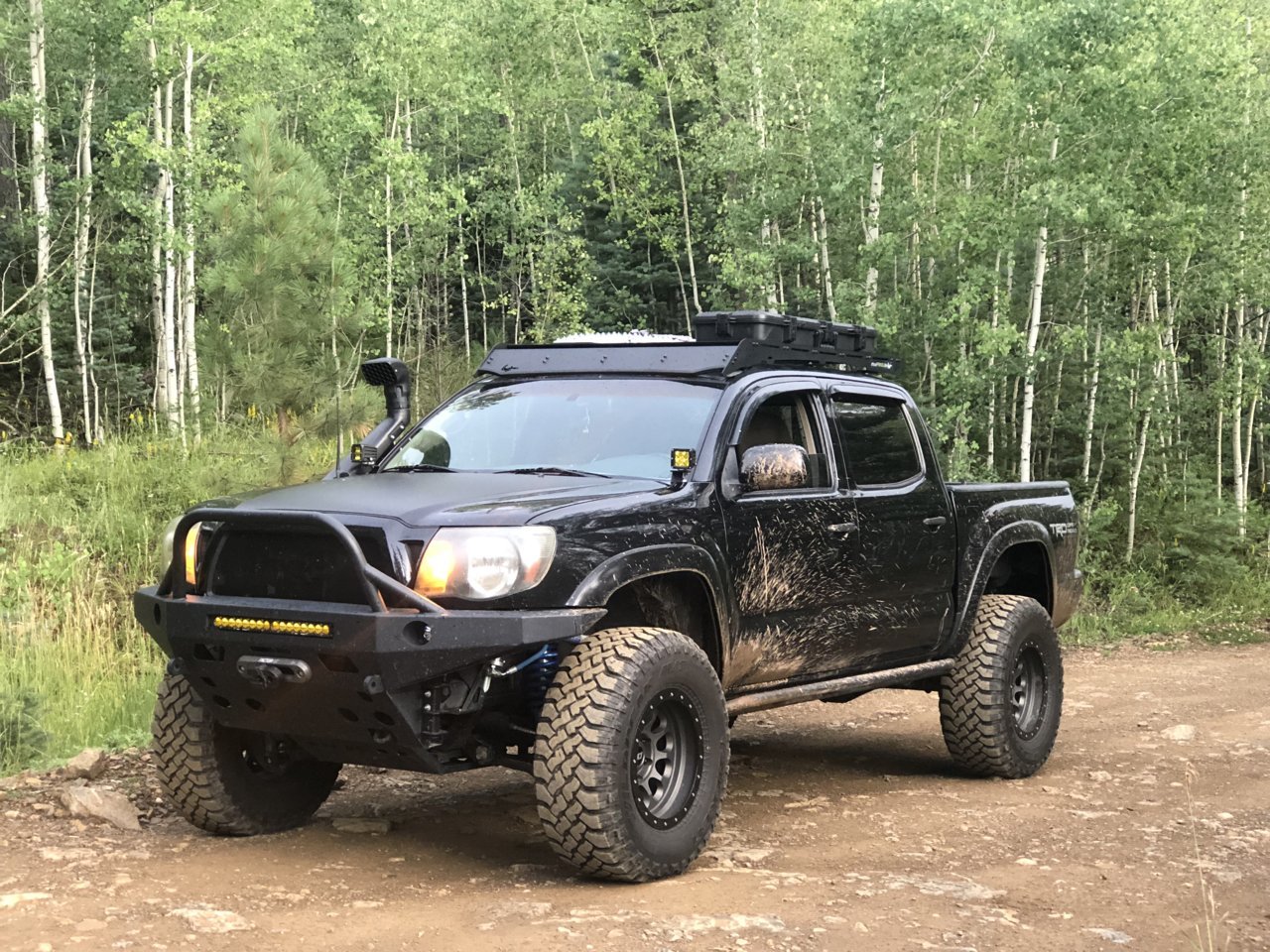

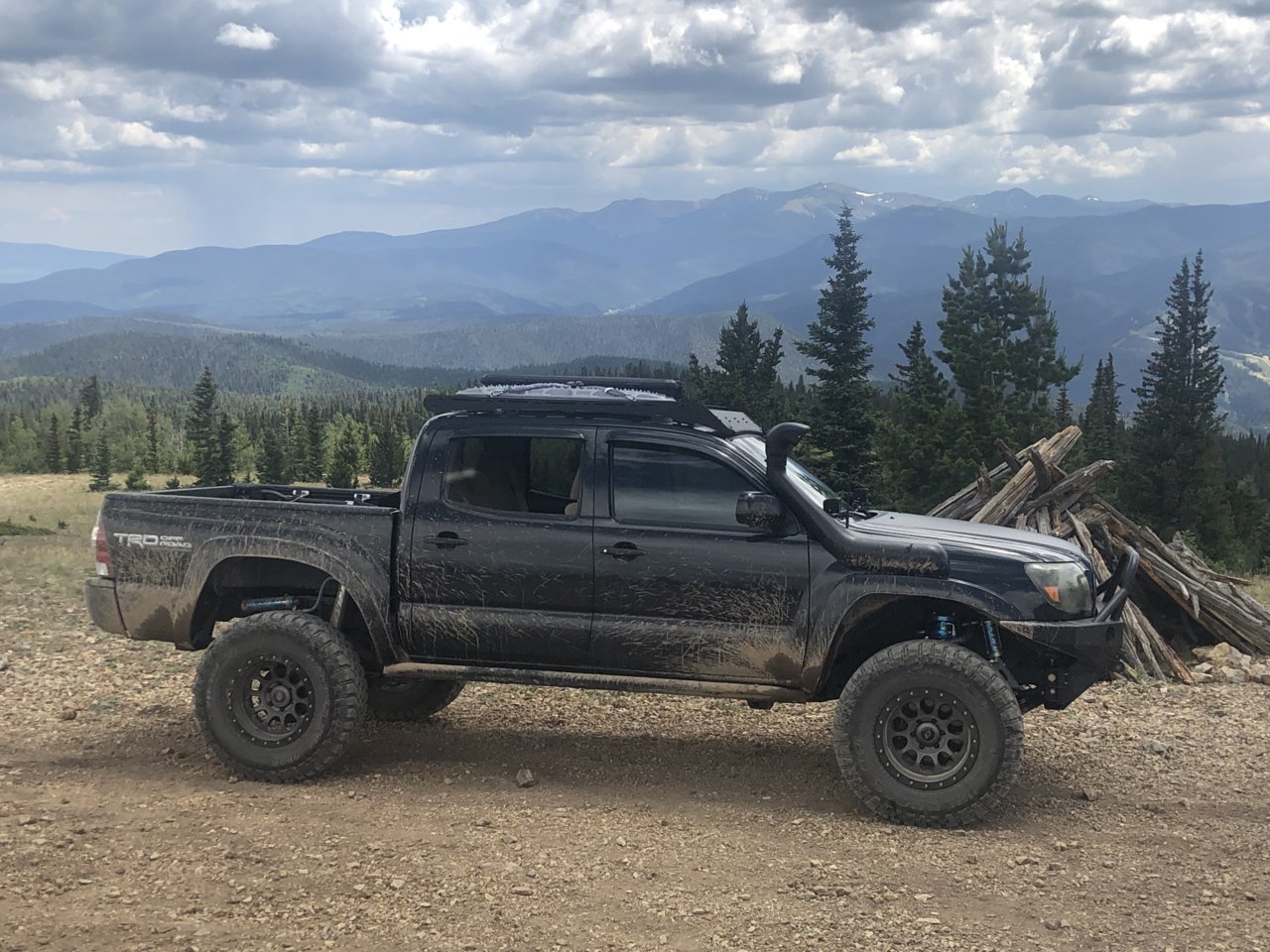

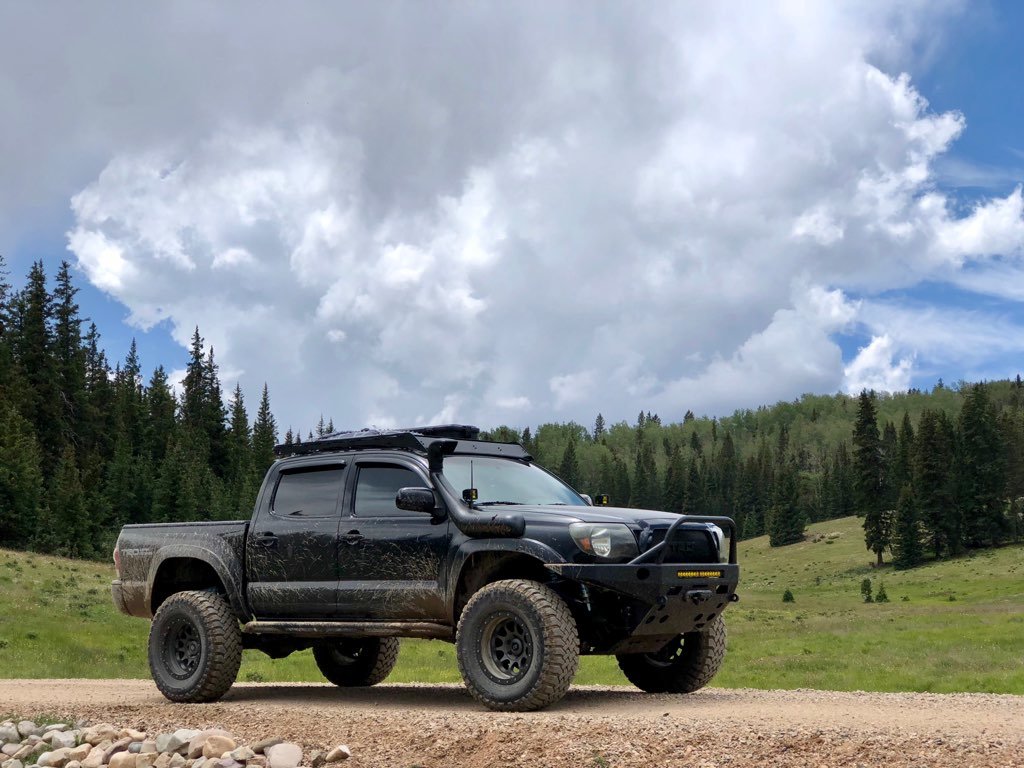

    Most current photo:

    Special thanks go to @state48overland for all your advice/help customer service and friendship.

    Mod list:

    SUSPENSION:
    6" fabtech lift (removed)
    Custom 6" Alcan leaf pack (removed)
    Rcd /bilstein extended 5100's front and rear (removed)
    Total chaos heimed UCA (removed)
    OME Dakar leaf pack (removed)

    Wheelers superbumps front
    Geartech custom splash guards
    Spc 25470 UCA
    @glorifiedwelder gusseted spindles
    Total chaos cam tab gussets
    King 2.5 with resi's 700lb coils
    Bamf 2nd gen relocate
    King 12x2.5 smooth body with resi's And adjusters
    Bamf hangers
    Bamf hd shackles
    Timbren rear bumpstops
    Extended f/r brake lines
    Deaver stage 2 leaf pack
    Alpine designs body mount relocate


    Misc/recovery
    Waterport day mount system
    Krazy beaver shovel/fisker axe
    Mob armor magnetic pro phone mount
    Plano 42" all weather gun case
    Maxtrax
    Hi lift extreme 48"
    Arb recovery snatch strap
    Bubba rope tree saver
    Factor 55 flatlink
    Factor 55 fairlead
    Smittybilt x20 10k winch
    4xinnovations mounts for hi lift and shovel/axe

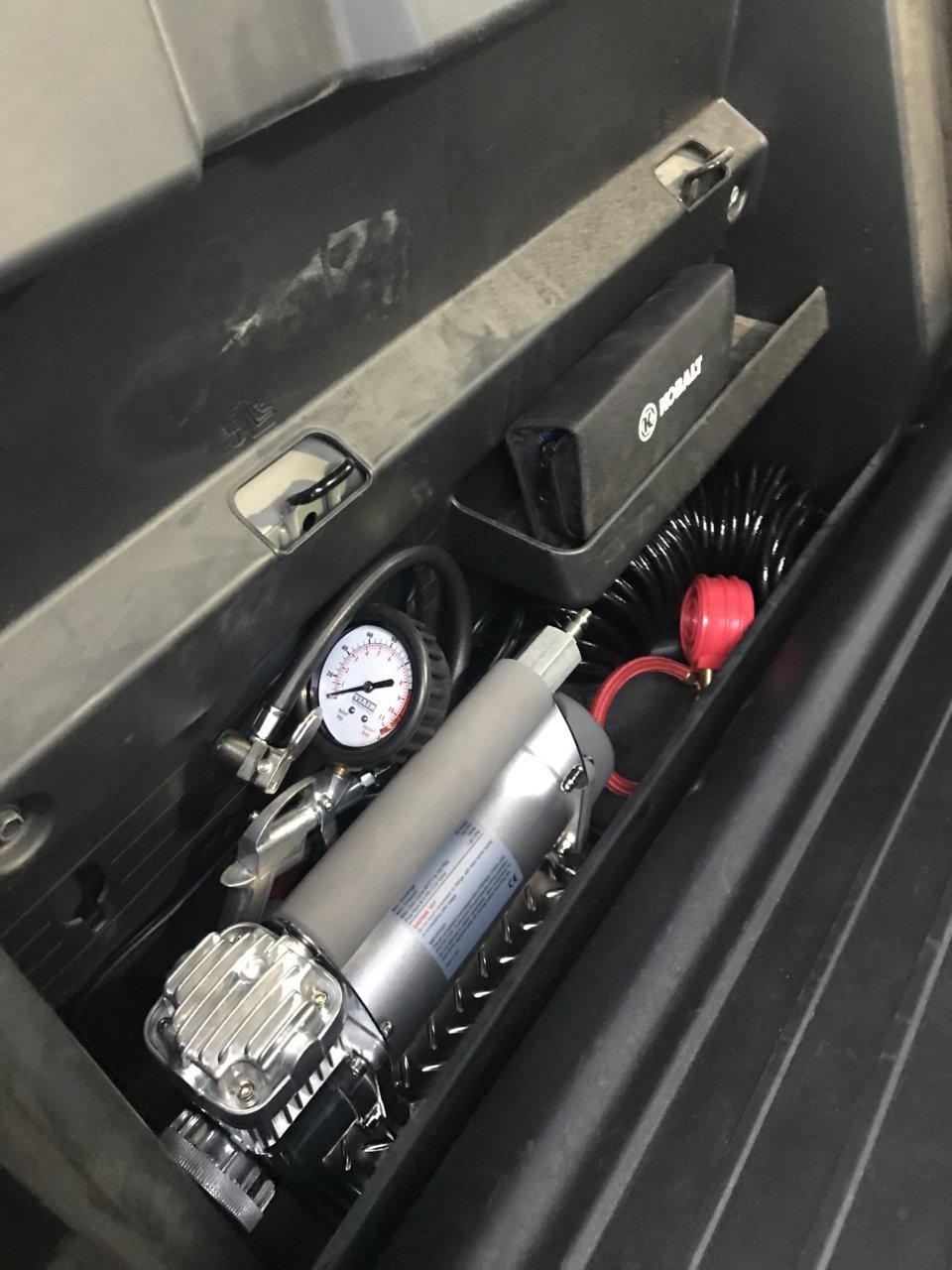

    Viar 450p portable compressor
    State48 diff breather


    Armor/exterior
    Pelfreybilt steel front bumper
    Demello sliders
    At the helm fab beside supports
    Homertaco trd grill
    Prinsu design studio cabrack
    Dobinsons snorkel
    Full rci skids (front, mid, t-case, gas tank)
    Cut and trimmed for 35’s
    Bamf bumper supports
    Allpro/trailgear rear diff skid
    “SOB” fab dual swingout high clearance rear bumper


    Lighting:
    Baja designs s8 20" amber
    Baja designs squadron sports amber driving/combo w/cbi ditch light brackets
    Rigid radiance fog duallys with amber backlight
    Meso-jdm interior lights
    Baja s2 sport scene backup lights


    Wheels/tires
    17" matte jet black scs ray 10's removed*
    17x9 gunmetal scs ray 10’s 3.5 bs
    35x12.5/17 falken wildpeak mt tires


    Interior:
    Weather tech mats
    Paracord wrapped grab handles.

    Coming soon:
    4:88’s w lockers

    Last edited: Dec 2, 2020
    state48overland likes this.
  2. Sep 25, 2019 at 9:36 PM
    #2
    smw62891

    smw62891 [OP] Well-Known Member

    Joined:
    May 2, 2017
    Member:
    #218006
    Messages:
    709
    Gender:
    Male
    First Name:
    Stephen
    Santa Fe, NM
    Vehicle:
    09 Tacoma DCSB
    Purchased used in east Texas in 2017 with a fab tech 6” lift, rims and tires. Absolutely knew nothing of how much this was going to be a problem down the road and really didn’t have a clue about suspension.


    Then the mods started!

    Initial setup was a all pro modular rack and cvt mt. Shasta tent. Later added a arb awning with room and demello sliders.


    state48overland likes this.
  3. Sep 25, 2019 at 9:48 PM
    #3
    smw62891

    smw62891 [OP] Well-Known Member

    Joined:
    May 2, 2017
    Member:
    #218006
    Messages:
    709
    Gender:
    Male
    First Name:
    Stephen
    Santa Fe, NM
    Vehicle:
    09 Tacoma DCSB
    As I continued to enjoy and make memories in the truck my mod bug bit hard and I tackled the following:

    Pelfreybilt front bumper
    Baja designs 20” amber light bar
    Rcd extended 5100’s
    Rcd rear b110 5100’s
    Total chaos heimed uca
    Alcan 6” custom leaf springs
    Rigid ditch lights and rigid radiance
    Fogs



    state48overland likes this.
  4. Sep 25, 2019 at 9:55 PM
    #4
    smw62891

    smw62891 [OP] Well-Known Member

    Joined:
    May 2, 2017
    Member:
    #218006
    Messages:
    709
    Gender:
    Male
    First Name:
    Stephen
    Santa Fe, NM
    Vehicle:
    09 Tacoma DCSB
    Up next was the prinsu cabrack and a set of SCS ray 10’s to finally have a quality wheel with proper specs.


    Last edited: Sep 25, 2019
    state48overland likes this.
  5. Sep 25, 2019 at 10:02 PM
    #5
    smw62891

    smw62891 [OP] Well-Known Member

    Joined:
    May 2, 2017
    Member:
    #218006
    Messages:
    709
    Gender:
    Male
    First Name:
    Stephen
    Santa Fe, NM
    Vehicle:
    09 Tacoma DCSB
    As the kids grew so did the amount of junk that came with them. Decided to upgrade to an Aliner titanium 12 and loose the RTT setup.


    state48overland likes this.
  6. Sep 25, 2019 at 10:23 PM
    #6
    smw62891

    smw62891 [OP] Well-Known Member

    Joined:
    May 2, 2017
    Member:
    #218006
    Messages:
    709
    Gender:
    Male
    First Name:
    Stephen
    Santa Fe, NM
    Vehicle:
    09 Tacoma DCSB

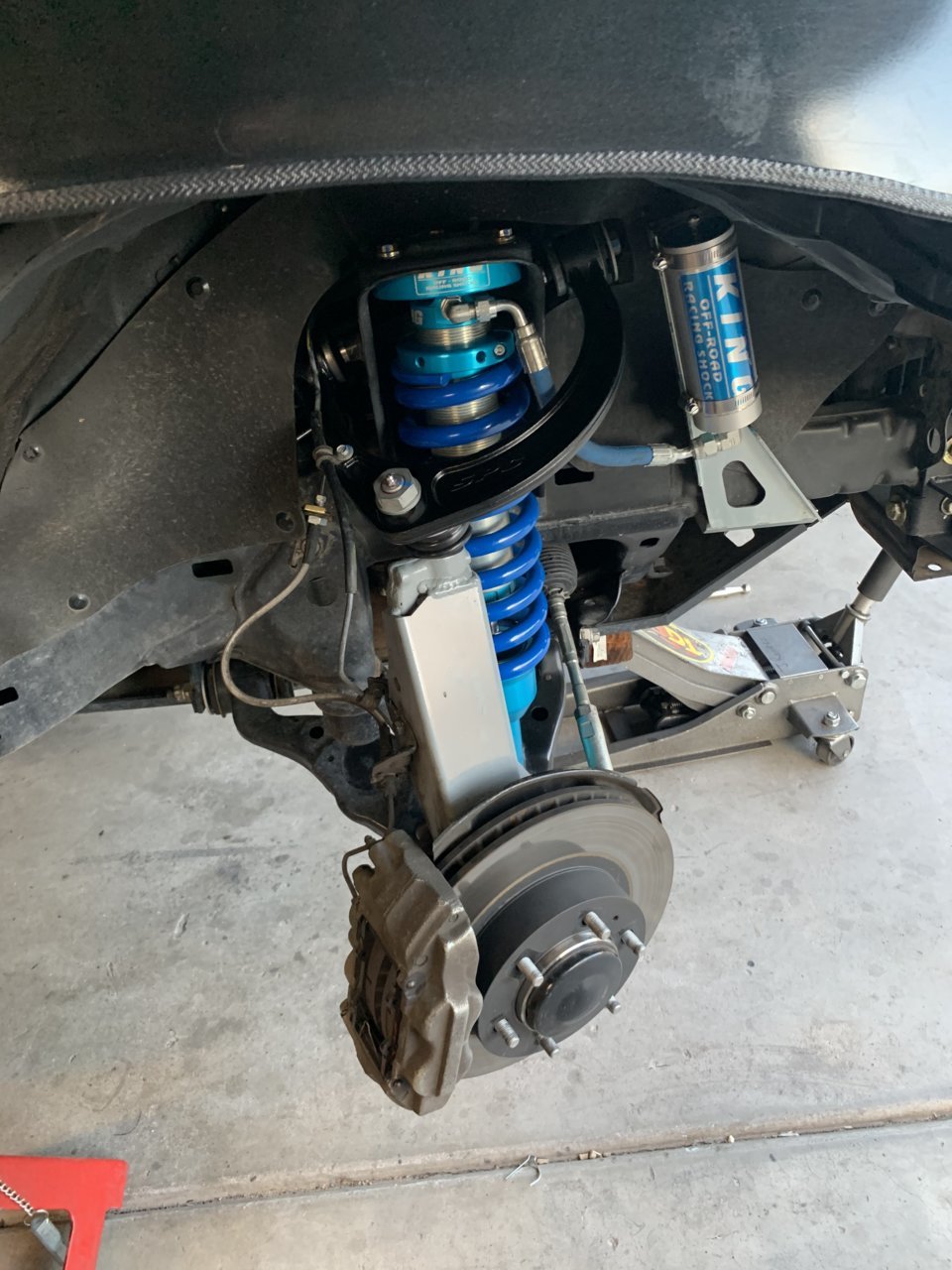

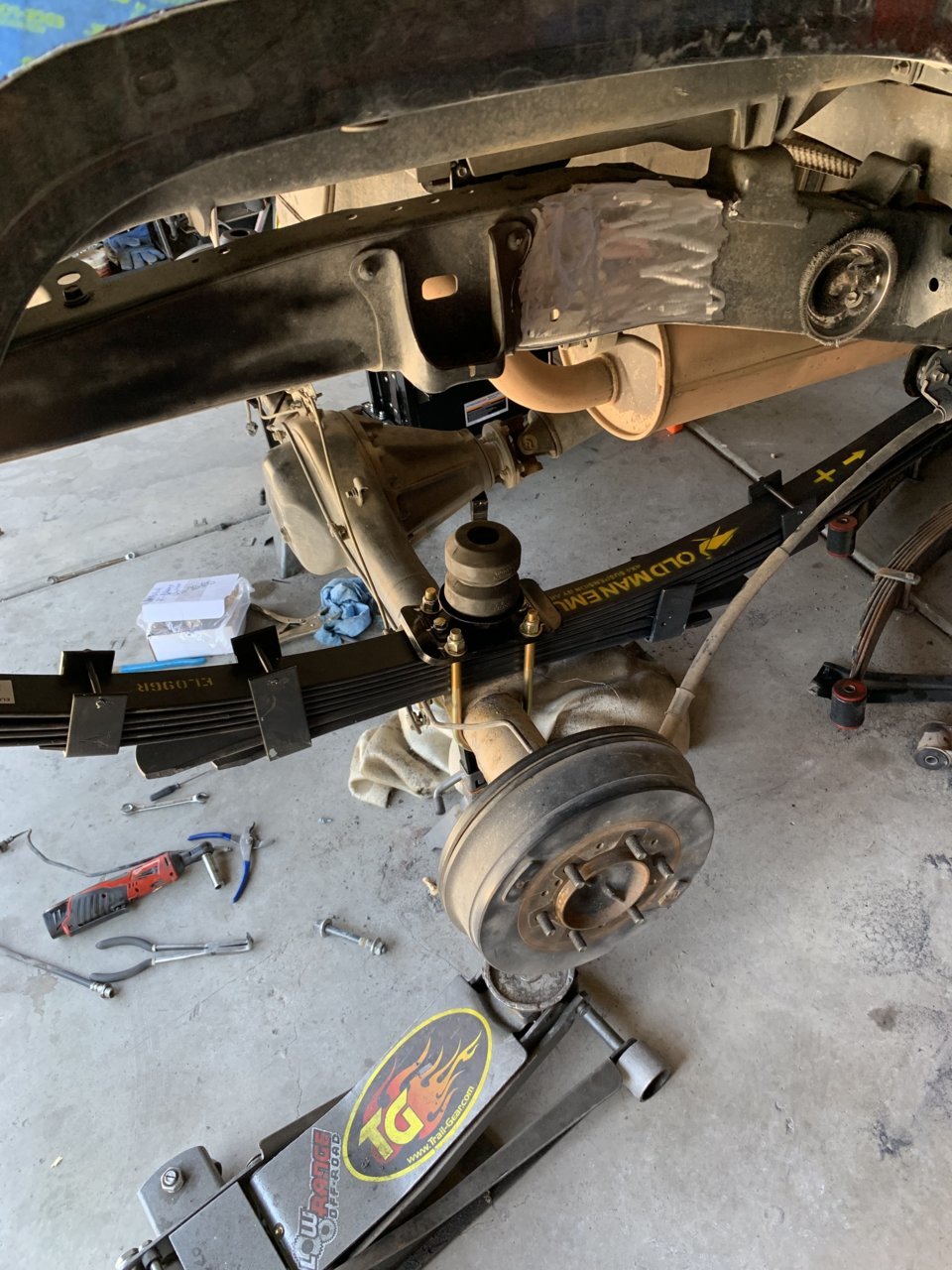

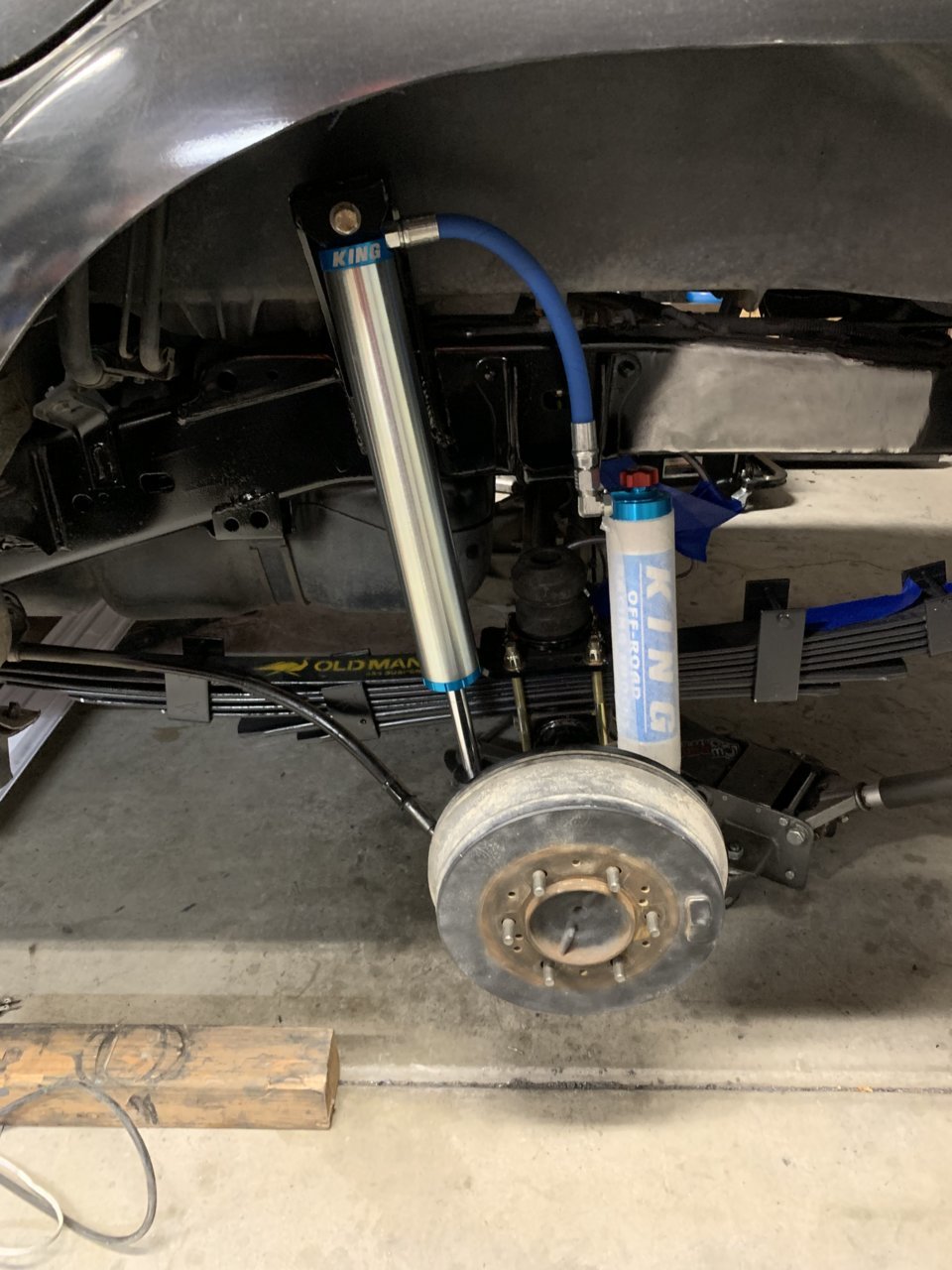

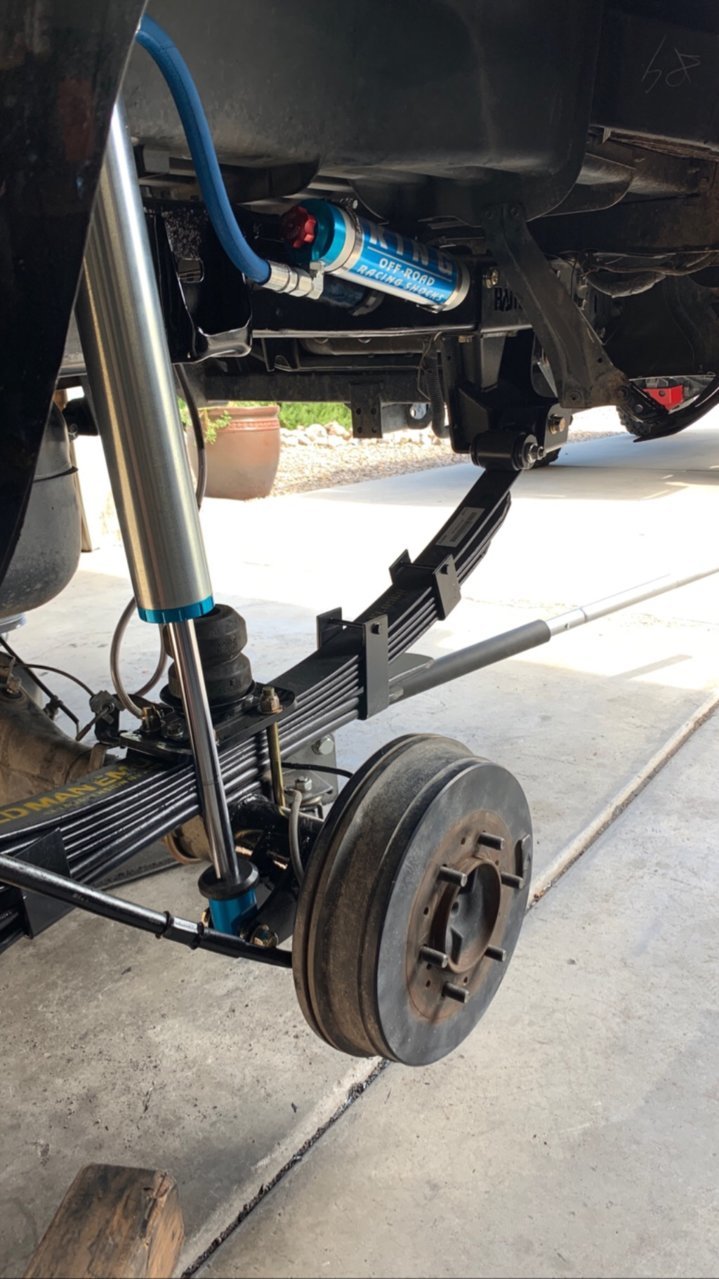

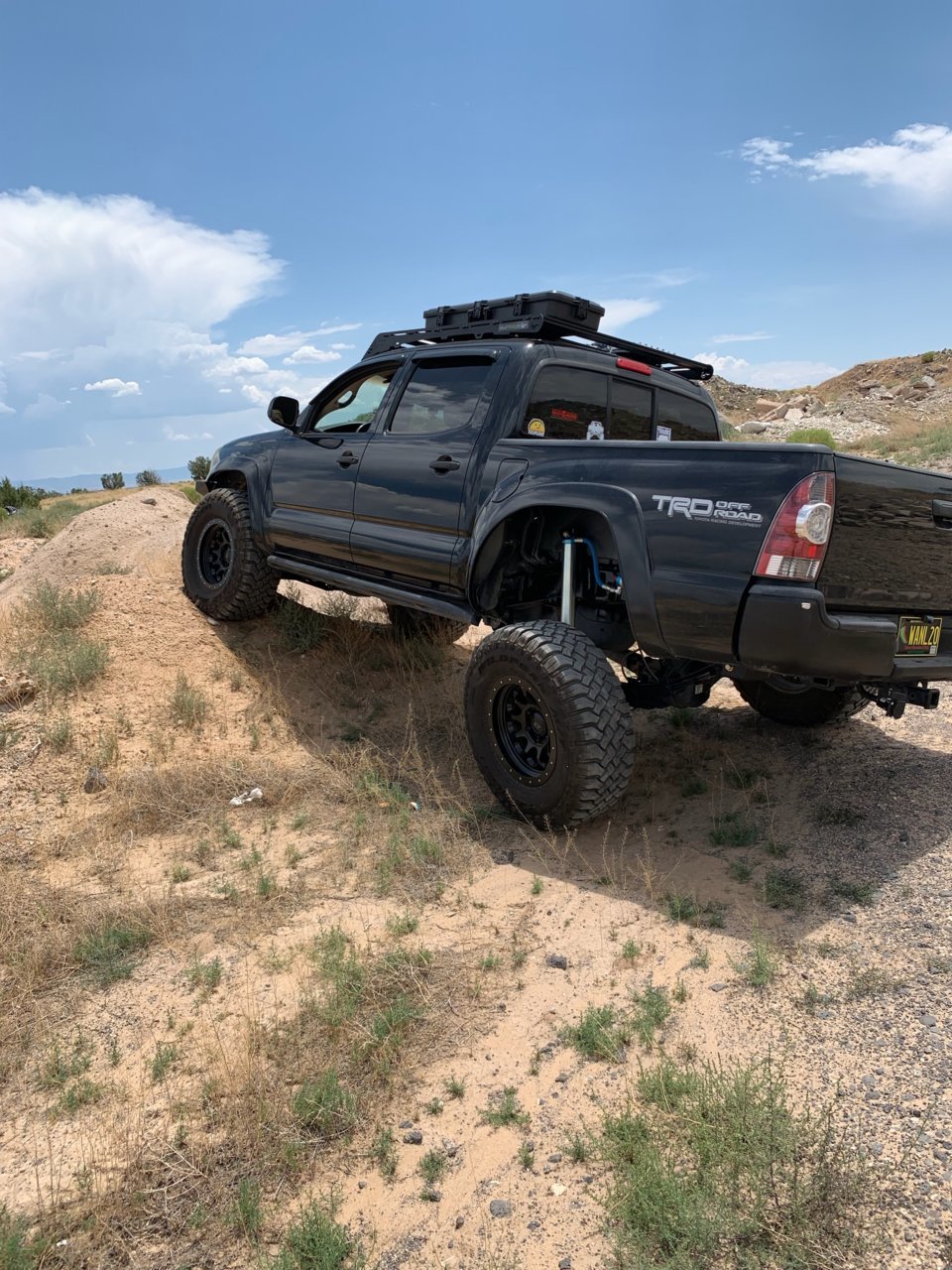

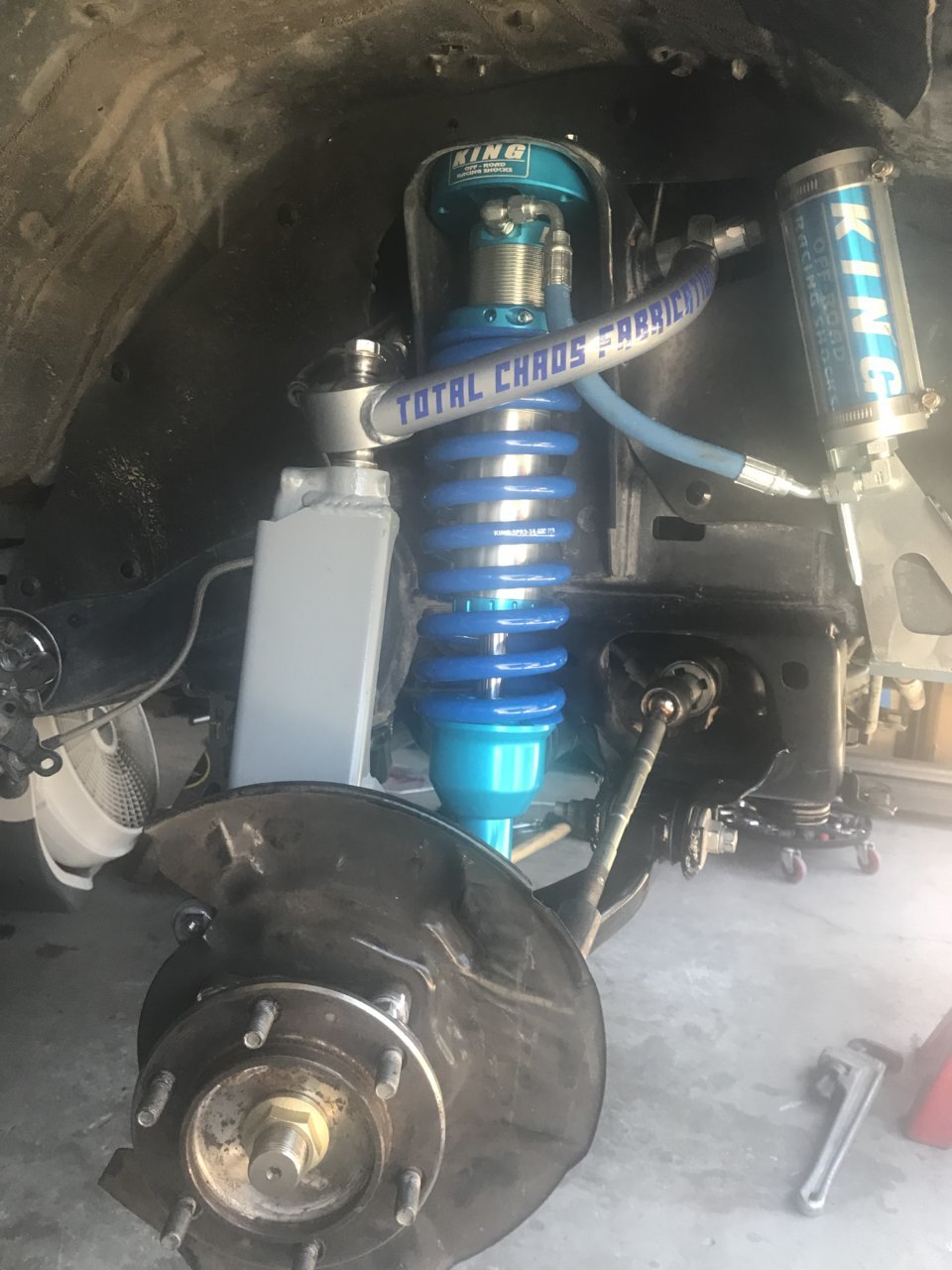

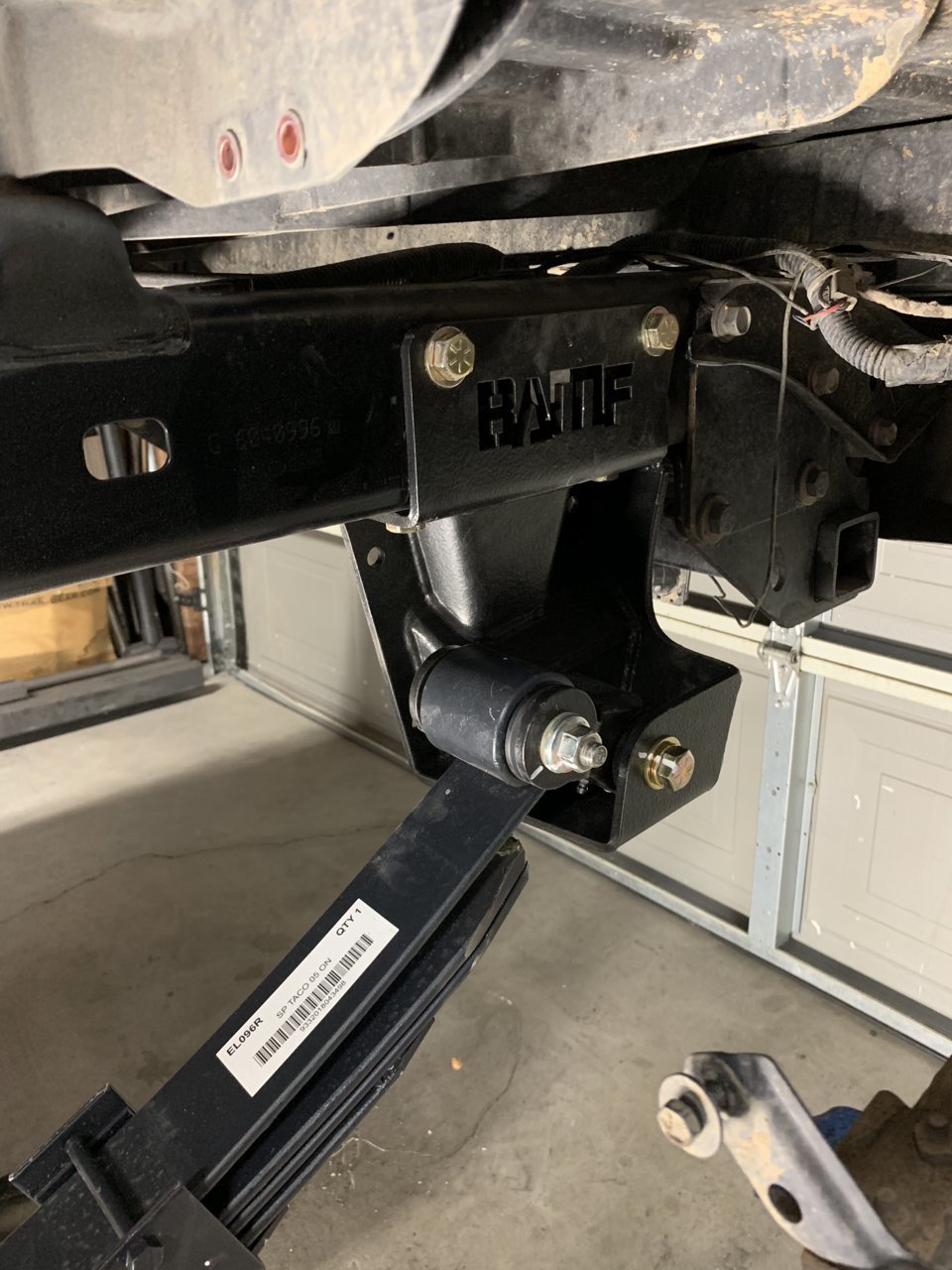

    After countless wheeling and camping trips the call was finally made. The drop bracket just wasn’t cutting it anymore and it had to go. Time for the suspension build!

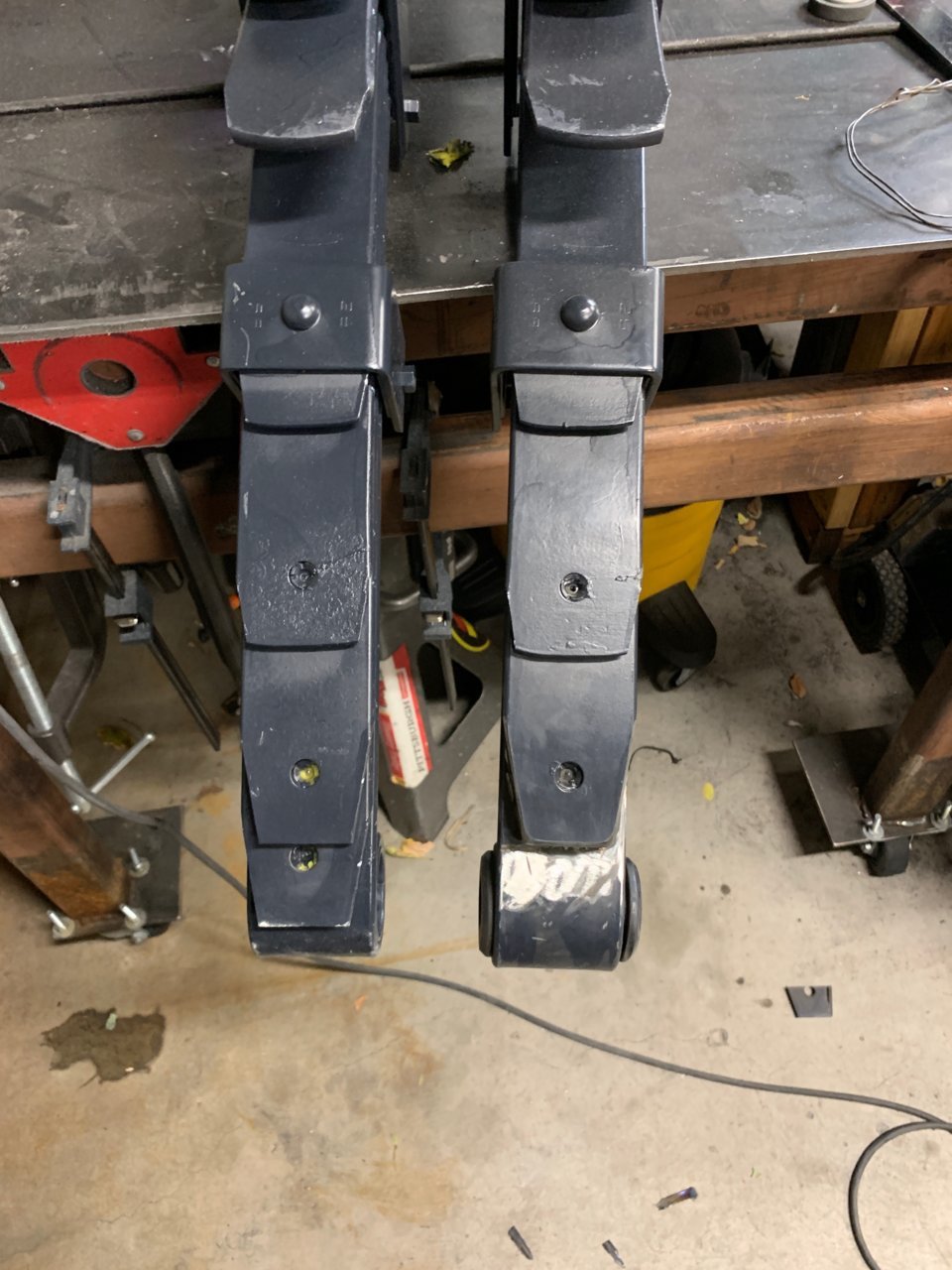

    Along with the above parts all new oem lca’s were installed along with energy suspension steering rack bushings, inner and outer tie rods, and cv’s

    No, coilovers do not have that amount of preload on them now. Came shipped with 600lb springs rather than 700. Have hardly any preload now.

    Last edited: Sep 26, 2019
    state48overland likes this.
  7. Sep 26, 2019 at 7:02 AM
    #7
    state48overland

    state48overland Well-Known Member

    Joined:
    Jul 31, 2018
    Member:
    #261196
    Messages:
    368
    Gender:
    Male
    First Name:
    Erick
    Gilbert, AZ
    Vehicle:
    2011 & 2017 Tacoma DCSB 4WD; 2007 FJ Cruiser
    Long Travel Build: 2011 DCSB 4WD Total Chaos (+2 long travel, heimed uca, race lca, front shock hoop, rear shock relocation hoop with sua kit, spindle and coil bucket gusseted, bed stiffeners), 34"s Nitto Ridge Grapp's, SCS SR8 gun metal, Pelfrey (front/rear/4 skid plates-exhaust re-route, sliders), Rigid LED, Kings (coilovers, triple bypass front, piggy back double bypass rear, hydro-bumps), Superbumps (front), Deaver(sua pack), Harrop rear locker, 4.56 Nitros, Single piece double cardan driveshaft, VLEDs DRLs, GTR 3 LED headlights, Diff breather/relocation x 3, pinch weld, cmc, AGM battery, Bulldog winch (synthetic rope) 9500lb, ext. stainless brake lines, Fumoto, Factor55 flatlink, YWM, fog light mod, LED conversion interior/exterior, de-badged, all 4 stock fenders and flares trimmed 2.5", Safari snorkel, anytime rear camera mod, exhaust chop, spare tire mount chop to fit 34", strapped at all 4 corners.. Mid-Travel build: 2017 DCSB 4WD 34"s BFG KO2, SCS Ray 10s matte black, Diff breather/relocation x 3, sPOD dual Bantam set up, Prinsu, Diamondback, Pelfrey (front, rear, skids, gas, exhaust re route), Sliders, Baja Designs(30" Onx 6 HP, 2 x 30" S8, XL80s, Squadron Sports, S2s x 6), Kings (3.0 IBP fronts, 3.0 double bypass rear, hydro bumps), Eibach 16" x 650lb coilover spring swap, ICON RXT leaf pack-set @ option 2, Total Chaos (Stock length heimed uca & lca, strapped front, sway bar delete, spindle and coil bucket gussets), ext. stainless brake lines, EXE TPAM, EXE bedside compressor mount, AGM-group 31-Pelfrey battery cage, pinch weld, cmc, Factor55 flatlink, X2O 10,000lb winch(synthetic rope), LED conversion interior/exterior, Superbumps, Nitro 4.88s, exhaust chop, spare tire mount chop to fit 34". Mid-Travel build: 2007 FJ Cruiser 35" Nitto Ridge Grapps. SCS SR8 matte black, Demello flat front bumper steel, Expedition One Rear gate/bumper, cmc, pinch welds, fender flare delete, ICON coilovers w/remote resi and rear, Metal Tech LT LCA rears, 12,500lb winch + synthetic rope, Factor55 thimble, full belly/gas tank steel skid plates, Rigid leds, full interior and exterior led upgrade, led flasher upgrade, Total Chaos (UCA, spindle gussets), frame gussets, rear sway bar delete, 4.88 Nitro gears, Diff breather/relocation x 3, Fumoto, exhaust chop,
    Very happy for you and your family Stephen. Unreal how fast it all came together and how you reversed the d/b lift back to this while still maintaining those 35's. Nice work man:yay:

    smw62891 [OP] likes this.
  8. Sep 26, 2019 at 7:24 AM
    #8
    smw62891

    smw62891 [OP] Well-Known Member

    Joined:
    May 2, 2017
    Member:
    #218006
    Messages:
    709
    Gender:
    Male
    First Name:
    Stephen
    Santa Fe, NM
    Vehicle:
    09 Tacoma DCSB

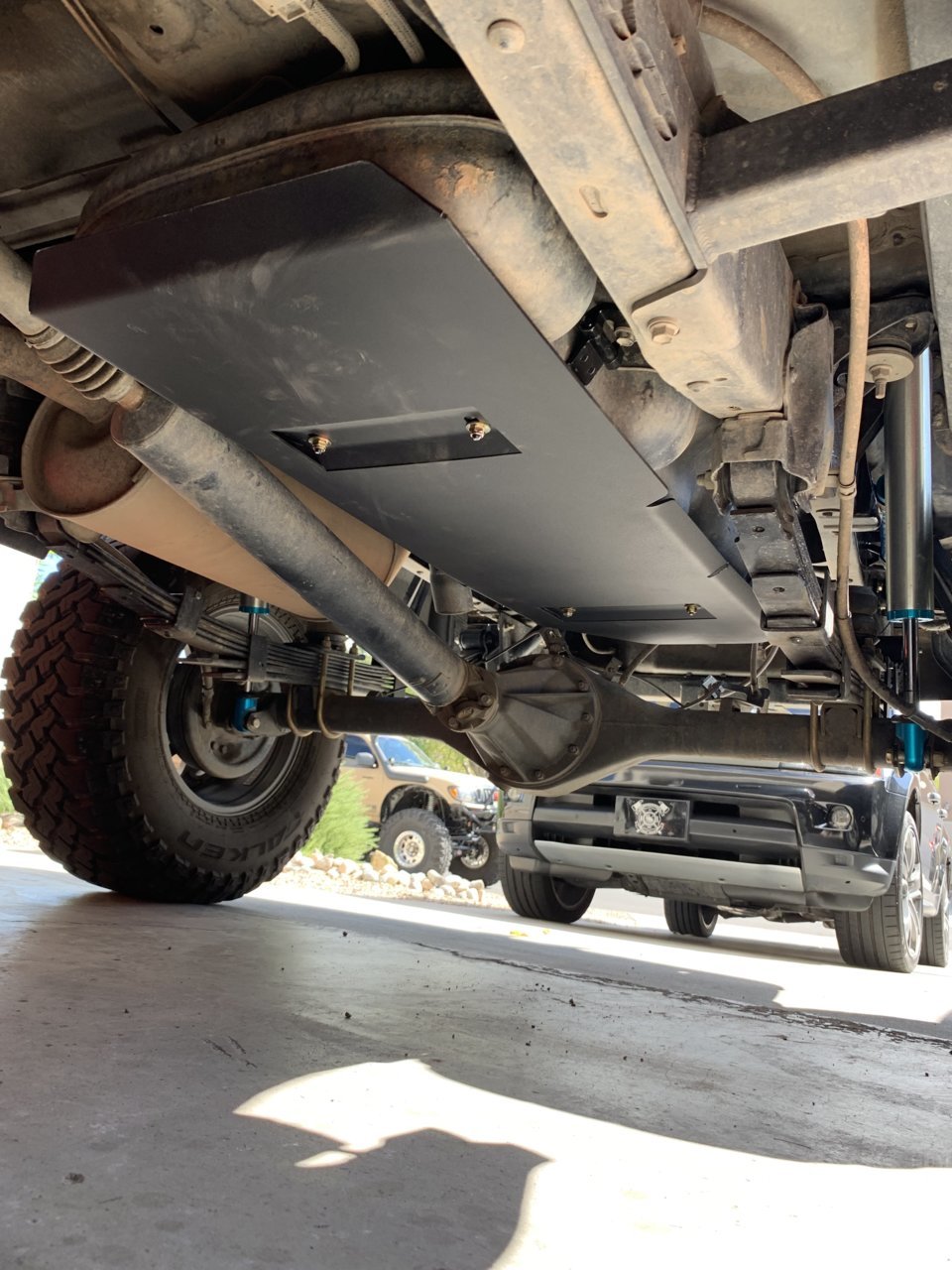

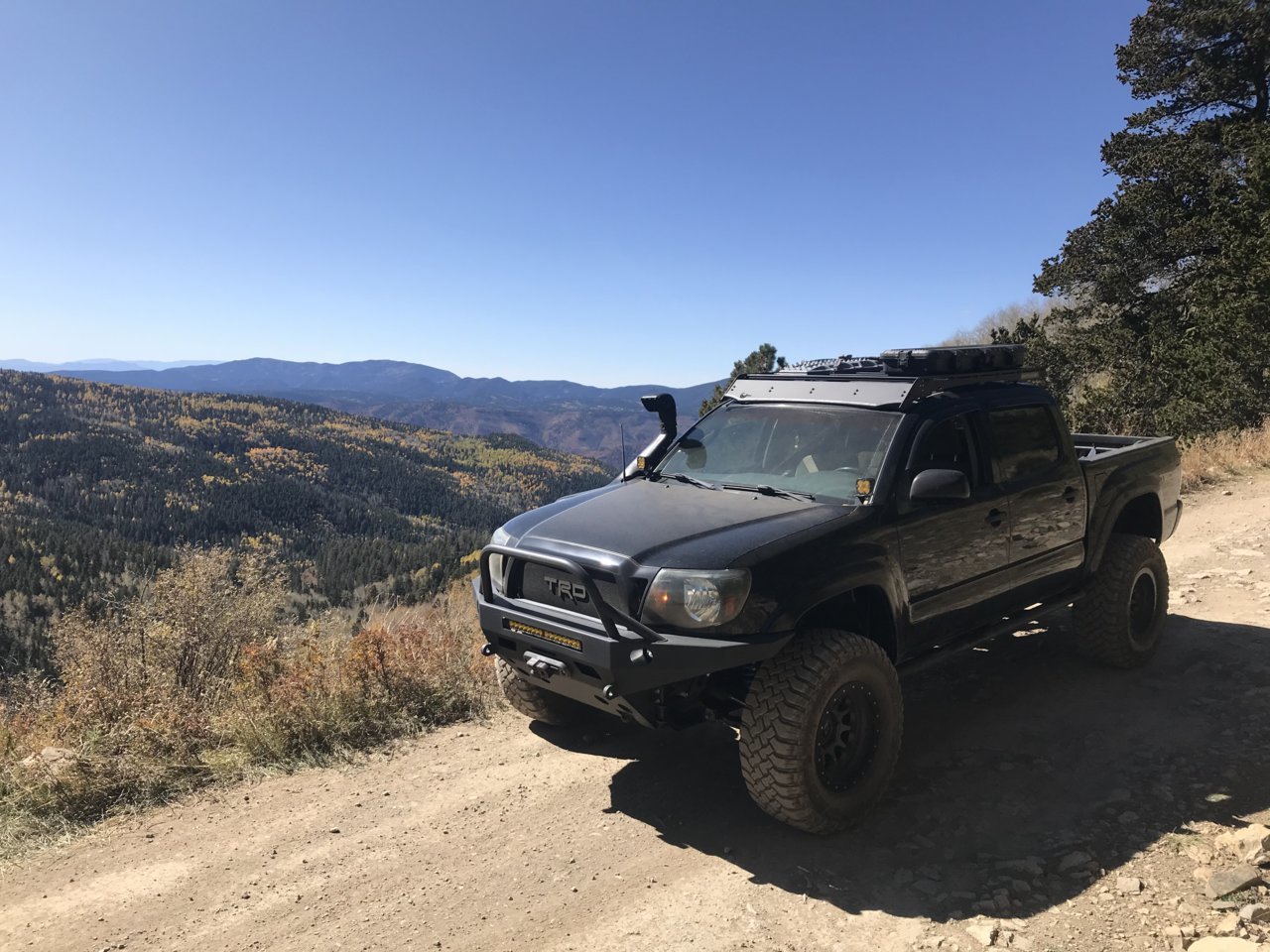

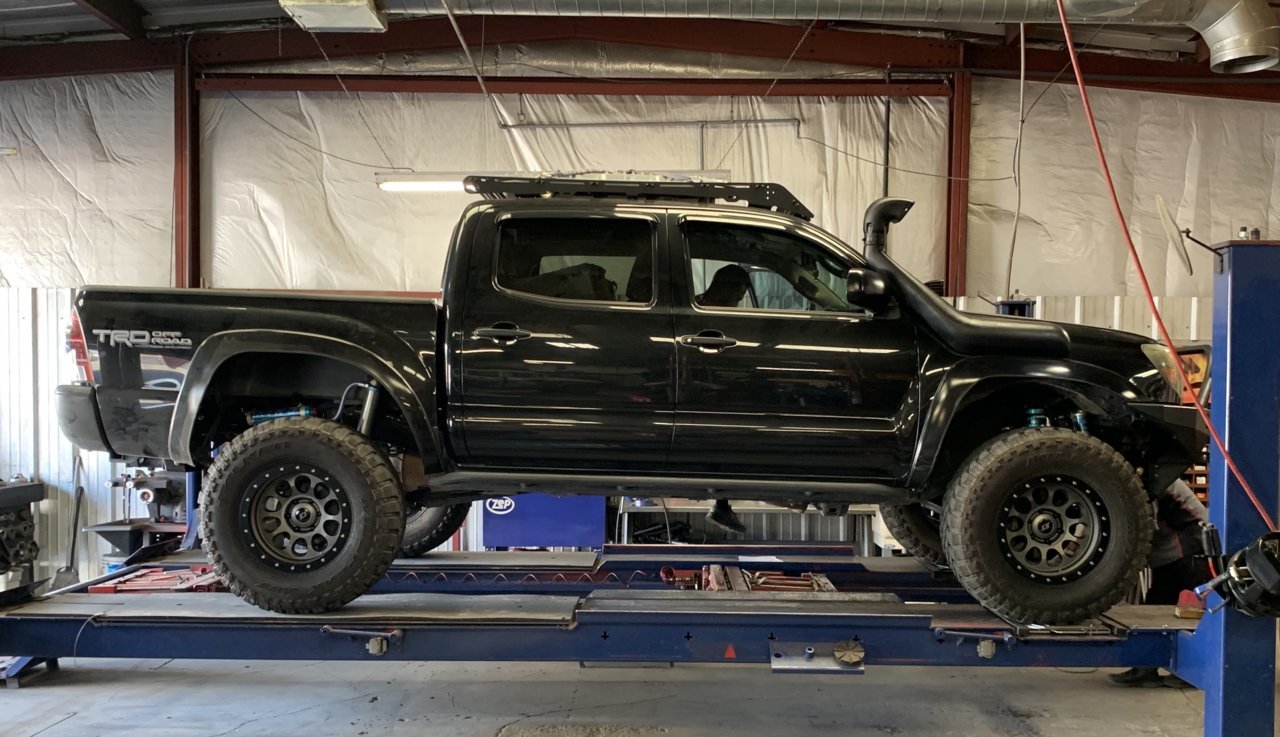

    New 3.5bs ray 10’s to clear the shock body, dobinsons snorkel, rci skids and viar 450p compressor.

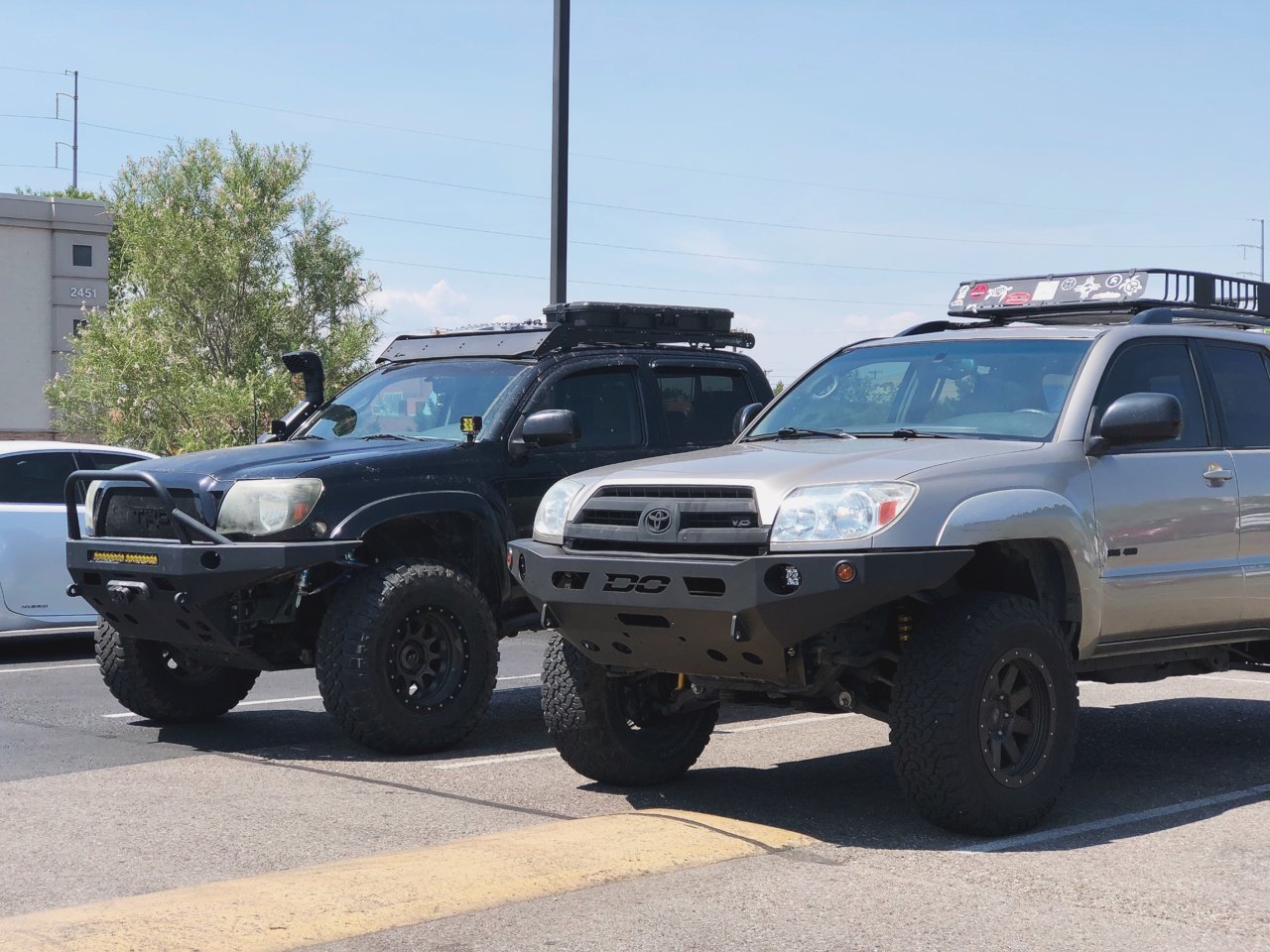

    Last but not least:
    Wife’s 4th gen v8 4runner

    It’s official

    Last edited: Sep 26, 2019
    Crikeymike and state48overland like this.
  9. Sep 26, 2019 at 7:37 AM
    #9
    truckdoggirl

    truckdoggirl Well-Known Member

    Joined:
    Jan 31, 2019
    Member:
    #281337
    Messages:
    99
    Gender:
    Female
    First Name:
    Kim
    New England
    Vehicle:
    2015 DCLB V6 Barcelona Red TRD Sport
    What a cool camping setup!

    smw62891 [OP] likes this.
  10. Nov 9, 2019 at 6:28 PM
    #10
    kgarrett11

    kgarrett11 Master Yoda

    Joined:
    Jun 10, 2015
    Member:
    #157122
    Messages:
    3,317
    First Name:
    Garrett
    CA desert
    Vehicle:
    2015 DCLB
    Sweet build dude!

    smw62891 [OP] likes this.
  11. Nov 9, 2019 at 9:40 PM
    #11
    smw62891

    smw62891 [OP] Well-Known Member

    Joined:
    May 2, 2017
    Member:
    #218006
    Messages:
    709
    Gender:
    Male
    First Name:
    Stephen
    Santa Fe, NM
    Vehicle:
    09 Tacoma DCSB
    thanks so much! Will update the thread shortly with new plans for the taco and my 4th gen 4runner build!

  12. Nov 9, 2019 at 11:36 PM
    #12
    Matmo215

    Matmo215 Baylor ΣΑΕ

    Joined:
    Sep 15, 2016
    Member:
    #197333
    Messages:
    7,612
    Gender:
    Male
    First Name:
    Matthew
    Waco, TX
    Vehicle:
    2015 Sport DCSB
    Truck is badass man love the build, pretty much the exact route I’m going with my truck. subd

    smw62891 [OP] likes this.
  13. Nov 9, 2019 at 11:51 PM
    #13
    smw62891

    smw62891 [OP] Well-Known Member

    Joined:
    May 2, 2017
    Member:
    #218006
    Messages:
    709
    Gender:
    Male
    First Name:
    Stephen
    Santa Fe, NM
    Vehicle:
    09 Tacoma DCSB
    hell yeah! Let me know if you have any questions along the way! Look forward to seeing it and you won’t be disappointed!

    Matmo215 likes this.
  14. Nov 10, 2019 at 12:14 AM
    #14
    smw62891

    smw62891 [OP] Well-Known Member

    Joined:
    May 2, 2017
    Member:
    #218006
    Messages:
    709
    Gender:
    Male
    First Name:
    Stephen
    Santa Fe, NM
    Vehicle:
    09 Tacoma DCSB
    Few updates: got the Baja squadron sports installed and wired up.



    New year will bring 4:88’s and dual rear swingout.

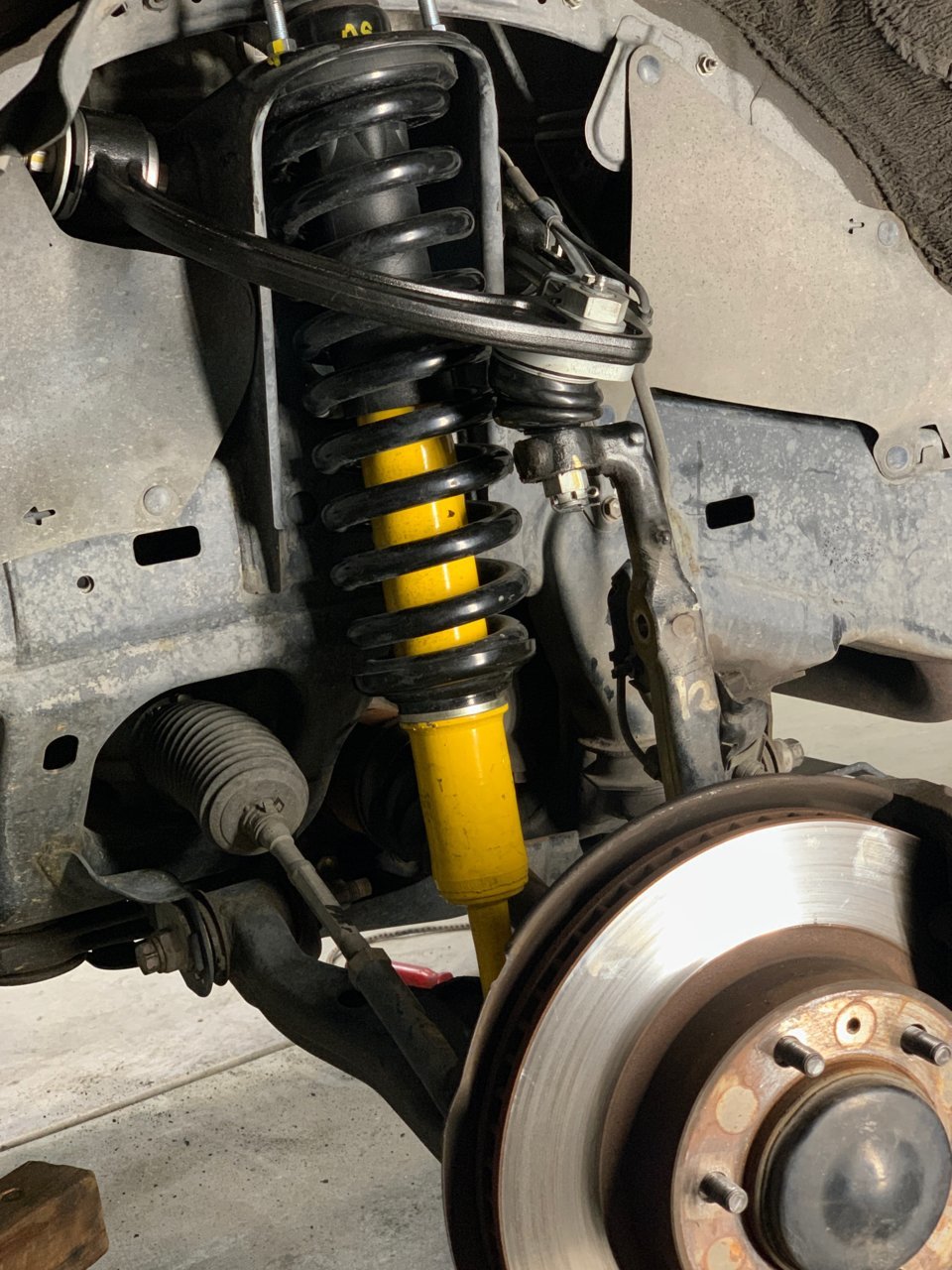

    4th gen getting some love with a full Ome kit, spc uca’s, oem lca’s and total chaos cam tab guessets!


  15. Nov 19, 2019 at 12:35 PM
    #15
    kgarrett11

    kgarrett11 Master Yoda

    Joined:
    Jun 10, 2015
    Member:
    #157122
    Messages:
    3,317
    First Name:
    Garrett
    CA desert
    Vehicle:
    2015 DCLB
    Are you still on the stock fogs?

  16. Nov 19, 2019 at 4:33 PM
    #16
    smw62891

    smw62891 [OP] Well-Known Member

    Joined:
    May 2, 2017
    Member:
    #218006
    Messages:
    709
    Gender:
    Male
    First Name:
    Stephen
    Santa Fe, NM
    Vehicle:
    09 Tacoma DCSB
    I’m running rigid “radiance” fog cubes. They have the amber backlighting. Will probably switch to baja squadrons down the road to match all my other lights. But for now they work great

    kgarrett11 likes this.
  17. Mar 21, 2020 at 10:21 AM
    #17
    smw62891

    smw62891 [OP] Well-Known Member

    Joined:
    May 2, 2017
    Member:
    #218006
    Messages:
    709
    Gender:
    Male
    First Name:
    Stephen
    Santa Fe, NM
    Vehicle:
    09 Tacoma DCSB

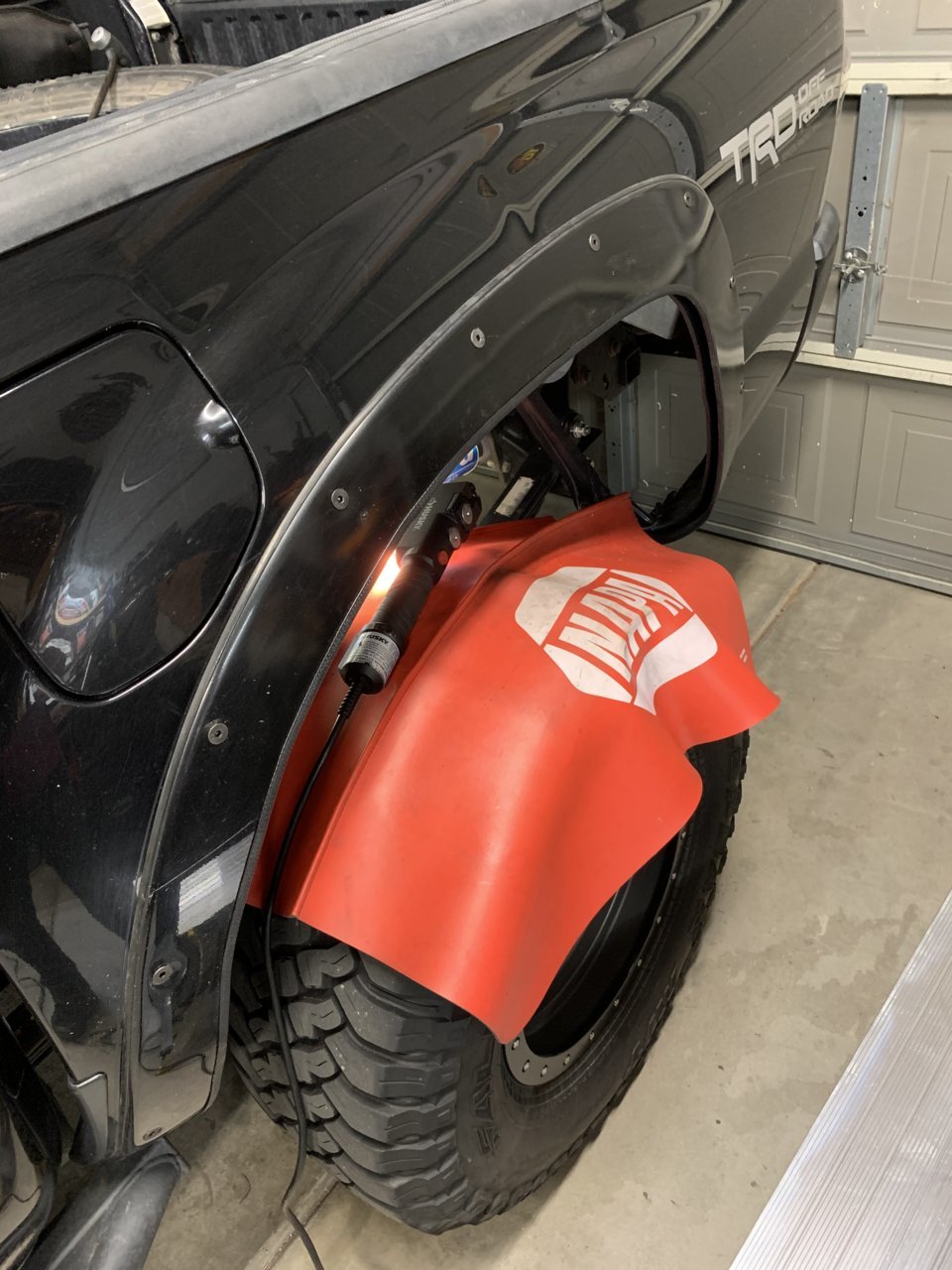

    Fenders bolted on, thanks to @Ripcord great write up. These are so solid now.


    Going to do a weld on rear diff skid next, working on getting the swingout ordered and hopefully get everything dialed for summer. Hope you all are staying safe out there with these crazy times.

    Last edited: Mar 21, 2020
    Matmo215 likes this.
  18. Mar 22, 2020 at 11:21 AM
    #18
    Ripcord

    Ripcord KM6PIM

    Joined:
    Mar 31, 2011
    Member:
    #54120
    Messages:
    1,457
    First Name:
    Jim
    Parker, Colorado
    Vehicle:
    Spruce Mica 2013 TRD-OR
    very nice!

    smw62891 [OP] likes this.
  19. Apr 28, 2020 at 10:20 AM
    #19
    smw62891

    smw62891 [OP] Well-Known Member

    Joined:
    May 2, 2017
    Member:
    #218006
    Messages:
    709
    Gender:
    Male
    First Name:
    Stephen
    Santa Fe, NM
    Vehicle:
    09 Tacoma DCSB

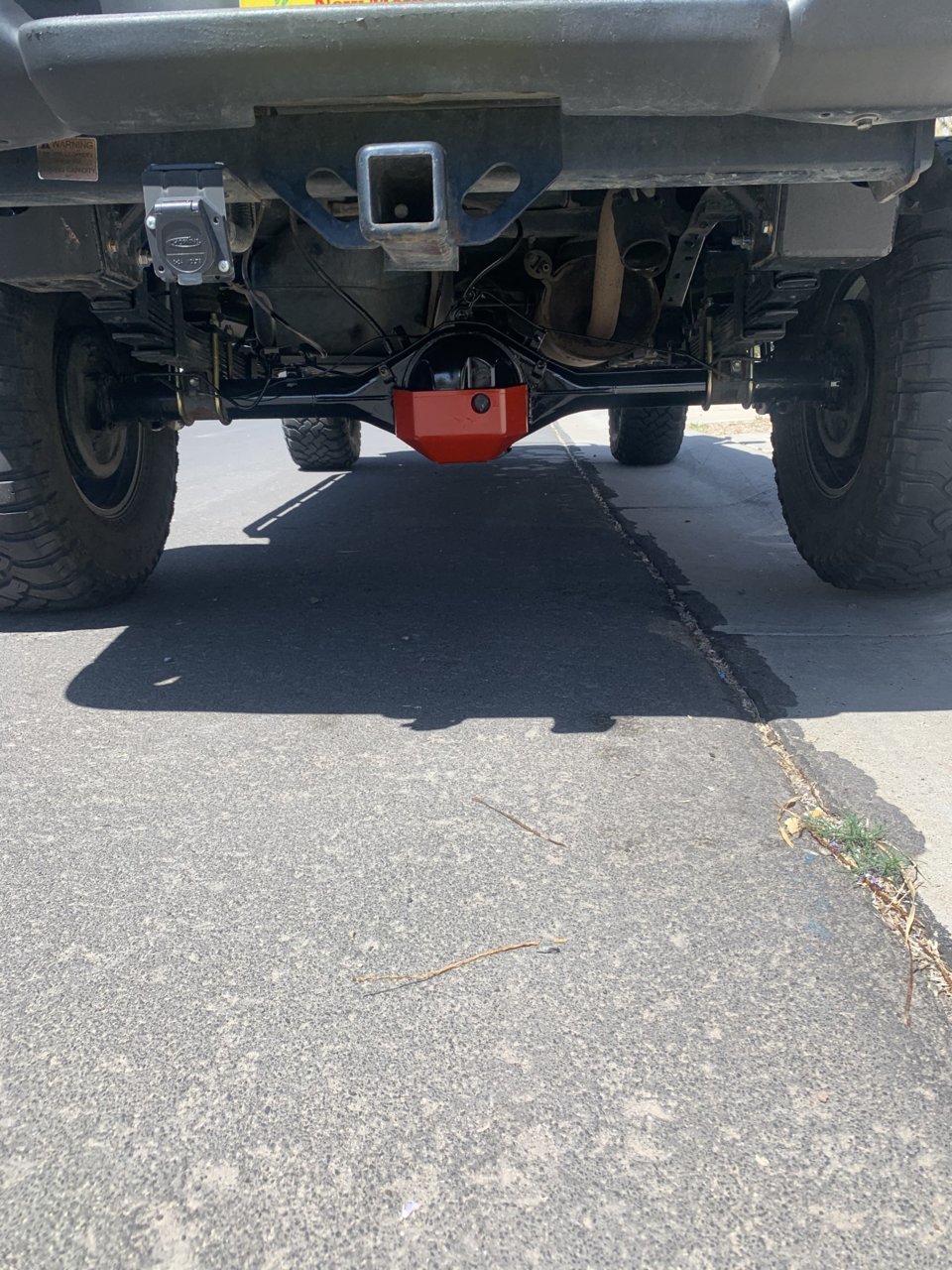

    Switched up the uca’s to spc. Love the adjustability! Got my rear diff skid welded on as well!


    state48overland and Matmo215 like this.
  20. May 20, 2020 at 4:44 PM
    #20
    smw62891

    smw62891 [OP] Well-Known Member

    Joined:
    May 2, 2017
    Member:
    #218006
    Messages:
    709
    Gender:
    Male
    First Name:
    Stephen
    Santa Fe, NM
    Vehicle:
    09 Tacoma DCSB

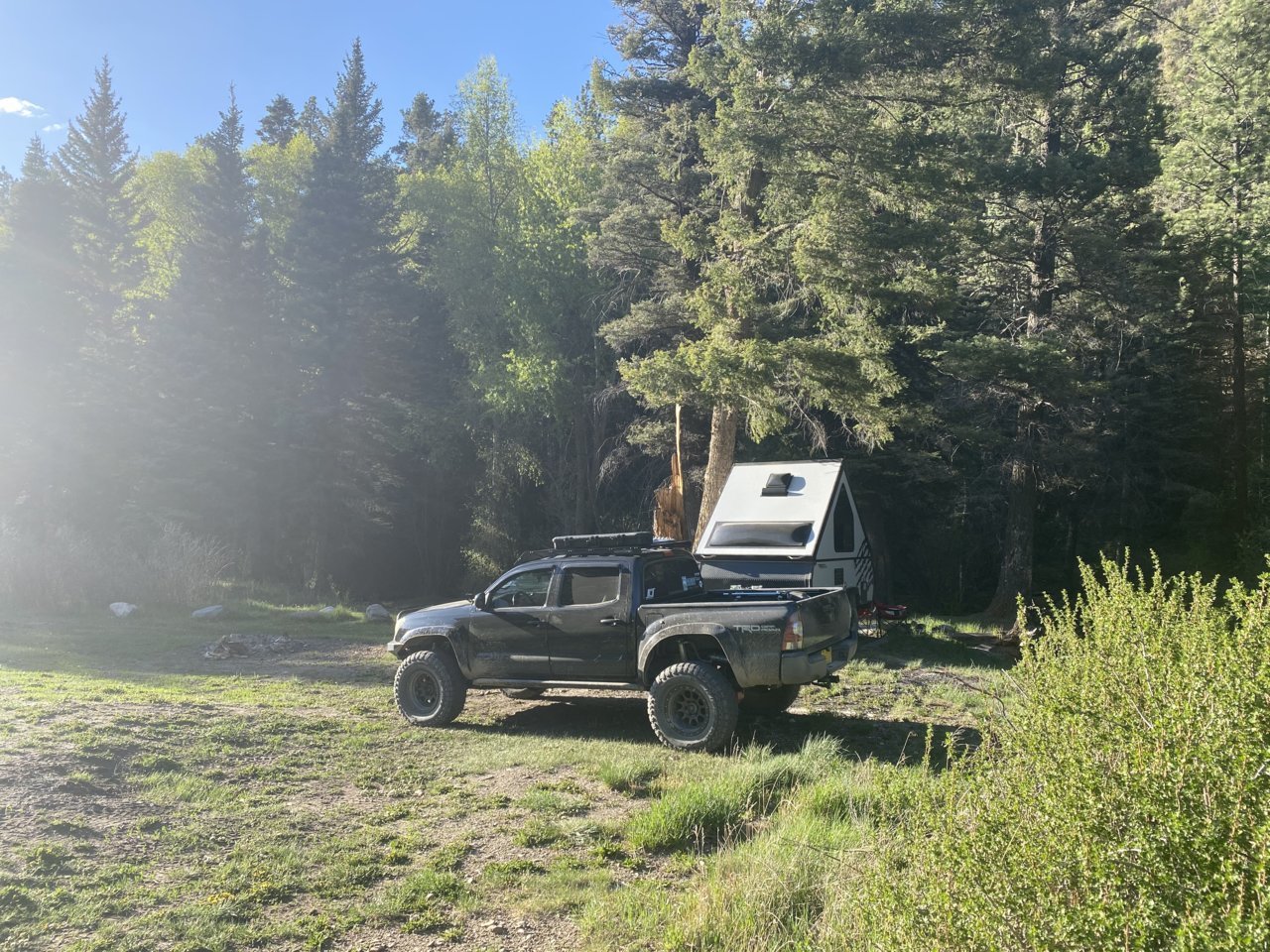

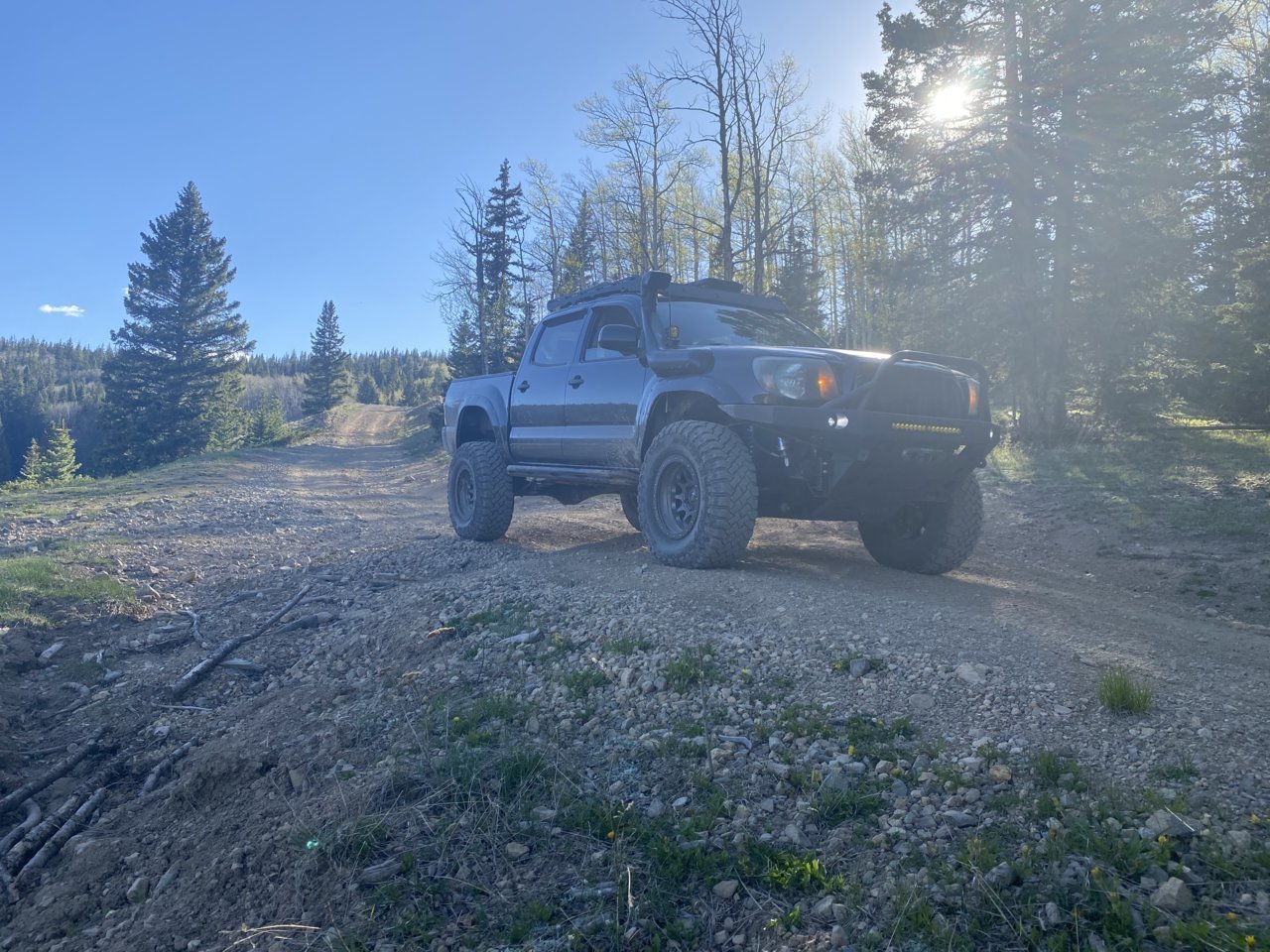

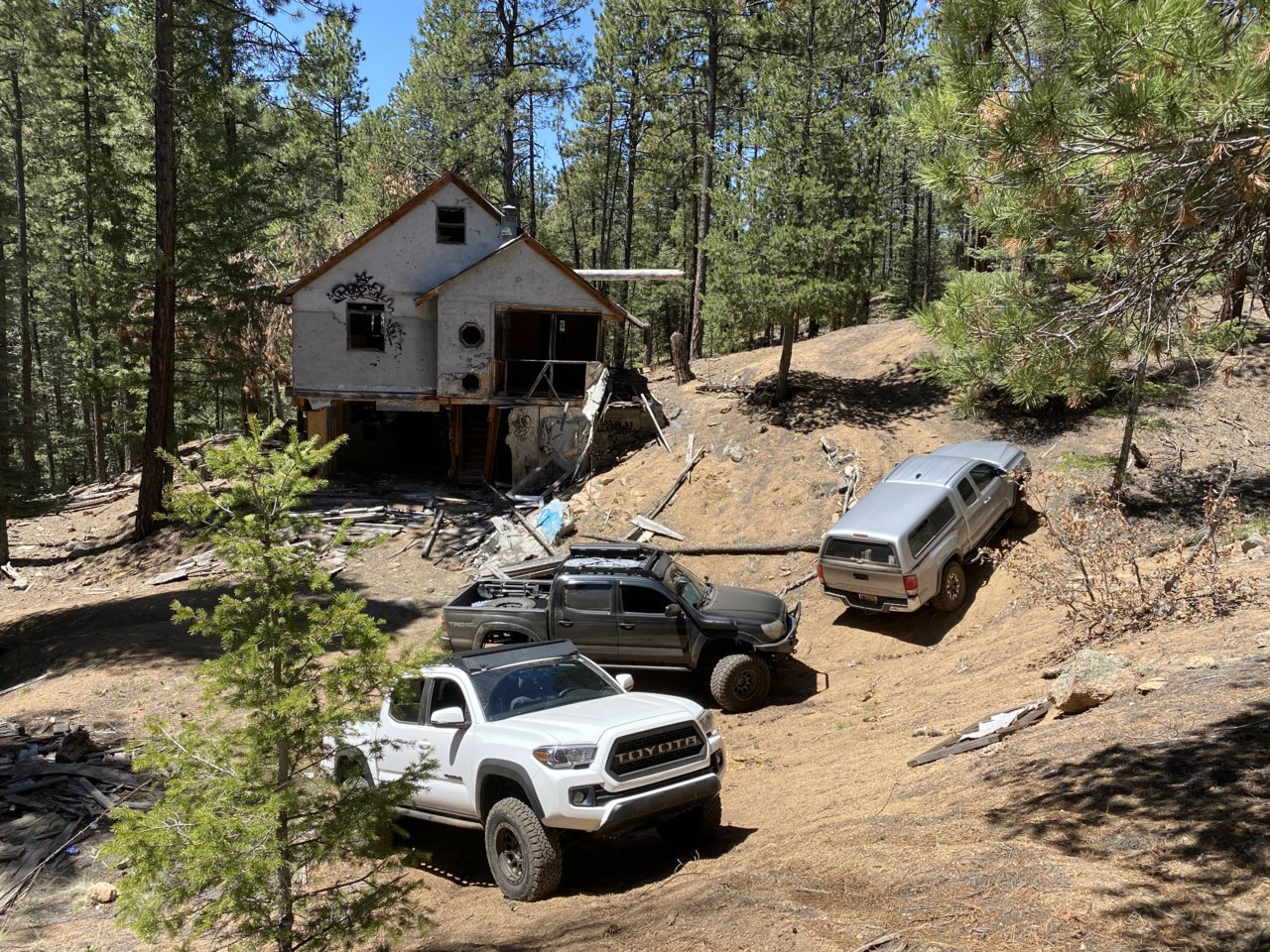

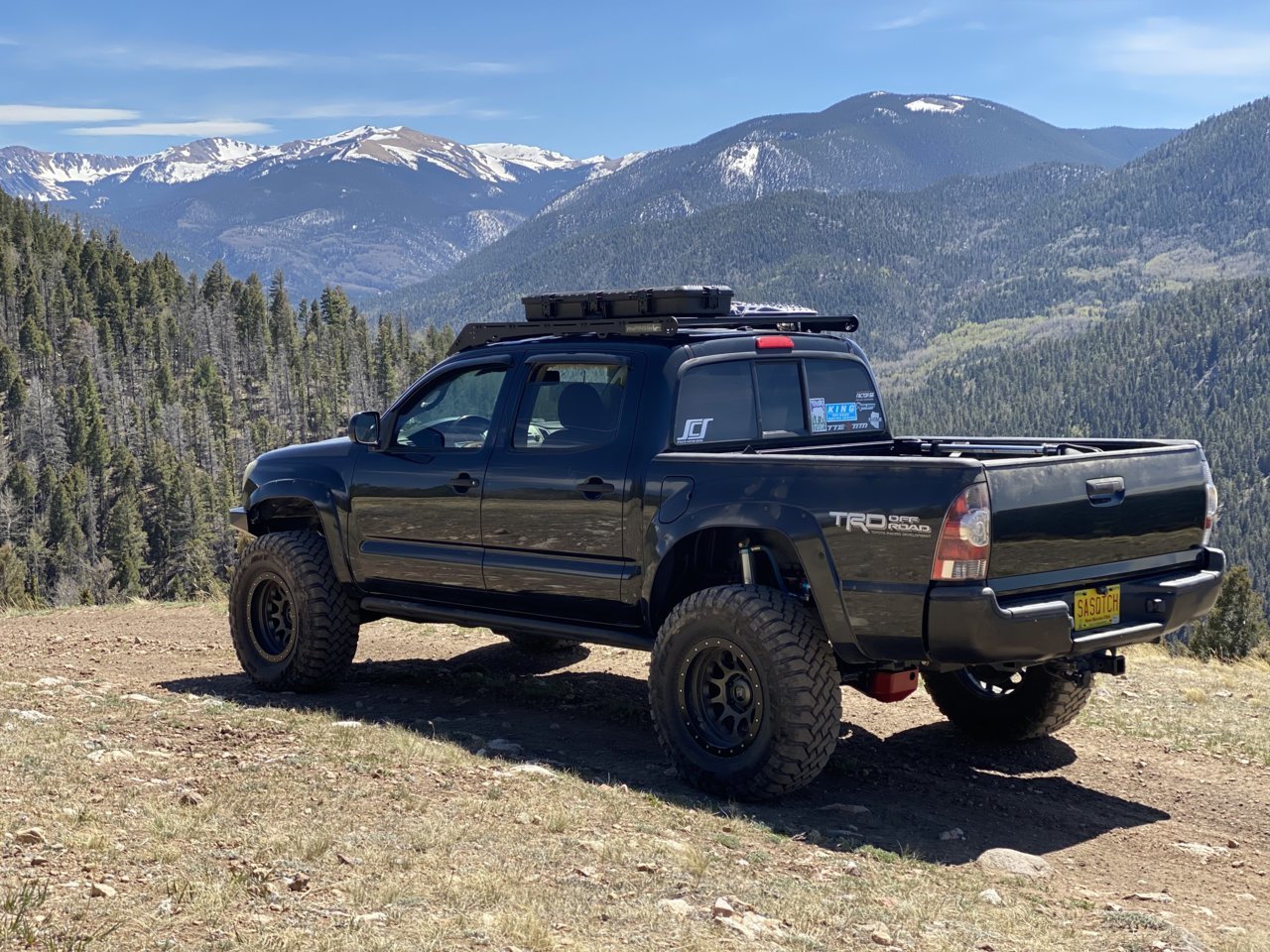

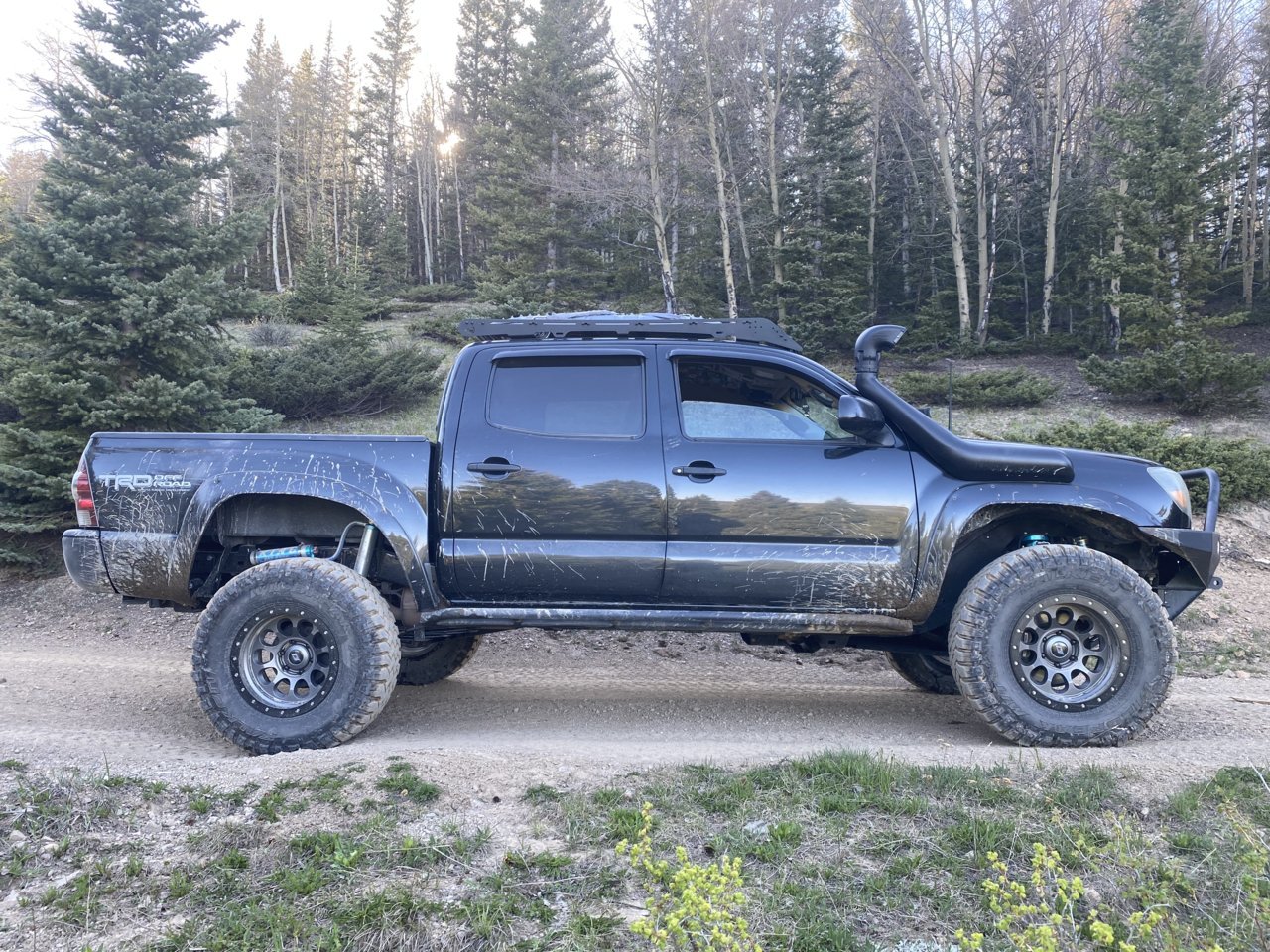

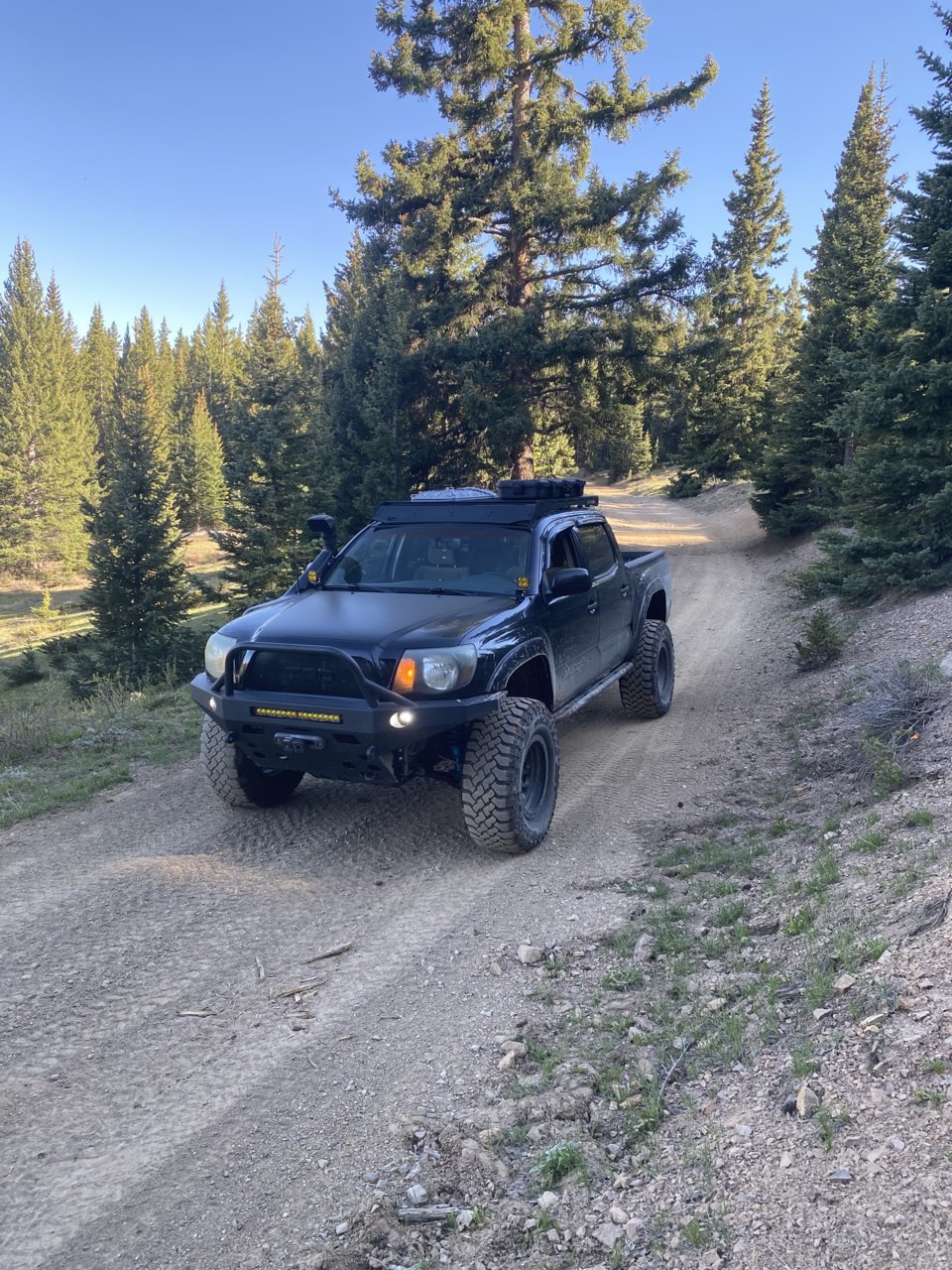

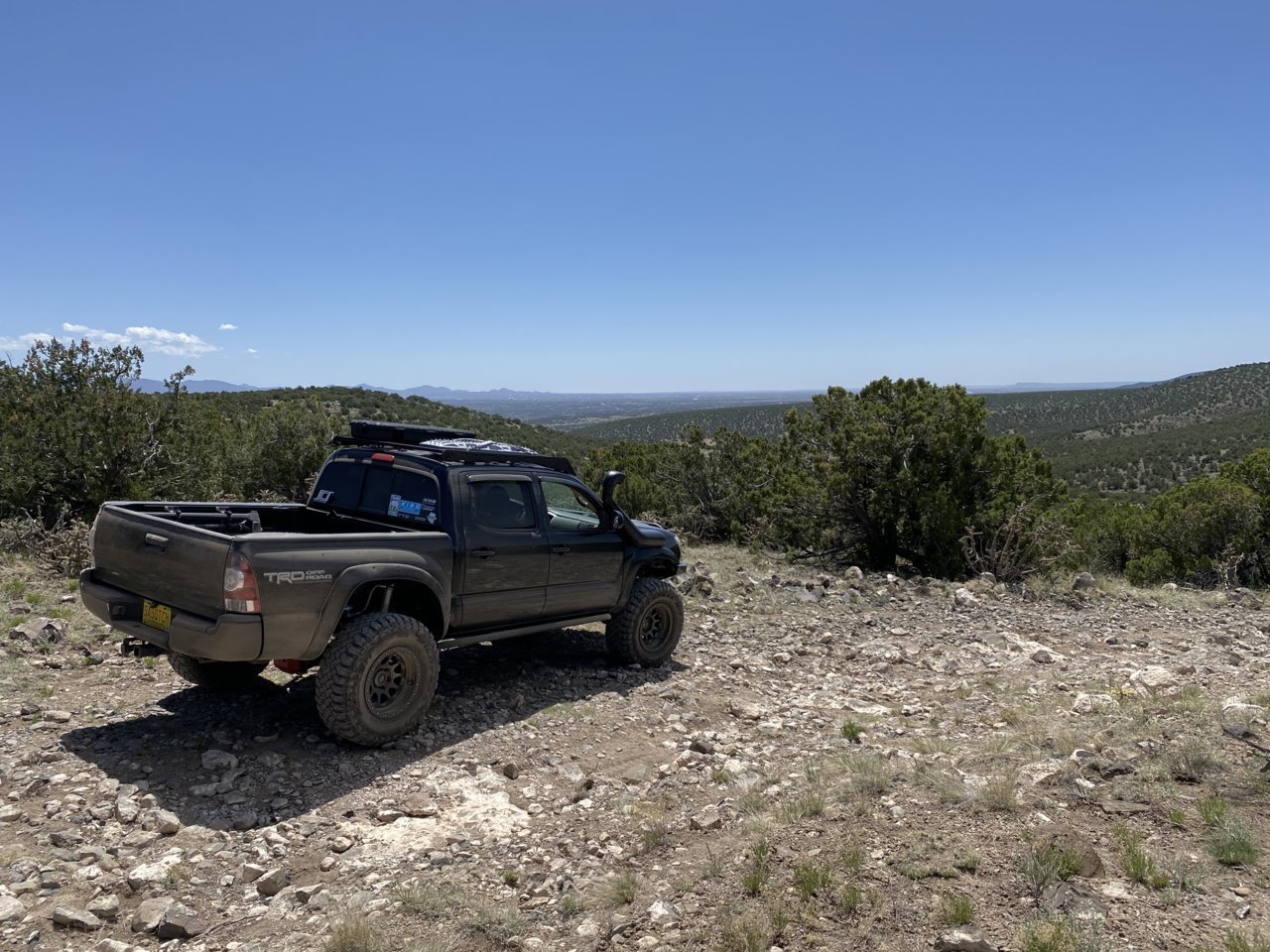

    Have been out enjoying the truck lately and wanted to share some pics.


    Taco4Jaco, Ripcord and Matmo215 like this.
