So you push your 1st gen offroad - what cracks next?

Discussion in '1st Gen. Tacomas (1995-2004)' started by Squeaky Penguin, Sep 27, 2019.

  1. Sep 28, 2019 at 1:25 PM
    #21
    JKO1998

    JKO1998 Well-Known Member

    Joined:
    Jun 2, 2015
    Member:
    #156578
    Messages:
    51,030
    Gender:
    Male
    Utah
    Vehicle:
    Silver 07 4.0 V6 4X4 Cement 18 3.5 V6 4x4
    Puts solo LCAS in cart*

    eimkeith likes this.
  2. Sep 28, 2019 at 1:34 PM
    #22
    Squeaky Penguin

    Squeaky Penguin [OP] Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    9,780
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
    FTFY

    JKO1998[QUOTED] and Blackdawg like this.
  3. Sep 28, 2019 at 1:47 PM
    #23
    jubei

    jubei would rather be doing something else

    Joined:
    Mar 17, 2016
    Member:
    #181549
    Messages:
    5,952
    Gender:
    Male
    First Name:
    Jason
    NoCo
    Vehicle:
    White 2002 XC TRD and Yellow 1971 JEEP CJ5
    Stuff. Also things.
    This with an FJ/FZJ80 rear full-floater would be pretty rad.

    970btu likes this.
  4. Sep 28, 2019 at 1:54 PM
    #24
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    80,783
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    The Trifecta of Taco's
    ALL OF THEM!...Then some more.
    I'd rather a 9" Ford I think with a custom housing.

  5. Sep 28, 2019 at 2:57 PM
    #25
    JKO1998

    JKO1998 Well-Known Member

    Joined:
    Jun 2, 2015
    Member:
    #156578
    Messages:
    51,030
    Gender:
    Male
    Utah
    Vehicle:
    Silver 07 4.0 V6 4X4 Cement 18 3.5 V6 4x4
    Just sas

    pontoon and Ritchie like this.
  6. Sep 28, 2019 at 3:16 PM
    #26
    Squeaky Penguin

    Squeaky Penguin [OP] Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    9,780
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build

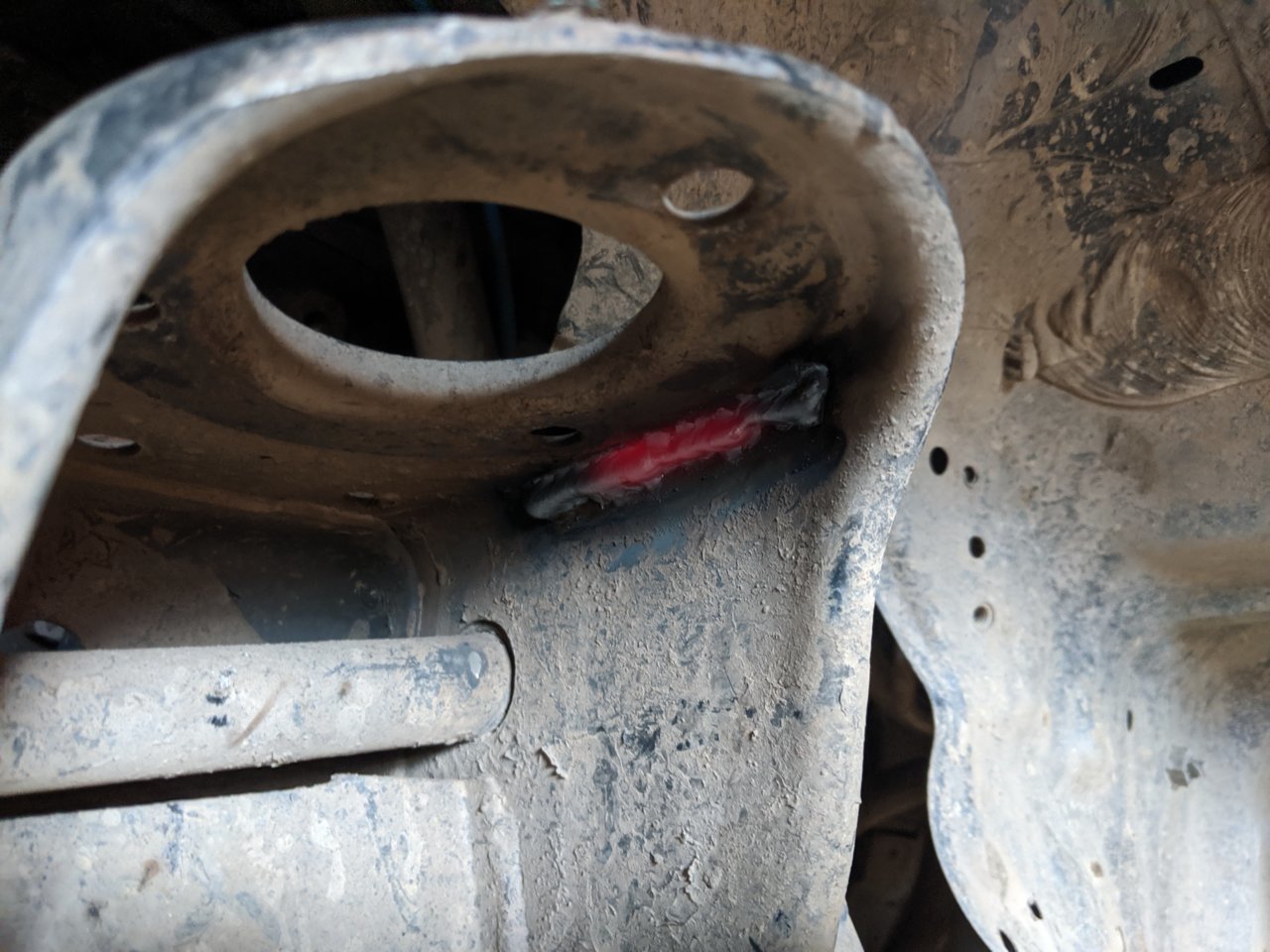

    Nice and hot weld for the coilbucket. Will keep a close eye on this one.


    QMEDJoe, jubei, 970btu and 1 other person like this.
  7. Sep 28, 2019 at 3:31 PM
    #27
    970btu

    970btu Well-Known Member

    Joined:
    Mar 10, 2018
    Member:
    #246902
    Messages:
    462
    Gender:
    Male
    First Name:
    Ty
    Las Vegas
    Vehicle:
    99 Tacoma 3.4 5spd ext limited TRD 55K and counting
    OME, SPC UCA, ARB w/warn 10K winch, TG Rock Defense Rear, Marlin Clutch, Custom hi clearance under bed spare mount. 285/75/16. A ton of repairs done and a list up to come modifications.
    another user had a front coil spring support issue https://www.tacomaworld.com/threads/broken-coil-bucket-tower.432018/ (I did not read the thread) but I did have this bookmarked
    https://www.metaltech4x4.com/total-...ussets-1996-2004-tacoma-1996-2002-4runner-pr/
    https://www.yotamasters.com/shop/su...chaos-96-04-tacoma-upper-coil-bucket-gussets/
    [​IMG] [​IMG] i dont think it will help with the top. you could probably fab any of this yourself seeing the picture of that core support you made, nice!




    Looks like the rear axle cracks are an issue https://www.pirate4x4.com/forum/toy...e-rear-axle-housing-cracks-repair-method.html has the same problem as you

    Squeaky Penguin[OP] likes this.
  8. Sep 28, 2019 at 3:42 PM
    #28
    Squeaky Penguin

    Squeaky Penguin [OP] Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    9,780
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
    I've had those total chaos coil bucket gussets in since the start of 2017. I'm sure they help, but I still cracked it.

    970btu likes this.
  9. Sep 28, 2019 at 3:47 PM
    #29
    Dirty Pool

    Dirty Pool FLIES ON THE FRIES, KETCHUPS WATERED DOWN

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    2,266
    Gender:
    Male
    59.4 Miles, 56.67° NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD
    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, PCV catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, 01 Center console, Map lights, Disraeli gears
    Let me gaze into the crystal ball.
    [​IMG]

    Given the abuse, it all looks fairly fairly normal with the exception of the rear spring perch. Usually u-bolt flips cause cracking on the bottom of the axle tube under the u-bolt from the point load.

    Cracks like to develop along the cab back/floor seam.

    The frame is engineered to flex to an extent from weight saving efforts. As folks add boxing or plating the flex gets focused/concentrated in new spots. One fellow was chasing cracks forward for years after boxing the rear open section. Finally the frame outright buckled in the mid section.

    The LCA rivets are definitely a potential crack site. The heads have a fairly small "contact area" and the ones that did not get centered well are worse.

    3/32" here.
    [​IMG]

    Less than 1/16" here.
    [​IMG]

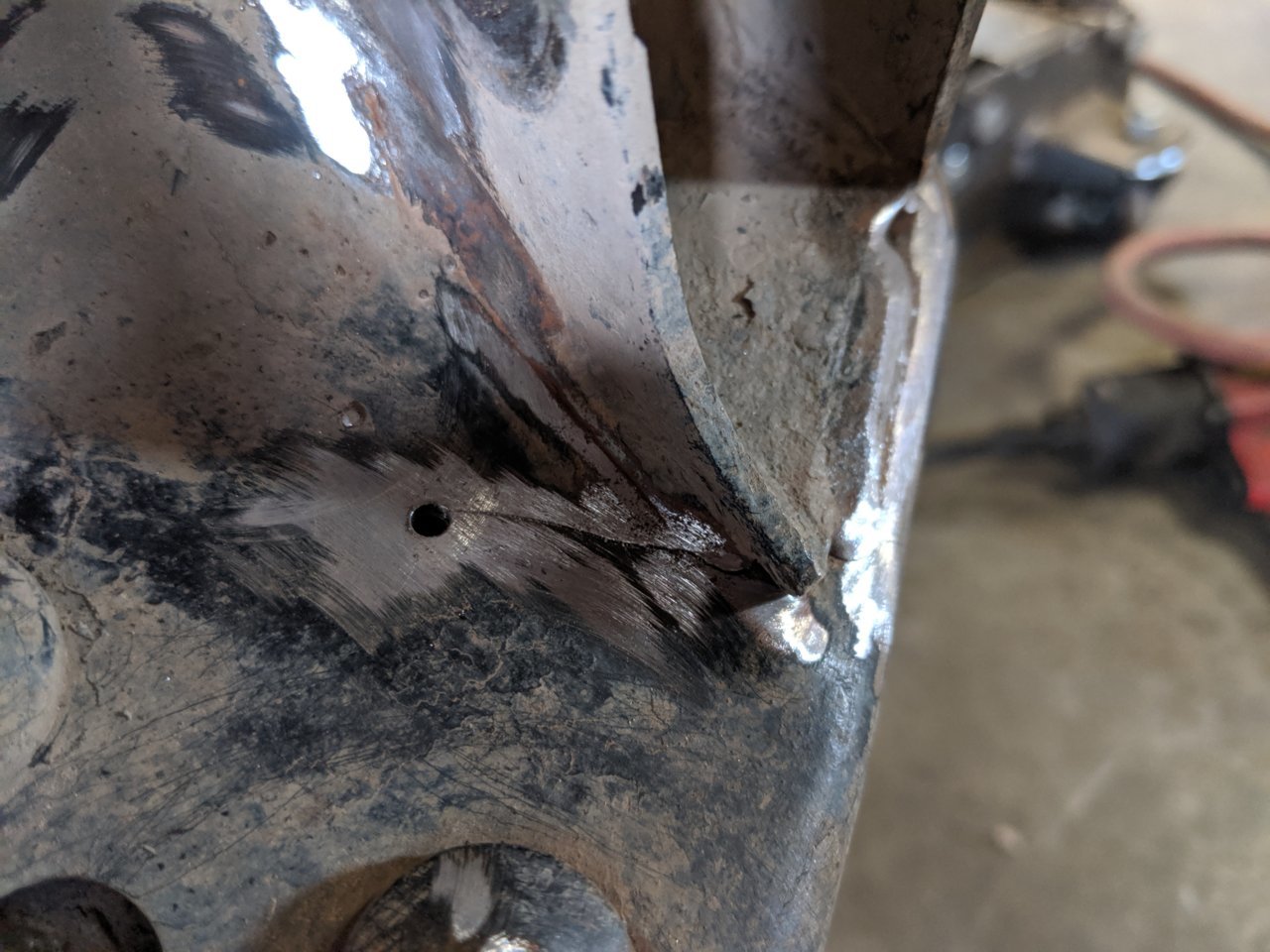

    Found that while looking into repositioning the forged LBJ mount portion forward for obvious reasons.
    The plan was, scab plates with new holes and flange nut/bolts to replace the rivets, maybe a tack or two on the fasteners. Around 1/2" forward or 2° additional caster could be gained with not too much work.
    Then I lost interest.

    ericvega, eimkeith, Reh5108 and 4 others like this.
  10. Sep 28, 2019 at 4:03 PM
    #30
    Squeaky Penguin

    Squeaky Penguin [OP] Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    9,780
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
    :cheers: Always appreciate the info.

    My rear frame is boxed, going to go give it a good look over now.

    Also, interesting idea on moving that forged piece forward for more caster.

    Reh5108 likes this.
  11. Sep 28, 2019 at 4:08 PM
    #31
    970btu

    970btu Well-Known Member

    Joined:
    Mar 10, 2018
    Member:
    #246902
    Messages:
    462
    Gender:
    Male
    First Name:
    Ty
    Las Vegas
    Vehicle:
    99 Tacoma 3.4 5spd ext limited TRD 55K and counting
    OME, SPC UCA, ARB w/warn 10K winch, TG Rock Defense Rear, Marlin Clutch, Custom hi clearance under bed spare mount. 285/75/16. A ton of repairs done and a list up to come modifications.

    Humm after reading all the bent rear frame stories for first gens, I boxed mine.
    Now something else to think about.
    Oh well. I think I would rather some cracks to keep an eye out for and patch rather than trying to straighten a frame.
    Thanks for the heads up

  12. Sep 28, 2019 at 4:26 PM
    #32
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    80,783
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    The Trifecta of Taco's
    ALL OF THEM!...Then some more.
    The solo stock lca replacements push the lbj mount forward an inch. One the the reasons I got them. They have other draw backs though..

    Interesting about the frame flexing more in areas after reinforcement of other areas.

    Apparently we need to just box the whole frame haha

  13. Sep 28, 2019 at 5:21 PM
    #33
    mlcc

    mlcc Well-Known Member

    Joined:
    May 2, 2015
    Member:
    #154429
    Messages:
    1,798
    Gender:
    Male
    Oregon
    Vehicle:
    2002 DC TRD/ 1990 4runner
    Lights, 3in lift, tires/ wheels, being awesome
    Kinda makes me want to look mine over ive been to the dunes alot lately with my truck, and Wheeled it pretty hard, I looked it over but I didnt looks for cracks, this thread is making me paranoid.

  14. Sep 28, 2019 at 6:27 PM
    #34
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,078
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Washboard roads are the killer of the coil buckets.

    Last edited: Sep 28, 2019
  15. Sep 28, 2019 at 6:36 PM
    #35
    Squeaky Penguin

    Squeaky Penguin [OP] Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    9,780
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
    1st post updated with links to each thing, and added a post on motor mount perches.

    I assumed it was topping out the shocks hard that was starting the cracks. I.E. getting the front tires in the air. Also I'm sure significantly heavier coils than stock (I run 650lb) aren't helping.

    I do drive lots of washboard roads though.

    eimkeith and 970btu like this.
  16. Sep 28, 2019 at 7:10 PM
    #36
    squarenut

    squarenut Well-Known Member

    Joined:
    Apr 6, 2017
    Member:
    #215558
    Messages:
    76
    Gender:
    Male
    First Name:
    russell
    FALLBROOK
    Vehicle:
    1995 single cab taco
    Time for inspection :welder: Thanks for the heads up.

  17. Oct 1, 2019 at 9:31 PM
    #37
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    23,042
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 SCv6 AutoTrans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Black 17x8 Konig Countersteer Type X 285/70r17 Falken A/T3w Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000 Kelvin SAE Driving Lights with Clear Lenses on the Bumper Morimoto D2S Projectors XB35 Ballasts + 4300K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Dometic CFX 55im Fridge/Freezer Alpha II Hardshell RTT Badland Custom Bed Rack Denso 210-0461 105 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Magnuson MP62 Supercharger w/2.37" Pulley Haltech Elite 2000 Standalone ECU Denso 650cc Fuel Injectors Doug Thorley Headers Aeromotive Stealth 340 Fuel Pump TransGo A340F Reprogramming Shift Kit Magnaflow Hi-Flow CAT, Magnaflow 18" Muffler w/Vibrant Resonator 13WL Brake Calipers Braided Steel Brake Lines ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    I finally had a chance to get the truck up on jackstands and the wheels off. This coming weekend I hope to clean it up good to get a good look at what is under all that mud and grime.

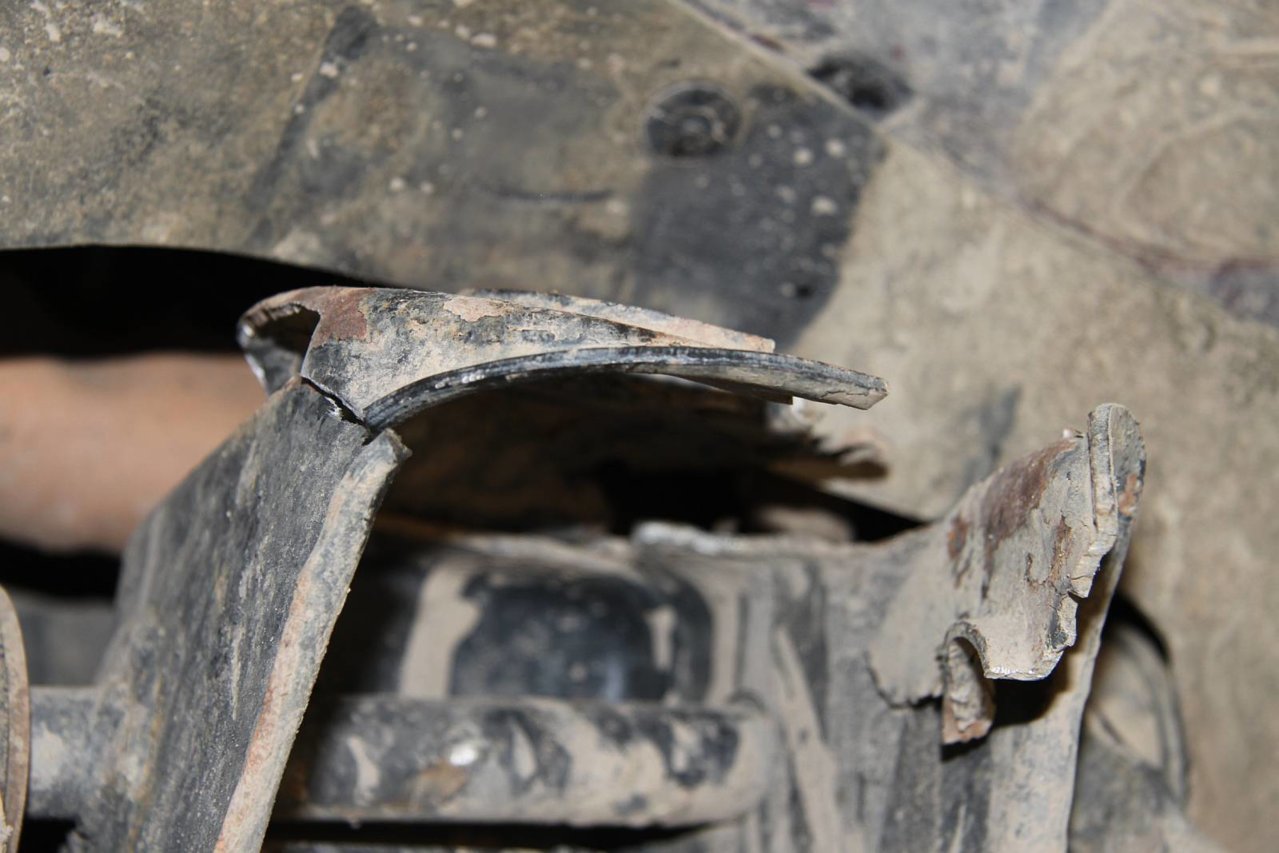

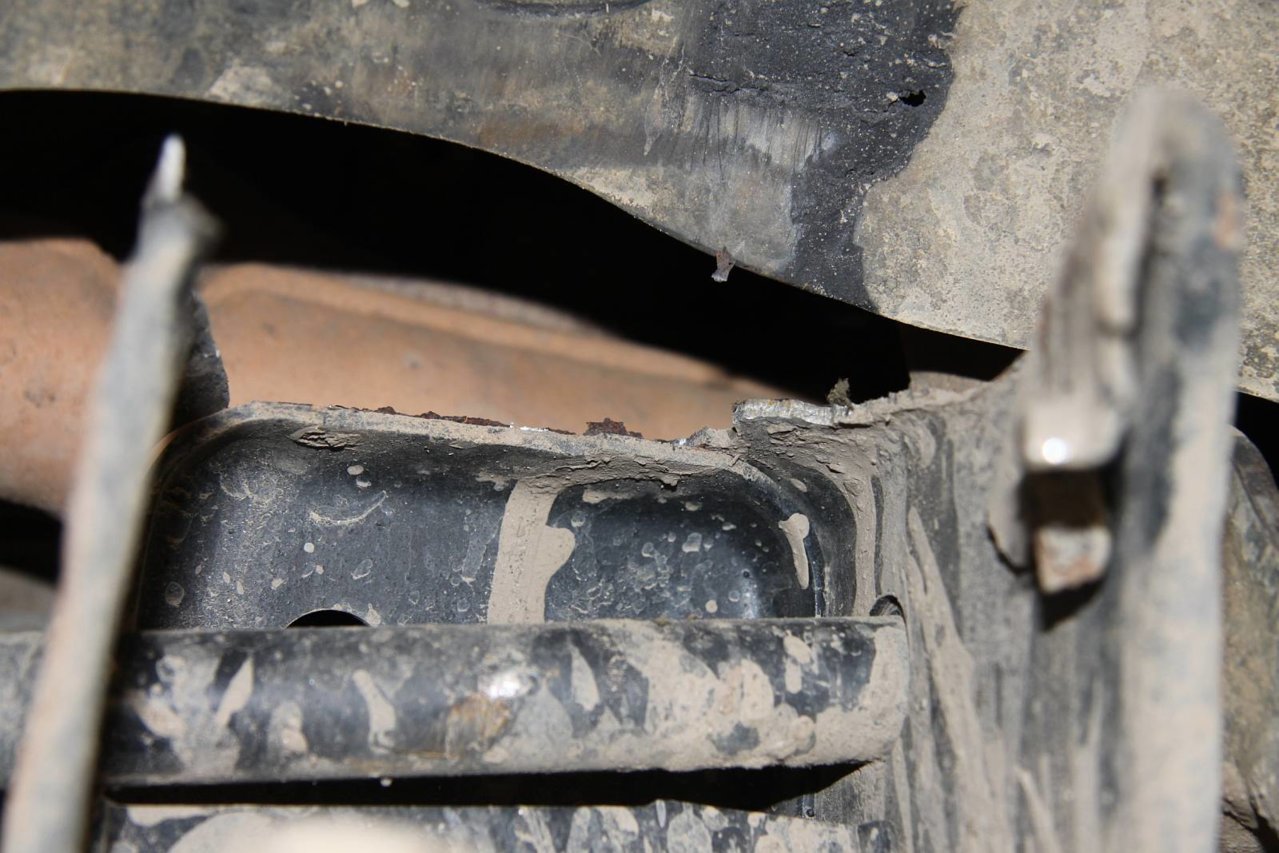

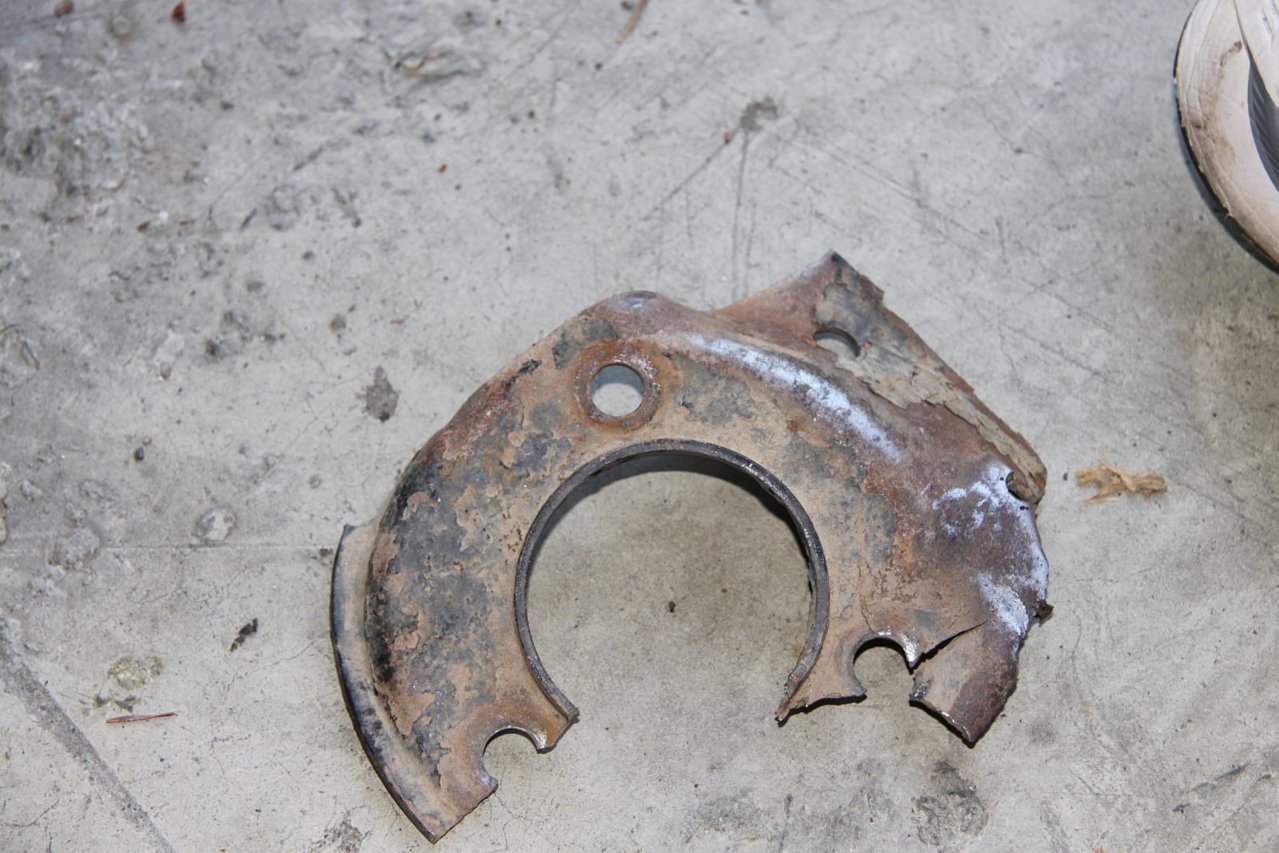

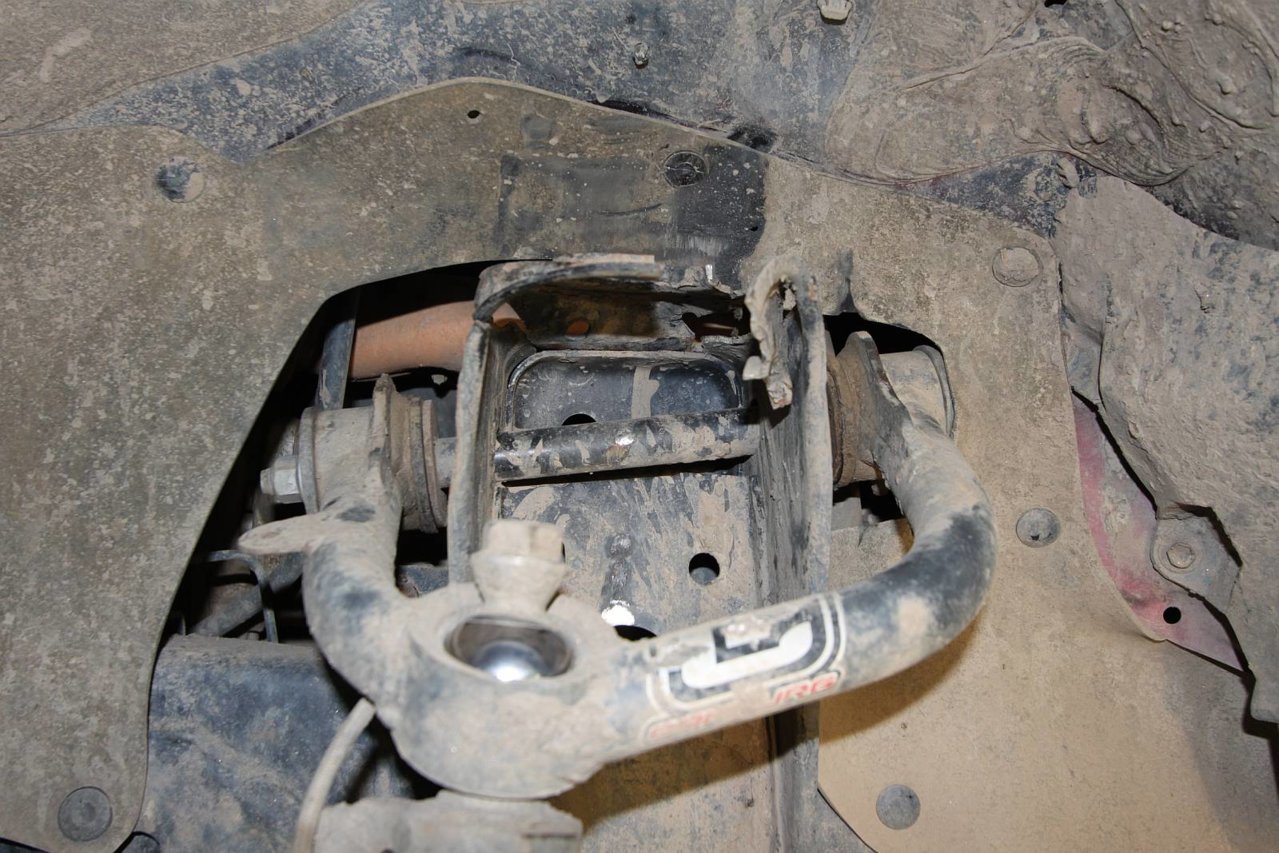

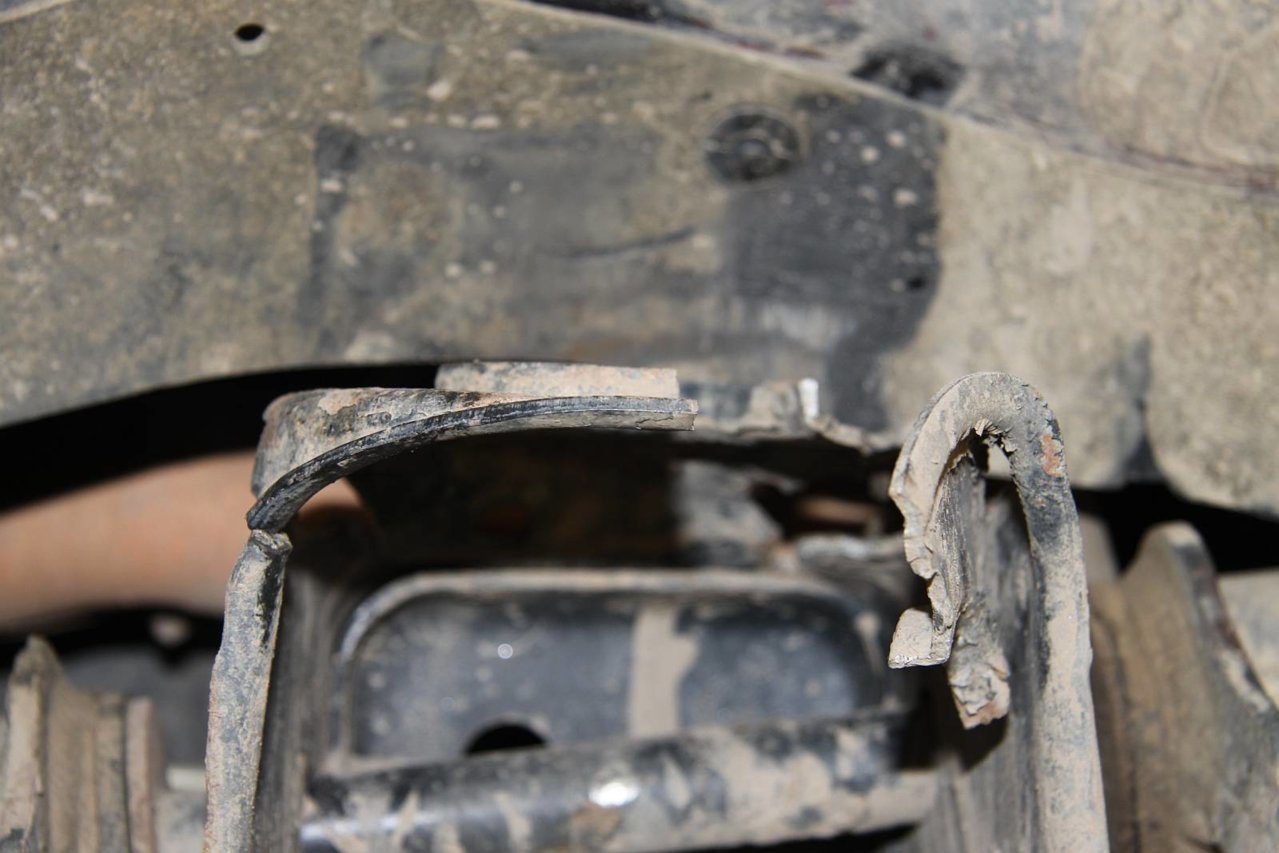

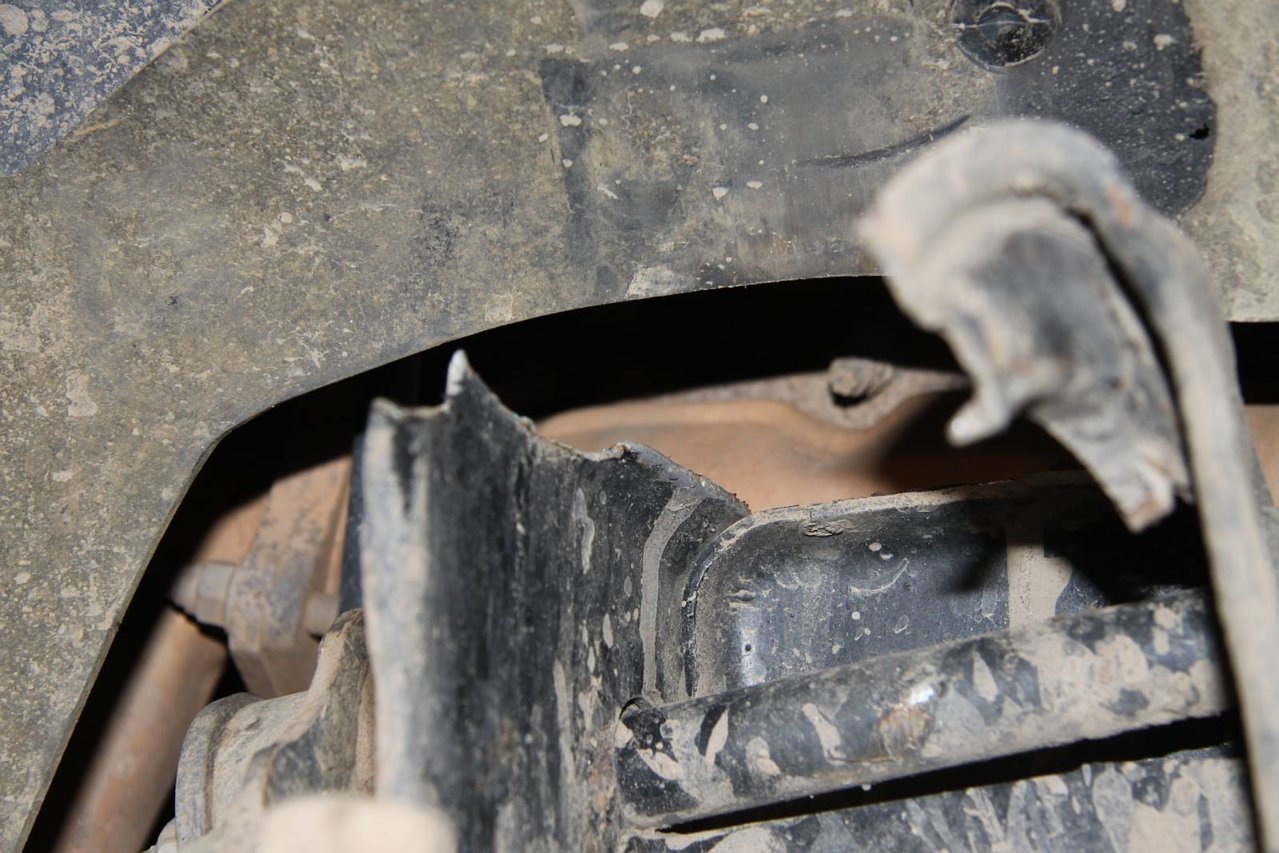

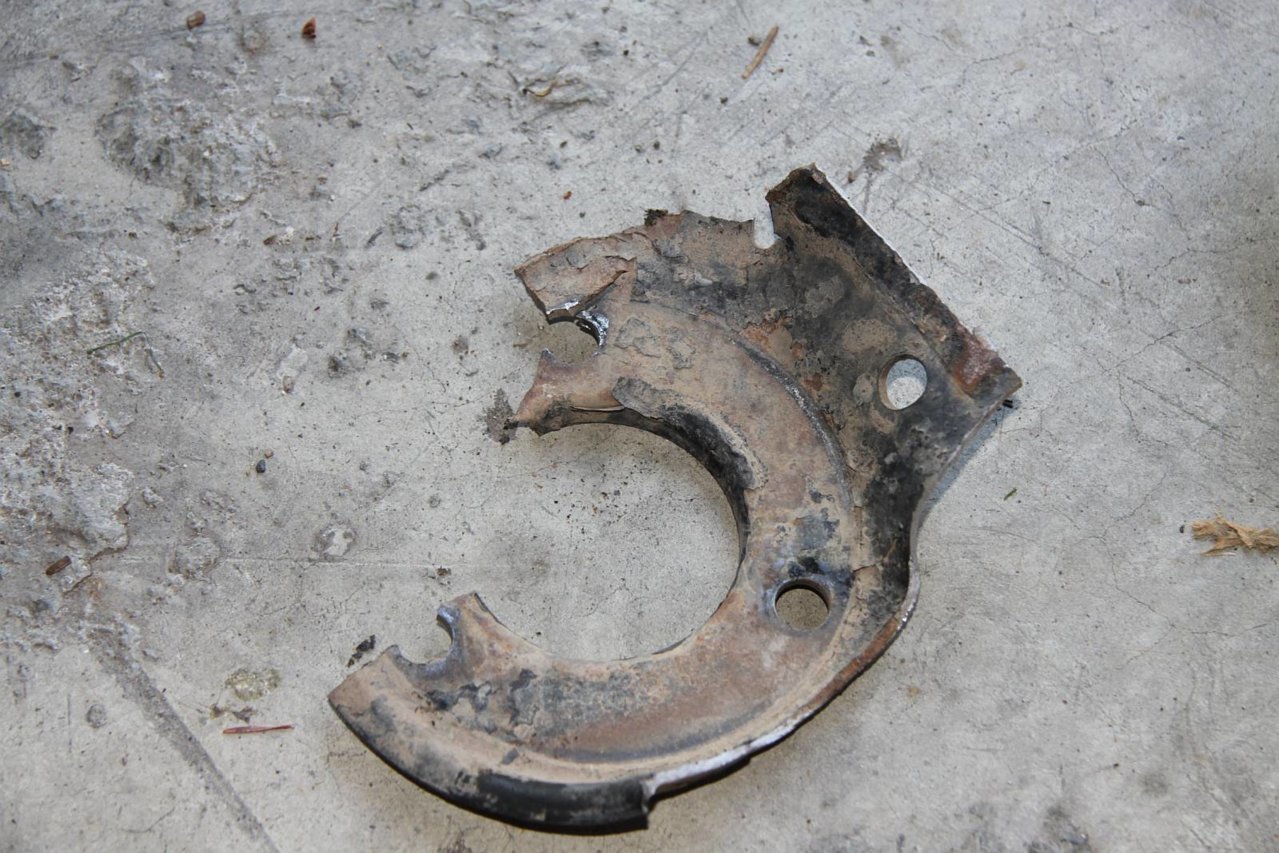

    Some pics of my coil bucket carnage:


  18. Oct 2, 2019 at 9:07 AM
    #38
    Bandido

    Bandido Engine...er

    Joined:
    Sep 4, 2017
    Member:
    #229072
    Messages:
    1,625
    Gender:
    Male
    First Name:
    Alex
    Lexington, KY
    Vehicle:
    2003 Tacoma DC
    Do you have those?

    I modified the shock mount on stock arms to run the LH side on the RH side and vice-versa. Pushed the LBJ forward about an inch and a half at neutral cam setting.

    The feel of the bump-steer on the street is a bit more than I expected when I measured it after mod, and its about the same geometry as maxed out caster setting on the LCA, but the bushing is much more compliant, when not torqued up for max caster...

    Just trying to get feedback from someone with similar geometry!

    My steering rack has noticeable play in it, and I'm trying to pin down the cause of the instability after a large pothole on the street.

  19. Oct 2, 2019 at 10:12 AM
    #39
    Squeaky Penguin

    Squeaky Penguin [OP] Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    9,780
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
    Curious if you find anything on the other coilbucket.

    Guessing it doesn't mean anything, but it's my passenger side that's cracked, and the driver side looked perfect.

  20. Oct 2, 2019 at 10:31 AM
    #40
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    23,042
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 SCv6 AutoTrans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Black 17x8 Konig Countersteer Type X 285/70r17 Falken A/T3w Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000 Kelvin SAE Driving Lights with Clear Lenses on the Bumper Morimoto D2S Projectors XB35 Ballasts + 4300K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Dometic CFX 55im Fridge/Freezer Alpha II Hardshell RTT Badland Custom Bed Rack Denso 210-0461 105 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Magnuson MP62 Supercharger w/2.37" Pulley Haltech Elite 2000 Standalone ECU Denso 650cc Fuel Injectors Doug Thorley Headers Aeromotive Stealth 340 Fuel Pump TransGo A340F Reprogramming Shift Kit Magnaflow Hi-Flow CAT, Magnaflow 18" Muffler w/Vibrant Resonator 13WL Brake Calipers Braided Steel Brake Lines ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    Ben, where exactly is that?

    Not gonna happen.
