So you want to add a DRL on/off switch?... Well, here you go!

Discussion in '2nd Gen. Tacomas (2005-2015)' started by hookem, Dec 8, 2007.

  1. Dec 8, 2007 at 6:56 PM
    #1
    hookem

    hookem [OP] Member

    Joined:
    Dec 7, 2007
    Member:
    #3749
    Messages:
    10
    Vehicle:
    08 PreRunner TRD Sport ACab, Dual Borla, Skid Plate, Tube Steps, Leather
    TRD 4.0L Supercharger, DRL On-Demand, Truxedo Lo Pro, 4ch-Amp: JL Audio 300/v2, Spkrs: Boston Acoustics Pro 60, Power Pop & Lock
    This mod adds an on/off switch to the "factory" DRL (Driving Running Lights) - For those with the "stock/factory" DRL option, or those that applied the "Factory DRL mod" as described in this DIY: http://www.toyotanation.com/forum/t176420.html

    In case you're worried, this mod does not affect the "Turn Signal" or "Hazard" lights - Everything will function as expected, and you'll simply have a way to disable/enable DRL on demand, with an On/Off switch.

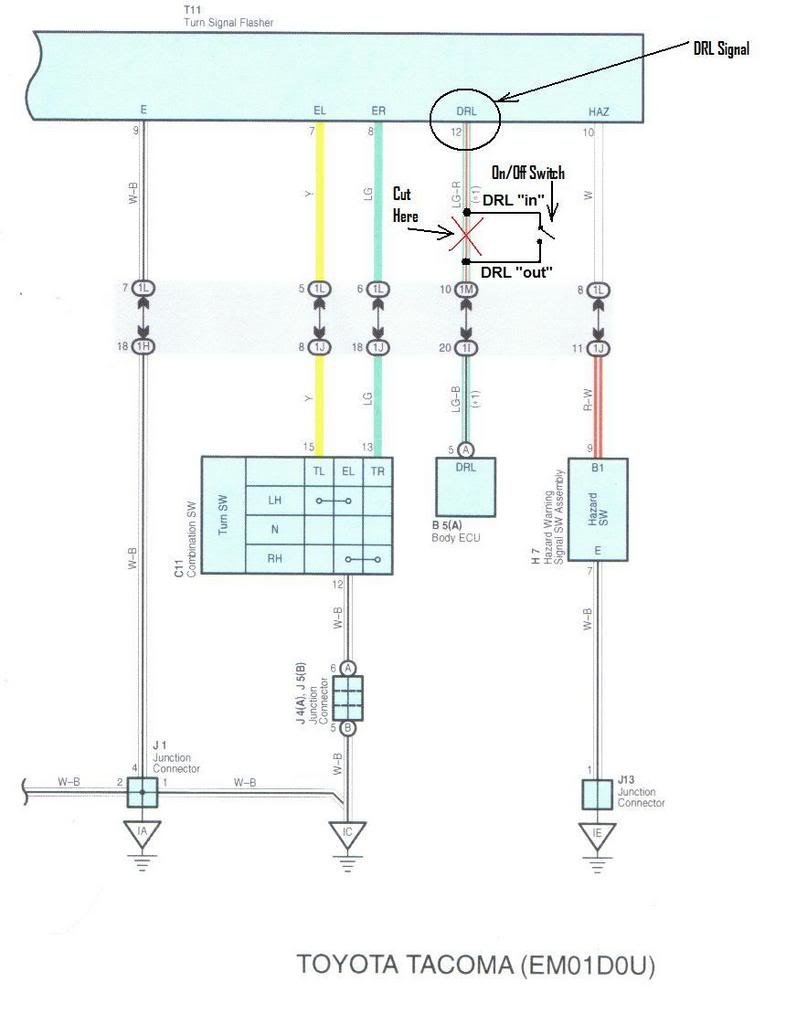

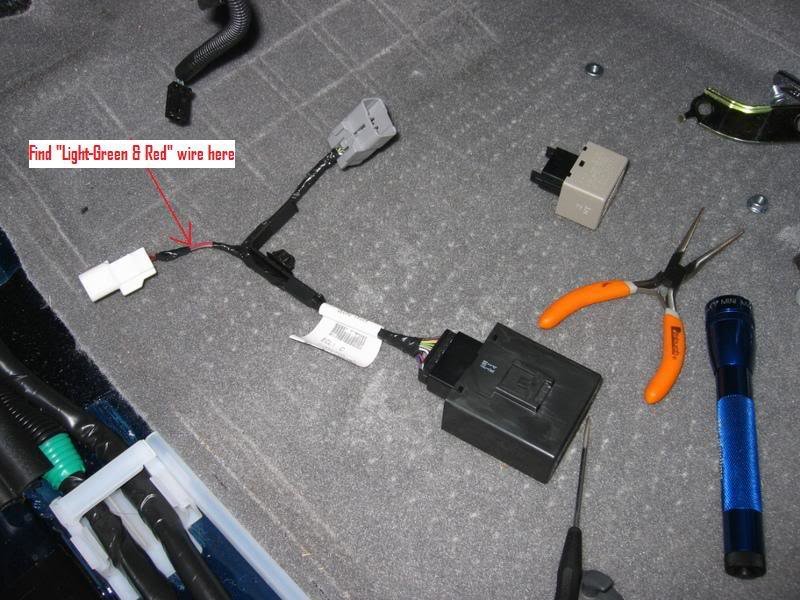

    It was actually simpler than I expected... As shown below, all you have to do is interrupt the DRL signal, which is on the "Light-Green & Red" wire of the DRL harness (harness with 2 plugs on it - Part #82241-04030), which is connected to the DRL-capable relay (Part #81980-35020). Refer to the DIY mentioned above for suplementary installation instructions.

    I hope you like this mod as much as I do.
    HookEm

    P.S.
    I used an illuminated "Fog Light" switch, installed on one of the unused in-dash slots.
    The two OEM-switch options I can suggest are:
    1) Older Tacoma switch: Part#00550-35976 ($6.98)
    http://www.rallylights.com/hella/switches_illuminated_rocker.asp

    2) 05+ Tacoma switch: you'll need 3 part #'s:
    Fog Light Switch - #84160-04010 ($35.88)
    Connector Housing - #90980-11090 ($2.63)
    Wires for Connector - #82998-12340 ($4.04)
    http://www.trademotion.com/partlocator/?siteid=213747

    [​IMG]


    [​IMG]
    [​IMG]

  2. Dec 9, 2007 at 7:14 AM
    #2
    007Tacoma

    007Tacoma I dub thee malicious!

    Joined:
    Jan 4, 2007
    Member:
    #643
    Messages:
    6,664
    Gender:
    Male
    First Name:
    Mark
    San Antonio, TX
    Vehicle:
    2015 4Runner Trail Edition Premium
    Cloaking Device
    That is excellent information. I will try it on my truck...

  3. Apr 26, 2009 at 3:03 PM
    #3
    Griztaco

    Griztaco Well-Known Member

    Joined:
    Mar 28, 2009
    Member:
    #15270
    Messages:
    296
    Gender:
    Male
    ID
    Vehicle:
    TRD
    How do you add an "12v source accessory line"

    I have a switch and the other parts to do the DRL mod, but I cant find any information about how the wires attach to the switch?

    thanks

  4. Apr 26, 2009 at 3:22 PM
    #4
    hookem

    hookem [OP] Member

    Joined:
    Dec 7, 2007
    Member:
    #3749
    Messages:
    10
    Vehicle:
    08 PreRunner TRD Sport ACab, Dual Borla, Skid Plate, Tube Steps, Leather
    TRD 4.0L Supercharger, DRL On-Demand, Truxedo Lo Pro, 4ch-Amp: JL Audio 300/v2, Spkrs: Boston Acoustics Pro 60, Power Pop & Lock
    Connecting 12v is not required for the DRL mod to work; and it's needed only if you want to illuminate the switch, when the switch is ON (pressed) - like the standard "fog" lamp switch on your truck.

    "12V Acc" means that it is power available when the ignition key is on "Acc" (or when the truck is running) - like the 12V going to your radio & other accesories (so it shouldn't be hard to find a place to tap from).

    Good luck,
    HookEm

  5. Apr 26, 2009 at 3:40 PM
    #5
    Griztaco

    Griztaco Well-Known Member

    Joined:
    Mar 28, 2009
    Member:
    #15270
    Messages:
    296
    Gender:
    Male
    ID
    Vehicle:
    TRD
    Thanks Hookem, I would like to illuminate the switch, and I still don't quite understand how to this is done? How do I know if a wire is 12v or not, and how do I "tap" from it. My switch has three screws in which I can attach wires, I assume two of them are for attaching the green and red wire from the DRL, leaving one spot left to attach this 12v wire to power the LED? So do I need to find a 12v wire and attach both ends to this one remaining spot? My switch has 6 numbered positions, and the three screws are attached at positions 2, 3, and 4.

    sorry, I don't have a lot of experience in this, however, this mod seems easy and this is the only part I want to do and don't understand.

  6. Apr 26, 2009 at 4:23 PM
    #6
    hookem

    hookem [OP] Member

    Joined:
    Dec 7, 2007
    Member:
    #3749
    Messages:
    10
    Vehicle:
    08 PreRunner TRD Sport ACab, Dual Borla, Skid Plate, Tube Steps, Leather
    TRD 4.0L Supercharger, DRL On-Demand, Truxedo Lo Pro, 4ch-Amp: JL Audio 300/v2, Spkrs: Boston Acoustics Pro 60, Power Pop & Lock

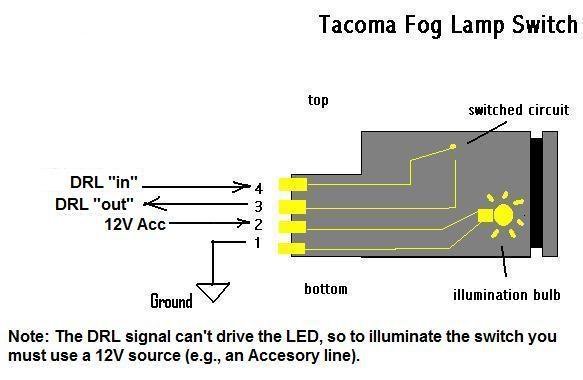

    As shown in the diagram, you need to connect "12V" to pin#2 of the Illuminated switch, and "Ground" to pin#1... It's actually as simple as that!

    Just find 12V from anywhere under your dash (e.g., the "12V" line going to the cigarette lighter), and make a connection from there (that's what I mean by "tapping").

    HookEm

  7. Nov 5, 2011 at 7:23 PM
    #7
    bobder41

    bobder41 Member

    Joined:
    Mar 23, 2009
    Member:
    #15068
    Messages:
    23
    Gender:
    Male
    GA
    Vehicle:
    09 Prerunner LB
    :) This MOD works great on my 09. Note the connector in the picture above that has the green and red wire has 2 others wires in it now. Just work with the green and red wire.

    I read somewhere that this mod will trip a trouble code. If I get one I will let you know.
