SOLD - 04 Toyota Tacoma Long Travel Supercharged 4x4

Alright, lets try to keep the chatter to a minimum here. It's time to move on to the next build, so this one is going up for sale.

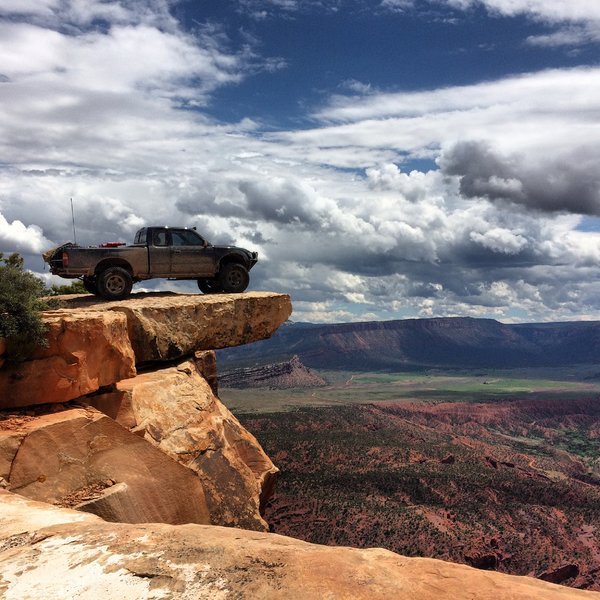

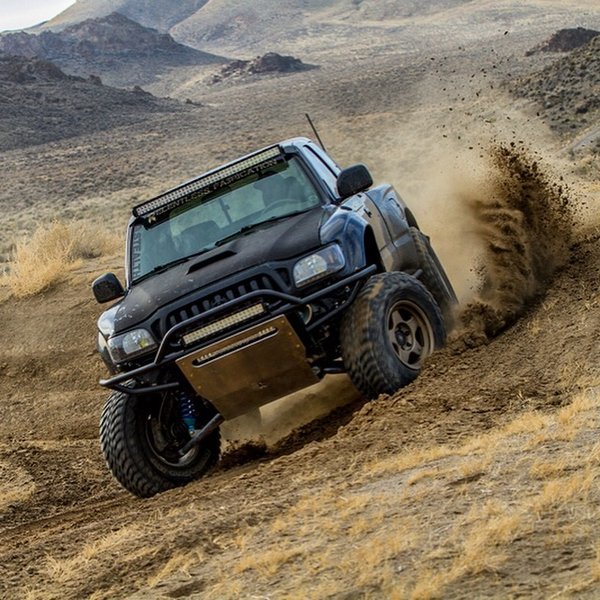

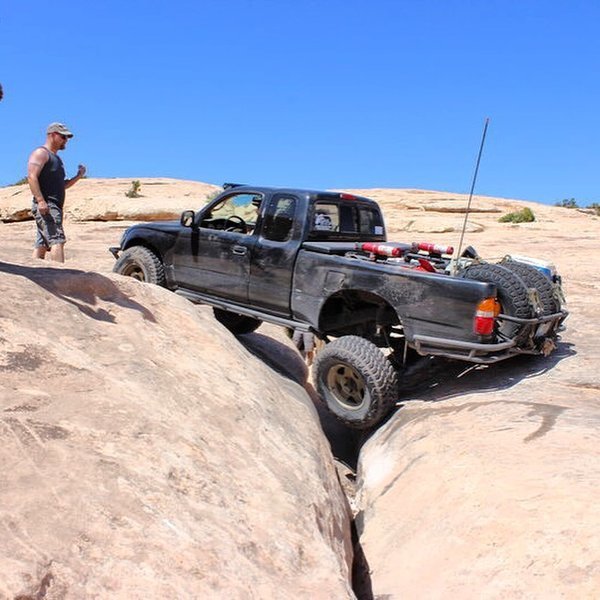

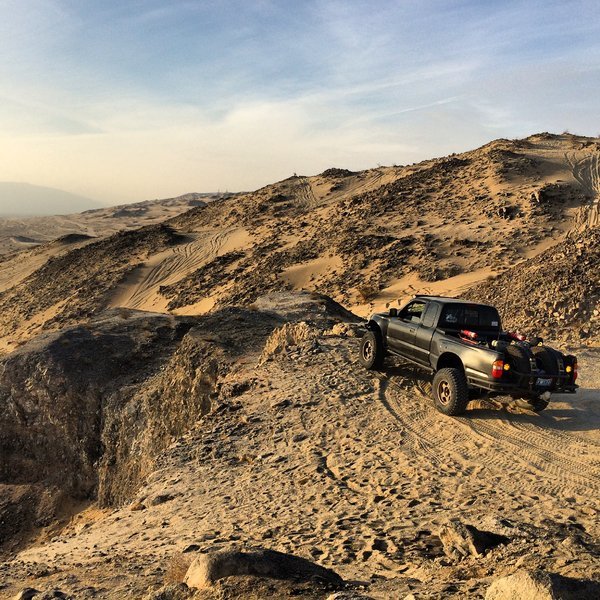

I built this truck with the goal of doing pretty much anything and everything I wanted...and doing it well. It's built to handle high speed wide open desert, but has the right equipment to crawl almost any of your favorite trails, or to take off for a week in desolation. It's been through the Rubicon, Slick Rock, Deer Valley, Signal Peak, Niagra Rim, Hell Hole, Dusy/Ershim, you name it. It's also been through almost of the favorite trails in Moab, Ocotillo Wells, Superstition, Anza Borrego, Barstow, Lucerne, Mojave, Joshua Tree, Salton Sea, Oceano Dunes, Oregon Dunes, too many to list. This truck is NOT a pavement princess. If you're looking for a scratch and chip free truck, this isn't the right truck for you. There are brush pinstripes and rock chips in the paint and wheels. If you're looking for a street legal daily driveable rig that is ready to hit the trail, read on.

This truck was the main feature in 4Wheel & Off-Road magazine September 2016. Web article: http://www.fourwheeler.com/features/this-2004-toyota-tacoma-owner-has-his-cake-and-eats-it-too/

Vehicle:
2004 Toyota Tacoma TRD Xtra Cab
3.4L V6 (5VZ)
4x4 with 5 Speed Manual (R150F)
79,xxx Miles

Performance:

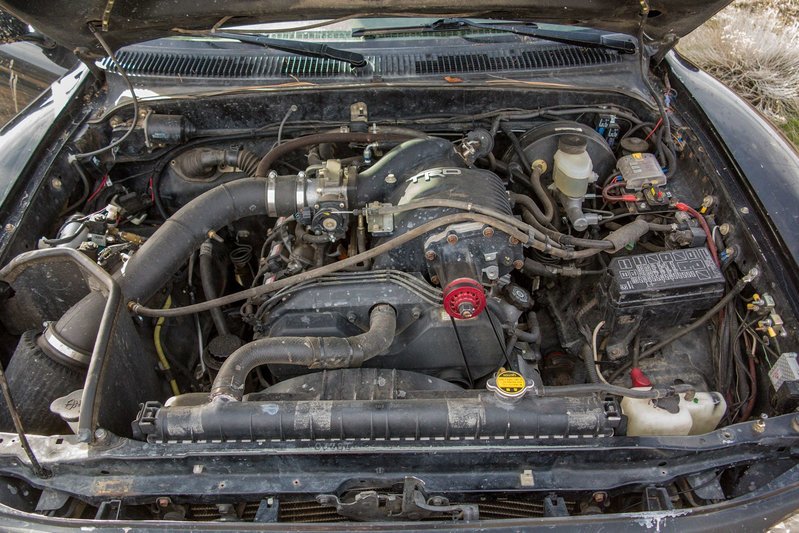

TRD Supercharger
URD 7th Injector Kit with Tunable Piggyback Controller
URD 2.2 SuperGrip Supercharger Pulley
URD Short Shifter
Auto Meter Boost Gauge in A-Pillar Mount
AFE Intake with Dry Filter and Prefilter
Magnaflow 18" Muffler and custom cat-back
Walbro 190 LPH Fuel Pump
Regeared to 4.56
Die Hard Platinum (Odyssey) Battery Relocated to the Bed
ARB High Performance Air Compressor (CKMA12) with Tire Inflation Kit
Bonzen Engine Mounts
4X Innovations Transmission Mount
LCE Pro Clutch Kit
LCE Heavy 30 Pound Flywheel
Every Suspension & Shock Bolt Replaced with Either F911 or Grade 8 Bolts
ABS Delete
EBC Slotted Rotors
EBC Yellow Brake Pads

Stuff in the Front:
Total Chaos +3.5" Long Travel Kit
Extended Stainless Steel Brake Lines
Total Chaos Limit Straps
2.5x8" King Coilovers (currently valved for crawling, but I can help you valve them however you want)
Total Chaos Secondary Shock Hoops
1" Diff Drop
Total Chaos Heim Steering (1" solid stock with double sheer mount and 3/4" Heims)
Total Chaos Cam Tab Gussets
Total Chaos Coil Bucket Gussets
Total Chaos Spindle Gussets
Total Chaos Steering Rack Bushings
ARB Air Locker
Modified First Gen Tundra CV axles with Bates Porsche 930 CV Boots

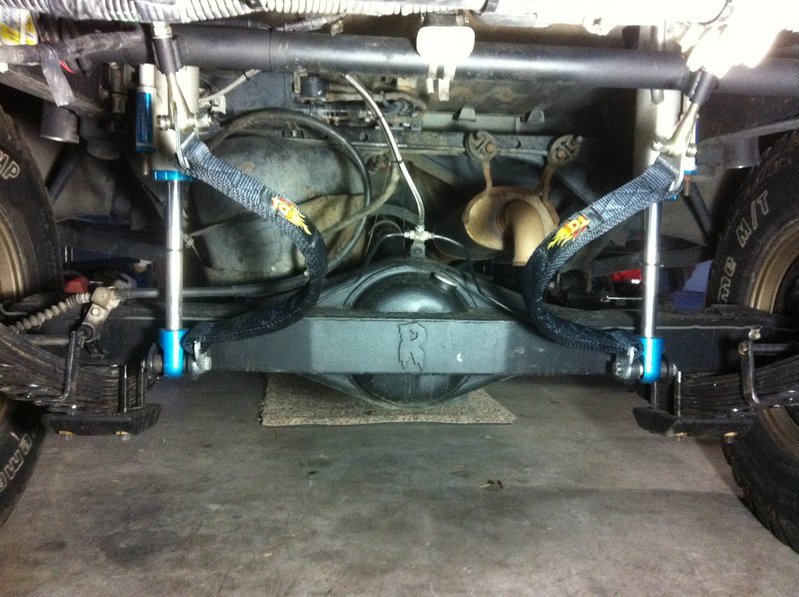

Stuff in the Rear:
Custom King 2.5x16" Double Bypasses (compression tube is a pure race tube)
Fabricated Bed Cage
Fox 2x4" Stroke Hydro Bumps (Shortened to 2" Stroke)
All Pro 50T Spring Pack (62" Leaf Pack Spring Under)
All Pro Extended Stainless Steel Brake Line
12" Fabricated Shackles above the frame
Total Chaos Shackle Pivots and Pivot Gussets
Total Chaos Lower Shock Mounts
First Gen Tundra 8.4 Complete Rear Axle
ARB Air Locker
@RelentlessFab Axle Truss
Currie U-bolt Bash Plates
5/8" U-bolts
Trail Gear 6 Ply Limit Straps
Wilwood Brake Proportioning Valve

Shoes:
@SCSPerformance F-5 16x8 Wheels
Hankook Dynapro MT 285/75/16 Tires

Lights:
LED Hi/Low Headlights
42" Curved LED Roof Light Bar (Spot Beam Pattern)
@RelentlessFab Low Profile LED Roof Mounts
20" LED Driving Light (Double Row Combo Beam Pattern)
20" Amber LED Fog/Dust light (Single Row Combo Beam Pattern)
Blitzpro Amber Rear Dust Lights on a ShowMe Flasher
Spyder One Piece Headlights
LED Rock Lights
Blue Sea Power Distribution Block

Exterior Goodies:
Glassworks Fenders and Bedsides
Glassworks Supercharger Hood with Scoop

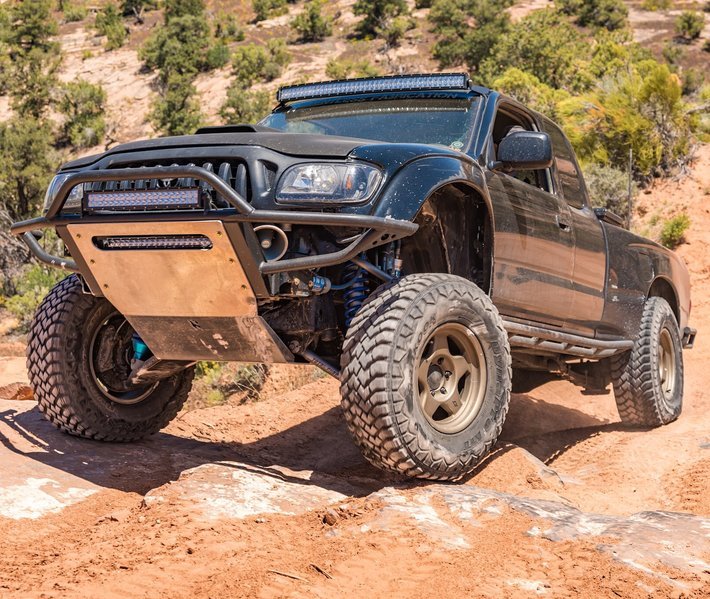

@RelentlessFab Custom Front Bumper
@RelentlessFab Custom Bumper and IFS/Mid Skid
Demello Sliders
BudBuilt Crossmember and Bellypan/Transmission/Transfer Case Skid
TRD Gas Tank Skid

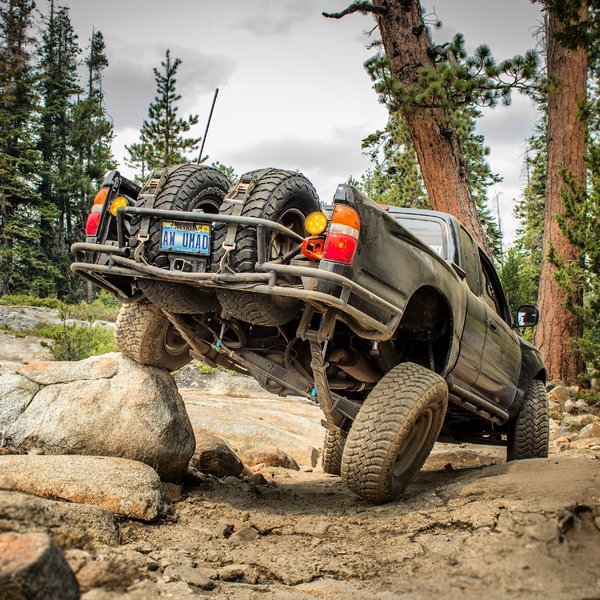

Fabricated Rear Bumper Tied into Bedcage and Frame

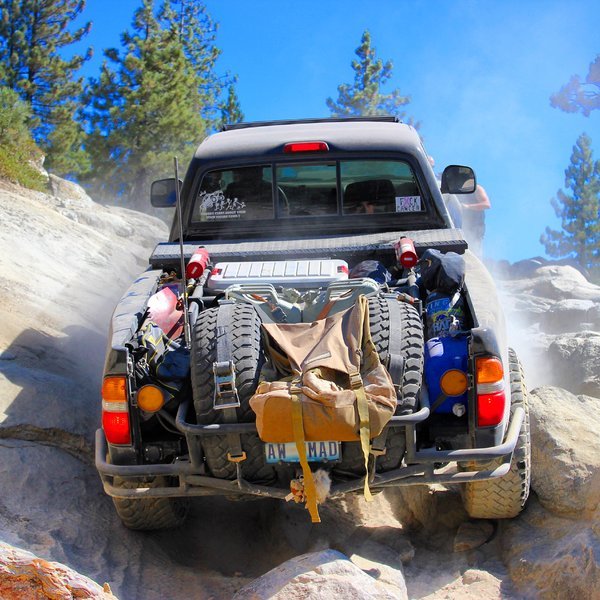

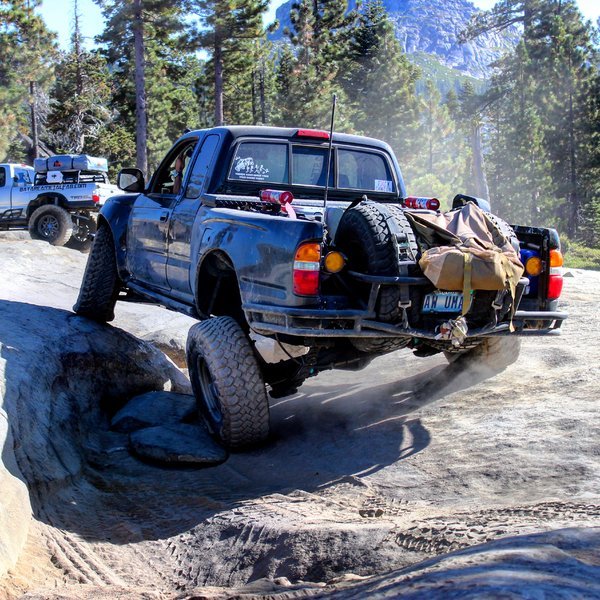

Fabricated Dual Vertical Spare Tire and 2 Ton Aluminum Floor Jack
Heavy Duty Axle Straps to Retain the Spare Tires
Trail Gear Frame Plates
Trail Gear Frame Box Kit
Two 5 Gallon NATO Gas Cans with Mounts Built into BedCage
Slide-in Bed Cage Adapter for Snowboard Rack, Safari Basket, Bicycles, Roof Top Tent, Kayaks, whatever you need to carry
Kobalt Slim Toolbox
Harbor Freight 2 Ton Aluminum Floor Jack with @RelentlessFab Aluminum Skid Plate

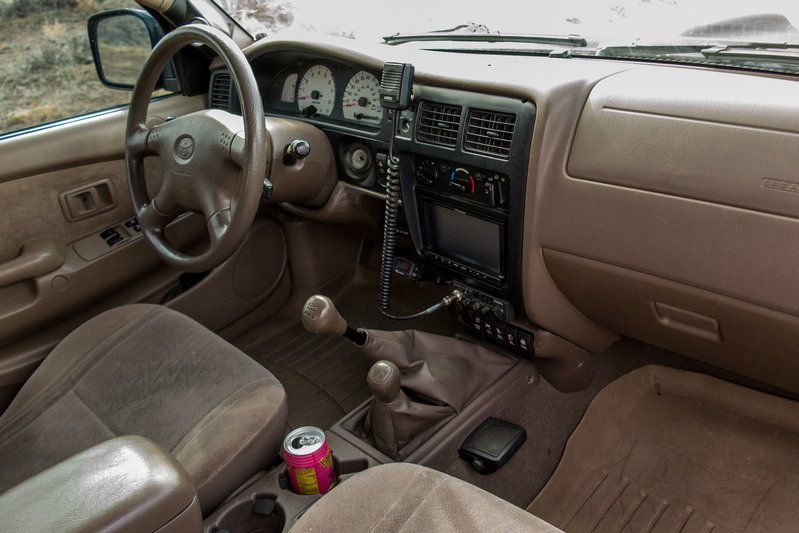

Interior Goodies:
Pioneer Navigation
JL Audio Monoblock Amp
2 JL Audio 10" Subs

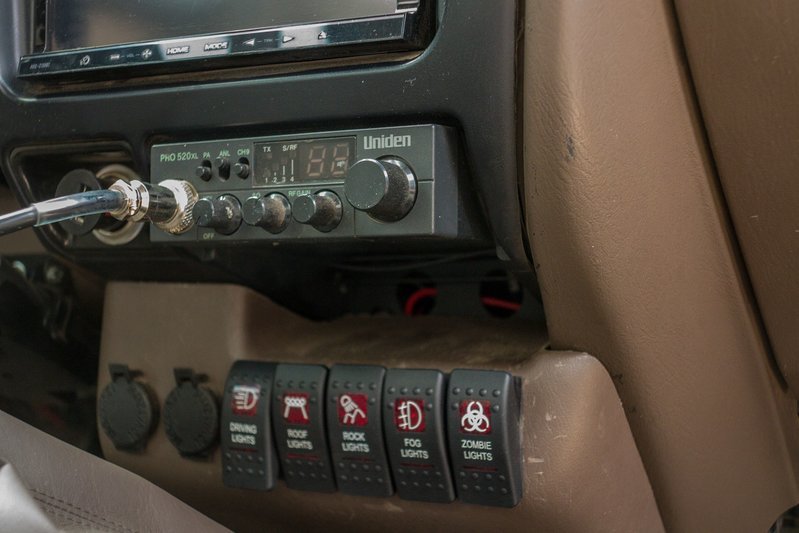

OTRATTW Rocker Switches
WeatherTech FloorLiner Mats
Homelink Install in Headliner
Uniden PRO520XL 40-Channel CB Radio with External Speaker, External PA, and Quick Disconnect 2' and 4' Firestick Antennas
Harness wired up for Tekonsha Trailer Brake Controllers
Compustar 2 Way Alarm with Glass break sensor, 2 stage shock sensor, sliding rear window sensor, and RPS knock sensor
DEI 1 touch window roll up/down and auto roll up when alarm is armed

Recent Maintenance:
Brand new Toyota OEM Lower Ball Joints with Double Sheer Mount for Tie Rod Ends (Installed May 2016)
Brand new Total Chaos Bushings in Upper and Lower Control Arms (Installed May 2016)
Clutch, Flywheel, Pressure Plate, Pilot Bearing, & Throw-out Bearing (Installed September 2016)
Coilovers Rebuilt (May 2016)
Mobil 1 5w/30 Synthetic and OEM Toyota Oil Filter every 3000 miles
New OEM Calipers, EBC Rotors and EBC Pads (Installed July 2016)

Spare Parts Included with the Truck:
2 brand new Moog lower ball joints (driver and passenger)
Used factory soft rear brake line
2 used OEM Toyota lower ball joints with double sheer mounts for heim steering
Original front bump stops
4 used fuel injectors
Used pinion flange
Brand new Walbro 190 LPH fuel pump
Brand new OEM Toyota rear main seal
Brand new OEM Toyota front axle seals (driver and passenger)
Used spare 5/8" u-bolts
Used spare engine accessory belts
Used supercharger tensioner pulley/assembly
2 brand new inner tie rod ends
Original used engine mounts (block side...not including rubber isolators)
Original used transmission mount
Original used supercharger pulley
Factory air box and plumbing
Brand new OEM Toyota air filter
2 used front spindle/wheel bearing assembly (passenger and driver)
2 brand new total chaos spindle gussets
2 used spindle dust caps
2 used front differential mount cushions/isolators
Used AFR sensor
Factory intake manifold
6 used Denso iridium spark plugs
6 used NGK spark plugs (for non-supercharged)
Used spare throttle body
1 spare OEM Toyota CV completely assembled
1 spare OEM Toyota CV (needs inner and outer boots and grease repack)
2 spare aftermarket CVs
1 spare Toyota inner CV assembled
1 spare Toyota outer CV(needs CV cage, birf, and bearings)
1 spare used complete front driveshaft
1 spare used front driveshaft up to the slip yoke (no flange on one side)
Original front diff carrier (removed for ARB carrier/locker)

SOLD

Not interested in any trades of any kind.
No I will not part any of it out. No I will not sell any of the spare parts separately. Package deal.

If the deal is right, I'm willing to tow it a "reasonable" distance.
