Spatial K's '15 TRD/OR Project Log

Discussion in '2nd Gen. Builds (2005-2015)' started by Spatial K, Mar 2, 2015.

  1. Mar 2, 2015 at 2:33 PM
    #1
    Spatial K

    Spatial K [OP] Well-Known Member

    Joined:
    Jul 12, 2014
    Member:
    #133812
    Messages:
    58
    Gender:
    Male
    Wyoming
    Vehicle:
    2015 AC TRD/OR 4x4 V6 MT
    TRD Quickshifter, Icon Ext Travel Front and Rear / Camburg BJ UCAs, OME Dakars, TRD Faux Beadlock Wheels, BFG AT KO2 285/75
    Not sure how far I'm going to go with this but after spending too many hours installing my lift I figure I have enough effort invested that I'd like to keep track of it here. Thanks to those on this forum who contribute their knowledge and allow me to make better decisions about my truck. Thank you, Toyota, for making an overpriced, under-powered, fairly capable truck that I still like enough to put all this money, time and effort into making something that should have come from the factory at the price I payed.

    GENERAL INFO
    2015 AC TRD/OR 4x4 V6 MT black
    - picked it up from dealer 2014.10.10 / 53mi
    - pre-lift mpg: 16.94 / 8236mi

    Currently:






    - MODIFICATIONS -

    PERFORMANCE
    - TRD Quickshifter (PTR04-35052)
    - Blox Heavyweight Shift Knob

    MAINTENANCE
    - Fumoto F103N oil drain valve
    - Redline Tuning hood struts

    WHEELS & TIRES
    - TRD Off-Road Beadlock Style Wheels gunmetal grey (PTR18-35090-GR) (16x7.5/10ET)
    - BORA wheel spacers???
    - BFG AT T/A KO2 285/75/16

    SUSPENSION
    - Front: ICON 2.5 ext travel C/Os / - Rear: Icon 2.0 ext travel shocks / OME Dakars (CS047R)
    - INTERIOR
    - Pioneer AVIC-8000NEX
    - Panavise phone mount flipped and switched sides for easier access
    - Tint 30% driver and passenger
    - WeatherTech DigitalFit Floor Liners

    EXTERIOR
    - Sly Brackets No-Drill Front License Plate Bracket
    - Rokblokz mud flaps
    - Tacoma Bed Mat (PT580-35050-LB)

    ARMOR
    - None

    RECOVERY
    - tow strap
    - cell phone

    WISHLIST

    - Trailer wiring relocate
    - Katzkin leather w/ Degreez heated/cooled Dk Charcoal/Suedzkin Dk Slate
    - Gentex Homelink Temp Compass rearview mirror
    - A.R.E. Z Series truck cap
    - Front Runner Slimline roof rack
    - supercharger
    - sliders
    - lighting (couple of light bars on the roof rack should do it)
    - winch
    - recovery gear

    Old and New:

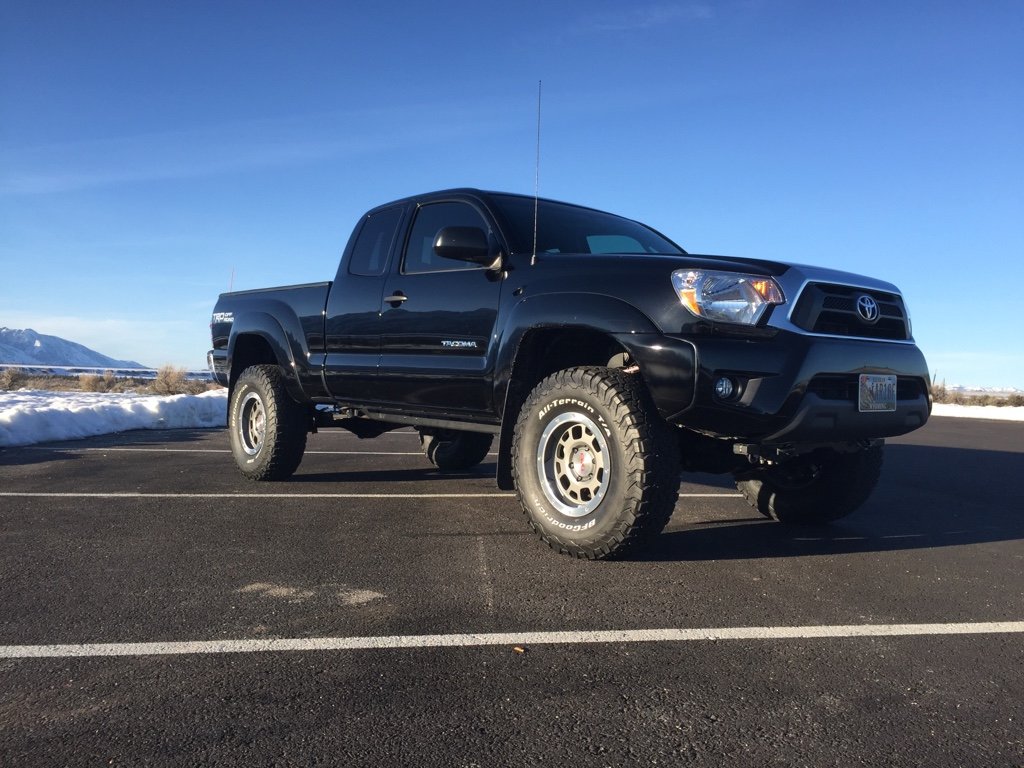

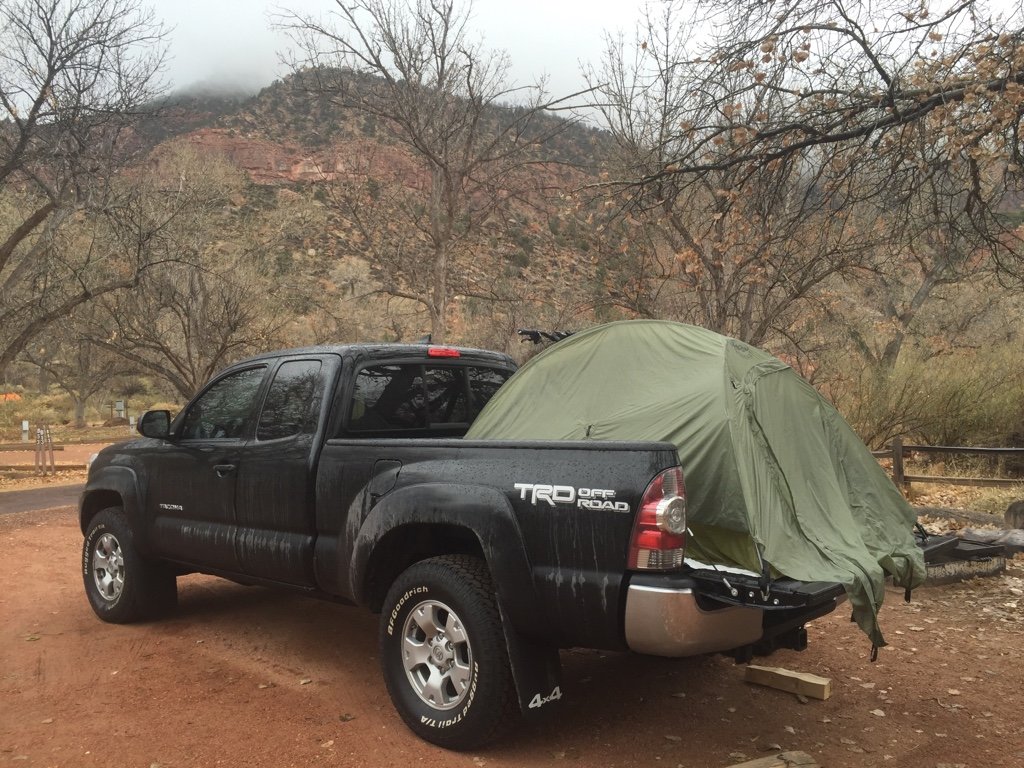

    A couple of shots from road trip. Pre-lift:




    Last edited: Apr 5, 2015
  2. Mar 2, 2015 at 2:34 PM
    #2
    Spatial K

    Spatial K [OP] Well-Known Member

    Joined:
    Jul 12, 2014
    Member:
    #133812
    Messages:
    58
    Gender:
    Male
    Wyoming
    Vehicle:
    2015 AC TRD/OR 4x4 V6 MT
    TRD Quickshifter, Icon Ext Travel Front and Rear / Camburg BJ UCAs, OME Dakars, TRD Faux Beadlock Wheels, BFG AT KO2 285/75
    Installed-2014.10.15

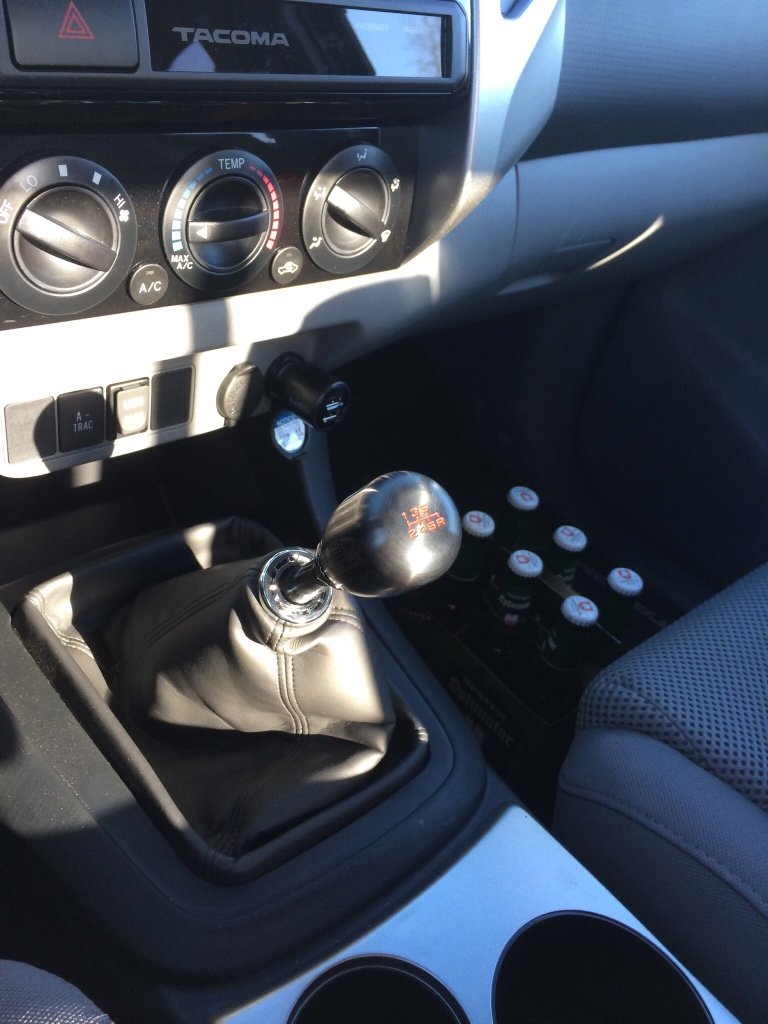

    Blox Racing heavyweight shift knob

    Installed- 2014.12.09

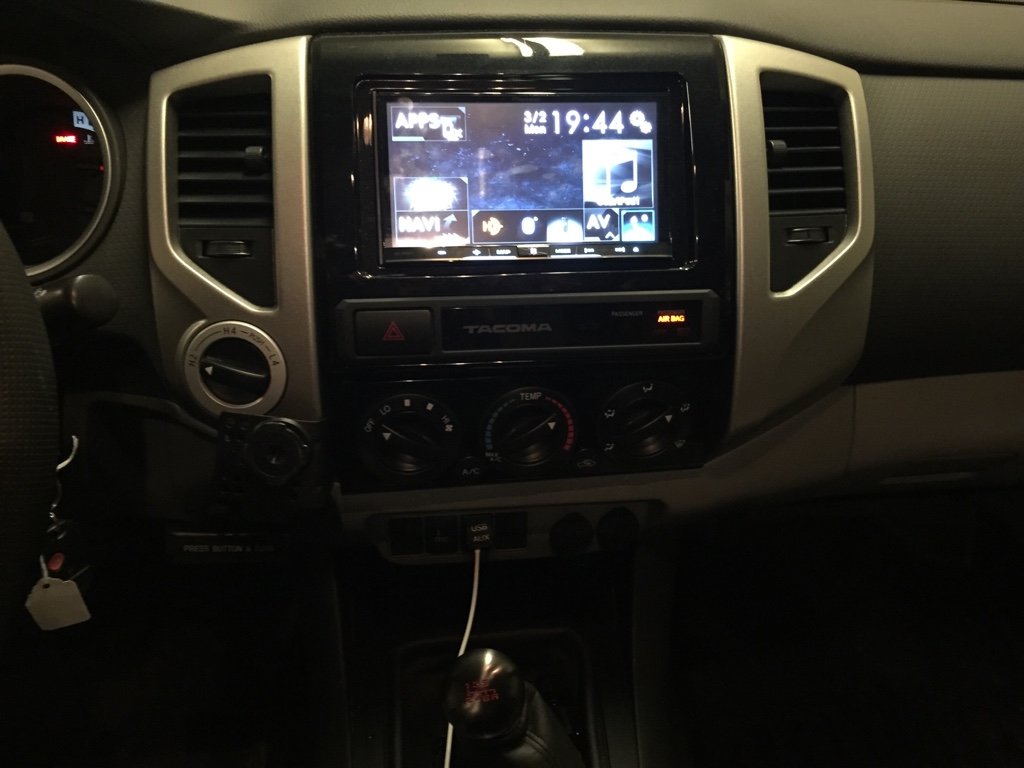

    Pioneer AVIC-8000NEX and Panavise phone mount (flipped and installed on driver side)

    Last edited: Mar 2, 2015
  3. Mar 2, 2015 at 2:35 PM
    #3
    Spatial K

    Spatial K [OP] Well-Known Member

    Joined:
    Jul 12, 2014
    Member:
    #133812
    Messages:
    58
    Gender:
    Male
    Wyoming
    Vehicle:
    2015 AC TRD/OR 4x4 V6 MT
    TRD Quickshifter, Icon Ext Travel Front and Rear / Camburg BJ UCAs, OME Dakars, TRD Faux Beadlock Wheels, BFG AT KO2 285/75
    Installed-2015.02.22

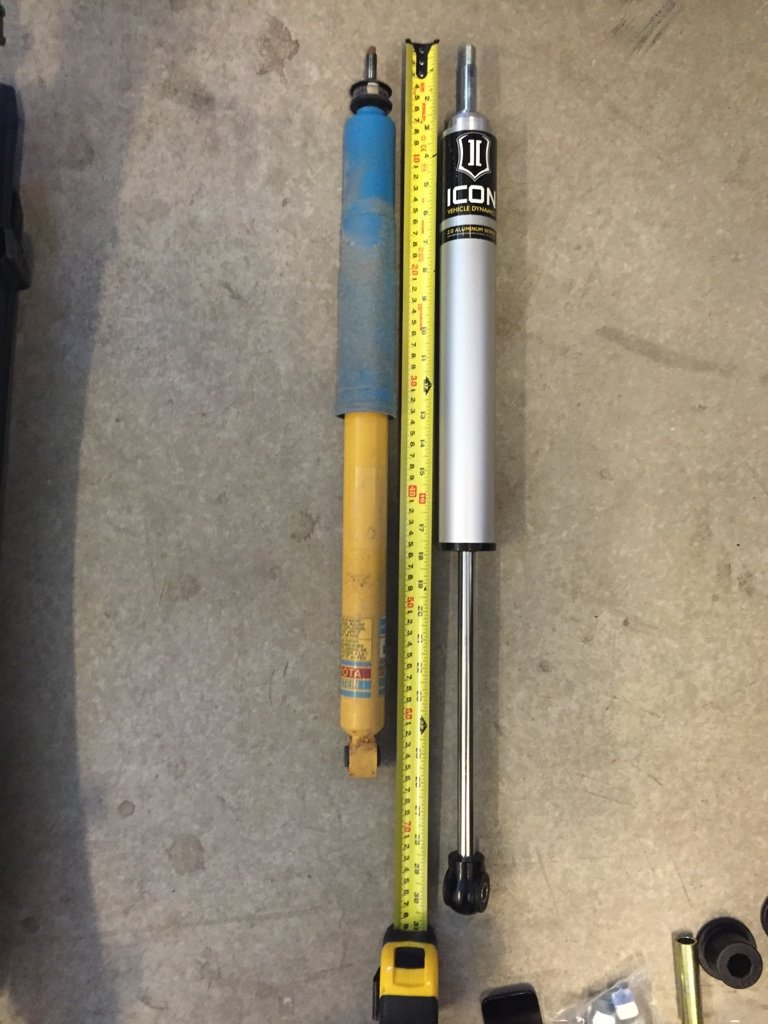

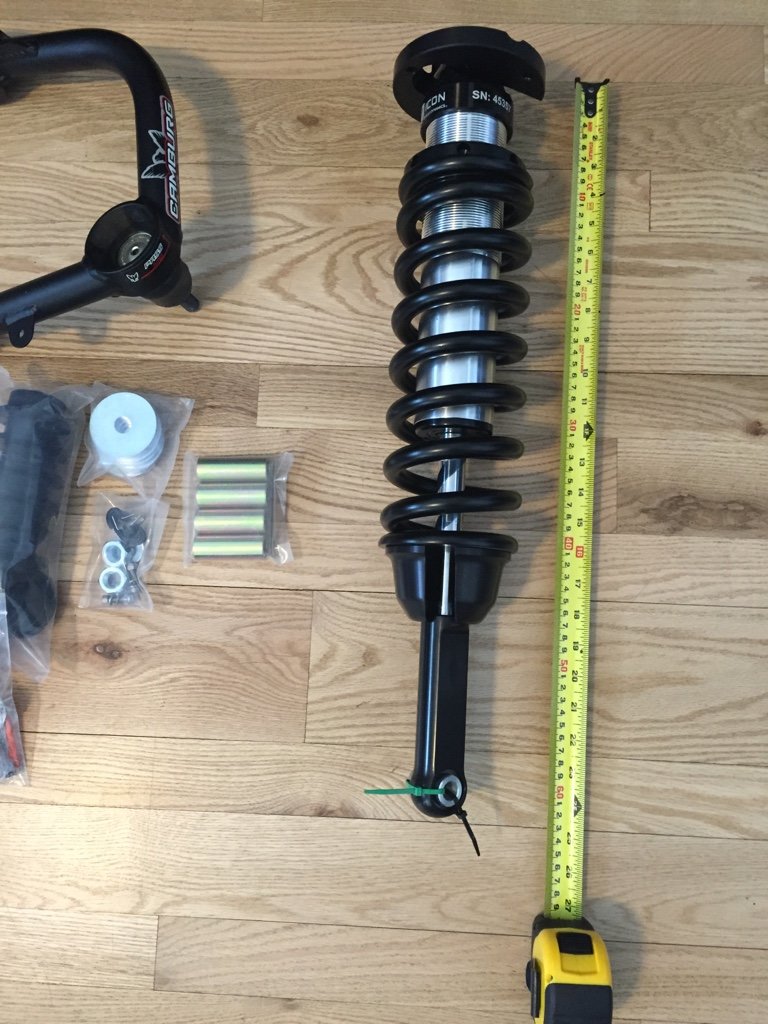

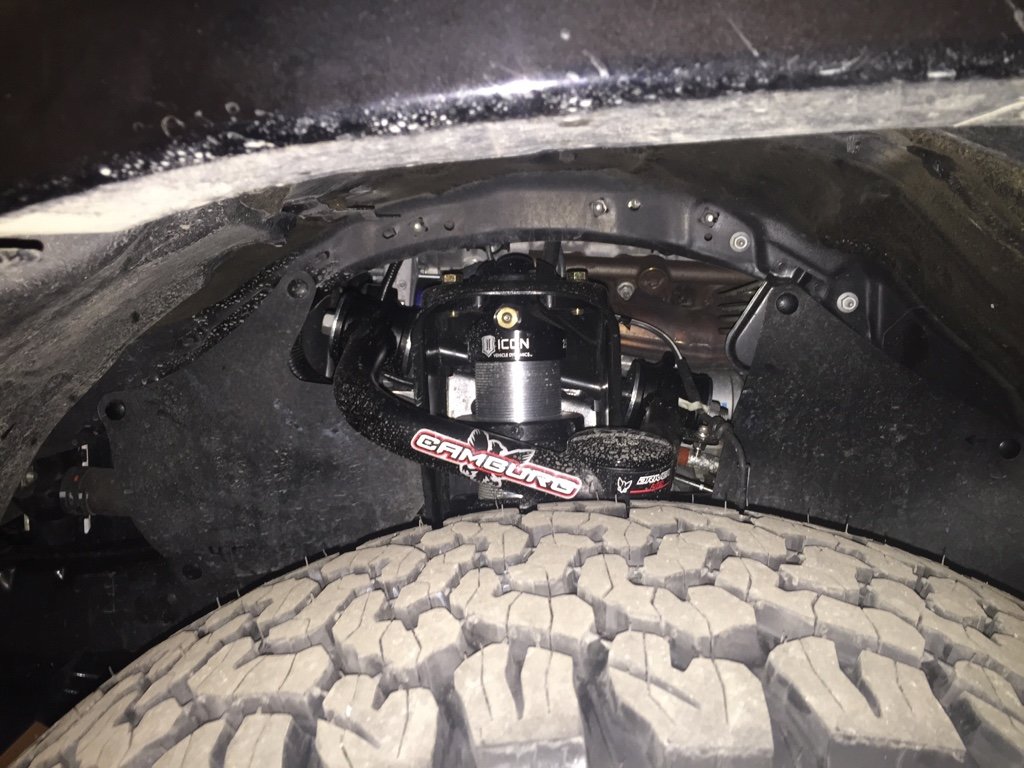

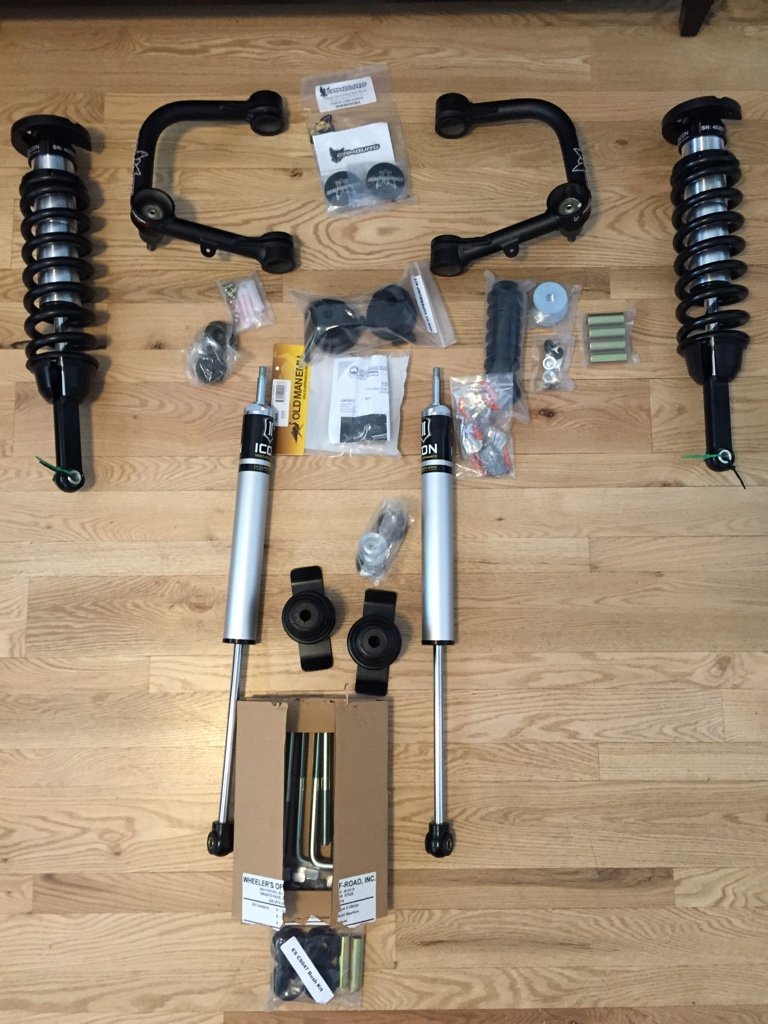

    Icon ext travel / Camburg w/ Moog ball joint / Old Man Emu Dakar leaf pack

    Everything seemed to fight me throughout the process. Most notable was the banging and bending sheet metal to remove the UCA bolts. All said and done though, no spacers or shims were needed as there were no driveline vibrations. Alignment was no problem either. Everything feels stiffer than stock. I'm hoping it relaxes a bit over time. I went with the ball joint UCAs because of ease of maintenance, no worries of squeaking and travel limitations were negligible for my purposes which is first and foremost a daily driver.


    2015.02.22
    Pre lift
    Hub to fender
    DF 20 1/8 PF 20 3/8
    DR 21 3/4 PR 22 1/8
    Floor to fender
    DF 34 1/4 PF 34 3/8
    DR 35 7/8 PR 35 7/8

    2015.02.28

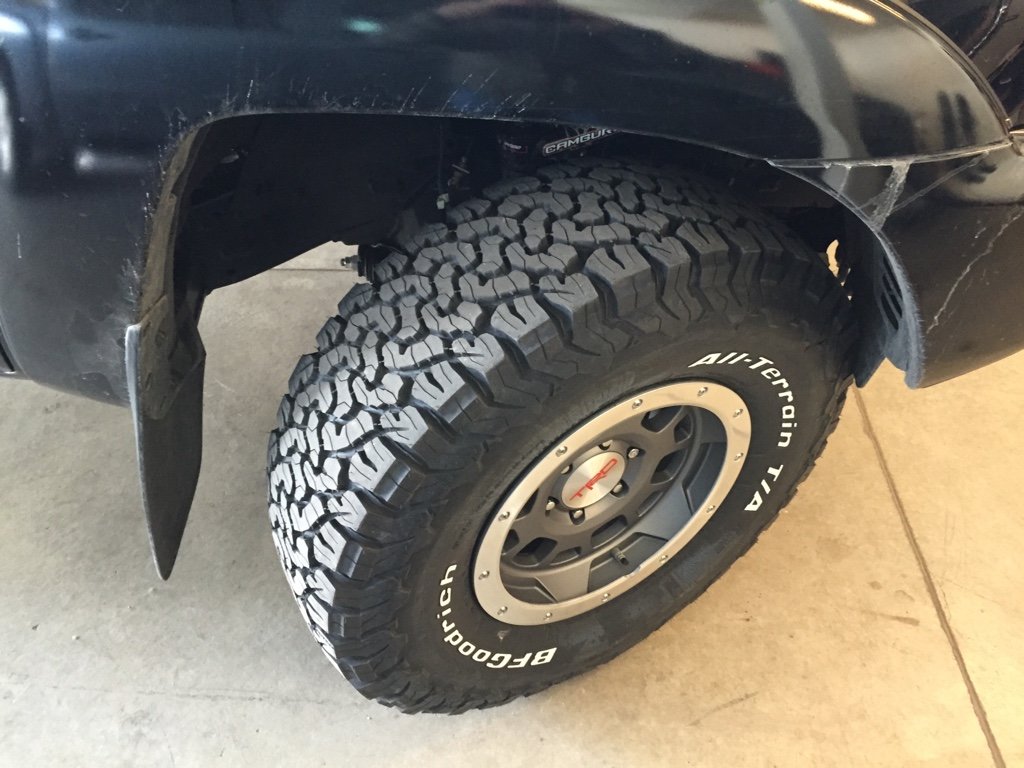

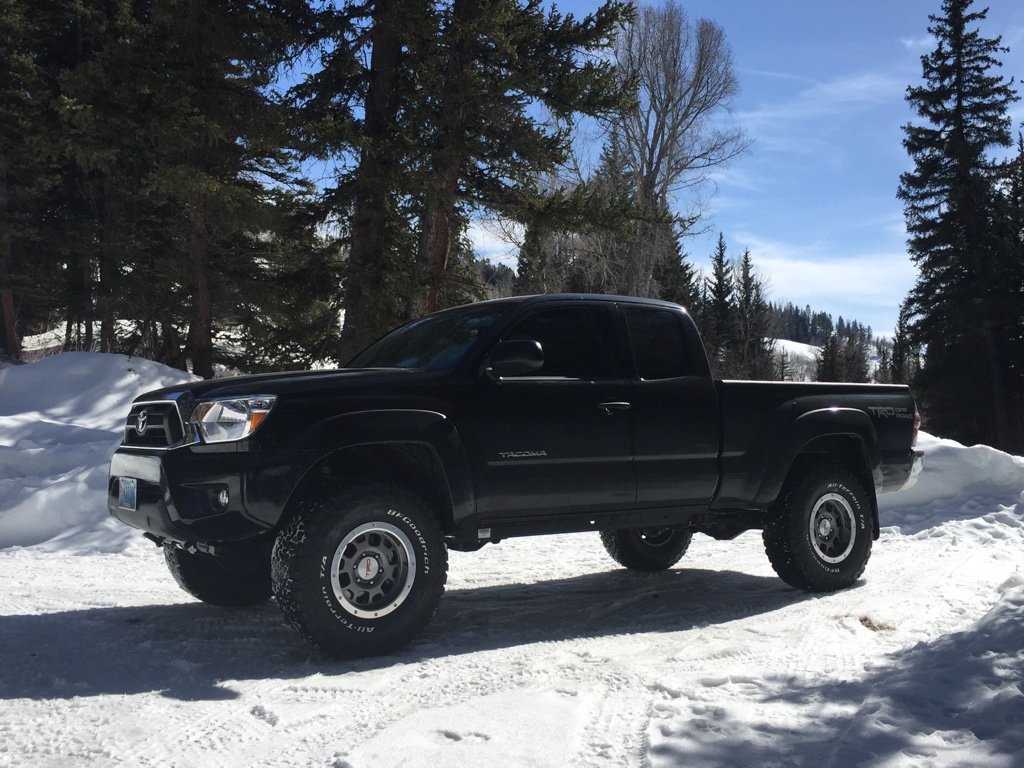

    After lift and tires. Factory 1.25 thread on c/o's
    Hub to fender
    DF 22 5/8 PF 23 1/8
    DR 24 3/4 PR 25 1/2
    Floor to fender
    DF 37 5/8 PF 38
    DR 40 1/4 PR 40 1/2

    2015.03.01
    Adjusted 1.75" driver 1.5" passenger on c/o's
    Hub to fender
    DF 23 1/2 PF 23 1/2
    DR 25 1/4 PR 25 1/4
    Floor to fender
    DF 38 1/2 PF 38 1/2
    DR 40 1/4 PR 40 7/8

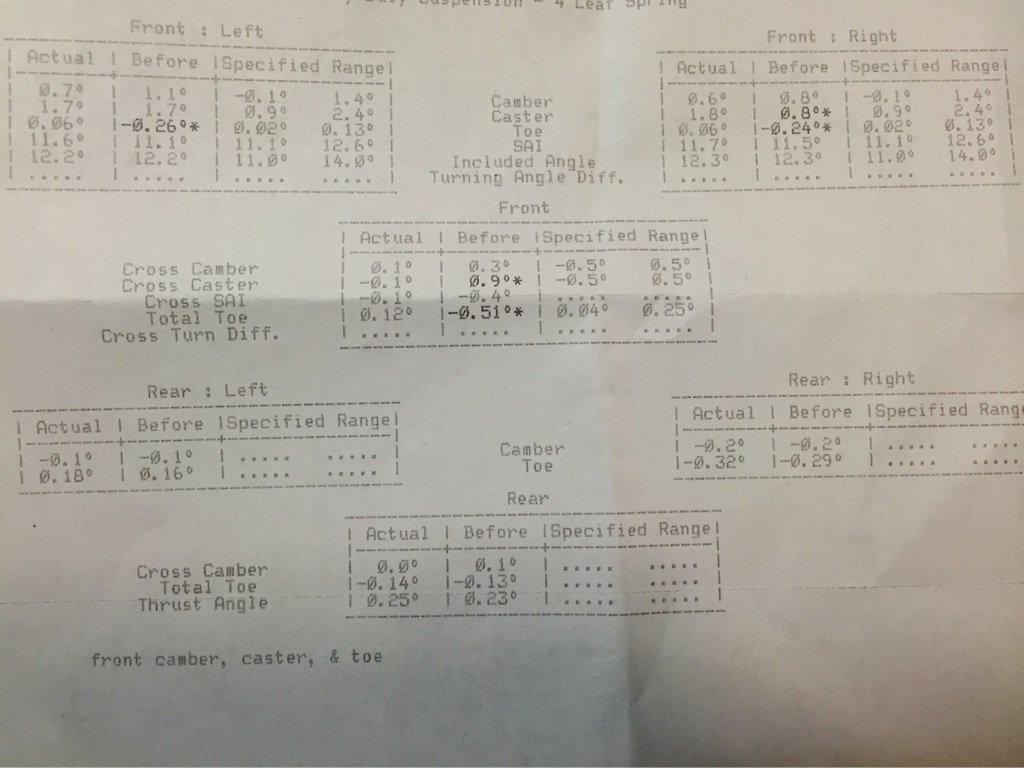

    Alignment:

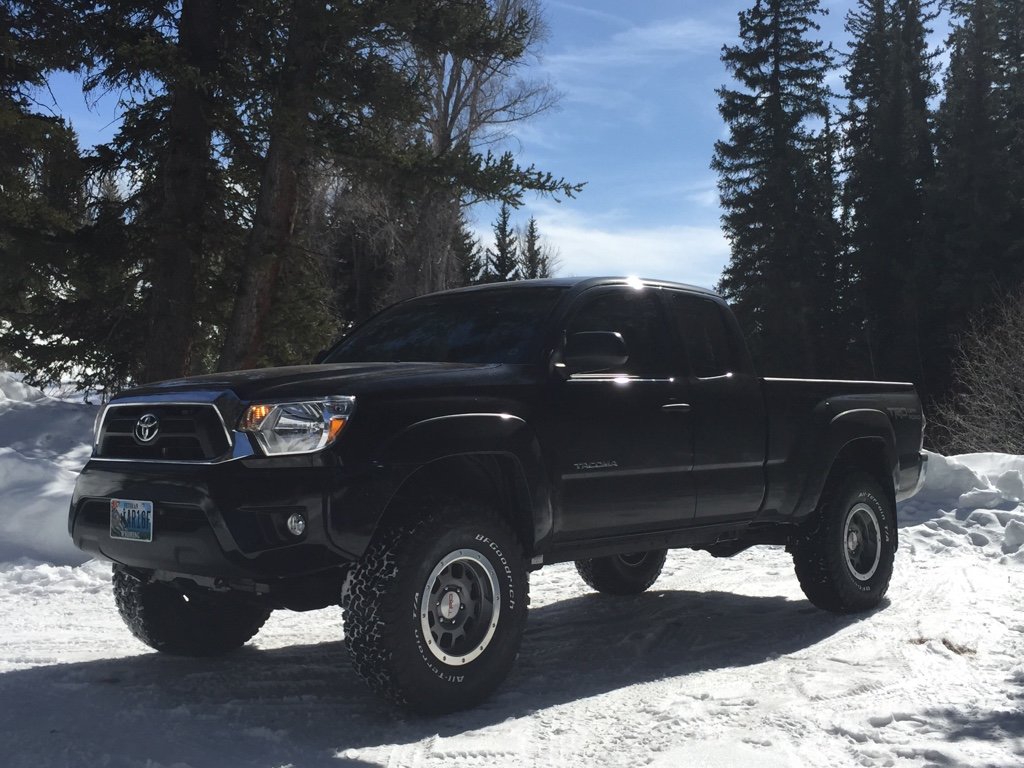

    Driver side- 1.75" of thread:

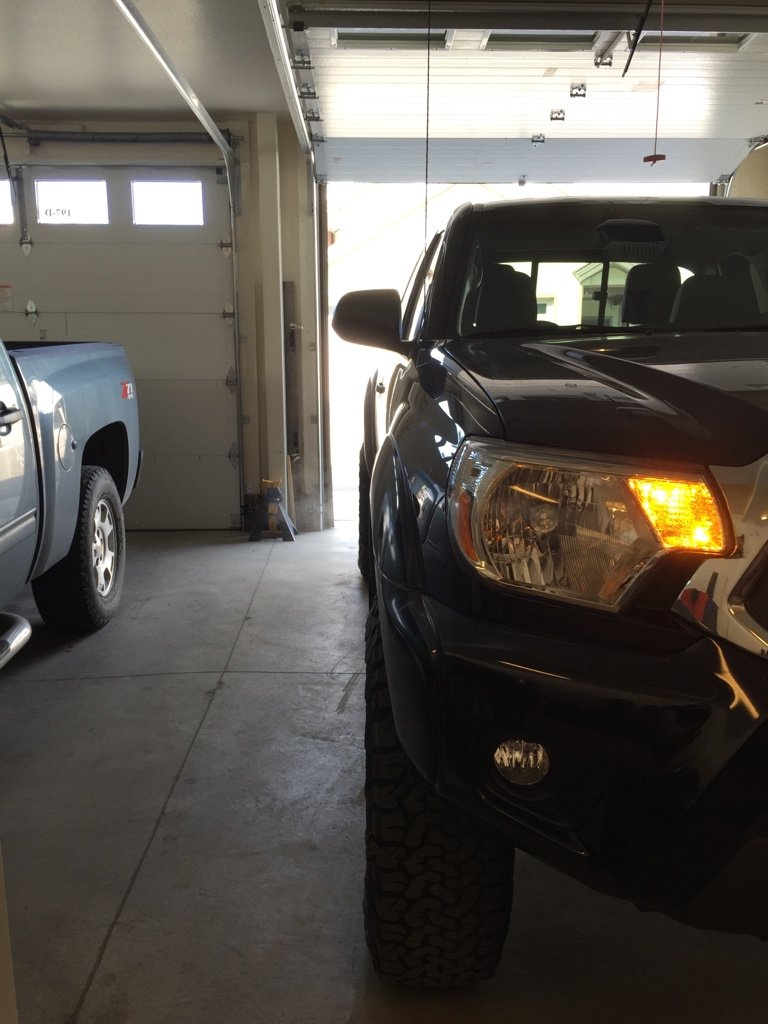

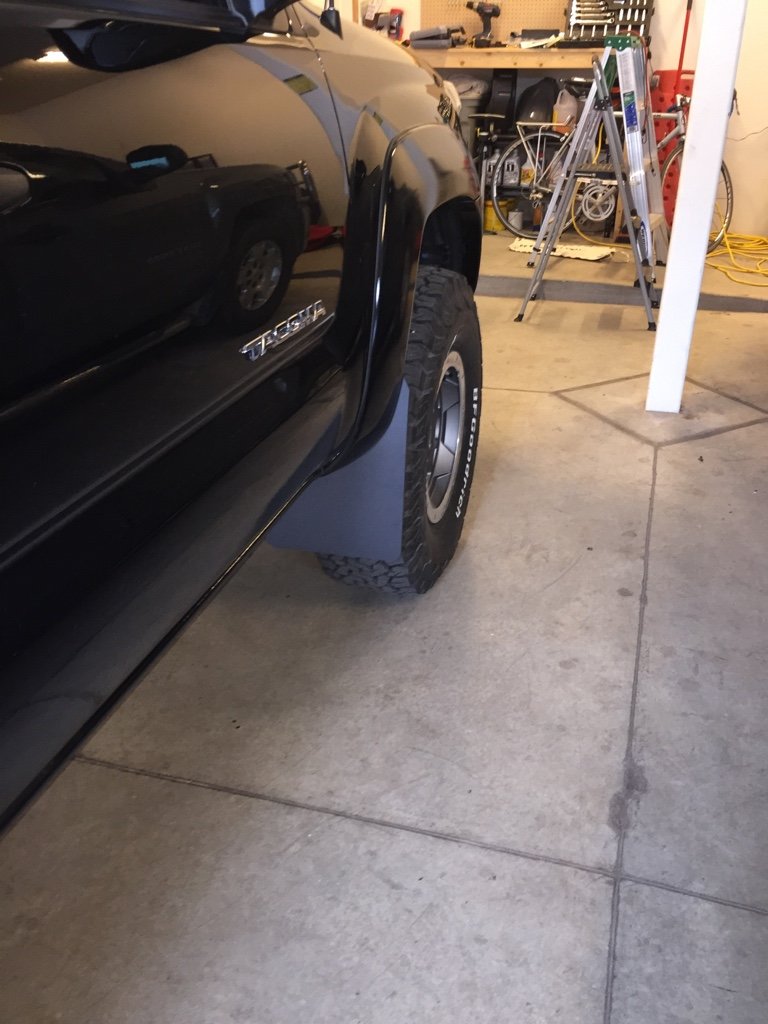

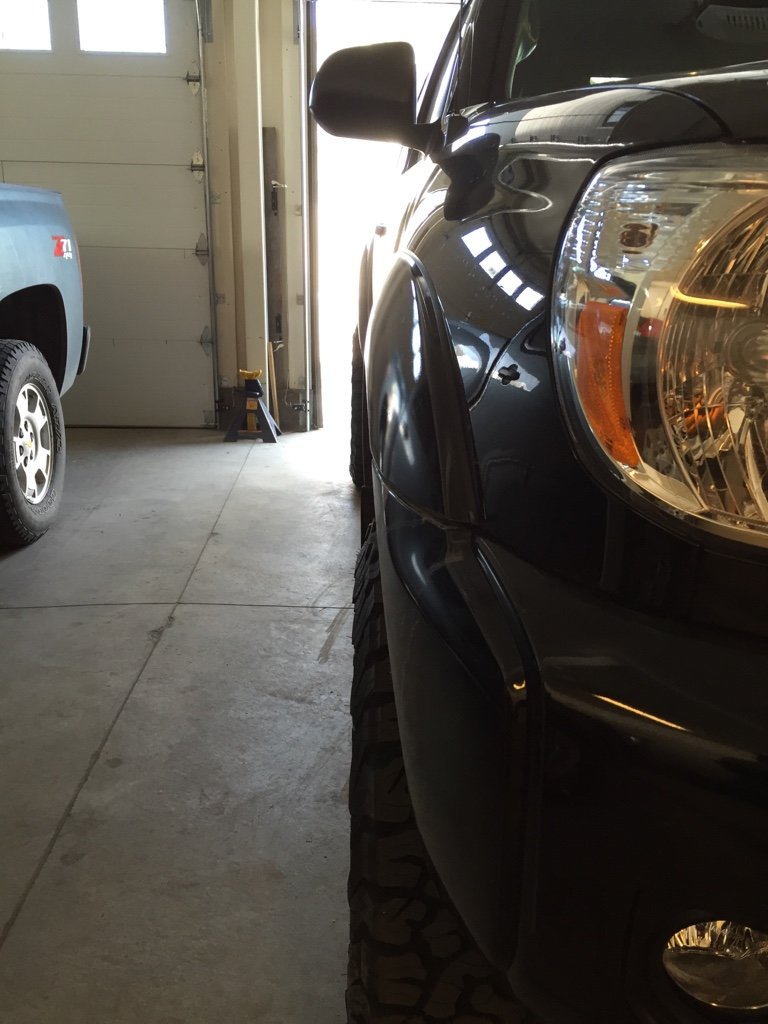

    Wound up removing the little air dams in front and now no rubbing:

    Last edited: Apr 1, 2015
  4. Mar 2, 2015 at 3:49 PM
    #4
    Ride98red

    Ride98red You people are so petty...and tiny

    Joined:
    Dec 17, 2014
    Member:
    #144493
    Messages:
    151
    Gender:
    Male
    First Name:
    Aaron
    NOVA
    Gatekeeper tailgate "lock", WeatherTech floor liners - Front and Rear, Factor 55 Hitch Link w/Van Beest 3/4" D-ring Shackle, ARB 30' Snatch Strap, Trailer Hitch Socket Relocate, Skygear Waterproof Fuse/Relay Box, LED Bed Lights, QuickFists with custom mount
    "Project log" I like it.

    So you have the Icons on already? What'd ya get? (stage) I'm guessing stage 1.
    How do the Dakars work with the Icon rears?

    Nice truck!

  5. Mar 2, 2015 at 7:43 PM
    #5
    Spatial K

    Spatial K [OP] Well-Known Member

    Joined:
    Jul 12, 2014
    Member:
    #133812
    Messages:
    58
    Gender:
    Male
    Wyoming
    Vehicle:
    2015 AC TRD/OR 4x4 V6 MT
    TRD Quickshifter, Icon Ext Travel Front and Rear / Camburg BJ UCAs, OME Dakars, TRD Faux Beadlock Wheels, BFG AT KO2 285/75
    Thanks. Not sure "build" would be appropriate as it suggests fabrication and other major irreversible changes. Not sure I'm down for all that. (At least at this point on my brand new daily driver)
    But yeah, basically, Icon Stage 1 ext travel front and rear. No off-roading yet but no issues as far as install and street driving with the Icon/Dakar rear. Just stiff.

  6. Mar 2, 2015 at 8:44 PM
    #6
    Spatial K

    Spatial K [OP] Well-Known Member

    Joined:
    Jul 12, 2014
    Member:
    #133812
    Messages:
    58
    Gender:
    Male
    Wyoming
    Vehicle:
    2015 AC TRD/OR 4x4 V6 MT
    TRD Quickshifter, Icon Ext Travel Front and Rear / Camburg BJ UCAs, OME Dakars, TRD Faux Beadlock Wheels, BFG AT KO2 285/75

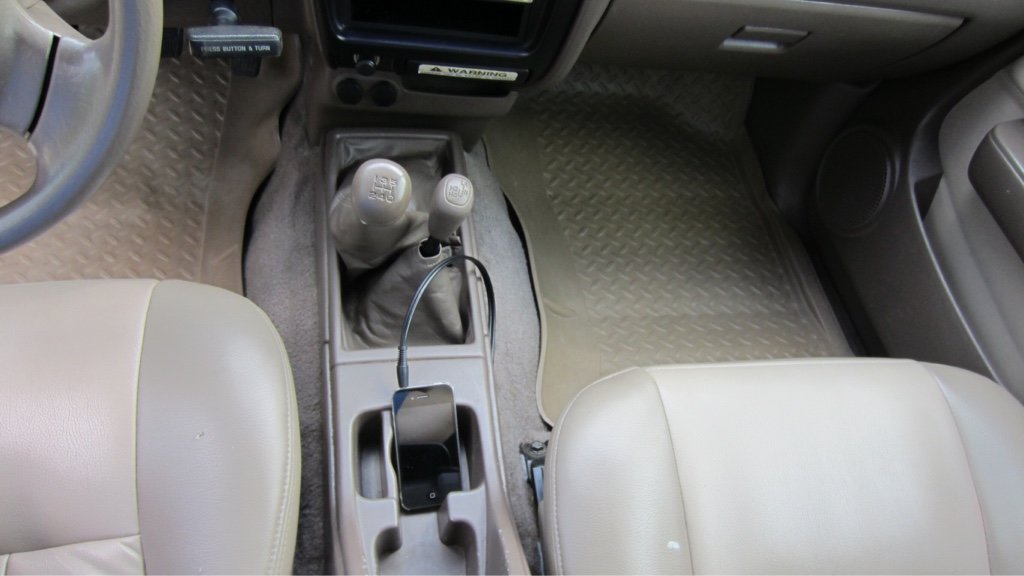

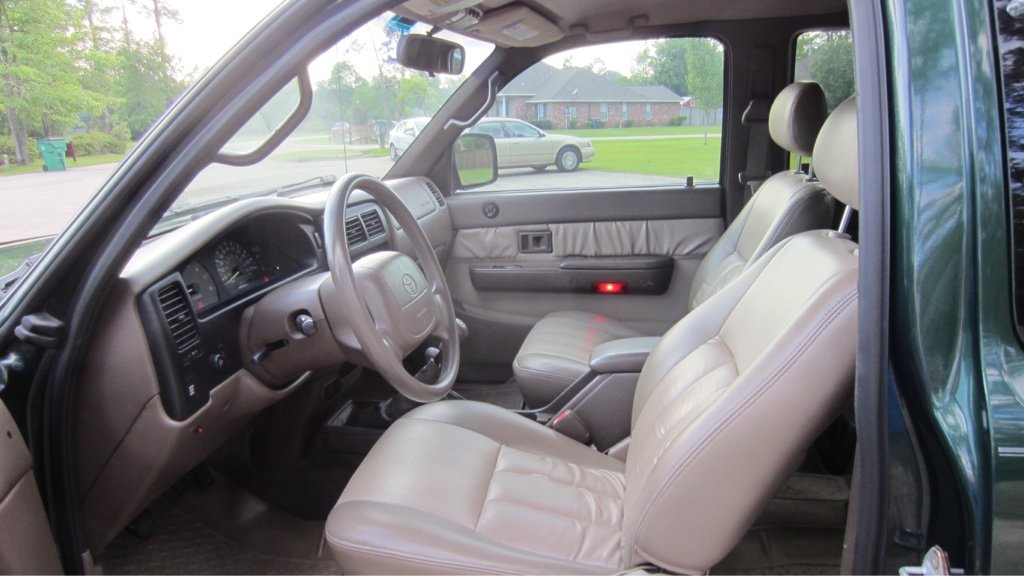

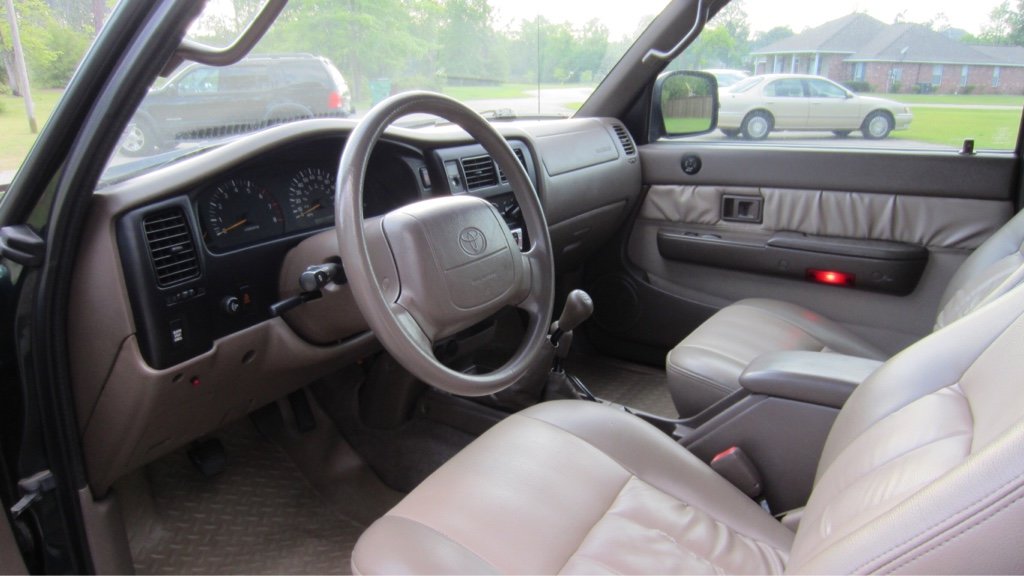

    Paying homage to an old friend:
    2000 Xtracab V6 TRD/OR Imperial Jade Mica

    Last edited: Mar 2, 2015
  7. Mar 18, 2015 at 7:19 PM
    #7
    Spatial K

    Spatial K [OP] Well-Known Member

    Joined:
    Jul 12, 2014
    Member:
    #133812
    Messages:
    58
    Gender:
    Male
    Wyoming
    Vehicle:
    2015 AC TRD/OR 4x4 V6 MT
    TRD Quickshifter, Icon Ext Travel Front and Rear / Camburg BJ UCAs, OME Dakars, TRD Faux Beadlock Wheels, BFG AT KO2 285/75
    I need spacers. Can't decide what size to go with. Any suggestions? Anyone else running spacers on fauxlocks?


  8. Mar 18, 2015 at 7:23 PM
    #8
    MGMTacolover55

    MGMTacolover55 Well-Known Member

    Joined:
    Jan 31, 2013
    Member:
    #96545
    Messages:
    4,318
    Gender:
    Male
    Orygun
    Vehicle:
    2013 MGM Taco TRD Off Road
    floor Mats
    I wouldn't go with spacers unless it rubs. Personally I like the wheels tucked in more than out of the body of the truck. Get some sliders and the look will come together.

  9. Mar 18, 2015 at 7:27 PM
    #9
    Spatial K

    Spatial K [OP] Well-Known Member

    Joined:
    Jul 12, 2014
    Member:
    #133812
    Messages:
    58
    Gender:
    Male
    Wyoming
    Vehicle:
    2015 AC TRD/OR 4x4 V6 MT
    TRD Quickshifter, Icon Ext Travel Front and Rear / Camburg BJ UCAs, OME Dakars, TRD Faux Beadlock Wheels, BFG AT KO2 285/75
    Don't have a pic but I think it looks funny as is. Sliders are on the list but as much as those things stick out, I think it would make it worse. I'd rather not do the spacers but if installed properly I don't really see a problem.

  10. Mar 21, 2015 at 7:29 AM
    #10
    glwood6

    glwood6 Well-Known Member

    Joined:
    Jul 25, 2008
    Member:
    #8125
    Messages:
    1,712
    Gender:
    Male
    First Name:
    Gary
    Albuquerque, NM
    Vehicle:
    '13 MGM AC 4x4 TRD OR
    Husky front mud flaps, OEM bed mat, 3D floor mats, Wet Okole seat covers, fog lights anytime mod, rear diff breather extension, aluminum Relentless tailgate reinforcement, NWexpo corner gussets, 265/75-16 Hankook Dynapro ATM
    I agree with MGMTacolover55...looks perfect as is. My least favorite look on trucks is tires sticking out of the flares too much. But it's your call. JMO.

    I've been following your progress looking for ideas for my truck.

  11. Mar 21, 2015 at 7:33 AM
    #11
    glwood6

    glwood6 Well-Known Member

    Joined:
    Jul 25, 2008
    Member:
    #8125
    Messages:
    1,712
    Gender:
    Male
    First Name:
    Gary
    Albuquerque, NM
    Vehicle:
    '13 MGM AC 4x4 TRD OR
    Husky front mud flaps, OEM bed mat, 3D floor mats, Wet Okole seat covers, fog lights anytime mod, rear diff breather extension, aluminum Relentless tailgate reinforcement, NWexpo corner gussets, 265/75-16 Hankook Dynapro ATM
    How much of the 'stiffness' do you attribute to the tires? I believe that the KO2s are still only available as an E rated tire in 16s...

    Last edited: Mar 21, 2015
  12. Mar 21, 2015 at 9:48 AM
    #12
    Spatial K

    Spatial K [OP] Well-Known Member

    Joined:
    Jul 12, 2014
    Member:
    #133812
    Messages:
    58
    Gender:
    Male
    Wyoming
    Vehicle:
    2015 AC TRD/OR 4x4 V6 MT
    TRD Quickshifter, Icon Ext Travel Front and Rear / Camburg BJ UCAs, OME Dakars, TRD Faux Beadlock Wheels, BFG AT KO2 285/75

    It looks too oem right now. That its, the tires are a little too tucked-in for my preference but I agree some take it too far. But what is perfection? Normally, as a general rule with most vehicles I'd say dead even with the fenders. However these are lifted, off-road oriented trucks. Tire/wheel prominence is appropriate. My goal for the spacers is to achieve a more offroad inspired look while improving on/off road stability from pushing the wheels out and doing so without adversely affecting stuffability into the wheel wells.

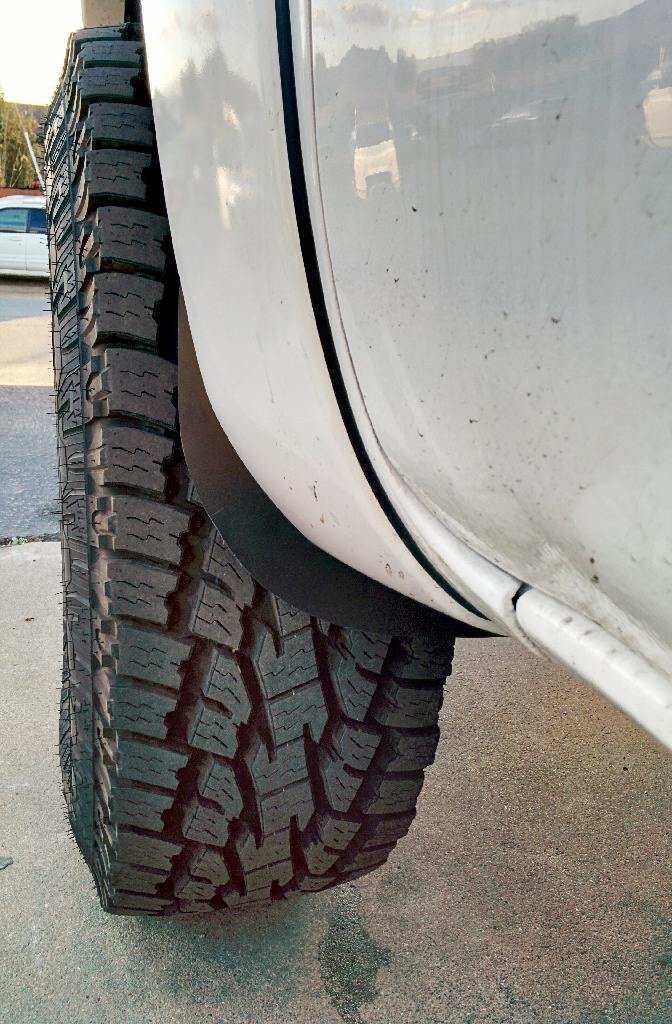

    Thanks to STiLL WILL for the pic below. He's running a similar setup: TRD Fauxlocks, 285/75s w/ 1.25' spacers:
    What do y'all think? Personally, I think it looks good.


    Last edited: Mar 22, 2015
  13. Mar 21, 2015 at 10:01 AM
    #13
    Spatial K

    Spatial K [OP] Well-Known Member

    Joined:
    Jul 12, 2014
    Member:
    #133812
    Messages:
    58
    Gender:
    Male
    Wyoming
    Vehicle:
    2015 AC TRD/OR 4x4 V6 MT
    TRD Quickshifter, Icon Ext Travel Front and Rear / Camburg BJ UCAs, OME Dakars, TRD Faux Beadlock Wheels, BFG AT KO2 285/75

    Good point. I had to air down the tires from 42 to 38 after being mounted. That helps, and I could still air down more but there's a difference between tire stiffness and suspension stiffness. Personally, I like a fairly stiff setup. However, the Icon Dakar combo feels like it may be too stiff for off-roading and good articulation. Really, who knows until I get it dirty. And no one else seems to be complaining so I'm sure it's all fine.

    And for what it's worth, I've driven some really shitty roads at inappropriately fast speeds to test out the suspension and I'll say that it didn't "soak up the bumps" as others claim but it did feel real stable and planted.

  14. Mar 23, 2015 at 10:25 AM
    #14
    Spatial K

    Spatial K [OP] Well-Known Member

    Joined:
    Jul 12, 2014
    Member:
    #133812
    Messages:
    58
    Gender:
    Male
    Wyoming
    Vehicle:
    2015 AC TRD/OR 4x4 V6 MT
    TRD Quickshifter, Icon Ext Travel Front and Rear / Camburg BJ UCAs, OME Dakars, TRD Faux Beadlock Wheels, BFG AT KO2 285/75

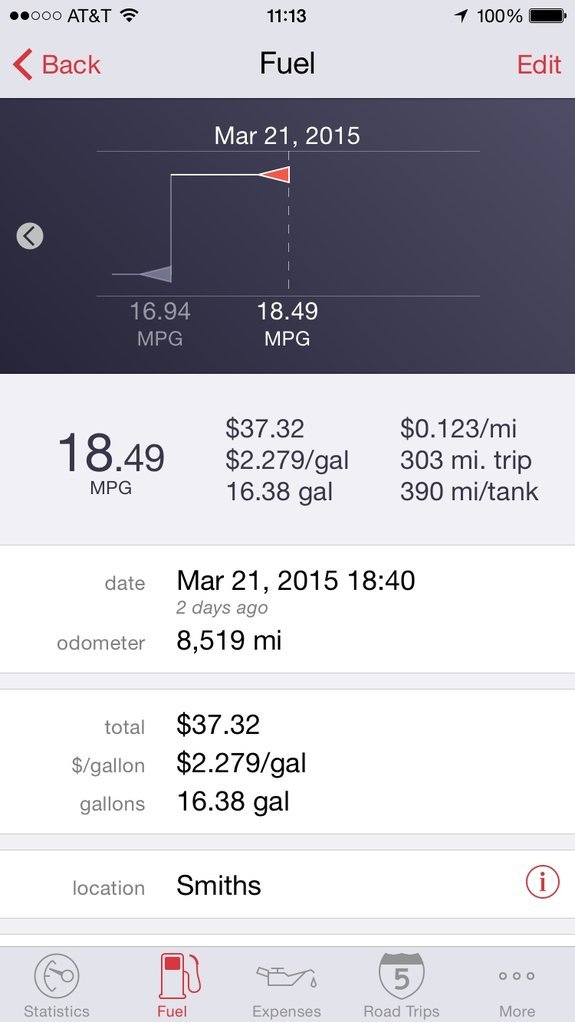

    First fill-up since the lift and fuel mileage is up!


    Crap! EDIT:
    I forgot that I now need to adjust for bigger tires. Funny thing is, the speedo was 3mph fast on stock tires based on GPS.. (Now, it's 2mph slower.)
    Now, time for maths...

    GPS method:
    (50-48)2= 4%(303)= 12.12+303= 315.12/16.38= 19.23mpg -can that be right?
    Now adjusted for original faulty speedo reading:
    (50-45)2= 10%(303)=30.3+303=333.3/16.38= 20.347mpg
    Now using tire size %change method:
    7.3%(303)= 22.119+303= 325.119/16.38= 19.848mpg

    *pic and formula credit: some other forum.

    Last edited: Mar 25, 2015
  15. Mar 23, 2015 at 11:04 AM
    #15
    Nate87

    Nate87 Well-Known Member

    Joined:
    May 7, 2013
    Member:
    #103748
    Messages:
    751
    Gender:
    Male
    First Name:
    Nate
    CONUS
    Vehicle:
    2013 AC TRD OR
    Truck looks nice man. Nice scenery as well. One day I'll make it out that way.

  16. Apr 2, 2015 at 1:51 AM
    #16
    planetbuster

    planetbuster Well-Known Member

    Joined:
    Oct 23, 2014
    Member:
    #140931
    Messages:
    74
    Gender:
    Male
    SoCal
    Vehicle:
    2017 M7 2LT vette, baby!
    ..so yeah, ignore my PM as nearly immediately after that I thought to poke around and came across all this in your sig/etc. Truck is looking good. Sliders are hit or miss, either saving your ass or just weighing you down.

  17. Apr 2, 2015 at 4:50 AM
    #17
    Spatial K

    Spatial K [OP] Well-Known Member

    Joined:
    Jul 12, 2014
    Member:
    #133812
    Messages:
    58
    Gender:
    Male
    Wyoming
    Vehicle:
    2015 AC TRD/OR 4x4 V6 MT
    TRD Quickshifter, Icon Ext Travel Front and Rear / Camburg BJ UCAs, OME Dakars, TRD Faux Beadlock Wheels, BFG AT KO2 285/75
    Let me know if you if you have any specific questions. I've tried putting as much info and links of the setup as possible on the first post.

    You're right about adding weight. I'd rather keep it to a minimum until I get a supercharger (if I get a supercharger). But sliders would serve enough purpose to warrant the weight I think.

  18. Apr 4, 2015 at 3:32 PM
    #18
    planetbuster

    planetbuster Well-Known Member

    Joined:
    Oct 23, 2014
    Member:
    #140931
    Messages:
    74
    Gender:
    Male
    SoCal
    Vehicle:
    2017 M7 2LT vette, baby!
    i just checked into the supercharger, hate to think that in a way its a de factor dealer install unless theres a really kickass shop in your area, since the ecu needs to be flashed. its about 4k for the parts etcetc but the followup such as dealing with fuel and whatnot is what gets ya. reflashing is a touchy subject and id rather do the paying for peace of mind thing.. sigh. just another expensive thing to add to the to-do list, right? xD

  19. Apr 5, 2015 at 8:40 PM
    #19
    Spatial K

    Spatial K [OP] Well-Known Member

    Joined:
    Jul 12, 2014
    Member:
    #133812
    Messages:
    58
    Gender:
    Male
    Wyoming
    Vehicle:
    2015 AC TRD/OR 4x4 V6 MT
    TRD Quickshifter, Icon Ext Travel Front and Rear / Camburg BJ UCAs, OME Dakars, TRD Faux Beadlock Wheels, BFG AT KO2 285/75
    Yeah, dealing with dealerships has never been good in my experience. The SC is the one thing I'd have to let them do though. When I bought my truck I asked what the SC would cost me if I had them do it and their answer was almost 7k! Unbelievable. From what I've seen on this forum though, is that there's a pretty wide range people are getting it done for. Some get lucky.

  20. Apr 5, 2015 at 8:47 PM
    #20
    Spatial K

    Spatial K [OP] Well-Known Member

    Joined:
    Jul 12, 2014
    Member:
    #133812
    Messages:
    58
    Gender:
    Male
    Wyoming
    Vehicle:
    2015 AC TRD/OR 4x4 V6 MT
    TRD Quickshifter, Icon Ext Travel Front and Rear / Camburg BJ UCAs, OME Dakars, TRD Faux Beadlock Wheels, BFG AT KO2 285/75

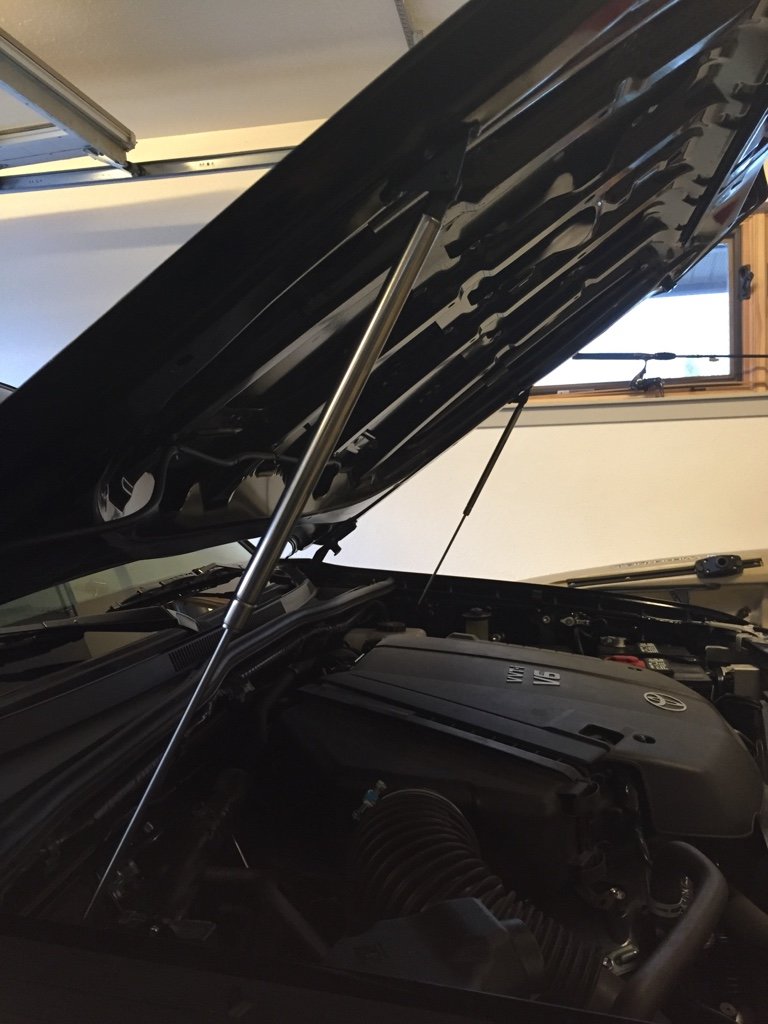

    Installed Rokblokz mud flaps and Redline Tuning hood struts today...

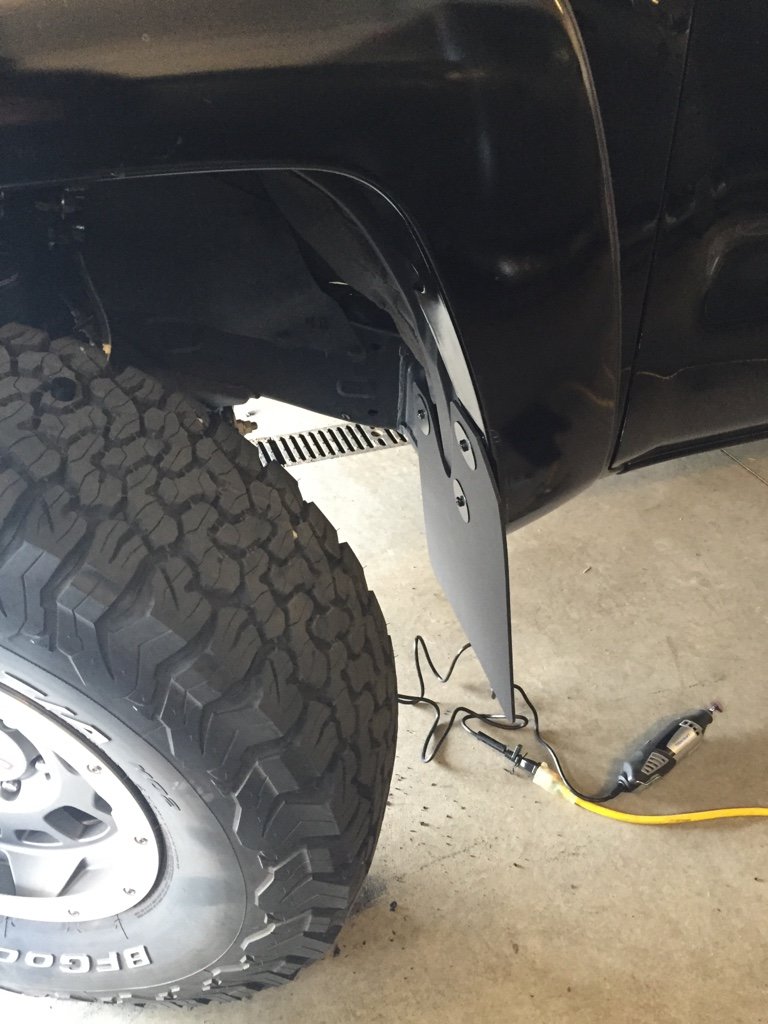

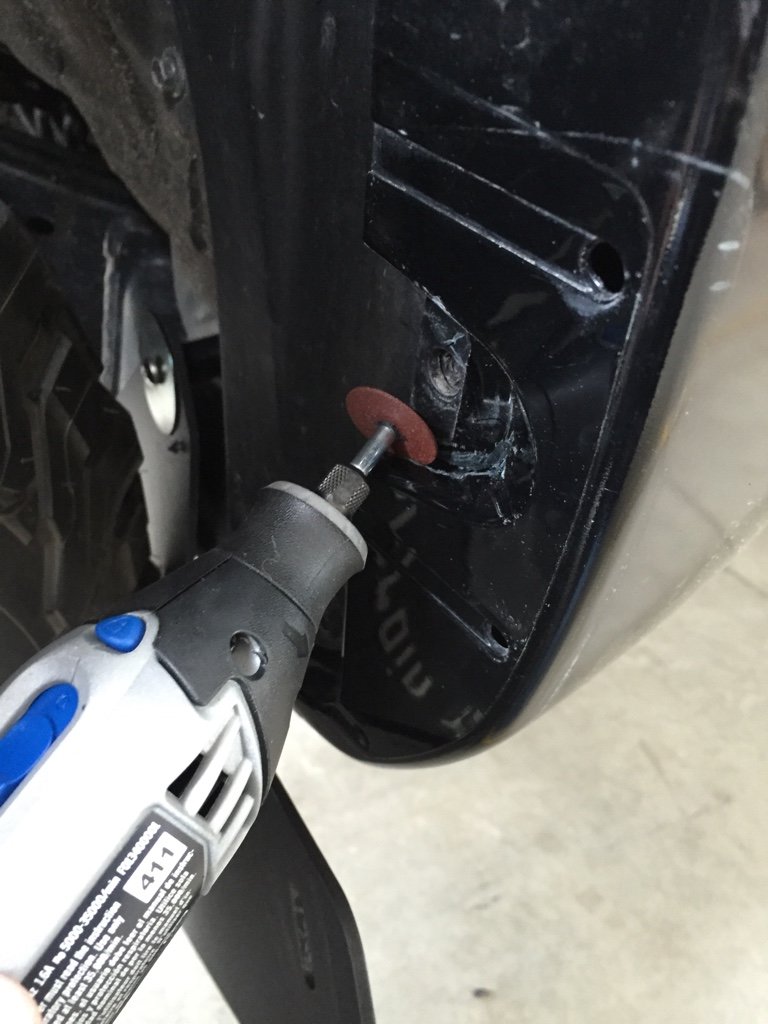

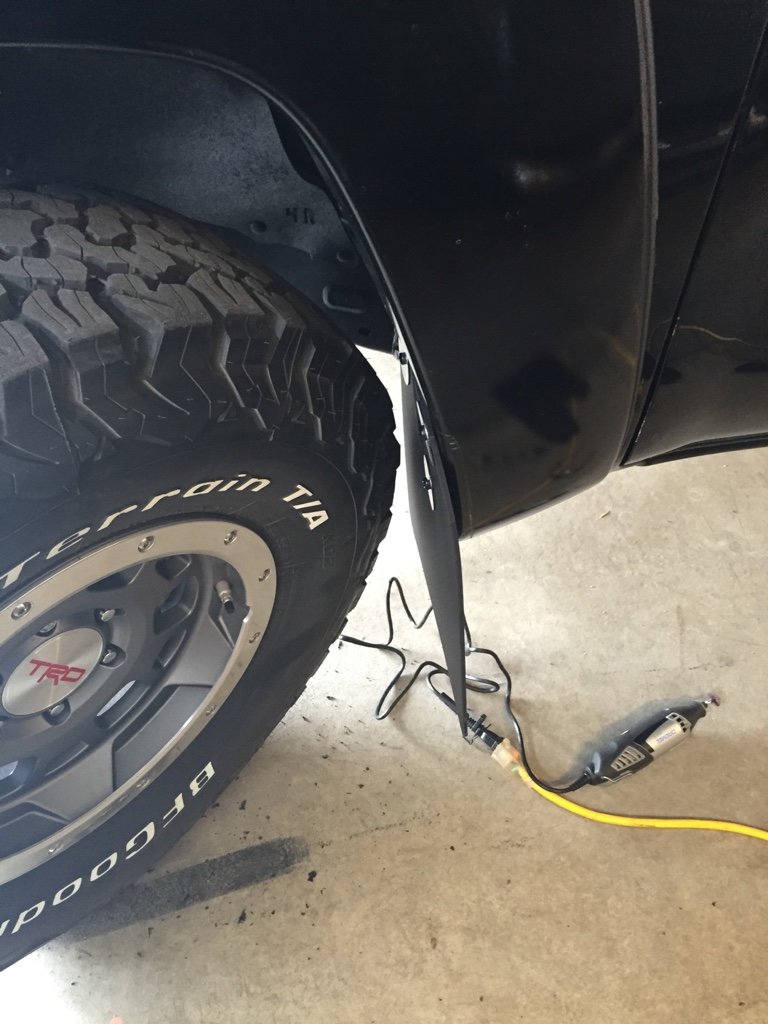

    Had to modify the fender on the drivers front because I started getting tire rub. Will eventually do the other side the same way.




    Last edited: Apr 5, 2015
