Spicer xc OEM carrier bearing alternative (4wd ONLY)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by anthony250f, Mar 27, 2018.

  1. Mar 27, 2018 at 2:37 PM
    #1
    anthony250f

    anthony250f [OP] Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    16,048
    Gender:
    Male
    First Name:
    Anthony
    San Diego, CA
    Vehicle:
    2008 dcsb trd offroad 4wd
    I wanted to post this thread to share a cheaper, and IMHO a better alternative to the oem carrier bearing. The spicer xc 211590-1x carrier bearing is the same as the IEDLS carrier bearing except it is rubber, not poly. This is a great alternative between the softness of OEM, and the firmness of the poly bearing. The carrier bearing is only 25-30$

    Materials needed.
    - spicer xc 211590-1x carrier bearing
    -two 10mm x 1.25 bolts
    -3’ piece of 1” square tube for spacers
    -piece of 1/8-3/16” 1.5”-2” width steel

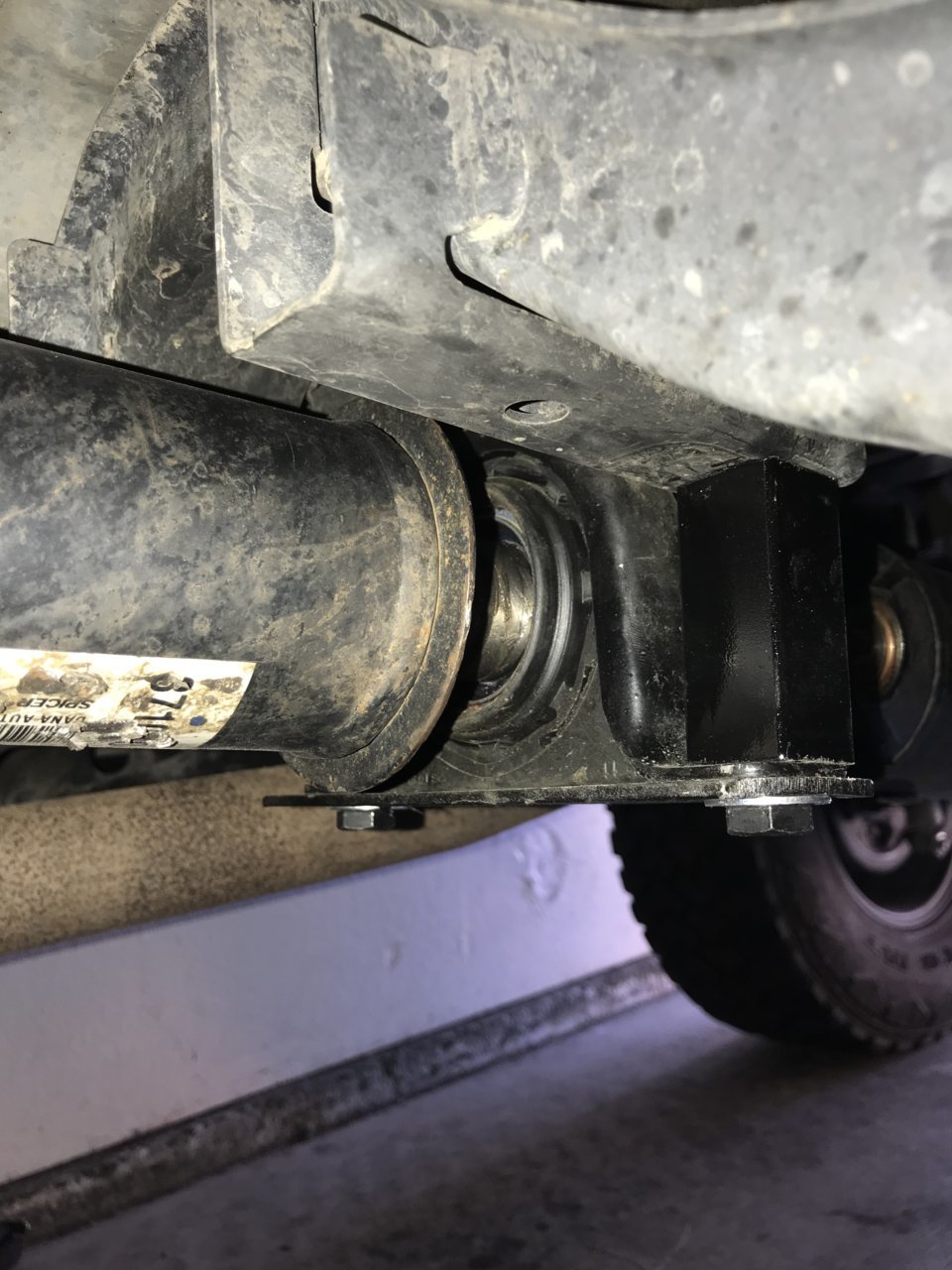

    The square tube is used as spacers to bring the carrier bearing down.
    The plate is used to enclose the carrier bearing
    The size of your spacers used will be different depending on how tall your rear lift is.

    Overall I am extremely happy with this carrier bearing and it is performing awesome.

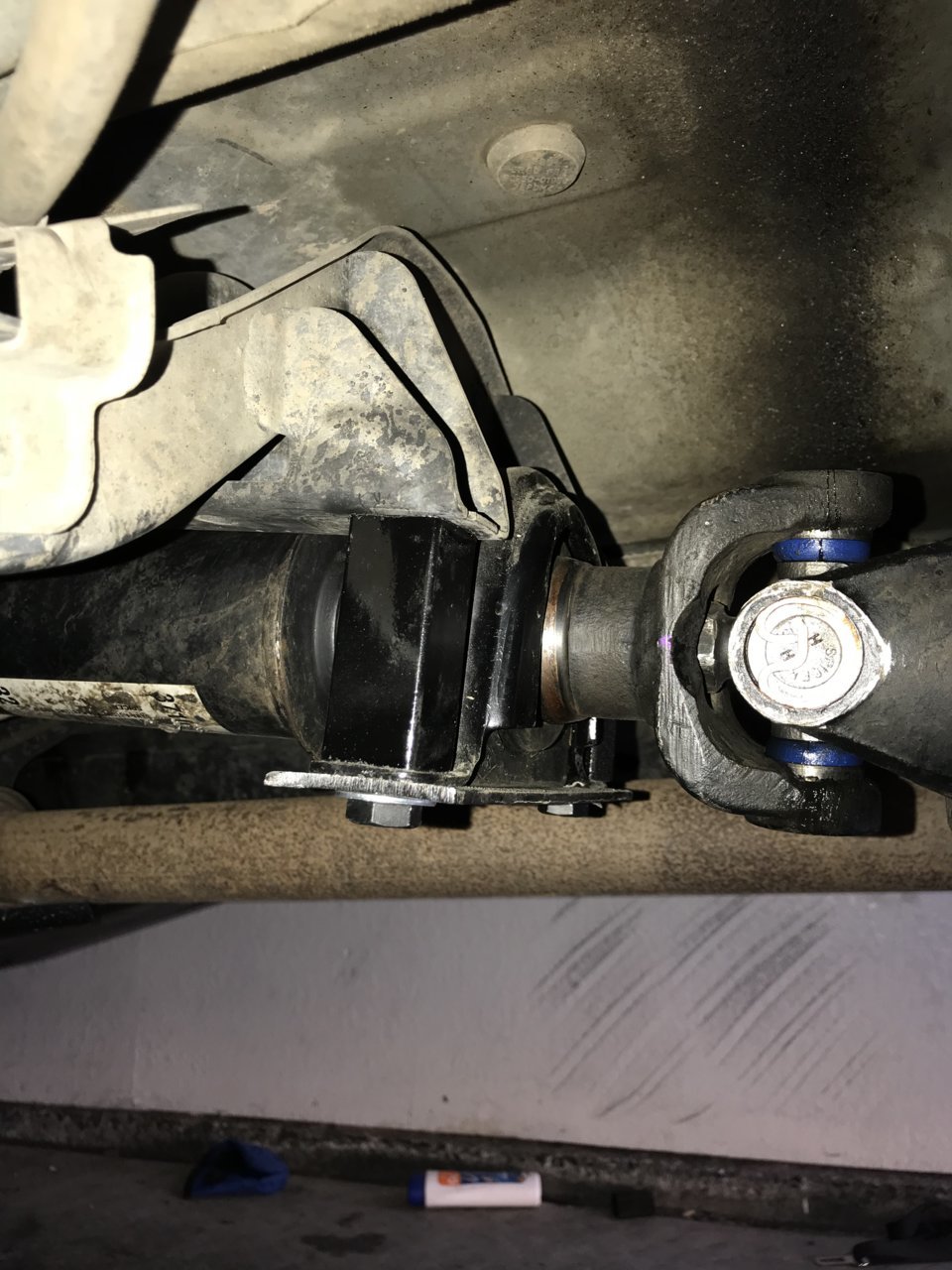

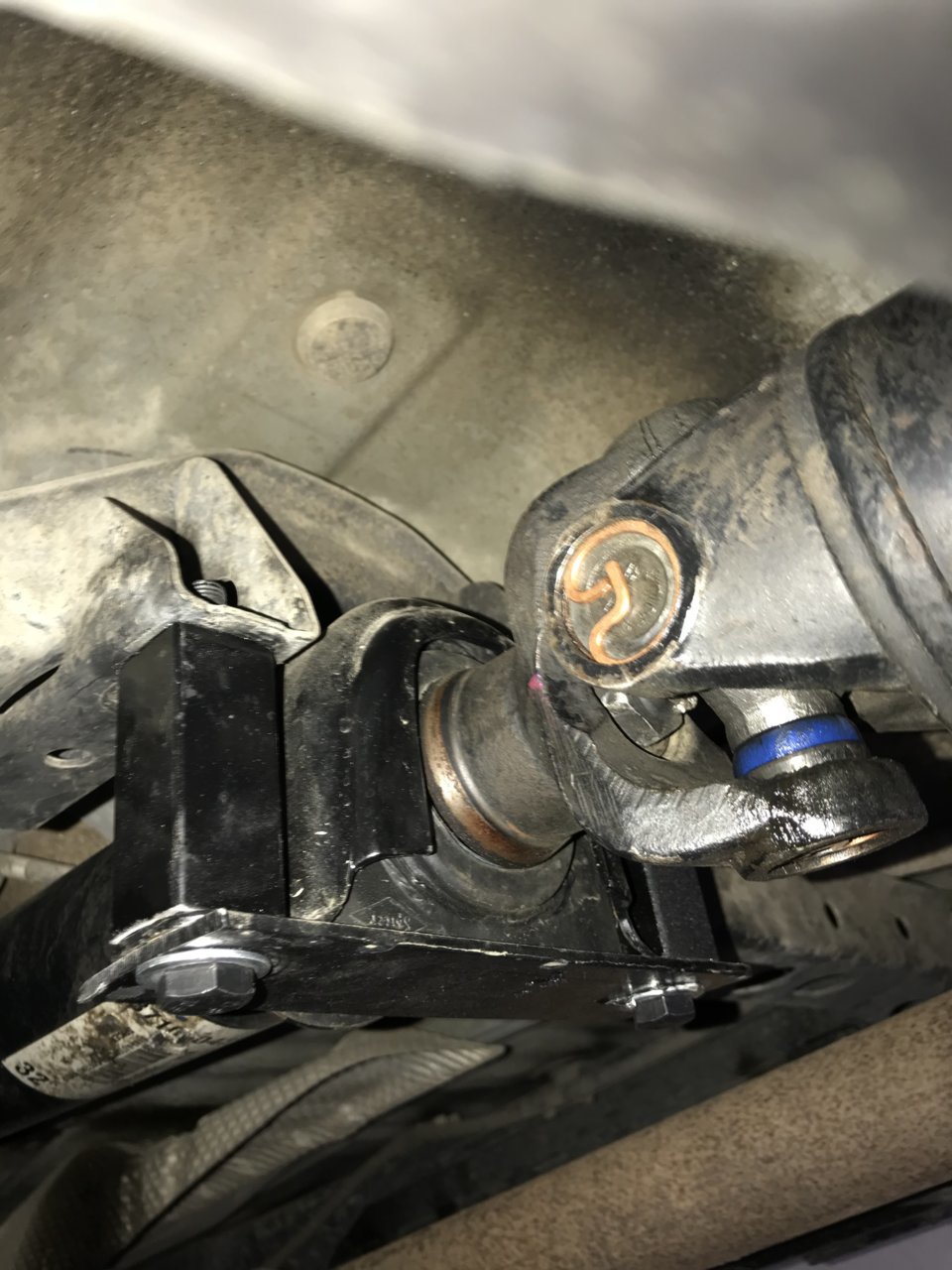

    AFEF2638-F603-4B81-9786-9AF5A020680A.jpg 5B89D22D-47D7-4668-9B0C-C5F9D6266637.jpg

    Biscuits, knottyrope, lynyrd3 and 2 others like this.
  2. Mar 27, 2018 at 2:40 PM
    #2
    Texoma

    Texoma IG: Triple C Chop Shop

    Joined:
    Feb 1, 2011
    Member:
    #50374
    Messages:
    16,150
    Gender:
    Male
    First Name:
    Chris(Topher)
    Lago Vista, TX
    Vehicle:
    10 Taco 4x4
    A bunch a cool stickers, a bada ass MetalMiller Tx Longhorns grill emblem painted Hemi Orange, JBA long tube headers with o2 sims, Diff breather mod, Red LED interior lights, Fancy head unit that plays ipod n movies, Also DIY install factory stuff like, factory cruise control, factory intermittent wipers, OME nitro struts with 886x springs and toy tec top plate, JBA high caster UCA's for better alignmnet and dey beefier too, Old Man Emu Dakar leaf springs in da rear with the gear, U bolt flipper, Ivan Stewart TRD rims with 33" K Bro 2's, some bad ass weather tech floor liners so I don't muck up my interior, an ATO shackle flipper for mo travel in da rear wit the gear, also super shiny Fox 2.0 shocks back there too, all sorts of steal armor for bouncing off of the rocks like demello sliders, AP front skid, trans skid, n transfer skid, demello gas tank skid, and a tough as nails ARB bumper with warn 8k winch, I'm sure there's more
    Nice work. What length did you cut the tube to?

  3. Mar 27, 2018 at 2:41 PM
    #3
    anthony250f

    anthony250f [OP] Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    16,048
    Gender:
    Male
    First Name:
    Anthony
    San Diego, CA
    Vehicle:
    2008 dcsb trd offroad 4wd
    I’m running Dakar springs on my truck. At first I tried 2” and had some vibes. The shaft wasn’t straight.
    Now I have 2.5” spacers and the shaft is straight and I don’t have any vibes

    Biscuits, lynyrd3 and stealthmode like this.
  4. Apr 11, 2018 at 9:11 PM
    #4
    anthony250f

    anthony250f [OP] Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    16,048
    Gender:
    Male
    First Name:
    Anthony
    San Diego, CA
    Vehicle:
    2008 dcsb trd offroad 4wd
    Put over a thousand miles so far and it’s doing VERY good. Feels so much better than OEM garbage !

    Best 30$ upgrade yet.


    Biscuits, lynyrd3, DrFunker and 4 others like this.
  5. Apr 11, 2018 at 9:58 PM
    #5
    Derk33

    Derk33 Well-Known Member

    Joined:
    Feb 25, 2016
    Member:
    #179384
    Messages:
    115
    Gender:
    Male
    First Name:
    Derek
    Pennylvania
    Vehicle:
    06 Blue TRD Off Road
    Halo Headlights, Grillcraft Grill, plasti-dip, aftermarket radio, Polk Audio front door woofer and tweeters, rear spring TSB, frame recall, Bilstein 5100 x 4 @ 1.75
    Did you use a digital angle meter to measure the shaft? U joints need a bit of angle in them to work the grease around. Other than that looks great and sounds like I need an upgrade!

  6. Apr 11, 2018 at 10:28 PM
    #6
    anthony250f

    anthony250f [OP] Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    16,048
    Gender:
    Male
    First Name:
    Anthony
    San Diego, CA
    Vehicle:
    2008 dcsb trd offroad 4wd
    No I just matched what I had before and eye balled it. I’m not too sure what you mean about the angle ? The shaft needs to be straight to prevent take off vibes.

  7. Apr 12, 2018 at 6:45 AM
    #7
    badger

    badger Well-Known Member

    Joined:
    Jan 6, 2012
    Member:
    #70102
    Messages:
    1,984
    Gender:
    Male
    Vehicle:
    07 SR5
    I'm trying to decide whether to use this bearing or the IEDLS. I already bought the IEDLS, but I'm underwhelmed. The poly support is very narrow and the bracket seems flimsy. I was planning on welding in additional support to give it some axial strength. The XD appears to be considerably more substantial, both in the bracket and the bushing. I will probably get one and see what I think.

    the C/L to mount surface for the stock bearing is .244" (measured to the bottom of the mounting flange)
    the C/L to mount surface the the XD is 1.940" (measured to the TOP of the mount flange)

    That should yield an offset from stock of about 1 9/16". Add whatever drop shims you already need to that.

    here is a great reference: http://drivetrain.estoreseller.com/DanaCatalogs/j300-p9a.pdf

    anthony250f [OP] likes this.
  8. Apr 12, 2018 at 7:22 AM
    #8
    badger

    badger Well-Known Member

    Joined:
    Jan 6, 2012
    Member:
    #70102
    Messages:
    1,984
    Gender:
    Male
    Vehicle:
    07 SR5
    The shafts should be .5 to 1 degree different to provide even wear of the u-joints.

  9. Apr 12, 2018 at 7:33 AM
    #9
    PoweredBySoy

    PoweredBySoy Well-Known Member

    Joined:
    Nov 10, 2014
    Member:
    #142066
    Messages:
    1,832
    Gender:
    Male
    First Name:
    Jesse
    Minnesota
    Vehicle:
    2013 DCSB SR5
    I was also under the impression that the first section of the driveshaft was meant to be at 0 degrees, and the more you lower it, the more new vibes you start to introduce at higher speeds.

    anthony250f [OP] likes this.
  10. Apr 12, 2018 at 8:15 AM
    #10
    Derk33

    Derk33 Well-Known Member

    Joined:
    Feb 25, 2016
    Member:
    #179384
    Messages:
    115
    Gender:
    Male
    First Name:
    Derek
    Pennylvania
    Vehicle:
    06 Blue TRD Off Road
    Halo Headlights, Grillcraft Grill, plasti-dip, aftermarket radio, Polk Audio front door woofer and tweeters, rear spring TSB, frame recall, Bilstein 5100 x 4 @ 1.75
    The first u joint should be close to 0, the bearings inside the caps need a bit of movement to stay lubricated. If it was meant to be a perfect zero there wouldn’t be a u joint there

  11. Apr 12, 2018 at 8:40 AM
    #11
    anthony250f

    anthony250f [OP] Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    16,048
    Gender:
    Male
    First Name:
    Anthony
    San Diego, CA
    Vehicle:
    2008 dcsb trd offroad 4wd
    Well it’s not 100% straight. I could go a tad lower to be more straight. I had the carrier bearing higher up but the vibes were bad

  12. Apr 12, 2018 at 8:44 AM
    #12
    nd4spdbh

    nd4spdbh Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    10,932
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto
    Please note

    DO NOT USE THIS CB IF YOU ARE A 2WD TRUCK!!!



    OP are you 2wd or 4wd, hard to tell if you have a slip joint after the carrier bearing.

    Biscuits likes this.
  13. Apr 12, 2018 at 8:44 AM
    #13
    anthony250f

    anthony250f [OP] Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    16,048
    Gender:
    Male
    First Name:
    Anthony
    San Diego, CA
    Vehicle:
    2008 dcsb trd offroad 4wd
    I’m super happy with it. I like that it stay has play since it’s rubber, yet not as firm as poly

    It has already taken some 4lo abuse

  14. Apr 12, 2018 at 8:49 AM
    #14
    anthony250f

    anthony250f [OP] Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    16,048
    Gender:
    Male
    First Name:
    Anthony
    San Diego, CA
    Vehicle:
    2008 dcsb trd offroad 4wd
    Thank you I edited the title

    I wasn’t sure if it was 2wd compatable

  15. Apr 12, 2018 at 9:29 AM
    #15
    nd4spdbh

    nd4spdbh Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    10,932
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto

    cool deal. Yeah because it doesnt allow the driveshaft to move nearly as much forward n back it wont work on the 2wd as the 2wd (prerunner) trucks do not have a slip joint after the CB, they have a slip yoke at the trans so the whole shaft moves through the cb and in and out of the trans.... kinda wacky.

    BassAckwards and Biscuits like this.
  16. Apr 17, 2018 at 2:53 PM
    #16
    MonkeyProof

    MonkeyProof Power Top

    Joined:
    Oct 7, 2008
    Member:
    #9774
    Messages:
    11,839
    SoCal- SGV
  17. Apr 17, 2018 at 5:39 PM
    #17
    buyobuyo

    buyobuyo Read The Fucking Manual

    Joined:
    Jan 24, 2008
    Member:
    #4417
    Messages:
    5,705
    Gender:
    Male
    First Name:
    Jeremy
    Camden, AR
    Vehicle:
    08 PreRunner SR5, I4, Manual, Silver
    A thing or two...
    I'm running the IELDS bearing. I lined up the bearings on my old bearing and the IELDS and measured 2.25" as the difference between the factory bearing mounting surface and the top of the mounting ear on the IEDLS. I don't have any vibes.

    I'm running the IELDS bearing on my prerunner. I've got over 1000 miles on it so far.

  18. Apr 18, 2018 at 2:18 PM
    #18
    nd4spdbh

    nd4spdbh Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    10,932
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto

    do you understand how the driveline moves on the prerunner as suspension cycles with the lack of the slip joint after the CB?

    Id bet you would be disgusted with how much you are bending that CB / crossmember during suspension cycling if you took video of it.

    The whole reason the stock CB is so floppy is to allow forward and backward movement of the prerunner driveshaft through the CB mount via the deflection of the rubber doughnut.

    anthony250f [OP] likes this.
  19. Apr 18, 2018 at 2:27 PM
    #19
    maxtherat

    maxtherat Well-Known Member

    Joined:
    Jan 21, 2015
    Member:
    #146908
    Messages:
    1,642
    Gender:
    Male
    First Name:
    Jason
    San Clemente, Ca
    Vehicle:
    2001 Dodge Ram 2500
    All the usual diesel truck mods- fuel system upgrade, programmer, CAI, intake manifold, j hooked waste gate
    X2- shaft needs a small amount of angle either vertically or horizontally. In some cars the engine is slightly offset off center or diff is offset.

    anthony250f [OP] likes this.
  20. Apr 19, 2018 at 1:19 PM
    #20
    anthony250f

    anthony250f [OP] Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    16,048
    Gender:
    Male
    First Name:
    Anthony
    San Diego, CA
    Vehicle:
    2008 dcsb trd offroad 4wd
    I’ll throw a angle finder but I know for a fact they aren’t 100% the same angle.

    I still do have SOME take off vibes but it’s light years better than stock. I had horrible vibes with any spacer Under 2”

    The 2.5” puts me at just over stock
