Spindle gussets, uca supports, and more

Discussion in 'Long Travel Suspension' started by evansa22, Jan 9, 2011.

  1. Jan 9, 2011 at 2:43 PM
    #1
    evansa22

    evansa22 [OP] Member

    Joined:
    Aug 8, 2010
    Member:
    #41420
    Messages:
    24
    Gender:
    Male
    First Name:
    Aaron
    SD
    Vehicle:
    04 trd 4x4
    front fg, aem cai, total chaos long travel front suspension with SAW coilovers
    just got my spindle gussets, uca supports, and secondary shock hoop for my tc long travel system. I'm goona have my friends dad put this stuff on cause he's a great welder/fabricator and knows what he's doing. Had a few q's though to aid in the process. To weld on the spindle gussets, does the entire spindle need to be removed? or is it simpler? Second, to weld on the uca supports, should we just unbolt the uca and thats it? Lastly, when welding the shock hoop to the frame, welding plate to the frame, then the hoop to the plate would be best? Just some thoughts in my head and wanted to get it all straight before we get started. Thanks in advance for any helpful advice!

  2. Mar 6, 2011 at 11:57 PM
    #2
    evansa22

    evansa22 [OP] Member

    Joined:
    Aug 8, 2010
    Member:
    #41420
    Messages:
    24
    Gender:
    Male
    First Name:
    Aaron
    SD
    Vehicle:
    04 trd 4x4
    front fg, aem cai, total chaos long travel front suspension with SAW coilovers
    got this stuff on there two weeks ago, holding tough for now after a little testing in ocotillo. Spindle gussets and uca supports came with some instructions that helped in the installation. However nothing beats having a great fabricator who knows there stuff.

    [​IMG]

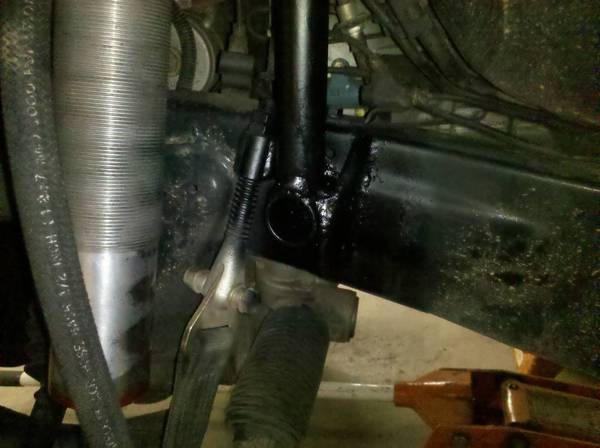

    spindle gussets

    [​IMG]

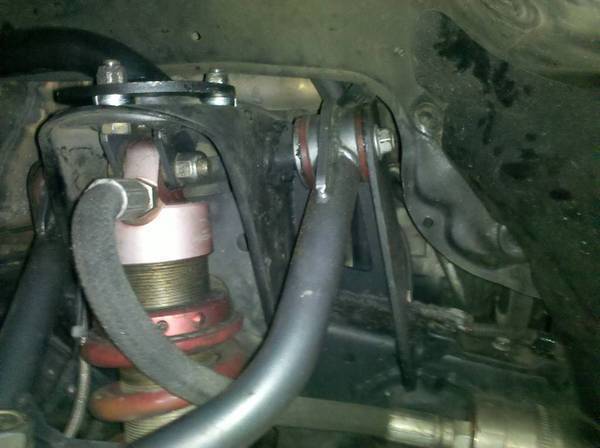

    upper control arms/ coilbucket brackets
    [​IMG]

    [​IMG]

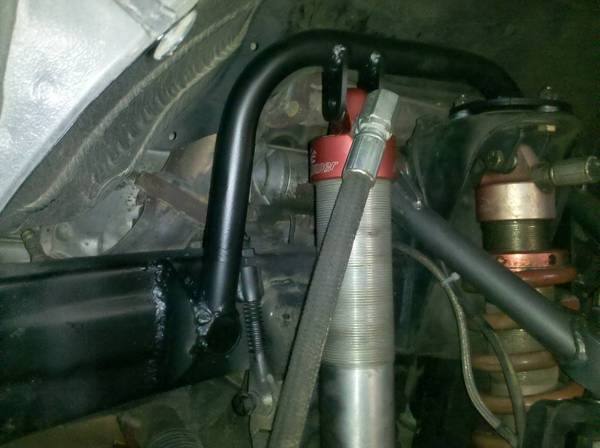

    gusset for shock hoop
    [​IMG]

    [​IMG]
    assembled

    [​IMG]
    after a little testing.

    neone have any questions on install just hit me up.
    Aaron

  3. Mar 7, 2011 at 7:43 AM
    #3
    nelson18matt

    nelson18matt Well-Known Member

    Joined:
    Mar 19, 2009
    Member:
    #14939
    Messages:
    13,842
    Gender:
    Male
    Goodyear, Arizona
    Vehicle:
    2004 Long Travel Tacoma
    *SOLD*
    looking good man, i need to get some secondary shock hoops for my TC kit

  4. Mar 7, 2011 at 3:20 PM
    #4
    03aztaco

    03aztaco Well-Known Member

    Joined:
    Dec 14, 2010
    Member:
    #47676
    Messages:
    600
    Gender:
    Male
    First Name:
    adam
    lake havasu,mesa
    Vehicle:
    03 prerunner
    tc lt kit, king shocks, deavers, tc hangers,tc 12" shackels, king double bypasses, cab caged, beefed taco carrier bearing drop bracket, soild motor mounts,some more to lazy haha
    looks good bro

  5. Mar 7, 2011 at 3:25 PM
    #5
    mxnborder

    mxnborder Well-Known Member

    Joined:
    Jun 11, 2010
    Member:
    #38749
    Messages:
    1,110
    Gender:
    Male
    First Name:
    Jason
    Santa Barbara
    Vehicle:
    05 4x4 sport - black on black on black
    DR coilovers AAl 285 kelly safaris lightbar/skidplate need more!
    yeah buddy!

  6. Mar 7, 2011 at 10:41 PM
    #6
    evansa22

    evansa22 [OP] Member

    Joined:
    Aug 8, 2010
    Member:
    #41420
    Messages:
    24
    Gender:
    Male
    First Name:
    Aaron
    SD
    Vehicle:
    04 trd 4x4
    front fg, aem cai, total chaos long travel front suspension with SAW coilovers
    thanks guys.
    Both shocks are gooing to be revalved once i can get ahold of sway a way to get a baseline for shims. Been trying to for about 2 weeks now with no luck. Both shocks are valved to work by themselves so they r way to stiff

  7. Mar 8, 2011 at 7:02 AM
    #7
    nelson18matt

    nelson18matt Well-Known Member

    Joined:
    Mar 19, 2009
    Member:
    #14939
    Messages:
    13,842
    Gender:
    Male
    Goodyear, Arizona
    Vehicle:
    2004 Long Travel Tacoma
    *SOLD*
    i'm going to be getting new spindles and heim steering in a few weeks. i currently have the TC heim steering upgrade that i wont be needing anymore, would you maybe be interested in taking it off my hands for a low price?

  8. Mar 8, 2011 at 2:35 PM
    #8
    03aztaco

    03aztaco Well-Known Member

    Joined:
    Dec 14, 2010
    Member:
    #47676
    Messages:
    600
    Gender:
    Male
    First Name:
    adam
    lake havasu,mesa
    Vehicle:
    03 prerunner
    tc lt kit, king shocks, deavers, tc hangers,tc 12" shackels, king double bypasses, cab caged, beefed taco carrier bearing drop bracket, soild motor mounts,some more to lazy haha
    if he dosnt let me know matt!

  9. Mar 8, 2011 at 2:47 PM
    #9
    StatutoryAPE

    StatutoryAPE Well-Known Member

    Joined:
    May 27, 2010
    Member:
    #37926
    Messages:
    568
    Gender:
    Male
    First Name:
    Joey
    Phoenix,AZ
    Vehicle:
    2000 Prerunner xtracab
    TRD Headers,CAI, dynomax super turbo, blacked out headlights, Smoked LED tails, Billy 5100 w/OME 881's and 5125's in rear, rear tube bumper, tint 35% front 3 windows & 5% in rear 3. fiberwerx 4.5's
    looks very nice man.

  10. Mar 8, 2011 at 6:43 PM
    #10
    nelson18matt

    nelson18matt Well-Known Member

    Joined:
    Mar 19, 2009
    Member:
    #14939
    Messages:
    13,842
    Gender:
    Male
    Goodyear, Arizona
    Vehicle:
    2004 Long Travel Tacoma
    *SOLD*
    will do!!!

  11. Mar 8, 2011 at 9:28 PM
    #11
    StatutoryAPE

    StatutoryAPE Well-Known Member

    Joined:
    May 27, 2010
    Member:
    #37926
    Messages:
    568
    Gender:
    Male
    First Name:
    Joey
    Phoenix,AZ
    Vehicle:
    2000 Prerunner xtracab
    TRD Headers,CAI, dynomax super turbo, blacked out headlights, Smoked LED tails, Billy 5100 w/OME 881's and 5125's in rear, rear tube bumper, tint 35% front 3 windows & 5% in rear 3. fiberwerx 4.5's
    where does the second shock bolt to the bottom? did you have to add a spot for it?

  12. Mar 8, 2011 at 9:31 PM
    #12
    nelson18matt

    nelson18matt Well-Known Member

    Joined:
    Mar 19, 2009
    Member:
    #14939
    Messages:
    13,842
    Gender:
    Male
    Goodyear, Arizona
    Vehicle:
    2004 Long Travel Tacoma
    *SOLD*
    no, the TC kit comes with dual shock tabs alredy on the LCA

  13. Mar 9, 2011 at 12:03 PM
    #13
    evansa22

    evansa22 [OP] Member

    Joined:
    Aug 8, 2010
    Member:
    #41420
    Messages:
    24
    Gender:
    Male
    First Name:
    Aaron
    SD
    Vehicle:
    04 trd 4x4
    front fg, aem cai, total chaos long travel front suspension with SAW coilovers
    ya matt is right, tc lowers come with two mounting tabs on the bottom. The second one on mine was used to mount the limit strap, so we cut a spacer to move it away from the shock and so it wouldn't rub through travel. I would b interested in the steering upgrade, let me know what u want for it, should b getting my tax return sooner rather than later
    thanks,
    Aaron

  14. Mar 9, 2011 at 3:05 PM
    #14
    StatutoryAPE

    StatutoryAPE Well-Known Member

    Joined:
    May 27, 2010
    Member:
    #37926
    Messages:
    568
    Gender:
    Male
    First Name:
    Joey
    Phoenix,AZ
    Vehicle:
    2000 Prerunner xtracab
    TRD Headers,CAI, dynomax super turbo, blacked out headlights, Smoked LED tails, Billy 5100 w/OME 881's and 5125's in rear, rear tube bumper, tint 35% front 3 windows & 5% in rear 3. fiberwerx 4.5's

    so the limit strap still uses the same mounting spot, but shares it now with the second shock. thats awesome. doe sthe camburg kit have a second shock mount as well?

  15. Mar 9, 2011 at 4:12 PM
    #15
    nelson18matt

    nelson18matt Well-Known Member

    Joined:
    Mar 19, 2009
    Member:
    #14939
    Messages:
    13,842
    Gender:
    Male
    Goodyear, Arizona
    Vehicle:
    2004 Long Travel Tacoma
    *SOLD*
    yeah, it has 2 tabs

  16. Mar 9, 2011 at 4:12 PM
    #16
    nelson18matt

    nelson18matt Well-Known Member

    Joined:
    Mar 19, 2009
    Member:
    #14939
    Messages:
    13,842
    Gender:
    Male
    Goodyear, Arizona
    Vehicle:
    2004 Long Travel Tacoma
    *SOLD*
    cool man, i'll hit you up once i get them off the truck

  17. Mar 9, 2011 at 11:57 PM
    #17
    evansa22

    evansa22 [OP] Member

    Joined:
    Aug 8, 2010
    Member:
    #41420
    Messages:
    24
    Gender:
    Male
    First Name:
    Aaron
    SD
    Vehicle:
    04 trd 4x4
    front fg, aem cai, total chaos long travel front suspension with SAW coilovers
    cool Matt, just let me know.
    StatutoryApe- If u want a pic reference of how we mounted strap and secondary shock let me know. I can take one once i get the secondaries back on but for now valving's too stiff to run them both. We changed the bolt out for a longer grade 8 bolt and longer nut to prevent ne bending.

    (I)=I , () r the shock mounting tabs, I's r shock shaft end and strap mount, = is spacer
    something like this

  18. Mar 11, 2011 at 1:39 PM
    #18
    StatutoryAPE

    StatutoryAPE Well-Known Member

    Joined:
    May 27, 2010
    Member:
    #37926
    Messages:
    568
    Gender:
    Male
    First Name:
    Joey
    Phoenix,AZ
    Vehicle:
    2000 Prerunner xtracab
    TRD Headers,CAI, dynomax super turbo, blacked out headlights, Smoked LED tails, Billy 5100 w/OME 881's and 5125's in rear, rear tube bumper, tint 35% front 3 windows & 5% in rear 3. fiberwerx 4.5's
    you dont have to take a pic, its ok. i get it now

  19. Jan 16, 2015 at 12:34 PM
    #19
    austin62

    austin62 BushMaster

    Joined:
    Jan 16, 2014
    Member:
    #120824
    Messages:
    363
    Gender:
    Male
    First Name:
    austin
    california
    Vehicle:
    05 sr5 6-speed
    All the things
    Anyone ever made their own gussets ?

  20. Jan 16, 2015 at 12:50 PM
    #20
    Cr250jumper

    Cr250jumper Señor member

    Joined:
    Dec 2, 2010
    Member:
    #47033
    Messages:
    10,643
    Gender:
    Male
    The moon
    Vehicle:
    50 shades of tan©
    Tacoma with some stuff melted to it

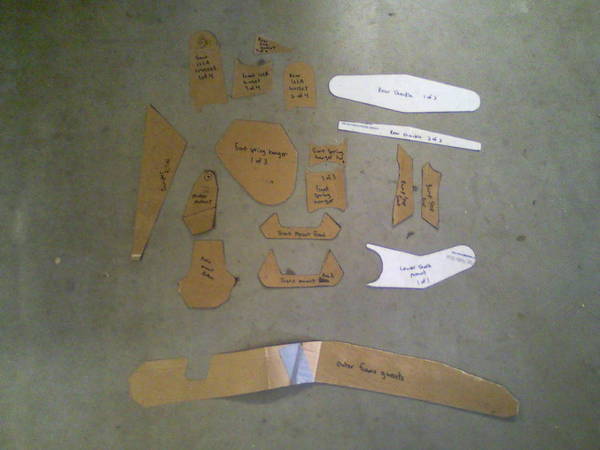

    Just a few :p I did not make my spindle gussets but made just about every other one
