Squeaky Penguin's (Trip Reports) Build Thread

Discussion in '1st Gen. Builds (1995-2004)' started by Squeaky Penguin, Feb 3, 2013.

  1. Jul 29, 2014 at 10:26 AM
    #321
    cynicalrider

    cynicalrider #NFG

    Joined:
    Jul 25, 2012
    Member:
    #83399
    Messages:
    16,522
    Gender:
    Male
    Jersey
    Vehicle:
    01 SR5 TRD 4x4, '23 Bronco Wildtrak, 2017 HSQV FE350
    Drop bracket lift and booger welds
    Paying close attention to this. My rack leaks but has zero play so I do plan on replacing it eventually and want to make sure I go with the right company.

  2. Jul 29, 2014 at 11:06 AM
    #322
    Dirty Pool

    Dirty Pool FLIES ON THE FRIES, KETCHUPS WATERED DOWN

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    2,273
    Gender:
    Male
    59.4 Miles, 56.67° NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD
    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, PCV catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, 01 Center console, Map lights, Disraeli gears
    Thanks for the effort. But I gotta say that looks like black plastic to me, let's call it something like "advanced polymer", but I wasn't there. IMO it is a better choice for this application than metal/metal anyway. Same principal as OEM ball joint construction.
    Between your inspection and Mr Timmy's talk with AAE it seems safe to say the brass thing is bogus.

    The play in the vid is normal when the guide is removed. On the driver side, the guide under pressure from the adjuster/spring presses the rack shaft against the pinion gear. The curve of the guide is all that keeps the driver side of the rack shaft from flopping around. The bushing at the pass side keeps that end under control.

  3. Jul 29, 2014 at 11:47 AM
    #323
    Squeaky Penguin

    Squeaky Penguin [OP] Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    9,866
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
    OK, Appreciate all the input, but you've left me confused on one thing.

    When I posted this video:

    http://www.youtube.com/watch?v=_HGvYDl716Q

    You said that was more play than a factory rack with the guide removed. Which, at least the way I read it, slightly contradicts your last statement. Just trying to figure out where all that play was coming from.


    Also,

    Something most likely related to that play caused this click before I figured everything out.

    http://www.youtube.com/watch?v=E26l4LEtixM

    Slashaar likes this.
  4. Jul 29, 2014 at 1:33 PM
    #324
    Dirty Pool

    Dirty Pool FLIES ON THE FRIES, KETCHUPS WATERED DOWN

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    2,273
    Gender:
    Male
    59.4 Miles, 56.67° NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD
    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, PCV catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, 01 Center console, Map lights, Disraeli gears
    I don't see any contradiction but that could be me.
    I'll try again.

    The first video (on the truck) appeared to show a shocking (to me) amount of play in the rack shaft, in all directions. I put up the pics I had of the dial indicator showing how much up and down play was present in an OEM rack with the guide completely removed. That measurement was 0.043", that's a good bit loss than 1/16". I felt the video looked like much more. Next comes the video from the other day. You have the guide out and the shaft has lots of play as I would expect and it would be normal. It almost looks like the guide was completely worn and or stuck, not doing it's job at all.

    In an imaginary cross section of the rack at the guide, from front to back we have the pinion gear meshed with the rack teeth on the front side of the rack shaft squeezed against each other by the guide/spring/adjuster nice and snug so as to have zero lash (there's a mouthful). Because the face of the guide is curved there should be no movement of the shaft possible other than the intended left and right for steering.
    Did that help, or make it worse?

  5. Jul 29, 2014 at 4:38 PM
    #325
    Squeaky Penguin

    Squeaky Penguin [OP] Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    9,866
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
    I'm still a little confused, but that's OK. Don't bother elaborating any more than you already have. But I do have a new point for your consideration:

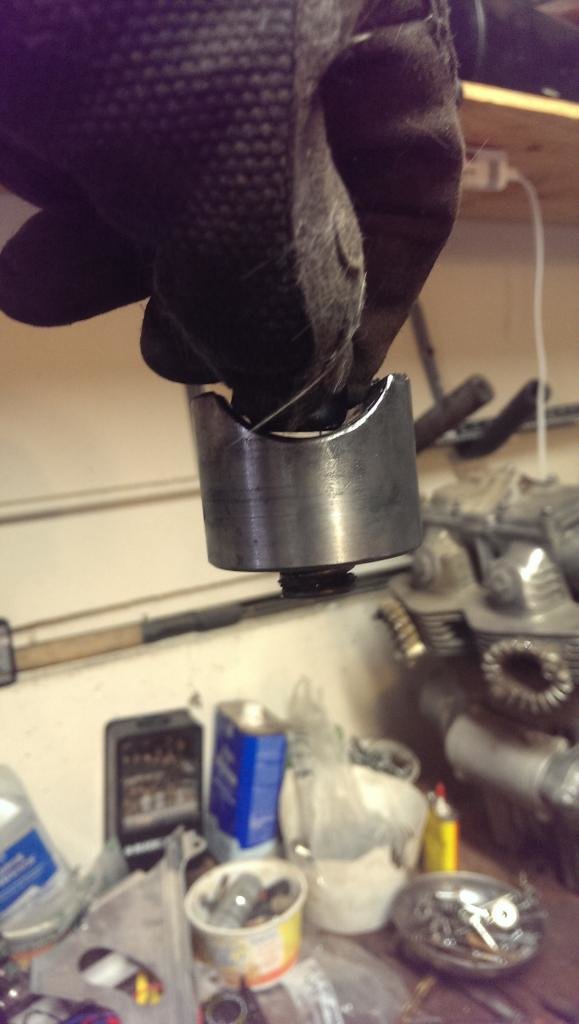

    That's the entire weight of the guide, easily held up by a magnet against the friction surface. I don't know how advance these advance polymers are getting, but I've never heard of a magnetic one... :p

    Slashaar likes this.
  6. Jul 29, 2014 at 4:50 PM
    #326
    Squeaky Penguin

    Squeaky Penguin [OP] Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    9,866
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
    I'll report back on the Rack Doctor one. So far it's doing it's job. Don't want anyone to end up with the same troubles that I've had.


    The funny part of this is that I only replaced my OEM rack because it had a slight leak, and the boots were ripped. Also wanted to replace the inner and outer tie rods while I was at it. Figured it would be good idea just to replace the entire rack being the truck had 225K on it at the time. Should've just left well enough alone.....

    Slashaar likes this.
  7. Jul 29, 2014 at 7:11 PM
    #327
    Dirty Pool

    Dirty Pool FLIES ON THE FRIES, KETCHUPS WATERED DOWN

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    2,273
    Gender:
    Male
    59.4 Miles, 56.67° NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD
    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, PCV catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, 01 Center console, Map lights, Disraeli gears
    Well, this horse is getting beaten to death pretty fast.
    Magnetism will pass right thru what appears to be a ridiculously thin layer of an as yet undetermined material and I have never heard of black metal.

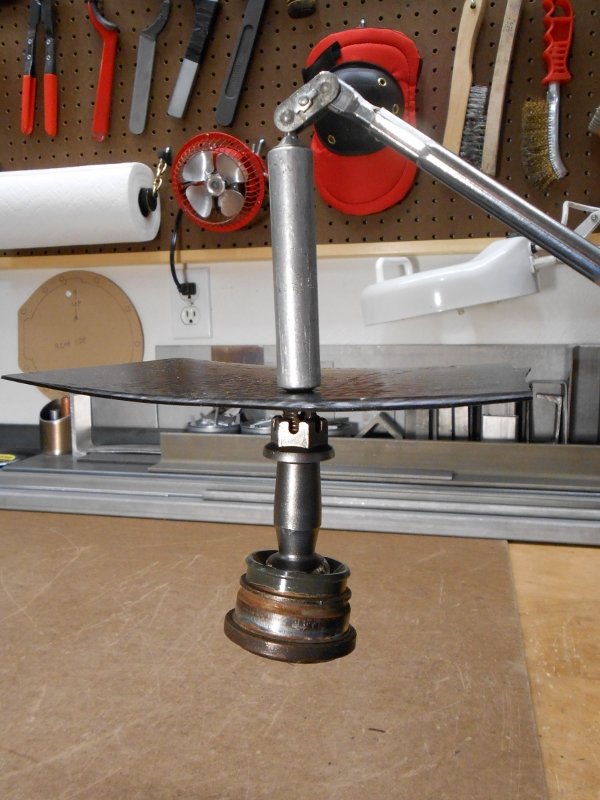

    Here's an entire upper ball joint held up by a pretty weak retrieval magnet thru 1/8" plastic sheet.

    If you want to pursue this further, take a razor and slice off an inconspicuous shaving of the material, clean it then hit it with a match.
    Touche:)

    Slashaar likes this.
  8. Jul 31, 2014 at 4:47 PM
    #328
    Squeaky Penguin

    Squeaky Penguin [OP] Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    9,866
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
    Well, I guess I haven't played with magnets enough recently :eek:



    Thanks for all your help though. Going to button this thing back up and send it back.

  9. Aug 3, 2014 at 5:04 PM
    #329
    Squeaky Penguin

    Squeaky Penguin [OP] Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    9,866
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build

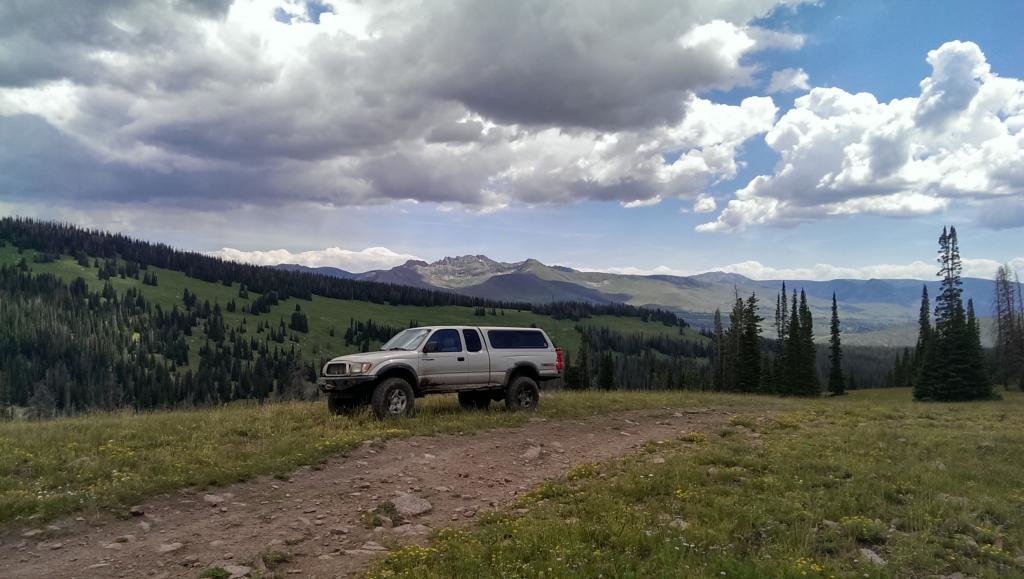

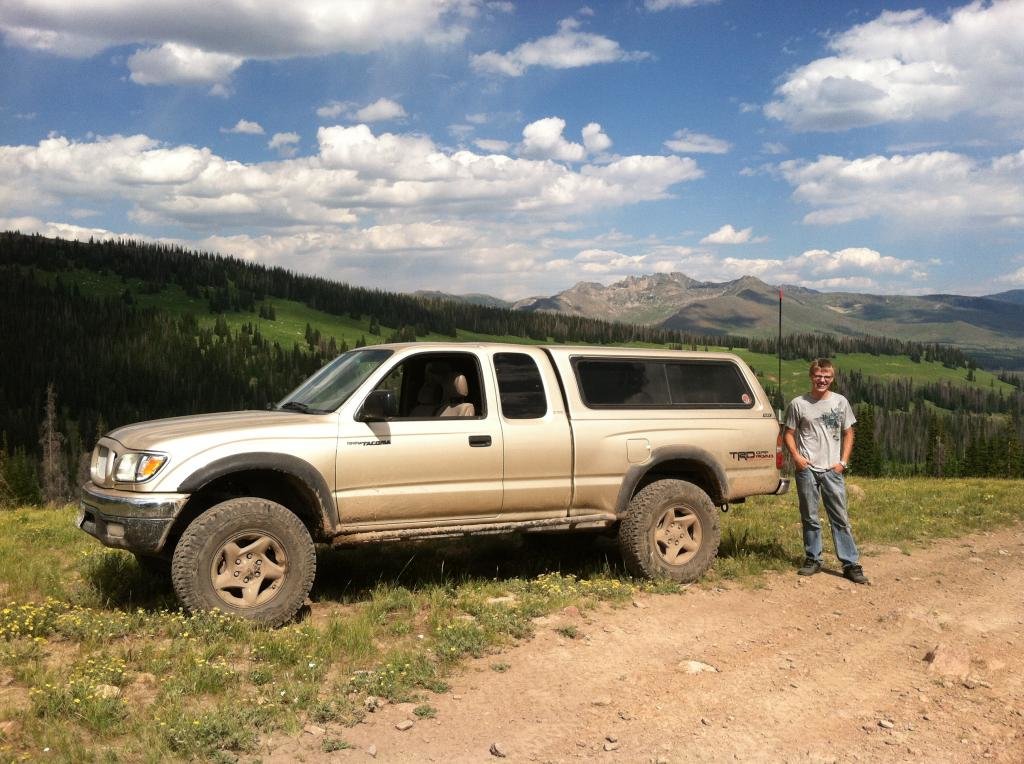

    Did OK at matching this picture.


    Slashaar likes this.
  10. Aug 4, 2014 at 9:59 PM
    #330
    Cohbsteq

    Cohbsteq Hood Rat

    Joined:
    Oct 27, 2013
    Member:
    #115350
    Messages:
    4,316
    Gender:
    Male
    First Name:
    Jacob
    SL,UT
    Vehicle:
    02 Supercharged 4x4
    Pretty much stock with some crap welded to it.
    I freaking love your rear bumper man, nice build.

  11. Aug 5, 2014 at 8:10 AM
    #331
    Squeaky Penguin

    Squeaky Penguin [OP] Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    9,866
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
    Thanks man! And yeah, I'm happy with how the rear bumper turned out.

  12. Aug 5, 2014 at 8:26 AM
    #332
    Cohbsteq

    Cohbsteq Hood Rat

    Joined:
    Oct 27, 2013
    Member:
    #115350
    Messages:
    4,316
    Gender:
    Male
    First Name:
    Jacob
    SL,UT
    Vehicle:
    02 Supercharged 4x4
    Pretty much stock with some crap welded to it.
    you dont sell them do you??

  13. Aug 5, 2014 at 10:51 AM
    #333
    Hockeyman90

    Hockeyman90 Well-Known Member

    Joined:
    Jul 15, 2012
    Member:
    #82711
    Messages:
    310
    Gender:
    Male
    First Name:
    Kaleb
    Craig, Co
    Vehicle:
    2001 Gold SR5
    Custom front bumper, bed liner, 33" wrangler duratracs on 16" ATX series Mojave rims, OME 3" suspension, 882 coils, custom rear bumper
    Nope. It's a member on here's design. I think his screen name on here is capturecolorado

  14. Aug 5, 2014 at 11:52 AM
    #334
    Squeaky Penguin

    Squeaky Penguin [OP] Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    9,866
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
  15. Aug 7, 2014 at 6:30 PM
    #335
    Squeaky Penguin

    Squeaky Penguin [OP] Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    9,866
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
  16. Aug 15, 2014 at 7:03 AM
    #336
    capturecolorado

    capturecolorado Well-Known Member

    Joined:
    Feb 11, 2014
    Member:
    #122857
    Messages:
    735
    Gender:
    Male
    First Name:
    Alex
    Grand Junction, CO
    Vehicle:
    01 4Runner SR5 with some things attached
    ^^^ This. (I'm surfing back through the months of missed TW stuff... sorry to dredge up old info). Also, thanks for the compliments Box, your build inspires much of what I'm doing, as does your attention to detail.

    The spindle is run through both sides of 2x6 tube 3/16" thick, fully welded on both ends and braced back to the 1/4" mounting plate via the bed sliders. The design mimics production spindle mounts that I've seen on various companies bumpers, and independent fabricators work. I believe the spindle is supported sufficiently without the dual sheer, but added the DS as an extra safety to help reduce the amount of deflection at the spindle.

    The angle of the DS bracket is also positioned as such that it will help add torsional rigidity to the spindle in both the open and closed positions. The bolt is 1/2" grade 8... 1/2" grade 8 bolts have a single sheer strength of 17,000 lbs (link). The bolt torque capacity of the 1/2-20 bolt I used is also good for up to 128ft-lbs, which applies a clamp load of over 14,0000lbs. The DS bracket that came with this spindle was designed to be welded onto the bumper, but I decided to go this route for overall simplicity and versatility. I've also got a bad shoulder (due, in part, to drilling the holes for the spindles), so not having a humungous bumper/tire carrier assembly to move around my shop is a bonus :)

    Anywho, glad you're happy with the bumper, Brett! If anyone has any questions about the bumper I'm happy to answer; as you know, I've put a lot of thought into it :D

  17. Aug 15, 2014 at 8:19 PM
    #337
    Squeaky Penguin

    Squeaky Penguin [OP] Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    9,866
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
    Good to have all that info Alex. Haven't had an issues with the spindle/swingout yet, and really don't think it's going anywhere.

    I get all sorts of compliments on your work BTW!

  18. Aug 16, 2014 at 6:42 AM
    #338
    capturecolorado

    capturecolorado Well-Known Member

    Joined:
    Feb 11, 2014
    Member:
    #122857
    Messages:
    735
    Gender:
    Male
    First Name:
    Alex
    Grand Junction, CO
    Vehicle:
    01 4Runner SR5 with some things attached
    Happy to chime in! I'm confident it won't be going anywhere either, mine has the exact same setup and this design seems to be working out really well and very solid.

    I'm glad you're enjoying the bumper, and happy to hear people are complimenting it! I don't usually get too many people asking about my bumper, but I notice plenty of staring as folks walk by in the shop parking lot. :cool:

  19. Aug 21, 2014 at 11:21 AM
    #339
    Squeaky Penguin

    Squeaky Penguin [OP] Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    9,866
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
    This belongs in here:


  20. Sep 2, 2014 at 1:55 PM
    #340
    Squeaky Penguin

    Squeaky Penguin [OP] Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    9,866
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build

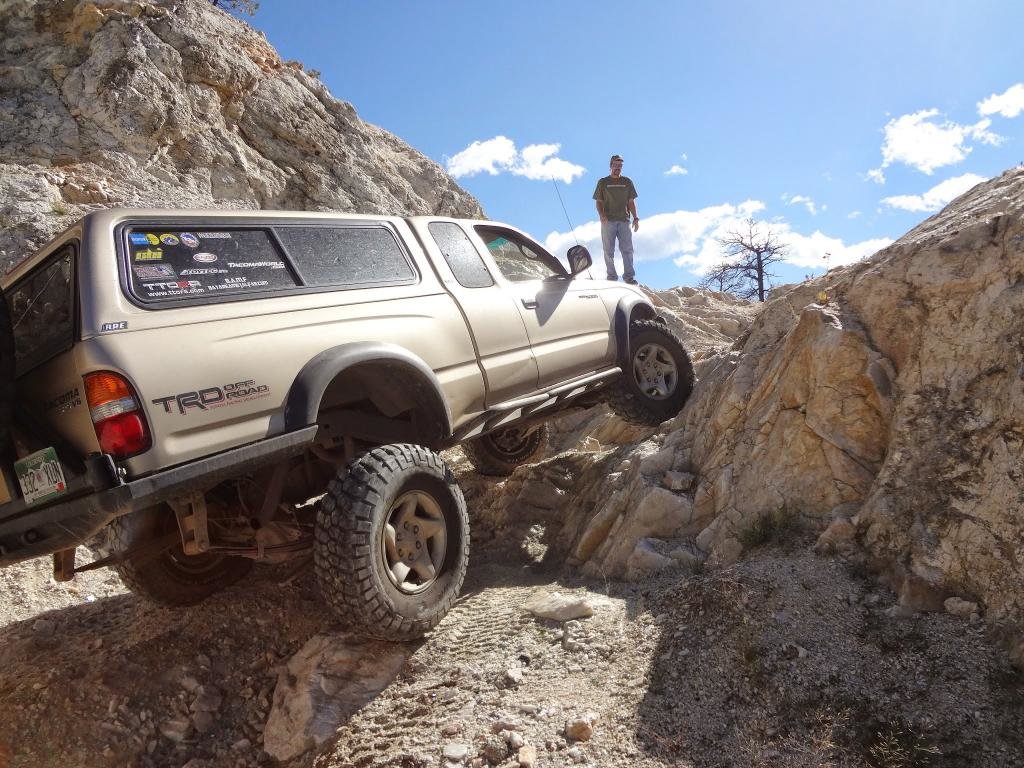

    Had some fun at Moody Hill yesterday:




    And, this build thread is probably going to get pretty stagnant in the next year. Moved down to the front range of Colorado to attempt to finish school, meaning I have zero money to be spending on this thing. :pout:

    Slashaar likes this.
