SR5 Headlight Upgrade to DRL Headlights DIY

Discussion in 'Lighting' started by Taco-Man18, Nov 12, 2018.

  1. Nov 12, 2018 at 4:03 PM
    #1
    Taco-Man18

    Taco-Man18 [OP] Well-Known Member

    Joined:
    May 4, 2018
    Member:
    #252480
    Messages:
    114
    Gender:
    Male
    Vehicle:
    2018 MGM Tacoma V6 SR5
    Hi all,

    So I picked up a set of DRL headlights to upgrade from the stock SR5 non-DRLs, had to black them out of course lol.

    I haven't seen a DIY for this and have also seen tons of questions around what wire is what and where does it go?

    So I figured I'd knock this out for everyone.

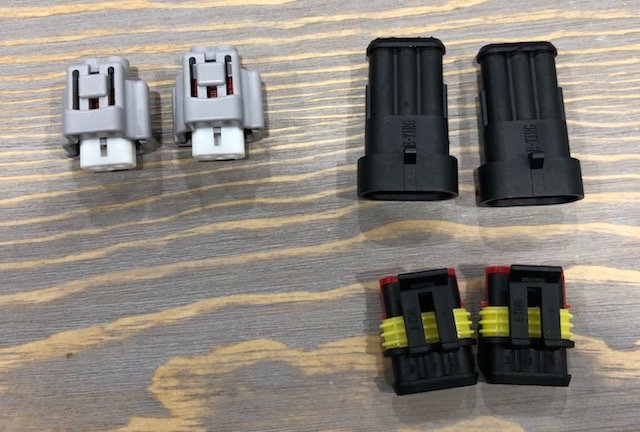

    I made some harnesses to make it all plug and play with the exception of tapping into the power of the headlight wire.

    If anyone with an SR5 is interested in doing this, I can make a harness/connector kit for you.

    Please see my For Sale thread with the Harness Kits.

    https://www.tacomaworld.com/threads/fs-socal-sr-sr5-drl-headlight-upgrade-harness-kits.583968/

    Driver's side wires
    Headlight connector: +Red | -White/Black
    DRL/Turn Signal connector: - White/Black | +Red (New DRL Wire) | +Brown (Turn signal wire)

    Passenger's side wires
    Headlight connector: +Blue | -White/Black
    DRL/Turn Signal connector: -White/Black | +Blue (New DRL Wire) | +Lt Blue (Turn signal wire)

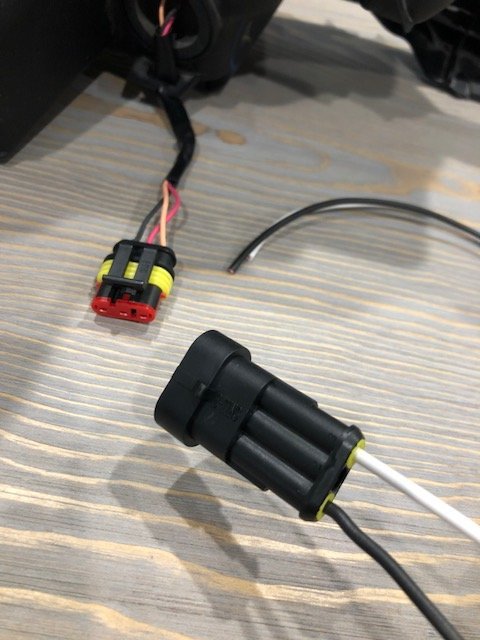

    Wires on the new DRL harness I made: - Black | +High Red | +Low Orange

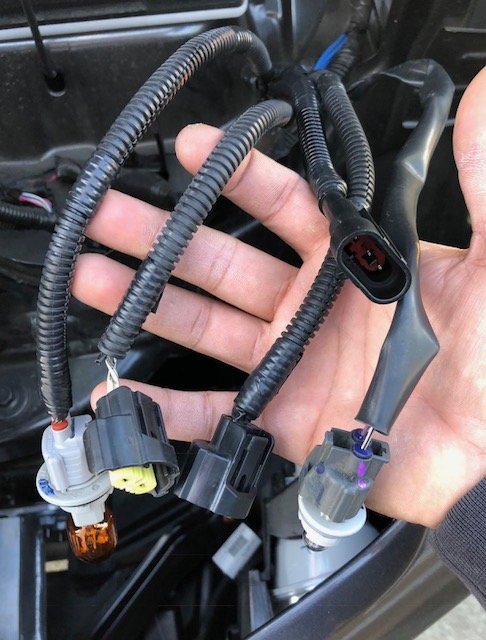

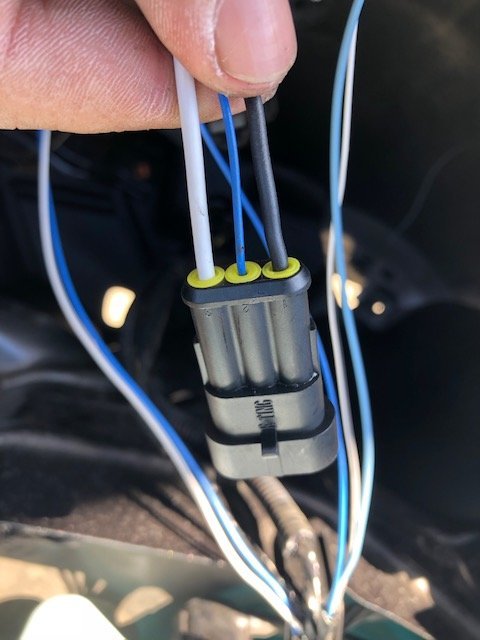

    Wires on the 3-Pin harness I made:
    Ground: -Black (I grounded where the current 10mm ground points are for the headlight ground wires. Driver's is next to the battery and passenger's is next to the washer fluid tank)
    DRL Hi: That will be your +High wire (Either Red for driver or Blue for passenger side)

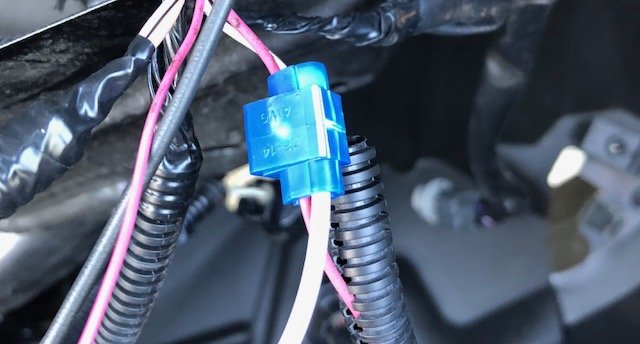

    Power: +White (This wire will tap into your +Headlight wire)

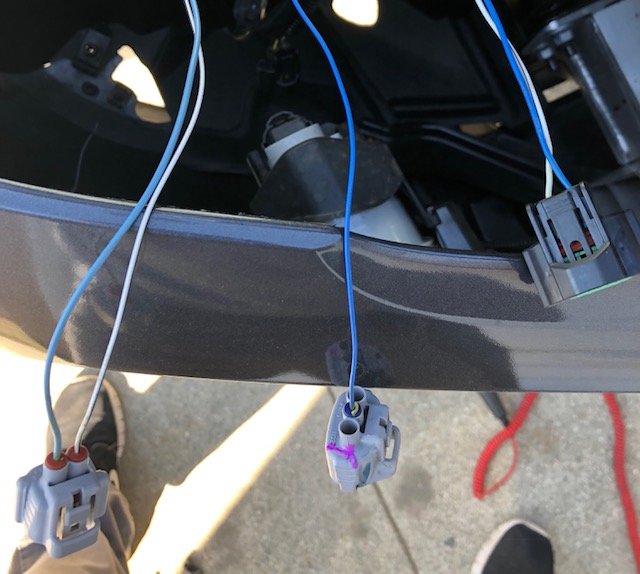

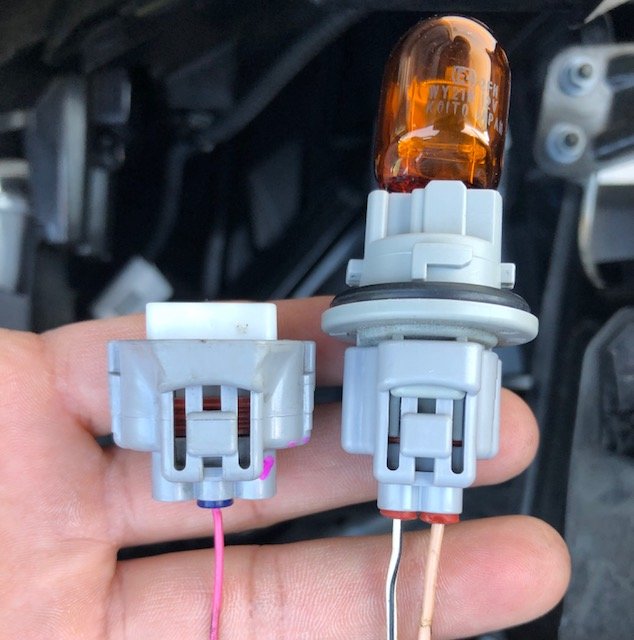

    SR5 Stock 3-Pin DRL/Turn Signal connector to New DRL and New Turn Signal

    Some notes here: I popped the white part of the connector forward so I could cleanly, unpin the wires. I then only cut the female pin on the DRL wires and attached a male side so it would go into the new 3-Pin harness I made.

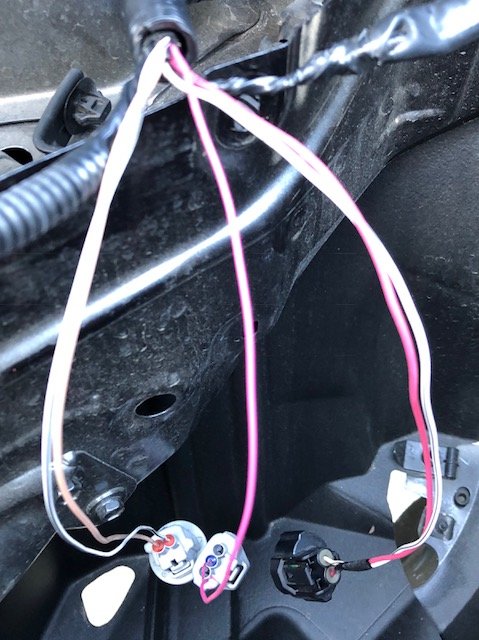

    Driver Side:

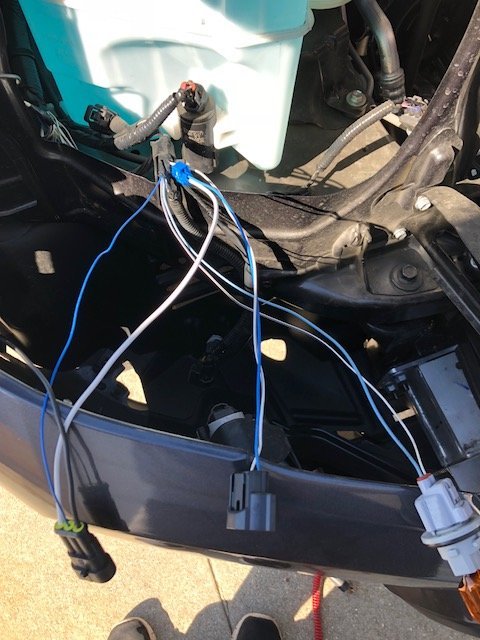

    Passanger Side:

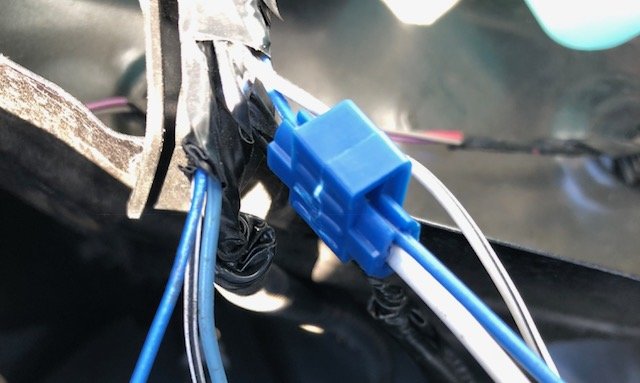

    Once I had everything wired, I re-loomed and taped everything back up so that it looked stock



    There you go, all done!!!

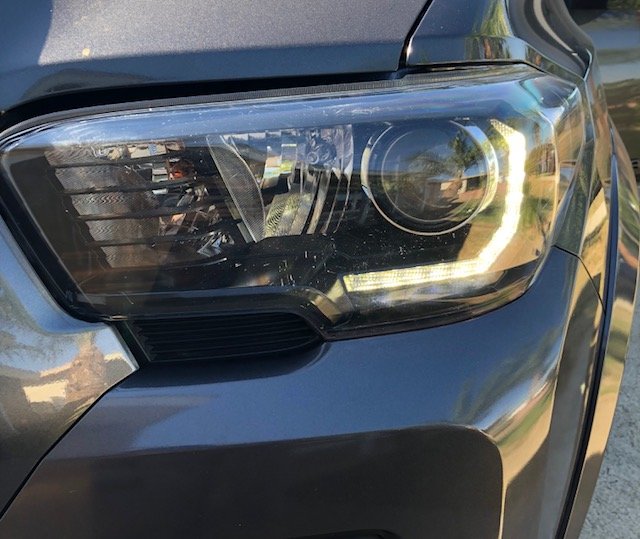

    DRL Only

    DRL with turn signal (managed to catch it quick enough)


    Attached Files:

    Last edited: Dec 26, 2018
    elMiges, Beef Nachos, H20man and 2 others like this.
  2. Dec 17, 2018 at 9:16 PM
    #2
    Beef Nachos

    Beef Nachos Here for a good time, not a long time

    Joined:
    Apr 6, 2017
    Member:
    #215592
    Messages:
    5,112
    Gender:
    Male
    Dallas/Ft. Worth
    Vehicle:
    2017 SR5 DCSB 4x4

  3. Dec 18, 2018 at 2:19 PM
    #3
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    3,379
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    DRL's turn OFF when headlights are selected, does this MOD do that?

  4. Dec 18, 2018 at 5:12 PM
    #4
    Taco-Man18

    Taco-Man18 [OP] Well-Known Member

    Joined:
    May 4, 2018
    Member:
    #252480
    Messages:
    114
    Gender:
    Male
    Vehicle:
    2018 MGM Tacoma V6 SR5
    The DRL's do not turn off when the headlights are turned on, they simply dim.

    This is set up to work just like the models above the SR/SR5.

    09 Redneck likes this.
  5. Dec 18, 2018 at 6:08 PM
    #5
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    3,379
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Just verified...they don't dim, they just stay ON:thumbsup:

  6. Dec 18, 2018 at 6:10 PM
    #6
    Taco-Man18

    Taco-Man18 [OP] Well-Known Member

    Joined:
    May 4, 2018
    Member:
    #252480
    Messages:
    114
    Gender:
    Male
    Vehicle:
    2018 MGM Tacoma V6 SR5
    There you have it :thumbsup:. It's a bit of a different setup for the SR/SR5's as the DRL is also the turn signal

  7. Dec 18, 2018 at 9:25 PM
    #7
    Beef Nachos

    Beef Nachos Here for a good time, not a long time

    Joined:
    Apr 6, 2017
    Member:
    #215592
    Messages:
    5,112
    Gender:
    Male
    Dallas/Ft. Worth
    Vehicle:
    2017 SR5 DCSB 4x4
    Alright, so always on and dim while headlights are on? Flash for turn signal at full brightness in both cases?

    Tullie D likes this.
  8. Dec 18, 2018 at 10:08 PM
    #8
    Taco-Man18

    Taco-Man18 [OP] Well-Known Member

    Joined:
    May 4, 2018
    Member:
    #252480
    Messages:
    114
    Gender:
    Male
    Vehicle:
    2018 MGM Tacoma V6 SR5
    Yes, can be on w/ or w/o headlights. It is said the DRLs dim when you turn on the headlights, but I don't really notice a difference.

    The flash for turn signal is full brightness in both cases.

    Beef Nachos likes this.
  9. Dec 19, 2018 at 4:42 AM
    #9
    Beef Nachos

    Beef Nachos Here for a good time, not a long time

    Joined:
    Apr 6, 2017
    Member:
    #215592
    Messages:
    5,112
    Gender:
    Male
    Dallas/Ft. Worth
    Vehicle:
    2017 SR5 DCSB 4x4
    Thanks!

    Taco-Man18 [OP] likes this.
  10. Dec 25, 2018 at 11:47 PM
    #10
    Rewilliams

    Rewilliams Well-Known Member

    Joined:
    Oct 30, 2018
    Member:
    #271111
    Messages:
    130
    Gender:
    Male
    First Name:
    Robert
    Vehicle:
    2017 Tacoma
    I have an sr5 and I just put switch back bulbs in the amber turn signals, will they still work?

  11. Dec 26, 2018 at 12:53 AM
    #11
    Taco-Man18

    Taco-Man18 [OP] Well-Known Member

    Joined:
    May 4, 2018
    Member:
    #252480
    Messages:
    114
    Gender:
    Male
    Vehicle:
    2018 MGM Tacoma V6 SR5
    Hey,

    I'm not 100% positive that your switchback bulbs will still function the same way they are currently.

    Might want to see what kind of LED bulb members with DRL headlights are using?

    I'll search around as well.

  12. Dec 26, 2018 at 4:44 AM
    #12
    Rewilliams

    Rewilliams Well-Known Member

    Joined:
    Oct 30, 2018
    Member:
    #271111
    Messages:
    130
    Gender:
    Male
    First Name:
    Robert
    Vehicle:
    2017 Tacoma
    Cool thanks. Will also check around.

  13. Jun 12, 2019 at 10:21 PM
    #13
    magicgus323

    magicgus323 Well-Known Member

    Joined:
    Mar 2, 2018
    Member:
    #246115
    Messages:
    330
    Gender:
    Male
    First Name:
    Gustavo
    Visalia Ca. East LA LBC
    Vehicle:
    2016 White Tacoma Sr 2.7
    TRD rims and suspension, TRD grill, stereo iPhone mirroring stormtrooper decal backflip bed cover painted bumper and mirror caps
  14. Jun 22, 2019 at 3:52 PM
    #14
    lpfe42

    lpfe42 Well-Known Member

    Joined:
    Jul 2, 2015
    Member:
    #158633
    Messages:
    370
    Gender:
    Male
    First Name:
    Kenny
    Santa Barbara County
    Vehicle:
    20 DCSB CEMENT
    5100/887 Icon uca
    Can I downgrade to sr5 headlights ? I have a 17' TRD ORSB with led strip and can't stand the white light

    elaudtr likes this.
  15. Jun 22, 2019 at 5:06 PM
    #15
    Taco-Man18

    Taco-Man18 [OP] Well-Known Member

    Joined:
    May 4, 2018
    Member:
    #252480
    Messages:
    114
    Gender:
    Male
    Vehicle:
    2018 MGM Tacoma V6 SR5
    I think you can disable the DRL from the radio? At least you can from the radio on the SR5.

    or you can just unplug the DRL harness?

    lpfe42 likes this.
  16. Jun 22, 2019 at 6:33 PM
    #16
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    3,379
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

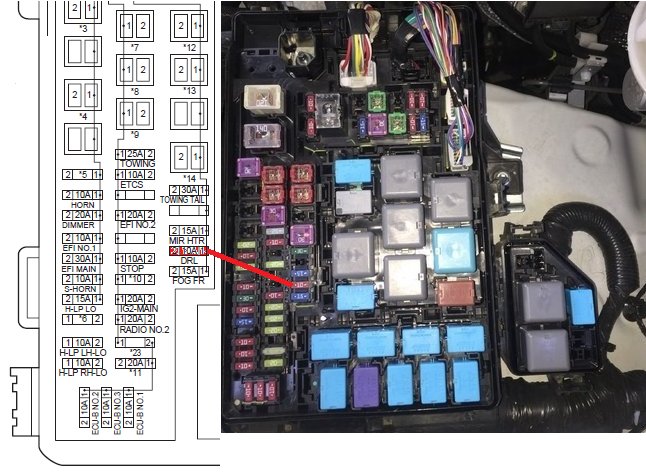

    Pull the DRL fuse.

    lpfe42 likes this.
  17. Jun 23, 2019 at 4:34 PM
    #17
    lpfe42

    lpfe42 Well-Known Member

    Joined:
    Jul 2, 2015
    Member:
    #158633
    Messages:
    370
    Gender:
    Male
    First Name:
    Kenny
    Santa Barbara County
    Vehicle:
    20 DCSB CEMENT
    5100/887 Icon uca
    Worked out great:thumbsup: Thanks

    Taco-Man18 [OP] likes this.
  18. Dec 23, 2019 at 8:10 AM
    #18
    Leo4x2

    Leo4x2 Well-Known Member

    Joined:
    Jun 29, 2016
    Member:
    #190855
    Messages:
    1,379
    Gender:
    Male
    First Name:
    Leo
    San Antonio, Tx
    Vehicle:
    2016 Toyota Tacoma SR5
    Maxtrac/Bilstein suspension 20x10 Fuel Couplers 305/55/20 Falken Wildpeak AT3 1.25" Spidertrax rear wheel spacers RAD Industries Grille Morimoto Profile Prism RGB Halos & Demon Eyes
    Install Video would be amazing! Just saying :D

  19. May 13, 2020 at 2:19 AM
    #19
    808Cementtaco

    808Cementtaco Well-Known Member

    Joined:
    Jun 9, 2018
    Member:
    #255961
    Messages:
    151
    Gender:
    Male
    First Name:
    Kea
    Vehicle:
    2018 trd sport dcsb cement 6sp M/T
    3in front spacer lift with 2in rear block, 17in Ballistic w/285/70r17s 25%tint in front and 15%rear Plastidipped all badges Removed trd stickers Etc.....
    Awesome write up! I’m planning on upgrading my dam sr5 non led headlights to some better led Drls as soon as I can get my hands on some. This wrote up is perfect! Can you pm me? I’m interested in your wiring setup

  20. May 23, 2020 at 12:57 AM
    #20
    _Josu

    _Josu Member

    Joined:
    May 22, 2020
    Member:
    #328883
    Messages:
    14
    Gender:
    Male
    Yass, Exactly what i needed. Sent you a message Taco!
