SR5 heated seat wiring- please help

Discussion in '3rd Gen. Tacomas (2016+)' started by Tacomashopper, Sep 23, 2020.

  1. Sep 23, 2020 at 5:56 AM
    #1
    Tacomashopper

    Tacomashopper [OP] Ricardo's Taco

    Joined:
    Dec 26, 2018
    Member:
    #276989
    Messages:
    56
    Gender:
    Male
    First Name:
    RICHARD
    Birmingham, Al
    Vehicle:
    2019 Cavalry Blue Sr5 DCSB 4x4
    I have searched this and can't seem to find an answer. I am wanting to wire in the seat heaters I got from Amazon. I think I can do this by using an "add a fuse", but where in fuse box?

    Any help would be greatly appreciated!

  2. Sep 23, 2020 at 6:20 AM
    #2
    Clearwater Bill

    Clearwater Bill Sometimes when I close my eyes, I can't see.

    Joined:
    Oct 11, 2014
    Member:
    #140097
    Messages:
    16,899
    Gender:
    Male
    First Name:
    Billy
    Largo Florida
    Vehicle:
    '13 5 lug base AC w/convenience package
    A few OE parts from fancy trucks
  3. Sep 23, 2020 at 6:20 AM
    #3
    Taco_Coma

    Taco_Coma That's a lovely accent you have. New Jersey?

    Joined:
    Oct 30, 2018
    Member:
    #271144
    Messages:
    2,326
    Gender:
    Male
    South NJ
    Vehicle:
    2018 DCSB SR5
    It’s above the dead petal if you have an automatic. If you have a Manual above the clutch. It’s tiny. Use the power window fuse. And make sure you have an add a circuit with thick enough gauge wire for the circuit load. They make 20 amp add a circuits

  4. Sep 23, 2020 at 6:23 AM
    #4
    Tacomashopper

    Tacomashopper [OP] Ricardo's Taco

    Joined:
    Dec 26, 2018
    Member:
    #276989
    Messages:
    56
    Gender:
    Male
    First Name:
    RICHARD
    Birmingham, Al
    Vehicle:
    2019 Cavalry Blue Sr5 DCSB 4x4
  5. Sep 23, 2020 at 6:26 AM
    #5
    Tacomashopper

    Tacomashopper [OP] Ricardo's Taco

    Joined:
    Dec 26, 2018
    Member:
    #276989
    Messages:
    56
    Gender:
    Male
    First Name:
    RICHARD
    Birmingham, Al
    Vehicle:
    2019 Cavalry Blue Sr5 DCSB 4x4
    Thank you! I am guessing that the panel cover will not fit back on after adding this add-a-fuse circuit. Correct?

  6. Sep 23, 2020 at 6:33 AM
    #6
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    T7 Towing Brake T harness info

  7. Sep 23, 2020 at 6:47 AM
    #7
    Devir7

    Devir7 It’s a Secret to Everybody

    Joined:
    Jan 26, 2020
    Member:
    #317260
    Messages:
    1,798
    Gender:
    Male
    First Name:
    Eric
    Harford County, MD
    Vehicle:
    2020 Black TRD OR
    Ironman Stage 1 Foam Cell Pro lift kit, 255/85/16 Cooper ST Maxx, SCS BR6 Wheels, SPC UCA, Heated seats, MESO TRD start button, Meso Total Tail v1, steps, bed decal, ditch and hidden bumper lights, screen protech, RAV4 radio knobs, steering wheel anytime camera kit, dash cam, ECGS bushing, Timbren Active Off Road bump stops with Wheelers flip kit. 35% Xpel CS Ceramic Tint ‌ ‌ ▲ ▲‌ ▲
    Thats right, it will not fit. MESO sells an extended height cover. I got it for mine but need to do more work to get it to fit. When I wired mine, I tied the two seats to the heated seat fuse spot, the lights to the interior light, don’t remember what it’s called, maybe panel or tail. I can’t remember what else I had to do for it.

  8. Sep 23, 2020 at 6:50 AM
    #8
    RX1cobra

    RX1cobra Well-Known Member

    Joined:
    May 20, 2019
    Member:
    #293789
    Messages:
    919
    Gender:
    Male
    Vehicle:
    19 OR
    Wow, this looks great. Just so that I'm clear since I don't have a trailer brake controller I can buy that harness and use it to power my heated seats? It's not an always hot circuit? Would make the wiring really easy.

    Since you're the wiring guru would you use this method, add a tap to the fuse (likely heated seat empty fuse) or run a separate dedicated power? I had originally thought about adding the bussman fuse box under the hood to keep the heated seats and my kicker hideaway (currently wired to battery) isolated from the stock wiring. Is that overkill?

  9. Sep 23, 2020 at 6:55 AM
    #9
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,296
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

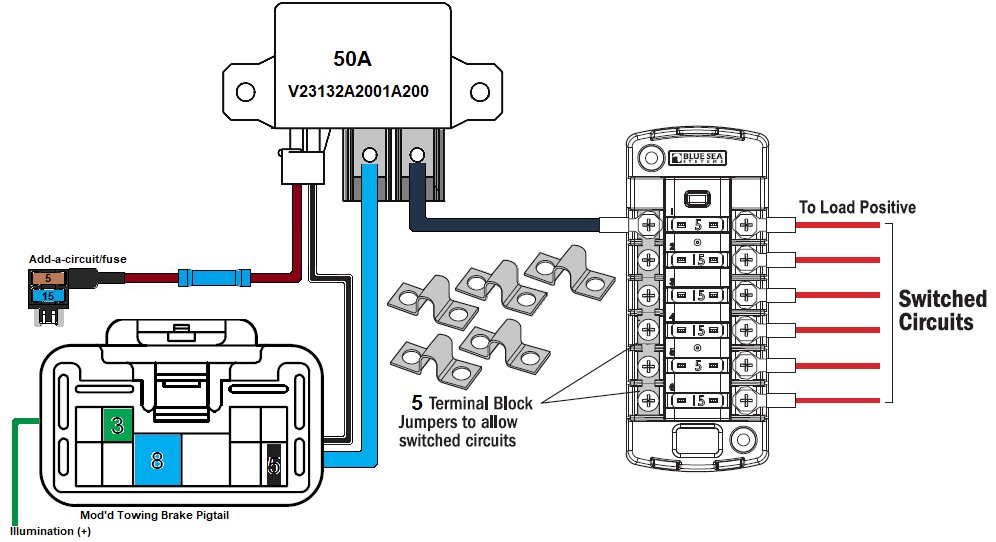

    It's an always HOT circuit, but your seat heater "should" run on a timer, as in don't light the seat on fire...you could add a relay to turn it off/on.(the circuit)
    Something like this:
    Depending on what amps are needed, add relay type and fuse appropriatly.

  10. Sep 23, 2020 at 7:12 AM
    #10
    RX1cobra

    RX1cobra Well-Known Member

    Joined:
    May 20, 2019
    Member:
    #293789
    Messages:
    919
    Gender:
    Male
    Vehicle:
    19 OR
    The kit that I got has a relay built in. So I could just use this to power the seats and for illumination. Then the switched power off something in the fuse box that's not always hot. This gives me another great option.

    Now I have to decide if I want to do this, add a fuse off the already empty heated seat circuit in the fuse box or add the axillary bussman under the hood. Bussman is overkill but clean and would make future upgrades really easy. Thanks for you help.

    https://www.amazon.com/COOPER-BUSSMANN-15303-4-0-4-RELAY-TERMINAL/dp/B00DRDMWNA

  11. Sep 23, 2020 at 11:54 AM
    #11
    Taco_Coma

    Taco_Coma That's a lovely accent you have. New Jersey?

    Joined:
    Oct 30, 2018
    Member:
    #271144
    Messages:
    2,326
    Gender:
    Male
    South NJ
    Vehicle:
    2018 DCSB SR5
    Correct you can get the meso extend fuse cover
