Discussion in '3rd Gen. Tacomas (2016-2023)' started by YotaC, Jan 25, 2023.

Page 1 of 3
  1. Jan 25, 2023 at 9:02 AM
    #1
    YotaC

    #1
    YotaC [OP] Member

    Joined:
    Jan 25, 2023
    Member:
    #416340
    Messages:
    18

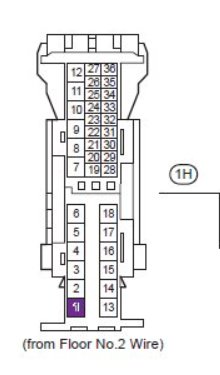

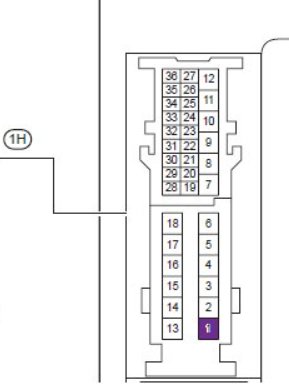

    Does anyone know what the pin type/size is for the 1H connector? Specifically pin number 33.



    YotaC, Jan 25, 2023
    #1
  2. Jan 25, 2023 at 9:05 AM
    #2
    YotaC

    #2
    YotaC [OP] Member

    Joined:
    Jan 25, 2023
    Member:
    #416340
    Messages:
    18

    YotaC, Jan 25, 2023
    #2
  3. Jan 25, 2023 at 1:11 PM
    #3
    caribe makaira

    #3
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,493
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Not 100% sure but you could try: TE1827855-2

    caribe makaira, Jan 25, 2023
    #3
    TnShooter likes this.
  4. Jan 25, 2023 at 1:15 PM
    #4
    caribe makaira

    #4
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,493
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

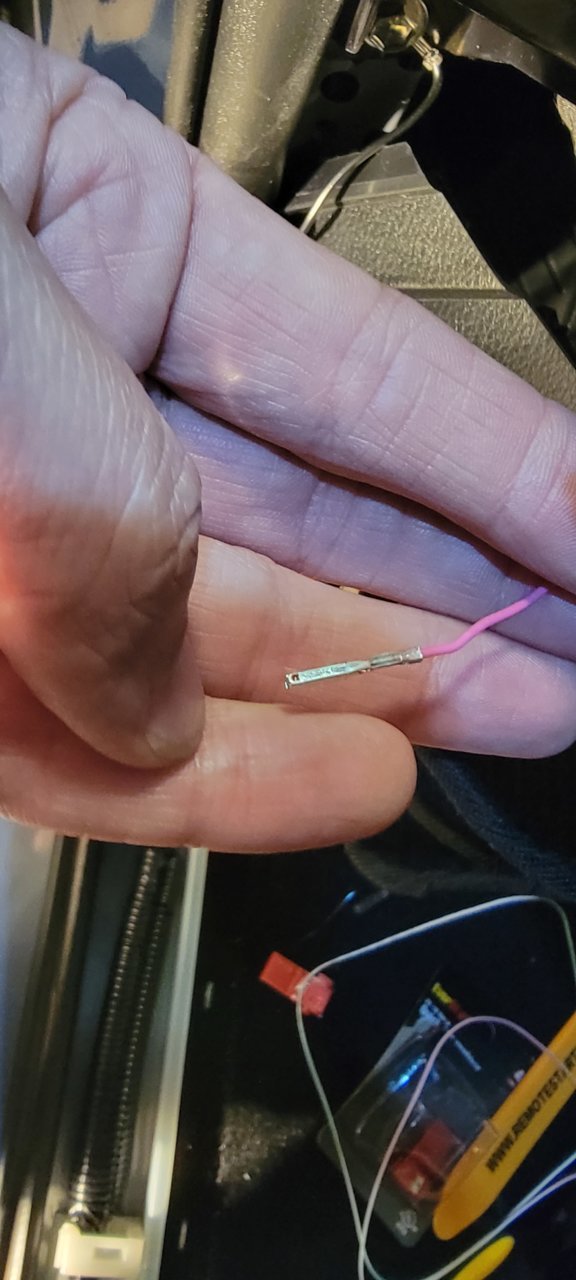

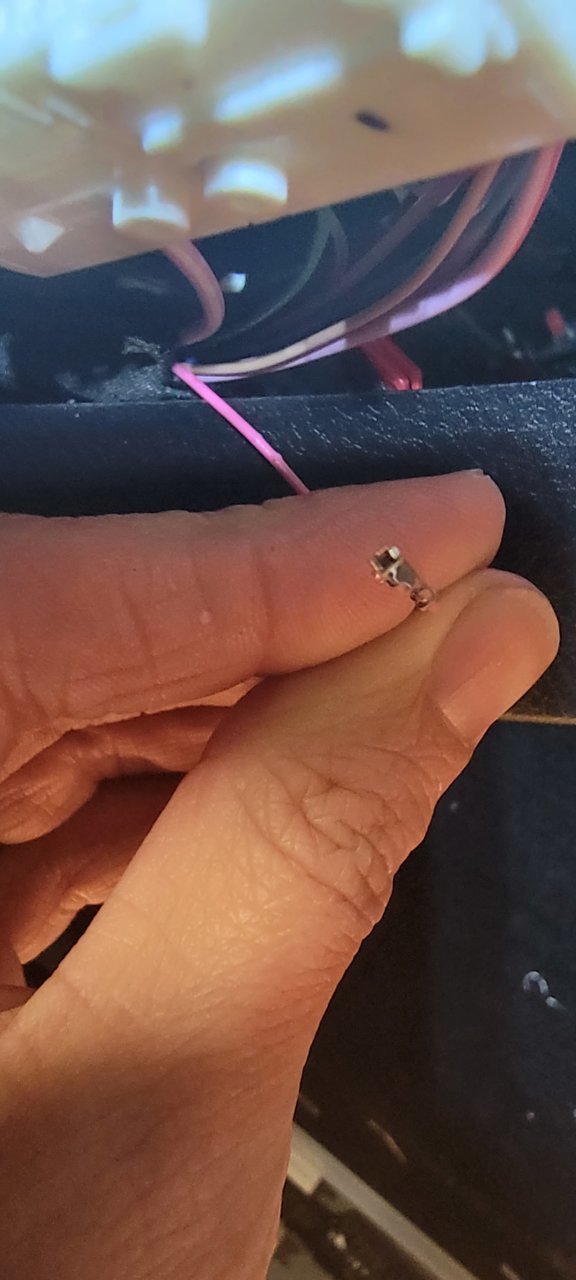

    Would you post a pic of the top side of the terminal (pin)?

    caribe makaira, Jan 25, 2023
    #4
    TnShooter likes this.
  5. Jan 25, 2023 at 4:46 PM
    #5
    YotaC

    #5
    YotaC [OP] Member

    Joined:
    Jan 25, 2023
    Member:
    #416340
    Messages:
    18

    YotaC, Jan 25, 2023
    #5
  6. Jan 25, 2023 at 4:47 PM
    #6
    YotaC

    #6
    YotaC [OP] Member

    Joined:
    Jan 25, 2023
    Member:
    #416340
    Messages:
    18
    It is 1.5mm wide


    YotaC, Jan 25, 2023
    #6
  7. Jan 25, 2023 at 4:51 PM
    #7
    caribe makaira

    #7
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,493
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    .5 too large...bummer or measured incorrectly?

    caribe makaira, Jan 25, 2023
    #7
  8. Jan 25, 2023 at 5:10 PM
    #8
    YotaC

    #8
    YotaC [OP] Member

    Joined:
    Jan 25, 2023
    Member:
    #416340
    Messages:
    18

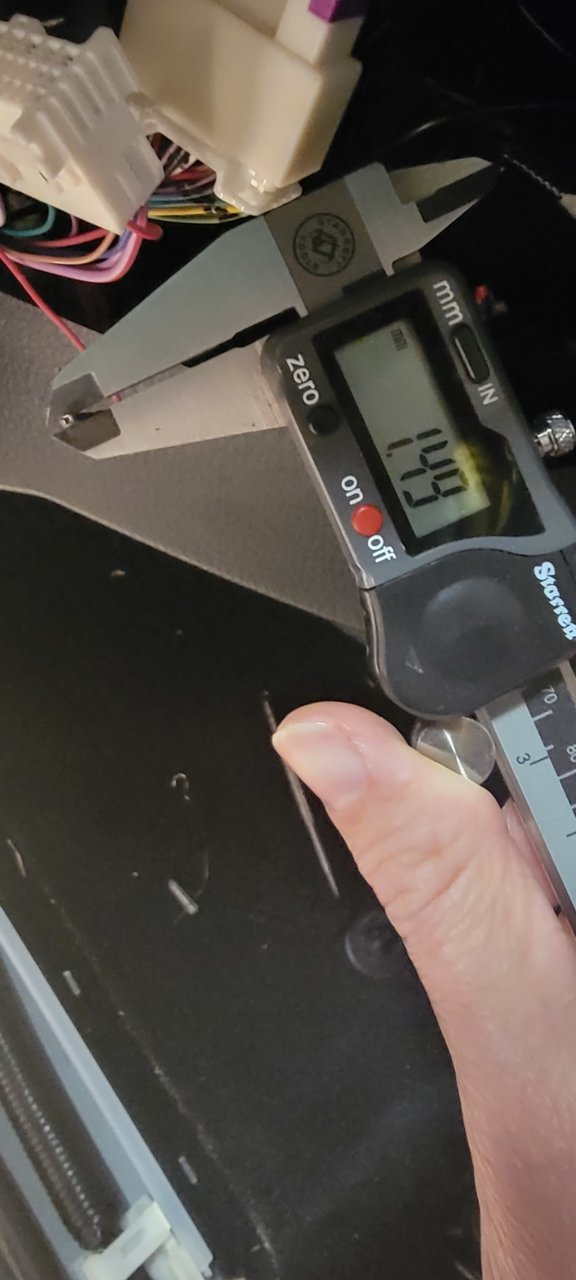

    This is where I am measuring


    YotaC, Jan 25, 2023
    #8
  9. Jan 25, 2023 at 5:13 PM
    #9
    caribe makaira

    #9
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,493
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    :notsure:
    The search continues...

    caribe makaira, Jan 25, 2023
    #9
  10. Jan 25, 2023 at 5:23 PM
    #10
    YotaC

    #10
    YotaC [OP] Member

    Joined:
    Jan 25, 2023
    Member:
    #416340
    Messages:
    18
    YotaC, Jan 25, 2023
    #10
  11. Jan 25, 2023 at 5:35 PM
    #11
    Bishop84

    #11
    Bishop84 Well-Known Member

    Joined:
    Dec 17, 2015
    Member:
    #172494
    Messages:
    10,549
    Gender:
    Male
    I suck at this. Edit again.

    82998-24290

    Ok, I'm fairly confident on this #. I'm giving up now.

    Hopefully a dealer has this in stock and you can compare.

    Last edited: Jan 25, 2023
    Bishop84, Jan 25, 2023
    #11
    davidstacoma likes this.
  12. Jan 25, 2023 at 6:55 PM
    #12
    YotaC

    #12
    YotaC [OP] Member

    Joined:
    Jan 25, 2023
    Member:
    #416340
    Messages:
    18
    Much appreciated! I'll check with my local dealer tomorrow.

    YotaC, Jan 25, 2023
    #12
  13. Jan 25, 2023 at 7:12 PM
    #13
    caribe makaira

    #13
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,493
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Does it match?

    caribe makaira, Jan 25, 2023
    #13
    davidstacoma likes this.
  14. Jan 25, 2023 at 7:19 PM
    #14
    YotaC

    #14
    YotaC [OP] Member

    Joined:
    Jan 25, 2023
    Member:
    #416340
    Messages:
    18
    I think that is it exactly. It even has the same faint logo stamped on the base.

    YotaC, Jan 25, 2023
    #14
  15. Jan 25, 2023 at 7:21 PM
    #15
    caribe makaira

    #15
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,493
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    No macro camera settings for a proper pic?:burp:

    caribe makaira, Jan 25, 2023
    #15
  16. Jan 25, 2023 at 7:24 PM
    #16
    YotaC

    #16
    YotaC [OP] Member

    Joined:
    Jan 25, 2023
    Member:
    #416340
    Messages:
    18
    Ha. I'll do my best but it is hard to focus.

    Web link for the image?

    YotaC, Jan 25, 2023
    #16
  17. Jan 25, 2023 at 7:27 PM
    #17
    caribe makaira

    #17
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,493
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    caribe makaira, Jan 25, 2023
    #17
  18. Jan 25, 2023 at 7:30 PM
    #18
    YotaC

    #18
    YotaC [OP] Member

    Joined:
    Jan 25, 2023
    Member:
    #416340
    Messages:
    18
    Nice.

    I installed a remote start and I am trying to avoid cutting the TPMS wire. So I am making an adapter for it.

    YotaC, Jan 25, 2023
    #18
  19. Jan 25, 2023 at 7:40 PM
    #19
    caribe makaira

    #19
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,493
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Which wire in the TPMS circuit you need to intercept?

    caribe makaira, Jan 25, 2023
    #19
  20. Jan 25, 2023 at 9:06 PM
    #20
    Jeff Lange

    #20
    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    2,228
    Calgary, Canada
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21

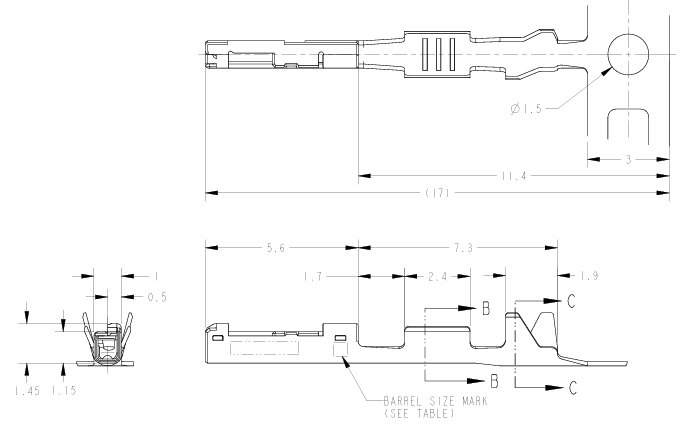

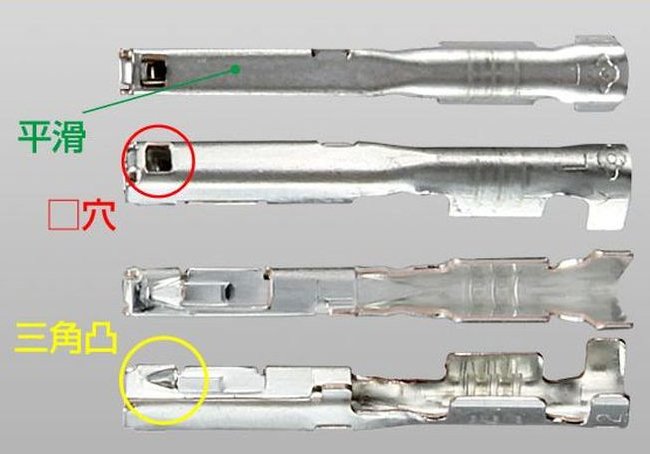

    Small terminals are Sumitomo TS 0.64 mm, larger terminals are TS 1.5 mm. Part numbers for various wire sizes/plating (Toyota repair wires in parentheses):

    8100-3624 - 0.64 mm, 0.22 - 0.35 mm² Wire Size, Copper Terminal/Tin Plated
    8100-3625 - 0.64 mm, 0.3 - 0.5 mm² Wire Size, Copper Terminal/Tin Plated (Toyota Repair Wire 82998-24290)
    8100-3628 - 0.64 mm, 0.22 - 0.35 mm² Wire Size, Copper Terminal/Gold Plated
    8100-3629 - 0.64 mm, 0.3 - 0.5 mm² Wire Size, Copper Terminal/Gold Plated (Toyota Repair Wire 82998-24300 or 82998-24390)
    8240-0182 - 0.64 mm, 0.13 mm² Wire Size, Copper Terminal/Tin Plated
    8240-0338 - 0.64 mm, 0.13 mm² Wire Size, Copper Terminal/Gold Plated

    8240-0213 - 1.5 mm, 0.75 - 1.25 mm² Wire Size, Copper Terminal/Tin Plated (Toyota Repair Wire 82998-52030)
    8240-0214 - 1.5 mm, 2.0 mm² Wire Size, Copper Terminal/Tin Plated (Toyota Repair Wire 82998-24350)
    8240-0215 - 1.5 mm, 0.3 - 0.5 mm² Wire Size, Copper Terminal/Tin Plated (Toyota Repair Wire 82998-12A10)
    8240-0279 - 1.5 mm, 0.22 - 0.35 mm² Wire Size, Copper Terminal/Tin Plated
    8240-0339 - 1.5 mm, 0.13 mm² Wire Size, Copper Terminal/Tin Plated

    Jeff

    Jeff Lange, Jan 25, 2023
    #20
    YotaC[OP], davidstacoma, bockafer and 1 other person like this.
