Stand alone Front Camera 2019 SR5

Discussion in 'Audio & Video' started by Tullie D, Sep 15, 2019.

  1. Sep 15, 2019 at 8:00 AM
    #1
    Tullie D

    Tullie D [OP] Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    2,556
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 SSM Access Cab
    I decided that I wanted to add a front camera to my SR5, but I wanted to do so without making any changes to the OE wiring, or the Entune head unit.

    What I came up with is completely stand alone. It gets its power from the truck, but that's all.

    Here are the components that I used:

    Edit: This is only one example of hardware that could be used. With a stand alone setup, your choices are wide open. I used low cost hardware, but there's plenty of higher end options available, for not much more.

    Camera: https://www.amazon.com/gp/product/B07H852D49/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1

    Monitor: https://www.amazon.com/gp/product/B019GQLNJU/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1

    Switch: https://www.ch4x4.com/product/ch4x4-custom-laser-etched-toyota-small-push-switches/





    I made up my own wiring harness using the cables that came with the camera, monitor, and switch.

    To get the view that I wanted, I mounted the camera on the front of the grill.


    You really don't notice it at a quick glance.


    Here's the harness rigged up for testing:


    Here's what it looks like inside the truck:


    Note: CH4x4 recommends that you use a relay between the switch and whatever device you are powering, but in this case I didn't because the draw of the camera, monitor, and the LEDs in the switch are only about 200ma. Also, I did not connect the switch's LEDs to the dashboard lights. They turn on only when the switch is on.

    Last edited: Oct 27, 2019
  2. Sep 17, 2019 at 6:09 AM
    #2
    msp2640

    msp2640 Well-Known Member

    Joined:
    Oct 10, 2018
    Member:
    #268910
    Messages:
    101
    Gender:
    Male
    Plymouth MA
    Vehicle:
    2018 TRD OR DCSB
    Well done! I have wanted to do a similar set up with that same style switch, in my OR model, but utilize the OE head unit. I looked into the anytimebackup camera set up and you have to buy the full package to make the front camera work. I know I wouldn't need it often, but like the idea of having it available and wanted to make it run off a switch, not the steering wheel like another maker. I think there was a kit available a few years back for the 3rd gen models, but that's no longer the case. Hope someone else can come up with something. Well done on your install! Bill in MA

    Tullie D [OP] likes this.
  3. Sep 17, 2019 at 7:35 AM
    #3
    Tullie D

    Tullie D [OP] Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    2,556
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 SSM Access Cab
    Thank you. It meets my needs.

    I think that this link may be what you're looking for.

    https://www.anytimebackupcamera.com/products/anytime-backup-and-front-camera

    As far as I know, it's still available. There are how to videos on YouTube.

  4. Sep 17, 2019 at 8:59 AM
    #4
    msp2640

    msp2640 Well-Known Member

    Joined:
    Oct 10, 2018
    Member:
    #268910
    Messages:
    101
    Gender:
    Male
    Plymouth MA
    Vehicle:
    2018 TRD OR DCSB
    Thanks for the link, but that was the one I referenced.....I need to buy their full kit, add the camera and switch and its north of $170 after shipping to basically add a front camera thru the OE head unit. I like the idea of just adding a switch to run a front camera to the existing OE harness and play it on the OE screen. I'm hoping someone out there could or does, fab up a jump harness, maybe add your own camera and switch and get it done and I'm sure it could be done for under $100. I understand the ability to run the anytime rear camera, but for my use I just don't think I'd ever use it. I like the way your's is a separate and that it what I'm trying to accomplish, just playing it thru the factory screen. Thanks Bill in MA

    Tullie D [OP] likes this.
  5. Sep 17, 2019 at 9:52 AM
    #5
    Tullie D

    Tullie D [OP] Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    2,556
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 SSM Access Cab
    Oops. My mistake.

  6. Sep 19, 2019 at 8:19 AM
    #6
    Tullie D

    Tullie D [OP] Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    2,556
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 SSM Access Cab
    I considered shimming the camera out a little with the angled shims that came with it so that the bumper wasn't quite as noticeable. But after some thought realized that I liked where the grid lines are. Compare where the Red line appears on the monitor to where the front of the truck is relative to the white line on the pavement.





    I think that I'll leave it like it is.

    Last edited: Sep 19, 2019
  7. Sep 28, 2019 at 11:59 AM
    #7
    Bach88

    Bach88 Well-Known Member

    Joined:
    Feb 8, 2018
    Member:
    #243814
    Messages:
    84
    Gender:
    Male
    Florida
    Vehicle:
    2016 Tacoma OR DC

    I did this for about $85. It’s not hard to make the harness. These are the ones I used.

    28-pin Head Unit Wiring Harness... https://www.amazon.com/dp/B01BSE5X9Y?ref=ppx_pop_mob_ap_share

    Metra Electronics AX-TOYCAM3... https://www.amazon.com/dp/B01E4B6UQS?ref=ppx_pop_mob_ap_share

  8. Nov 5, 2019 at 6:06 PM
    #8
    Tullie D

    Tullie D [OP] Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    2,556
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 SSM Access Cab

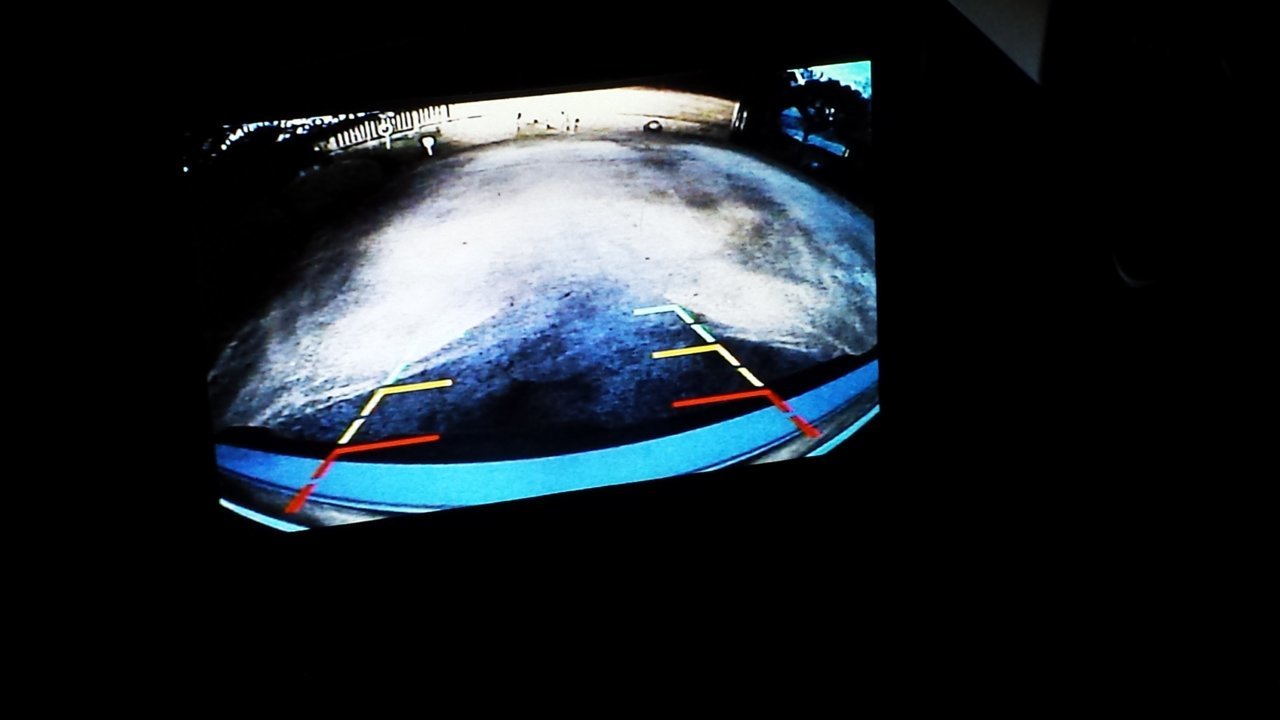

    I was asked how it works at night. The headlights scatter enough light down to make it work OK.


    Bastek likes this.
  9. Nov 26, 2019 at 6:56 PM
    #9
    Tmaloy

    Tmaloy Well-Known Member

    Joined:
    Oct 3, 2019
    Member:
    #306953
    Messages:
    344
    Gender:
    Male
    First Name:
    Troy
    Vehicle:
    2019 SR DC LB
    My front end looks similar Tullie, I don't have the Raptor lights but I do have the OEM fogs I will be installing after the front camera install.


    Tullie D [OP] likes this.
  10. Mar 3, 2020 at 12:23 PM
    #10
    Tullie D

    Tullie D [OP] Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    2,556
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 SSM Access Cab
    March 2020 update:

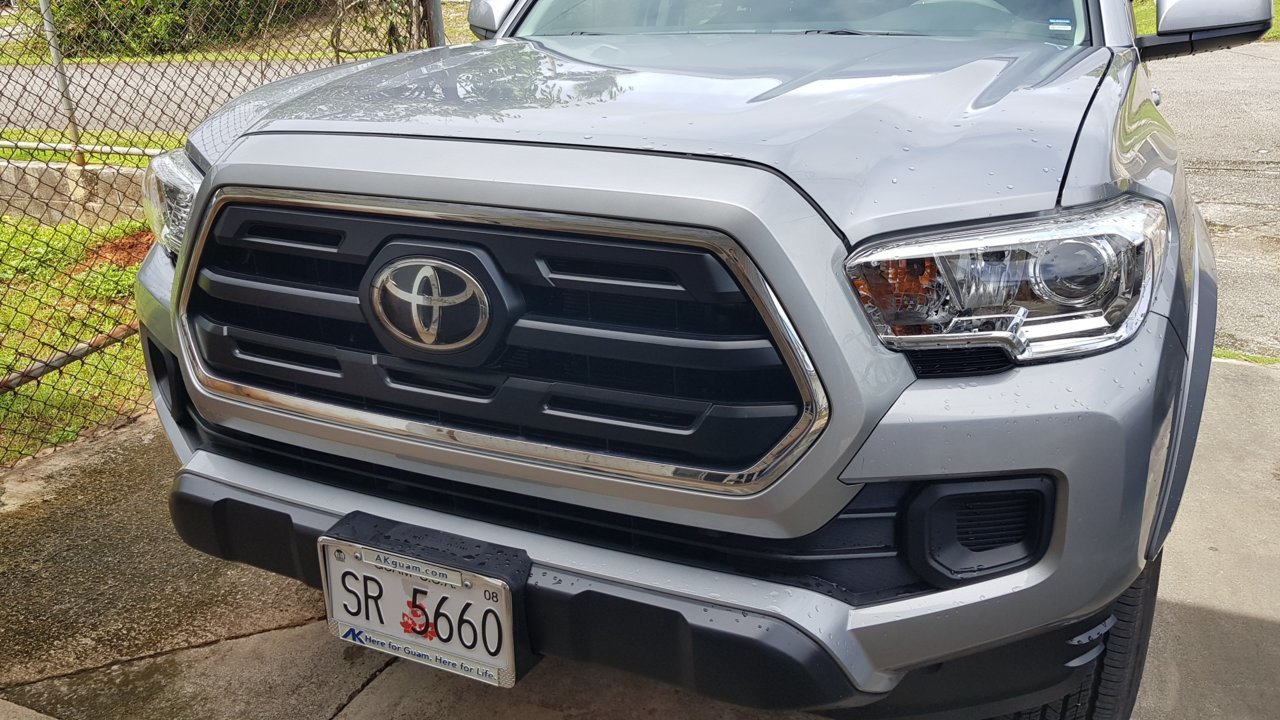

    This is a 2020 Limited grill. Notice where the camera is mounted.



    I have a 2020 SR grill that I have painted to color match my truck. My camera will then be mounted under the Toyota emblem, similar to the Limited above. Waiting for decent weather to complete.

    Last edited: Mar 12, 2020
    Tmaloy likes this.
  11. Mar 3, 2020 at 12:56 PM
    #11
    Tmaloy

    Tmaloy Well-Known Member

    Joined:
    Oct 3, 2019
    Member:
    #306953
    Messages:
    344
    Gender:
    Male
    First Name:
    Troy
    Vehicle:
    2019 SR DC LB
    The 2020 grille looks great on your truck, how much was it to get the grille?

    Tullie D [OP] likes this.
  12. Mar 3, 2020 at 1:04 PM
    #12
    Tullie D

    Tullie D [OP] Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    2,556
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 SSM Access Cab
    That photo is not my truck. I have not installed the grill yet. Here's what the grill looks like right now:


    Hopefully the weather will let me finish it in the next few days.

    I snagged the 2020 grill as a take off for $100 on Ebay.

    Tmaloy likes this.
  13. Mar 3, 2020 at 1:09 PM
    #13
    Tmaloy

    Tmaloy Well-Known Member

    Joined:
    Oct 3, 2019
    Member:
    #306953
    Messages:
    344
    Gender:
    Male
    First Name:
    Troy
    Vehicle:
    2019 SR DC LB
    Nice Tullie, I need to read more carefully. I assume there is enough material on the grill to mount the camera on it well.

    Tullie D [OP] likes this.
  14. Mar 3, 2020 at 1:15 PM
    #14
    Tullie D

    Tullie D [OP] Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    2,556
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 SSM Access Cab
    The picture above is just the removable center, painted parts. The main grill is plenty big enough for the camera to mount.

    Tmaloy likes this.
  15. Mar 3, 2020 at 4:01 PM
    #15
    cfayne

    cfayne Well-Known Member

    Joined:
    Feb 7, 2015
    Member:
    #148121
    Messages:
    1,018
    Gender:
    Male
    Santa Clarita
    Vehicle:
    2012 Tacoma V6 six speed FUN
    Pro Comp wheels General Grabber AT tires
  16. Mar 10, 2020 at 11:35 AM
    #16
    Tullie D

    Tullie D [OP] Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    2,556
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 SSM Access Cab
    Here's what it looks like now.






    Last edited: Mar 31, 2020
  17. Apr 29, 2020 at 3:45 AM
    #17
    Tacoma-toy

    Tacoma-toy Master Auto/ASE Tech

    Joined:
    Apr 8, 2020
    Member:
    #324138
    Messages:
    263
    Gender:
    Male
    First Name:
    Danny
    Michigan
    Vehicle:
    2017 Tacom Pro cement
    rock lights, BFG's, Overhead console USB port
    To bad this couldn't be connected to the navi instead of a separate screen.
