Starter Replacement "HOW TO" 5VZ-FE 3.4L engine

Discussion in 'Technical Chat' started by jwscoot, Mar 24, 2009.

  1. jwscoot

    jwscoot [OP] Well-Known Member

    Joined:
    Apr 3, 2008
    Member:
    #5726
    Messages:
    110
    Mississauga, ON
    Vehicle:
    98 Tacoma v6 4x4
    Bilstein 5100 shocks all the way around, add a leaf in the rear
    So my starter decided to stay engaged with the engine running today... even with the key out of the ignition it was still cranking over...:mad:

    so I thought I'd take some pictures of it coming out.

    Step #1
    -Disconnect the Negetive Battery Cable
    [​IMG]

    Step #2

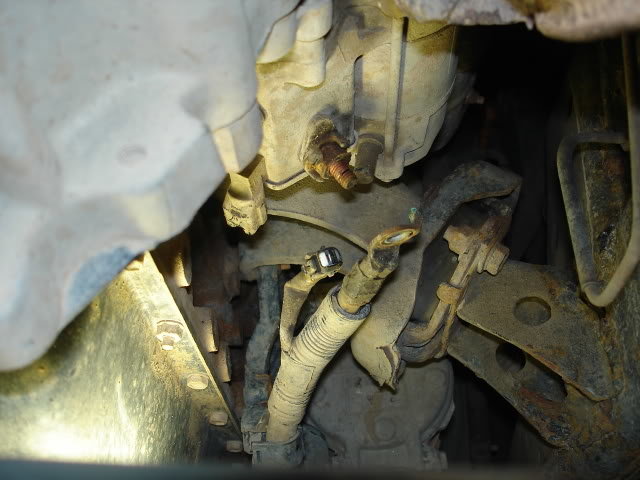

    -Disconnect the 12mm nut holding the main power cable with a socket and ratchet
    -pull the small ignition wire plug.
    [​IMG]

    Step #3

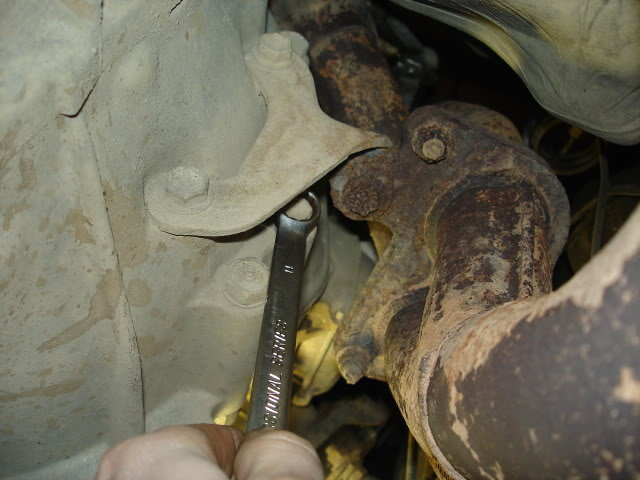

    -Remove Lower 14mm bolt holding starter to tranny with box end of wrench . (I realize I could have removed the exhaust bracket, but the risk of that bolt snapping on the exhaust was too high. it was really rusted on)
    [​IMG]

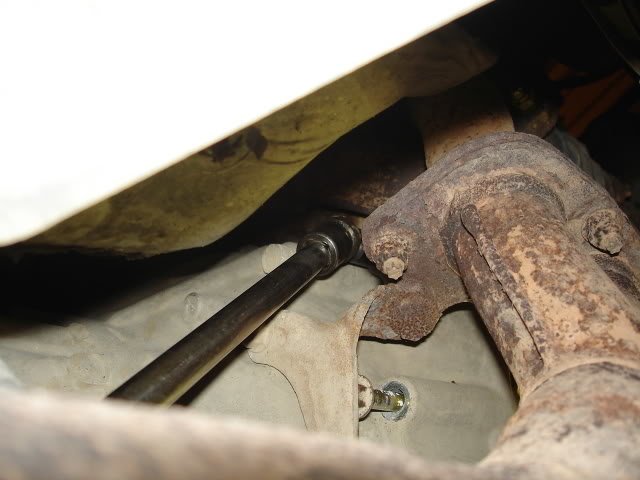

    Step #4

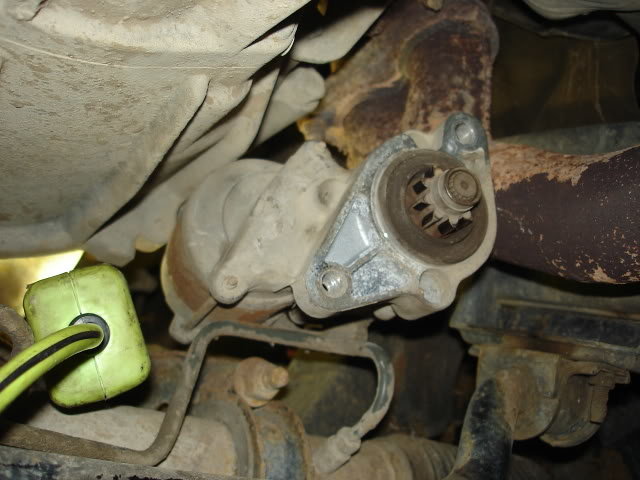

    -Remove top 14mm bolt (I used a impact gun and extension with a swivel socket because I have it) but rachet and extension would be fine.
    [​IMG]

    Step #5
    -Manuaver the starter by the power steering line and bellhousing.
    [​IMG]

    AND it's out!
    [​IMG]

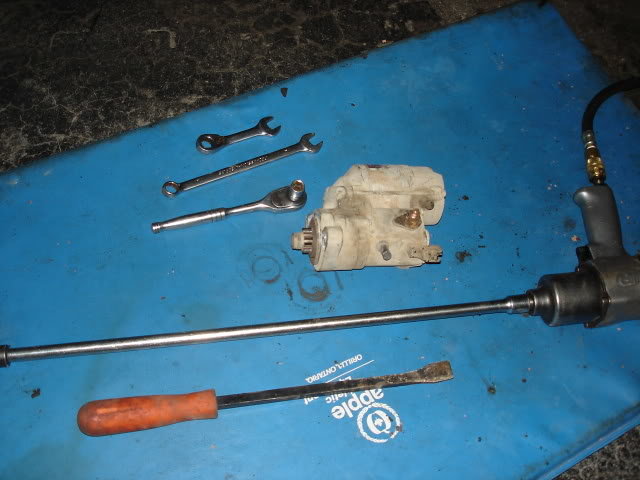

    those are all the tools needed, it's a quick job.

    [​IMG]

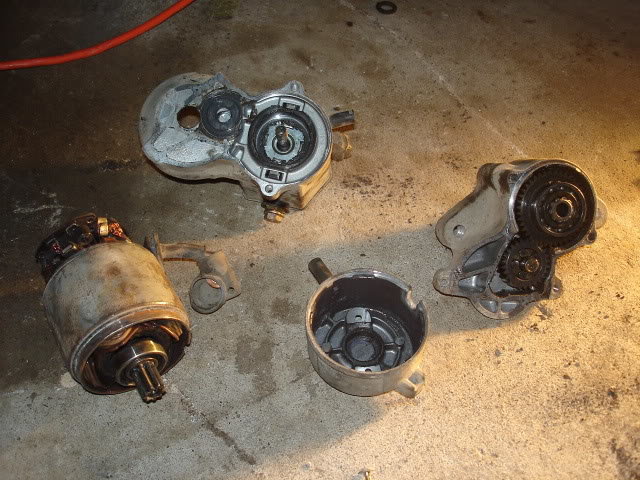

    opened her up to see the damage... all the bearings plastic covers had melted off and blown all the grease out. Off to the Starter Shop tomorrow!

  2. harshest

    harshest I am the Sofa King

    Joined:
    Aug 13, 2008
    Member:
    #8508
    Messages:
    567
    Gender:
    Male
    Michigan
    Vehicle:
    05 PreRunner SR5
    Fog Light On, Hidden Garage Door Opener, Scanguage II, Weathertech Liners, Cig lighter always on, Door buzzer removed from dash- Upcoming: 5100s for front and rear, set fronts to 2.5" and Toytec AALs.
  3. Riptide

    Riptide Knee Dragger

    Joined:
    Dec 5, 2011
    Member:
    #68224
    Messages:
    88
    Gender:
    Male
    Richmond, VA
    Vehicle:
    99' Black Tacoma TRD 4x4 6 cyl Ext Cab
    Matching bed cover, soon-to-be 01 front end conversion
    By the way, the auto / 4wd 5vzfe's are drastically different. I found this out the hard way spending 8+ hours trying to fish out the starter the way this says in my work parking lot. There is a transmission fill tube and ABS lines that need to be disconnected in order to pull the starter from the wheel well in our trucks. That's the only way without either lifting the motor or removing some steering junk. jwscoot, you must have a manual or no 4wd... you should mention that in your title.

  4. JakeInGrayTacoma

    JakeInGrayTacoma Member

    Joined:
    Feb 18, 2011
    Member:
    #51390
    Messages:
    19
    Gender:
    Male
    First Name:
    Jake
    SoCal Mtns
    Vehicle:
    95 4x4 gray tacoma
    Get back up to snuff cuz it wasn't maintained. I got xm radio in it.
    I did the same thing today. Got the starter out then put the new one on. Connected all 3 wires, then got in the cab, turned the key, and the starter spun, did not engage the flywheel. What do I do?

  5. jdhreiss

    jdhreiss Active Member

    Joined:
    Jan 15, 2013
    Member:
    #95294
    Messages:
    31
    Gender:
    Male
    First Name:
    Joe
    SW Washington
    Vehicle:
    99, Tacoma SR5 TRD Debadged
    Fiberglass bed cover, Linex bed liner, Optima red top battery, 1150/32/15 BFG AT
    Whack it with something that won't leave a mark since you may have to return the starter. A piece of a 2x4 should do it. It might be hung up. After that, time to remove it and test it on a bench.
