Steering Wheel Conversion With Audio & Optional Bluetooth Phone Controls (official write up).

Discussion in '1st Gen. Tacomas (1995-2004)' started by mechanicjon, Mar 5, 2018.

  1. Dec 18, 2020 at 11:43 AM
    #221
    Plkyone

    Plkyone Well-Known Member

    Joined:
    Nov 3, 2018
    Member:
    #271563
    Messages:
    232
    Ok push the diagram aside because as u know the truck doesn’t have the rest of the wiring to go that route. If you are ok with using a millimeter pull your stalk out and look for continuity between two of the three wires (shown in the picture below this is a is300 stalk I think yours may be the same) when you operate the fog light switch. once it’s found you can ground one side and use the other to activate your fog light relay!

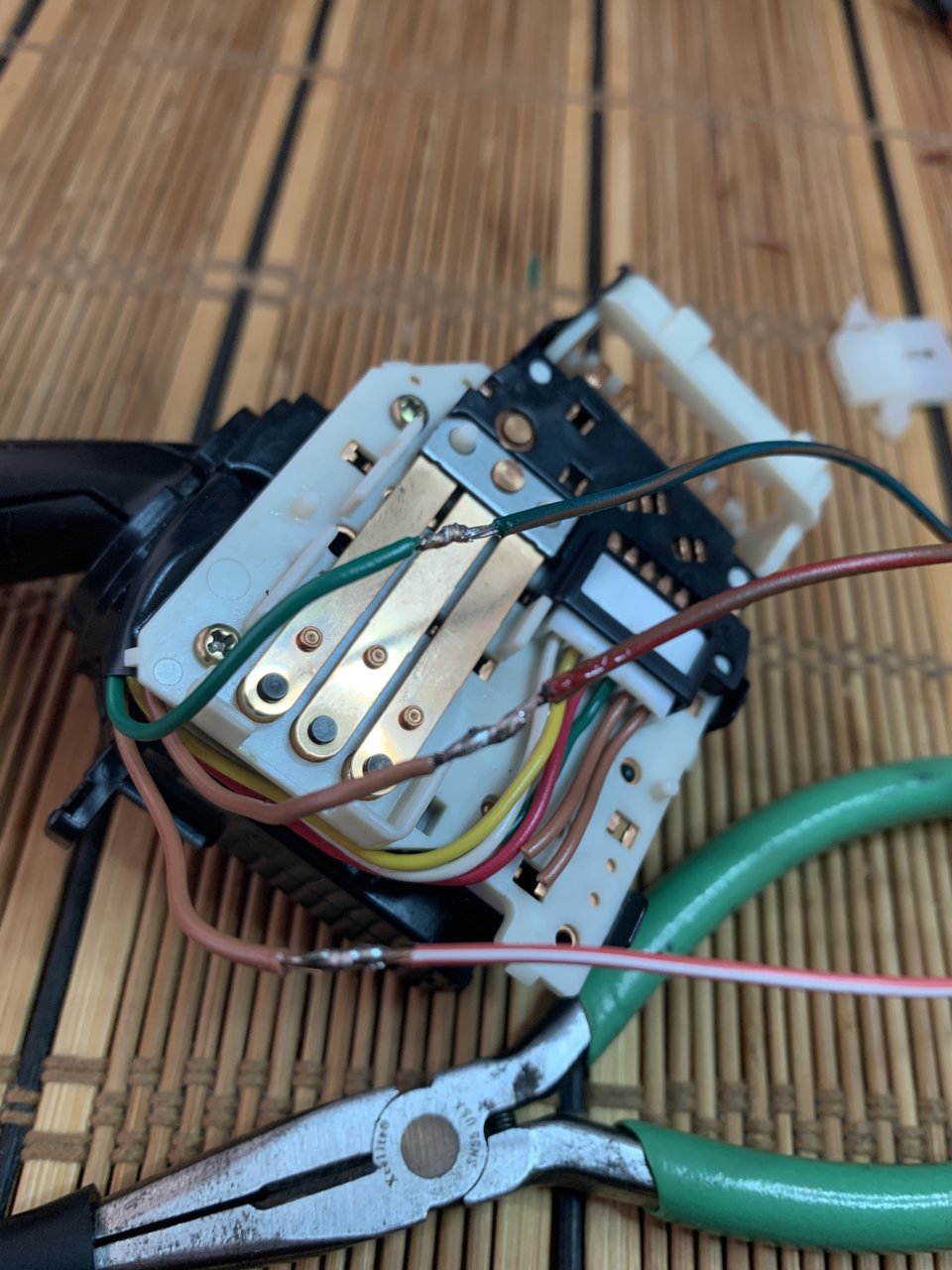

    So basically I took the wires out of the circuit and use just the switch portion of the stalk.

  2. Dec 18, 2020 at 4:24 PM
    #222
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    137
    Gender:
    Male
    West Coast, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,

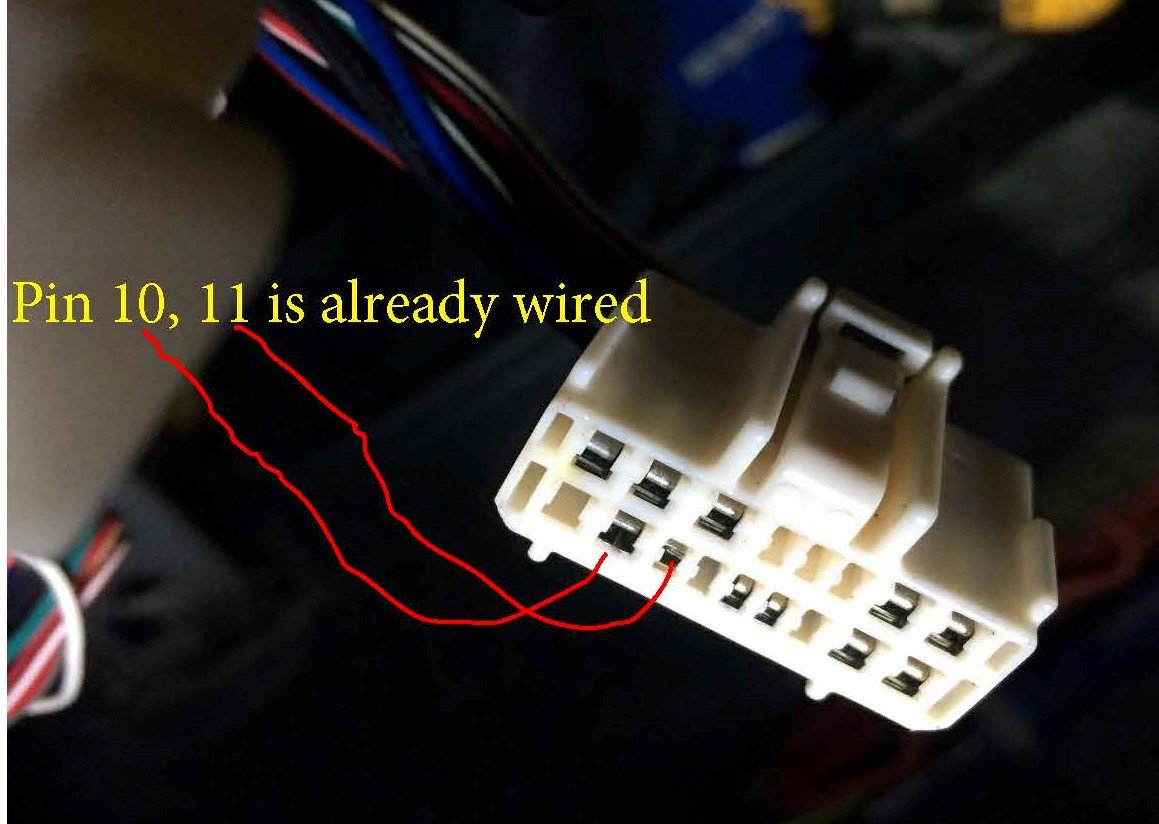

    Thanks for the input. My connector is already wired. Both pins, 10, 11. The #10 wire is a lot thicker/ bigger gauge then 11, would that be the + trigger wire to the relay.?

    Pin Out.jpg Pin Out.jpg

    Plkyone likes this.
  3. Dec 18, 2020 at 4:33 PM
    #223
    Plkyone

    Plkyone Well-Known Member

    Joined:
    Nov 3, 2018
    Member:
    #271563
    Messages:
    232
    Ok now I think if you check the wires there it outputs a signal depending on the position of the headlight switch. That’s why I chose to simplify and just use the switch as a interrupter I want to control my fog lights anytime independent of light switch position

  4. Dec 20, 2020 at 12:38 AM
    #224
    Empty_Lord

    Empty_Lord Toyotaholic

    Joined:
    Mar 13, 2016
    Member:
    #181186
    Messages:
    26,349
    Gender:
    Male
    First Name:
    Dan
    Northwest Indiana/Chicagoland
    Vehicle:
    66 Mercedes, 93 mr2, 95,98,01,02 Tacomas, 05 Tundra + others
    Too many trucks and mods to list.. check builds
    interesting yours is pinned allready.. technically the fuse box does have a fog fuse in my 01 tacoma. ive yet to figure out where the wire goes internally to the fuse box though..

  5. Dec 21, 2020 at 2:08 PM
    #225
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    137
    Gender:
    Male
    West Coast, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,

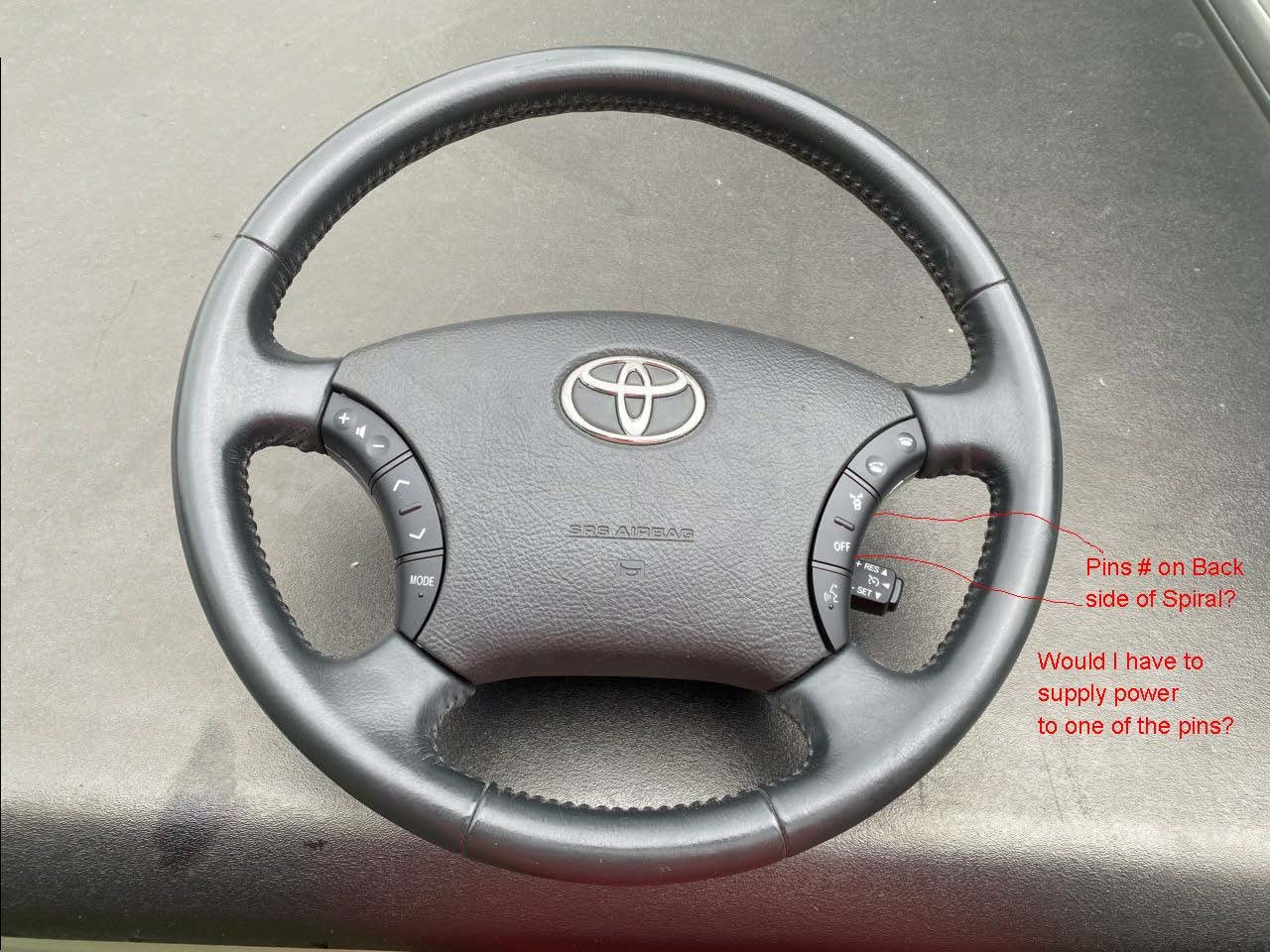

    Any Ideas.? My truck has the steering wheel mod. Looking to use the Fog Light Button...small light in Cab..........

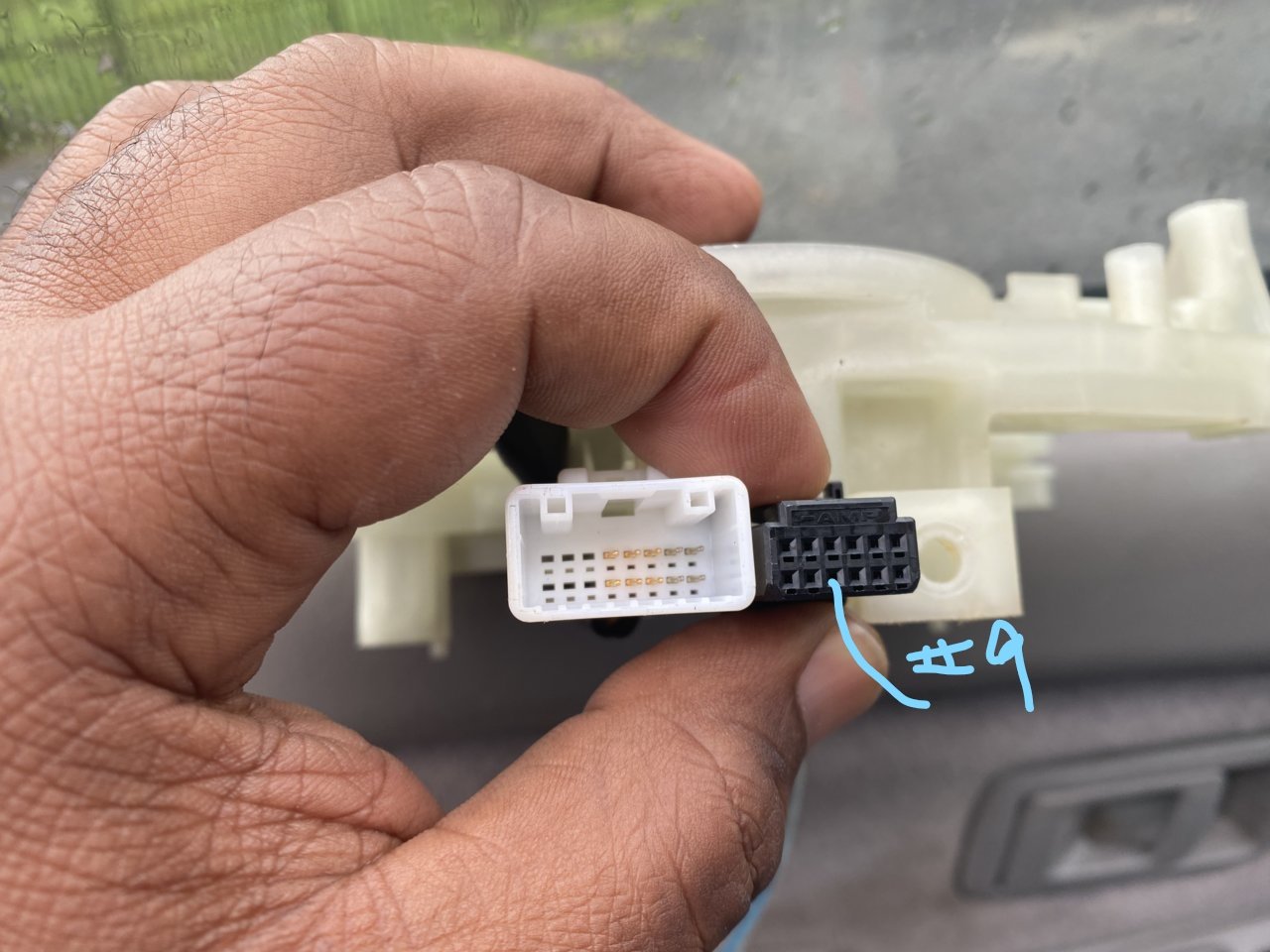

    Looking at your Black connector, that plugs into the back side of the Spiral, looking for a pin# to connect the Fog light button. Simple on/off button? Going to connect up to a small light in my Cab.

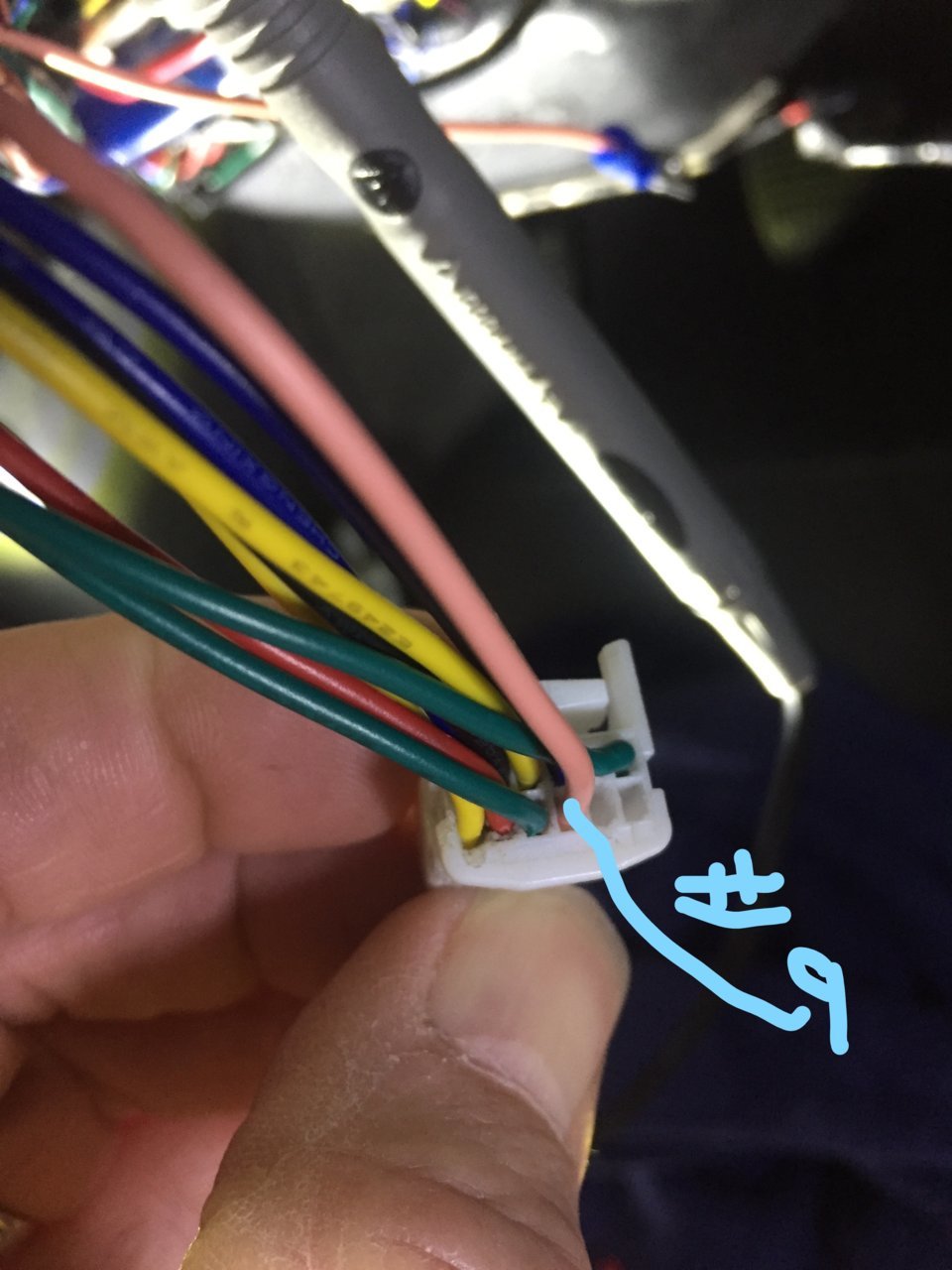

    I have pin # 9 plug. I do get a small reading, from this pin, but when I connect the light to it, push the button---zippo........... I do have the light grounded separately. Do I have to connect to a ground off the plug?. Or do I need a power source to pin 9, then connect to the pos side of the light.? The light barley pulls any power. its like a tiny bulb.....

    Thanks.....

    InkedNew Wire 1_LI.jpg


    Inked242040F8-A960-47A8-A8CA-C6E8CDA15E45_LI.jpg Fog light button steering wheel.jpg

    unstpible likes this.
  6. Mar 4, 2021 at 10:27 AM
    #226
    Macmeter

    Macmeter New Member

    Joined:
    Mar 4, 2021
    Member:
    #358170
    Messages:
    1
    Gender:
    Male
    I'm not sure If this has been answered or not (apologize if it has) But how did you program the module to accept the Bluetooth commands from the added right hand SWC?

    Thank You!

  7. Mar 5, 2021 at 6:18 AM
    #227
    Rldanie

    Rldanie Punisher78

    Joined:
    Jan 28, 2018
    Member:
    #242763
    Messages:
    808
    Gender:
    Male
    First Name:
    Ryan
    Colorado
    Vehicle:
    2002 Supercharged, 2” pulley, FIC, Methanol, Transgo Shift Kit
    Engine Performance upgrades: Supercharged (Magnuson) FIC/6 Champion Radiator Toyota Corolla thermostat 168° JBA Headers JBA cat back exhaust Upgraded fuel pump Volant Cold Air Intake With custom plexiglass cover TransGo Transmission A340F Valve Body upgrade B&M Transmission cooler Methanol Injection 2 inch pulley Future Plans Supra Injectors Light weight crankshaft pulley Leather seats Off-road upgrades 3” rough country lift 33x12.5” Dick Cepeks Other upgrades: JL Audio 12W6 Sub in custom box JL Audio C5 Mids and tweets all the way around Sound dampened whole cab Transmission temp sensor Gen Tex rear view mirror (temp and compass) Blue instrument panel, a/c control panel lights, shifter, ashtray, glove box. Blacked out badges Blackout bumpers and grill MariMoto Projectors with demon eyes LED Taillights Second generation leather steering wheel with audio controls Custom leather wrapped automatic transmission shifter 3rd gen 4 Runner key ring light (blue) 3rd gen 4 Runner hood scoop
    I think you’re in uncharted territory

    did you get it figured out?

  8. Mar 5, 2021 at 6:20 AM
    #228
    Rldanie

    Rldanie Punisher78

    Joined:
    Jan 28, 2018
    Member:
    #242763
    Messages:
    808
    Gender:
    Male
    First Name:
    Ryan
    Colorado
    Vehicle:
    2002 Supercharged, 2” pulley, FIC, Methanol, Transgo Shift Kit
    Engine Performance upgrades: Supercharged (Magnuson) FIC/6 Champion Radiator Toyota Corolla thermostat 168° JBA Headers JBA cat back exhaust Upgraded fuel pump Volant Cold Air Intake With custom plexiglass cover TransGo Transmission A340F Valve Body upgrade B&M Transmission cooler Methanol Injection 2 inch pulley Future Plans Supra Injectors Light weight crankshaft pulley Leather seats Off-road upgrades 3” rough country lift 33x12.5” Dick Cepeks Other upgrades: JL Audio 12W6 Sub in custom box JL Audio C5 Mids and tweets all the way around Sound dampened whole cab Transmission temp sensor Gen Tex rear view mirror (temp and compass) Blue instrument panel, a/c control panel lights, shifter, ashtray, glove box. Blacked out badges Blackout bumpers and grill MariMoto Projectors with demon eyes LED Taillights Second generation leather steering wheel with audio controls Custom leather wrapped automatic transmission shifter 3rd gen 4 Runner key ring light (blue) 3rd gen 4 Runner hood scoop
    The ribbon connects the two controllers on each side
    And then there are two wires that come off the steering wheel to go into the programmer behind your stereo
    One headphone style plug that plugs into the back of the stereo.
    It’s my understanding that the buttons work through only those two wires and send signals with different resistance levels.

  9. Jun 14, 2021 at 9:41 PM
    #229
    BeLance89

    BeLance89 Well-Known Member

    Joined:
    Jul 30, 2017
    Member:
    #225436
    Messages:
    1,218
    Gender:
    Male
    First Name:
    Brandon
    Huntsville, AL
    Vehicle:
    2002 White TRD double cab
  10. Jun 17, 2021 at 10:21 AM
    #230
    SiberianTacos

    SiberianTacos Well-Known Member

    Joined:
    May 7, 2021
    Member:
    #365034
    Messages:
    394
    Gender:
    Male
    Vehicle:
    02 Tacoma Dbl Auto 4wd
    simply amazing work

    unstpible and mechanicjon [OP] like this.
  11. Jan 16, 2022 at 10:57 PM
    #231
    unstpible

    unstpible Well-Known Member

    Joined:
    Aug 16, 2012
    Member:
    #84909
    Messages:
    1,263
    Gender:
    Male
    First Name:
    Derek
    Cedar City, Utah
    Vehicle:
    03 4X4 V6 Auto DCSB SR5 325k miles
    All Pro Apex bumper and skids All Pro Upper control arm's Bilstein 6112's with 600lb coils All Pro standard 3" leaf springs Bilstein 5125's rear Extended rear brake line Rear diff breather relocation Bluetooth stereo MagnaFlow catback with resonator Memphis 6x9 door speakers with tweeters Single piece headlights aftermarket grille Anzo taillights. LED 3rd brake light 4runner sunglass holder and dome lights Master Tailgaters rear view mirror with 3 directional cameras, G shock sensors, and anti theft system Honda windshield washer nozzles Stubby antenna Scan Guage II 2nd Gen snowflake wheels powdered coated black Cooper Discoverer ST Maxx 235-75/16
    I still day dream about doing this from time to time.

  12. Jan 16, 2022 at 10:58 PM
    #232
    Empty_Lord

    Empty_Lord Toyotaholic

    Joined:
    Mar 13, 2016
    Member:
    #181186
    Messages:
    26,349
    Gender:
    Male
    First Name:
    Dan
    Northwest Indiana/Chicagoland
    Vehicle:
    66 Mercedes, 93 mr2, 95,98,01,02 Tacomas, 05 Tundra + others
    Too many trucks and mods to list.. check builds
    I have a wheel and spiral cable in storage waiting for me to get to it

    unstpible likes this.
  13. Jan 17, 2022 at 9:39 AM
    #233
    unstpible

    unstpible Well-Known Member

    Joined:
    Aug 16, 2012
    Member:
    #84909
    Messages:
    1,263
    Gender:
    Male
    First Name:
    Derek
    Cedar City, Utah
    Vehicle:
    03 4X4 V6 Auto DCSB SR5 325k miles
    All Pro Apex bumper and skids All Pro Upper control arm's Bilstein 6112's with 600lb coils All Pro standard 3" leaf springs Bilstein 5125's rear Extended rear brake line Rear diff breather relocation Bluetooth stereo MagnaFlow catback with resonator Memphis 6x9 door speakers with tweeters Single piece headlights aftermarket grille Anzo taillights. LED 3rd brake light 4runner sunglass holder and dome lights Master Tailgaters rear view mirror with 3 directional cameras, G shock sensors, and anti theft system Honda windshield washer nozzles Stubby antenna Scan Guage II 2nd Gen snowflake wheels powdered coated black Cooper Discoverer ST Maxx 235-75/16
    I guess I should start getting the parts together and I'll be that much closer to having a 1.5 gen tacoma.

    Empty_Lord likes this.
  14. Jan 17, 2022 at 2:20 PM
    #234
    BeLance89

    BeLance89 Well-Known Member

    Joined:
    Jul 30, 2017
    Member:
    #225436
    Messages:
    1,218
    Gender:
    Male
    First Name:
    Brandon
    Huntsville, AL
    Vehicle:
    2002 White TRD double cab
    Same. I’ve had the buttons for over a year but never invested the time to hunt down a wheel and airbag setup. Procrastinating at its peak level.

    unstpible likes this.
  15. Jan 17, 2022 at 3:36 PM
    #235
    unstpible

    unstpible Well-Known Member

    Joined:
    Aug 16, 2012
    Member:
    #84909
    Messages:
    1,263
    Gender:
    Male
    First Name:
    Derek
    Cedar City, Utah
    Vehicle:
    03 4X4 V6 Auto DCSB SR5 325k miles
    All Pro Apex bumper and skids All Pro Upper control arm's Bilstein 6112's with 600lb coils All Pro standard 3" leaf springs Bilstein 5125's rear Extended rear brake line Rear diff breather relocation Bluetooth stereo MagnaFlow catback with resonator Memphis 6x9 door speakers with tweeters Single piece headlights aftermarket grille Anzo taillights. LED 3rd brake light 4runner sunglass holder and dome lights Master Tailgaters rear view mirror with 3 directional cameras, G shock sensors, and anti theft system Honda windshield washer nozzles Stubby antenna Scan Guage II 2nd Gen snowflake wheels powdered coated black Cooper Discoverer ST Maxx 235-75/16
    Can we all chip in and hire a TW secretary to piece together all the kits we need for every project

    arkmm likes this.
  16. Jan 17, 2022 at 9:24 PM
    #236
    Winkle99

    Winkle99 Don't Look Back

    Joined:
    Jul 19, 2017
    Member:
    #224477
    Messages:
    689
    Gender:
    Male
    First Name:
    David
    CO
    Vehicle:
    99 XCab 3.4 Manual 4x4 TRD SR5
    I want to thank @mechanicjon again for this write-up. I have been enjoying the steering wheel controls mated to a head unit with a 10 inch screen since Thanksgiving 2019.

    I also want to encourage TacomaWorld members to take on the challenge to perform this mod. The parts are out there. Here are links to more install pictures and a parts list to help create your own 1.5 gen Tacoma.

    The upgrade is worth the time.




    Last edited: Jan 18, 2022
  17. Jan 18, 2022 at 9:43 AM
    #237
    unstpible

    unstpible Well-Known Member

    Joined:
    Aug 16, 2012
    Member:
    #84909
    Messages:
    1,263
    Gender:
    Male
    First Name:
    Derek
    Cedar City, Utah
    Vehicle:
    03 4X4 V6 Auto DCSB SR5 325k miles
    All Pro Apex bumper and skids All Pro Upper control arm's Bilstein 6112's with 600lb coils All Pro standard 3" leaf springs Bilstein 5125's rear Extended rear brake line Rear diff breather relocation Bluetooth stereo MagnaFlow catback with resonator Memphis 6x9 door speakers with tweeters Single piece headlights aftermarket grille Anzo taillights. LED 3rd brake light 4runner sunglass holder and dome lights Master Tailgaters rear view mirror with 3 directional cameras, G shock sensors, and anti theft system Honda windshield washer nozzles Stubby antenna Scan Guage II 2nd Gen snowflake wheels powdered coated black Cooper Discoverer ST Maxx 235-75/16
    Winkle99 likes this.
  18. Jan 18, 2022 at 10:05 AM
    #238
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    137
    Gender:
    Male
    West Coast, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,
    Looks great, how do you like your Dasaita, what model, double den.?

    unstpible likes this.
  19. Jan 18, 2022 at 4:20 PM
    #239
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,497
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Thank you! Sweet setup.

    unstpible and Winkle99 like this.
  20. Jan 18, 2022 at 6:38 PM
    #240
    Winkle99

    Winkle99 Don't Look Back

    Joined:
    Jul 19, 2017
    Member:
    #224477
    Messages:
    689
    Gender:
    Male
    First Name:
    David
    CO
    Vehicle:
    99 XCab 3.4 Manual 4x4 TRD SR5
    unstpible likes this.
