Stock head, all new speakers & amp.

Discussion in 'Audio & Video' started by CantSitStill, Apr 5, 2012.

  1. May 18, 2012 at 11:18 AM
    #41
    YoungGunz23

    YoungGunz23 Well-Known Member

    Joined:
    Aug 3, 2011
    Member:
    #61114
    Messages:
    108
    Gender:
    Male
    First Name:
    Caleb
    Monroe Louisiana
    Vehicle:
    08 TRD Off Road
    3" fabtech lift 33" federals
    your audio set up looks great so far man! Congrats and dont forget to post your pics!

  2. May 18, 2012 at 11:46 AM
    #42
    sernaj64

    sernaj64 Aight

    Joined:
    Oct 28, 2011
    Member:
    #66033
    Messages:
    224
    Gender:
    Male
    First Name:
    Juan
    honolulu
    Vehicle:
    2011 prerunner V6 SR5
    N fab Step bars BHLM by Asianants Pro Comp 2.25" level lift kit rear leaf TSB
  3. May 18, 2012 at 12:11 PM
    #43
    A_Ninja_Racer

    A_Ninja_Racer Well-Known Member

    Joined:
    Oct 7, 2008
    Member:
    #9789
    Messages:
    762
    Tampa, FL
    Vehicle:
    08 PreRunner TRD Debadged
    So are you saying that this head unit will allow you to utilize all of the hand controls on your steering wheel? Thats pretty awesome if it will.

  4. May 18, 2012 at 3:59 PM
    #44
    CantSitStill

    CantSitStill [OP] Well-Known Member

    Joined:
    Feb 25, 2012
    Member:
    #73601
    Messages:
    1,029
    Gender:
    Male
    First Name:
    FTR
    CNY
    Hoping i get my steering wheel controls back. I should have the right parts. We will know Monday night

  5. May 21, 2012 at 3:43 PM
    #45
    CantSitStill

    CantSitStill [OP] Well-Known Member

    Joined:
    Feb 25, 2012
    Member:
    #73601
    Messages:
    1,029
    Gender:
    Male
    First Name:
    FTR
    CNY

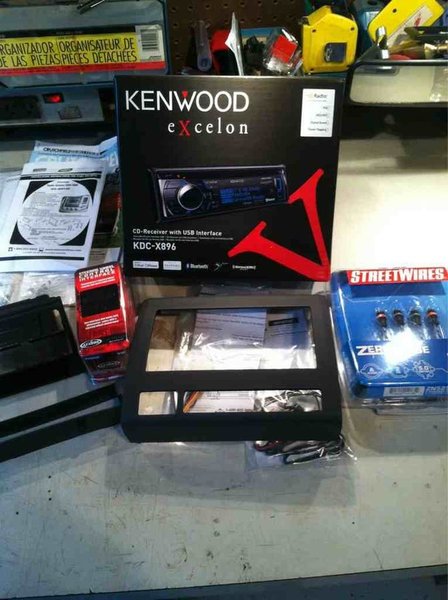

    ImageUploadedByTapatalk1337640166.037156.jpgHere we go again. Hopefully for the last time.

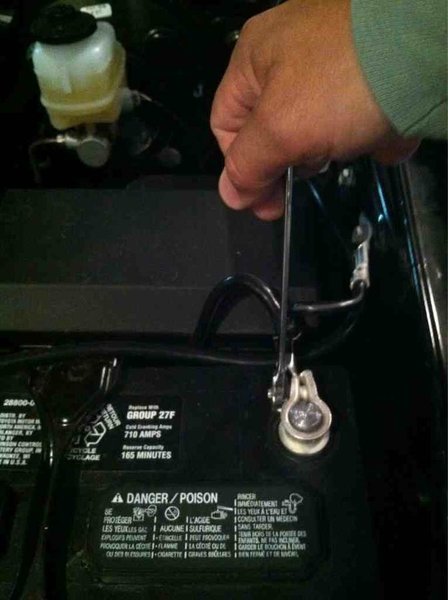

    ImageUploadedByTapatalk1337640194.105046.jpg Safety first!

  6. May 21, 2012 at 3:45 PM
    #46
    CantSitStill

    CantSitStill [OP] Well-Known Member

    Joined:
    Feb 25, 2012
    Member:
    #73601
    Messages:
    1,029
    Gender:
    Male
    First Name:
    FTR
    CNY

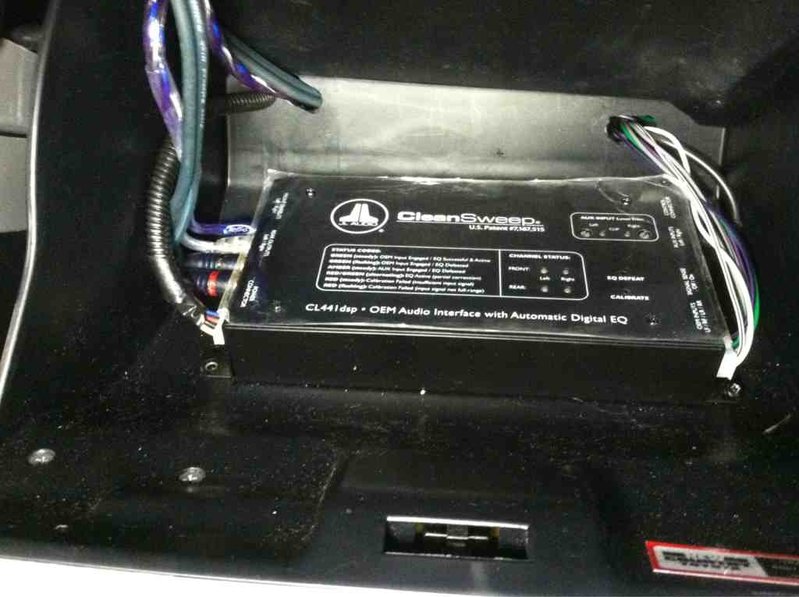

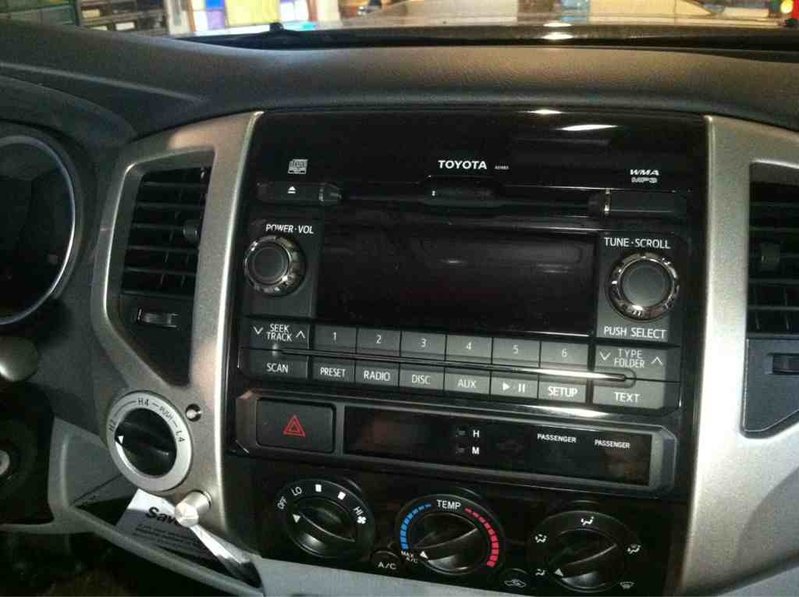

    Old has to come out first!ImageUploadedByTapatalk1337640297.140135.jpg

  7. May 21, 2012 at 3:51 PM
    #47
    CantSitStill

    CantSitStill [OP] Well-Known Member

    Joined:
    Feb 25, 2012
    Member:
    #73601
    Messages:
    1,029
    Gender:
    Male
    First Name:
    FTR
    CNY

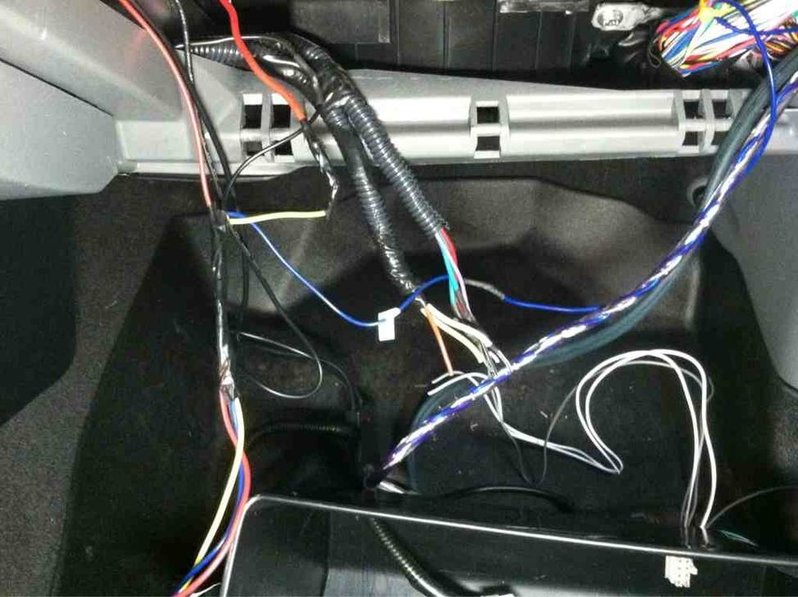

    Such a shame to just start cutting up my work!ImageUploadedByTapatalk1337640693.584199.jpg

  8. May 21, 2012 at 4:03 PM
    #48
    CantSitStill

    CantSitStill [OP] Well-Known Member

    Joined:
    Feb 25, 2012
    Member:
    #73601
    Messages:
    1,029
    Gender:
    Male
    First Name:
    FTR
    CNY

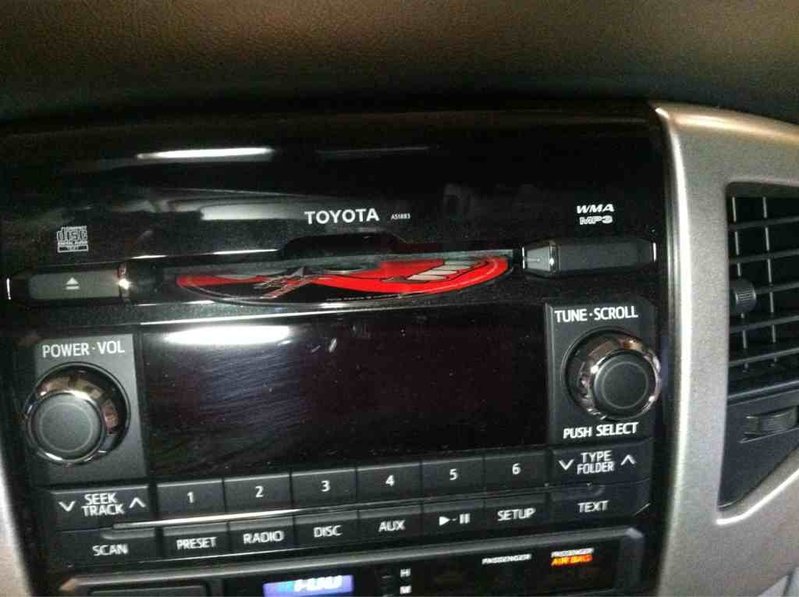

    Oops. Reconnect battery just long enough to eject remaining CD before radio comes out forever!!

  9. May 21, 2012 at 4:06 PM
    #49
    CantSitStill

    CantSitStill [OP] Well-Known Member

    Joined:
    Feb 25, 2012
    Member:
    #73601
    Messages:
    1,029
    Gender:
    Male
    First Name:
    FTR
    CNY

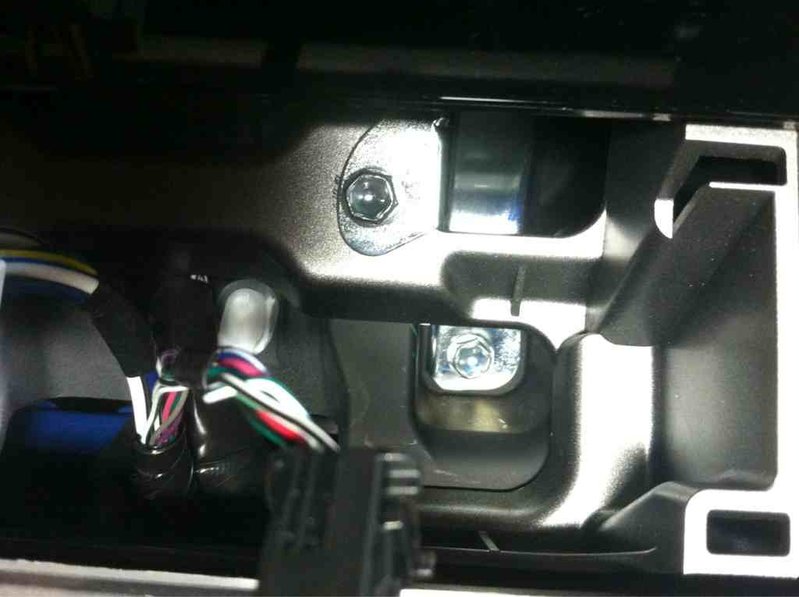

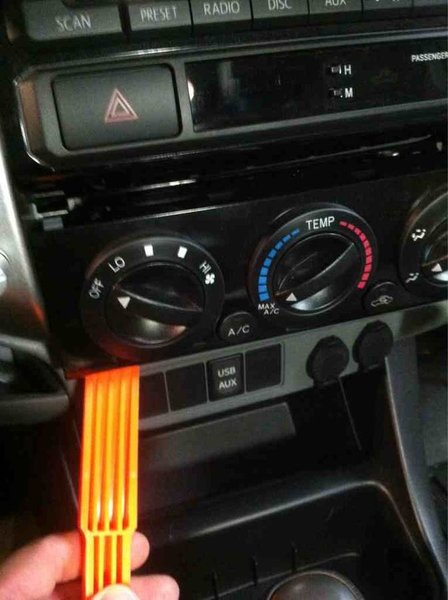

    ImageUploadedByTapatalk1337641543.755710.jpgcontrols out

    These are the HU screws. One up and one down on each side. 10mm

  10. May 21, 2012 at 4:10 PM
    #50
    CantSitStill

    CantSitStill [OP] Well-Known Member

    Joined:
    Feb 25, 2012
    Member:
    #73601
    Messages:
    1,029
    Gender:
    Male
    First Name:
    FTR
    CNY

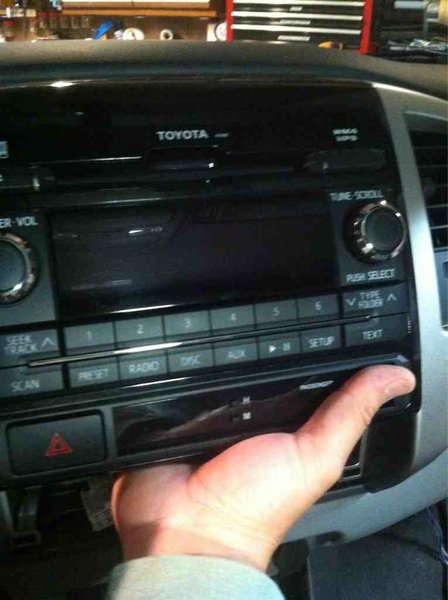

    I have found that grabbing like this and giving a quick pull toward you and up at the same angle as the dash releases the stereo easily.

  11. May 21, 2012 at 4:29 PM
    #51
    gsxrdoug

    gsxrdoug 2006 DCSB

    Joined:
    Mar 3, 2011
    Member:
    #52284
    Messages:
    400
    Gender:
    Male
    First Name:
    Douglas
    Hawaii
    Vehicle:
    06 DCSB TRD OffRoad
    Yes you can

  12. May 21, 2012 at 4:36 PM
    #52
    BostonBilly

    BostonBilly Well-Known Member

    Joined:
    Jan 11, 2012
    Member:
    #70435
    Messages:
    9,095
    Gender:
    Male
    Easton
    Vehicle:
    2018 Jeep Wrangler JL Rubicon
  13. May 21, 2012 at 6:28 PM
    #53
    CantSitStill

    CantSitStill [OP] Well-Known Member

    Joined:
    Feb 25, 2012
    Member:
    #73601
    Messages:
    1,029
    Gender:
    Male
    First Name:
    FTR
    CNY

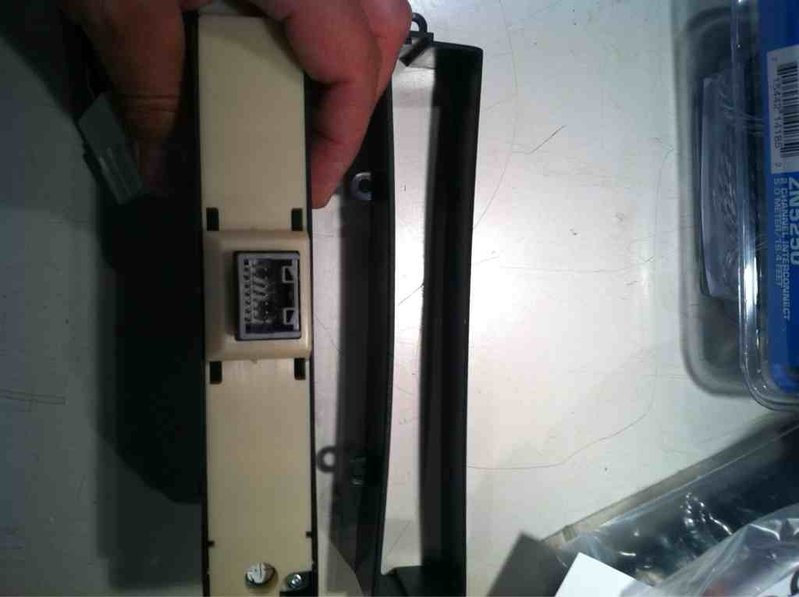

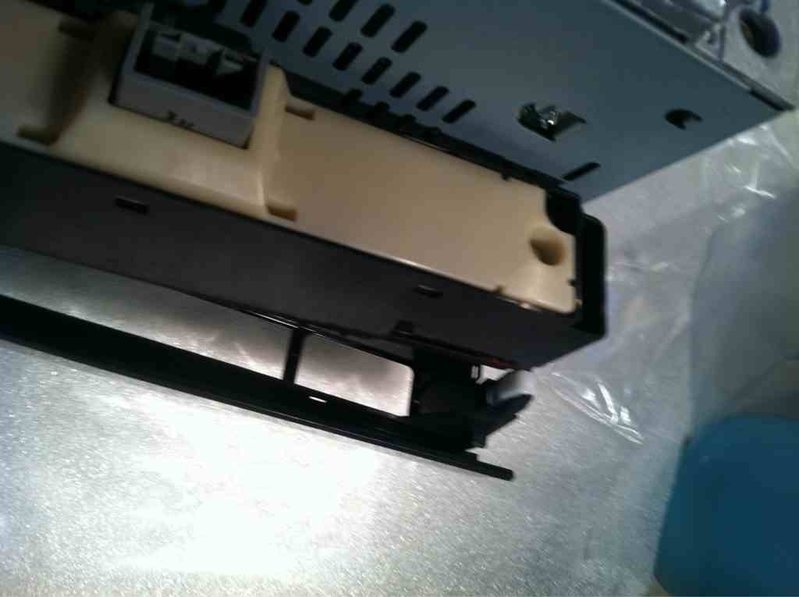

    ImageUploadedByTapatalk1337649994.919976.jpg gotta pull the clock and hazard out of the old bezel for reuse. ImageUploadedByTapatalk1337650034.353985.jpg
    Watch the orientation. There is a correct way the new piece screws into the new bezel. It will be readily apparent, just make sure you have it in your hand the correct way before you snap in the hazard cluster.

  14. May 21, 2012 at 6:30 PM
    #54
    CantSitStill

    CantSitStill [OP] Well-Known Member

    Joined:
    Feb 25, 2012
    Member:
    #73601
    Messages:
    1,029
    Gender:
    Male
    First Name:
    FTR
    CNY

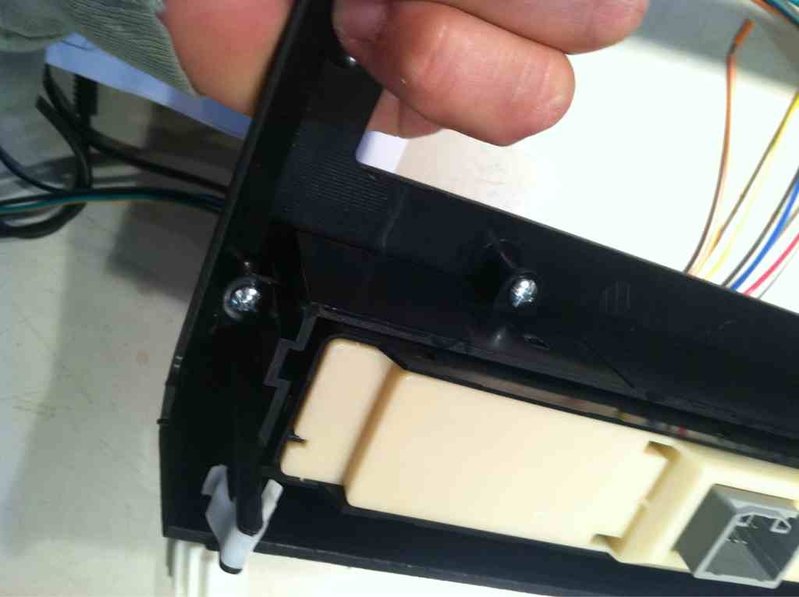

    The right way.

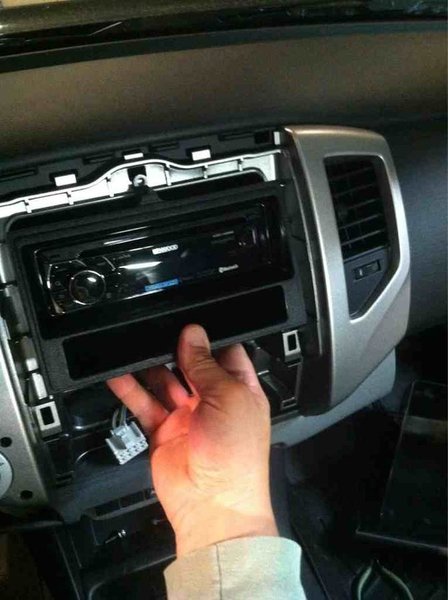

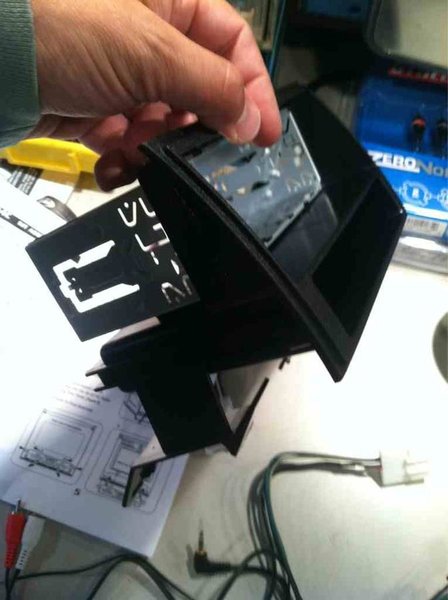

    ImageUploadedByTapatalk1337650162.651971.jpgtest fitting.
    Single with the storage bin.

    More test fitting.

  15. May 21, 2012 at 6:36 PM
    #55
    CantSitStill

    CantSitStill [OP] Well-Known Member

    Joined:
    Feb 25, 2012
    Member:
    #73601
    Messages:
    1,029
    Gender:
    Male
    First Name:
    FTR
    CNY
    Ok, if someone could stop me from freaking out right now. Had to quit for the night and put it back together to go to work tomorrow. Question... The light that says airbag that is just under the radio is always lit when the truck is running, correct??????

  16. May 21, 2012 at 6:53 PM
    #56
    CrutchfieldDarren

    CrutchfieldDarren Well-Known Member Vendor

    Joined:
    Apr 27, 2012
    Member:
    #77733
    Messages:
    62
    Gender:
    Male
    First Name:
    Darren

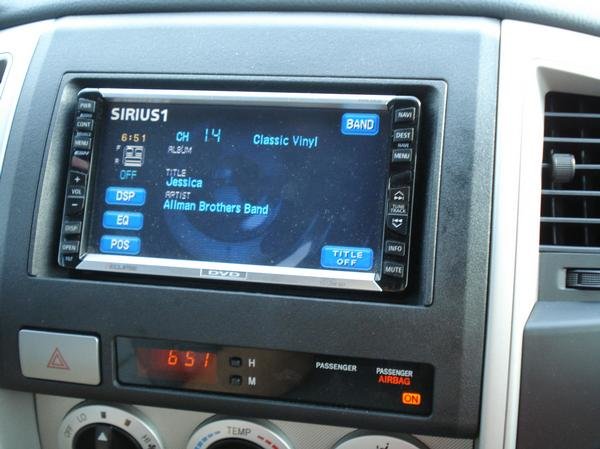

    I attached a photo here, this was from my 08 Tacoma, Airbag Light is normal. Will say On when there is someone in the passengers seat that's heavy enough.

    You're getting close!!

    Eclipse in 08 Tacoma.jpg

  17. May 21, 2012 at 7:24 PM
    #57
    CantSitStill

    CantSitStill [OP] Well-Known Member

    Joined:
    Feb 25, 2012
    Member:
    #73601
    Messages:
    1,029
    Gender:
    Male
    First Name:
    FTR
    CNY
    Thanks, D. Hopefully I can get back to it tomorrow. What a bitch re-pulling my RCAs from the back. Just gotta run one more for the sub and I'm ready to solder. Tips on the steering wheel controls???

  18. May 21, 2012 at 7:35 PM
    #58
    CantSitStill

    CantSitStill [OP] Well-Known Member

    Joined:
    Feb 25, 2012
    Member:
    #73601
    Messages:
    1,029
    Gender:
    Male
    First Name:
    FTR
    CNY

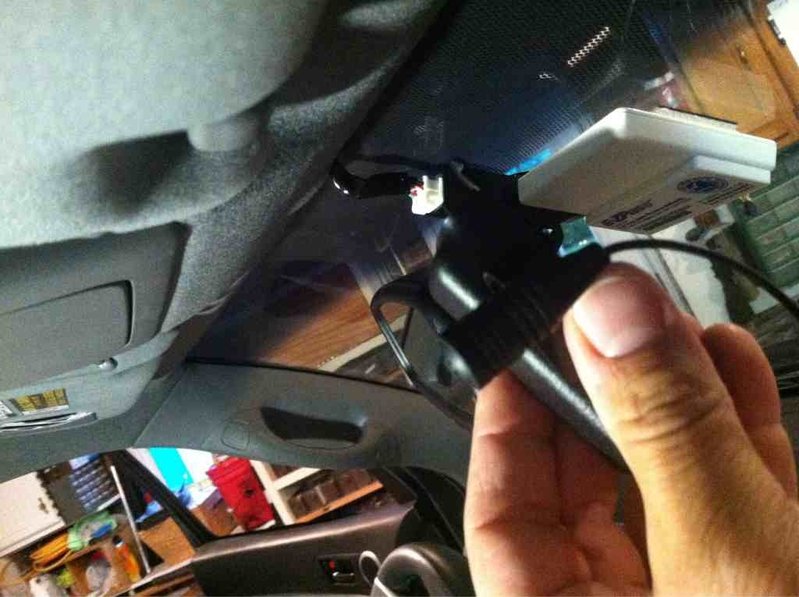

    Mic is going on the cover over the rear view.

    ImageUploadedByTapatalk1337653891.160285.jpgsince the glovebox was already out to remove the Cleensweep, I used this spot for the mic wire.

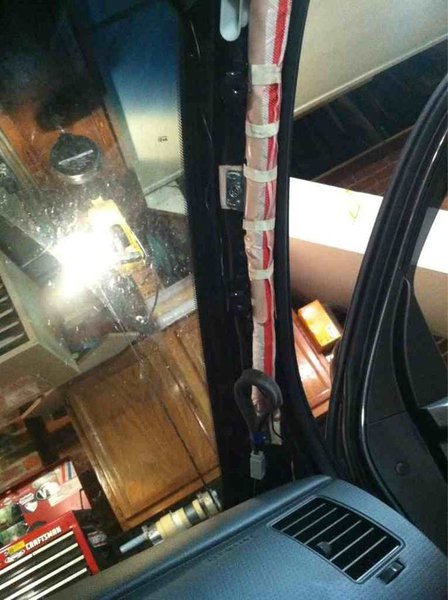

    ImageUploadedByTapatalk1337653996.981777.jpg. Do NOT attach to this!!! I just tucked the wire behind it.

    This will be pretty much invisible once the wires are all hidden.

  19. May 21, 2012 at 7:55 PM
    #59
    CrutchfieldDarren

    CrutchfieldDarren Well-Known Member Vendor

    Joined:
    Apr 27, 2012
    Member:
    #77733
    Messages:
    62
    Gender:
    Male
    First Name:
    Darren
    No doubt on the RCA's my friend, been there done that. Just don't ever try to put a remote start on a manual tranny Scion TC, i stayed scraped up from that thing for weeks, ha!

    Anywho, tips on the ASWC, sure! As most of you may know, the ASWC is an Auto-Learning/Programming SWC interface. Lately we have noticed that the ASWC is seeing a lot of the new Kenwood radio's as JVC. Because of this, sometimes you have to wire a 10K-12K ohm resistor in series with the Blue/Yellow SWC input on the Kenwood, and the Brown wire from the ASWC. This is Temporary, and would be removed after the auto detect stage. We have a list that Metra sent us some time back, and the KDC-x896 is not on it, but the 796 is, so chances are you will need a resistor.

    I included the resistors in your package just in case of this. If you need to do this, I suggest to wire the 9100 ohm (White, Brown, Red, Gold) and 2700 ohm (Red, Violet, Black, Brown, Brown) in series to create 11.8k. This will simply go in line between the Blue/Yellow from the radio, to the Brown from the ASWC.

    The first stage is the auto detect stage for the car, you will see some short flashes, then some long flashes, then it will pause for two seconds. Next is the radio detect stage, it will then either flash 5 times for JVC (someone grab the resistor), or 2 times for Kenwood. If it flashes 5 times, get the resistors and put them in line as mentioned above, then follow the step on the instructions for "if the ASWC has been installed before". This will reset it, and go back through the auto detect, this time because of the extra resistance, it will see the radio as a Kenwood.

    Link to ASWC programming for Toyota: http://contentdocs.installernet.com/documents/vehicle/10957.pdf

    BTW, if anyone is wondering, starting within the next few weeks, all the ASWC’s that we will be shipping will be including the resistor. You can also manually set the radio type as well, but it’s easier to just use the resistor like I mention above.

    :D

  20. May 22, 2012 at 5:10 AM
    #60
    CantSitStill

    CantSitStill [OP] Well-Known Member

    Joined:
    Feb 25, 2012
    Member:
    #73601
    Messages:
    1,029
    Gender:
    Male
    First Name:
    FTR
    CNY
    Darren, I think I may be ready to try a remote start.... maybe a fall project.
