Stuck in Miami Sand + tow hook question. (with pics)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by TAC1, Nov 11, 2012.

  1. Nov 11, 2012 at 5:50 PM
    #21
    TAC1

    TAC1 [OP] Well-Known Member

    Joined:
    May 13, 2011
    Member:
    #56594
    Messages:
    2,847
    Gender:
    Male
    First Name:
    Tac1
    Miami, FL
    Vehicle:
    2015 DCSB O/R 4WD
    Is the TRD hook better than this type if hook? Part #WAR13230. Also, this hook installs with the hook facing up. The TRD hook is sideways. I just finished turning down an offer of $55 for a TRD hook shipped to me in Miami but now I see they are different angles. Please explain if the TRD hook is that much better and I'll go for it! Sorry but this is new to me.
    Thanks!

  2. Nov 11, 2012 at 5:55 PM
    #22
    Monkeyboy

    Monkeyboy Well-Known Member

    Joined:
    Sep 16, 2011
    Member:
    #63637
    Messages:
    498
    Gender:
    Male
    Grand Junction, CO
    Vehicle:
    2012 AC TRD Sport
    In my opinion, the TRD hook is superior.

  3. Nov 11, 2012 at 5:59 PM
    #23
    KenLyns

    KenLyns 8.75" Third Member

    Joined:
    May 23, 2010
    Member:
    #37674
    Messages:
    29,364
    Gender:
    Male
    Belly of the Beast
    Vehicle:
    4x4 TRD Off-Road Full-Auto
    LED Headlights, Volant CAI, 32" Duratracs
    This is the Warn hook you looked at?

    [​IMG]

    As far as I know that is a generic part and doesn't line up with the holes on the Tacoma frame. You likely will have to drill new holes.

  4. Nov 11, 2012 at 6:02 PM
    #24
    Cape Codder

    Cape Codder Native Son

    Joined:
    Feb 20, 2010
    Member:
    #31714
    Messages:
    1,655
    Gender:
    Male
    First Name:
    Jack
    Hangin' Out in the Atlantic
    Vehicle:
    2010 TRD Sport 4x4 Access Cab 4.0L V6 Auto - Silverstreak Mica
    SOS Concepts Sliders waiting for POR-15 Rust Abatement (Spring 2016), OEM Silver Tube Steps 'til then OME 2.5" Suspension w/885 Coils & Dakars / LR UCA's w/SpecRide Bushings / Lifetime Alignment Wheeler's "Super Bump" Bump Stops Front & Rear / OME Carrier Bearing Drop / 2.5° Axle Shims (Eliminated Vibration) Moog Greaseable LCA Cam Bolts / ToyTech Sway Bar Relocate Kit / Stainless Steel Extended Brake Lines (Front & Rear) TIRES - LT275/70R17 (32.2") Firestone Destination A/T's (and Matching Spare) mounted on (5) 17”x8” (4.5” BS) Machined Aluminum Alloy, with Light Gunmetal Accents, Konig SixShooter Wheels with Hofmann Anthracite Adhesive Power Weights / McGard 65002 Chrome SplineDrive Lug Nuts / Cloned Schraeder EZ Sensor 33000 TPMS SNOW TIRES - Bridgestone Blizzak DM-V1 - P255/75-17 (32.1") mounted on Stock TRD Sport Wheels (5.5” BS) w/BORA 1" Wheel Spacers (to = 4.5” BS), Wheels Locks & OEM Lug Nuts Wheel Master 36" Stainless Steel Mesh Spare Tire Inflator/Checker attached to Rear Bumper / Spare Tire Lock TRD Skid Plate / Husky Mud Flaps / Redline Tuning Hood Struts / UltraGauge / Frame Hole Plugs / OEM Chrome Exhaust Tip Salex SLX102 - '05-'13 Tacoma GloveBox & Console Organizers Combo Set / GRID-IT (Console Cover Organizer) Color Matched SATOSHI Grill w/ Individual Letters Toyota Emblem (from ‘86 Toyota Land Cruiser) Hella Fogs on Elusive Elements Light Bar mounted behind Grill / Relocated Horns & Outside Temperature Sensor SilverStar zXe Headlights / SilverStar Fogs / Upper & Lower Color Matched Eyelids / LED's @ Dome, Maps, Lic Plate & 3rd Brake / 866 Foglight Lamps for Back-Up Lights WeatherTech Headlight & Foglight Protection / AutoBahnd RoadBlock (3M) Paint Protection System on Front End & Tailgate Avid Hitch Step Color Match Powdercoated / Avid LightBar Color Match Powdercoated / DIY Front Plate Holder mounted on AVID Light Bar (NO Bumper Holes) Emblems DeBadged / CBoy808's Silver OME EMU, Medium Gray Mall Rated, TRD Skid & Matte Black US Flag Decals SockMonkey Medium Gray Shadow Only Bedside, Door, Hood Scoop & Tailgate Decals DeBadged Leer 100LX Cap w/ Adventure Pkg including Thule 48” & 60” AeroBar Locking Removable Racks, Removable Front Window & Rear Door Remote Lock Charcoal/Blk Wet Okoles (front & rear) w/Front Seat Back Waterproof Zippered Pockets, Front Pistol Pockets & Seat Heaters / Drop Stop Seat Wedge Fillers 6 CD Changer w/SubWoofer (TRD Sport OEM) / BluLogic Hands Free (Blue Tooth) / Lutron Maestro Pico Remote Control for Driveway Floods Pro-Fit & Pro-Clip Device Holders for Cell Phone & GPS / Beltronics RX 65 Blue Detector / Garmin 885T GPS 30% Tint on Driver/Passenger Windows / WeatherTech Dark Front Window Deflectors / AutoMate AM-7 Alarm w/Remote Start WeatherTech FloorLiners (Front & Rear) / WeatherTech All Weather Mats (Over Front Liners) TRD "Offroad" Front Recovery Hook (Color Matched) / 2" x 30' & 3" x 30' Recovery Straps ELITE OffRoad 2" Receiver Hitch Shackle / Daystar Black Shackle Isolator / LifeLong Locks Class 5 Locking Hitch Pin Viair 00088 88P Portable Air Compressor / Rockford 12,000mah, 200/400 Amp, Portable Power Source & Mini Jump Starter Pop&Lock PL5305 Manual Tailgate Lock w/Color Matched Handle / Driver's Door Keytechniques Keyhole Cover OEM Bed Mat / 4 Extra Military Issue Bed "D" Rings Attached with Bed Bolts / 4 Extra Bed Rail Tiedowns & 2 Mini Tiedowns H3R Performance Halguard Halotron® 1 (Clean Agent) - HG250C 2.5lb Chrome Fire Extinguisher and Extreme Duty Quick Release Bracket (Mounted in Bed) H3R Performance Halguard Halotron® 1 (Clean Agent) - HG100C 1.4lb Chrome Fire Extinguisher (In Cab Back Door Pocket) H3R Performance MX500R - 5lb Dry Chemical Fire Extinguisher w/ Vehicle Mount (On Cab Back Floor, Not Yet Mounted in Bed) ResQMe GB0-RQMTWIN-O Orange Keychain Version of the Original LifeHammer (Hanging Within Reach in Cab) FogLight Anytime / Differential Breather / A/C Condensate Drain / Tailgate Hoseclamp Anti-Theft Mods Toyota Extra Care Platinum Vehicle Service Agreement (VSA) – 8 Year / 125,000 Miles TSB's: Transmission TSB / Blower Motor TSB / Steering Intermediate Shaft Bushing TSB 90L Accelerator Pedal D0L Recall / Driver & Passenger Seat Belts Recall / Inspect Wheels & Tires "BOB" Recall The “TW EMPTY UR WALLET MOD” and a Pile of Stuff Waitin' for Install
    I like the TRD Hook but haven't needed it. I comes Stock on the TRD "OffRoad"
    $55 is a good price
    Also look thru the link I posted to Mustangwilly's recover "Loop"
    You put a 3/4" "D" Shaped Shackle thru it

    EDIT: I paid about $86 for Hook, 2 Bolts, & Shipping

    EDIT: MustangWilly's


    CC

  5. Nov 11, 2012 at 6:54 PM
    #25
    mutilatedjak

    mutilatedjak n00b waffle

    Joined:
    Oct 16, 2011
    Member:
    #65291
    Messages:
    1,352
    Gender:
    Male
    WA
    Vehicle:
    11 DC SB TRD Sport 6spd
    BP-51s, Dakar leafs, ARB bumper, 4xinnovations rear HC, 3x trail camera, pure android, lightforce 170s, Dick Cepek 255 85s extreme terrain.
    I got a generic hook similar to the warn and it lined up. You just need longer bolts. But in any case i would still spend more money on the trd hook

  6. Nov 11, 2012 at 7:08 PM
    #26
    TAC1

    TAC1 [OP] Well-Known Member

    Joined:
    May 13, 2011
    Member:
    #56594
    Messages:
    2,847
    Gender:
    Male
    First Name:
    Tac1
    Miami, FL
    Vehicle:
    2015 DCSB O/R 4WD
    Where did you get yours at mutilatedjak?

  7. Nov 11, 2012 at 7:24 PM
    #27
    mutilatedjak

    mutilatedjak n00b waffle

    Joined:
    Oct 16, 2011
    Member:
    #65291
    Messages:
    1,352
    Gender:
    Male
    WA
    Vehicle:
    11 DC SB TRD Sport 6spd
    BP-51s, Dakar leafs, ARB bumper, 4xinnovations rear HC, 3x trail camera, pure android, lightforce 170s, Dick Cepek 255 85s extreme terrain.

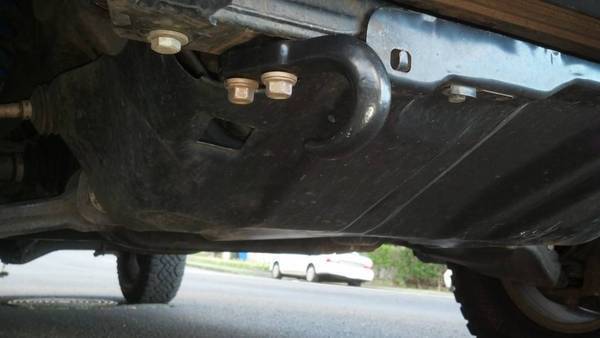

    [​IMG]

    and the actual part is this one...
    http://www.4wheelparts.com/Winches-...8&t_s=190&t_pt=4007&t_pl=102426&t_pn=TOW63030

    only got it because it was cheap, temporary, and if i needed to use my snatch block, I needed some where to attach my winch line. I ordered the TRD OR hook from a member on here, I like the TRD one better because it is horizontal instead of vertical, it has little nubs at the end of the hook to help hold on the tow strap or whatever, and its OEM. Plus the horizontal orientation of the OEM hook wont interfere as much as the vertical one I have on there now. I know the hook is beefy, but it sticks out more than the OEM one, and I just wouldnt want to snag it on something.

    ...and it cant mount facing up because of the stone guard on my ARB bumper. Some hooks come with a little retainer strap piece of metal, which would help, or just keep tension on your line, or rig something to keep it from falling until its under load.

  8. May 6, 2013 at 12:36 PM
    #28
    skiomax

    skiomax Pro skier

    Joined:
    Oct 20, 2012
    Member:
    #89411
    Messages:
    188
    Gender:
    Male
    Ottawa, Ontario
    Vehicle:
    2013 Tacoma TDR Sport DC
    Extang cover Thule roof rack pop & Lock Short antena Weathertech floor liner TRD skid plate Leather Seat package
    Do they make an OEM TRD Hook one for the Driver side also?

  9. May 7, 2013 at 5:38 AM
    #29
    TAC1

    TAC1 [OP] Well-Known Member

    Joined:
    May 13, 2011
    Member:
    #56594
    Messages:
    2,847
    Gender:
    Male
    First Name:
    Tac1
    Miami, FL
    Vehicle:
    2015 DCSB O/R 4WD
    No. I read somewhere that the drivers side is just there for when the vehicle is being transported, it can be secured to the truck that's carrying it. I don't know if ghat's entirely accurate.

  10. May 7, 2013 at 10:01 AM
    #30
    skiomax

    skiomax Pro skier

    Joined:
    Oct 20, 2012
    Member:
    #89411
    Messages:
    188
    Gender:
    Male
    Ottawa, Ontario
    Vehicle:
    2013 Tacoma TDR Sport DC
    Extang cover Thule roof rack pop & Lock Short antena Weathertech floor liner TRD skid plate Leather Seat package
    I've pull a few thing with the driver side loop... but I was wondering if the TDR hook was also able to be mounted on the driver side....

  11. May 8, 2013 at 4:36 AM
    #31
    TAC1

    TAC1 [OP] Well-Known Member

    Joined:
    May 13, 2011
    Member:
    #56594
    Messages:
    2,847
    Gender:
    Male
    First Name:
    Tac1
    Miami, FL
    Vehicle:
    2015 DCSB O/R 4WD
    I'll take a closer look at the hook today. I'll see if it can bolt up to the drivers side.

    Last edited: May 8, 2013
  12. May 8, 2013 at 6:19 AM
    #32
    PSJ

    PSJ Prerunners Work

    Joined:
    Nov 9, 2008
    Member:
    #10620
    Messages:
    1,341
    Gender:
    Male
    Sebastian Inlet
    Vehicle:
    09 Access Cab Prerunner
    Rear Leaf spring TSB, Bilstein 5100's all around w/ front set at 1.75", 265/75R/16 Mickey Thompson Baja STZ's, Trailer hitch w/custom wiring, AFE drop in dry filter, Rear Diff breather mod, Debadged truck, customized stock TRD wheel center caps, added factory fog lights, bed mat, door sills, tinted windows
    That is correct- it may look "solid" being welded in place, and many guys have used it as a recovery point with no issues, but the manual states in an emergency situation use the Towing eyelet-(non TRD) or the Towing hook on the Off Road packgage located on the passenger side. :cool:

  13. May 8, 2013 at 6:45 AM
    #33
    vicali

    vicali Touch my camera through the fence

    Joined:
    May 20, 2010
    Member:
    #37503
    Messages:
    2,674
    Gender:
    Male
    First Name:
    mike
    Kam,BC
    Vehicle:
    2017 TRD Sport 1D6

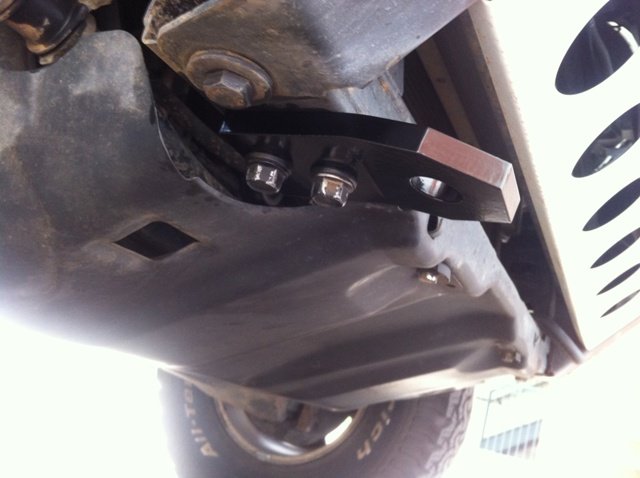

    I opened up the factory hanger enough to fit in a 3/4 Shackle;
    [​IMG]

    it will do in an emergency but I'm searching for the Off road hook in the meantime.

  14. May 9, 2013 at 6:22 AM
    #34
    TAC1

    TAC1 [OP] Well-Known Member

    Joined:
    May 13, 2011
    Member:
    #56594
    Messages:
    2,847
    Gender:
    Male
    First Name:
    Tac1
    Miami, FL
    Vehicle:
    2015 DCSB O/R 4WD
    Thank you for verifying that PSJ. I wasn't sure.

  15. May 10, 2013 at 5:06 PM
    #35
    skiomax

    skiomax Pro skier

    Joined:
    Oct 20, 2012
    Member:
    #89411
    Messages:
    188
    Gender:
    Male
    Ottawa, Ontario
    Vehicle:
    2013 Tacoma TDR Sport DC
    Extang cover Thule roof rack pop & Lock Short antena Weathertech floor liner TRD skid plate Leather Seat package
    the TRD hook is 180$ in Canada plus 15$ for the bolts... wow crazy

  16. May 10, 2013 at 6:12 PM
    #36
    92LandCruiser

    92LandCruiser Well-Known Member

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    8,320
    Gender:
    Male
    Nevada
    Vehicle:
    80 series Land Cruiser
    Cummins, tons, 40s
