Stumped on wiring a bug deflector with led lights

Discussion in '3rd Gen. Tacomas (2016-2023)' started by CornerBoy89, Nov 29, 2024 at 3:35 PM.

  1. Nov 29, 2024 at 3:35 PM
    #1
    CornerBoy89

    CornerBoy89 [OP] New Member

    Joined:
    Apr 19, 2022
    Member:
    #395387
    Messages:
    4
    Gender:
    Male
    First Name:
    Will
    Vehicle:
    2018 Quicksand Tacoma SR5 Crew Cab w/6 foot bed

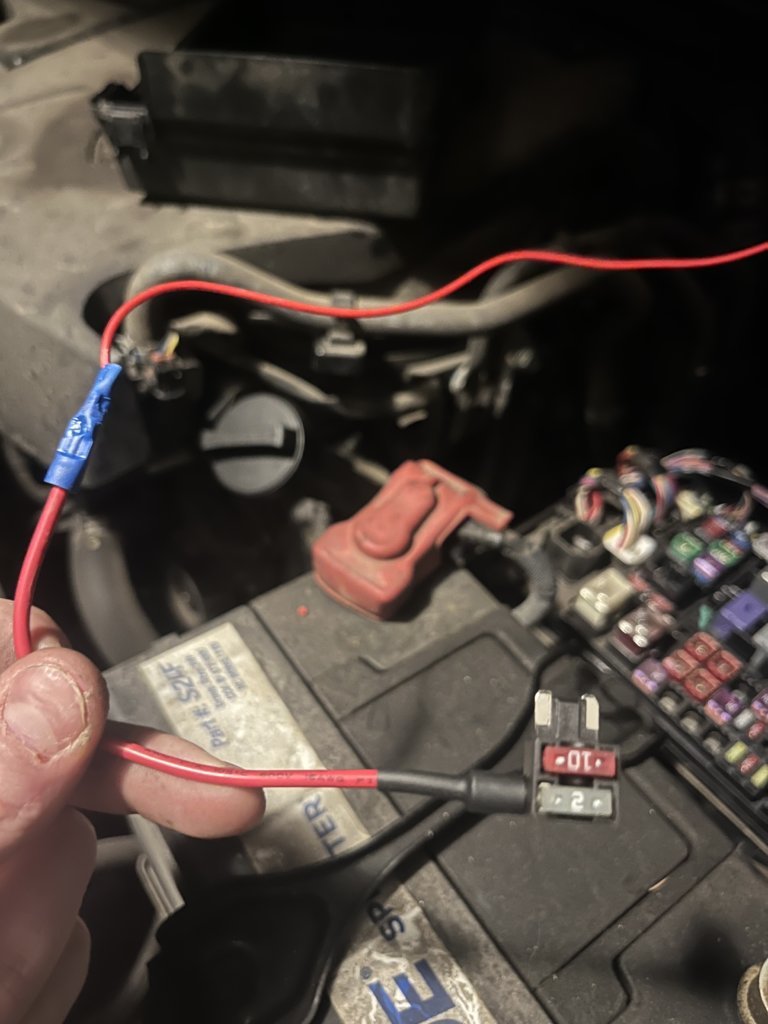

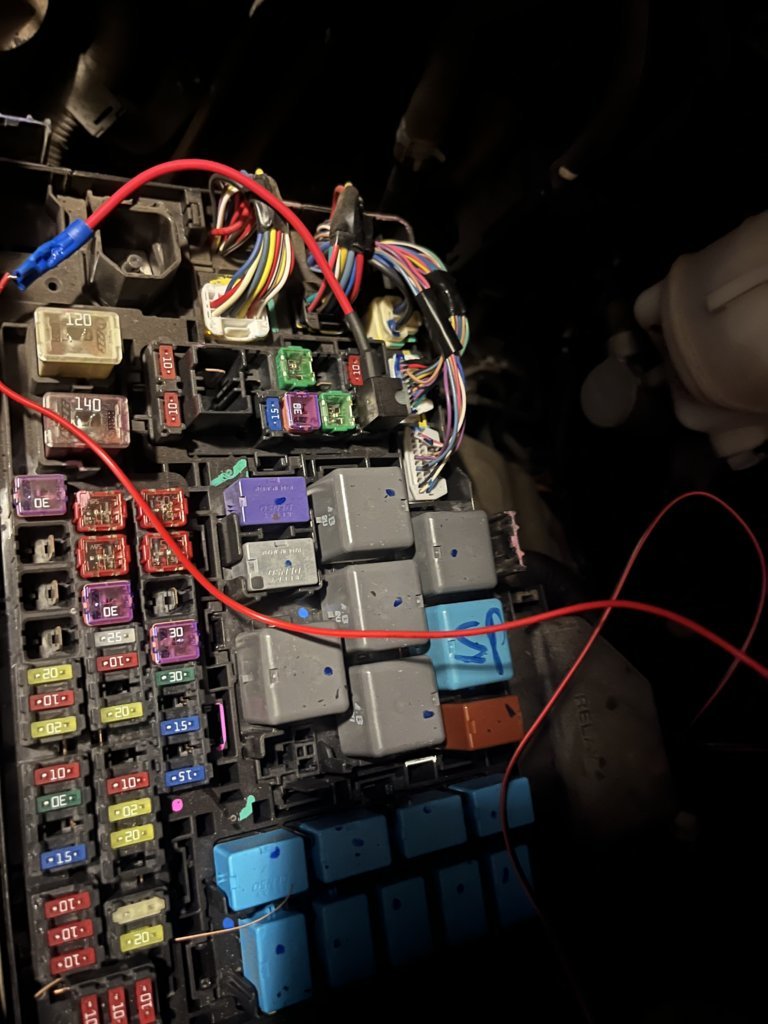

    I put an avs lightshield bug deflector on my truck that has a little dinky led light bar built in. I am trying to power it using a fuse tap aka add-a-fuse to tap into the under the hood fuse box. I have located what i believe to the fuse for the right headlight/high beam and plugged into that and then grounded the black wire to a bolt but still have zero power to the light bar. I also tried a few other fuses and just getting nothing. Has anyone done anything similar to what I’m trying to do that could offer some advice?

  2. Nov 29, 2024 at 3:46 PM
    #2
    CornerBoy89

    CornerBoy89 [OP] New Member

    Joined:
    Apr 19, 2022
    Member:
    #395387
    Messages:
    4
    Gender:
    Male
    First Name:
    Will
    Vehicle:
    2018 Quicksand Tacoma SR5 Crew Cab w/6 foot bed
  3. Nov 29, 2024 at 3:54 PM
    #3
    Veet-88

    Veet-88 Well-Known Member

    Joined:
    May 21, 2015
    Member:
    #155792
    Messages:
    1,193
    Gender:
    Male
    First Name:
    Ryan
    Vehicle:
    18 Tacoma DCLB sport
    That crimp job looks right terrible id start there.

    To add to that did you try just wiring it direct to see if it even works?

    Last edited: Nov 29, 2024 at 4:03 PM
    Willy Lump Lump, jmneill and Chew like this.
  4. Nov 29, 2024 at 4:00 PM
    #4
    OpeCity

    OpeCity Well-Known Member

    Joined:
    Feb 28, 2021
    Member:
    #357705
    Messages:
    2,507
    Long Beach, CA
    Does the fuse tap sit all the way into the fuse holder? They often aren’t deep enough

  5. Nov 29, 2024 at 4:28 PM
    #5
    Greg-tacoma

    Greg-tacoma Well-Known Member

    Joined:
    Dec 19, 2020
    Member:
    #350088
    Messages:
    932
    Gender:
    Male
    First Name:
    Greg
    Vehicle:
    2016 Black 4cyl 4wd
    Bed cover, soon bug deflector, halo interior lights and backup
    Where is the ground connected. Touch the wire to the battery and it should light. If not it’s either the red wire or you are missing a ground.

    Chew likes this.
  6. Nov 29, 2024 at 6:29 PM
    #6
    Tacomike18

    Tacomike18 Well-Known Member

    Joined:
    Oct 28, 2018
    Member:
    #270886
    Messages:
    1,990
    First Name:
    J
    Vehicle:
    2018
    Just asking, if you tap into the high beam and you want the light to turn on the bug deflector you have to turn on the high beam. Did you turn the high beam switch on because in the picture the low beam is not on so the high beam won’t turn on.

    Chew likes this.
  7. Nov 29, 2024 at 11:52 PM
    #7
    RIX TUX

    RIX TUX no ducks given

    Joined:
    Nov 16, 2021
    Member:
    #382343
    Messages:
    5,002
    Gender:
    Male
    Vehicle:
    2022 TRD OR DCSB 4WD..66 MUSTANG V8
  8. Nov 30, 2024 at 12:39 AM
    #8
    MGMDesertTaco

    MGMDesertTaco Come on, live a little...

    Joined:
    Jan 30, 2021
    Member:
    #354573
    Messages:
    8,254
    Gender:
    Male
    What's your ground wire connected to? Can you ground to the drivers front fender bolt in the engine bay? What's the amperage requirement for the small light bar? You'll need to know the correct amperage requirement to pick the appropriately rated fuse slot.


    The fuse panel under the dash is easier. Try the 5A panel or 10A ignition fuses. 23:14 mark in video for reference.

    https://www.youtube.com/watch?v=DyN8cezu00o
