Sub box built, time to get moving with the rest.

Discussion in 'Audio & Video' started by adrenalnjunky, Aug 23, 2014.

  1. Aug 23, 2014 at 9:31 PM
    #1
    adrenalnjunky

    adrenalnjunky [OP] Well-Known Member

    Joined:
    Aug 8, 2014
    Member:
    #135728
    Messages:
    1,251
    Gender:
    Male
    First Name:
    Chris
    West Monroe, Louisiana
    Vehicle:
    07 PreRunner SR5 DCSB
    billie 5100's front @ .85"
    Planning a decent little system, without going way overboard. Trying to use as much old school (pre 2005) stuff as I can, since I've seemed to become a collector.

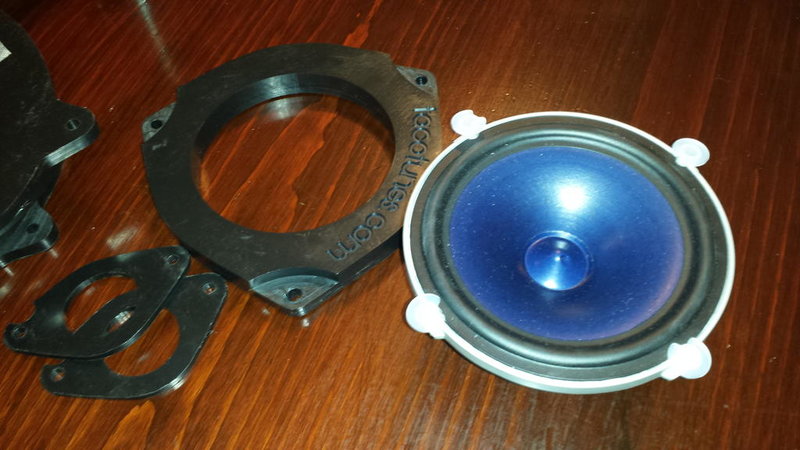

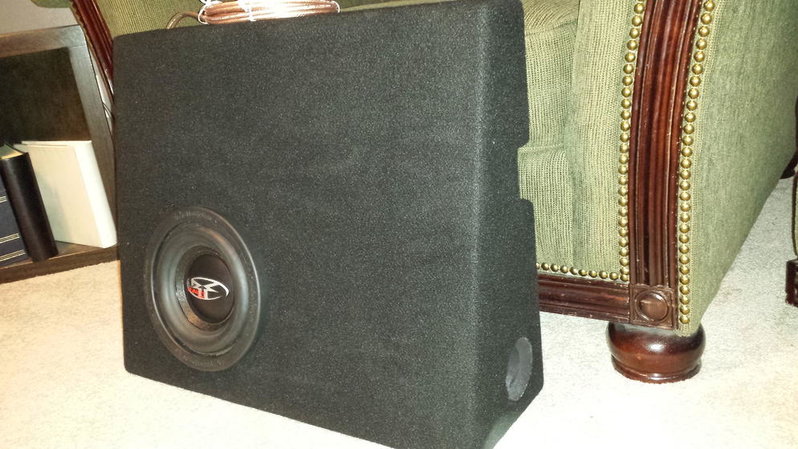

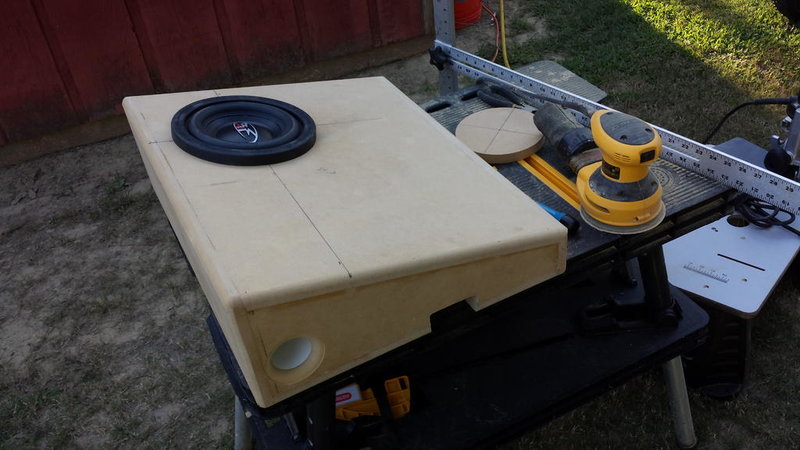

    Little progress made tonight, got everything buttoned up on the box - I'll get it on the test bench tomorrow just to run through its paces. Also got the Alpine Type X mids and Fosgate FNQ tweets fit into the ********* adapters.

    ~50 feet of Esoteric RCA's are run, and currently coiled up on the floorboard. Time to pull the seats and carpet to get everything run properly. 1/0 gauge power kit going in next.


    Last edited: Aug 23, 2014
  2. Aug 24, 2014 at 4:36 AM
    #2
    ike3000

    ike3000 Well-Known Member

    Joined:
    Apr 27, 2013
    Member:
    #103001
    Messages:
    307
    Gender:
    Male
    nice work on the box!

  3. Aug 24, 2014 at 7:44 AM
    #3
    adrenalnjunky

    adrenalnjunky [OP] Well-Known Member

    Joined:
    Aug 8, 2014
    Member:
    #135728
    Messages:
    1,251
    Gender:
    Male
    First Name:
    Chris
    West Monroe, Louisiana
    Vehicle:
    07 PreRunner SR5 DCSB
    billie 5100's front @ .85"
    Thanks - on paper (and the box modeling software) that little HX2 is going to sound pretty solid - tuned around 39hz, with a nice output curve up to about 80hz. I'm not looking for wall shaking output - but I want to feel the low end on a lot of different styles of music.

    I almost feel guilty - I bought the ********* adapters, cause they were cheaper than sourcing the plastic, and my time involved to pull the doors apart and make them myself. I did make sure to make templates of them so I can knock out more in MDF or plastic quickly if I need to, without taking my truck apart to do it.

  4. Aug 26, 2014 at 11:31 AM
    #4
    MackAttack

    MackAttack Nugget

    Joined:
    Feb 2, 2013
    Member:
    #96718
    Messages:
    27
    Gender:
    Male
    First Name:
    Mackenzie
    San Diego
    Vehicle:
    2011 SR5 Sport
    3" ProComp lift, URD TCAI, 3" custom exhaust, Train horn, siren, HID head lights, TRD Shorty antenna, blacked out badges, Full JL audio system with 2 10" Subs.
    what amp are you running it all with??

  5. Aug 26, 2014 at 11:51 AM
    #5
    adrenalnjunky

    adrenalnjunky [OP] Well-Known Member

    Joined:
    Aug 8, 2014
    Member:
    #135728
    Messages:
    1,251
    Gender:
    Male
    First Name:
    Chris
    West Monroe, Louisiana
    Vehicle:
    07 PreRunner SR5 DCSB
    billie 5100's front @ .85"
    Going to be using a JL audio XD700/5 to start. 4 channel section run to each door, and the mono channel to the sub. If I decide to go active on the front stage, I'll add either a 200/2 for the rear doors, or get the 600/6 for mids/highs, and and evaluate if i think I need a 300/1 for sub, or bump up to the 600/1.

    Unless something changes my mind. I told my guy to go ahead and order the 700/5 at least for now.

  6. Aug 26, 2014 at 2:16 PM
    #6
    Aw9d

    Aw9d That one guy

    Joined:
    Nov 7, 2011
    Member:
    #66635
    Messages:
    18,588
    Gender:
    Male
    Az
    Very clean looking box you made! :thumbsup:

  7. Aug 26, 2014 at 7:03 PM
    #7
    adrenalnjunky

    adrenalnjunky [OP] Well-Known Member

    Joined:
    Aug 8, 2014
    Member:
    #135728
    Messages:
    1,251
    Gender:
    Male
    First Name:
    Chris
    West Monroe, Louisiana
    Vehicle:
    07 PreRunner SR5 DCSB
    billie 5100's front @ .85"
    Thanks - I had my port diameter entered in wrong in my modeling program, careless mistake. Good news is the port is too long - so I'll fix it down the road if I don't like how it sounds in the truck.

  8. Apr 5, 2015 at 1:30 PM
    #8
    gearcruncher

    gearcruncher Well-Known Member

    Joined:
    Nov 1, 2012
    Member:
    #90305
    Messages:
    5,559
    Gender:
    Male
    First Name:
    Canadain bumper technician
    Great white North 51.0333° N, 93.8333° W
    Vehicle:
    2010.TRD.SportDCLB4x4Limited leather package
    TRD Sport Rally -5 speed automatic Limited ,Factory heated leather seats ,chrome package,Super white with front windows tinted to 35 % Dick Cepek DC-2 wheels Summer tires - Good year silent armor P265/65R17 Winter tires - Good year P265/65R17 Ultra Ice studded Illuminated 4x4 switch TRD 3rd brake light cover ($20) TRD seat belt shoulder protectors (5). ($50) TRD ...B pillar emblems ($20) TRD rear slider sticker with devil horns ( $6) TRD summer floor matts ($60) TRD steering wheel emblem ($20) TRD floor pedals .($95) TRD shorty antenna ($14) TRD front Windshield emblems ($17) TRD head pillows .($60) TRD head rest protectors TRD door scuff protection $20 TRD floor matt emblems ($40) TRD tow plug emblem . ($40) TRD cigarette lighter with LED.($35) TRD tissue dispenser ($12) TRD front bezel emblems ($9) TRD door emblems ($6) TRD lanyards($9) TRD lisence plates with TRD bolts($50) TRD fender emblems TRD center caps Part Number:PT904-35070-CC ($80) TRD cd
    Thats some amazing work . Got any diagrams on how to build it ? I am after a similar ser up
