Subwoofer installation confusion

Discussion in '3rd Gen. Tacomas (2016+)' started by snipergma447, Jan 17, 2021.

  1. Jan 17, 2021 at 6:06 PM
    #1
    snipergma447

    snipergma447 [OP] Member

    Joined:
    May 11, 2020
    Member:
    #327719
    Messages:
    5
    Gender:
    Male
    Vehicle:
    2018 Toyota Tacoma SR Utility Package
    245 K02s, removed valance panel, and a 9' lightbar on the grille

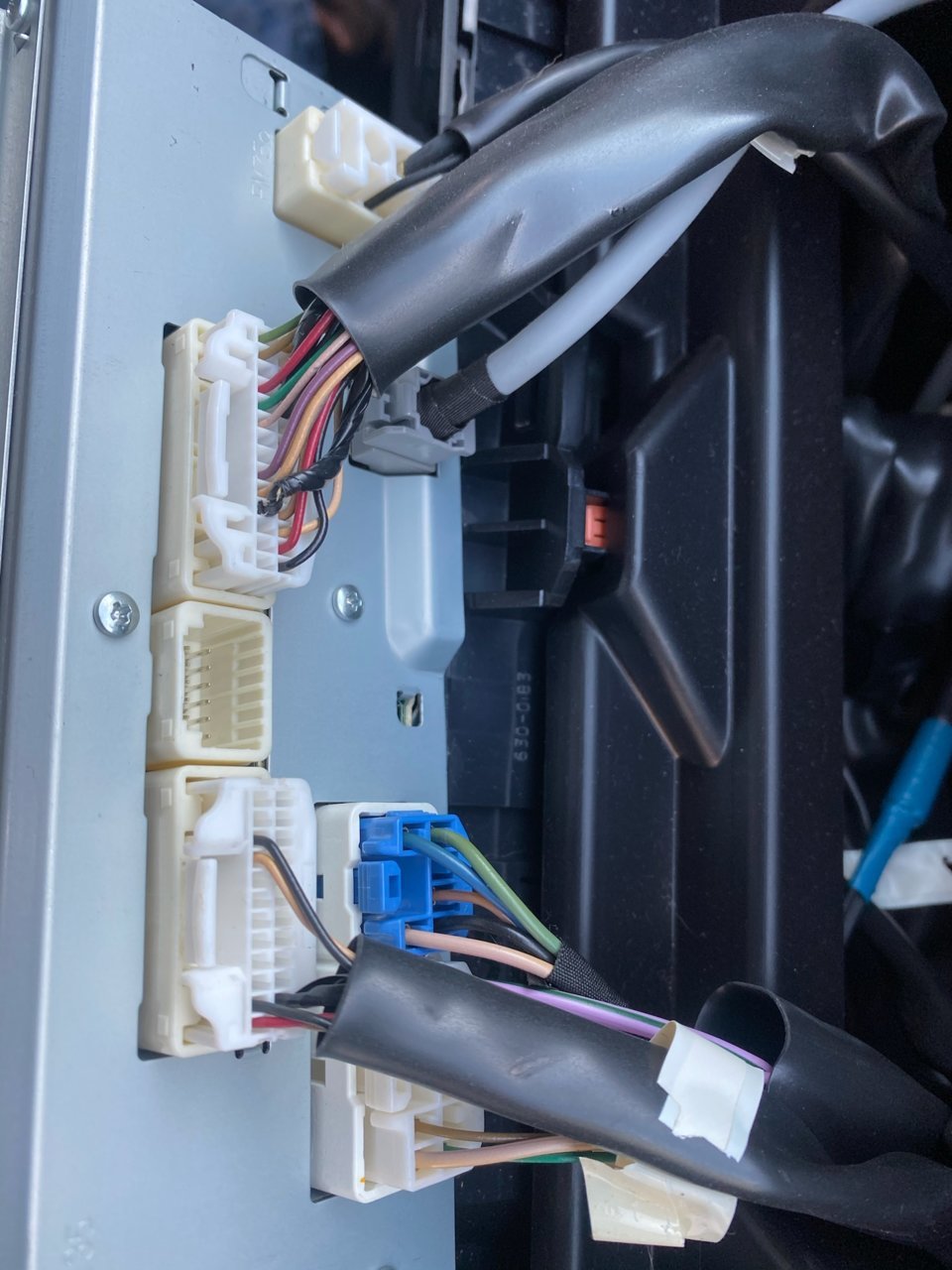

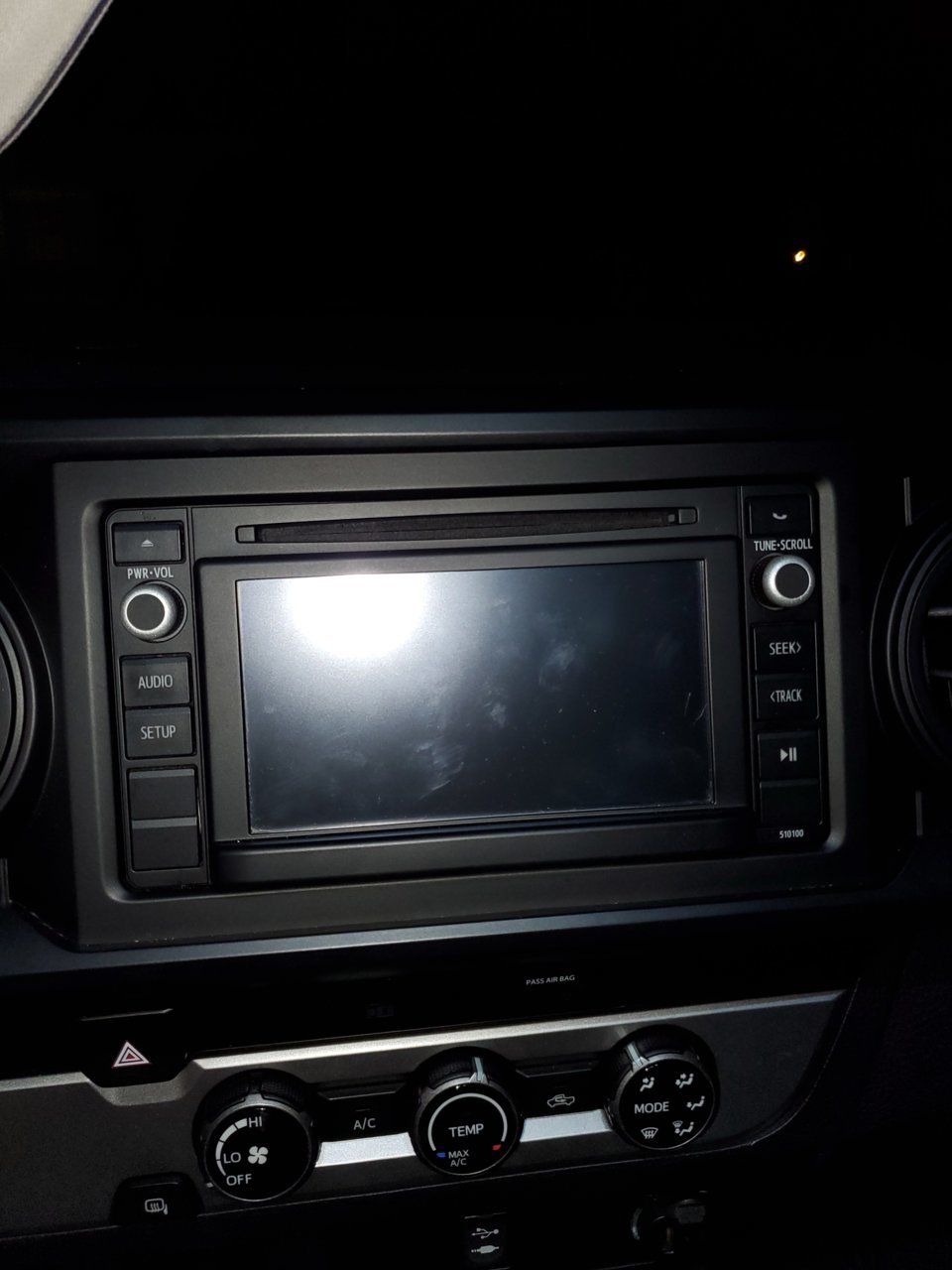

    So I have a 2018 sr tacoma(utilitycab) with the most basic entune audio head unit. I have a subwoofer and amp im installing but can't find any wiring diagram define with wires are which, and which wires to splice into. Does anybody know which wires to splice into?


  2. Jan 17, 2021 at 6:07 PM
    #2
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    1,636
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    I think we might need a bit more specific information to help you?

    I might post “So I got married and had two kids but now my wife is pissed off all the time, is there a book I should read?”

    5465 and Jpalafox like this.
  3. Jan 17, 2021 at 6:10 PM
    #3
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    1,636
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    Some basics. Most amps have line level inputs (rca connector) vs high level inputs (speaker wire). Most amps have a blue remote turn on lead to tell them to wake up. And every amp needs power and ground.

    Subwoofer is usually just + and - but sometimes multiple voice coils which can have more complicated wiring depending on the specific amp. Also can do reverse phase if there is a specific reason to do so (time alignment) but mostly that might get corrected before amplification

  4. Jan 17, 2021 at 6:10 PM
    #4
    snipergma447

    snipergma447 [OP] Member

    Joined:
    May 11, 2020
    Member:
    #327719
    Messages:
    5
    Gender:
    Male
    Vehicle:
    2018 Toyota Tacoma SR Utility Package
    245 K02s, removed valance panel, and a 9' lightbar on the grille
    What information do you need? I have a line out converter i just need to know how to wire it to my radio, so I need to know which wires to hook to which

  5. Jan 17, 2021 at 6:17 PM
    #5
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    1,636
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT

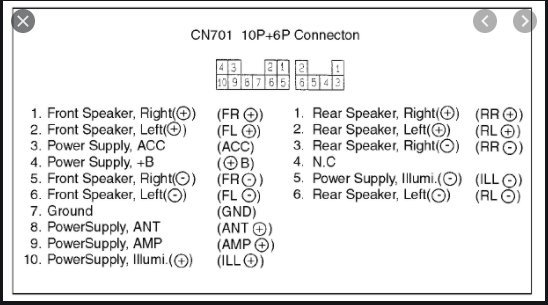

    Does this help?


  6. Jan 17, 2021 at 6:25 PM
    #6
    mchertel

    mchertel Well-Known Member

    Joined:
    May 30, 2020
    Member:
    #329878
    Messages:
    410
    Gender:
    Male
    First Name:
    Mark
    Colorado Springs CO
    Vehicle:
    2020 Tacoma Off-road
    Toytec 2 inch boss lift

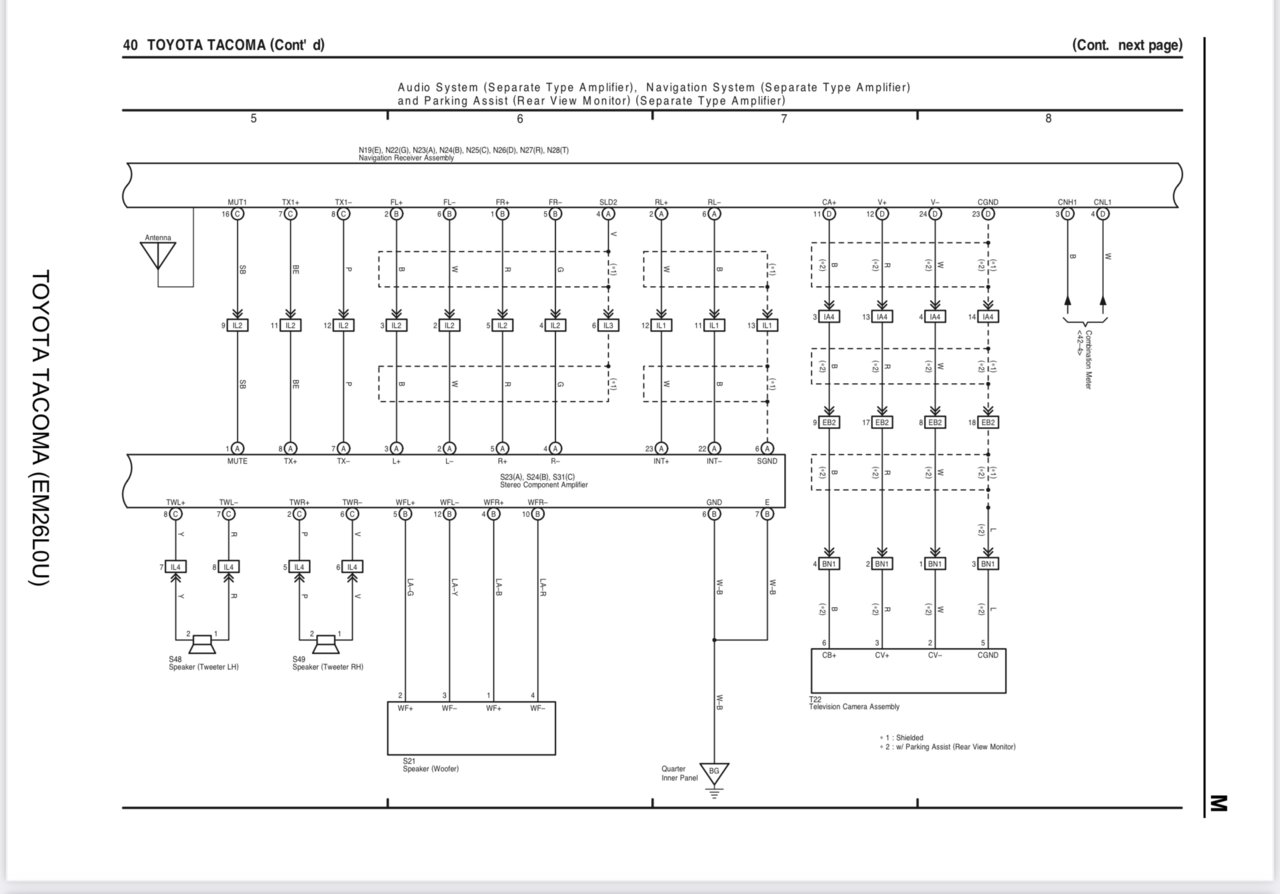

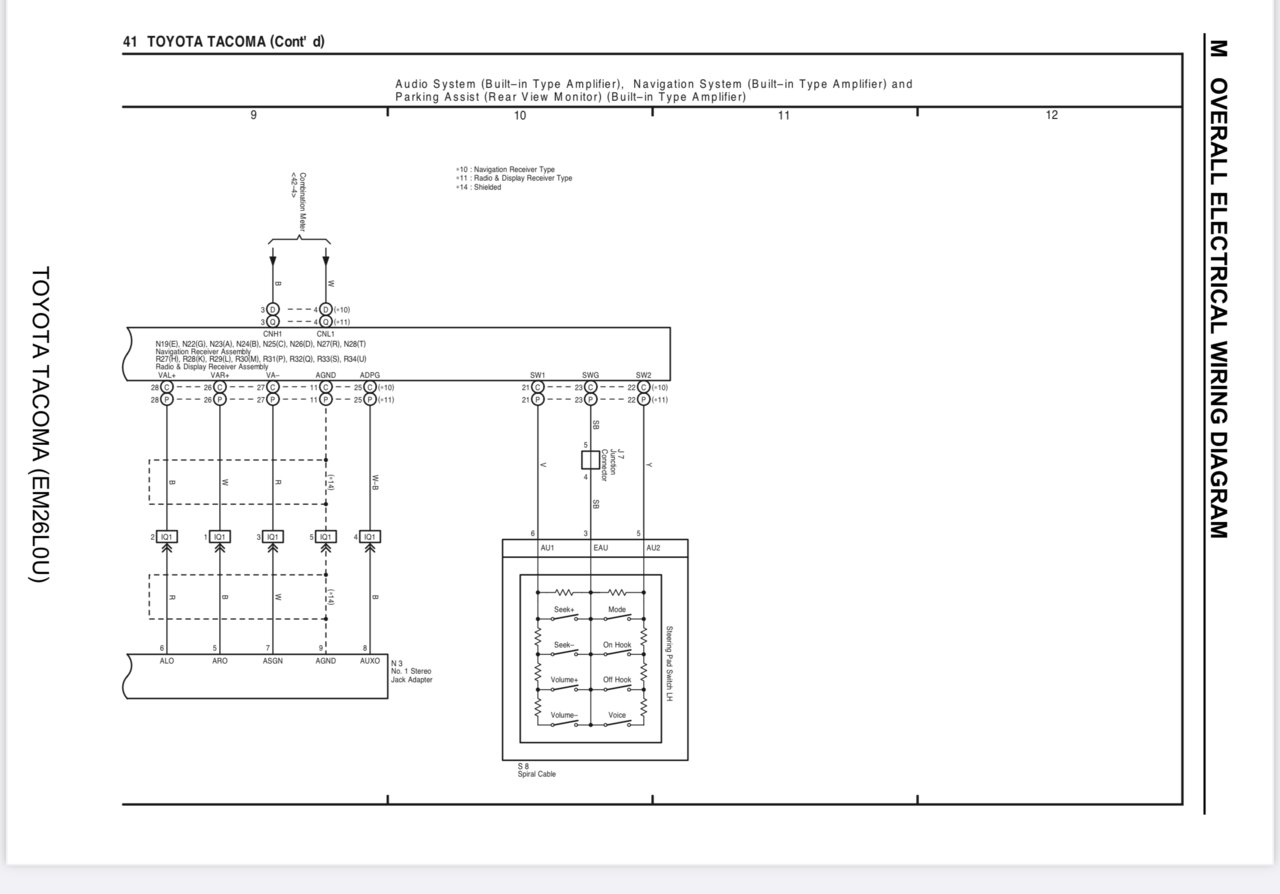

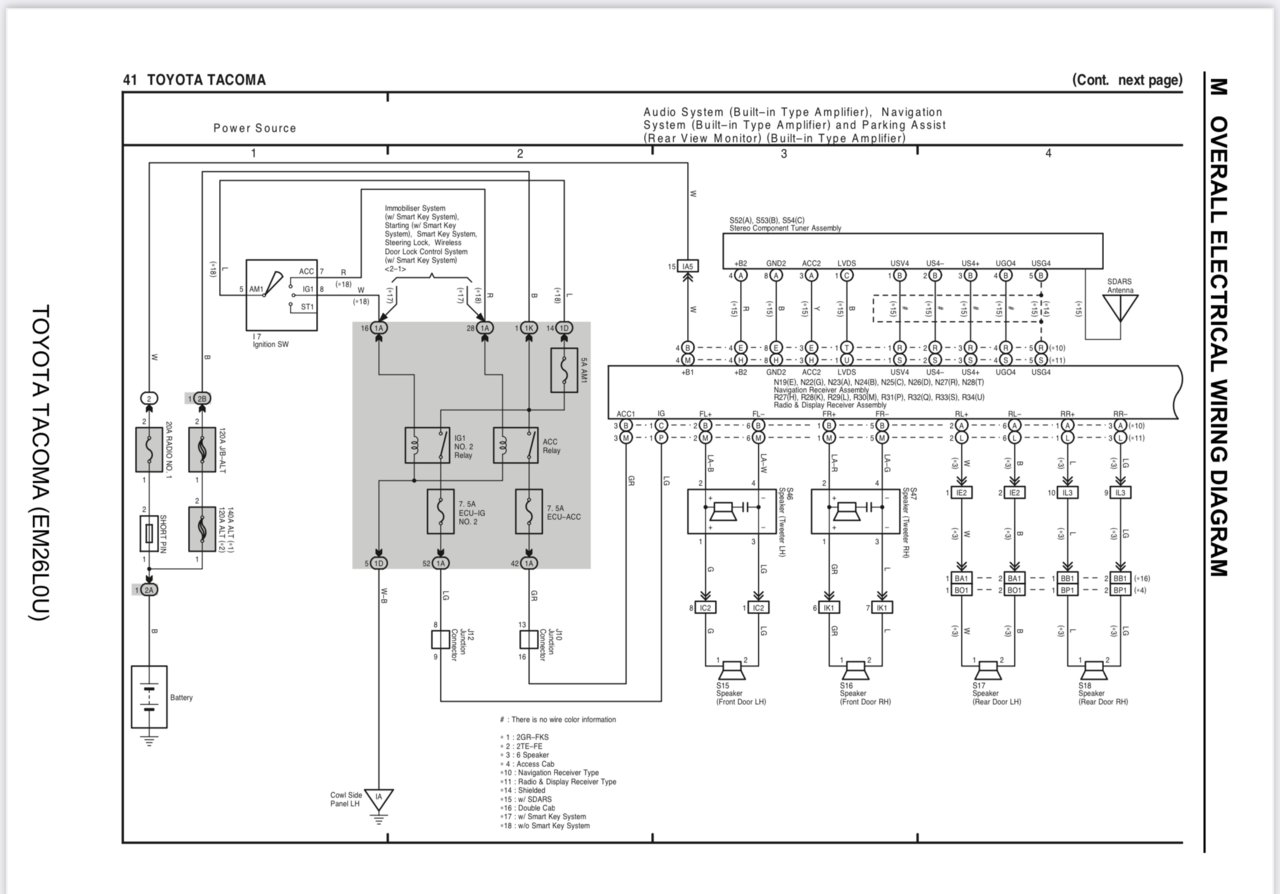

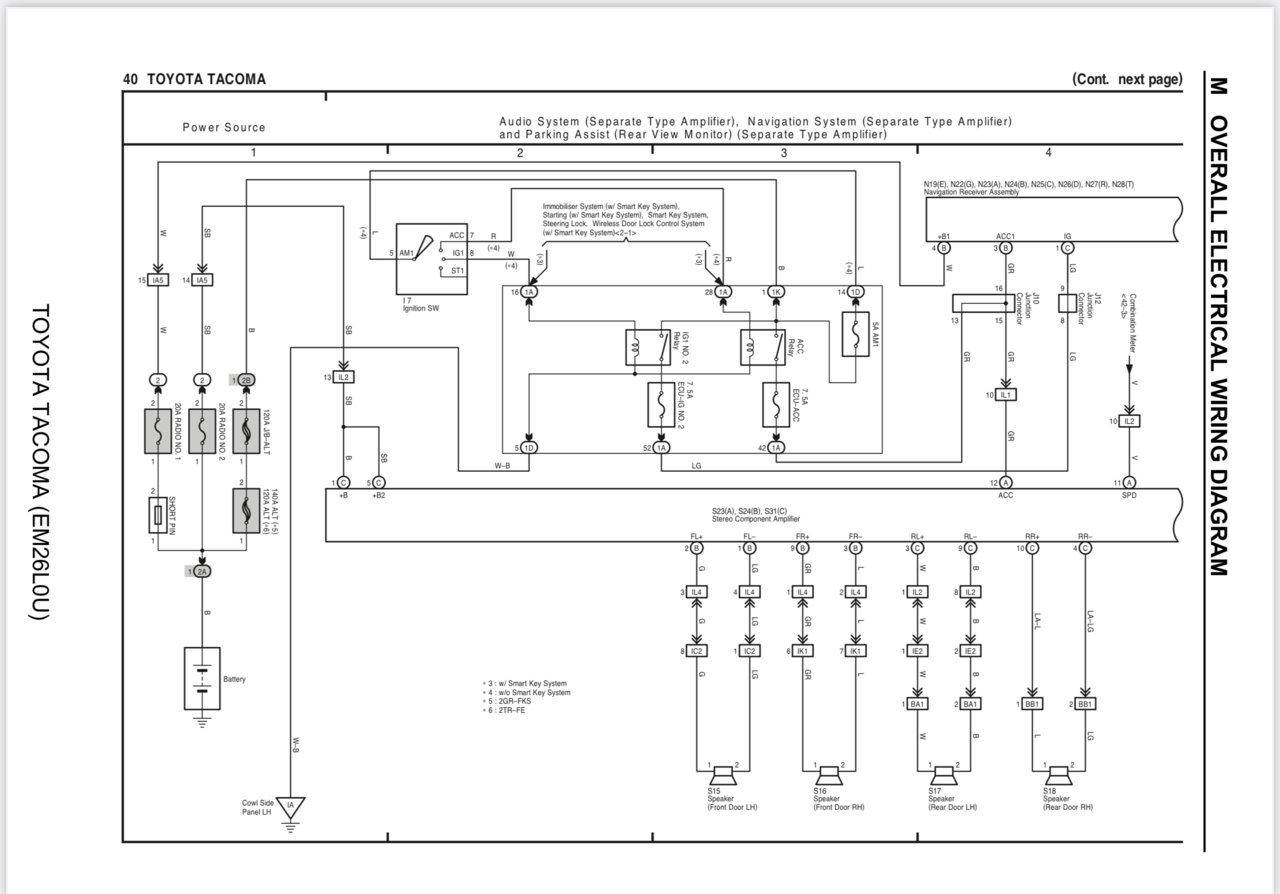

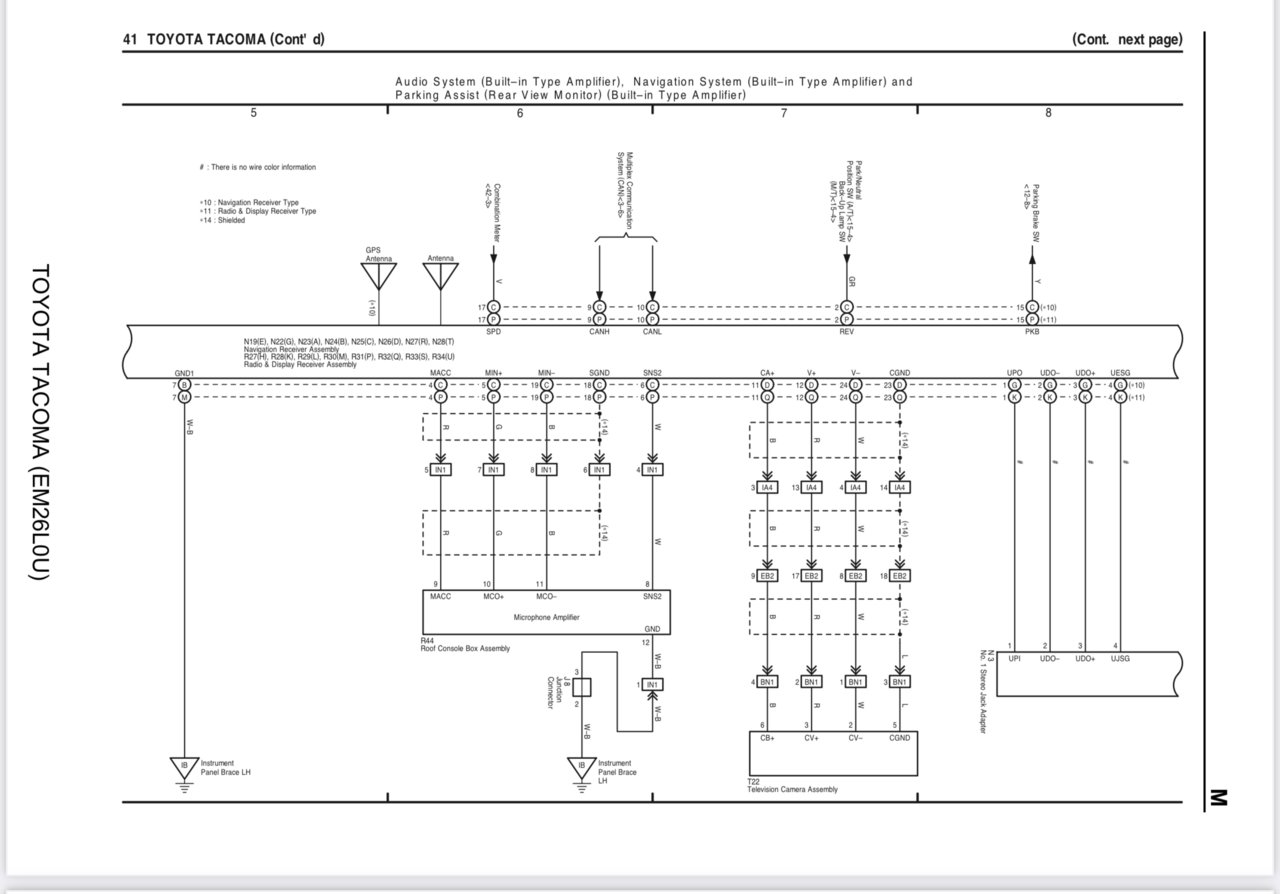

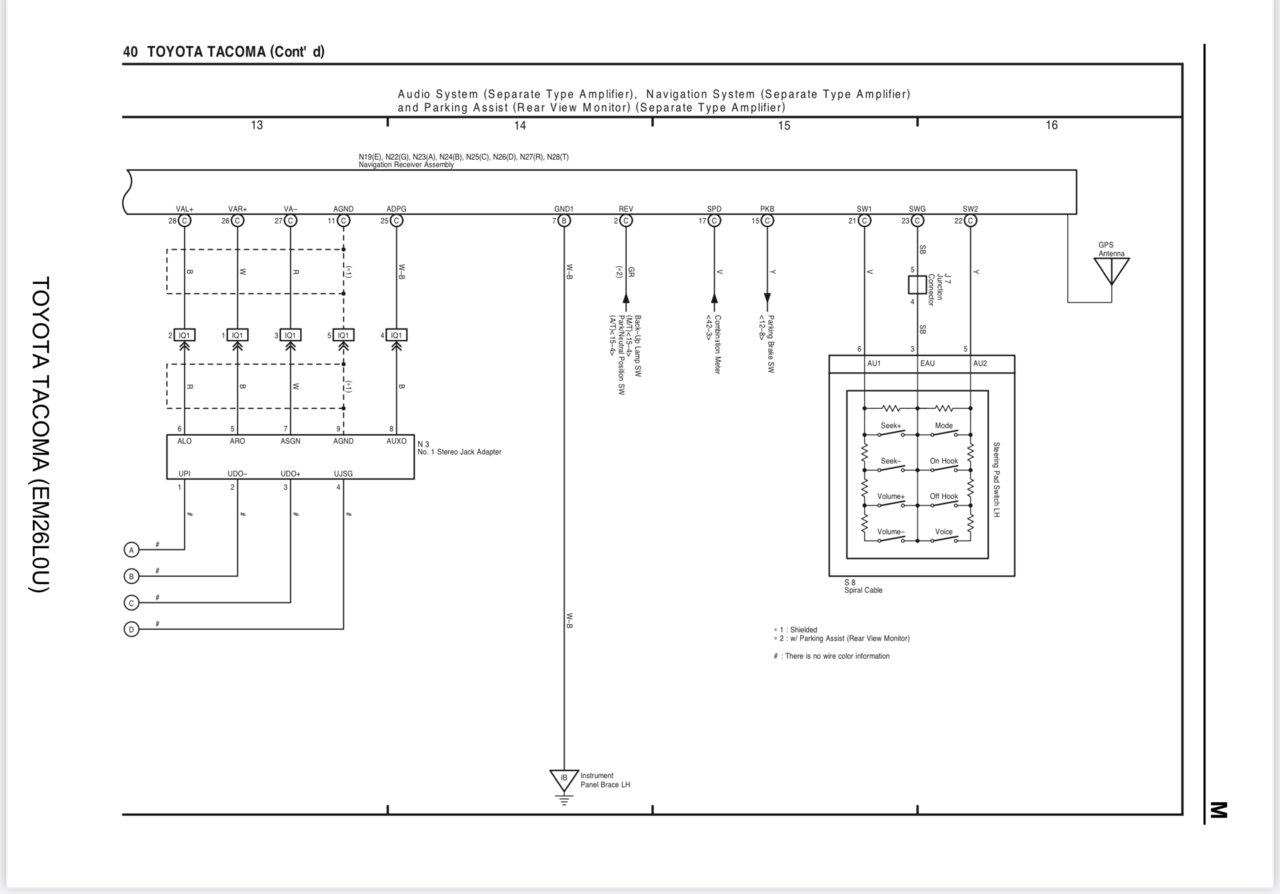

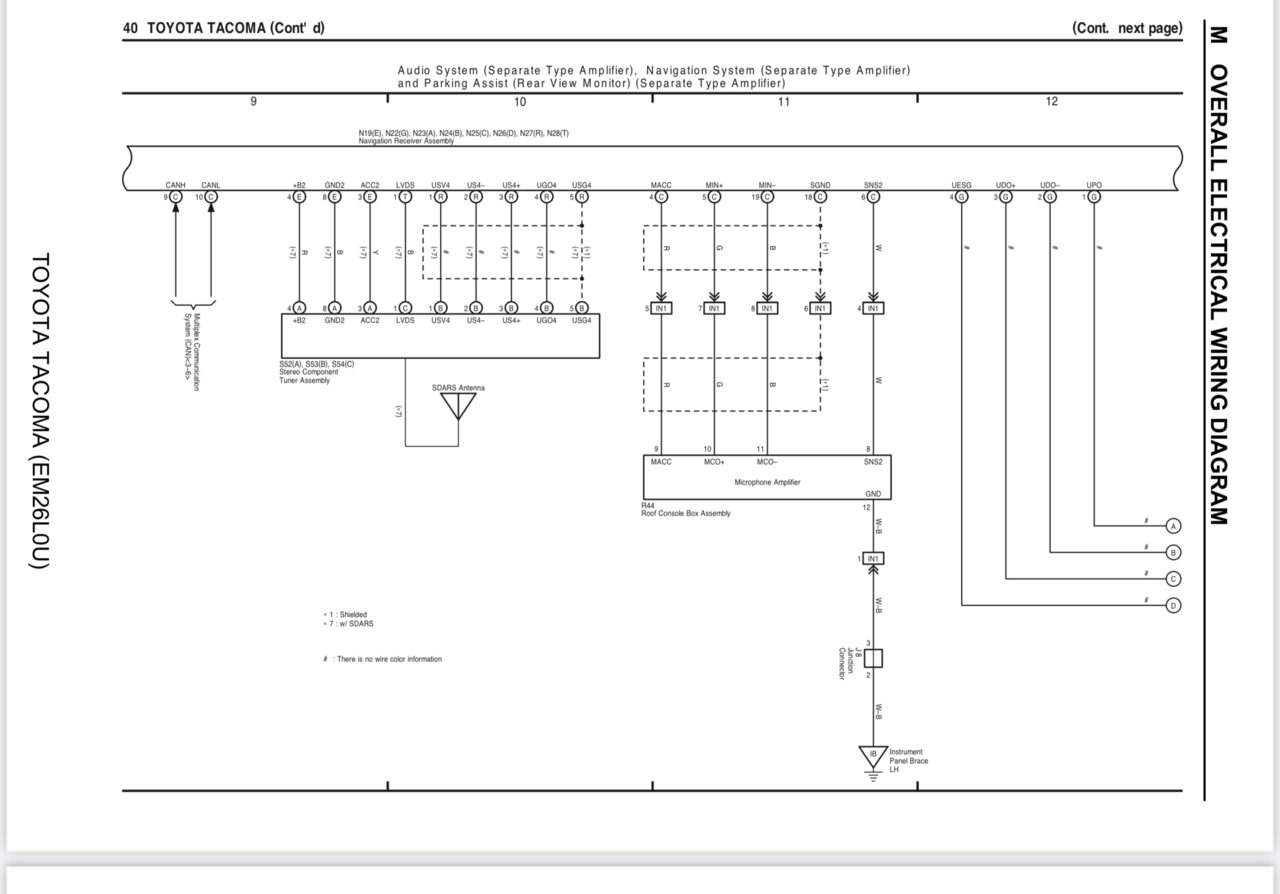

    Maybe this will help or maybe it will be confusing but awhile back someone posted the schematics for the entire truck. These are the pages associated with the audio system. I don’t have any experience using them or ripping apart the Tacoma but thought I would them pass on.


  7. Jan 17, 2021 at 7:41 PM
    #7
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    1,636
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
  8. Jan 18, 2021 at 4:47 PM
    #8
    CoronaTaco

    CoronaTaco My original 1991 Toyota Pickup Truck!

    Joined:
    Jan 14, 2021
    Member:
    #352830
    Messages:
    86
    Gender:
    Male
    First Name:
    Dan
    Vehicle:
    2021 Cement Off road
    Tonneau BedExtender Faux Grill
    can you make me a harness for my tacoma 2021 non jbl?

  9. Jan 18, 2021 at 7:36 PM
    #9
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    1,636
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    I’m thinking maybe you are asking me? Not sure.

    I suspect the eBay one might do what most people want?

    I modified it to do mostly the reverse, inject speaker output from the amp into factory wiring feeding door speakers. I doubt anyone wants that. However I’m almost certainly not going to use it so I’d be fine selling it.

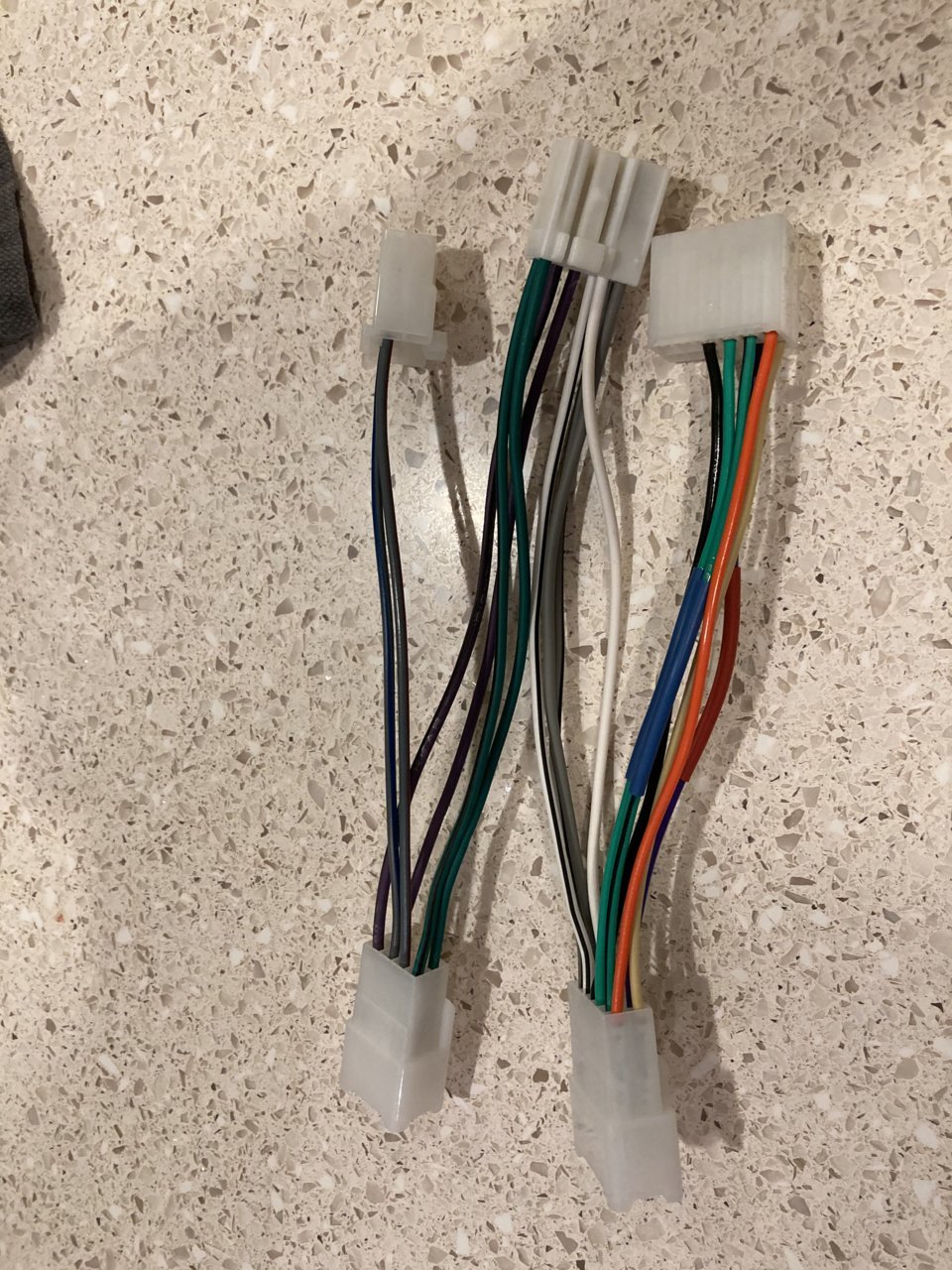

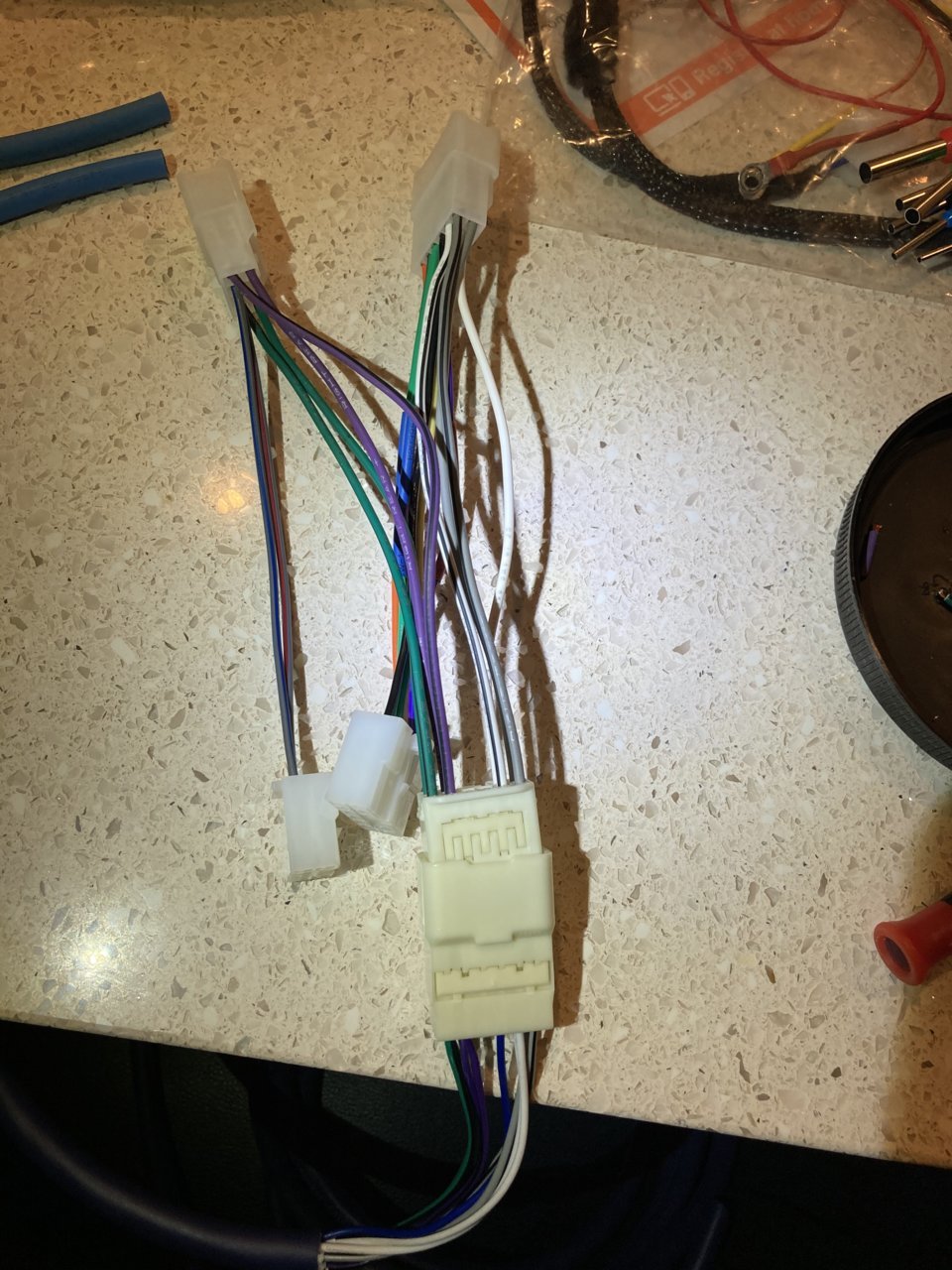

    I made a v2 with option for feed from either head unit or amp and additional taps for illumination and remote out. It came out as expected but overall it’s bulky and I don’t love it. So I’d be fine selling it too, the upside of the v2 is you could cut or depin either side to get speaker out or speaker in.

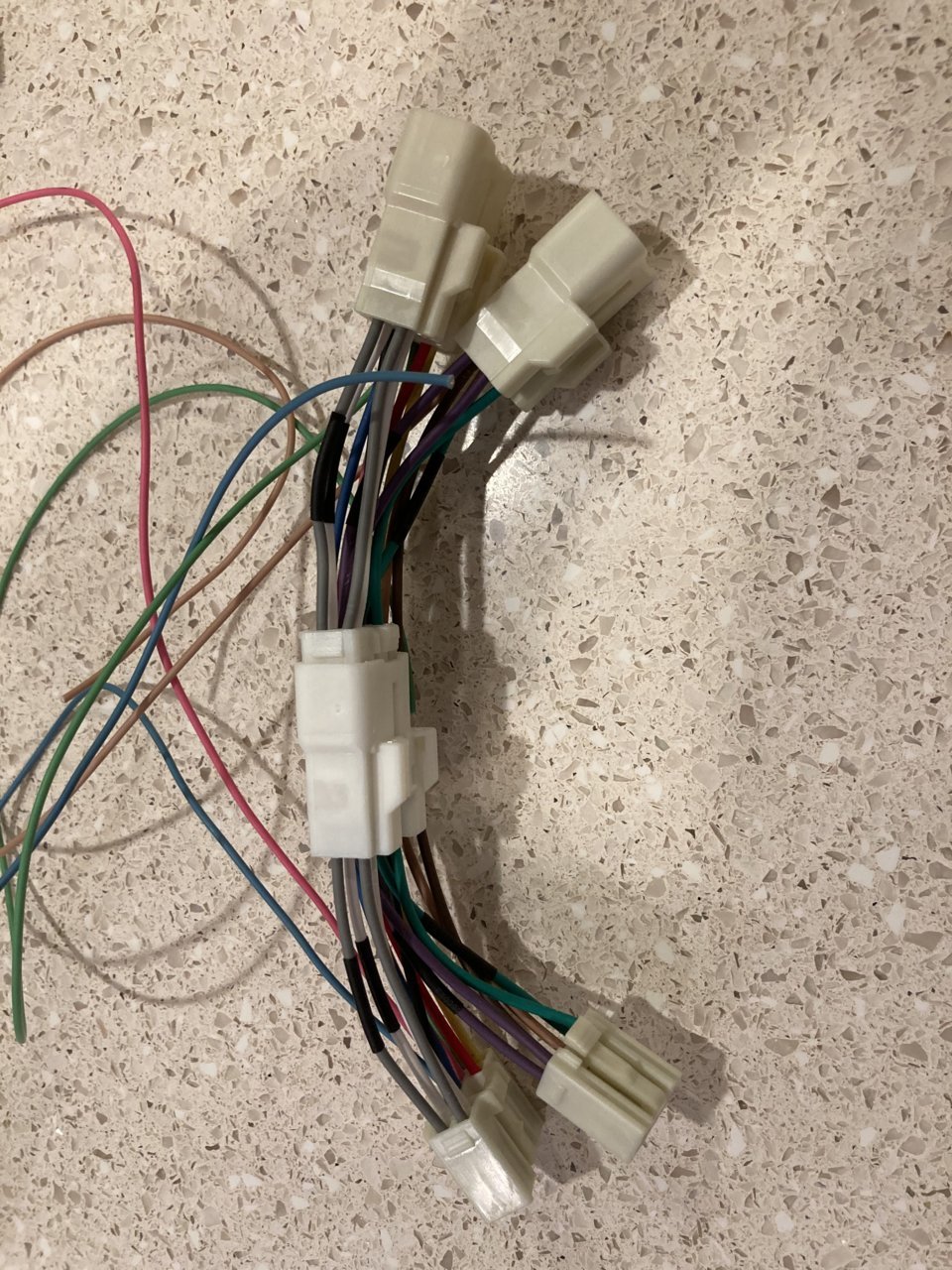

    I’m going to tinker with v3 tonight, using OEM connectors but try to make it about 4” long total and the style of v1 since @kmorgan3 already covered me on switch illumination from the hazard plug. It’s kind of nice to have single purpose T harnesses but on the other hand I already have quite the mass of wire behind the head unit with the maestro and germes modules.

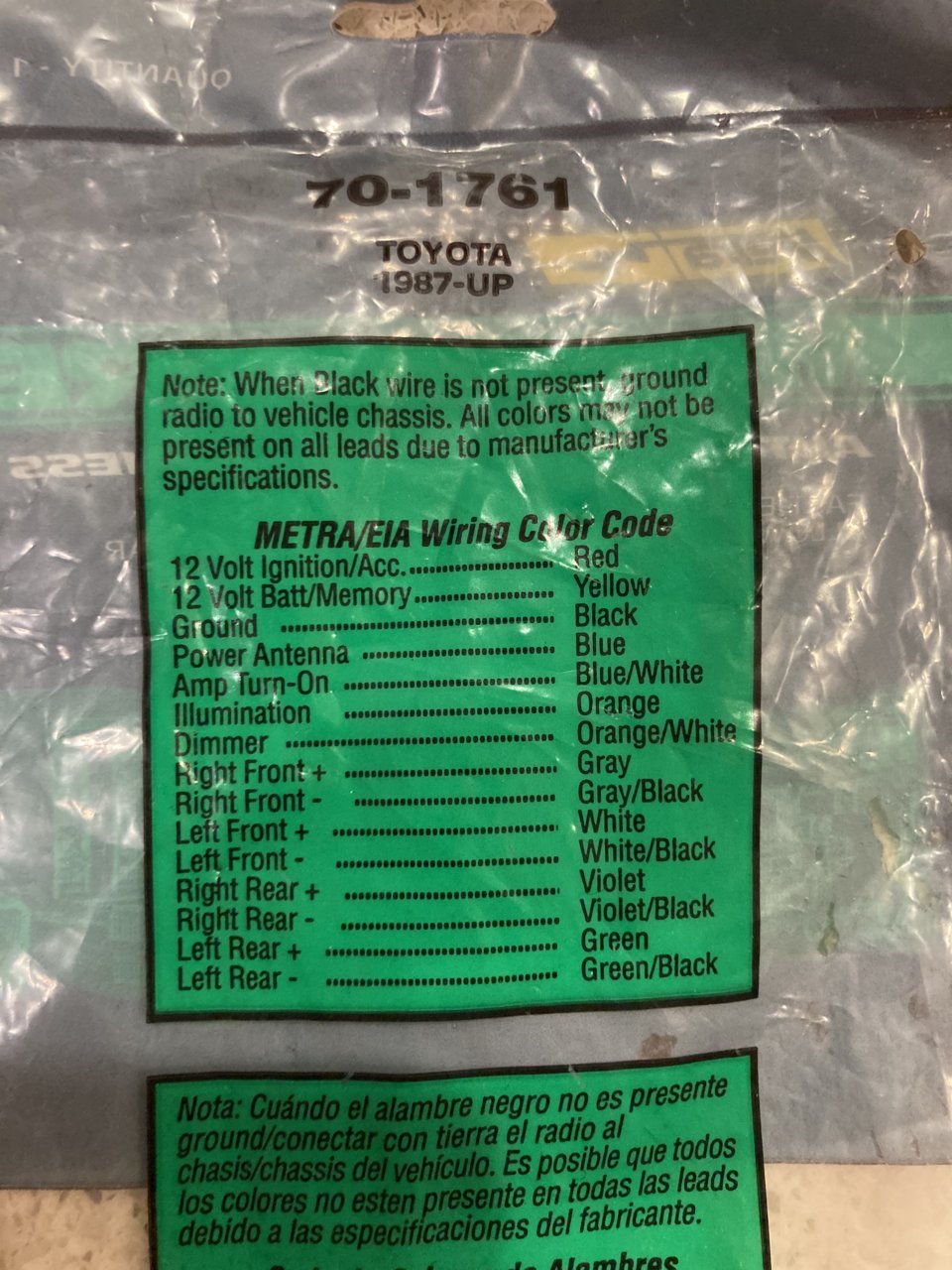

    The thing is, to do this right you want to have purple green grey and white in both solid and with a black stripe. That’s the color code which is standard across the industry. But I like 16 TXL which is rather hard to find with stripes. I could use 18 GXL or even 16 GXL which would be bulkier but I haven’t yet purchased striped GXL in either gauge. Instead I’m throwing some black heat shrink on to denote the - which is a bit of a low budget move.


  10. Jan 23, 2021 at 11:10 AM
    #10
    Market3

    Market3 Member

    Joined:
    Jan 22, 2021
    Member:
    #353639
    Messages:
    5
    Gender:
    Male
    In this same boat looking for a solution on my 2021 sr5. I am debating a harness from t-tunes into a LOC then into my 250/1 JL and my 8in minisub JL and just trying to do this the best way possible. Another option I was checking out with be T clamps to splice the 4 wires but really all I want in the end is that 1 sub hooked up and no splicing if I can make a harness work.
    many advice would be appreciated on the best way to get this done! Thank you.

  11. Jan 23, 2021 at 11:30 AM
    #11
    snipergma447

    snipergma447 [OP] Member

    Joined:
    May 11, 2020
    Member:
    #327719
    Messages:
    5
    Gender:
    Male
    Vehicle:
    2018 Toyota Tacoma SR Utility Package
    245 K02s, removed valance panel, and a 9' lightbar on the grille

    I just bought a plug and play harness, just put of simplicity on Amazon
