Superwinch won't fit! Need guidance!

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Jetlander, Feb 12, 2014.

  1. Feb 12, 2014 at 6:37 PM
    #1
    Jetlander

    Jetlander [OP] Just trying to measure up...

    Joined:
    May 21, 2013
    Member:
    #104658
    Messages:
    3,150
    Gender:
    Male
    First Name:
    Jonathan (aka MOAB)
    Depends on the day.
    Vehicle:
    2010 Tacoma DCSB 4x4 SR5
    TKO Wheel w/ 35" BFG KM2, Volant CAI, Safari Snorkel, 3" lift, All-Pro Full Skid Underarmor, Chopped/Re-Routed FlowMaster Exhaust, CBI Moab 2.0 Front Bumper, DerpWerx High Clearance Rear Bumper, Rear Tire Swing Out, BAMF Sliders w/Kickouts, King Resi w/700# Coilovers on front, Total Chaos UCA's, King Long Travel with Resi's, Shock Hoops and King 2.5 Bump Stops, OME Dakar Leaf Springs mounted on All-Pro Shackle Flip w/ U-Bolt Flip, extended SS Brake Lines, DerpWerx Bedrack, 10# C02 Tank, Black Badges, Dual Optima Red Top's, Blue Sea 12 Fuse Block on custom Block mount, SuperWinch 9.5iSR Talon w/synthetic line, Prolink Thimble, 20" Rigid Dual Row LED Light Bar, Rigid Dually Floods, OTRATTW Switches, Cab Mount Chop, Cobra CB w/ 4' Firestik, Center Counsel Glock 23 mount (with plenty o' ammo!), Weathertechs, and plenty more mods to come!

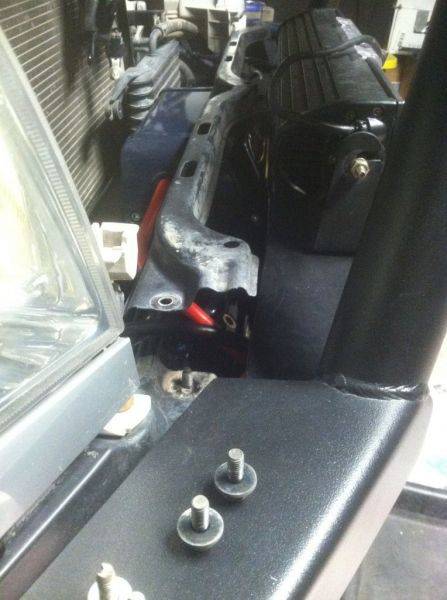

    I have a CBI Moab front plate bumper and I just received my Superwinch 9.5iSR. Well it turns out because the solenoid is mounted on the top of the winch, it's too tall and won't fit.

    Has anyone done a relocated for the solenoid for this particular model winch? If so, guidance would be much appreciated!

  2. Feb 12, 2014 at 7:09 PM
    #2
    Jetlander

    Jetlander [OP] Just trying to measure up...

    Joined:
    May 21, 2013
    Member:
    #104658
    Messages:
    3,150
    Gender:
    Male
    First Name:
    Jonathan (aka MOAB)
    Depends on the day.
    Vehicle:
    2010 Tacoma DCSB 4x4 SR5
    TKO Wheel w/ 35" BFG KM2, Volant CAI, Safari Snorkel, 3" lift, All-Pro Full Skid Underarmor, Chopped/Re-Routed FlowMaster Exhaust, CBI Moab 2.0 Front Bumper, DerpWerx High Clearance Rear Bumper, Rear Tire Swing Out, BAMF Sliders w/Kickouts, King Resi w/700# Coilovers on front, Total Chaos UCA's, King Long Travel with Resi's, Shock Hoops and King 2.5 Bump Stops, OME Dakar Leaf Springs mounted on All-Pro Shackle Flip w/ U-Bolt Flip, extended SS Brake Lines, DerpWerx Bedrack, 10# C02 Tank, Black Badges, Dual Optima Red Top's, Blue Sea 12 Fuse Block on custom Block mount, SuperWinch 9.5iSR Talon w/synthetic line, Prolink Thimble, 20" Rigid Dual Row LED Light Bar, Rigid Dually Floods, OTRATTW Switches, Cab Mount Chop, Cobra CB w/ 4' Firestik, Center Counsel Glock 23 mount (with plenty o' ammo!), Weathertechs, and plenty more mods to come!
  3. Feb 12, 2014 at 7:41 PM
    #3
    SMKYTXN

    SMKYTXN If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,001
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
  4. Feb 12, 2014 at 7:43 PM
    #4
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    109,306
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2019 Rubicon 4 Door,
    4.10 gears, sliders, and lots of buttons.
  5. Feb 12, 2014 at 7:45 PM
    #5
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    109,306
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2019 Rubicon 4 Door,
    4.10 gears, sliders, and lots of buttons.
  6. Feb 12, 2014 at 7:46 PM
    #6
    Jetlander

    Jetlander [OP] Just trying to measure up...

    Joined:
    May 21, 2013
    Member:
    #104658
    Messages:
    3,150
    Gender:
    Male
    First Name:
    Jonathan (aka MOAB)
    Depends on the day.
    Vehicle:
    2010 Tacoma DCSB 4x4 SR5
    TKO Wheel w/ 35" BFG KM2, Volant CAI, Safari Snorkel, 3" lift, All-Pro Full Skid Underarmor, Chopped/Re-Routed FlowMaster Exhaust, CBI Moab 2.0 Front Bumper, DerpWerx High Clearance Rear Bumper, Rear Tire Swing Out, BAMF Sliders w/Kickouts, King Resi w/700# Coilovers on front, Total Chaos UCA's, King Long Travel with Resi's, Shock Hoops and King 2.5 Bump Stops, OME Dakar Leaf Springs mounted on All-Pro Shackle Flip w/ U-Bolt Flip, extended SS Brake Lines, DerpWerx Bedrack, 10# C02 Tank, Black Badges, Dual Optima Red Top's, Blue Sea 12 Fuse Block on custom Block mount, SuperWinch 9.5iSR Talon w/synthetic line, Prolink Thimble, 20" Rigid Dual Row LED Light Bar, Rigid Dually Floods, OTRATTW Switches, Cab Mount Chop, Cobra CB w/ 4' Firestik, Center Counsel Glock 23 mount (with plenty o' ammo!), Weathertechs, and plenty more mods to come!
    Unfortunately the solenoid in mounted on top in such a way that it's housing actually holds the winch together. Cant remove it. May just have to revert to a saw or sell it...

  7. Feb 12, 2014 at 7:48 PM
    #7
    SMKYTXN

    SMKYTXN If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,001
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    Jon's problem is that the 9.5i SR doesn't have a relocatable solenoid. The solenoid is housed in an aluminum housing. That housing takes the place of the typical bars that hold the sides of the winch square.

  8. Feb 12, 2014 at 7:49 PM
    #8
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    109,306
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2019 Rubicon 4 Door,
    4.10 gears, sliders, and lots of buttons.
    Ah....yeah....that model has a fixed solenoid. Sorry.

  9. Feb 12, 2014 at 7:53 PM
    #9
    Jetlander

    Jetlander [OP] Just trying to measure up...

    Joined:
    May 21, 2013
    Member:
    #104658
    Messages:
    3,150
    Gender:
    Male
    First Name:
    Jonathan (aka MOAB)
    Depends on the day.
    Vehicle:
    2010 Tacoma DCSB 4x4 SR5
    TKO Wheel w/ 35" BFG KM2, Volant CAI, Safari Snorkel, 3" lift, All-Pro Full Skid Underarmor, Chopped/Re-Routed FlowMaster Exhaust, CBI Moab 2.0 Front Bumper, DerpWerx High Clearance Rear Bumper, Rear Tire Swing Out, BAMF Sliders w/Kickouts, King Resi w/700# Coilovers on front, Total Chaos UCA's, King Long Travel with Resi's, Shock Hoops and King 2.5 Bump Stops, OME Dakar Leaf Springs mounted on All-Pro Shackle Flip w/ U-Bolt Flip, extended SS Brake Lines, DerpWerx Bedrack, 10# C02 Tank, Black Badges, Dual Optima Red Top's, Blue Sea 12 Fuse Block on custom Block mount, SuperWinch 9.5iSR Talon w/synthetic line, Prolink Thimble, 20" Rigid Dual Row LED Light Bar, Rigid Dually Floods, OTRATTW Switches, Cab Mount Chop, Cobra CB w/ 4' Firestik, Center Counsel Glock 23 mount (with plenty o' ammo!), Weathertechs, and plenty more mods to come!
    I wonder if I can get two pieces of stainless rod, drill and tap it and make my own bars? That may work… PITA but may work.

  10. Feb 12, 2014 at 7:53 PM
    #10
    357sig

    357sig Donut king

    Joined:
    Feb 14, 2010
    Member:
    #31343
    Messages:
    51,912
    Gender:
    Male
    First Name:
    dough boy
    donut shop
    Vehicle:
    Gold digger
    Burn the truck, keep the winch. Lol

  11. Feb 12, 2014 at 7:54 PM
    #11
    Jetlander

    Jetlander [OP] Just trying to measure up...

    Joined:
    May 21, 2013
    Member:
    #104658
    Messages:
    3,150
    Gender:
    Male
    First Name:
    Jonathan (aka MOAB)
    Depends on the day.
    Vehicle:
    2010 Tacoma DCSB 4x4 SR5
    TKO Wheel w/ 35" BFG KM2, Volant CAI, Safari Snorkel, 3" lift, All-Pro Full Skid Underarmor, Chopped/Re-Routed FlowMaster Exhaust, CBI Moab 2.0 Front Bumper, DerpWerx High Clearance Rear Bumper, Rear Tire Swing Out, BAMF Sliders w/Kickouts, King Resi w/700# Coilovers on front, Total Chaos UCA's, King Long Travel with Resi's, Shock Hoops and King 2.5 Bump Stops, OME Dakar Leaf Springs mounted on All-Pro Shackle Flip w/ U-Bolt Flip, extended SS Brake Lines, DerpWerx Bedrack, 10# C02 Tank, Black Badges, Dual Optima Red Top's, Blue Sea 12 Fuse Block on custom Block mount, SuperWinch 9.5iSR Talon w/synthetic line, Prolink Thimble, 20" Rigid Dual Row LED Light Bar, Rigid Dually Floods, OTRATTW Switches, Cab Mount Chop, Cobra CB w/ 4' Firestik, Center Counsel Glock 23 mount (with plenty o' ammo!), Weathertechs, and plenty more mods to come!
  12. Feb 12, 2014 at 7:56 PM
    #12
    SMKYTXN

    SMKYTXN If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,001
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    That would be a job for the machine shop. I say trim the bottom of the grill. That's a piece that you can easily replace if you ever take the winch out.

  13. Feb 13, 2014 at 2:22 PM
    #13
    zscott

    zscott Well-Known Member Vendor

    Joined:
    Jul 16, 2013
    Member:
    #108365
    Messages:
    3,716
    Gender:
    Male
    First Name:
    Zach
    Utah
    Vehicle:
    13 DCSB Off-Road 4x4
    I was just talking with Nathan at CBI this morning about this. They recommend not using winches with integrated solenoid with this bumper due to the fit. I don't know what year your truck is but he was telling me that on the 12-14 tacomas you can remove or modify the lower grill support to make it fit. I don't know if the same thing will work on the 2005-2011

  14. Feb 13, 2014 at 3:09 PM
    #14
    Jetlander

    Jetlander [OP] Just trying to measure up...

    Joined:
    May 21, 2013
    Member:
    #104658
    Messages:
    3,150
    Gender:
    Male
    First Name:
    Jonathan (aka MOAB)
    Depends on the day.
    Vehicle:
    2010 Tacoma DCSB 4x4 SR5
    TKO Wheel w/ 35" BFG KM2, Volant CAI, Safari Snorkel, 3" lift, All-Pro Full Skid Underarmor, Chopped/Re-Routed FlowMaster Exhaust, CBI Moab 2.0 Front Bumper, DerpWerx High Clearance Rear Bumper, Rear Tire Swing Out, BAMF Sliders w/Kickouts, King Resi w/700# Coilovers on front, Total Chaos UCA's, King Long Travel with Resi's, Shock Hoops and King 2.5 Bump Stops, OME Dakar Leaf Springs mounted on All-Pro Shackle Flip w/ U-Bolt Flip, extended SS Brake Lines, DerpWerx Bedrack, 10# C02 Tank, Black Badges, Dual Optima Red Top's, Blue Sea 12 Fuse Block on custom Block mount, SuperWinch 9.5iSR Talon w/synthetic line, Prolink Thimble, 20" Rigid Dual Row LED Light Bar, Rigid Dually Floods, OTRATTW Switches, Cab Mount Chop, Cobra CB w/ 4' Firestik, Center Counsel Glock 23 mount (with plenty o' ammo!), Weathertechs, and plenty more mods to come!
    Well I managed to get it in. Had to remove the support brace that goes from one head light to the other for the grill. I then removed a portion from the bottom of the grill. Fits now, even if it's a bit snug.

    Thanks all for the help!

  15. Feb 13, 2014 at 3:16 PM
    #15
    Large

    Large Red

    Joined:
    Sep 10, 2011
    Member:
    #63268
    Messages:
    22,377
    Gender:
    Male
    Should have tried to rotate it 90 degrees but if it fits it's all good.
