Switch Pros 9100 install and BS thread

Ordering through MESO comes out cheaper with the TW discount code.



Thank you for that. I it showed 2020+ on the website that it’s crossed out though? Even mentioned it doesn’t fit without modifying some tabs.

Is that something you had to do?



I didn’t know we had a TW code for Meso?



10% off - TACOMAS-F0Q7Q397NVXA

My ‘custom’ cubby which is the same as the one Caliraised sells I only paid $142.50 before shipping.



Minor trimming required to go wider than the pocket up high. Doesn’t affect anything and still can return to stock.

Guild has what I’d call the premium modular solution at this point.



didn't see the 2020+ as out of stock, my apologies, just keep an eye for it to come back in stock either through meso or at cali-raised...the only thing I had to trim was the upper right corner when you take the old piece out. its not used for the factory piece or the new one, its left over from an older setup I assume. There should be a post somewhere in here that shows what needs to be trimmed, but its super easy with a dremel or razor. Post #1755 in this thread shows what needs to be trimmed.



this is true. but when I bought mine, MESO did not have any in stock but Cali-Raised did. With MESO you have to wait for him to open up orders for custom layouts and order then, if you miss the window you are out of luck. once a batch gets to Cali-Raised, they tend to stay in stock longer than the window is open to order from MESO.



I should have put my puddle switch there. I hate it in the center under the head unit. It belongs on the left side.



My switch pro started acting up this week. Wondering if anyone has had similar issues?

It started with random outputs briefly turning on and off. It did this a few times then stopped. Days later random outputs would rapidly flash. Like before this stopped too after a min or two and I could operate the unit normally.

Today I now have no control over the unit. Its flashing the indicator on the unit and the controller 3 times over and over indicating a bad circuit somewhere.

I went through the whole thing. Tested the ground, its 0 ohm. I then disconnected every output and the unit still flashes. No bent pins, no damaged wires.

I've contacted switchpro and filled out their troubleshooting form. Hopefully they sort it out.

Its been installed for over two years with no issues.



Same thing happened to my brothers and a couple other peoples in this thread. I think a couple pages back they said it was a bad controller and had it replaced.



Yeah, you're right. Seems to be lots of this issue lately. I hope their turn around is quick. I have rig up some temp switches for this weekends outing. Kind of disappointing for such an expensive part.



I had those problems with my first one. I made a phone call and the woman on the phone ran me through a series of button pushing to do a reset. It didn’t reset so she said send it in and they shipped a new one out and had it in like 4 days. One of the best no bullshit warranty’s I’ve ever done.



Hello everybody. I recently bought a used Switch Pro setup that is similar to the picture I borrowed from a member below. I am trying to figure out how to wire in accessories. I'm assuming the positive wire of the accessory goes to the red circle. Am I correct to assume the negative wire of the accessory goes to the yellow circle? And I have no idea what get wired to the blue circle. Any and all help would be greatly appreciated as I am lost in the sauce.



Yes. Positive red. Negative yellow

blue is anything constant power



THANK YOU!

By constant power, is that just any other accessory I don't run through the switch pros? For example, I have Diode Dynamics fogs with the backlight option. Could I run the backlight wire to it?

Also, maybe you don't know because this isn't your build but why does this picture have 6 positive wires connected to red but only 3 negative wires connected to yellow



You could but then it would never shut off. It’s more for like a 12v plug or compressor or something similar that has its own switch or you want unswitched (like fridge power)

they either have the negative doubled up or grounded somewhere close to where the accessory is.



Thank you for your help!



Your bigger accessories will require the constant 12v. For example air compressor, and diff lock have a positive and trigger wire (and the ground wire) Simple leds can go straight to the switch pro terminal, positive to the switch pro terminal and negative to the ground terminal.

Do not wire your fogs to constant power, you want to tap your drls if you want them to be always on with the truck.

the build that you show has more wires going to the switch pro because not all accessories require both. Only your heavies are going to have both wires.

edit: by the way that terminal block you circled in blue has both positive and negative terminals.



Anyone know what the three leds on the unit itself indicate? Can't find it anywhere. Is it just showing you have power from the trigger, ignition, and lights?



I know for sure the bottom IGN light is just showing you have power to the unit, I would assume the other two are indicating something similar for the Trigger and Light functions.

when my truck is on that IGN light is on and vice versa.

I would assume when the headlights are on the LT led would light up.

I would assume if a trigger is activated the T1 led would light up.

$659 SP9100 Switch Pros SP-9100 8-Switch Panel Power System With Concealed Mounting Hardware

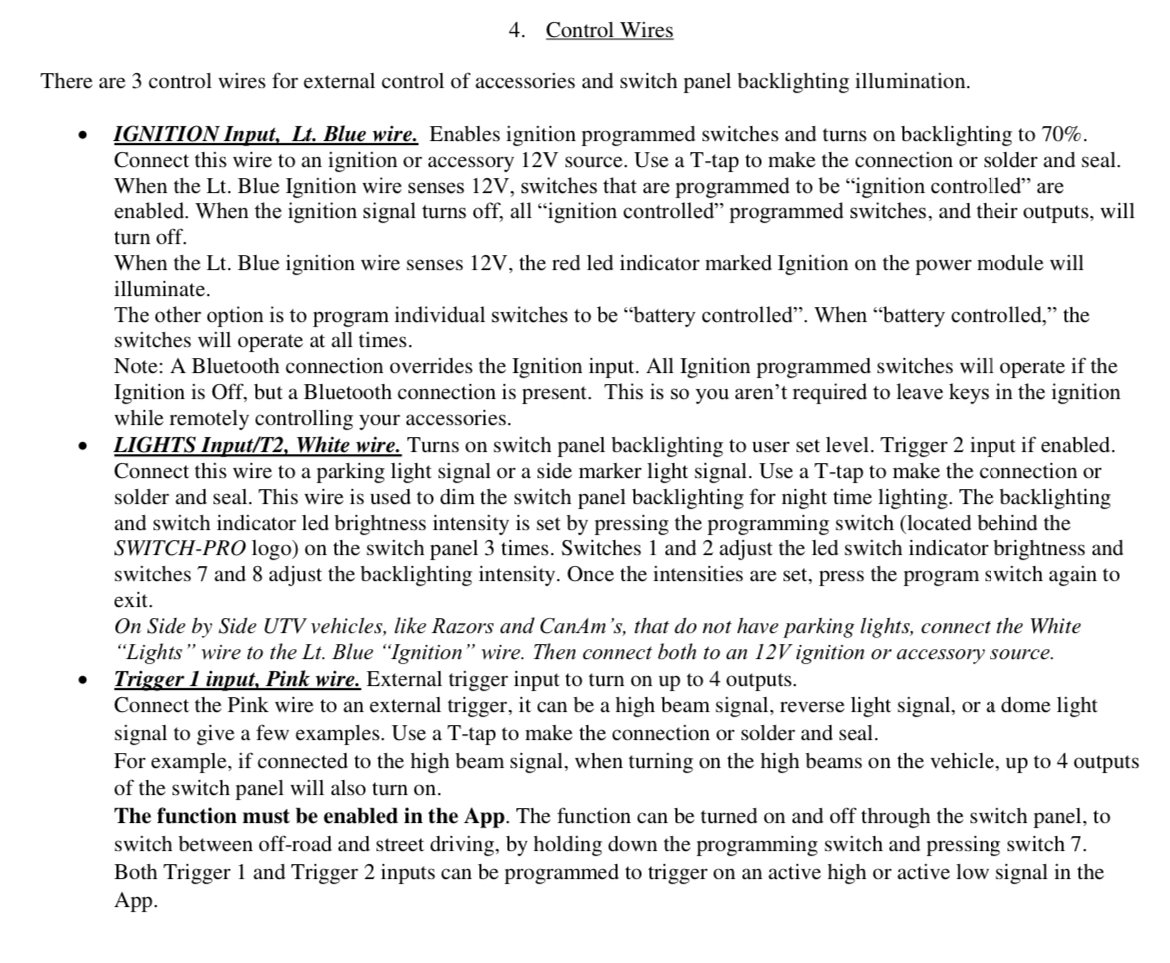

SP9100 literature does hint at the top two leds being troubleshooting lights as well so I may be completely wrong. I also cannot find anything specifically going over the top two.

SP customer service is stellar so call or email them and tell us what they say!
