Switch-Pros SP8100 Switch Panel Information & Discussion

Discussion in '2nd Gen. Tacomas (2005-2015)' started by ACEkraut, Jun 30, 2016.

Page 6 of 18
  1. Dec 24, 2016 at 12:39 AM
    #101
    joemyself

    #101
    joemyself Well-Known Member

    Joined:
    Oct 14, 2015
    Member:
    #166700
    Messages:
    69

    Hey man,

    for the blue wire connection, is that a 5 or 10 amp fuse that you are using? Looks like it's the 5 amp that is provided (judging by the color). Does it work for you? For me, I used the provided 5 amp and the system works when ignition is turned halfway, however, when I start the truck the engine turns on and then turns off a second later. I'm thinking it has something to do with it not being a 10 amp?

    Let me know what you think, or anyone else that might know!

    Cheers

    joemyself, Dec 24, 2016
    #101
  2. Dec 24, 2016 at 7:24 AM
    #102
    Coop68

    #102
    Coop68 Well-Known Member

    Joined:
    Oct 13, 2013
    Member:
    #114433
    Messages:
    3,311
    Gender:
    Male
    First Name:
    Coop
    Erie/Dacono, CO
    Vehicle:
    2014 TRD OR Magnetic Gray
    Method double standards 16" COOPER S/T MAXX 285/75/16 DEI clifford 2-way remote start with smart-start. Lift Kings with Dakar TC UCA extended brake lines Keyless POP-N-Lock tailgate lock,relentless tailgate reinforcement, Weather Tech Mats all around, pelfreybilt front bumper steel with middle hoop warn VR-8000s switch Pro lights coming soon see build thread
    So the fuse you cant see is the red 10 amp fuse which is under the 5 amp fuse should be the orginal 10 amp fuse than the 5 amp with the add a fuse. two fuses per add a circuit. Check your fuses maybe its a bad one try swapping them out. I used a volt meeter to check for 12volts when the truck is on and when its off you want no voltage. Thats EFI fuse does that for the blue wire.

    If your only running the 5amp fuse and not the 10 plus 5 that could be the issue if you are i'd say try new fuses and see if that fixes it.

    Coop68, Dec 24, 2016
    #102
  3. Dec 27, 2016 at 2:29 PM
    #103
    CO MTN Steve

    #103
    CO MTN Steve Well-Known Member

    Joined:
    Jun 11, 2014
    Member:
    #131742
    Messages:
    7,583
    Gender:
    Male
    First Name:
    Steve
    RaMbLiN' CoLoRaDo
    Vehicle:
    2015 Taco DCSB Blue
    Lifted, Armored, needs more lights.
    Man, My news years resolution is to get this thing freakin installed already!

    CO MTN Steve, Dec 27, 2016
    #103
    nfs257 likes this.
  4. Dec 27, 2016 at 11:23 PM
    #104
    adio

    #104
    adio Well-Known Member

    Joined:
    Sep 11, 2008
    Member:
    #9165
    Messages:
    2,643
    Gender:
    Male
    HI
    Vehicle:
    2015 INFERNO TRD PRO

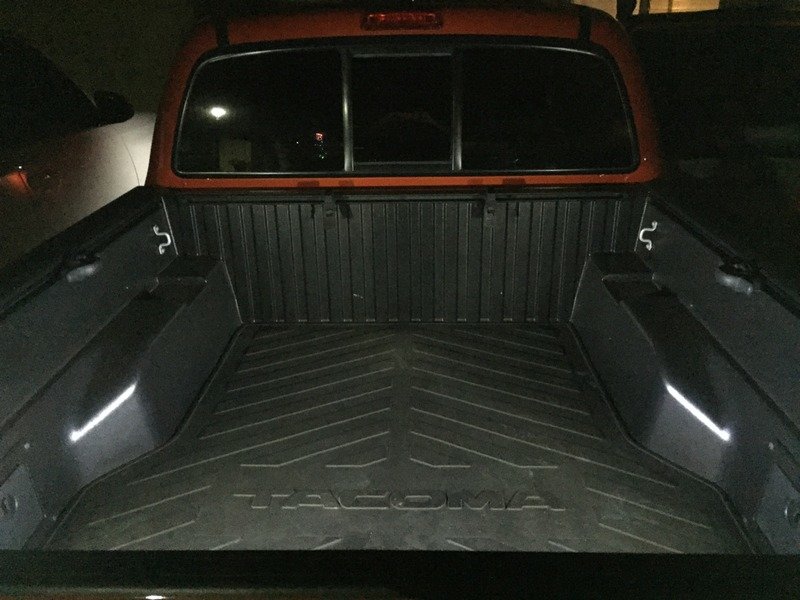

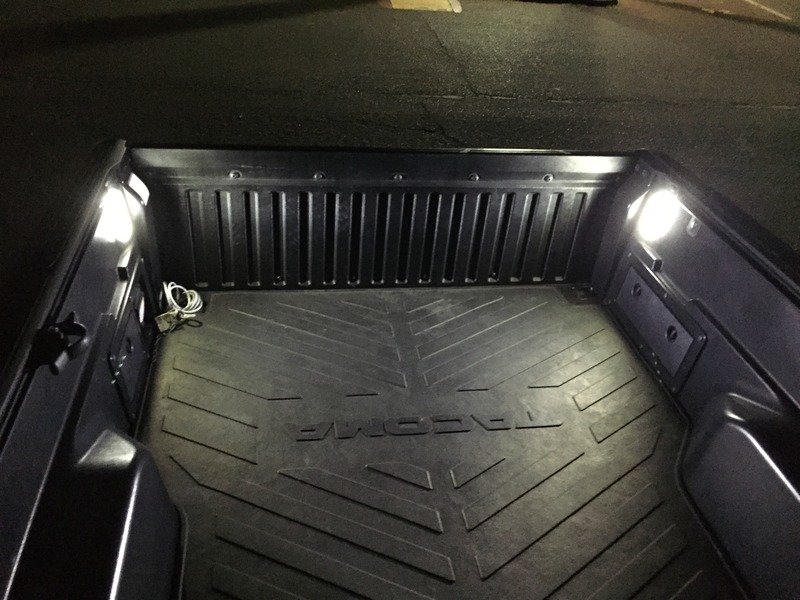

    Finally wired up the bed/cargo lights to the SP8100. Man I'm still amazed that I can control the lights via BT.

    745F3E7B-EE7D-47AF-9DC7-9D5A19F0E4F4_zps_fa5dede32f3e0faea22f9686bccdac0169bee449.jpg

    BB70A0F0-6752-4DE8-A300-A439A95E2463_zps_f2caf2932b6e40ef6a2c539bd0aa42153772e9ab.jpg

    adio, Dec 27, 2016
    #104
    BountyOR_VF2, Joethebugman, scott96929 and 1 other person like this.
  5. Dec 29, 2016 at 2:31 PM
    #105
    ramonortiz55

    #105
    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,689
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    :spy:

    ramonortiz55, Dec 29, 2016
    #105
  6. Dec 29, 2016 at 2:31 PM
    #106
    ramonortiz55

    #106
    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,689
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    :stirthepot:

    ramonortiz55, Dec 29, 2016
    #106
  7. Dec 30, 2016 at 3:38 PM
    #107
    Iggy

    #107
    Iggy Vagabond Outdoors

    Joined:
    Feb 2, 2012
    Member:
    #71971
    Messages:
    4,016
    Gender:
    Male
    Northern CA
    Vehicle:
    09 4x4 Off-Road Access Cab
    Check out the build
    Iggy, Dec 30, 2016
    #107
  8. Dec 30, 2016 at 3:47 PM
    #108
    ramonortiz55

    #108
    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,689
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    ramonortiz55, Dec 30, 2016
    #108
  9. Dec 30, 2016 at 3:51 PM
    #109
    Iggy

    #109
    Iggy Vagabond Outdoors

    Joined:
    Feb 2, 2012
    Member:
    #71971
    Messages:
    4,016
    Gender:
    Male
    Northern CA
    Vehicle:
    09 4x4 Off-Road Access Cab
    Check out the build
    Yeah sorry the pic is for the other ones, but in the drop down you can select the SP. They look like this.

    [​IMG]

    Iggy, Dec 30, 2016
    #109
  10. Jan 27, 2017 at 12:06 PM
    #110
    DRJ1014

    #110
    DRJ1014 Well-Known Member

    Joined:
    Sep 11, 2015
    Member:
    #164009
    Messages:
    1,269
    Gender:
    Male
    CA
    Has anyone wired up something like these before?

    http://www.whelen.com/auto/product.php?head_id=12&cat_id=74&prod_id=648

    They have a Alley and puddle light wire separate from the caution light which can be activated separately.

    I am looking to do these types of lights, 2 left, 2 right, 2 rear and want to have controls for each side separately (left strobe pattern, left alley/puddle light on, etc)
    If I press ON (1 click) with the Switch Pros, will the caution lights revert to their programmed strobe pattern or will the light just stay on solid?

    DRJ1014, Jan 27, 2017
    #110
  11. Feb 10, 2017 at 11:12 PM
    #111
    SeekingZero

    #111
    SeekingZero Well-Known Member

    Joined:
    Sep 22, 2013
    Member:
    #113063
    Messages:
    577
    Gender:
    Male
    First Name:
    Ben
    Sierra Mountains, CA
    Vehicle:
    01 Xtracab 4x4 SR5 TRD Supercharged
    Anyone have any thoughts on wiring to an inverter. I have an 8 gauge wire to my 800W inverter now, wired to my blue sea fuse panel. I'm a little worried about moving that connection directly to one of the outputs on my 8100. Any thoughts?

    SeekingZero, Feb 10, 2017
    #111
  12. Feb 12, 2017 at 12:04 AM
    #112
    nfs257

    #112
    nfs257 Well-Known Member

    Joined:
    Jun 22, 2011
    Member:
    #58691
    Messages:
    7,530
    Gender:
    Male
    First Name:
    Chris
    DFW
    Vehicle:
    She gone
    Don't do it. They have amp ratings listed. Even for my light bars I'm running relays because it couldn't handle it.

    nfs257, Feb 12, 2017
    #112
    seoulja99 likes this.
  13. Feb 12, 2017 at 6:53 PM
    #113
    the dashing ham

    #113
    the dashing ham Taco n00b

    Joined:
    Oct 23, 2013
    Member:
    #115085
    Messages:
    313
    Gender:
    Male
    First Name:
    Scotty
    Los Angeles
    Vehicle:
    '12 DCLB rattle can
    yes, I have done the mods
    Traded a few emails with Switchpros yesterday, and they say "green, blue and red backlighting available in 2-3 months."

    the dashing ham, Feb 12, 2017
    #113
    nfs257 and seoulja99 like this.
  14. Feb 16, 2017 at 11:38 AM
    #114
    HABOOBS

    #114
    HABOOBS Well-Known Member

    Joined:
    Jun 24, 2016
    Member:
    #190449
    Messages:
    929
    Gender:
    Male
    First Name:
    Bill
    Phoenix AZ
    Vehicle:
    2008 AZ-BASED DCSB

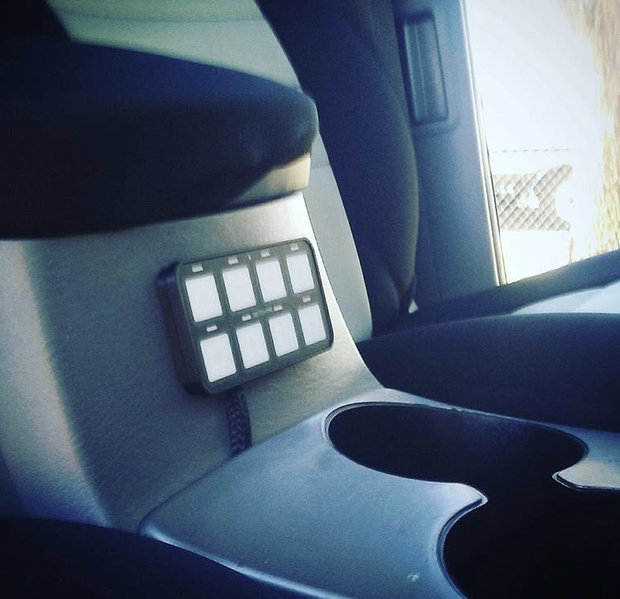

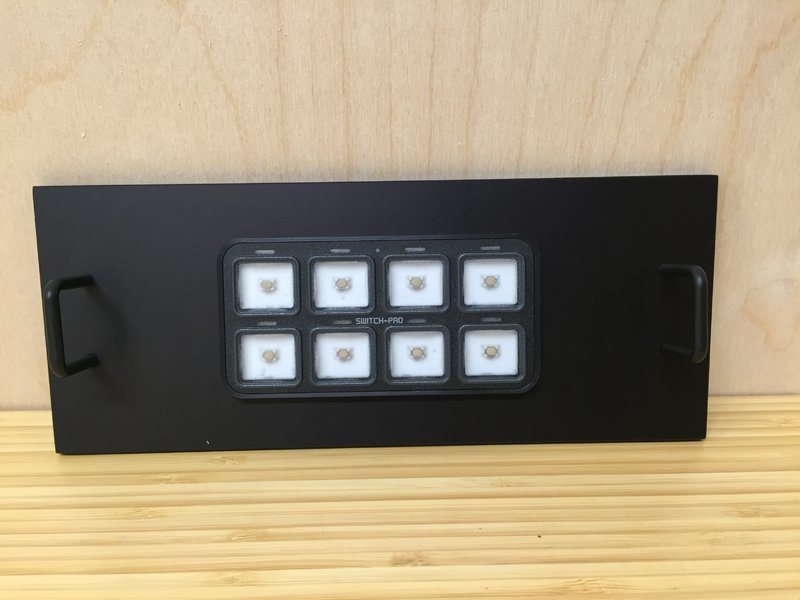

    Not mine... Saw it on IG... Posting it cuz I had never seen one mounted in this position before...


    HABOOBS, Feb 16, 2017
    #114
    ramonortiz55 likes this.
  15. Feb 16, 2017 at 11:54 AM
    #115
    XPOTRPR

    #115
    XPOTRPR CNC Programmer/Machinist

    Joined:
    May 29, 2011
    Member:
    #57449
    Messages:
    30,630
    Gender:
    Male
    First Name:
    Josh
    Chandler, AZ
    Vehicle:
    [2009 Supercharged Adventuretruck] & [1986 22r Minitruck]
    > BUILD LINKS >
    Have you tried a Switchpro? The exact same thing can be said about it. Curious about this statement.

    XPOTRPR, Feb 16, 2017
    #115
    adio likes this.
  16. Feb 16, 2017 at 1:58 PM
    #116
    paranoid56

    #116
    paranoid56 Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    3,386
    Gender:
    Male
    San Diego
    Vehicle:
    14 double cab taco
    I think what hes saying is that the switchpro doesnt have the output of the spod.
    spod has 6 40amp output
    switchpro is 8 Outputs, 7 rated @ 18A, 1 rated @ 30A

    so the switchpro would barely handle a standard small lightbar (200w bar @ 16amps)

    both are neat products though.

    paranoid56, Feb 16, 2017
    #116
    nfs257 likes this.
  17. Feb 16, 2017 at 2:27 PM
    #117
    HABOOBS

    #117
    HABOOBS Well-Known Member

    Joined:
    Jun 24, 2016
    Member:
    #190449
    Messages:
    929
    Gender:
    Male
    First Name:
    Bill
    Phoenix AZ
    Vehicle:
    2008 AZ-BASED DCSB
    There's also the new model w/ 8 switches at 30 amps as an option from spod... http://www.4x4spod.com/product_p/8-800-hd-jk.htm

    Pretty sweet...

    But still... for the price difference... at least back when we could get the 20-25% off coupon... I'll take the switch-pro any day. Then again, I'm only running lights on mine anyways so no need for the additional amp draw rating.

    HABOOBS, Feb 16, 2017
    #117
  18. Feb 16, 2017 at 2:38 PM
    #118
    XPOTRPR

    #118
    XPOTRPR CNC Programmer/Machinist

    Joined:
    May 29, 2011
    Member:
    #57449
    Messages:
    30,630
    Gender:
    Male
    First Name:
    Josh
    Chandler, AZ
    Vehicle:
    [2009 Supercharged Adventuretruck] & [1986 22r Minitruck]
    > BUILD LINKS >
    Hmmm.. Im running all my lighting just fine. Including a 240w light bar.

    Price, ease of use, features. To each their own I guess.

    XPOTRPR, Feb 16, 2017
    #118
    mytacoisweksos likes this.
  19. Feb 16, 2017 at 2:41 PM
    #119
    paranoid56

    #119
    paranoid56 Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    3,386
    Gender:
    Male
    San Diego
    Vehicle:
    14 double cab taco
    on the 18amp circuit? Good to know. I guess thats really only 2ish amps over the rating. Also, for the record, i would pick this one over the spod too. for the moment, I will just us the bussman setup lol.

    paranoid56, Feb 16, 2017
    #119
  20. Feb 16, 2017 at 2:47 PM
    #120
    Synergy001

    #120
    Synergy001 IG: @pnwx.taco

    Joined:
    Dec 10, 2015
    Member:
    #171908
    Messages:
    1,945
    Gender:
    Male
    PDX
    Vehicle:
    00 ACLB -Daily, 16 DCSB -Adventure Rig
    Are you using the relay that comes with your lightbar or are you just connecting straight to the Switch Pros? Just wondering for when I get my Switch Pros in. Kinda sucks that I'll have to connect to the battery and then to the Switch Pros if I have to use the relay. Thanks in advance!

    Synergy001, Feb 16, 2017
