Switchback Front Turn Signal Install on 17 SR DCSB

Discussion in '3rd Gen. Tacomas (2016+)' started by patelium21, Jan 3, 2018.

  1. Jan 3, 2018 at 9:35 AM
    #1
    patelium21

    patelium21 [OP] Well-Known Member

    Joined:
    Aug 29, 2017
    Member:
    #228470
    Messages:
    100
    Gender:
    Male
    First Name:
    Hiran
    Georgia
    Vehicle:
    2017 White Tacoma SR DCSB
    Hey guys,

    I installed switchback LEDs for my front turn signals with resistors to avoid hyperflash and I noticed that there aren't really any threads explaining how to do this when I was looking for one, so I figured id do a write up of how I did it..


    I ordered the parts from a TW Vendor @csjumper2003 (JumpersLEDS)

    I received 2 LED bulbs, 2 Resistors, 4 Self taps for the wiring, and 4 screws to screw the resistors into place.

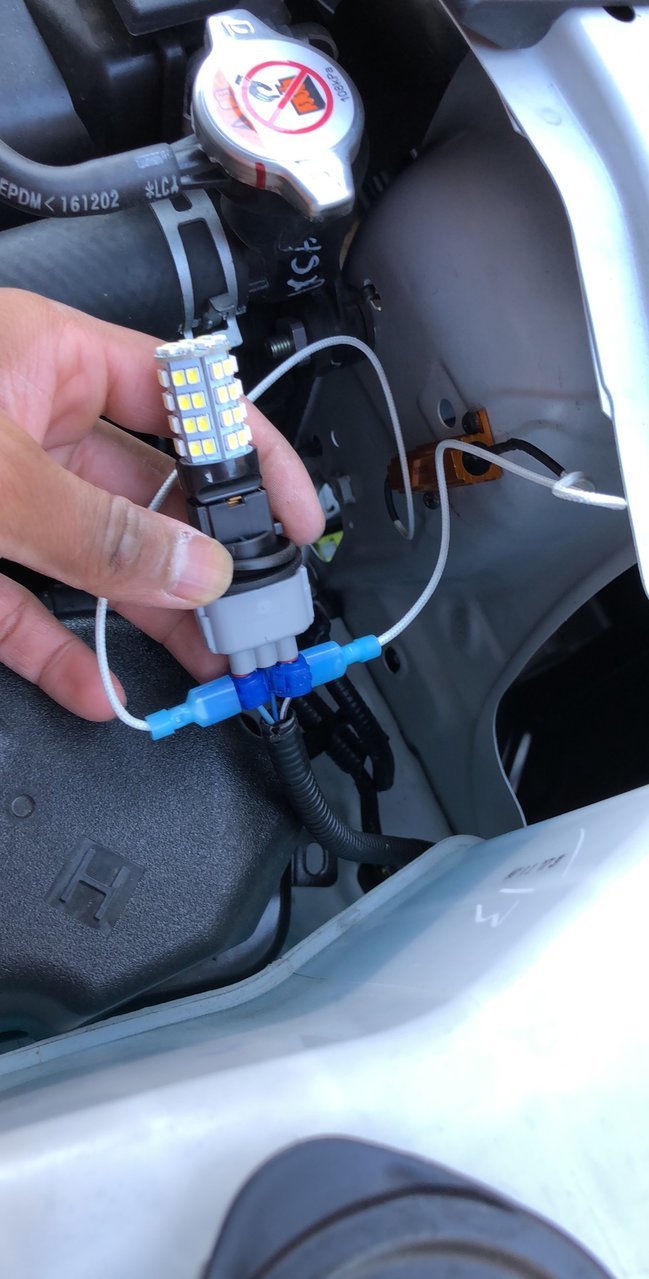

    First you want to put the resistors onto the wires for the turn signal

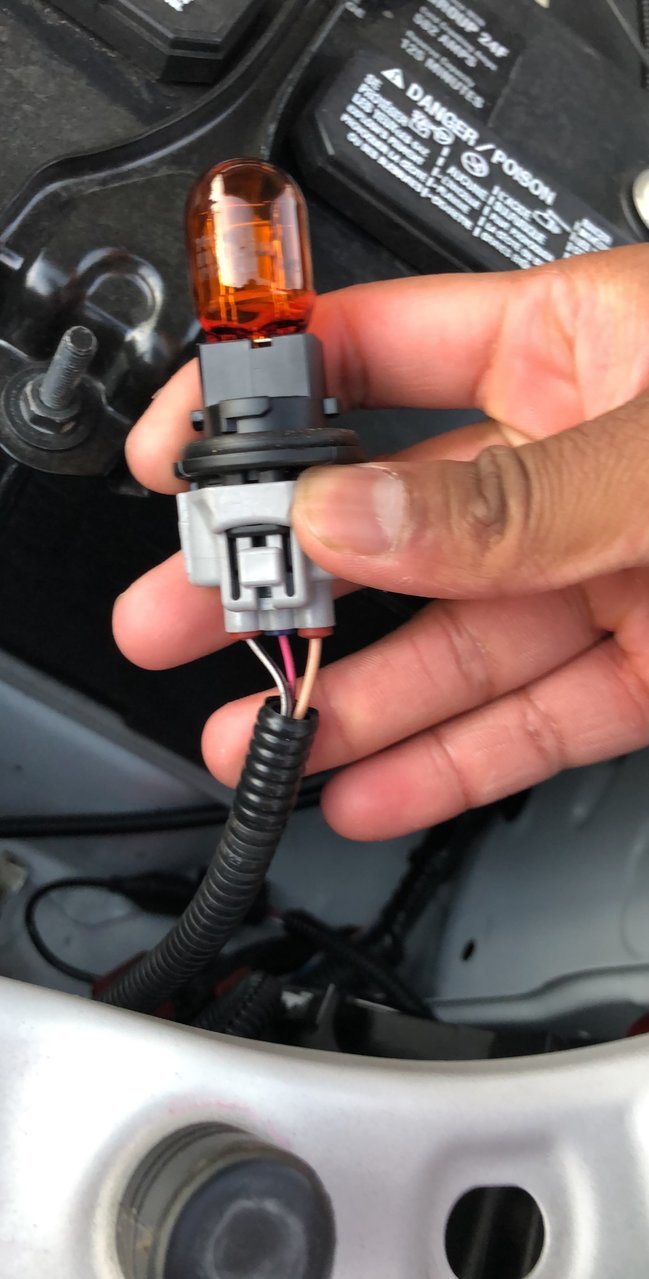

    Here are the 3 wires I had


    the 3 wires will be: Positive (always on), Positive turn (only on when turn signal), and negative. you may want to use a multimeter to figure out which wire is which or a test light since apparently wire colors differ based on model and where your truck was made.

    For me, the black and white wire was negative and the orange was positive turn. This is important cause you dont want the resistor on all the time or it may get to hot.

    **I heard this but idk how true, - the black and white is negative and the thicker color wire is positive turn but I would test it just in case.

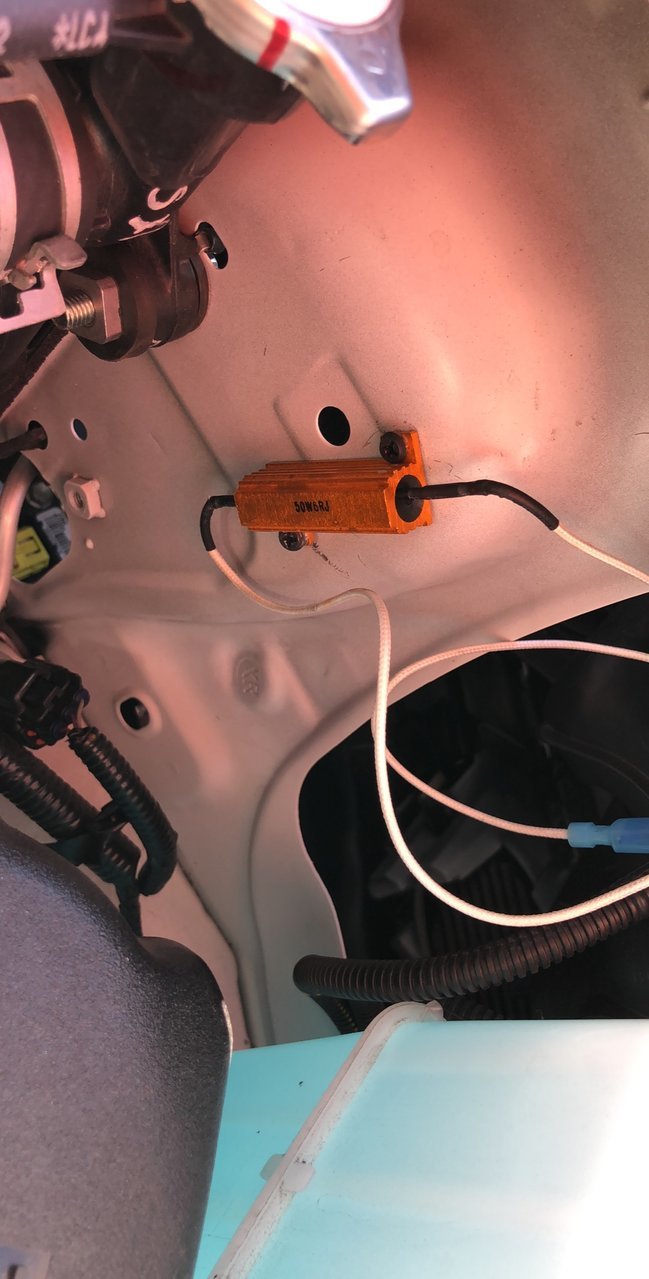

    You want to put one end of the resistor on the NEGATIVE and the other on the POSITIVE TURN SIGNAL


    then make sure you screw in the resistor to a metal part on the truck since it will get hot, you don't want it touching plastic or anything it can melt.


    put in your bulb and you should be good to go without any hyper flash.

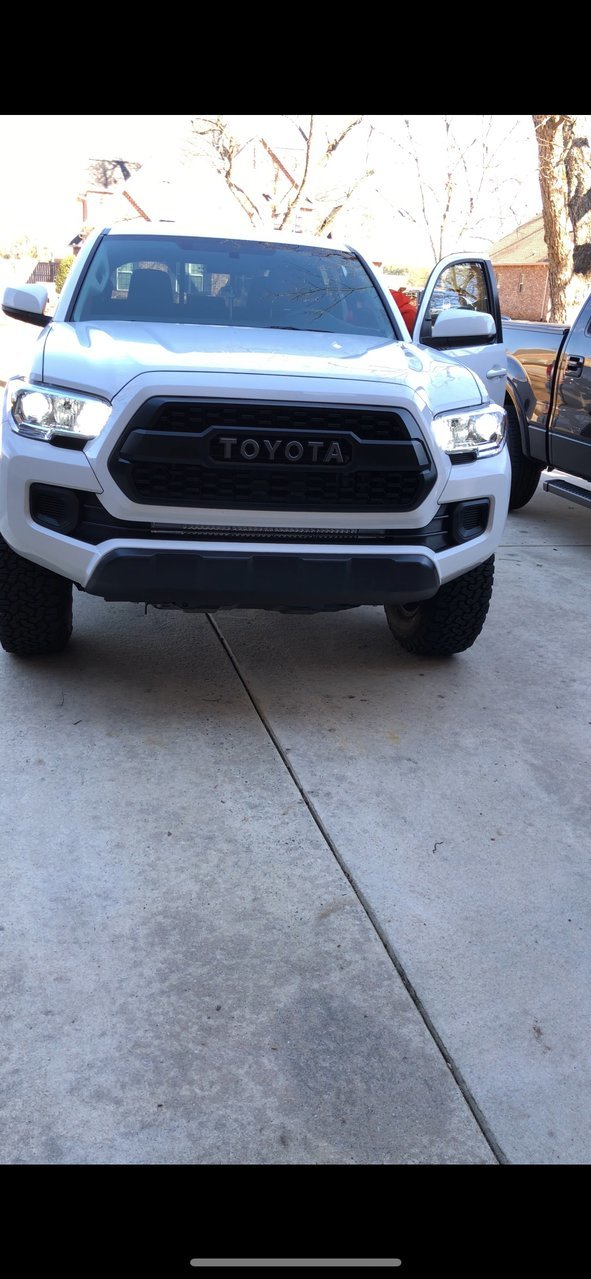

    With lights on:

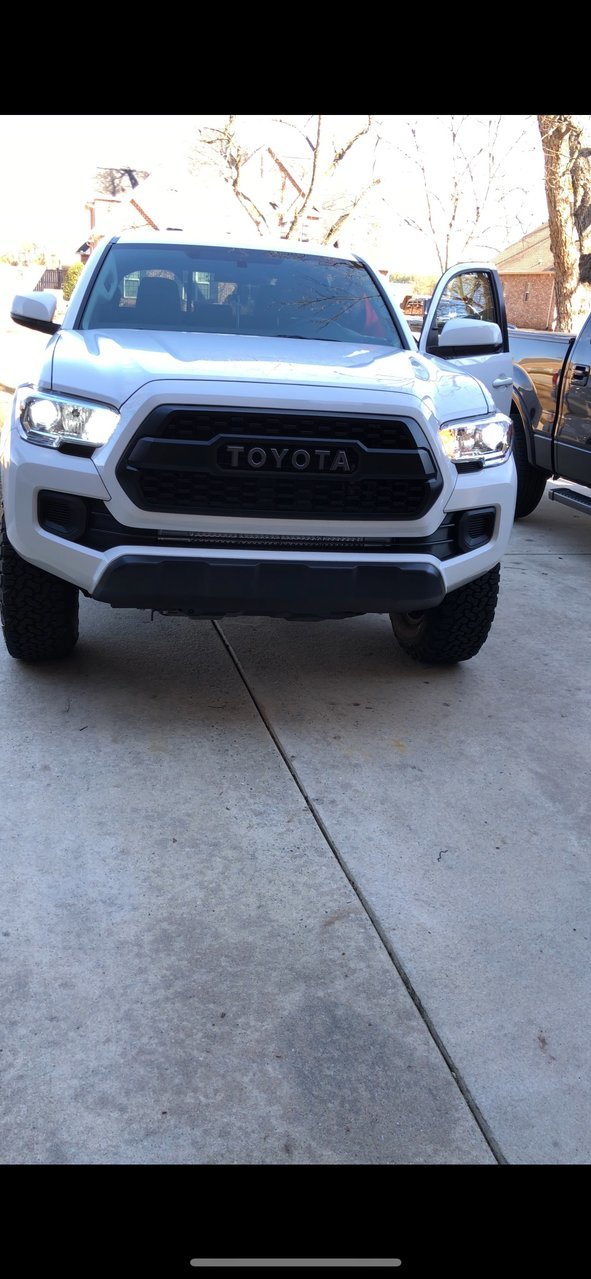

    with turn signal:


    if you have any questions you can PM me!

    hope this helps anyone wanting to do this.



    09 Redneck likes this.
  2. Jan 3, 2018 at 10:33 AM
    #2
    batong_23

    batong_23 vincedprince

    Joined:
    May 29, 2017
    Member:
    #220176
    Messages:
    1,288
    Gender:
    Male
    SoCal
    Vehicle:
    2017 white toyota tacoma trd sport
    on the SR and SR5 models, these are easy since your truck come with 3 wires for the front turn signal.. the TRD trims though is a different story since ours only come with 2 wires. i had to change my stock adaptor to an adaptor with 3 wires for this to work, and the rest is pretty much the same steps as yours.

    good write up bro!

    patelium21 [OP] likes this.
  3. Jan 3, 2018 at 10:41 AM
    #3
    Jchmelo

    Jchmelo Well-Known Member

    Joined:
    Oct 20, 2017
    Member:
    #233602
    Messages:
    51
    Gender:
    Male
    First Name:
    Jon
    Vehicle:
    17 TRD OR DC
    Was this a kit or something? Or did he just put the parts together for you?

    patelium21 [OP] likes this.
  4. Jan 3, 2018 at 10:47 AM
    #4
    SR5 BRI

    SR5 BRI SR5BRIAN

    Joined:
    Dec 29, 2015
    Member:
    #173454
    Messages:
    1,405
    Gender:
    Male
    Albany n.y.
    Vehicle:
    2020 SR5 Quadcab shortbed
    Cooper tires leveling kit,2”blocks on the rear,velds lights low,high beams pro grill,cap on order and seatcovers
    If you are looking to do something down the road take out those t-taps and solder the wires.

    patelium21 [OP] likes this.
  5. Jan 3, 2018 at 10:50 AM
    #5
    patelium21

    patelium21 [OP] Well-Known Member

    Joined:
    Aug 29, 2017
    Member:
    #228470
    Messages:
    100
    Gender:
    Male
    First Name:
    Hiran
    Georgia
    Vehicle:
    2017 White Tacoma SR DCSB
    I guess you can call it a kit, he sent me the parts I needed.

  6. Jan 3, 2018 at 10:50 AM
    #6
    patelium21

    patelium21 [OP] Well-Known Member

    Joined:
    Aug 29, 2017
    Member:
    #228470
    Messages:
    100
    Gender:
    Male
    First Name:
    Hiran
    Georgia
    Vehicle:
    2017 White Tacoma SR DCSB
    Yeah I thought about that, I probably will after I retrofit and get my switchback halos put in. then solder the wires

  7. Jan 3, 2018 at 10:55 AM
    #7
    SR5 BRI

    SR5 BRI SR5BRIAN

    Joined:
    Dec 29, 2015
    Member:
    #173454
    Messages:
    1,405
    Gender:
    Male
    Albany n.y.
    Vehicle:
    2020 SR5 Quadcab shortbed
    Cooper tires leveling kit,2”blocks on the rear,velds lights low,high beams pro grill,cap on order and seatcovers
    Yes most guys that do any withering on vehicles do not have much faith in t-taps for a reason

    patelium21 [OP] likes this.
  8. Jan 3, 2018 at 11:01 AM
    #8
    batong_23

    batong_23 vincedprince

    Joined:
    May 29, 2017
    Member:
    #220176
    Messages:
    1,288
    Gender:
    Male
    SoCal
    Vehicle:
    2017 white toyota tacoma trd sport
    i just spliced mine.. lol

  9. Jan 3, 2018 at 11:02 AM
    #9
    Unchained 5150

    Unchained 5150 Rick

    Joined:
    Sep 25, 2014
    Member:
    #139054
    Messages:
    62,164
    Gender:
    Male
    First Name:
    Rick
    Auburn Ma
    Point of it???

  10. Jan 3, 2018 at 11:04 AM
    #10
    batong_23

    batong_23 vincedprince

    Joined:
    May 29, 2017
    Member:
    #220176
    Messages:
    1,288
    Gender:
    Male
    SoCal
    Vehicle:
    2017 white toyota tacoma trd sport
    just for show! lol

  11. Jan 3, 2018 at 11:05 AM
    #11
    patelium21

    patelium21 [OP] Well-Known Member

    Joined:
    Aug 29, 2017
    Member:
    #228470
    Messages:
    100
    Gender:
    Male
    First Name:
    Hiran
    Georgia
    Vehicle:
    2017 White Tacoma SR DCSB
    just a cleaner look to have all white LED

  12. Jan 3, 2018 at 11:07 AM
    #12
    batong_23

    batong_23 vincedprince

    Joined:
    May 29, 2017
    Member:
    #220176
    Messages:
    1,288
    Gender:
    Male
    SoCal
    Vehicle:
    2017 white toyota tacoma trd sport
    i actually changed mine now from the white-amber-white to amber-amber-amber. so i have the LED daytime running light (white) and the amber corner lights ON all the time.

  13. Jan 3, 2018 at 11:08 AM
    #13
    Unchained 5150

    Unchained 5150 Rick

    Joined:
    Sep 25, 2014
    Member:
    #139054
    Messages:
    62,164
    Gender:
    Male
    First Name:
    Rick
    Auburn Ma
    Ok so no real use thank you unsub

  14. Jan 3, 2018 at 11:11 AM
    #14
    batong_23

    batong_23 vincedprince

    Joined:
    May 29, 2017
    Member:
    #220176
    Messages:
    1,288
    Gender:
    Male
    SoCal
    Vehicle:
    2017 white toyota tacoma trd sport
    well, i cant say it has no REAL use becuase i do like how it looks. just like people swapping their grille, does it have a real use to change your grille? i dont think so, but it would make it look better. just my 2 cents =)

    patelium21 [OP] likes this.
  15. Jan 3, 2018 at 11:17 AM
    #15
    Unchained 5150

    Unchained 5150 Rick

    Joined:
    Sep 25, 2014
    Member:
    #139054
    Messages:
    62,164
    Gender:
    Male
    First Name:
    Rick
    Auburn Ma
    So it makes the turn signal white and not amber?

    batong_23 likes this.
  16. Jan 3, 2018 at 11:18 AM
    #16
    patelium21

    patelium21 [OP] Well-Known Member

    Joined:
    Aug 29, 2017
    Member:
    #228470
    Messages:
    100
    Gender:
    Male
    First Name:
    Hiran
    Georgia
    Vehicle:
    2017 White Tacoma SR DCSB
    Makes the turn signal white until you actually flash the turn signal. Then it switches to amber while flashing. Then back to white when normal

    batong_23 likes this.
  17. Mar 12, 2020 at 1:28 AM
    #17
    coryg

    coryg Active Member

    Joined:
    Feb 23, 2020
    Member:
    #320175
    Messages:
    39
    Gender:
    Male
    First Name:
    Cory
    Vehicle:
    19 Cavalry Blue Tacoma SR5 4x4
    So with your DRLs is it white or amber? I bought some switchbacks thinking that the DRLs would be white, but they are amber. They aren't white until you turn the headlights on... Not what I was expecting/wanting...
