Taco Tabs Front Alignment Kit

Discussion in '2nd Gen. Tacomas (2005-2015)' started by PMK, Mar 21, 2020.

  1. Mar 21, 2020 at 2:55 AM
    #1
    PMK

    PMK [OP] Well-Known Member

    Joined:
    Feb 27, 2010
    Member:
    #32186
    Messages:
    1,248
    Gender:
    Male
    Florida
    Vehicle:
    10 DCLB TRD Sport
    White, debadged, Mudflaps removed, ICON 2.5 in front, 2.0 in rear, all 4 corners have reservoirs, Spidertrax wheel spacers all around, BAMF bolt on sliders, Avid lightbar, oem transmission cooler converted to power steering cooler, aftermarket transmission cooler eliminating all oem transmission cooler stuff, remote mounted spin on transmission fluid filter TrueTrac rear differential, rear diff housing vented and filtered into left side bed box, URD MAF calibrator, Volant intake scoop into oem airbox, second filter removed, airbox internals smoothed, blended and polished throttle body, NST intake manifold spacer, Wet Okolee set covers, WeatherTech Digital Fit mats, inexpensive JVC single DIN, Scangage, AVS Stepshield door sill protectors, Doug Thorley Long Tube Headers, URD Y pipe with O2 sims.
    Purchased a Taco Tabs set of alignment plates. Curious if others have installed them and how accurate was the wheel alignment when done?

    Not expecting any issues getting the bolts and cams out. Been a while but pretty sure when I had them out a few years ago, I applied Mastinox to prevent corrosion.

    Fingers crossed the plates give good alignment numbers when I align it.

    12TRDTacoma likes this.
  2. Mar 21, 2020 at 6:45 AM
    #2
    SocalTaco15

    SocalTaco15 Well-Known Member

    Joined:
    Mar 9, 2015
    Member:
    #150536
    Messages:
    896
    Gender:
    Male
    First Name:
    Glen
    Socal, Orange County
    Vehicle:
    15 Prerunner, TRD Off Road, DCSB
    Bilstein 5100's, Heastrong Off-Road HS2 Coils, Wheelers 1-1/2" AAL, FJ Cruiser Wheels, Tail gate clamp, AVS Vent Visors, OEM Roof Rack, Color Matched Grill & Rear Bumper, Undercover Classic Tonneau, JBL sub, and WIndow Tint
    Are you talking about the Total Chaos cam tabs?

    '14RC likes this.
  3. Mar 21, 2020 at 1:27 PM
    #3
    TnShooter

    TnShooter Well-Known Member

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    2,292
    Gender:
    Male
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    12TRDTacoma and SocalTaco15 like this.
  4. Mar 21, 2020 at 4:37 PM
    #4
    PMK

    PMK [OP] Well-Known Member

    Joined:
    Feb 27, 2010
    Member:
    #32186
    Messages:
    1,248
    Gender:
    Male
    Florida
    Vehicle:
    10 DCLB TRD Sport
    White, debadged, Mudflaps removed, ICON 2.5 in front, 2.0 in rear, all 4 corners have reservoirs, Spidertrax wheel spacers all around, BAMF bolt on sliders, Avid lightbar, oem transmission cooler converted to power steering cooler, aftermarket transmission cooler eliminating all oem transmission cooler stuff, remote mounted spin on transmission fluid filter TrueTrac rear differential, rear diff housing vented and filtered into left side bed box, URD MAF calibrator, Volant intake scoop into oem airbox, second filter removed, airbox internals smoothed, blended and polished throttle body, NST intake manifold spacer, Wet Okolee set covers, WeatherTech Digital Fit mats, inexpensive JVC single DIN, Scangage, AVS Stepshield door sill protectors, Doug Thorley Long Tube Headers, URD Y pipe with O2 sims.
    No

  5. Mar 21, 2020 at 4:37 PM
    #5
    PMK

    PMK [OP] Well-Known Member

    Joined:
    Feb 27, 2010
    Member:
    #32186
    Messages:
    1,248
    Gender:
    Male
    Florida
    Vehicle:
    10 DCLB TRD Sport
    White, debadged, Mudflaps removed, ICON 2.5 in front, 2.0 in rear, all 4 corners have reservoirs, Spidertrax wheel spacers all around, BAMF bolt on sliders, Avid lightbar, oem transmission cooler converted to power steering cooler, aftermarket transmission cooler eliminating all oem transmission cooler stuff, remote mounted spin on transmission fluid filter TrueTrac rear differential, rear diff housing vented and filtered into left side bed box, URD MAF calibrator, Volant intake scoop into oem airbox, second filter removed, airbox internals smoothed, blended and polished throttle body, NST intake manifold spacer, Wet Okolee set covers, WeatherTech Digital Fit mats, inexpensive JVC single DIN, Scangage, AVS Stepshield door sill protectors, Doug Thorley Long Tube Headers, URD Y pipe with O2 sims.
  6. Mar 21, 2020 at 5:25 PM
    #6
    Wheelspinner

    Wheelspinner Coco Customs

    Joined:
    Jul 6, 2013
    Member:
    #107741
    Messages:
    4,244
    Gender:
    Male
    First Name:
    Steve
    Northern NJ
    Vehicle:
    '13 4x4x4cyl
    I think you may be confused, the link above seems like it eliminates the alignment cams and gives you the option of all the way in, neutral, or all the way out. The pics on poly performances website also look to have the total chaos gussets installed as well for strength. With out fully adjustable upper arms these only give you three options for alignment per bushing. That being said this is the first time I’ve seen these so I may be missing something.

  7. Mar 22, 2020 at 12:21 AM
    #7
    PMK

    PMK [OP] Well-Known Member

    Joined:
    Feb 27, 2010
    Member:
    #32186
    Messages:
    1,248
    Gender:
    Male
    Florida
    Vehicle:
    10 DCLB TRD Sport
    White, debadged, Mudflaps removed, ICON 2.5 in front, 2.0 in rear, all 4 corners have reservoirs, Spidertrax wheel spacers all around, BAMF bolt on sliders, Avid lightbar, oem transmission cooler converted to power steering cooler, aftermarket transmission cooler eliminating all oem transmission cooler stuff, remote mounted spin on transmission fluid filter TrueTrac rear differential, rear diff housing vented and filtered into left side bed box, URD MAF calibrator, Volant intake scoop into oem airbox, second filter removed, airbox internals smoothed, blended and polished throttle body, NST intake manifold spacer, Wet Okolee set covers, WeatherTech Digital Fit mats, inexpensive JVC single DIN, Scangage, AVS Stepshield door sill protectors, Doug Thorley Long Tube Headers, URD Y pipe with O2 sims.
    Not confused at all.

    Correct, these eliminate the adjuster cams and allow preset positions of min, max and centered.

    Using Total Chaos alignment cam beef up can be used with this also.

    I already purchased the Taco Tabs, just have not found time to install them yet. Was asking to see if others that used them knew how the alignment numbers turned out.

    tacoma16 likes this.
  8. Mar 22, 2020 at 5:25 AM
    #8
    Wheelspinner

    Wheelspinner Coco Customs

    Joined:
    Jul 6, 2013
    Member:
    #107741
    Messages:
    4,244
    Gender:
    Male
    First Name:
    Steve
    Northern NJ
    Vehicle:
    '13 4x4x4cyl
    Gotcha. Seems like you have a solid plan then. Just wanted to be sure, I’ve seen a lot of silly things posted over the years hahaha. I’m looking forward to see how it turns out, if the numbers work out good it does seem like a good idea.

  9. Mar 22, 2020 at 8:32 AM
    #9
    GREENBIRD56

    GREENBIRD56 Well-Known Member

    Joined:
    Aug 19, 2014
    Member:
    #136508
    Messages:
    414
    Gender:
    Male
    First Name:
    Steve
    Casper / Tucson
    Vehicle:
    014 Taco 4Dr 4wd
    There are variants of this sort of system - made years ago for early Mustangs that had the same ignorant adjustment system as the Tacoma. Made by "Global Suspension" and maybe still? The square plates provided for being installed with about 9 different centers by using the four sides of the square and a center and flipping the plates over. They worked to solve the cam slip on my auto-crossed 67 Cougar.

  10. Mar 22, 2020 at 8:40 AM
    #10
    Squeaky Penguin

    Squeaky Penguin Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    7,902
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD
    Lots of dust and custom dents, Check Build
    The only people I've seen eliminate their alignment cams have done so with an adjustable UCA - heimed or SPCs.

    You'll probably be able to get it close, but not exact.

    Also, hope you're doing your own alignments, or know of a competent shop to align it.

    12TRDTacoma likes this.
  11. Mar 22, 2020 at 3:31 PM
    #11
    Wheelspinner

    Wheelspinner Coco Customs

    Joined:
    Jul 6, 2013
    Member:
    #107741
    Messages:
    4,244
    Gender:
    Male
    First Name:
    Steve
    Northern NJ
    Vehicle:
    '13 4x4x4cyl
    My thoughts exactly

  12. Mar 22, 2020 at 3:37 PM
    #12
    GREENBIRD56

    GREENBIRD56 Well-Known Member

    Joined:
    Aug 19, 2014
    Member:
    #136508
    Messages:
    414
    Gender:
    Male
    First Name:
    Steve
    Casper / Tucson
    Vehicle:
    014 Taco 4Dr 4wd
    Digging in my files for stuff about the old Cougar lower suspension adjustment kit - I realized the manufacturer of the parts was "Global West". The cam replacement plates looked like these:

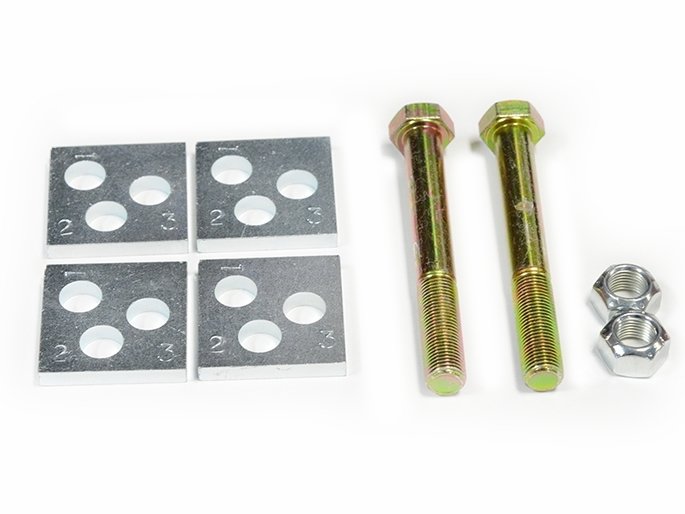

    Global West Mustang-Cougar 5 Position Adjustment Loc-out.jpg
    After we got the geometry right where we wanted it - by flipping the plates around - I made four new plates with single holes where it worked best. Should work for the Tacoma too.

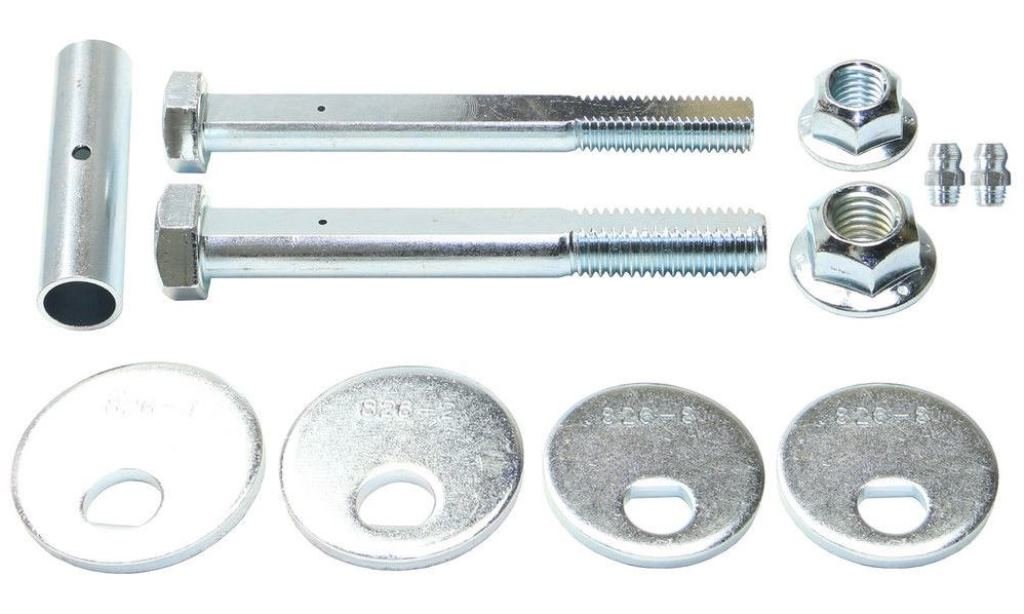

    Also Moog makes a kit K100128 that has the lower bolts drilled for a grease zerk. This seems like a good idea to me and I would think that the engineering of the bolts with milled flats must have been worked out by pros. Not sure their cams are the best design but combined with a set of fixed plates and new bushings it could be pretty rugged.

    12TRDTacoma likes this.
  13. Mar 22, 2020 at 5:48 PM
    #13
    PMK

    PMK [OP] Well-Known Member

    Joined:
    Feb 27, 2010
    Member:
    #32186
    Messages:
    1,248
    Gender:
    Male
    Florida
    Vehicle:
    10 DCLB TRD Sport
    White, debadged, Mudflaps removed, ICON 2.5 in front, 2.0 in rear, all 4 corners have reservoirs, Spidertrax wheel spacers all around, BAMF bolt on sliders, Avid lightbar, oem transmission cooler converted to power steering cooler, aftermarket transmission cooler eliminating all oem transmission cooler stuff, remote mounted spin on transmission fluid filter TrueTrac rear differential, rear diff housing vented and filtered into left side bed box, URD MAF calibrator, Volant intake scoop into oem airbox, second filter removed, airbox internals smoothed, blended and polished throttle body, NST intake manifold spacer, Wet Okolee set covers, WeatherTech Digital Fit mats, inexpensive JVC single DIN, Scangage, AVS Stepshield door sill protectors, Doug Thorley Long Tube Headers, URD Y pipe with O2 sims.
    Yes, will align it myself.

    12TRDTacoma likes this.
  14. Mar 22, 2020 at 5:51 PM
    #14
    PMK

    PMK [OP] Well-Known Member

    Joined:
    Feb 27, 2010
    Member:
    #32186
    Messages:
    1,248
    Gender:
    Male
    Florida
    Vehicle:
    10 DCLB TRD Sport
    White, debadged, Mudflaps removed, ICON 2.5 in front, 2.0 in rear, all 4 corners have reservoirs, Spidertrax wheel spacers all around, BAMF bolt on sliders, Avid lightbar, oem transmission cooler converted to power steering cooler, aftermarket transmission cooler eliminating all oem transmission cooler stuff, remote mounted spin on transmission fluid filter TrueTrac rear differential, rear diff housing vented and filtered into left side bed box, URD MAF calibrator, Volant intake scoop into oem airbox, second filter removed, airbox internals smoothed, blended and polished throttle body, NST intake manifold spacer, Wet Okolee set covers, WeatherTech Digital Fit mats, inexpensive JVC single DIN, Scangage, AVS Stepshield door sill protectors, Doug Thorley Long Tube Headers, URD Y pipe with O2 sims.
    Seems the MOOG setup would be lubing the rubber pivot bushings ID. Also, if you pump grease in at the head, the easiest path of flow is along the flat and out the threads at the nut.

  15. Apr 24, 2020 at 4:25 PM
    #15
    Nopro

    Nopro Rhino pilot

    Joined:
    May 20, 2018
    Member:
    #254072
    Messages:
    6,743
    Gender:
    Male
    First Name:
    Christopher
    Del Valle
    Vehicle:
    2014 dcsb Trd Offroad
    Icon stage 5 and 295’s
    I’m looking at these too, thinking of making blank plates to drill once the alignment is put in spec.

  16. Apr 25, 2020 at 3:59 AM
    #16
    PMK

    PMK [OP] Well-Known Member

    Joined:
    Feb 27, 2010
    Member:
    #32186
    Messages:
    1,248
    Gender:
    Male
    Florida
    Vehicle:
    10 DCLB TRD Sport
    White, debadged, Mudflaps removed, ICON 2.5 in front, 2.0 in rear, all 4 corners have reservoirs, Spidertrax wheel spacers all around, BAMF bolt on sliders, Avid lightbar, oem transmission cooler converted to power steering cooler, aftermarket transmission cooler eliminating all oem transmission cooler stuff, remote mounted spin on transmission fluid filter TrueTrac rear differential, rear diff housing vented and filtered into left side bed box, URD MAF calibrator, Volant intake scoop into oem airbox, second filter removed, airbox internals smoothed, blended and polished throttle body, NST intake manifold spacer, Wet Okolee set covers, WeatherTech Digital Fit mats, inexpensive JVC single DIN, Scangage, AVS Stepshield door sill protectors, Doug Thorley Long Tube Headers, URD Y pipe with O2 sims.
    Been simply too busy with non Tacoma stuff to get around to installing the Taco Tabs. FWIW, is suspect from a cost standpoint, buying the Taco Tab setup is worth the added costs when you consider it also includes the large bolts needed to do this. Granted, you can buy bolts, but sorting out diameters and lengths, then locating them to purchase takes time and effort.

    Nopro likes this.
  17. Apr 25, 2020 at 6:35 AM
    #17
    Nopro

    Nopro Rhino pilot

    Joined:
    May 20, 2018
    Member:
    #254072
    Messages:
    6,743
    Gender:
    Male
    First Name:
    Christopher
    Del Valle
    Vehicle:
    2014 dcsb Trd Offroad
    Icon stage 5 and 295’s
    True, I have some tool steel and the proper equipment to make them. Sorting Bolts isn’t too hard, I’m doing that for some second hand skid plates. Once I get the bolts sized I’ll post it up to make it easier for those willing to fabricate their own. Might start a thread.

    MattCowsmasher likes this.
  18. Apr 25, 2020 at 8:06 AM
    #18
    PMK

    PMK [OP] Well-Known Member

    Joined:
    Feb 27, 2010
    Member:
    #32186
    Messages:
    1,248
    Gender:
    Male
    Florida
    Vehicle:
    10 DCLB TRD Sport
    White, debadged, Mudflaps removed, ICON 2.5 in front, 2.0 in rear, all 4 corners have reservoirs, Spidertrax wheel spacers all around, BAMF bolt on sliders, Avid lightbar, oem transmission cooler converted to power steering cooler, aftermarket transmission cooler eliminating all oem transmission cooler stuff, remote mounted spin on transmission fluid filter TrueTrac rear differential, rear diff housing vented and filtered into left side bed box, URD MAF calibrator, Volant intake scoop into oem airbox, second filter removed, airbox internals smoothed, blended and polished throttle body, NST intake manifold spacer, Wet Okolee set covers, WeatherTech Digital Fit mats, inexpensive JVC single DIN, Scangage, AVS Stepshield door sill protectors, Doug Thorley Long Tube Headers, URD Y pipe with O2 sims.
    Thats cool and all, but most folks probably need to just but a kit.

    For some reason, before Taco Tabs were available, I was under the impression some had removed the cams entirely and went with bolts matching the cam size. They used a pry bar to get it aligned, and tightened those bolts. The oversize bolts clamped enough to prevent movement.

    Taco Tabs kind of do this, but the alignment plates eliminate using a prybar, but also limit the settings possible.

  19. Apr 25, 2020 at 10:47 AM
    #19
    Mohedano1

    Mohedano1 Well-Known Member

    Joined:
    Apr 3, 2015
    Member:
    #152419
    Messages:
    240
    Gender:
    Male
    Ogden, Utah!!
    Vehicle:
    '15 4wd DCSB TRD Offroad
    Total Chaos uca, King 700lb extended coilovers, King Tundra rear shock w/resi, BruteForceFab Hybrid front bumper, BruteForceFab rear HC bumper, BAMF skidz. 315/75/16 cepek extreme country, 4.88 gears, front arb locker. Rci sliders and diff skid

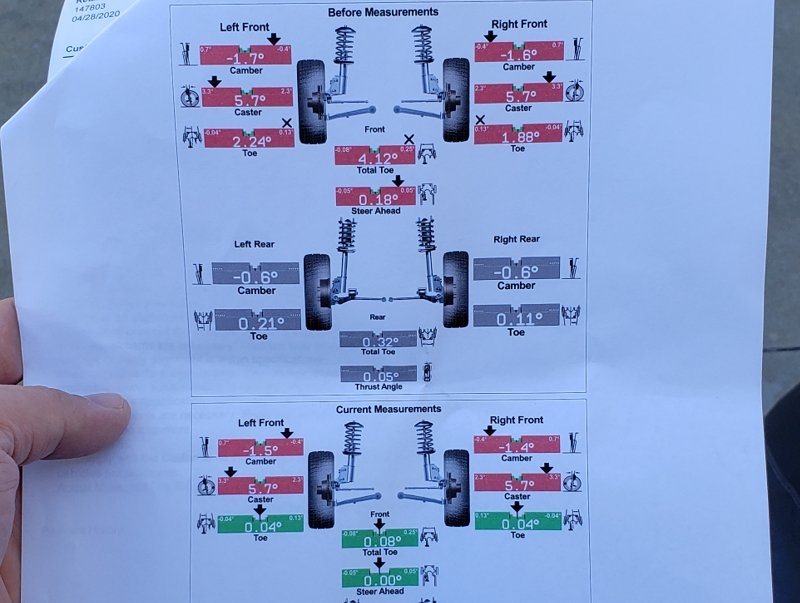

    I installed these. Larger bolt says 250 lb ft. Just did a string alignment to try and get toe close. Seems ok, lol

    Nopro likes this.
  20. May 6, 2020 at 12:39 AM
    #20
    jamesepoop

    jamesepoop Well-Known Member

    Joined:
    Feb 22, 2017
    Member:
    #211394
    Messages:
    263
    Gender:
    Male
    California
    Vehicle:
    2007 Fj Cruiser
    Anybody have 6°caster and closer to 0°camber? I tried the recommended neutral front/max out rear and numbers are good but I would like closer to 0 camber but don't want to take apart the LCA if it goes positive
