Tacoma 2005-2015 Intermediate Steering Shaft Replacement

Discussion in '2nd Gen. Tacomas (2005-2015)' started by wcstory, Apr 1, 2018.

  1. Apr 1, 2018 at 4:54 PM
    #1
    wcstory

    wcstory [OP] Member

    Joined:
    Mar 22, 2018
    Member:
    #248104
    Messages:
    9
    Gender:
    Male
    First Name:
    William
    Vehicle:
    2009 Tacoma Dbl Cab 4.0L v6 4wd short bed
    I've benefited greatly from lurking on TW so I figured I give back.

    Many of us have been having problems with stiff steering on our Tacoma's. The stiffness can be temporarily alleviated by spraying lube on the joint. This only hides the symptoms of a failing universal joint. After lubing it a few times I decided it needed to be replaced before it failed. My Double Cab 4wd 2009 Tacoma has 215,000 miles and I do a lot of highway driving. I'd prefer to not have a problem at highway speeds.

    The dealership charges 450-550 to replace the lower intermediate shaft. Sorry, but I'm frugal and like to save money where I can. This replacement requires no special tools or skills.

    For a 2005-2015 Tacoma 4wd the Lower Steering Shaft part number is 45203-04021 .
    - Available form online Toyota parts outlets for about 150-175.
    - Non-OEM parts are available in the $55-$85 range on fleaBay and elsewhere

    Seeing that my Tacoma is more than a bit over the hill I opted for aftermarket parts. I paid $57 with free shipping off fleaBay from a seller I have bought other parts form.


    First spray the hell out of the lower mounting bolt and upper bolts on the steering sliding yoke with PB’laster or similar. Start a few days in advance if you can.

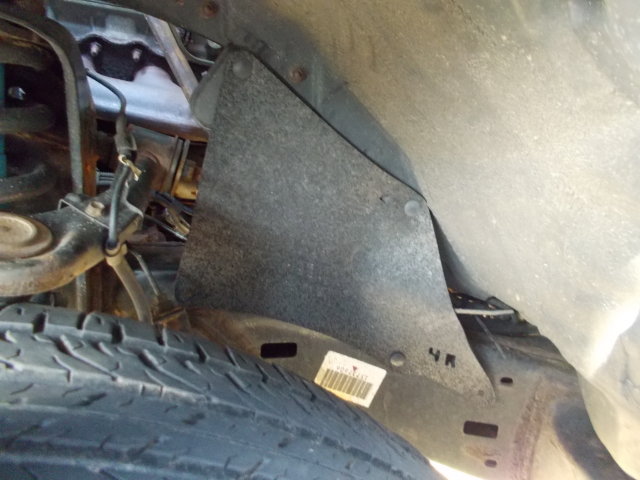

    Remove the inner fender skirt to gain access to the 2 bolts on the yoke.

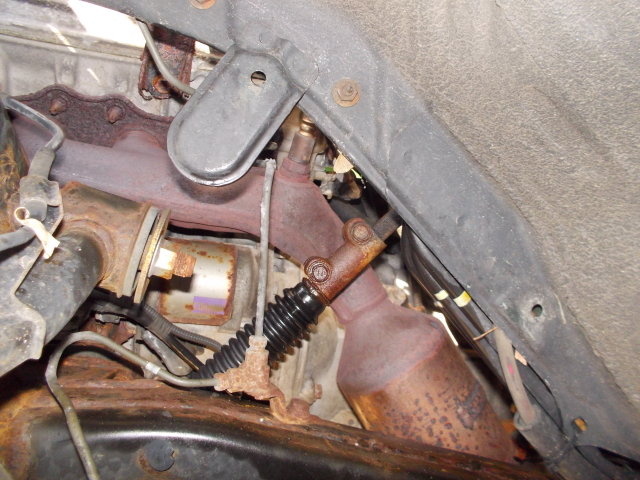

    Remove the two 12mm bolts from the yoke

    After reading the write up that EatSleepTacos did you should definitely remove the driver side wheel too for better access

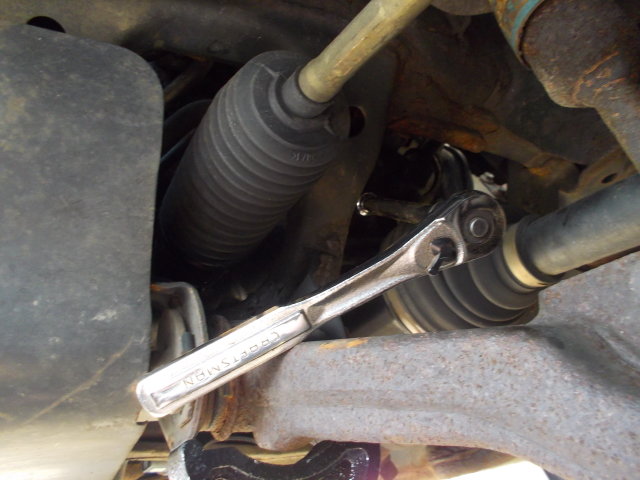

    Turn the steering wheel so that you can access the lower attachment 12mm bolt. I found I could access it by the axle.


    Here's the hard part. Getting a flat chisel or screwdriver to the lower attachment to spread the ears. I had to have my daughter sit in the truck and turn the wheel so I could line it up to get access to loosen it up. Spray the hell out of it again.

    Turn the steering wheel back to the wheels straight position. Use you jack to lift up on the passengers wheel just enough so it doesn't turn easily.

    Spray penetration oil on the yolk and lower attachment again. Now use a screwdriver or flat chisel to open the yolk. You are going to drive the yolk upwards towards the cab so make sure you open the ears of the yoke enough. The problems I had were due to not being liberal enough on opening up the yoke sleeve.

    Use a hammer to drive the yoke upwards till the intermediate shaft comes loose.

    No you have the get the lower part off the splines. I used a 18" bar with a point inserted into the u-joint and levered off the METAL part of the front axle housing. DO NOT PRY AGAINST ANY ROTATING PART OF THE AXLE!!!

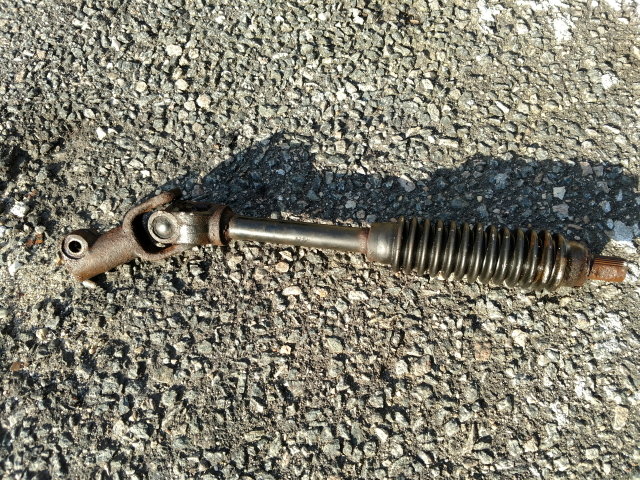

    Here's the crusty old one

    LIGHTLY open the ears on the lower part of the new steering shaft for an easier fit.

    Take the new intermediate shaft and insert it into the yoke sleeve. Make sure the flat spot is at 12 o'clock for the bolt to go through, then remove the bolt. Place the lower bolt into the sleeve and make sure it can thread in. The lower attachment has a 360* gap in the splines for the bolt.

    Make sure the wheels are still pointed straight forward. The lower part of the shaft should be just able to slip onto the splines on the steering rack. Pull the intermediate shaft down onto the splines. The bolt will be at 12 o'clock position. I put the bolt in and moved it back and forth till the bolt slipped through to the threads.

    Now tap the steering sliding yoke back down so it it is almost snug against the collar of the intermediate shaft. Insert the bolts and make sure they thread in properly. Before you tighten the upper bolts tighten the lower bolt.

    Turn the steering wheel again to give you access to the lower bolt. My new intermediate shaft had a 13mm head on the bolt. I used a little Locktite blue and then secured it properly.

    Turn the steering back to straight and tighten. Because of how much I opened the yoke I chose not to Locktite till i give it some driving time. Next weekend I'll recheck the bolts and Loktite the uppers.

    Things I would have done differently.... I jacked up the front too high to access the yoke sleeve. I would consider unbolting and opening the yoke sleeve before jacking it up if I did another. Second I'd open the yoke sleeve enough the first or second time.

    Last edited: Apr 2, 2018
  2. Apr 1, 2018 at 5:30 PM
    #2
    Beerline123

    Beerline123 Well-Known Member

    Joined:
    Apr 1, 2014
    Member:
    #126719
    Messages:
    286
    Gender:
    Male
    Vehicle:
    07 Tacoma access 4x4
    Nice write-up. Thanks a lot.

  3. Apr 1, 2018 at 5:41 PM
    #3
    Toy4me

    Toy4me Well-Known Member

    Joined:
    Aug 19, 2012
    Member:
    #85061
    Messages:
    3,555
    Gender:
    Male
    First Name:
    Tom
    NNJ
    Vehicle:
    '10 DCLB TRD Sport MGM
    Nice write up. Maybe a silly question but what does the boot on the steering shaft cover?

    Last edited: Apr 1, 2018
  4. Apr 1, 2018 at 5:52 PM
    #4
    wcstory

    wcstory [OP] Member

    Joined:
    Mar 22, 2018
    Member:
    #248104
    Messages:
    9
    Gender:
    Male
    First Name:
    William
    Vehicle:
    2009 Tacoma Dbl Cab 4.0L v6 4wd short bed
    It is all metal. There is a steel shaft with an accordion crumple zone pinned to it. This is a collapsible shaft to protect the driver.

  5. Apr 1, 2018 at 5:56 PM
    #5
    Toy4me

    Toy4me Well-Known Member

    Joined:
    Aug 19, 2012
    Member:
    #85061
    Messages:
    3,555
    Gender:
    Male
    First Name:
    Tom
    NNJ
    Vehicle:
    '10 DCLB TRD Sport MGM
    Thanks. Also, in reference to the other steering shaft thread you posted in, does the stock u joint look like it can be removed and replaced or not? Everything I've read says that they're not rebuildable.

  6. Apr 1, 2018 at 6:05 PM
    #6
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    53,740
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    TheDevilYouLove, tomwil and trekker like this.
  7. Apr 2, 2018 at 1:52 PM
    #7
    wcstory

    wcstory [OP] Member

    Joined:
    Mar 22, 2018
    Member:
    #248104
    Messages:
    9
    Gender:
    Male
    First Name:
    William
    Vehicle:
    2009 Tacoma Dbl Cab 4.0L v6 4wd short bed

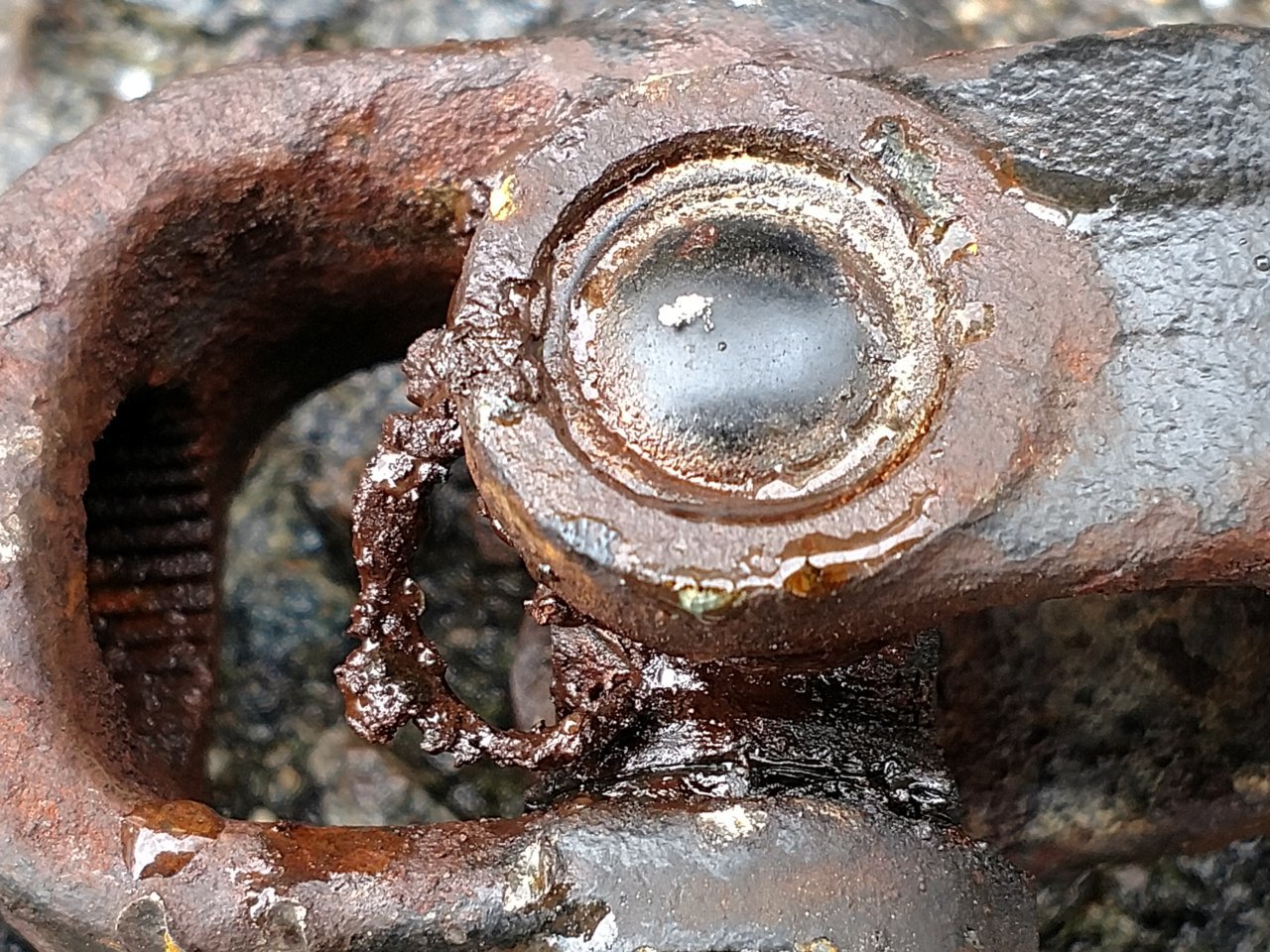

    The one I removed is definitely not rebuildable.

    The new one may be rebuildable. The universal joint is held in with snap rings. IMG_20180402_163923728.jpg

    Jckdnls likes this.
  8. Apr 2, 2018 at 2:02 PM
    #8
    Toy4me

    Toy4me Well-Known Member

    Joined:
    Aug 19, 2012
    Member:
    #85061
    Messages:
    3,555
    Gender:
    Male
    First Name:
    Tom
    NNJ
    Vehicle:
    '10 DCLB TRD Sport MGM
    Interesting. Your original stock one is not rebuildable, but the new oem Toyota replacement one from Toyota has snap rings and should be rebuildable. Gonna have to go look at mine. Mine was getting a little stiff and with a little lube it's fine and only a little play.

  9. Apr 2, 2018 at 4:25 PM
    #9
    Steve721

    Steve721 Well-Known Member

    Joined:
    Oct 11, 2016
    Member:
    #199520
    Messages:
    81
    Gender:
    Male
    First Name:
    Steve
    Boston
    Vehicle:
    2009 Speedway Blue, TRD Sport
    Very nice write up. I think I'll be replacing my intermediate shaft shortly, as mine is doing the same thing yours was doing. I want to look at this unit and see if there is a way to make it greasable. Then is would really last.

  10. Apr 2, 2018 at 5:06 PM
    #10
    wcstory

    wcstory [OP] Member

    Joined:
    Mar 22, 2018
    Member:
    #248104
    Messages:
    9
    Gender:
    Male
    First Name:
    William
    Vehicle:
    2009 Tacoma Dbl Cab 4.0L v6 4wd short bed
    I did not go with an OEM part.
    Nice write up. Missed that one, you wrote it after I did my searches. My usual luck.

    With the tire off you definitely have better view the lower attachment. Updating.

    EatSleepTacos likes this.
  11. Apr 2, 2018 at 6:19 PM
    #11
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,509
    It would be nice if someone could convince Borgeson to make a shaft for the Tacos. They make a really nice shaft for Dodge trucks.

  12. Apr 11, 2018 at 1:55 PM
    #12
    TimsTaco

    TimsTaco Well-Known Member

    Joined:
    Apr 4, 2014
    Member:
    #127000
    Messages:
    236
    Gender:
    Male
    First Name:
    Tim
    Moncton, NB
    Vehicle:
    07 DCLB SR5 Sandstone Metallic
    OEM Fog lights, headache rack, work lights, Tailgate Theft Deterrent (hose clamp), Tailgate Reinforcement, Roll'n'Lock tonneau cover
    Very nice write up. My '07, with just over 206,000 km, just started the stiffness last week.

  13. Apr 11, 2018 at 6:05 PM
    #13
    Beerline123

    Beerline123 Well-Known Member

    Joined:
    Apr 1, 2014
    Member:
    #126719
    Messages:
    286
    Gender:
    Male
    Vehicle:
    07 Tacoma access 4x4
    Go to mods and tutorials and under 2nd gen tutorials is a how to rebuild steering shaft using an atv ujoint.

  14. Apr 12, 2018 at 5:17 AM
    #14
    wcstory

    wcstory [OP] Member

    Joined:
    Mar 22, 2018
    Member:
    #248104
    Messages:
    9
    Gender:
    Male
    First Name:
    William
    Vehicle:
    2009 Tacoma Dbl Cab 4.0L v6 4wd short bed
    If anyone want to try the atv mod, they can have the one I took off. Just pay for shipping. PM me.

  15. Jun 22, 2018 at 3:45 PM
    #15
    Johnz

    Johnz Active Member

    Joined:
    Jun 15, 2007
    Member:
    #1838
    Messages:
    33
    Gender:
    Male
    Frankfort, KY
    Vehicle:
    '07 Access Cab 2 WhDr - SR5 - Impulse R
    Extang Trifecta Tonneau Hitch WeatherTech Matts Pop N' Lock Pioneer Deck/HD/Blue Tooth/USB
    I have a question for forum members. I too had the stiff steering issue and the dealership wanted 636.00 to replace the lower steering shaft. I decided to buy the part myself and replace it. I was careful but my steering wheel is off to the right slightly. I had an alignment already done last month so I know the alignment is good. Is there an easy way to re-align the wheel without taking the whole shaft out again? I saw a few articles about removing the airbag and pulling the wheel off the column to re-position it. I also saw a few people had removed the shaft at the U joint under the dashboard. My question is which way is the correct way? Should I just take it in for another alignment and have them do it at the Wheels? Any help would be greatly appreciated.

    Thank you,

    John Z.

  16. Jun 22, 2018 at 3:51 PM
    #16
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    53,740
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    https://www.tacomaworld.com/threads/the-lair.495066/page-1778#post-17358252

  17. Jun 23, 2018 at 1:35 AM
    #17
    wcstory

    wcstory [OP] Member

    Joined:
    Mar 22, 2018
    Member:
    #248104
    Messages:
    9
    Gender:
    Male
    First Name:
    William
    Vehicle:
    2009 Tacoma Dbl Cab 4.0L v6 4wd short bed
    My personal opinion would be to get another alignment. Even if you go to all the trouble of correcting it another way it may be off by even a slight amount. Tires aren't cheap.

    Sears and some of the chain auto shops have alignments that are good for 6 months. Get it done now and go back in 5 months and a couple weeks. I live in New England where rim killing potholes are a common occurrence.

  18. Jun 23, 2018 at 7:47 AM
    #18
    Johnz

    Johnz Active Member

    Joined:
    Jun 15, 2007
    Member:
    #1838
    Messages:
    33
    Gender:
    Male
    Frankfort, KY
    Vehicle:
    '07 Access Cab 2 WhDr - SR5 - Impulse R
    Extang Trifecta Tonneau Hitch WeatherTech Matts Pop N' Lock Pioneer Deck/HD/Blue Tooth/USB
  19. Jun 23, 2018 at 8:06 AM
    #19
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    53,740
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    I haven’t the slightest clue. I don’t think it matters when it’s only a little off like that. It’s an easy fix like I did, so I would try that first.

  20. Nov 15, 2018 at 6:07 AM
    #20
    Sr5_Tacoma

    Sr5_Tacoma Well-Known Member

    Joined:
    Dec 21, 2015
    Member:
    #172821
    Messages:
    155
    Gender:
    Male
    First Name:
    Kyle Silva
    Easthampton, MA.
    Vehicle:
    2008 SR5 Access Cab on 35s
    -6 inch lift. -35×12.50r17 mastercraft MXTs. -17×9 FUEL Hostage black wheels. -20 inch RGB LED light bar mounted in the grill. -RGB rock lights -Led spot light ditch lights on Rago Fabrication ditch light brackets. -Tom Woods custom 1piece driveshaft. -Color matched guage trim. -Pioneer touch screen radio. -12" sub in custom box (between rear seats and center counsel) -Custom made hidden winch mount, with superwinch TS9500 winch. -10,000k HID fog lights. -Fog lights for reverse bulb mod. (Very bright) -Custom retrofit headlights, with switchback turn signals/DRL halos, and RGB demon eyes. -Back up camera. -Onboard air, with auxiliary 5 gal. Tank. -Dual battery (huge 8D mounted in the bed) -JBA UCAs. -Icon front coilovers for 6-7" lift with remote resi and CDCV adjusters. More to come (Icon 13" travel temote resi rear shocks ordered 3 to 5 weeks out) Working on a custom utility bed trailer for camping/overlanding.
    Great thread. Just ordered the intermediate shaft on sunday, after finding this thread. It was $50 when i ordered it. Got it on tuesday, suprisingly fast shipping. Got it installed last night in about 2 hours. Easy to do. Exact fit. Thanks for the thread @wcstory
