Tacoma 2uzfe 5spd crawler build

Discussion in '1st Gen. Tacomas (1995-2004)' started by Trail.ready.designs, Dec 12, 2017.

  1. Dec 12, 2017 at 6:59 PM
    #1
    Trail.ready.designs

    Trail.ready.designs [OP] Member

    Joined:
    Dec 12, 2017
    Member:
    #238351
    Messages:
    10
    Gender:
    Male
    Vehicle:
    98 taco 2uz v8 5spd
    LC 9.5 diffs, lockers, dual cases, 5spd R150 linked, Hellfire knuckles, Fox coil overs, ruffstuff front housing, FZJ80 full float rear w discs
    Hi guys. New to tacomaworld, just thought I'd post up my build thread. Hope you guys like it!

    It started out as an auto 3rz ext cab truck. At first it got a manual swap and a Dana44 front axle with the Sky offroad kit. Plus dual cases, elocker rear (taco) and welded front.

    I quickly found the limitations of that axle and even with chromoly parts, the weak link was ball joints almost every hard wheeling trip. Also, uptravel was severely limited with leaf springs and the 'IFS' frame geometry.

    I didn't want to do this build three times so I started planning 4yrs ago collecting parts. I wanted to go fast and crawl, and I wanted bigger differentials.

    I opted to also stay true to everything toyota, for artistic appeal and because 1 ton Dana axles that most guys use are horrendously heavy. And I wanted drop out 3rds.

    So I picked up a rear full float landcruiser 9.5" elocker axle. Geared it to 5.29 and three it under the rear. Then I bought a ruffstuff 9.5" axle housing with FJ80 birfields. I threw Hellfire hi steer knuckles on it.

    That axle sat for two years while I gathered parts for the v8 swap.

    I used 1uzswapkit to mate the 2uzfe to an r150 trans. The v8 has hi mileage and blew its timing belt. Slapped a new belt on thing runs fine. Has one low cylinder but whatever.

    Then the big project came, I chopped off the frame at the firewall. I built a new frame to mimick the old solid axle frame ( hi arch over the axle to accommodate articulation)

    I made motor mounts and got the 2uz in there, it fits perfect. The. I designed the front link suspension, after months of learning how to calculate anti-dive m, roll center etc (that was intimidating but not so bad in the end)

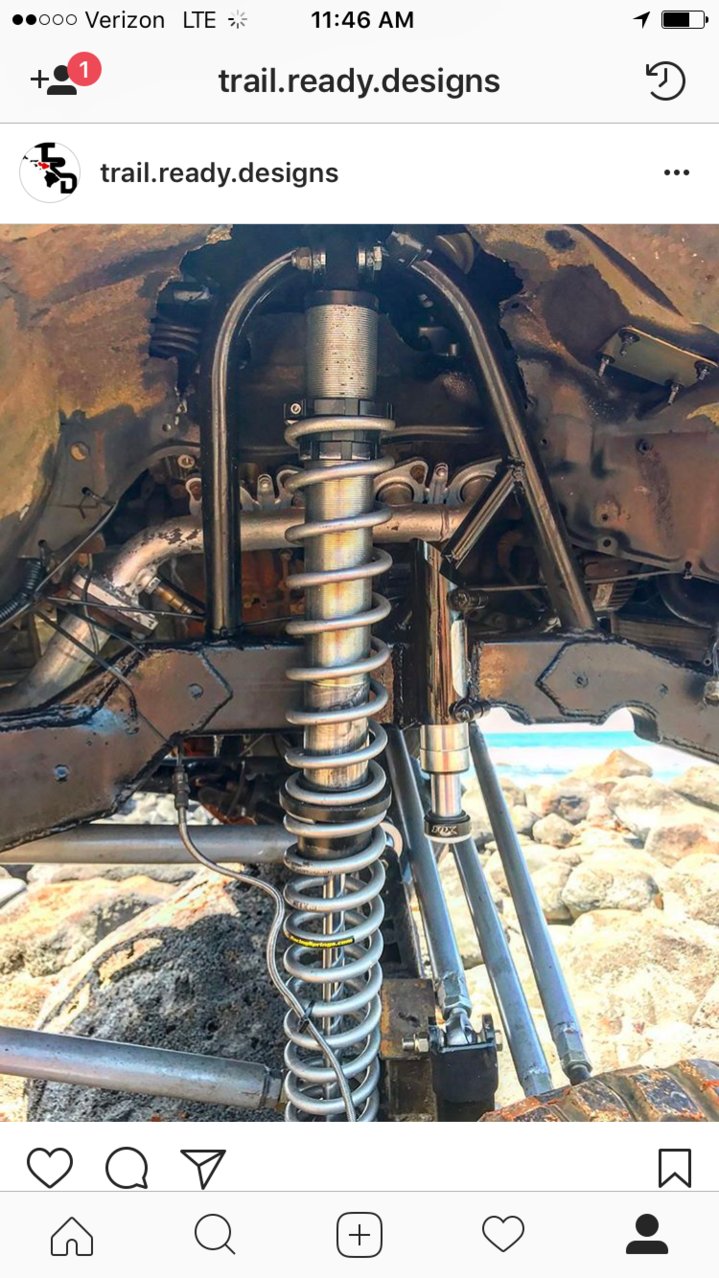

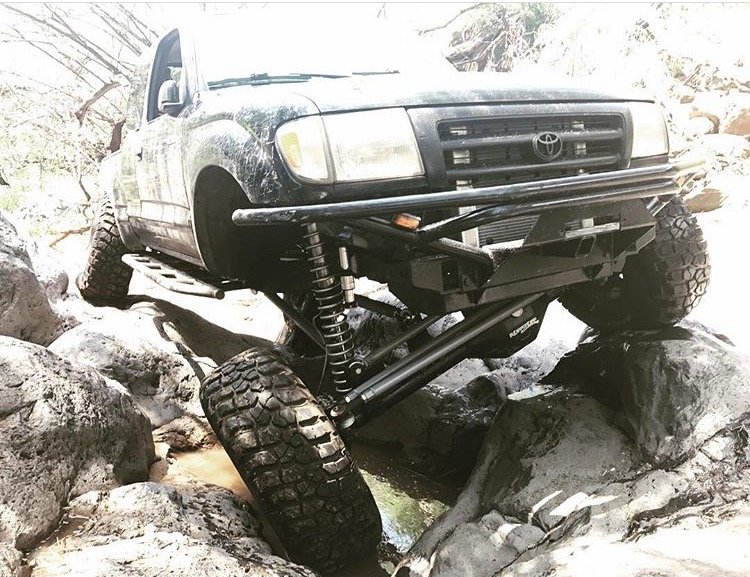

    I suspended it with Fox 2.5 16" coilovers custom valves with race pistons by AccuTune Offroad.

    Offroad Solutions built me a plug and play wiring harness.

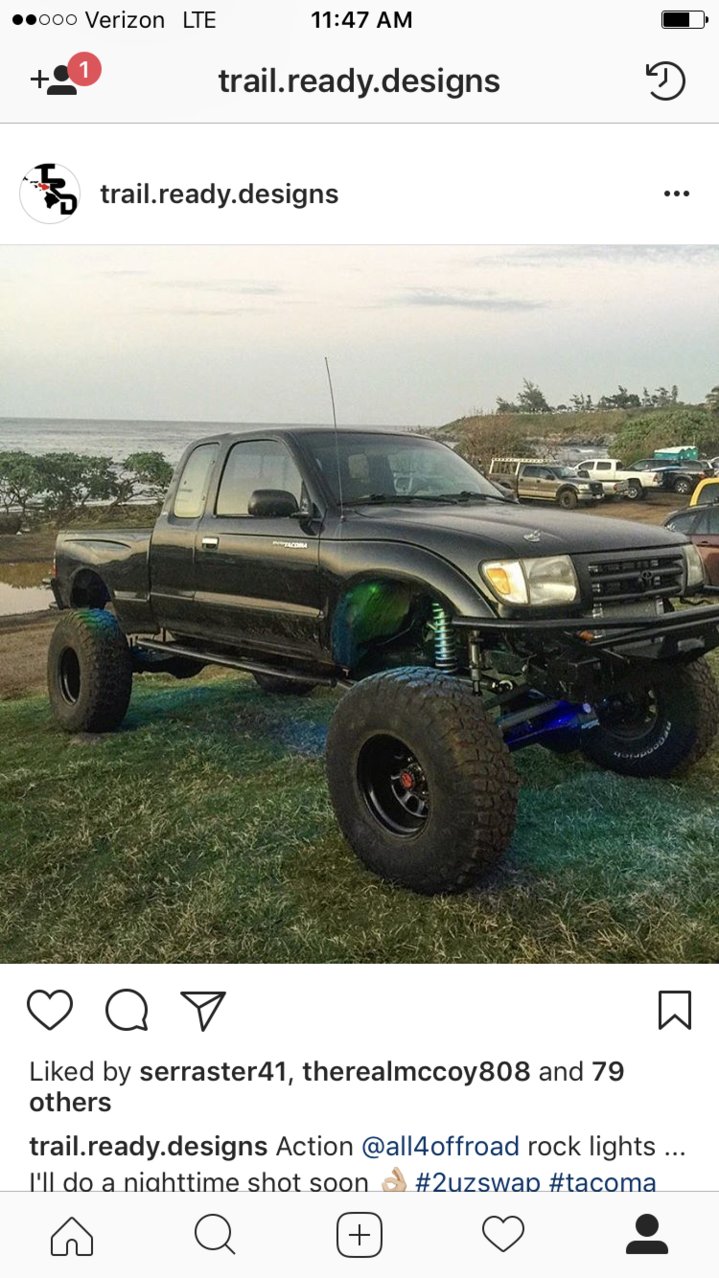

    Now I have a beast of an Offroad rig that is a joy to drive on and off road. I'll start posting pics of the build process. Cheers!!


    ToyRyd04, mac33, Dalandser and 3 others like this.
  2. Dec 12, 2017 at 7:03 PM
    #2
    Trail.ready.designs

    Trail.ready.designs [OP] Member

    Joined:
    Dec 12, 2017
    Member:
    #238351
    Messages:
    10
    Gender:
    Male
    Vehicle:
    98 taco 2uz v8 5spd
    LC 9.5 diffs, lockers, dual cases, 5spd R150 linked, Hellfire knuckles, Fox coil overs, ruffstuff front housing, FZJ80 full float rear w discs
    Here are some of the build pics

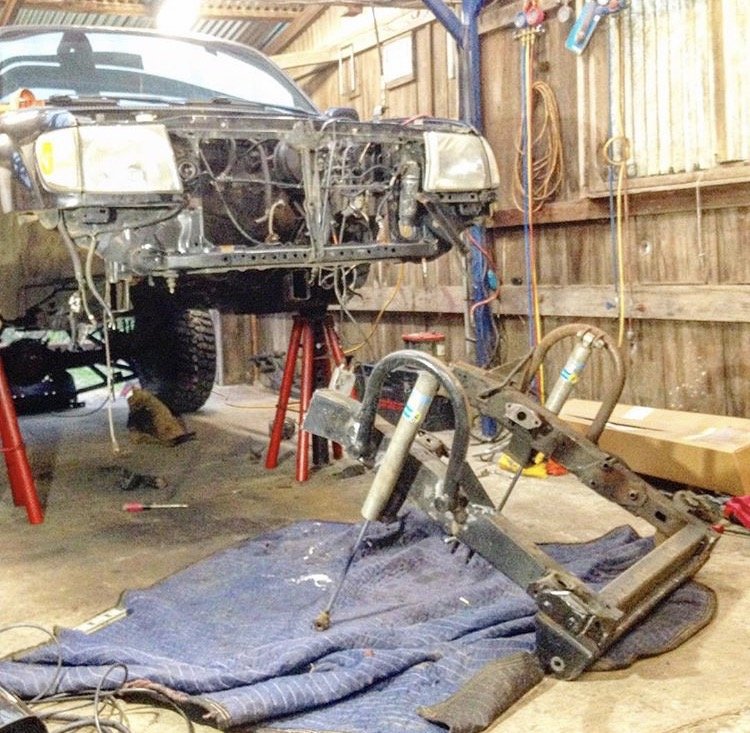

    Chopped off the frame


    Wulf likes this.
  3. Dec 12, 2017 at 7:04 PM
    #3
    Trail.ready.designs

    Trail.ready.designs [OP] Member

    Joined:
    Dec 12, 2017
    Member:
    #238351
    Messages:
    10
    Gender:
    Male
    Vehicle:
    98 taco 2uz v8 5spd
    LC 9.5 diffs, lockers, dual cases, 5spd R150 linked, Hellfire knuckles, Fox coil overs, ruffstuff front housing, FZJ80 full float rear w discs

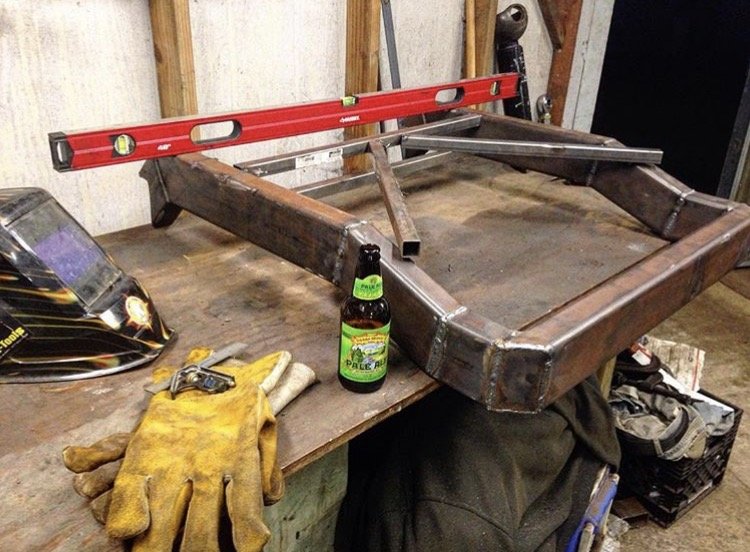

    Here is the frame I built


  4. Dec 12, 2017 at 7:06 PM
    #4
    Trail.ready.designs

    Trail.ready.designs [OP] Member

    Joined:
    Dec 12, 2017
    Member:
    #238351
    Messages:
    10
    Gender:
    Male
    Vehicle:
    98 taco 2uz v8 5spd
    LC 9.5 diffs, lockers, dual cases, 5spd R150 linked, Hellfire knuckles, Fox coil overs, ruffstuff front housing, FZJ80 full float rear w discs

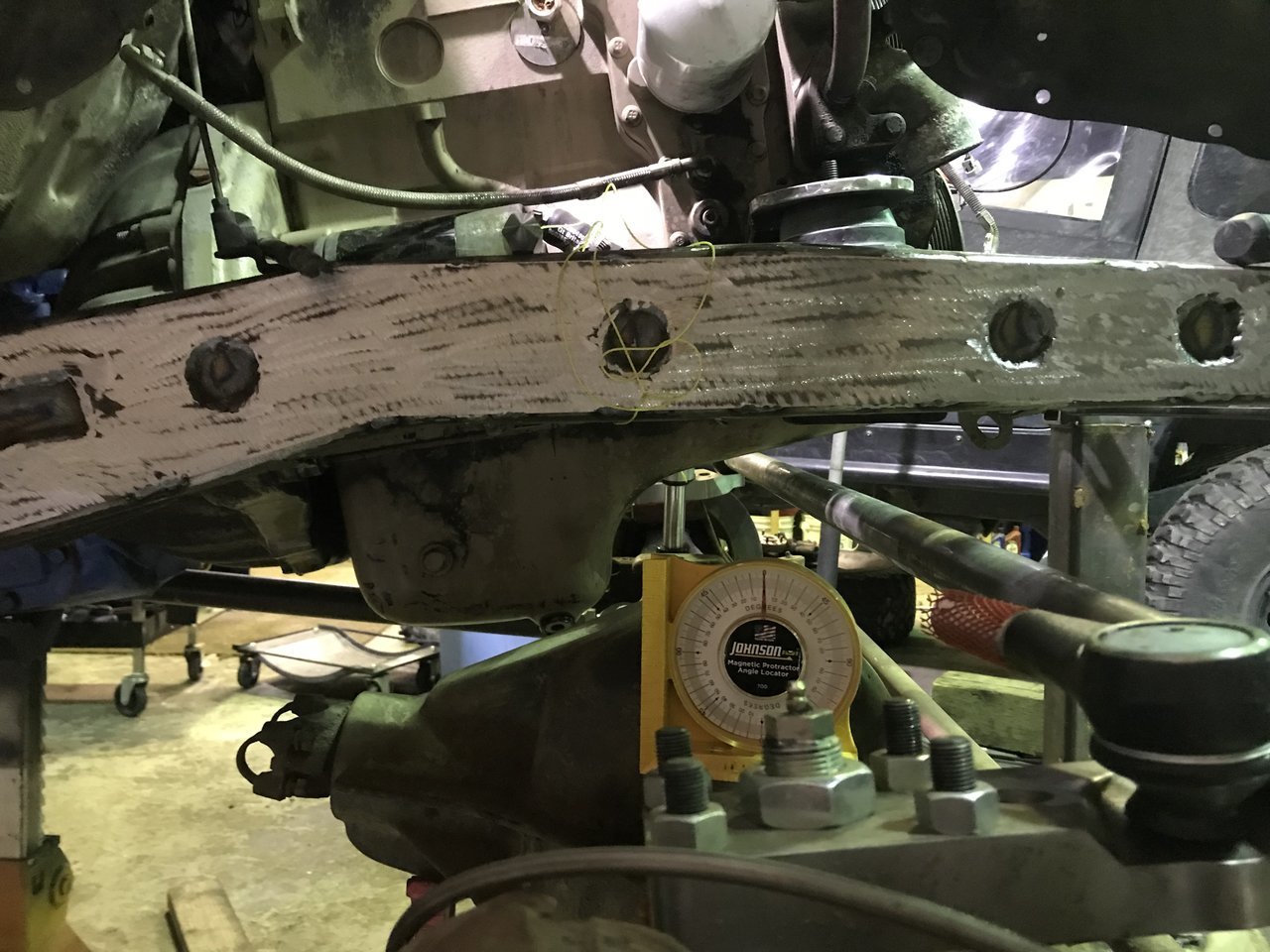

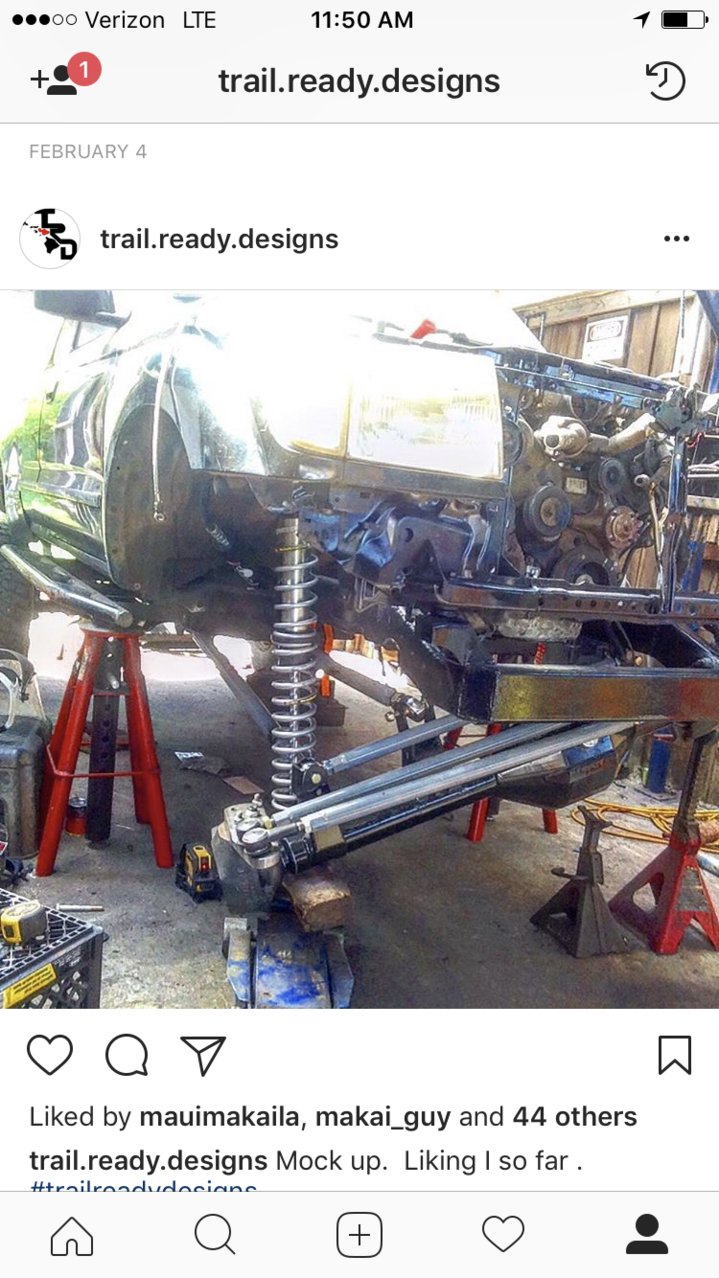

    Mocking up and making the links

    All ruffstuff components, the links are 1/4"wall DOM tubing with 1 3/4 heims


    cruiserguy, jjsul and 4Running Daily like this.
  5. Dec 13, 2017 at 9:18 AM
    #5
    madmax700r

    madmax700r Well-Known Member

    Joined:
    Dec 13, 2017
    Member:
    #238392
    Messages:
    316
    Gender:
    Male
    Washington
    Vehicle:
    98 4bt swapped on tons and 43’s
    What issues did you run into with articulation to make you cut the frame? Building my 98 with the typical king pin 60 and 14 bolt but haven’t run into clearance issues as of yet. Also will be running an extremely heavy engine.


  6. Dec 13, 2017 at 1:59 PM
    #6
    Trail.ready.designs

    Trail.ready.designs [OP] Member

    Joined:
    Dec 12, 2017
    Member:
    #238351
    Messages:
    10
    Gender:
    Male
    Vehicle:
    98 taco 2uz v8 5spd
    LC 9.5 diffs, lockers, dual cases, 5spd R150 linked, Hellfire knuckles, Fox coil overs, ruffstuff front housing, FZJ80 full float rear w discs

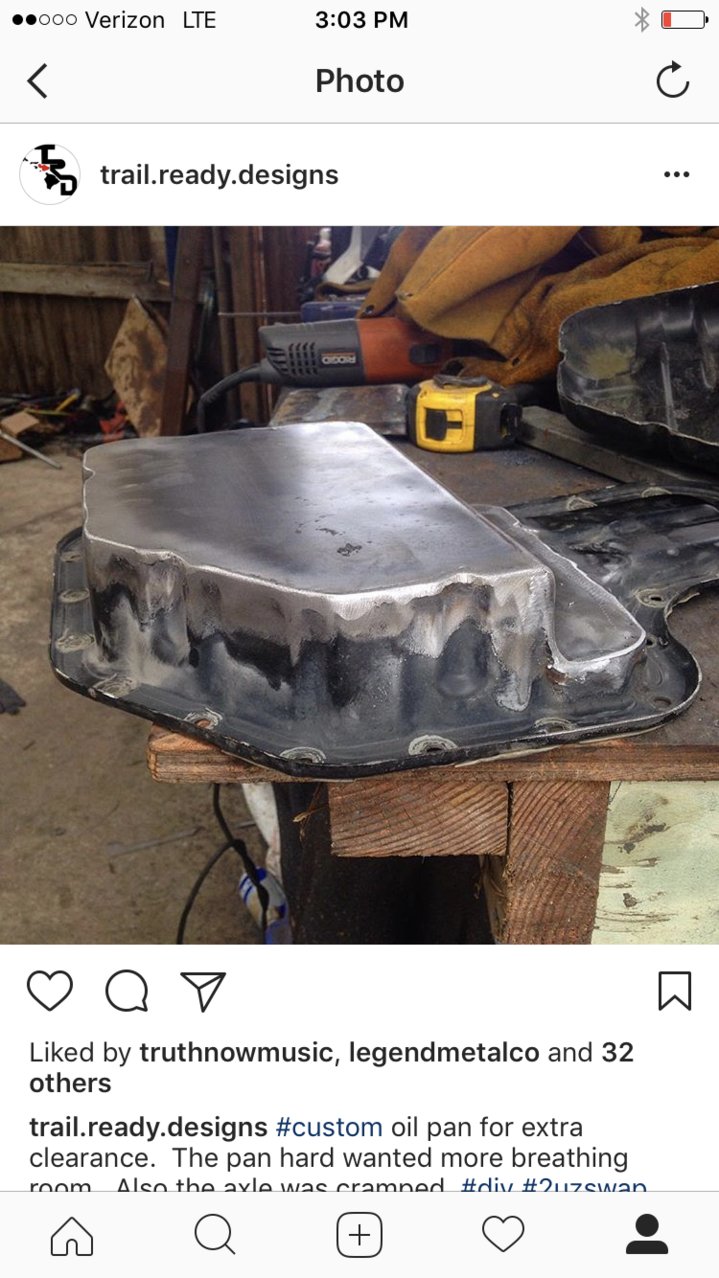

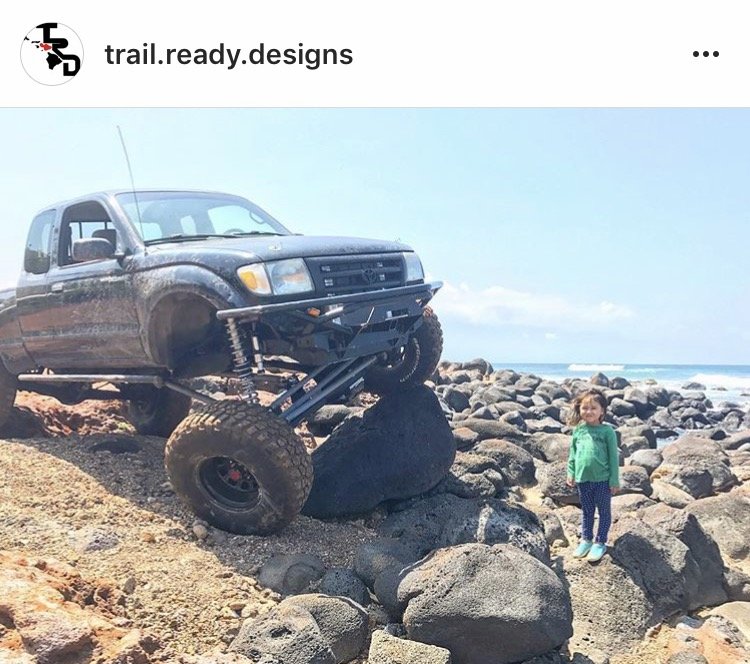

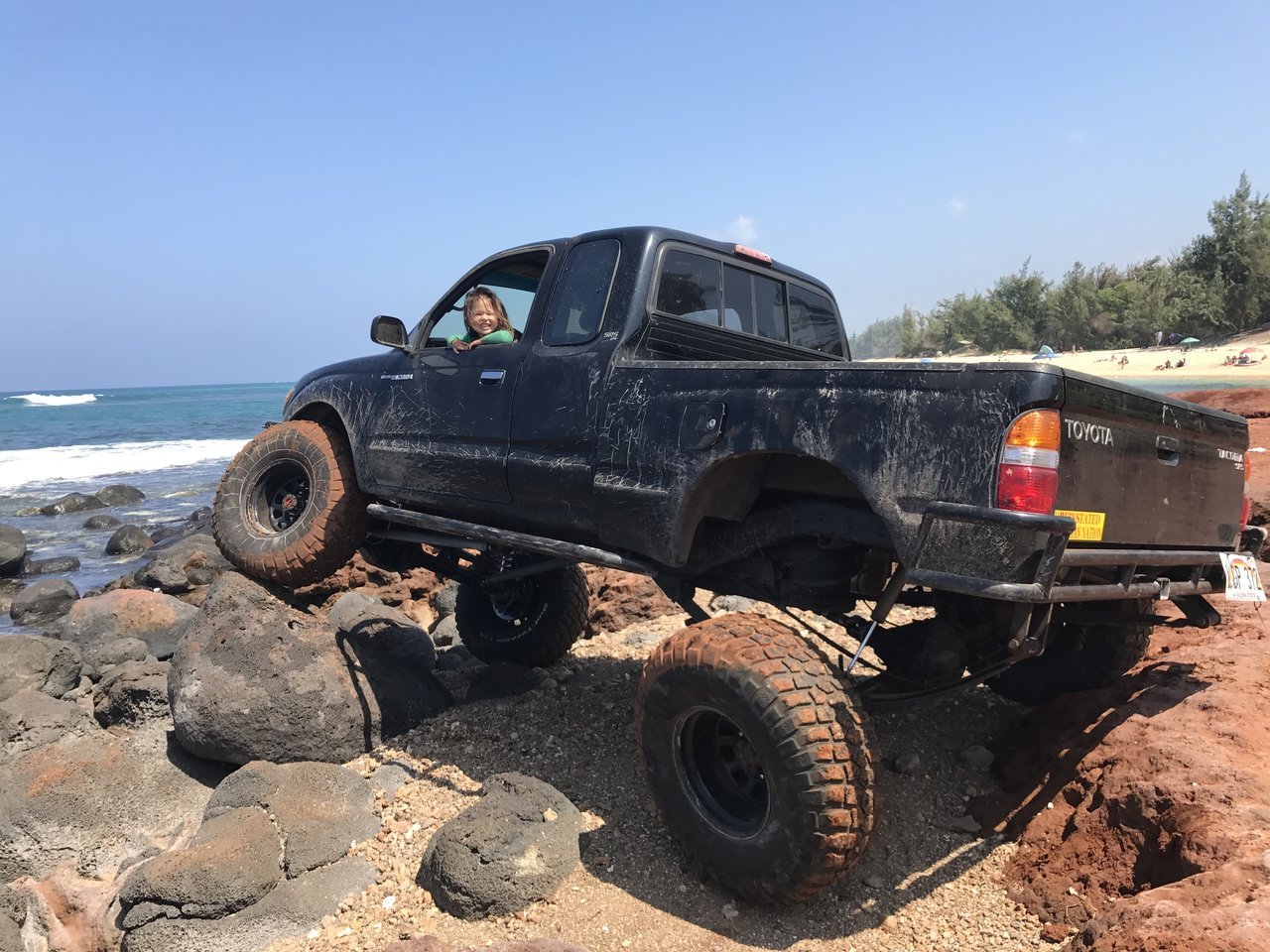

    There was just not enough space for full articulation , especially the links. I wanted a stronger frame, and to move the axle forward a lot. I would have had to redo the radiator and body mount to fit the steering box as far forward as possible. Also in order to tuck the drag link as high as possible with my axle where it is at full compression I needed the frame out of the way. I would have been cutting patching and clearancing all over the place as well as plating the frame for mounting everything. All in all it was way less work to just cut the frame off and build exactly what I needed out of stronger material. I wanted 6" of uptravel at the same height that I only had 3" previously. I still had to clearance the frame for my passenger side drag link and tie rod at full compression passenger/full droop driver. The amount of modification to attain this with the stock frame wouldn't have made sense. I also had to make my own oil pan to clear everything as well at full compression.
