Tacoma Loose Bed design Flaw explanation

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Milowilli, Aug 27, 2015.

  1. Aug 27, 2015 at 9:00 PM
    #1
    Milowilli

    Milowilli [OP] Milowilli

    Joined:
    Jan 17, 2012
    Member:
    #70857
    Messages:
    370
    Gender:
    Male
    First Name:
    Miles
    Naples FL
    Vehicle:
    05/ 07,09/11Tacoma access cab 4x4
    Second Gen Tacomas that go off road, fetch heavy loads or have campers with heavy racks can suffer from the loose bed issue. The symptom will be a banging noise due to the bed jumping up and down on the FORWARD MOUNTS. You can feel the looseness on the forward mount if you try to lift the bed up.
    I will try on this thread to explain the issue and offer a solution.

    The Bed sits on the frame on a thick composite gusseted mount with a hole in the Center.
    The Sleeve

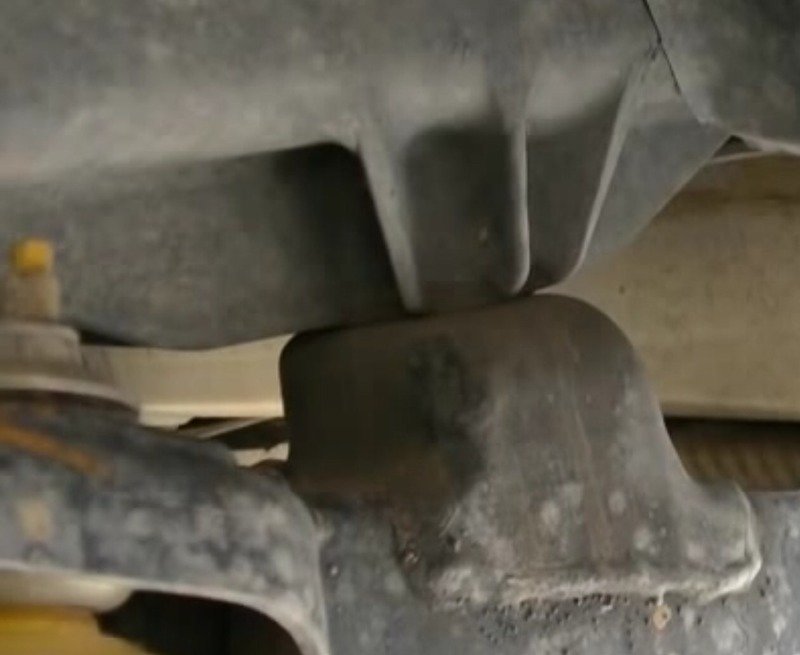

    The gusseted composite mount resting on the metal frame .

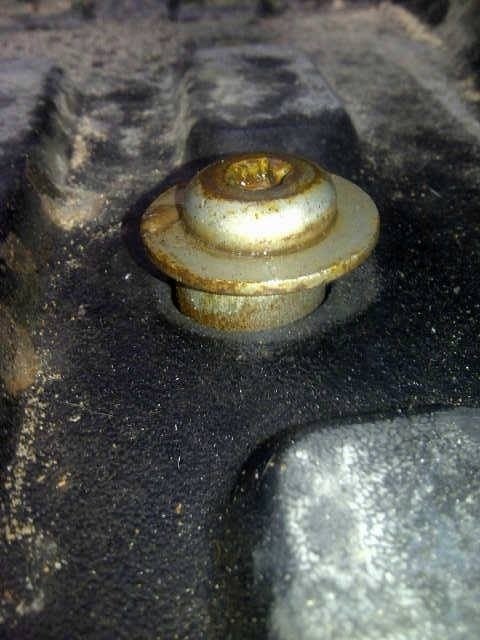

    On a brand new truck the floor of the bed is in line with the sleeve and is held together with the torx bolt. With frame and bed Flex due to weight or off road use, the bottom of the composite gusseted mount starts to rub on the metal mount wearing it away!!! The more space it gets the quicker it wears out until the floor of the bed drops away from the washer of the securing bolt. The bed is now loose and bangs up and down.

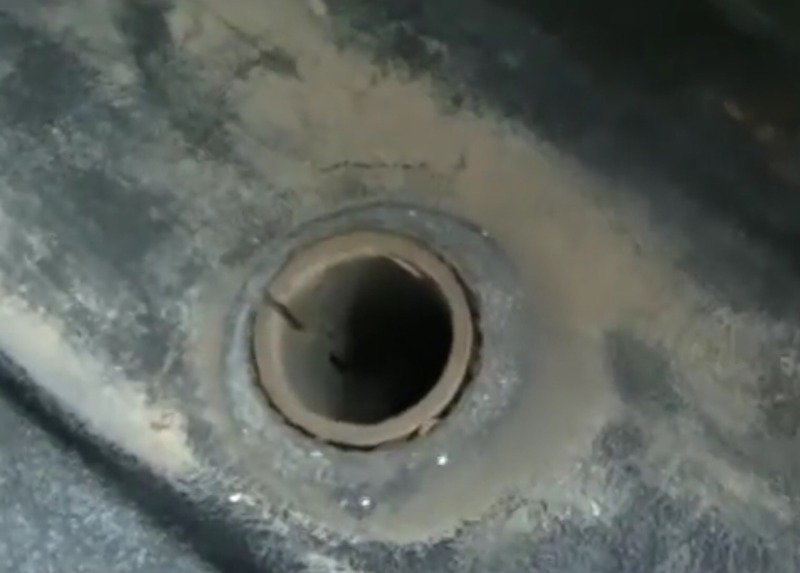

    This pic is a severe case. No amount of tightening the bolt can fix this.
    If your bed is loose, remove bolt and see if metal sleeve is in line with floor of bed. If it protrudes above the floor it means the composite block mount has eroded. DO NOT GRIND IT FLAT WITH A GRINDER TO MATCH THE LEVEL OF THE FLOOR!!! You will cause misalignment of the bed. The spacer is the height guide.

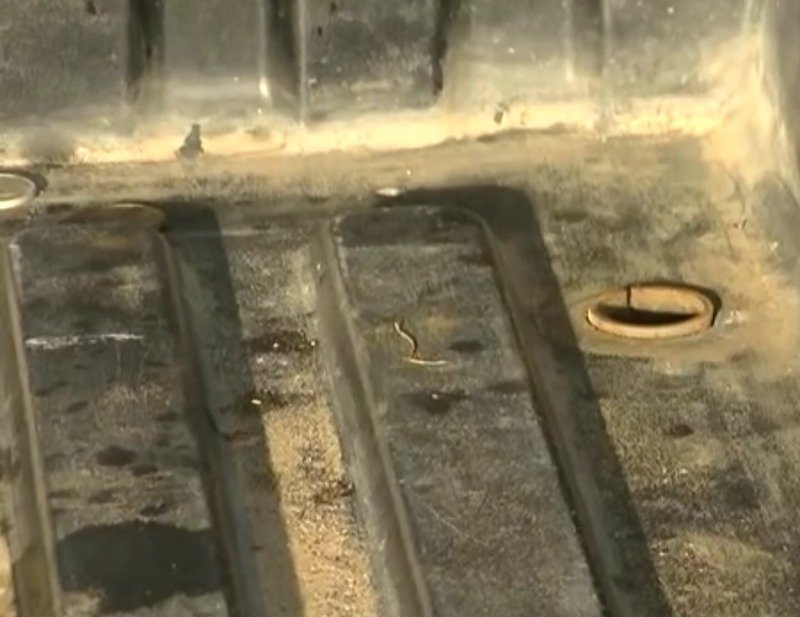

    This is another pic of the wear process starting.
    The fix is to reduce friction between the bottom of Composite bed mount and the metal frame. I used thin hd Conveyor belt or the side of an old car tire and installed between frame and bed then tightened bolt until the washer is flat to the floor and is firm against the sleeve.
    Here is a YouTube video of the problem and the guys correct diagnosis but WRONG FIX!!!
    http://youtu.be/60oQitbr0Zw

    Marc70, SR-71A, TRDSport10 and 16 others like this.
  2. Aug 28, 2015 at 5:40 AM
    #2
    jtweezy

    jtweezy Well-Known Member

    Joined:
    Feb 9, 2014
    Member:
    #122631
    Messages:
    1,262
    Gender:
    Male
    Austin
    Vehicle:
    2014 4X4 DCSB OR V6
    Yea, I would think putting something in between the mount and the frame would be the correct fix...rather than cutting the sleeve short and giving in to the flaw. Looks like there should be some sort of urethane/rubber buffer sandwiched between the composite mount and the frame.

    TRDSport10 and ChadsPride like this.
  3. Aug 28, 2015 at 12:37 PM
    #3
    Milowilli

    Milowilli [OP] Milowilli

    Joined:
    Jan 17, 2012
    Member:
    #70857
    Messages:
    370
    Gender:
    Male
    First Name:
    Miles
    Naples FL
    Vehicle:
    05/ 07,09/11Tacoma access cab 4x4
    Exactly

    over60 and ChadsPride like this.
  4. Aug 28, 2015 at 1:33 PM
    #4
    ranger098

    ranger098 Well-Known Member

    Joined:
    May 22, 2014
    Member:
    #130377
    Messages:
    754
    Gender:
    Male
    First Name:
    Brian
    Minnesota
    Well said, i had no idea what the issue was going into this thread, and now i feel i know everything i need to know. You should write user manuals.

    2WD, ChadsPride and Biscuits like this.
  5. Aug 28, 2015 at 1:39 PM
    #5
    Nighthawk

    Nighthawk 'streme spoats

    Joined:
    Jul 30, 2015
    Member:
    #160682
    Messages:
    582
    Gender:
    Male
    First Name:
    Levi
    Casper Wyoming
    Vehicle:
    2008 Red TRD OR AC V6
    Bilstein 5100's w/ Eibach coil overs in front (set at 3" of lift). Front diff drop kit. Extended Bilstein 5100's in the rear. Deaver 2" AAL in rear w/ axle shims. 285 x 75 r 16 Goodyear Duratracks. Wheelers steelies type B, AFE cold air intake. Sway bar delete. All Pro Apex front bumper (rattle canned Rustoleum primer + flat black). Plasti-dipped emblems. Mud flaps removed.
    I have been waiting to tackle this issue for awhile now, thanks for the write up.

    ChadsPride likes this.
  6. Aug 28, 2015 at 1:45 PM
    #6
    Maximus

    Maximus Well-Known Member

    Joined:
    Jun 18, 2011
    Member:
    #58482
    Messages:
    1,684
    Gender:
    Male
    North Bay
    Vehicle:
    11 Tacoma TRD OR 4x4
    Icon Suspension with CDCV, SPC Light Racing UCAs, Wheeler's 3 Leaf AAL, Wheeler's Superbumps, sPod SE BAMF Sliders, All-Pro Skids, AFE Drop in filter, Magnaflow Exhaust, RCI Aluminum LCA Skids, BAMF Bed Brackets, 4X Innovations Rear Bumper, FX-R Retrofit Headlights with Philips 4300k, Custom Nestah Edition Firestik AM/FM Antenna, Famous Fab Hood brackets, FrontRunner SlimLine 2 Roof Rack, Mob Town Offroad tailgate reinforcement plate, Ram A pillar mount, Anti-Dark hood lights, Lots of LED lights,
    Interesting. Whenever I drive over a larger speed bump, it sounds like a trailer hitch moving up and down in the receiver hitch. Never thought much of it since I keep some tools stored in the rear cubbies. Might have to do some investigating.

    bigfoote13 likes this.
  7. Aug 28, 2015 at 1:52 PM
    #7
    teamhypoxia

    teamhypoxia MichelinMan

    Joined:
    Aug 21, 2012
    Member:
    #85247
    Messages:
    8,807
    Gender:
    Male
    Colorado
    Vehicle:
    '12 DCSB TRD OR
    Interesting... I had that problem some time ago and ground a bit off the sleeve to fix it. Hasn't been a problem since.

    Any theories as to why it always seems to be the front most passenger side bolt that people experience this with?

  8. Aug 28, 2015 at 4:20 PM
    #8
    gimmeajo

    gimmeajo i'm here for the food

    Joined:
    Dec 5, 2013
    Member:
    #117971
    Messages:
    358
    Gender:
    Male
    First Name:
    Zander
    New Orleans via New England
    Vehicle:
    '13 DCSB 4WD TRD OR
    OME 883, N140, N182, 265/75/16 Hankook ATMs, Weathertechs, chop front flaps, diff breather, killed seatbelt dinger
    I fixed mine by taking 3/4 of a turn on the front passenger bed bolt. Problem gone.

  9. Aug 28, 2015 at 5:43 PM
    #9
    Blkvoodoo

    Blkvoodoo a Hooka smoking caterpillar has given me the call

    Joined:
    Jul 23, 2015
    Member:
    #160098
    Messages:
    4,084
    Gender:
    Male
    First Name:
    Kevin
    Near Clayton NC
    Vehicle:
    08 PreRunner SR5 DCSB
    Hmm, something to investigate, went over a series of rail road tracks today, and heard/felt a couple hard bumps, was thinking maybe the rear leaves have sagged enough I'm probably right off the bump stops, but it was a more sharp hit than that. 256K miles has it's own issues I guess.

    Have to check this out this weekend.

  10. Aug 28, 2015 at 7:11 PM
    #10
    Kyitty

    Kyitty Mr. Beard

    Joined:
    Feb 20, 2015
    Member:
    #149179
    Messages:
    9,585
    Gender:
    Male
    Bozeman, MT
    Vehicle:
    2015 Tacoma DCLB Better Than TRD
    See Build Page
    LOL These stupid Tonka Truck plastic beds.....

    Mully and ChadsPride like this.
  11. Aug 28, 2015 at 8:37 PM
    #11
    Crom

    Crom 1/2 way thru. I'll be back AUG 31, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,506
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    Good to know! Thanks Milo!

  12. Aug 28, 2015 at 9:33 PM
    #12
    TYetti

    TYetti 4cylinders of awesomeness

    Joined:
    Mar 8, 2014
    Member:
    #124858
    Messages:
    2,336
    Gender:
    Male
    First Name:
    Mat
    Abbotsford, BC, Canada
    Vehicle:
    09 Tacoma AC 2.7L 5spd 4x4
    I've had this issue for a while but after I put my tool box in the bed and filled it up the banging stopped maybe I should look harder into this

  13. Aug 28, 2015 at 9:33 PM
    #13
    tomwil

    tomwil Well-Known Member

    Joined:
    May 15, 2014
    Member:
    #129887
    Messages:
    8,048
    Gender:
    Male
    East Coast USA
    Vehicle:
    2014 Reg Cab 4x4
    So is there anything that can be done as a preventative measure for new trucks?

    It appears that putting something between the composite gusseted mount and the metal frame while the truck is new, would raise the bed too high.

  14. Aug 29, 2015 at 2:39 AM
    #14
    bludweiaer

    bludweiaer Well-Known Member

    Joined:
    Jan 10, 2011
    Member:
    #49016
    Messages:
    1,619
    Gender:
    Male
    pa
    Vehicle:
    2017 Pro DBL Cab
    avs rain guards,,,tyger auto tubesteps... stealth SR8's.265/70/17,ridge grapplers..shiftsense pro...
    my pro had this issue, passenger side bolt closest to the cab, i removed bolt took grinder, ground it down just below flush, reinstalled bolt , no issue anymore, it was just the one bolt

  15. Aug 29, 2015 at 5:00 AM
    #15
    Milowilli

    Milowilli [OP] Milowilli

    Joined:
    Jan 17, 2012
    Member:
    #70857
    Messages:
    370
    Gender:
    Male
    First Name:
    Miles
    Naples FL
    Vehicle:
    05/ 07,09/11Tacoma access cab 4x4
    cut out a piece of rubber from the side of a car tire, shape it to size, cut a hole in the middle for the sleeve then install between bed and frame mount. It should be about 2-3 mm thickYou can then install bolt and torque it down. The sleeve moist rest between bed frame and bolt washer...do both sides.

    TRDSport10 likes this.
  16. Aug 29, 2015 at 5:04 AM
    #16
    Milowilli

    Milowilli [OP] Milowilli

    Joined:
    Jan 17, 2012
    Member:
    #70857
    Messages:
    370
    Gender:
    Male
    First Name:
    Miles
    Naples FL
    Vehicle:
    05/ 07,09/11Tacoma access cab 4x4
    The sleeve is your guide for the height alignment of the bed. Remember it's the bed that wore out. You have to replace the wear with a piece of the side of a car tire then torque it all together. You temporary fixed the problem but bed will wear again and it will get loose. If you shorten the sleeve again you will keep lowering and mis aligning the bed.

  17. Aug 29, 2015 at 5:05 AM
    #17
    Milowilli

    Milowilli [OP] Milowilli

    Joined:
    Jan 17, 2012
    Member:
    #70857
    Messages:
    370
    Gender:
    Male
    First Name:
    Miles
    Naples FL
    Vehicle:
    05/ 07,09/11Tacoma access cab 4x4
    What's that?

  18. Aug 29, 2015 at 5:06 AM
    #18
    Milowilli

    Milowilli [OP] Milowilli

    Joined:
    Jan 17, 2012
    Member:
    #70857
    Messages:
    370
    Gender:
    Male
    First Name:
    Miles
    Naples FL
    Vehicle:
    05/ 07,09/11Tacoma access cab 4x4
    It's how the frame flexes.

  19. Aug 29, 2015 at 5:07 AM
    #19
    Milowilli

    Milowilli [OP] Milowilli

    Joined:
    Jan 17, 2012
    Member:
    #70857
    Messages:
    370
    Gender:
    Male
    First Name:
    Miles
    Naples FL
    Vehicle:
    05/ 07,09/11Tacoma access cab 4x4
    Let us know !!!!

  20. Aug 29, 2015 at 5:07 AM
    #20
    Milowilli

    Milowilli [OP] Milowilli

    Joined:
    Jan 17, 2012
    Member:
    #70857
    Messages:
    370
    Gender:
    Male
    First Name:
    Miles
    Naples FL
    Vehicle:
    05/ 07,09/11Tacoma access cab 4x4
    Let us know!!
