Tacoma - OVTUNE - VFTUNER - Update Info and Original Development

2GR - FKS Tacoma Automatic Transmission 1.03 Calibration
some changes include:
Torque and Throttle control
Torque management control
Changes to ECT based controls
Throttle calibration update
Complete ignition calibration
and a very long list of other things


Test Truck:

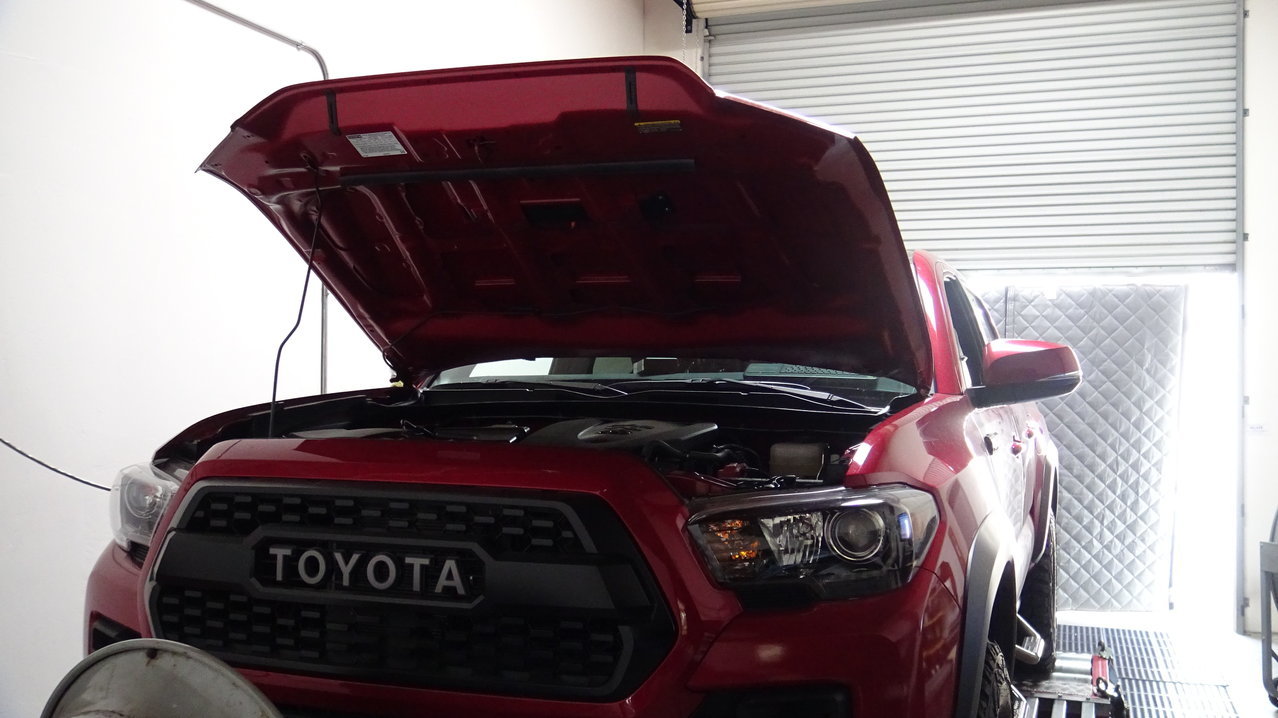

2017 Tacoma 3.5L AT TRD Pro
Shell 91 Octane E10
Stock intake

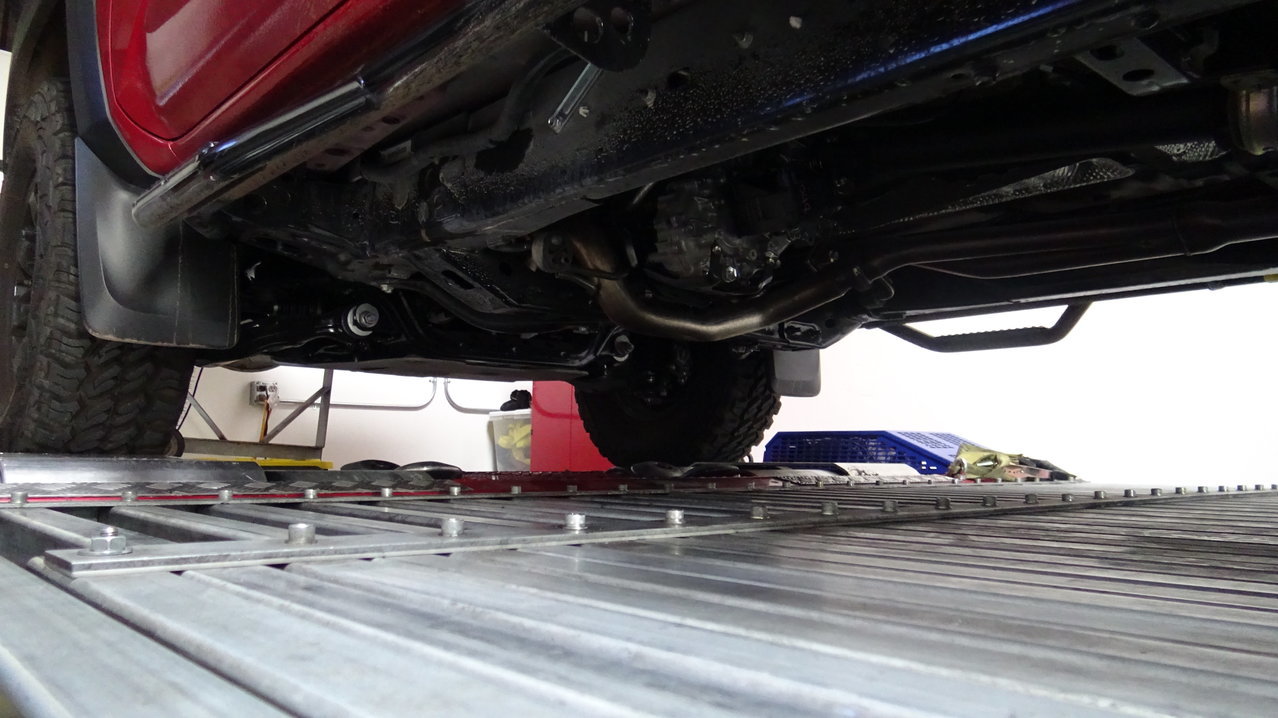

Stock TRD Option Exhaust

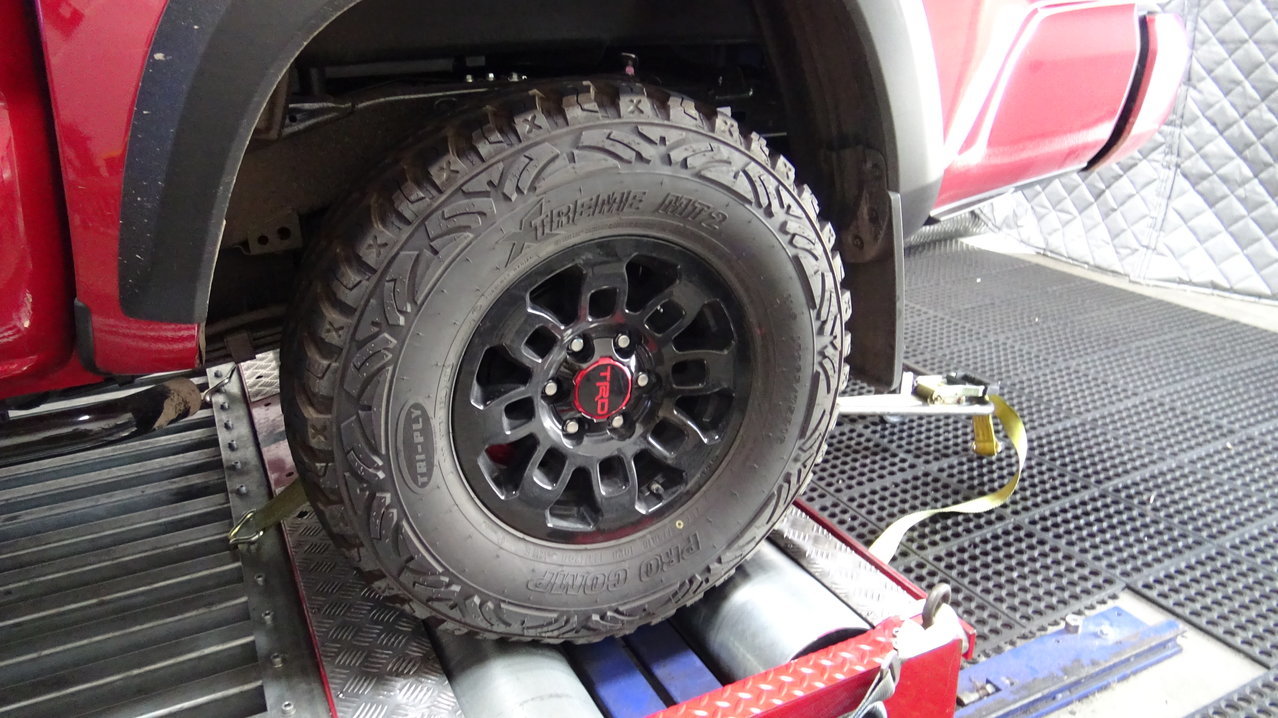

Pro Comp larger tires

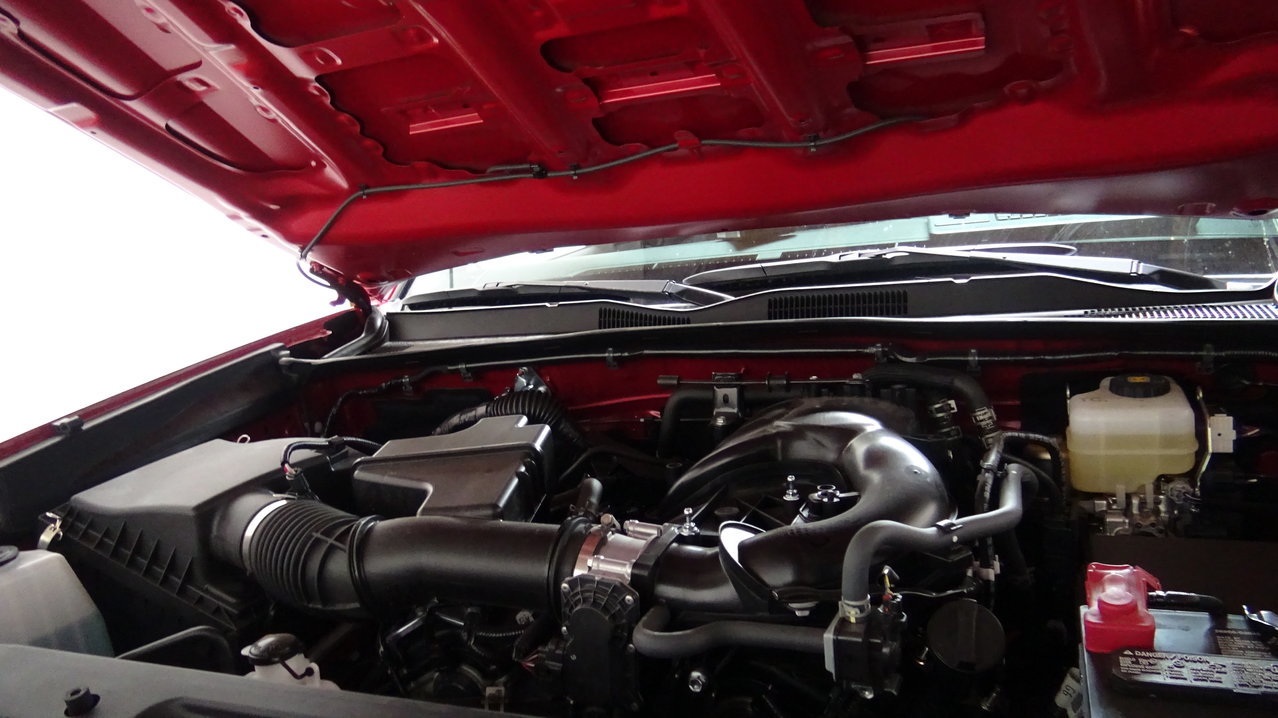

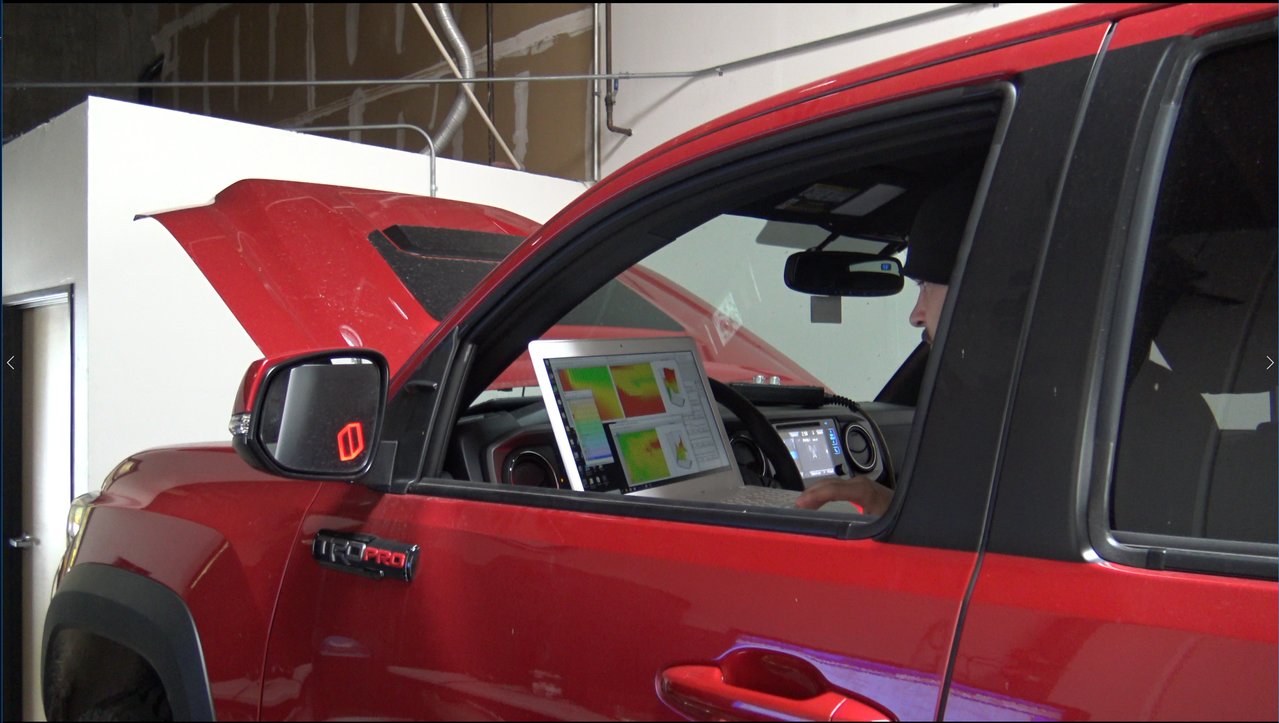

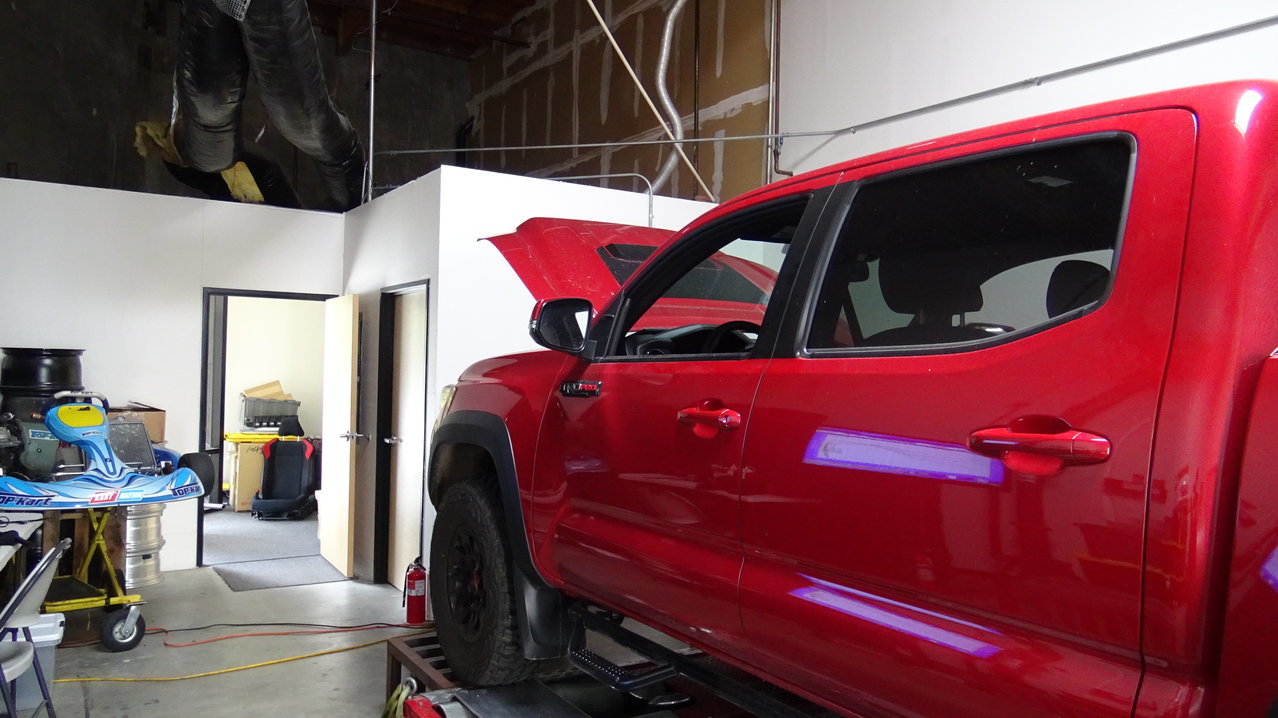

Pictures:

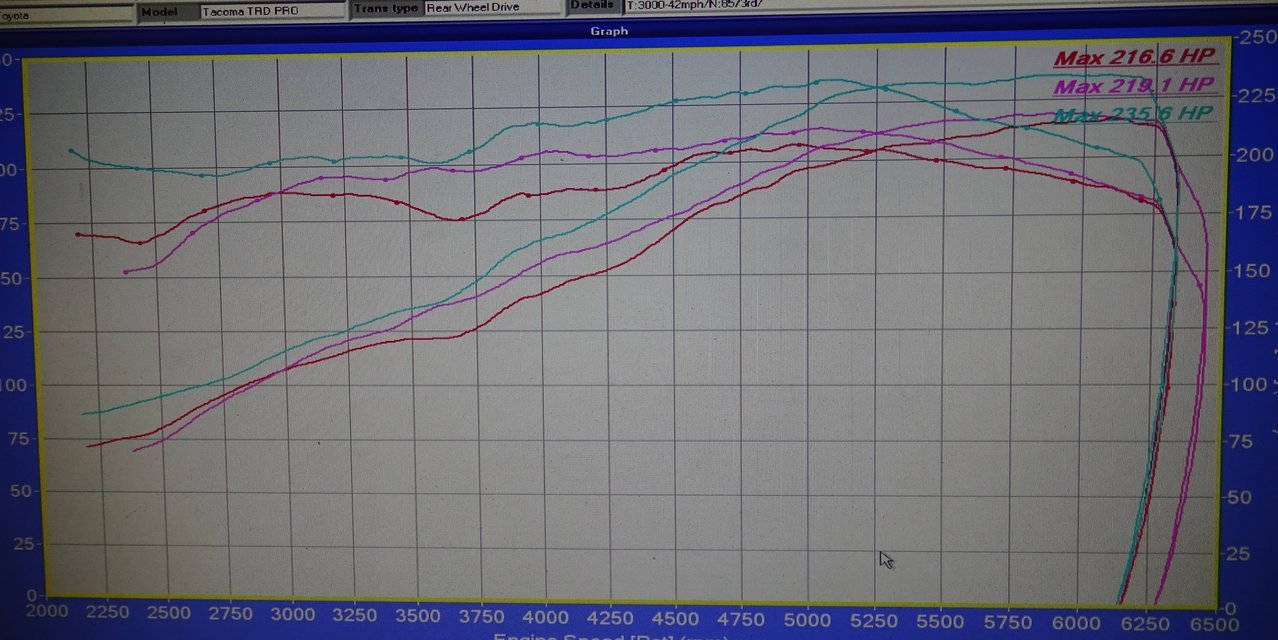

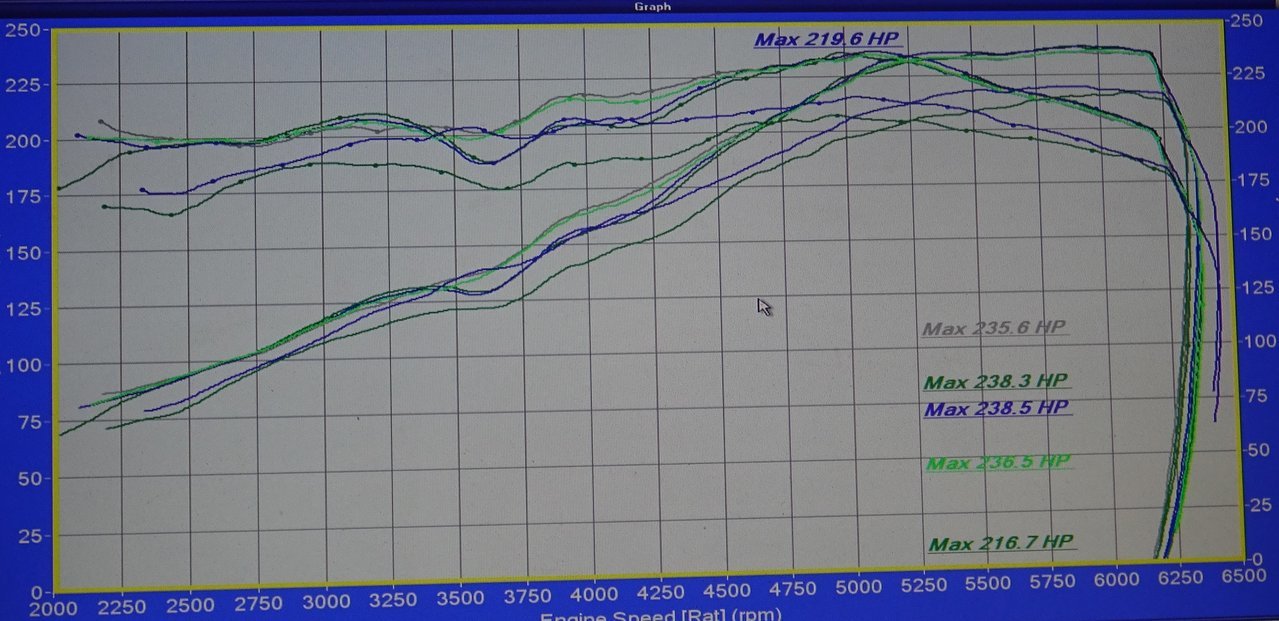

The Results:
Stock Flash
1.02 Calibration (without ignition)
1.03 Calibration

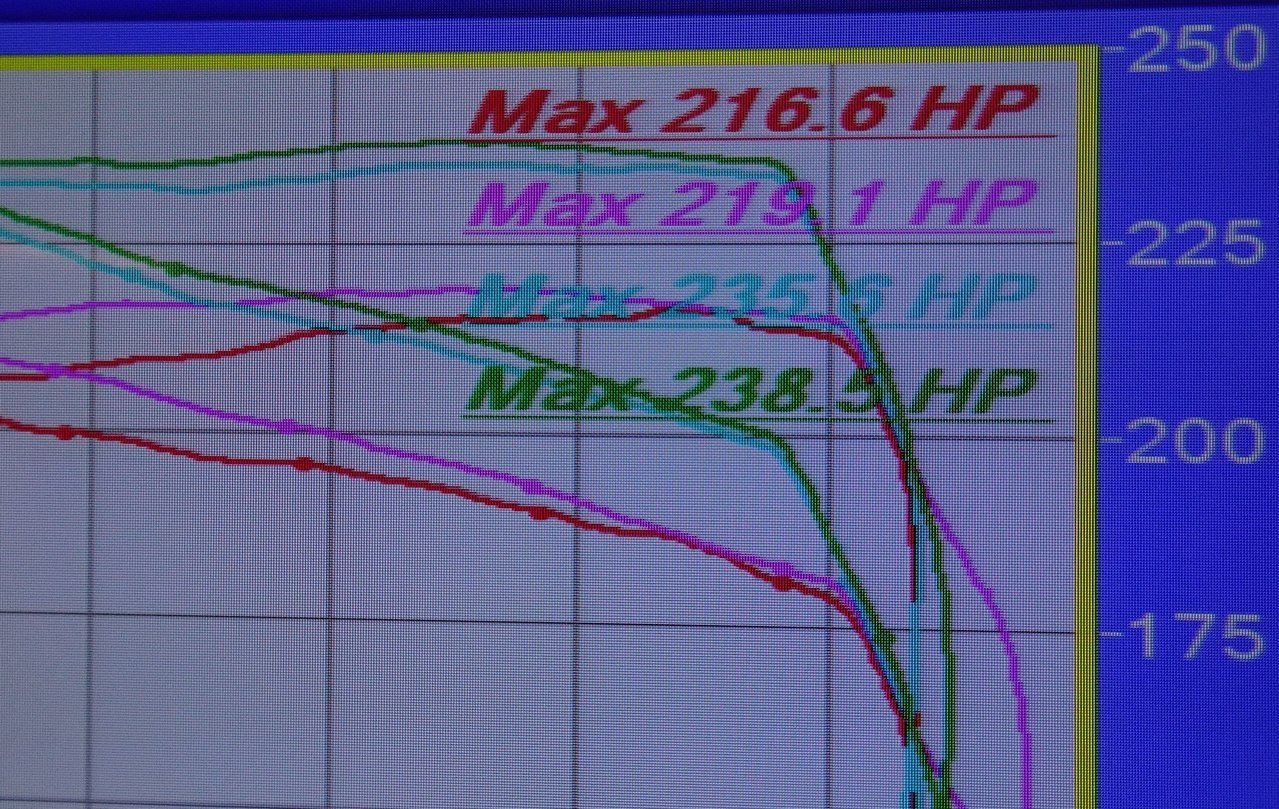

Peak results 238whp



Oh Yea!!!



Using apps like obd fusion to monitor any number of different things in real time, like, engine oil temp, transmission temp in pan and converter, front diff temp, ignition timing, almost anything, individual wheel speed in the abs system,
Instant fuel economy ect......



OH FUCK YEAH


Haven't seen curves that nice since I met my wife!



So we have 200hp at 2k RPM instead of 75??

Edit: nope I just got so excited I couldn't read



10% gain on a naturally aspirated engine from just a flash? Sweet Jesus...



Isnt that craZy



And about a 15hp bump at 2250 thru 2500 rpm!!



@OVTune Any changes in the torque numbers?



Outstanding!



I did as much as I could to create a nice flat torque curve, and hold torque as long as possible. A few tests I was able to create a nice flat torque curve except it was in general lower everywhere though.

A lot of time today perfecting the ignition, changes to injection firing angle, and an extremely long list of other things.

I expect to release at the end of this week. More power was gained than expected so I have to tweak the maps in the transmission to firm up the shifting. Since the expected torque is lower than actual the transmission is a little sloppy on shifts when it's cold, because the truck no longer has the dead fish feeling when cold, not limiting on cold engine. I will have this fixed tomorrow.

The difference now in how the truck responds and accelerates is phenomenal. The response to what the driver demands is immediate and crisp.



@OVTune all those dyno number done on 91 Octane? if yes, what should we expect from 87?



@OVTune
Top Curves are HP and Bottom are Torque correct?



238whp is a good bump from where it originally was. The old chart showed it around 221-222.



Bottom hp top torque. (Starting from the left)

I think this truck will do 250+whp with full exhaust (that's next )


Because of the update needed to the transmission, Manual Transmission owners will receive files first



Safe to say that those with the Spec U exhaust will see these numbers with 1.03?



Any changes to the torque learning?



Holy smokes, that torque curve is gorgeous! Fantastic gains. YOU ARE THE MAN!!!



Absolutely. I will show / explain in depth tomorrow
