Tacoma Puddle lighting - $30 and a half hour of time - driver and passenger side

Discussion in 'Lighting' started by Luke-Maine, Jan 18, 2020.

  1. Jan 18, 2020 at 7:11 PM
    #1
    Luke-Maine

    Luke-Maine [OP] Well-Known Member

    Joined:
    Nov 23, 2019
    Member:
    #311496
    Messages:
    106
    Gender:
    Male
    First Name:
    Luke
    Vehicle:
    15' White 2wd Access cab, 5 lugger
    Led Reverse Lights, Hitch, Foglights, K&N Air Filter.
    Hey this is a little post if anybody was thinking of installing lights under their lil 5 lugs.

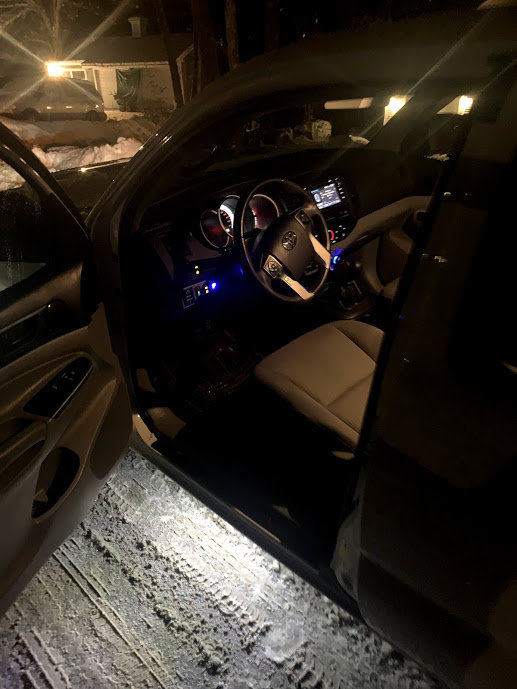

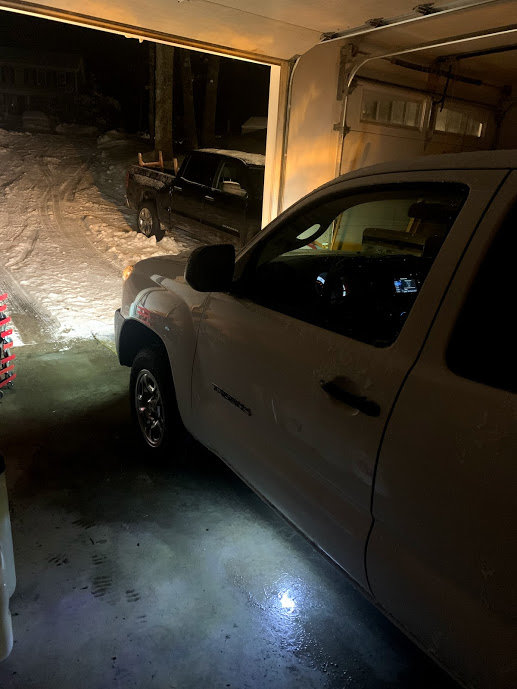

    This is the final product:
    IXqv4IrkO1p09-XjuOh_P3jGoL1T3cCI4VGb_F1r_aa79960371ee6bad4d762f2042d9ac6b02ebafd2.jpg
    PHWYaPCNMCu7ZzSyycIsQeHWqjZH6bMEFWxY2dvI_1d75a488ecf42e12fba631ccfe8cd0d5d3275ec9.jpg



    These are the lights I used:
    https://www.amazon.com/gp/product/B07J5XGSLN/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1

    The Switch i used:
    https://www.amazon.com/gp/product/B07CVWVGNQ/ref=ppx_yo_dt_b_asin_title_o04_s00?ie=UTF8&psc=1

    Wiring kit:
    https://www.walmart.com/ip/Auto-Dri...xmjiPhokGgjhDTassjGFW_C4_Lv3IzmoaAgIFEALw_wcB

    My process:
    I used the Walmart wiring kit ~ $10, it comes with a red circular switch. Its a nice switch but doesn't look factory. For another ~ $8 I bought a factory style switch which fits in the tacomas dash. My three lower left slots are full. I pulled the blank from one of the upper left ones, and it was a PITA to route those wires. I routed the harness from the battery to the dash. The main output wire from the harness went through the channel of the frame, to under the drivers door. The output through a hole in the frame under the door, soldered to one light . This is the style with a few LED's in a plastic housing. I used big clear zip ties to attach the light against the frame. This throws light strait out the side, towards somebody's ankles if they were standing. For the passenger side I had a length of dual shielded wire. I zip tied it along the stock routing near the base of the hood. (Be careful of the exhaust manifold.)Same process through the channel of the frame to the light again. Im sorry I dont have pictures of each step, I broke my ass on some ice and my phone doesnt work.

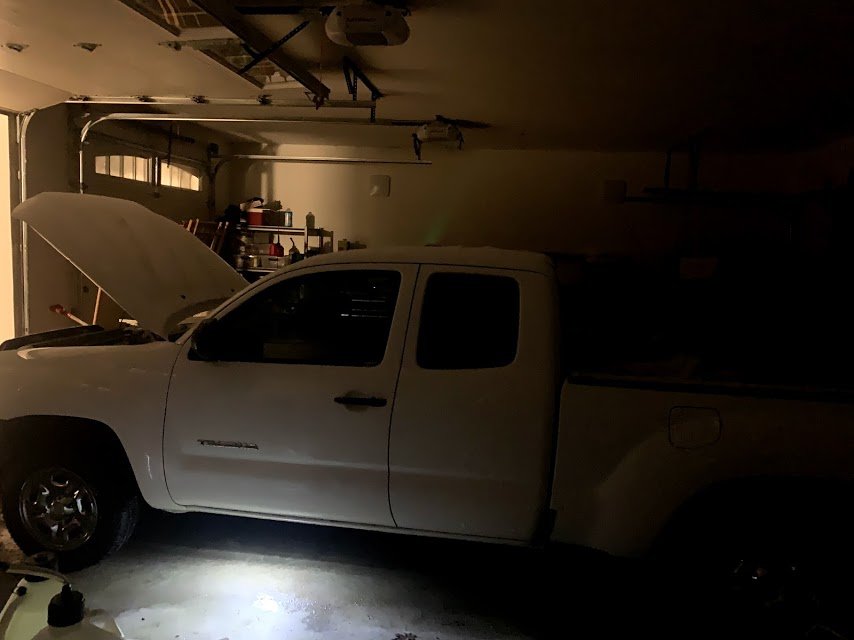

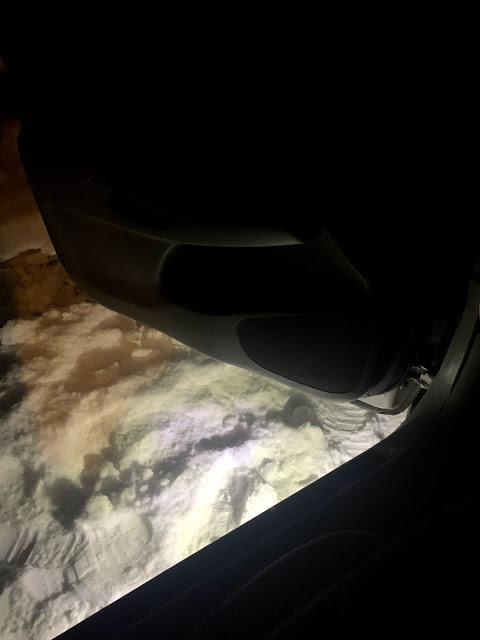

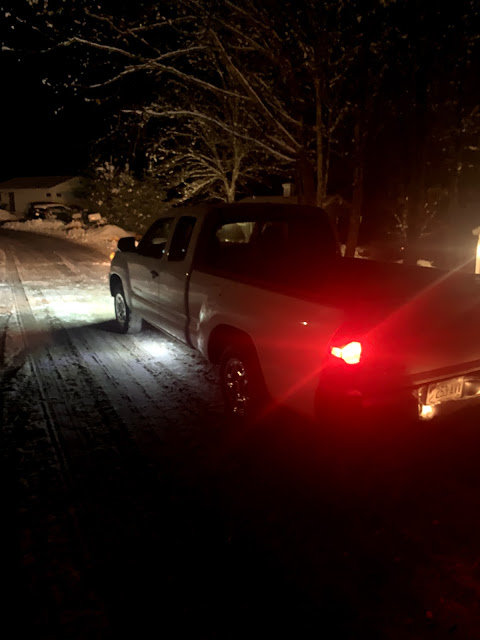

    More pictures:

    Bd_1Q15mxe-Ldy85FO4sl3gwTeDAHY0LfxNVle2k_dbc015aaf40d22f745624ed5d0991932068eb3f4.jpgfrkpTqMR4OOyh1TRLN3_n-8zAxd1ZyaG_vN989g__54255b6b5bd97edd61c71a67bde5b5acddb6d4fc.jpgO0pSjaTQKWIZaLMkQiBiPChE6g9H_zTMhI3yCQ5x_feef9a23cb1a3b2de72554e06ac4deb6807de596.jpg6SrzibFAEMoQPMeuMoZIx4fE0fHIDwRTpmIZVj33_aba7a4a8aa801d166d5a39495b9d248905bd11da.jpg

    This could totally be adapted to be wrap around underglow, of any color even. four of them on a double cab would be kickass! You could wire the relay signal wire to the parking lights to power them from the key. You could do this under the hood instead for a work light. Very versatile parts list there.

    Please leave me some comments/questions/feedback!

    corgimas, Tullie D, Tacospike and 2 others like this.
  2. Jan 19, 2020 at 8:59 AM
    #2
    Tacospike

    Tacospike Semi-Unknown Custodial Member

    Joined:
    Nov 19, 2018
    Member:
    #273198
    Messages:
    7,298
    Gender:
    Male
    Quarantine A-TX
    Vehicle:
    1 Owner 16 Attitude BLK TRD Spiked Sport
    Murderface Spike Edition
    Looks good OP

    Luke-Maine [OP] likes this.
  3. Jan 19, 2020 at 9:35 AM
    #3
    Luke-Maine

    Luke-Maine [OP] Well-Known Member

    Joined:
    Nov 23, 2019
    Member:
    #311496
    Messages:
    106
    Gender:
    Male
    First Name:
    Luke
    Vehicle:
    15' White 2wd Access cab, 5 lugger
    Led Reverse Lights, Hitch, Foglights, K&N Air Filter.
    Thanks! my write up is very confusing because I would regularly be taking in depth pictures but broken phones dont take pictures lol

    Tullie D likes this.
  4. Jan 20, 2020 at 3:12 PM
    #4
    Tullie D

    Tullie D Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    2,556
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 SSM Access Cab
    I must've misunderstood. I thought that it was your ass that was broken. :rofl:

    You done good ! Is that just one light per side in the photos?

    Luke-Maine [OP] likes this.
  5. Jan 23, 2020 at 3:40 PM
    #5
    Luke-Maine

    Luke-Maine [OP] Well-Known Member

    Joined:
    Nov 23, 2019
    Member:
    #311496
    Messages:
    106
    Gender:
    Male
    First Name:
    Luke
    Vehicle:
    15' White 2wd Access cab, 5 lugger
    Led Reverse Lights, Hitch, Foglights, K&N Air Filter.
    Yes, one light per side
