Tacoma Shock Relocation - Trail Series - 2.0 x 12 - 2nd/3rd gen

Discussion in 'Archive Garage' started by ARCHIVE, Feb 22, 2021.

  1. Feb 22, 2021 at 3:15 PM
    #1
    ARCHIVE

    ARCHIVE [OP] Well-Known Member Vendor

    Joined:
    Oct 29, 2015
    Member:
    #168099
    Messages:
    1,597
    Gender:
    Male
    First Name:
    Eric
    Orchard Park, NY (Buffalo)
    Vehicle:
    '05 Taco, '05 Seq, '00 Tundra, '91 Cummins
    2.5" Fox relocation * Hammer hanger * Deaver SUA
    https://archivegarage.com/explore-archive/ols/products/tacoma-shock-relocation-trail-2
    TW MEMBERS: START CONVERSATION TO GET $100 DISCOUNT CODE ON FIRST 20 KITS
    First 20 discount list:

    1. @crashngiggles
    2. @BamaTaco56
    3. @LOLLY
    4. @Windigo
    5. @FadedComa
    6. @Mohedano1
    7. @Brian422
    8. @mach1man001
    9. @Taconator_
    10. @65skyturbo
    11. @ZebraScissors
    12. @Urineovrurhead
    13. @794TF
    14. @quis23
    15. @kmorgan3
    16. @acupunk
    17. Reserved
    18. @skennerson
    19. @Vegasstunts
    20. @plurpimpin

    For the Tacoma owners who need articulation for their trail or rock focused rig, and want quality shocks but don't need 2.5" shocks, we are introducing a new Trail Series 2.0" relocation kit.

    Fitment info:
    -It does NOT fit 2.5" shocks
    -Tabs top and bottom are standard 1.5" width w/ 1/2" bolt.
    -Ideal collapsed length between 18"-21" (axle tabs rotate)
    -Remote reservoir & straight hose only, piggyback will not fit
    -Negative offset wheels may not need a spacer depending on tire


    -The recommended shock is a Fox Performance series 2.0x12 (18.35" collapsed) remote reservoir (cannot mount to shock body, tuned by Accutune):
    https://accutuneoffroad.com/product/fox-2-0-x-12-performance-series-remote-reservoir/
    Remote reservoir with adjuster:
    https://accutuneoffroad.com/product...ies-remote-reservoir-12-1-travel-cd-adjuster/

    After running Accutune'd Fox 2.0x12 on one of my trucks, I was happy with the good ride and moderate performance for only about $560 /pair.

    It will also fit:
    -Fox Performance series 2.0x14 (20.8" collapsed, hurts ground clearance vs. 12", rotate axle tabs down to adj)
    -King 2.0x12 (19.6" collapsed),
    -Radflo 2.0"x12" 5SR-003-00 (With 5/8" rod)
    -Radflo 2.0"x12" 5SR-007-00 (With 7/8" rod)
    -ADS 2.125x12

    Price will be $250 shipped before TW 5% discount.
    Kit comes welded ready to install.
    1/4" Hi strength steel construction and CNC formed

    @Glenn_R (DCSB frame, shown at full droop)

    @EatSleepTacos (Access cab frame, at ride height)

    Last edited: Jun 21, 2021 at 5:12 AM
  2. Feb 22, 2021 at 3:43 PM
    #2
    BamaTaco56

    BamaTaco56 Well-Known Member

    Joined:
    Mar 25, 2017
    Member:
    #214383
    Messages:
    10,065
    Gender:
    Male
    First Name:
    Trey
    Sweet! Looking forward to seeing this

    Last edited: Feb 22, 2021
    ARCHIVE [OP] and mcharfauros like this.
  3. Feb 22, 2021 at 3:57 PM
    #3
    mcharfauros

    mcharfauros IG: mcharfauros

    Joined:
    Apr 21, 2017
    Member:
    #216893
    Messages:
    4,227
    Gender:
    Male
    First Name:
    Mike
    MO
    Vehicle:
    2017 Black TRD OR DC
    Dumb Truck Thangs
    Owweeee

    ARCHIVE [OP] likes this.
  4. Feb 22, 2021 at 4:16 PM
    #4
    crashngiggles

    crashngiggles Tacomaworld's Resident Psych Dr.

    Joined:
    May 17, 2015
    Member:
    #155446
    Messages:
    4,364
    Gender:
    Male
    First Name:
    Jared
    Wilbraham, Massachusetts
    Vehicle:
    2013 MGM TRD 4x4 DCLB Trail Limo
    These things look amazing!!!!

    EatSleepTacos likes this.
  5. Feb 22, 2021 at 4:25 PM
    #5
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    53,737
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT

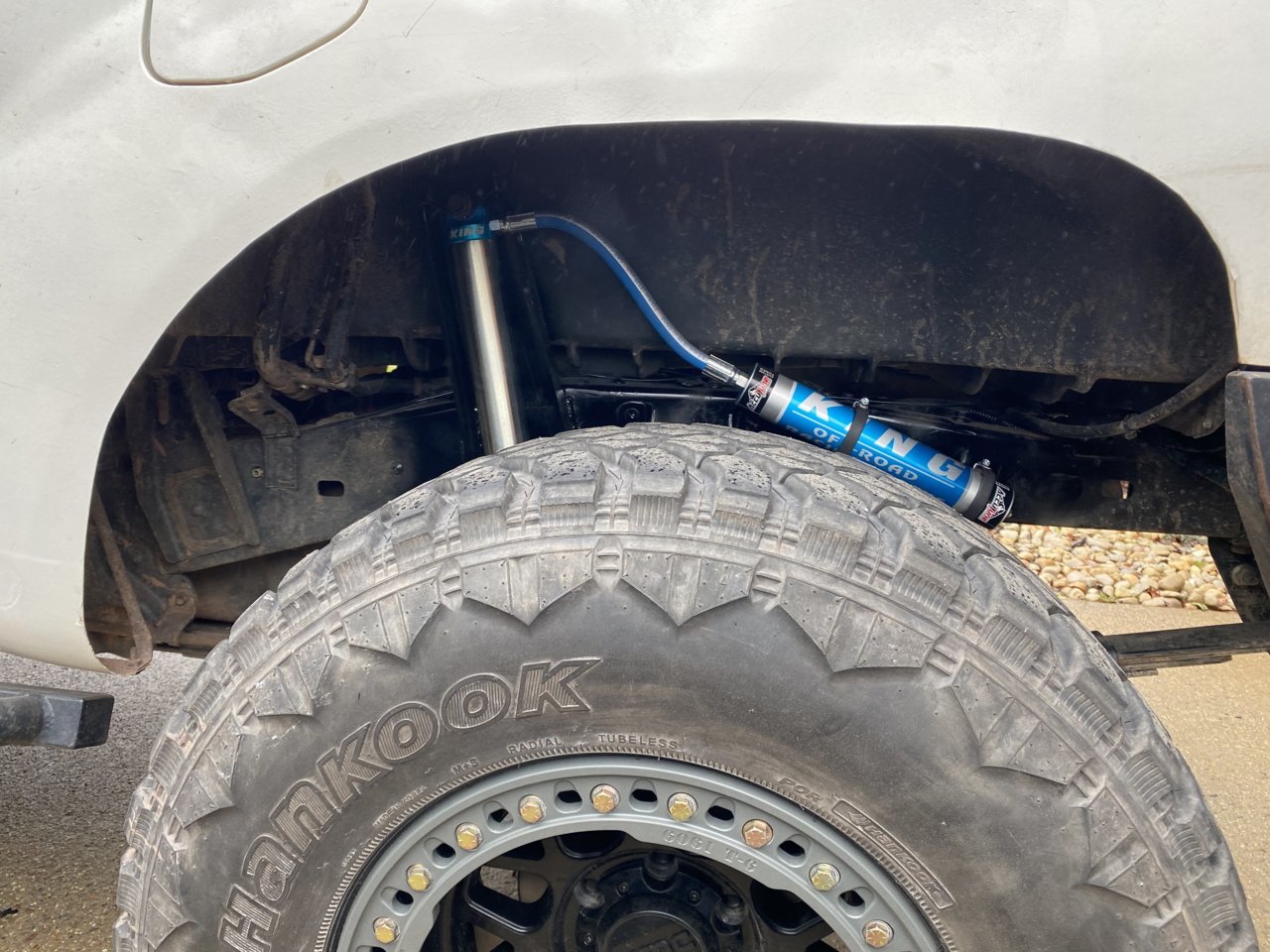

    Especially amazing peeking through the wheel well!


  6. Feb 22, 2021 at 5:28 PM
    #6
    crashngiggles

    crashngiggles Tacomaworld's Resident Psych Dr.

    Joined:
    May 17, 2015
    Member:
    #155446
    Messages:
    4,364
    Gender:
    Male
    First Name:
    Jared
    Wilbraham, Massachusetts
    Vehicle:
    2013 MGM TRD 4x4 DCLB Trail Limo
    Either Randy or @ARCHIVE (Eric) I know that Fox, King, or ADS are recommended with these, but how about the 12 inch 2.0 bilstein resi?

  7. Feb 22, 2021 at 5:30 PM
    #7
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    53,737
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    As long as the mounts are 1.5” wide and uses 1/2” diameter bolts, then I don’t see why it wouldn’t work. I do recall a friend saying the spacing on his billies was something funky and had to stack some washers in his to get that 1.5”.

    mcharfauros likes this.
  8. Feb 22, 2021 at 5:31 PM
    #8
    crashngiggles

    crashngiggles Tacomaworld's Resident Psych Dr.

    Joined:
    May 17, 2015
    Member:
    #155446
    Messages:
    4,364
    Gender:
    Male
    First Name:
    Jared
    Wilbraham, Massachusetts
    Vehicle:
    2013 MGM TRD 4x4 DCLB Trail Limo
    Got those in the mail as we speak :).....the spacers I mean

    EatSleepTacos likes this.
  9. Feb 22, 2021 at 5:32 PM
    #9
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    53,737
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT

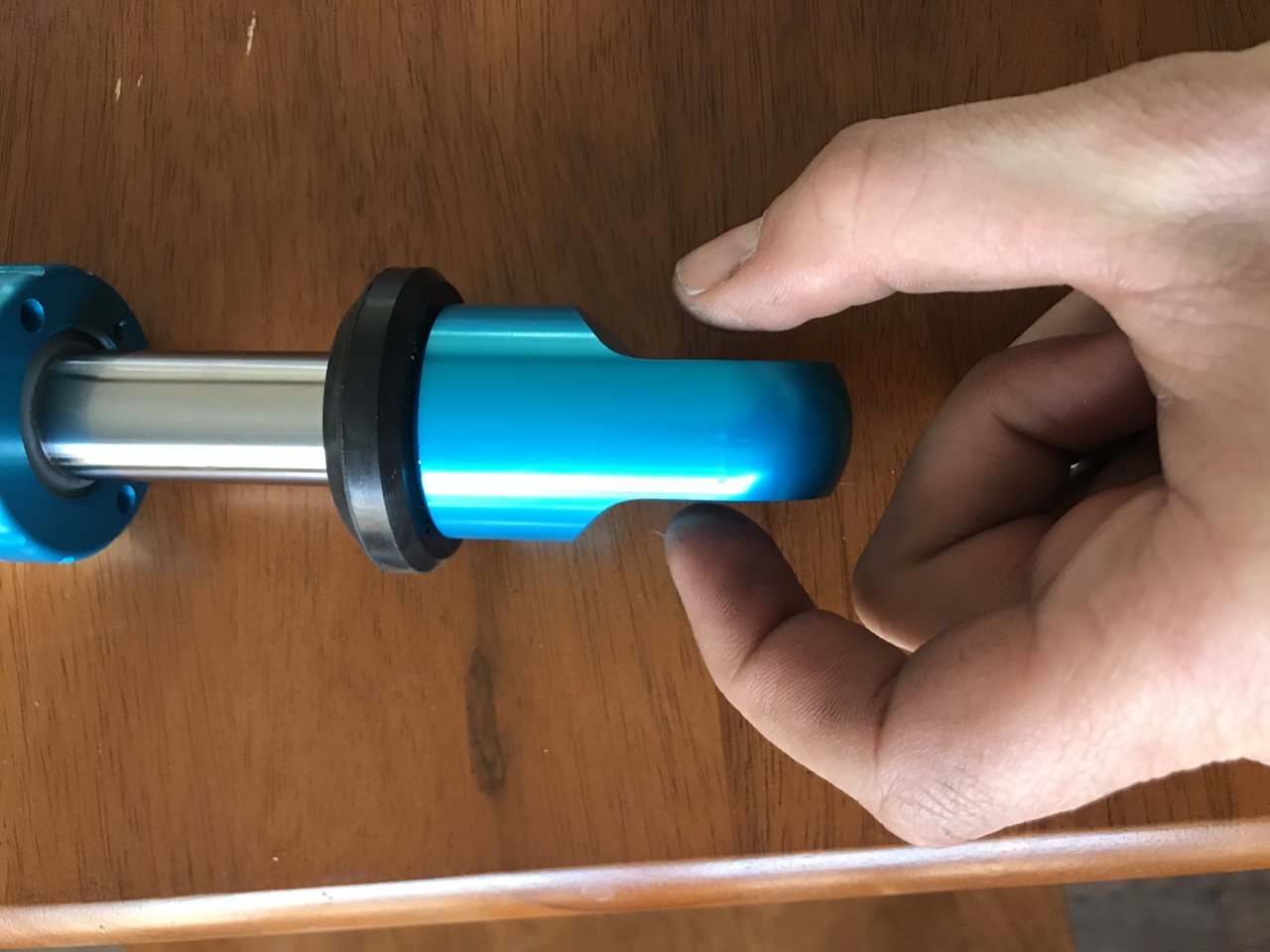

    And in case anyone is unsure what I mean by the 1.5”, it’s the combined width of the shock mount and the spacers that come with it.

    Aka the space between my fingers


  10. Feb 22, 2021 at 6:10 PM
    #10
    literallynothing

    literallynothing I tow my new truck around with my old truck

    Joined:
    Aug 27, 2017
    Member:
    #228243
    Messages:
    2,112
    Gender:
    Male
    First Name:
    Noah
    Vehicle:
    2017 DCSB
    Steel and 37s
    Is the advantage of this relocation over your other that you wouldn’t need to run wheel spacers? I have your older kit on my truck and I love it

    mcharfauros and biborado like this.
  11. Feb 22, 2021 at 6:37 PM
    #11
    ARCHIVE

    ARCHIVE [OP] Well-Known Member Vendor

    Joined:
    Oct 29, 2015
    Member:
    #168099
    Messages:
    1,597
    Gender:
    Male
    First Name:
    Eric
    Orchard Park, NY (Buffalo)
    Vehicle:
    '05 Taco, '05 Seq, '00 Tundra, '91 Cummins
    2.5" Fox relocation * Hammer hanger * Deaver SUA
    It is more affordable, you can get Fox RR 2.0x12 and the relo kit for $800 all in. Because there is no concern over fitting any bypass tubes like my other tower, and its only 2.0 body shocks, it may be able to run without wheel spacers with certain offset aftermarket wheels and 285s

  12. Feb 22, 2021 at 6:43 PM
    #12
    ARCHIVE

    ARCHIVE [OP] Well-Known Member Vendor

    Joined:
    Oct 29, 2015
    Member:
    #168099
    Messages:
    1,597
    Gender:
    Male
    First Name:
    Eric
    Orchard Park, NY (Buffalo)
    Vehicle:
    '05 Taco, '05 Seq, '00 Tundra, '91 Cummins
    2.5" Fox relocation * Hammer hanger * Deaver SUA
    Personally, after giving my money to Bilstein, and being very dissatisfied, I cannot recommend them to anyone. (But people can, it is best to get collapsed length between 18-20", don't know Bilstein lengths)

    -I recommend good rebuildable and tuneable Fox Performance series 2.0x12.1 and only 18.35" compressed for $560/pair. (Remote resi cannot mount to shock)

    https://accutuneoffroad.com/product/fox-2-0-x-12-performance-series-remote-reservoir/

    With adjuster:

    https://accutuneoffroad.com/product...ies-remote-reservoir-12-1-travel-cd-adjuster/

    Last edited: Feb 22, 2021
    mcharfauros and GHOST SHIP like this.
  13. Feb 22, 2021 at 9:24 PM
    #13
    WestCoastMango

    WestCoastMango Active Member

    Joined:
    Feb 5, 2021
    Member:
    #355185
    Messages:
    25
    Gender:
    Male
    First Name:
    Anthony
    Vancouver Island
    Vehicle:
    2019 DCSB
    Nice! Happy to see more affordable options for people to kit out their yotas. Jeeps better start watching out :)

  14. Feb 23, 2021 at 9:42 AM
    #14
    Brian422

    Brian422 I fell into the pit that is TW

    Joined:
    Jun 8, 2011
    Member:
    #57958
    Messages:
    8,521
    Gender:
    Male
    First Name:
    Brian
    Birmingham
    Vehicle:
    2012 Tacoma postrunner and 2015 Corolla S Manual
    Not Stock
    Got these sitting at the house for a different 2.0 setup. Wish these had come out sooner. Darnit lol. Looks great! Great job Eric!
    [​IMG]

    Last edited: Feb 23, 2021
    whatstcp likes this.
  15. Feb 23, 2021 at 10:13 AM
    #15
    Mohedano1

    Mohedano1 Well-Known Member

    Joined:
    Apr 3, 2015
    Member:
    #152419
    Messages:
    322
    Gender:
    Male
    Ogden, Utah!!
    Vehicle:
    '15 4wd DCSB TRD Offroad
    Total Chaos uca, King 700lb extended coilovers, King Tundra rear shock w/resi, BruteForceFab Hybrid front bumper, BruteForceFab rear HC bumper, BAMF skidz. 315/75/16 cepek extreme country, 4.88 gears, front arb locker. Rci sliders and diff skid
    I currently have 07+ tundra 2.5 kings with 10" travel, dakar leafs and hammer hangars. Would your recommended setup work with the dakar? Will dakars flex enough to benefit from the longer shock? Thanks!!

  16. Feb 23, 2021 at 10:18 AM
    #16
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    53,737
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    Ooo I can answer this. I had Dakar’s, hammer hangers and 12” kings and it flexes awesome.

    You’ll want to trim the second leaf on the Dakar’s back an inch or so though because under a lot of flex, the leaf pack fans out and the second leaf gets jammed into the shackle.

    https://www.instagram.com/p/CBbG34kAT1v/?igshid=4ry4ozp1ozkn

    the.sight.picture, uurx and Mohedano1 like this.
  17. Feb 23, 2021 at 10:21 AM
    #17
    Mohedano1

    Mohedano1 Well-Known Member

    Joined:
    Apr 3, 2015
    Member:
    #152419
    Messages:
    322
    Gender:
    Male
    Ogden, Utah!!
    Vehicle:
    '15 4wd DCSB TRD Offroad
    Total Chaos uca, King 700lb extended coilovers, King Tundra rear shock w/resi, BruteForceFab Hybrid front bumper, BruteForceFab rear HC bumper, BAMF skidz. 315/75/16 cepek extreme country, 4.88 gears, front arb locker. Rci sliders and diff skid
    Awesome, thanks for the response!! I trimmed the dakars years ago after my hammer hangar install and posted pics and info.

    EatSleepTacos likes this.
  18. Feb 23, 2021 at 10:27 AM
    #18
    Mohedano1

    Mohedano1 Well-Known Member

    Joined:
    Apr 3, 2015
    Member:
    #152419
    Messages:
    322
    Gender:
    Male
    Ogden, Utah!!
    Vehicle:
    '15 4wd DCSB TRD Offroad
    Total Chaos uca, King 700lb extended coilovers, King Tundra rear shock w/resi, BruteForceFab Hybrid front bumper, BruteForceFab rear HC bumper, BAMF skidz. 315/75/16 cepek extreme country, 4.88 gears, front arb locker. Rci sliders and diff skid

  19. Feb 23, 2021 at 10:29 AM
    #19
    Mohedano1

    Mohedano1 Well-Known Member

    Joined:
    Apr 3, 2015
    Member:
    #152419
    Messages:
    322
    Gender:
    Male
    Ogden, Utah!!
    Vehicle:
    '15 4wd DCSB TRD Offroad
    Total Chaos uca, King 700lb extended coilovers, King Tundra rear shock w/resi, BruteForceFab Hybrid front bumper, BruteForceFab rear HC bumper, BAMF skidz. 315/75/16 cepek extreme country, 4.88 gears, front arb locker. Rci sliders and diff skid
    I get ok flex now


  20. Feb 23, 2021 at 10:32 AM
    #20
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    53,737
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    I have those same shocks you asked about above but without the clicker compressor.
