    DISCLAIMER:

    You can use any leaf spring off any make/model car or truck if it meets the minimum requirements...

    1. width, the closer to OEM spring width you are the better...

    2. think about what you're trying to achieve, if your looking for more lift than anything, you want to seek out leafs with more ARC, not too much tho', remember, a little good steel goes along way...

    3. If load rate increase without the lift is what your after, look for leafs with less ARC but maybe a little thicker & again, look for stock width..


    The end result depends on the amount of time you invest seeking out THE best donors you can find, sometimes it takes me a whole weekend of looking to find the right ones....


    It's not rocket science but if one thinks you just go & grab the first set you see, I can practically gaurantee you'll be dissappointed...


    This is a long read,& about 75% is nonsense but the other 25% is gold with contributions from other members, the answers you seek are here... Thank You,
    the management







    Chris (csjumper2003) & myself

    just got back from wrecking yard with a monster set of rear springs off a commercial grade Chevy S-10 flatbed, 3/4- possibly 1 ton rating, heres what they look like now

    [​IMG]

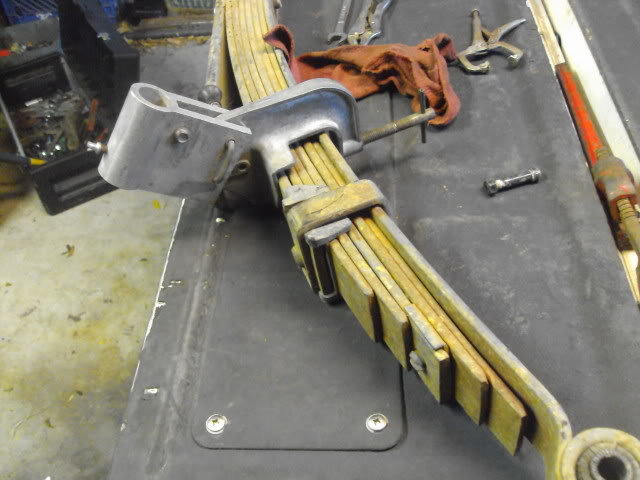

    got these suckas' clamped up & ready to dissasemble for prep.

    Last edited: Sep 8, 2014
  2. Dec 22, 2011 at 6:09 PM
    #2
    YumaTRD

    YumaTRD Chewie is my Co-pilot

    Joined:
    Aug 15, 2009
    Member:
    #21219
    Messages:
    2,948
    Gender:
    Male
    First Name:
    David
    El Cajon, CA hometown Yuma, AZ
    Vehicle:
    SAS Yota
    SAS, Flat bed, 22R, BFG Muds,
  3. Dec 22, 2011 at 6:19 PM
    #3
    4WD

    4WD [OP] cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    22,316
    Gender:
    Male
    First Name:
    Doug
    Gardnerville, Nevada
    Vehicle:
    No Truck
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now
    pass the popcorn Dave, getting hungry too...;)

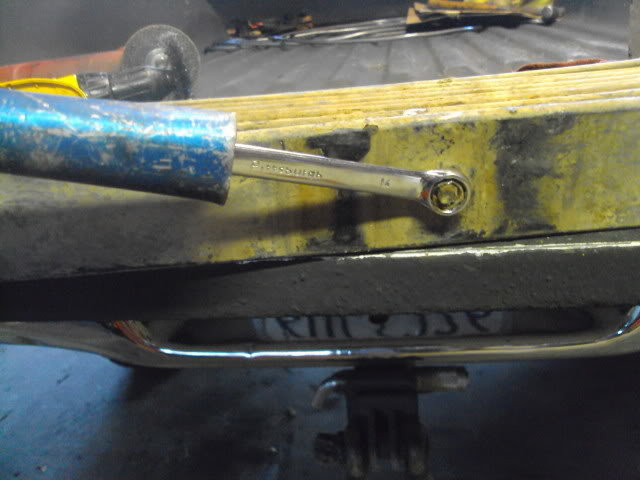

    Ok already clamped so time to break'em down, sometimes a little persuasion is needed for these axle pins..

    [​IMG]

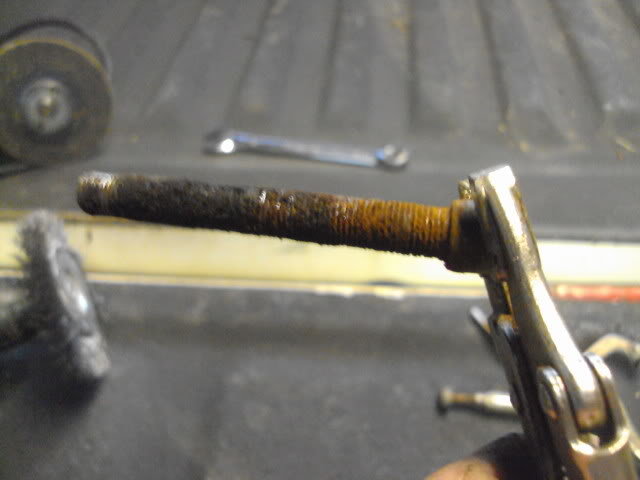

    still keeping the springs securely clamped after the axle alignment pin is removed, the factory spring clamps are cut in a manner as to using them later maybe..

    [​IMG]

  4. Dec 22, 2011 at 6:22 PM
    #4
    4WD

    4WD [OP] cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    22,316
    Gender:
    Male
    First Name:
    Doug
    Gardnerville, Nevada
    Vehicle:
    No Truck
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now
  5. Dec 22, 2011 at 6:23 PM
    #5
    scottri

    scottri Well-Known Member

    Joined:
    Apr 13, 2010
    Member:
    #35187
    Messages:
    2,102
    Gender:
    Male
    First Name:
    Scott
    Tigard Oregon
    Vehicle:
    '10 Sport DC TRD Sport PreRunner
    Cover King Seat Covers, WeatherTech Liners, PopNLock, storage bin locks, N-Fab Step bars, and G4 Elite Tonneau cover.
    Commercial grade and S-10 are mutually exclusive terms in my book. Good luck with the new springs!

  6. Dec 22, 2011 at 6:26 PM
    #6
    4WD

    4WD [OP] cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    22,316
    Gender:
    Male
    First Name:
    Doug
    Gardnerville, Nevada
    Vehicle:
    No Truck
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now

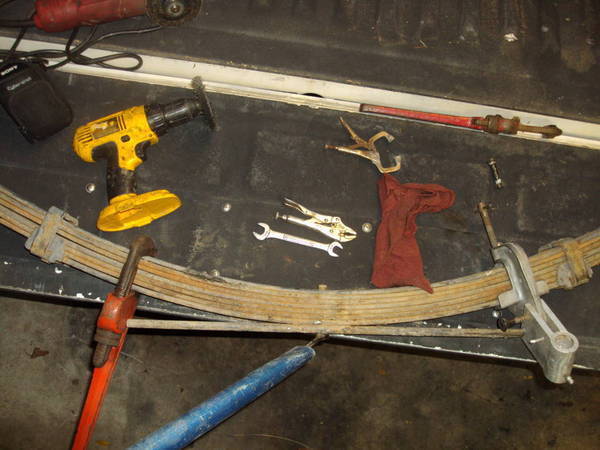

    We'll be discarding these old pins of course for new ones, & why not they're only about $ 7.00 or $8.00 for a set at your local ORW or similiar..

    [​IMG]

  7. Dec 22, 2011 at 6:30 PM
    #7
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,973
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
  8. Dec 22, 2011 at 6:36 PM
    #8
    4WD

    4WD [OP] cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    22,316
    Gender:
    Male
    First Name:
    Doug
    Gardnerville, Nevada
    Vehicle:
    No Truck
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now
    ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^


    true dat' brotha ,,,,;)

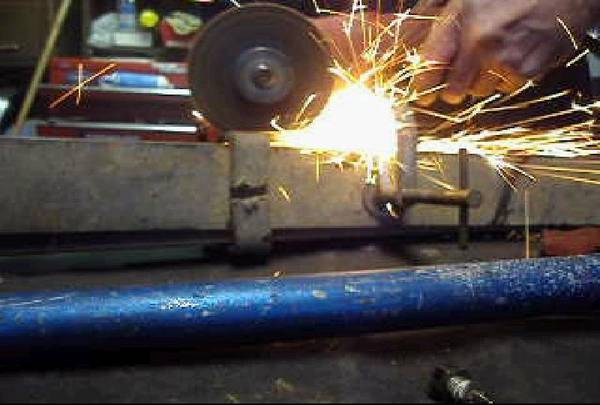

    & I mean ya know this is no state of the art,new to industry kind of thing but I'd be damned if I was gonna just throw these on without prettying them up some so a wire wheel on a cordless did just fine (besides you gotta clean them up to see what yer working with)


    [​IMG]

  9. Dec 22, 2011 at 6:40 PM
    #9
    JustinL

    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    3,106
    Gender:
    Male
    First Name:
    Justin
    Newington, CT
    Vehicle:
    2009 TRD OffRoad DC Pyrite Mica
    Baby seat mod
    Same thing that came to my mind- I'm still curious to see how the stance is after the swap. Also, what year S10?

  10. Dec 22, 2011 at 6:53 PM
    #10
    NC15TRD

    NC15TRD Your girlfriend likes my member

    Joined:
    Sep 14, 2010
    Member:
    #43212
    Messages:
    5,861
    Gender:
    Male
    First Name:
    Nick
    PA
    Vehicle:
    15 DCSB TRD Sport 6-Speed
    KINGS | LR | OME Dakars | Bilstein | Wheeler's Superbumps | OCTaco brake lines | UWS | Level 8 MK6 | Cooper Discoverer ST Maxx | PrInSu
    subbed!

  11. Dec 22, 2011 at 7:01 PM
    #11
    4WD

    4WD [OP] cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    22,316
    Gender:
    Male
    First Name:
    Doug
    Gardnerville, Nevada
    Vehicle:
    No Truck
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now
    You'll be able to see finished product tomorrow as I scheduled Chris for the morning, as for the year I'm gonna say mid 90's but like I said by "commercial rated" this is pretty unique dont see alot of 1 ton flatbed S-10's running around...:D

    Toyota used to make a 1 ton flatbed as well in late 80's early 90's I believe... (Hmmmm, 1 ton Toyota springs, got me thinking again)

  12. Dec 22, 2011 at 7:03 PM
    #12
    jflan

    jflan Well-Known Member

    Joined:
    Dec 26, 2008
    Member:
    #11901
    Messages:
    1,019
    Vancouver, WA
    Vehicle:
    09 Access 4x4 2.7L manual SR5
    SnugTop SuperSport Sportsman keyless cap Weathertech mats - OEM skidplate - OEM hitch
    Doug, that's a nice lookin' spring pack. Looks like the main leaf is wider than the rest of the pack.
    What length donor spring do you look for when you're rebuilding a 2nd gen Taco spring ?

  13. Dec 22, 2011 at 7:16 PM
    #13
    4WD

    4WD [OP] cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    22,316
    Gender:
    Male
    First Name:
    Doug
    Gardnerville, Nevada
    Vehicle:
    No Truck
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now

    Oh yeah its a beautiful pack with alot of life left in them & the main leaf is just loose & at angle I think , but they are all equal width.

    As far as donor lengths , it varies as to what the owner wants, so far the ones I've done the guys weren't so concerned about getting lift , they just wanted the fucking sloppy,soft, forever bottoming out B.S. to stop...... I don't blame them & Toyota should be ashamed of itself, a far cry from the nice firm "Truck" suspension the older Toys had (pre 95')

  14. Dec 22, 2011 at 7:21 PM
    #14
    pataco

    pataco Well-Known Member

    Joined:
    Jan 1, 2009
    Member:
    #12092
    Messages:
    2,071
    Gender:
    Male
    Down by the lake
    Vehicle:
    05 4x4 trd dc white
    FOX 2.0 RESIS,LRUCAS,BILLY 5100S ON THE REAR.MAGNAFLOW 11264,COLOR MATCHED GRILL,YELLOW FOG MOD.OVER HEAD DVD,FEDERAL COURAGIA M/T
    :popcorn:getting ready to do this myself

  15. Dec 22, 2011 at 7:23 PM
    #15
    4WD

    4WD [OP] cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    22,316
    Gender:
    Male
    First Name:
    Doug
    Gardnerville, Nevada
    Vehicle:
    No Truck
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now
    Now chris's truck has the TSB springs with a 1" leveling block in the rear,

    his springs are almost flat even with the TSB & I've wheeled with him so I know he doesn't bash his shit ANYTHING like I do, pretty sad

    We're going for an approx 2"-2.5" lift to level him back up with his fronts


    Now Adam (tmectaco79) is going for a 3" lift in rear

    (Adam correct me if I'm wrong)

    also doing away with a rear leveling block IIRC

  16. Dec 22, 2011 at 7:29 PM
    #16
    4WD

    4WD [OP] cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    22,316
    Gender:
    Male
    First Name:
    Doug
    Gardnerville, Nevada
    Vehicle:
    No Truck
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now
    Lets look at the magical "Diamond cut." The big boys all talk about....


    BFG (Big Fuckin' Deal)

    All a diamond cut refers to is a mitered cut at the ends of the leafs that I've been doing to steel & sheetmetal for the last 25 years, except we always called it "Dog earring" (any tin knockers out there know what I'm talking about)

    Its just trimming the corners off at roughly 30 degrees (give or take..:notsure: )



  17. Dec 22, 2011 at 7:37 PM
    #17
    4WD

    4WD [OP] cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    22,316
    Gender:
    Male
    First Name:
    Doug
    Gardnerville, Nevada
    Vehicle:
    No Truck
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now

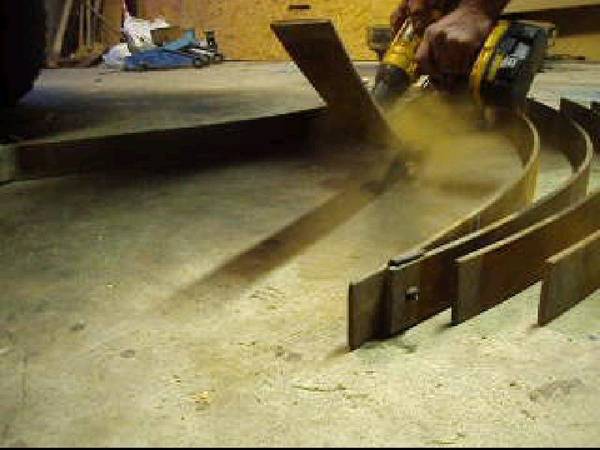

    Here's your diamond cut....aint that special....
