TacomaRaider's 2002 3.4L ext. cab Build

Discussion in '1st Gen. Builds (1995-2004)' started by TacomaRaider, Jul 25, 2015.

  1. Jul 25, 2015 at 1:08 AM
    #1
    TacomaRaider

    TacomaRaider [OP] Well-Known Member

    Joined:
    Oct 14, 2014
    Member:
    #140356
    Messages:
    125
    Gender:
    Male
    First Name:
    TumbleWeed
    Northern California Shasta county
    Vehicle:
    2002 3.4l 4x4 Tacoma SR5 TRD
    Bilstein 5100 front and rear OME 882, OME Dakar, American Racing baja AR172 15x8, BFG KM2 32X11.50

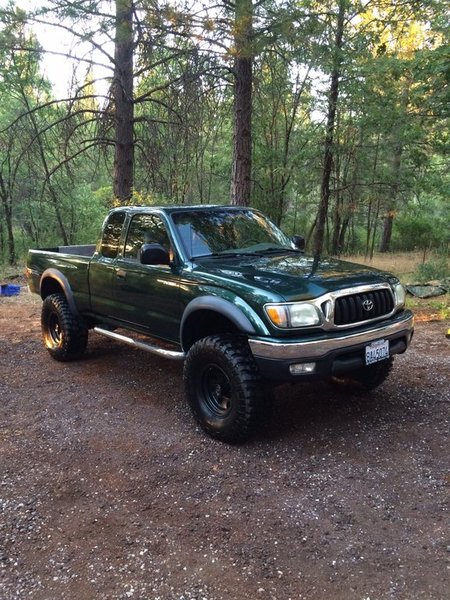

    As my truck sits now....
    image.jpg image.jpg So I started out with a 98 3.4 in 2004, bought it built already with a aal in the rear and a unknown 2" body lift, arb plate bumper in the front which possibly saved my life. It had 33x12.50 BFG mud terrain(the original ones) and steelies. Drove it as daily driver and also through some trails that my truck amazed me it made it through also white out blizzards, storm chasing to get fresh powder in the sierras. This truck was a beast and never let me down. Drove it until 276,000 miles until a drunk driver ran a red light when I was turning from the left turn lane. Hit my front right side as I was starting a u-turn and totaled the truck. He was driving a Camry and tuna canned his car. He had unknow back injuries but was able to walk. He hit me at 50mph almost head on. As for bumper may have saved my life because the only damage I had was a bent rim flat tire and bent frame. The gap between bed and cab was closed on driver side and 4" gap on passenger. Thank god my girlfriend and I were ok. Police officer even said I was lucky I had the bumper. So I paid 10k for the truck originally and insurance gave me $8200 ten years later :) so I bought a mint condition 2002 3.4 in 2014 from concord Toyota with 124k miles. I had to. My old truck was a tank and I won't go on in life without a Tacoma. The truck had a 1.5" spacer in the front and unknown aal in the rear. It was a trade in that needed new shocks. So I bought 5100s and drove it for a year before I got OME 882 and Dakar. Then American racing ar172 and BFG km2. Absolutely love this new truck. A upgrade from the already satisfaction guaranteed 98. So I learned a lot from Tacoma world and Dan from wheelersoffroad.com and have decided to start a build. Here are some pictures from after the 5100s installed and front spacers removed and the changes I've made so far.

    Last edited: Jul 25, 2015
  2. Jul 25, 2015 at 2:31 AM
    #2
    TacomaRaider

    TacomaRaider [OP] Well-Known Member

    Joined:
    Oct 14, 2014
    Member:
    #140356
    Messages:
    125
    Gender:
    Male
    First Name:
    TumbleWeed
    Northern California Shasta county
    Vehicle:
    2002 3.4l 4x4 Tacoma SR5 TRD
    Bilstein 5100 front and rear OME 882, OME Dakar, American Racing baja AR172 15x8, BFG KM2 32X11.50
    image.jpg Here is what I've done so far.

    Suspension

    -OME 882
    -OME Dakar
    -1/4" driver side spacer for taco lean
    -Bilstein 5100 front and rear
    -ext. rear brake line
    -Longer U-bolts
    -3 degree axle shims

    Rims and Tires


    -American Racing Baja AR172 15x8 3.75" back spacing and 19mm offset, satin black
    -BFG KM2 Mud-Terrain 33x12.50

    Stock springs on top 5100 setting next to OME 882 on bottom setting
    Dakar installed in rear with 5100 at top setting and stock coil in front. Called her the grass hopper for a day.
    Dakar installed, brake relocate installed and exhaust chopped
    Front and rear installed with 265/75r16 BFG all-terrain
    Fresh back from Americas tires. Installing the 15x8 American racing ar172 3.75" backspacing, 19mm offset and BFG KM2 33x12.50
    I drove her around and had to do the pinch weld persuasion right away. Beat it back with a hammer and razor bladed some inner wheel well plastic near the pinch weld. Not much at All. And will carry a razor blade when wheeling to cut of what's needed when wheel is stuffed. No rubbing the frame at full lock :)


    Had to get alignment. Now she drives great. A little stiff at first but after a couple trails and a 250 mile drive it is 10x better than stock on and off-road. Handles the bumps great on and off-road and handles turns more like I lowered it than lifted. Much better than stock coils and 5100s. The more I drove the better the ride got. As of now I highly recommend this lift/tire combo to anyone looking for more than stock off-road and still using as a daily driver.
    Will get some better pics soon. Adding a CB radio next. Thank you to Dan from wheelersoffroad and all the many people that answered my many probably annoying questions. Thank you all very much. You know who you are!


    Attached Files:

    Last edited: Jul 25, 2015
  3. Jul 25, 2015 at 5:50 AM
    #3
    LSC15

    LSC15 Southern Retrofits

    Joined:
    Feb 13, 2013
    Member:
    #97458
    Messages:
    6,923
    Gender:
    Male
    First Name:
    Logan
    Newport, NC / Lenoir, NC
    Vehicle:
    2008 TRD D-Cab
    2008 Double Cab - Current 2002 4runner - Sold 2001 Double Cab - Sold 1995 Xtra Cab - Sold
    Truck looks great man. Can't wait to see where this build goes

  4. Jul 25, 2015 at 3:22 PM
    #4
    TacomaRaider

    TacomaRaider [OP] Well-Known Member

    Joined:
    Oct 14, 2014
    Member:
    #140356
    Messages:
    125
    Gender:
    Male
    First Name:
    TumbleWeed
    Northern California Shasta county
    Vehicle:
    2002 3.4l 4x4 Tacoma SR5 TRD
    Bilstein 5100 front and rear OME 882, OME Dakar, American Racing baja AR172 15x8, BFG KM2 32X11.50
    Thanks. I plan on getting the uniden520xl I have mounted in the ashtray then get sliders, front and rear bumpers. Haven't made up my mind if I want tube or plate bumpers yet

  5. Jul 27, 2015 at 5:57 PM
    #5
    99Runner3.4

    99Runner3.4 Well-Known Member

    Joined:
    Jul 23, 2015
    Member:
    #160155
    Messages:
    50
    Gender:
    Male
    First Name:
    Lucas
    Vehicle:
    2009 4x4 TRD Off Road DCSB
    Hey I'm going with your wheel/tire setup but can only find white letters. Can you link me to the blackwalled bfg km2 33x12.50r15?

  6. Jul 27, 2015 at 5:59 PM
    #6
    LSC15

    LSC15 Southern Retrofits

    Joined:
    Feb 13, 2013
    Member:
    #97458
    Messages:
    6,923
    Gender:
    Male
    First Name:
    Logan
    Newport, NC / Lenoir, NC
    Vehicle:
    2008 TRD D-Cab
    2008 Double Cab - Current 2002 4runner - Sold 2001 Double Cab - Sold 1995 Xtra Cab - Sold
    You turn white letters in

  7. Jul 27, 2015 at 6:00 PM
    #7
    99Runner3.4

    99Runner3.4 Well-Known Member

    Joined:
    Jul 23, 2015
    Member:
    #160155
    Messages:
    50
    Gender:
    Male
    First Name:
    Lucas
    Vehicle:
    2009 4x4 TRD Off Road DCSB
    So you put them on backward? I was thinking of doing that but I heard that people had problems. You can do that and it'll be fine?

  8. Jul 27, 2015 at 6:06 PM
    #8
    TacomaRaider

    TacomaRaider [OP] Well-Known Member

    Joined:
    Oct 14, 2014
    Member:
    #140356
    Messages:
    125
    Gender:
    Male
    First Name:
    TumbleWeed
    Northern California Shasta county
    Vehicle:
    2002 3.4l 4x4 Tacoma SR5 TRD
    Bilstein 5100 front and rear OME 882, OME Dakar, American Racing baja AR172 15x8, BFG KM2 32X11.50
    All I've ever done was put the white letter inside. Never a problem

  9. Jul 27, 2015 at 6:07 PM
    #9
    99Runner3.4

    99Runner3.4 Well-Known Member

    Joined:
    Jul 23, 2015
    Member:
    #160155
    Messages:
    50
    Gender:
    Male
    First Name:
    Lucas
    Vehicle:
    2009 4x4 TRD Off Road DCSB
    Alright cool. Thanks. I found em for 204 each!

  10. Aug 16, 2015 at 5:35 PM
    #10
    TacomaRaider

    TacomaRaider [OP] Well-Known Member

    Joined:
    Oct 14, 2014
    Member:
    #140356
    Messages:
    125
    Gender:
    Male
    First Name:
    TumbleWeed
    Northern California Shasta county
    Vehicle:
    2002 3.4l 4x4 Tacoma SR5 TRD
    Bilstein 5100 front and rear OME 882, OME Dakar, American Racing baja AR172 15x8, BFG KM2 32X11.50
    If I pop the tailgate he jumps right in and doesn't want to get out. He apparently loves taco as as much as me!image.jpg image.jpg image.jpg

  11. Aug 20, 2015 at 8:10 PM
    #11
    CrawfishTaco

    CrawfishTaco Alright, alright, alright

    Joined:
    Jul 28, 2015
    Member:
    #160504
    Messages:
    31
    Gender:
    Male
    First Name:
    Zack
    West Central Texas
    Vehicle:
    2002 4x4 2.7L 5spd SR5 Xtra cab
    Did you add any supports after you cut your exhaust? Looking to do mine this weekend.

  12. Aug 20, 2015 at 10:17 PM
    #12
    TacomaRaider

    TacomaRaider [OP] Well-Known Member

    Joined:
    Oct 14, 2014
    Member:
    #140356
    Messages:
    125
    Gender:
    Male
    First Name:
    TumbleWeed
    Northern California Shasta county
    Vehicle:
    2002 3.4l 4x4 Tacoma SR5 TRD
    Bilstein 5100 front and rear OME 882, OME Dakar, American Racing baja AR172 15x8, BFG KM2 32X11.50
    No I cut it at the down turn and it doesn't shake at all, seems supported really well at the muffler..From what I've read, nobody supports it after they cut it.

  13. Aug 20, 2015 at 10:20 PM
    #13
    CrawfishTaco

    CrawfishTaco Alright, alright, alright

    Joined:
    Jul 28, 2015
    Member:
    #160504
    Messages:
    31
    Gender:
    Male
    First Name:
    Zack
    West Central Texas
    Vehicle:
    2002 4x4 2.7L 5spd SR5 Xtra cab
    Thanks for the quick response, man! Your truck looks awesome, by the way.

  14. Aug 20, 2015 at 10:26 PM
    #14
    TacomaRaider

    TacomaRaider [OP] Well-Known Member

    Joined:
    Oct 14, 2014
    Member:
    #140356
    Messages:
    125
    Gender:
    Male
    First Name:
    TumbleWeed
    Northern California Shasta county
    Vehicle:
    2002 3.4l 4x4 Tacoma SR5 TRD
    Bilstein 5100 front and rear OME 882, OME Dakar, American Racing baja AR172 15x8, BFG KM2 32X11.50
    Thanks! I had a 98 before this one. 3.4 drove it until 276,000 miles before it was totaled by a drunk driver. It was a tank. This one is a for sure upgrade but I sure miss my 98. It was the most reliable vehicle out of anyone's car or truck I know. I hope to get the same out of this truck.

  15. Oct 7, 2015 at 12:10 AM
    #15
    TacomaRaider

    TacomaRaider [OP] Well-Known Member

    Joined:
    Oct 14, 2014
    Member:
    #140356
    Messages:
    125
    Gender:
    Male
    First Name:
    TumbleWeed
    Northern California Shasta county
    Vehicle:
    2002 3.4l 4x4 Tacoma SR5 TRD
    Bilstein 5100 front and rear OME 882, OME Dakar, American Racing baja AR172 15x8, BFG KM2 32X11.50
    image.jpg Just found and purchased these from Jegs on eBay. 78" extended or double cab sliders. They started selling their products on eBay for cheaper than on their website. Figured I had to share this. Great deal. Cheapest I could find. I will post pictures of the install when I receive them and find time to weld them up!

  16. Oct 7, 2015 at 12:15 AM
    #16
    Adventurer_Alex

    Adventurer_Alex Generic mall crawler

    Joined:
    Oct 8, 2012
    Member:
    #88584
    Messages:
    7,282
    Gender:
    Male
    First Name:
    Alex
    AZ
    Vehicle:
    2013 Nissan XTERRA
    How do you like the ome shocks w/ 882's with no extra weight up front?

  17. Oct 7, 2015 at 12:20 AM
    #17
    TacomaRaider

    TacomaRaider [OP] Well-Known Member

    Joined:
    Oct 14, 2014
    Member:
    #140356
    Messages:
    125
    Gender:
    Male
    First Name:
    TumbleWeed
    Northern California Shasta county
    Vehicle:
    2002 3.4l 4x4 Tacoma SR5 TRD
    Bilstein 5100 front and rear OME 882, OME Dakar, American Racing baja AR172 15x8, BFG KM2 32X11.50
    I love them. They were a little stiff at first as everyone says on here, but once I broke them in they are perfect. If I added weight up front I still think they would be good. I would probably add a 10mm trim packer if they didn't hold up. I think that would be good enough to make up for the sag

    Adventurer_Alex likes this.
  18. Oct 7, 2015 at 12:21 AM
    #18
    TacomaRaider

    TacomaRaider [OP] Well-Known Member

    Joined:
    Oct 14, 2014
    Member:
    #140356
    Messages:
    125
    Gender:
    Male
    First Name:
    TumbleWeed
    Northern California Shasta county
    Vehicle:
    2002 3.4l 4x4 Tacoma SR5 TRD
    Bilstein 5100 front and rear OME 882, OME Dakar, American Racing baja AR172 15x8, BFG KM2 32X11.50
    They are bilstein5100 and 882's

    Adventurer_Alex likes this.
  19. Oct 11, 2015 at 11:08 AM
    #19
    TacomaRaider

    TacomaRaider [OP] Well-Known Member

    Joined:
    Oct 14, 2014
    Member:
    #140356
    Messages:
    125
    Gender:
    Male
    First Name:
    TumbleWeed
    Northern California Shasta county
    Vehicle:
    2002 3.4l 4x4 Tacoma SR5 TRD
    Bilstein 5100 front and rear OME 882, OME Dakar, American Racing baja AR172 15x8, BFG KM2 32X11.50
    image.jpg Getting ready to weld these together and mount them on

  20. Oct 13, 2015 at 3:38 PM
    #20
    LSC15

    LSC15 Southern Retrofits

    Joined:
    Feb 13, 2013
    Member:
    #97458
    Messages:
    6,923
    Gender:
    Male
    First Name:
    Logan
    Newport, NC / Lenoir, NC
    Vehicle:
    2008 TRD D-Cab
    2008 Double Cab - Current 2002 4runner - Sold 2001 Double Cab - Sold 1995 Xtra Cab - Sold
    Ready for install pics. Debating if I want some
