Tail light mod (both lights used as brake and signals)?

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Chris.taco.2016, Jan 22, 2017.

Page 2 of 79
  1. Feb 3, 2017 at 6:27 PM
    #21
    Siblue

    #21
    Siblue Well-Known Member

    Joined:
    Dec 2, 2014
    Member:
    #143489
    Messages:
    3,151
    Gender:
    Male
    First Name:
    Ryan
    So Cal
    Vehicle:
    25 Tundra TRD pro
    Thanks. I'll have to do that when I get home. I'm happy how it turned out. No more half signal, half brake.
    https://vimeo.com/202480988

    Last edited: Feb 3, 2017
    Siblue, Feb 3, 2017
    #21
    markeezy, Trd_omar, Wero94 and 20 others like this.
  2. Feb 3, 2017 at 6:33 PM
    #22
    Siblue

    #22
    Siblue Well-Known Member

    Joined:
    Dec 2, 2014
    Member:
    #143489
    Messages:
    3,151
    Gender:
    Male
    First Name:
    Ryan
    So Cal
    Vehicle:
    25 Tundra TRD pro
    Let me know if you can view this^^

    Siblue, Feb 3, 2017
    #22
    CygnusX191, SD_Taco, Argo98 and 1 other person like this.
  3. Feb 3, 2017 at 6:41 PM
    #23
    the_dau

    #23
    the_dau Well-Known Member

    Joined:
    Jul 24, 2016
    Member:
    #192803
    Messages:
    1,165
    Gender:
    Male
    Vancouver BC
    Vehicle:
    2017 Inferno TRD OR DCSB
    did you wire it as per @Pickupman2007 ? the video looks good

    the_dau, Feb 3, 2017
    #23
  4. Feb 3, 2017 at 6:46 PM
    #24
    Siblue

    #24
    Siblue Well-Known Member

    Joined:
    Dec 2, 2014
    Member:
    #143489
    Messages:
    3,151
    Gender:
    Male
    First Name:
    Ryan
    So Cal
    Vehicle:
    25 Tundra TRD pro
    Thanks. I didn't take pics of the process. Wiring was easy. I'll help anyone who needs assistance.

    Siblue, Feb 3, 2017
    #24
    Trd_omar and tcjacado like this.
  5. Feb 3, 2017 at 6:50 PM
    #25
    the_dau

    #25
    the_dau Well-Known Member

    Joined:
    Jul 24, 2016
    Member:
    #192803
    Messages:
    1,165
    Gender:
    Male
    Vancouver BC
    Vehicle:
    2017 Inferno TRD OR DCSB
    comes with instructions I assume

    the_dau, Feb 3, 2017
    #25
  6. Feb 3, 2017 at 6:55 PM
    #26
    Siblue

    #26
    Siblue Well-Known Member

    Joined:
    Dec 2, 2014
    Member:
    #143489
    Messages:
    3,151
    Gender:
    Male
    First Name:
    Ryan
    So Cal
    Vehicle:
    25 Tundra TRD pro
    Yes it comes with instructions which I lost. The yellow(turn)and red(brake) on the module are inputs. White is the output. I tied the 50w lid resistor to the yellow and ground.

    Siblue, Feb 3, 2017
    #26
  7. Feb 3, 2017 at 7:09 PM
    #27
    swordfish

    #27
    swordfish Well-Known Member

    Joined:
    Aug 11, 2016
    Member:
    #194292
    Messages:
    716
    Gender:
    Male
    First Name:
    Jon
    CT
    Vehicle:
    Back ordered
    I did the amber/white switchbacks in the reverse buckets a month ago. I think I have some pictures on my phone of the whole process.

    swordfish, Feb 3, 2017
    #27
  8. Feb 3, 2017 at 7:32 PM
    #28
    swordfish

    #28
    swordfish Well-Known Member

    Joined:
    Aug 11, 2016
    Member:
    #194292
    Messages:
    716
    Gender:
    Male
    First Name:
    Jon
    CT
    Vehicle:
    Back ordered

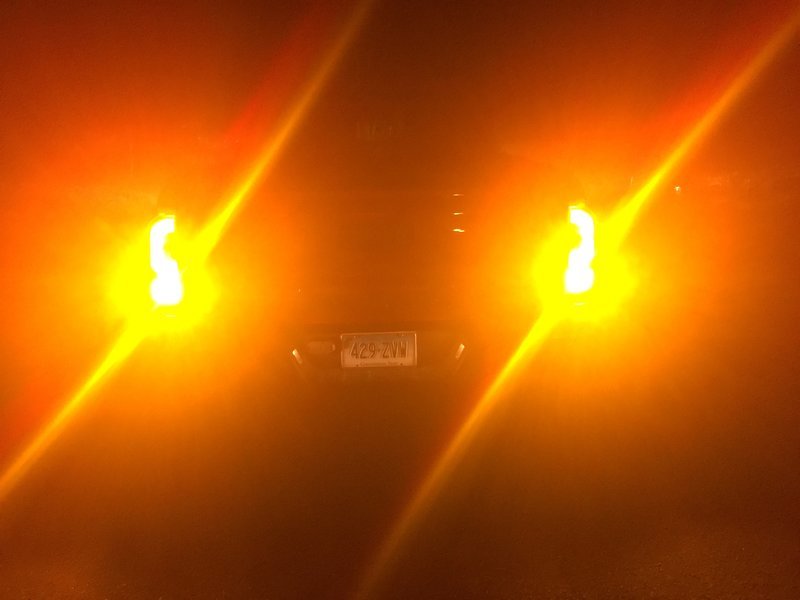

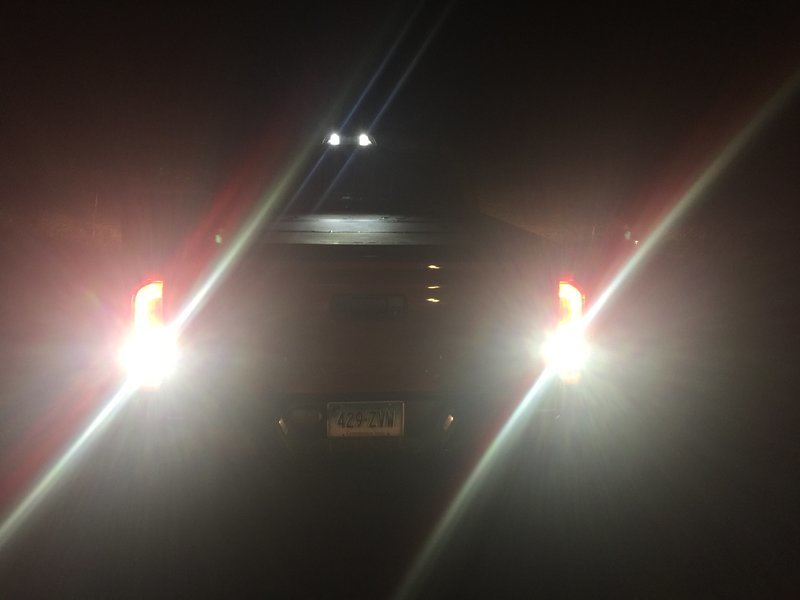

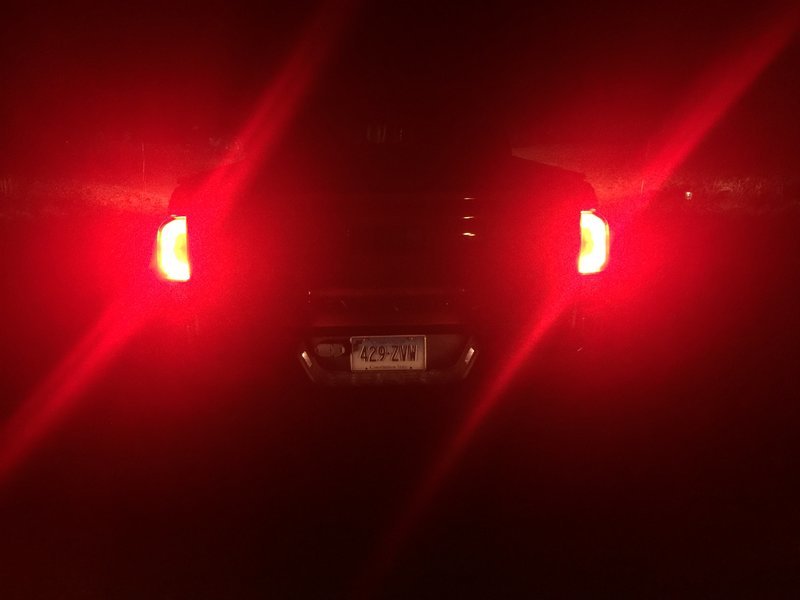

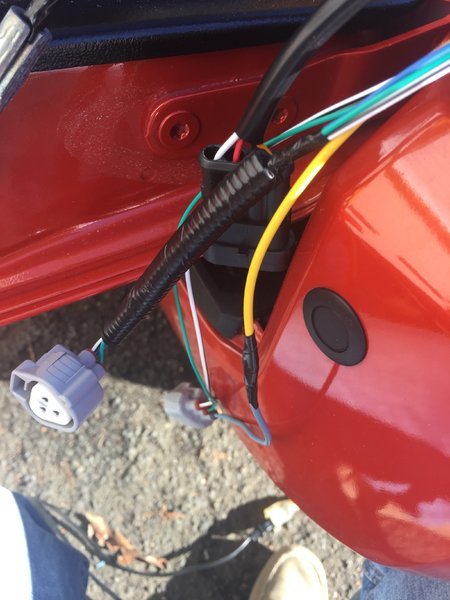

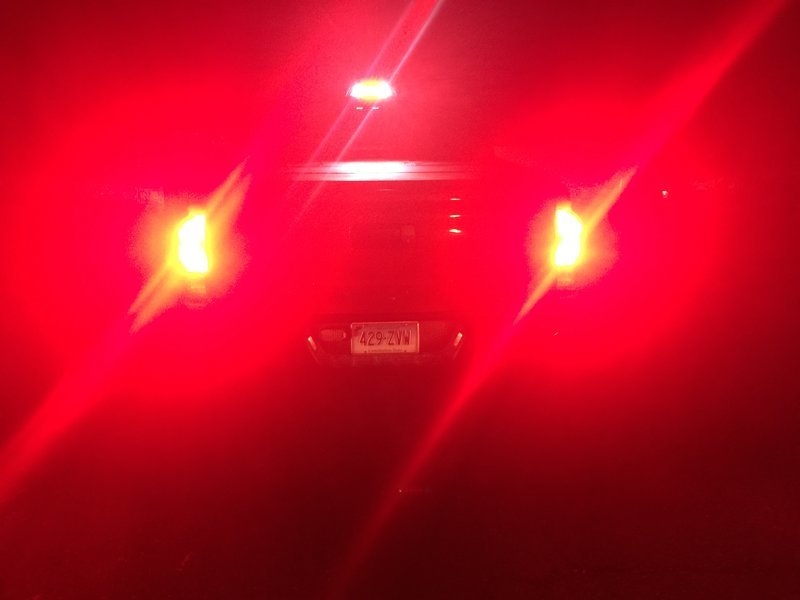

    IMG_4341.jpg IMG_4342.jpg IMG_4347.jpg IMG_4348.jpg IMG_4334.jpg

    swordfish, Feb 3, 2017
    #28
    HNLSFO1, Powerprozeus, ChadsPride and 2 others like this.
  9. Feb 3, 2017 at 7:33 PM
    #29
    pyankura

    #29
    pyankura Well-Known Member

    Joined:
    Dec 25, 2016
    Member:
    #205669
    Messages:
    173
    Gender:
    Male
    Vehicle:
    17 TRD SPORT QUICKSAND
    Is it not possible to just do this with diodes? I have to see what's going on with this but should be able to be done. I know if you want to use LEDs as turn signals you have to LED modules or the system thinks it an open circuit and hyper flashes..... On a side note I will be replacing my reverse lights with LEDs instead of the birthday candles that are in there.

    pyankura, Feb 3, 2017
    #29
  10. Feb 3, 2017 at 7:36 PM
    #30
    swordfish

    #30
    swordfish Well-Known Member

    Joined:
    Aug 11, 2016
    Member:
    #194292
    Messages:
    716
    Gender:
    Male
    First Name:
    Jon
    CT
    Vehicle:
    Back ordered
    My rears are LEDs and I experienced no hyper-flashing. I got resistors, but never bothered installing them.

    swordfish, Feb 3, 2017
    #30
  11. Feb 3, 2017 at 7:38 PM
    #31
    pyankura

    #31
    pyankura Well-Known Member

    Joined:
    Dec 25, 2016
    Member:
    #205669
    Messages:
    173
    Gender:
    Male
    Vehicle:
    17 TRD SPORT QUICKSAND
    Some are made for this purpose and also the can system. Mine are p n p in my VW with no hyper flashing.

    pyankura, Feb 3, 2017
    #31
  12. Feb 3, 2017 at 7:42 PM
    #32
    Siblue

    #32
    Siblue Well-Known Member

    Joined:
    Dec 2, 2014
    Member:
    #143489
    Messages:
    3,151
    Gender:
    Male
    First Name:
    Ryan
    So Cal
    Vehicle:
    25 Tundra TRD pro
    921 switchbacks or 7440?

    Siblue, Feb 3, 2017
    #32
  13. Feb 3, 2017 at 7:50 PM
    #33
    MESO

    #33
    MESO Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    16,294
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD HELLCAT SWAP
    Great work @Siblue, that's about the best your can make the stockers without opening them up.
    Still would have liked an Amber turn from the factory:(
    When I wired my Tritton V3 switchbacks(7440)... the 6OHM resistor gave me problems, ended up with NO resistor and works flawless. (I have resistors up front though too)

    @swordfish Got any pics of the modded reverse bucket?
    How well is that amber visible through the Red lens?

    MESO, Feb 3, 2017
    #33
    ChadsPride likes this.
  14. Feb 3, 2017 at 7:53 PM
    #34
    pyankura

    #34
    pyankura Well-Known Member

    Joined:
    Dec 25, 2016
    Member:
    #205669
    Messages:
    173
    Gender:
    Male
    Vehicle:
    17 TRD SPORT QUICKSAND
    I use in my cars superbrightleds.com they have everything in one place and you can search by vehicle platform. They have quality shit too. I am a picky SOB and use them for like 10 years. Not the cheapest but you can guarentee you will get what pay for with them.

    pyankura, Feb 3, 2017
    #34
    Kopasz likes this.
  15. Feb 3, 2017 at 8:08 PM
    #35
    Siblue

    #35
    Siblue Well-Known Member

    Joined:
    Dec 2, 2014
    Member:
    #143489
    Messages:
    3,151
    Gender:
    Male
    First Name:
    Ryan
    So Cal
    Vehicle:
    25 Tundra TRD pro
    I like the ambers too but this will do for now. Thanks @mesojdm. You're the master at mods. :bowdown:

    Siblue, Feb 3, 2017
    #35
    MESO likes this.
  16. Feb 3, 2017 at 8:48 PM
    #36
    swordfish

    #36
    swordfish Well-Known Member

    Joined:
    Aug 11, 2016
    Member:
    #194292
    Messages:
    716
    Gender:
    Male
    First Name:
    Jon
    CT
    Vehicle:
    Back ordered
    @Siblue They are the VLED Triton AMBER/White with the direct wire kit.
    @mesojdm I will pull down some more photos tomorrow, but the Triton uses a ring with set-screws mount that I epoxied in place after clearancing the original bulb hole with a step bit.

    swordfish, Feb 3, 2017
    #36
  17. Feb 3, 2017 at 9:02 PM
    #37
    MESO

    #37
    MESO Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    16,294
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD HELLCAT SWAP

    Nice. I thought about that..but i'd be stuck with the V3's forever(badass don't get me wrong)
    I ended up cutting the 7440 socket out and molding it in so I could switch if needed.
    [​IMG]

    P.s. Aren't the reverse lights badass?!!!

    MESO, Feb 3, 2017
    #37
    HNLSFO1, ratcityrain, ChadsPride and 2 others like this.
  18. Feb 3, 2017 at 9:31 PM
    #38
    mrkabc

    #38
    mrkabc Mall Crawler with a Locker

    Joined:
    Jun 9, 2014
    Member:
    #131627
    Messages:
    1,642
    Gender:
    Male
    First Name:
    Art
    Corona, CA
    Vehicle:
    2017 MGM DCSB TRD OR
    Morimoto XB LED Head & Fog Lights, Cali Raised Stealth Light bar, OEM Roof Rack, Homelink Compass Mirror, Power Tailgate Lock, LED bed lights, MESO mirrors, gashole, switch panel & Stage 2 tails, PRO grille. Where's the mall?
    Do you have a link?

    mrkabc, Feb 3, 2017
    #38
  19. Feb 4, 2017 at 9:59 AM
    #39
    swordfish

    #39
    swordfish Well-Known Member

    Joined:
    Aug 11, 2016
    Member:
    #194292
    Messages:
    716
    Gender:
    Male
    First Name:
    Jon
    CT
    Vehicle:
    Back ordered
    Link to the lights
    They do sales every couple of months so don't buy them at full price.
    I was concerned that the reverse lights would be a little weak, but they are actually amazingly good.

    swordfish, Feb 4, 2017
    #39
  20. Feb 13, 2017 at 9:18 PM
    #40
    Mattchew

    #40
    Mattchew Well-Known Member

    Joined:
    Dec 24, 2016
    Member:
    #205630
    Messages:
    165
    Gender:
    Male
    First Name:
    Matt
    Coquitlam, BC, Canada
    Vehicle:
    2017 tacoma TRD sport
    Toytec boss lift Ultralight racing adjustable UPC K&N cold air intake Magnaflow Catback exhaust All LED lights Oemassive headlights with HID LED pods in rigid fog light mounts 50" curved windshield LED Caliraised side shooter ditch mount LED Behind grill 30" LED SSO slimline bumper with LED bar and smittybilt x20 synthetic winch TED PRO taillights with diode dynamics brake as turn controller LED bed lights LED running board lights LED under hood light Line-x trifold hard tonneau cover Switchpros system Yaesu vhf radio
    could you post pictures of the wiring of each....Thanks

    Mattchew, Feb 13, 2017
    #40
