Tapping the Dash Lights Circuit

Discussion in '3rd Gen. Tacomas (2016+)' started by jadoiron, Feb 2, 2016.

  1. Feb 2, 2016 at 5:56 AM
    #1
    jadoiron

    jadoiron [OP] Well-Known Member

    Joined:
    Nov 3, 2015
    Member:
    #168576
    Messages:
    143
    Gender:
    Male
    Vehicle:
    2016 Tacoma 2x4 Access Cab Barcelona Red Metallic
    Does anyone know what the label on the fuse diagram would be for the dash lights? I'm assuming it's the one labeled "PANEL?"

    The reason being I'd like to tap into the dash lights circuit to power the LED on a switch, so it only illuminates when the dash lights are on.

    moe2o4 likes this.
  2. Feb 2, 2016 at 6:47 AM
    #2
    swimmer

    swimmer Well-Known Member

    Joined:
    Apr 21, 2015
    Member:
    #153626
    Messages:
    2,540
    Gender:
    Male
    Tucson
    Vehicle:
    2016 TRDORAC4WD
    I predict you will be starting a thread about malfunction of instrument display soon.

  3. Feb 2, 2016 at 6:57 AM
    #3
    jadoiron

    jadoiron [OP] Well-Known Member

    Joined:
    Nov 3, 2015
    Member:
    #168576
    Messages:
    143
    Gender:
    Male
    Vehicle:
    2016 Tacoma 2x4 Access Cab Barcelona Red Metallic
    Not near any switches actually. The switch is going just left of the steering column. It's the Access cab 2WD so there is a blank spot there for a switch. There are a couple plugs that I believe are for options that my truck doesn't have. They're wired up and everything, just not connected to a switch. I'm thinking one might be for a cargo light and the other... no idea.

  4. Feb 2, 2016 at 7:06 AM
    #4
    jadoiron

    jadoiron [OP] Well-Known Member

    Joined:
    Nov 3, 2015
    Member:
    #168576
    Messages:
    143
    Gender:
    Male
    Vehicle:
    2016 Tacoma 2x4 Access Cab Barcelona Red Metallic
    Nothing. Just the two blanks. And yes there are two unused plugs behind the panel. Just not sure what they're meant for. One is small and square and has two wires, the other a little larger with multiple wires. They're just fit into a couple empty spots on the back of the plastic panel. I'm not sure what the other Taco models have here. Cargo light / 4WD selector??

  5. Feb 2, 2016 at 7:07 AM
    #5
    moe2o4

    moe2o4 Well-Known Member

    Joined:
    Feb 9, 2015
    Member:
    #148236
    Messages:
    7,608
    Gender:
    Male
    First Name:
    Corey
    Pittsburgh PA
    Vehicle:
    2016 SR Silver 2.7L 5 Speed
    OME 3" Lift, 32" Tires, Lots of Mods!
    I just used a fuse tap to the Ignition fuse 2 underneath eh dash and the switch led runs when the ignition is on, simple!

  6. Feb 2, 2016 at 7:30 AM
    #6
    jadoiron

    jadoiron [OP] Well-Known Member

    Joined:
    Nov 3, 2015
    Member:
    #168576
    Messages:
    143
    Gender:
    Male
    Vehicle:
    2016 Tacoma 2x4 Access Cab Barcelona Red Metallic
    I thought about doing this too... but I didn't want the LED to always be on. So I figured tapping into the dash lights would make it so when I turn my parking lights on, the LED on the switch would come on with the rest of the interior lighting.


    6 wires I believe so. I will confirm the colours. The grey and purple represent what exactly? Ground and dimmer?

  7. Feb 2, 2016 at 7:40 AM
    #7
    jadoiron

    jadoiron [OP] Well-Known Member

    Joined:
    Nov 3, 2015
    Member:
    #168576
    Messages:
    143
    Gender:
    Male
    Vehicle:
    2016 Tacoma 2x4 Access Cab Barcelona Red Metallic
    My switch has 4 wires - Green (source), Red 1 (relay or accessory), Red 2 (DASH CIRCUIT), Black (Ground). Just wondering what that red 2 should connect to.

  8. Feb 2, 2016 at 7:45 AM
    #8
    jadoiron

    jadoiron [OP] Well-Known Member

    Joined:
    Nov 3, 2015
    Member:
    #168576
    Messages:
    143
    Gender:
    Male
    Vehicle:
    2016 Tacoma 2x4 Access Cab Barcelona Red Metallic
    Excellent. So the ground connection can obviously be made to that OEM harness (or any ground really), and not necessarily the one on my light bar harness.
    Hopefully this mystery cluster is related to the dash lights.

    You're a king among men. And a legend among kings.

  9. Feb 2, 2016 at 8:58 AM
    #9
    TMMIgirl

    TMMIgirl Well-Known Member

    Joined:
    Oct 12, 2015
    Member:
    #166501
    Messages:
    290
    Gender:
    Female
    First Name:
    Angela
    Haubstadt Indiana
    Vehicle:
    TRD off road DC SB

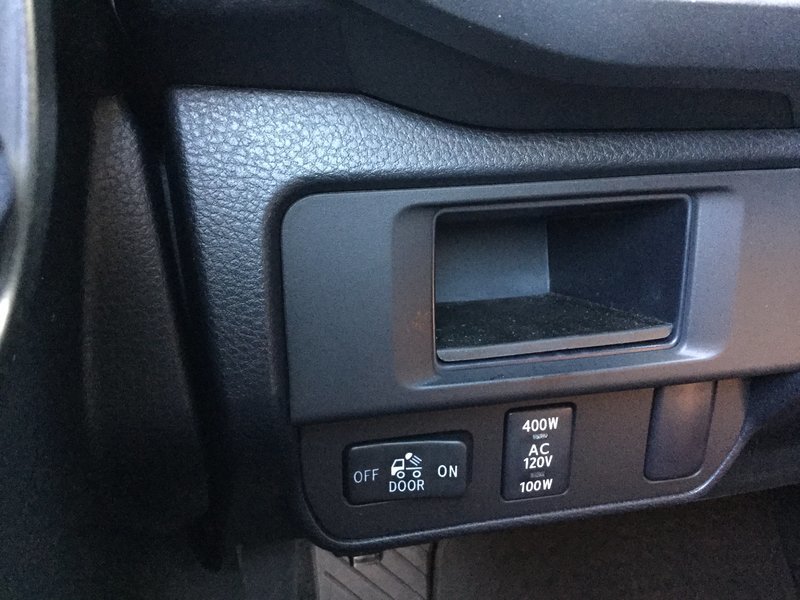

    I'll look at mine. I think it's the same switch as yours.


    Last edited: Feb 2, 2016
  10. Feb 2, 2016 at 9:00 AM
    #10
    jadoiron

    jadoiron [OP] Well-Known Member

    Joined:
    Nov 3, 2015
    Member:
    #168576
    Messages:
    143
    Gender:
    Male
    Vehicle:
    2016 Tacoma 2x4 Access Cab Barcelona Red Metallic
    YEP that's where I placed my new switch (it's not wired yet - just placed in the hole). There are a couple groups of wires though. The button that's in your photo to the left of the offroad lights - the power button... I don't have that button in my truck, but there's wiring there for one...

  11. Oct 25, 2016 at 9:11 AM
    #11
    RunnerFirst

    RunnerFirst Member

    Joined:
    Oct 3, 2016
    Member:
    #198868
    Messages:
    13
    Gender:
    Male
    First Name:
    Enrique
    Orange County, CA
    Vehicle:
    '16 Tacoma TRD Sport 4X4
    Leveled 3" & 1" Grille, Vision wheels, Pro Comp tires
    Were you successful in finding the dimmer wire or fuse?

  12. Oct 25, 2016 at 9:41 AM
    #12
    dilbert

    dilbert Well-Known Member

    Joined:
    Mar 14, 2016
    Member:
    #181276
    Messages:
    2,011
    Gender:
    Male
    PNW
    Vehicle:
    2019 DCLB TRD Off-Road
  13. Oct 25, 2016 at 9:46 AM
    #13
    Hoangde

    Hoangde Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196593
    Messages:
    610
    My 2 cents:

    Get some TAP Mini Add-a-circuit Car Auto ATM Low Profile Blade Style
    http://www.ebay.com/itm/5PCS-TAP-Mi...ile-Blade-Style-Fuse-Holder-15A-/131694682878
    and 7.5 A fuses.
    Connect into "PANEL" fuse location.
    Black to ground or chassis.
    Red 2 (or wire next to black) to tap mini as mentioned above (illuminates the switch when the dash lights are on).
    Green and RED 1 can be reversible. One wire can connect to source such as thing you wanted to connect to. Other wire connect to relay or power. Think as green and red wires in a linear connection with mechanical switch in the middle to connect or disconnect.

    nahman and RunnerFirst like this.
  14. Oct 25, 2016 at 9:55 AM
    #14
    RunnerFirst

    RunnerFirst Member

    Joined:
    Oct 3, 2016
    Member:
    #198868
    Messages:
    13
    Gender:
    Male
    First Name:
    Enrique
    Orange County, CA
    Vehicle:
    '16 Tacoma TRD Sport 4X4
    Leveled 3" & 1" Grille, Vision wheels, Pro Comp tires

    Thank you guys, my lights, air pump and wiring harnesses are on the way, right now getting ready for the project

  15. Oct 25, 2016 at 10:03 AM
    #15
    BarberRider

    BarberRider Merit Badges: Scuba Cliff diving Mirror Awareness

    Joined:
    May 13, 2016
    Member:
    #186817
    Messages:
    2,185
    Gender:
    Male
    First Name:
    Fletch F. Fletch
    Trussville, AL
    Vehicle:
    1974 Dodge Monaco
    It's got a cop motor, a 440-cubic-inch plant. It's got cop tires, cop suspension, cop shocks. It's a model made before catalytic converters so it'll run good on regular gas.
    I'm putting in a switch pro and need ignition and lights taps. The wires are coming from the engine bay so they can be under the hood or I can run them into the cab through the main gromet on drivers side.

  16. Oct 25, 2016 at 10:59 AM
    #16
    mr_ash

    mr_ash Well-Known Member

    Joined:
    Jun 21, 2016
    Member:
    #190155
    Messages:
    98
    Gender:
    Male
    First Name:
    Ash
    Colorful Colorado
    Vehicle:
    2016 DCSB TRD OR
    For the yellow wire on the SP8100, I tapped into the TAIL fuse.
    For the blue wire I tapped IG1 NO. 2.

    Works like a charm. SP8100 control panel dims when lights come on and the control panel gets power when the ignition/accessories is activated.
    Link is here.

    BarberRider likes this.
  17. Oct 30, 2016 at 6:36 PM
    #17
    Donkeythekidd

    Donkeythekidd Well-Known Member

    Joined:
    Jan 4, 2013
    Member:
    #94450
    Messages:
    284
    Gender:
    Male
    Beaumont, CA
    Vehicle:
    2017 MGM Tacoma TRD Off Road Double Cab
    20161030_165649.jpg 20161024_131837.jpg I just want to make sure I'm tapping into the correct wires before I go cutting them. I already have wires 1 & 2 hooked up and my accessory works when I push the Toggle on. I just need to hook up the other 2 wires so that it lights up with my other dash lights. I guess the best way would be to tap into the cargo light switch? Here is a picture of the wires coming off of my cargo light switch the colors don't seem to match ones described earlier in this thread

  18. Dec 3, 2016 at 9:04 PM
    #18
    Sagebrush

    Sagebrush Well-Known Member

    Joined:
    Apr 2, 2016
    Member:
    #183141
    Messages:
    419
    Gender:
    Male
    Vehicle:
    2016 Silver Double Cab Tacoma OR
    Stock plus a topper
    Did you figure out which wire to tap into for the dimmer?

    SB

  19. Dec 3, 2016 at 10:34 PM
    #19
    Donkeythekidd

    Donkeythekidd Well-Known Member

    Joined:
    Jan 4, 2013
    Member:
    #94450
    Messages:
    284
    Gender:
    Male
    Beaumont, CA
    Vehicle:
    2017 MGM Tacoma TRD Off Road Double Cab
    I haven't gotten around to doing it yet but I believe for mine I would connect the black wire #4 from my toggle switch to the tan wire ILL- #4 on my cargo light switch and the red 2 #3 wire from the toggle switch to the green wire ILL+ #1 on the cargo light switch.

    I'm going to order these https://www.amazon.com/gp/aw/d/B000...otchlok&dpPl=1&dpID=41rVKPJmpnL&ref=plSrchand as soon as I get them I'll do it.

    Last edited: Dec 3, 2016
  20. Dec 4, 2016 at 2:34 AM
    #20
    BigTex970

    BigTex970 Active Member

    Joined:
    Nov 15, 2016
    Member:
    #202446
    Messages:
    40
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD OR DCSB
