That Dude Tim Alignment

Discussion in 'Suspension' started by Nick54, May 24, 2011.

  1. Nick54

    Nick54 [OP] Well-Known Member

    Joined:
    Jun 27, 2010
    Member:
    #39497
    Messages:
    1,331
    Gender:
    Male
    First Name:
    Nick
    Mentor Ohio
    Vehicle:
    2010 Tacoma TRD Sport
    ARB Rear Locker & Compressor, Bakflip F1, Antennex 13" flexable antenna, WeatherTech Floor Liners, WeatherTech Side Window Visors, Tacoma Bed Mat, Demello Rock Crushers, Dynamax Ultraflow SS Muffler, TSB 4-Pak Leaf Springs, AFE Pro Dry Filter, Redline Hood Struts, Color Matched Angry Eyelids, Combo Lock Bed Compartments, Bed Mat, Pop-N-Lock, Wet Okoles, Goodyear Duratracs on ProComp 7033's, M101A2 Trailer, Grillcraft Mesh Grill, Light Racing UCA's, King OEM Performance Remote Reservoir Adjustable Front & Rear Shocks, JVC NT3HDT, Blue Sea Aux Fuse Panel, BAMF Behind Grill Light Bracket, Kragen 55W 7" HID's, CBI Front Receiver, Home Link Garage Door Opener, FlyEyez Light Unit, Bud Built Front to Back Skids...

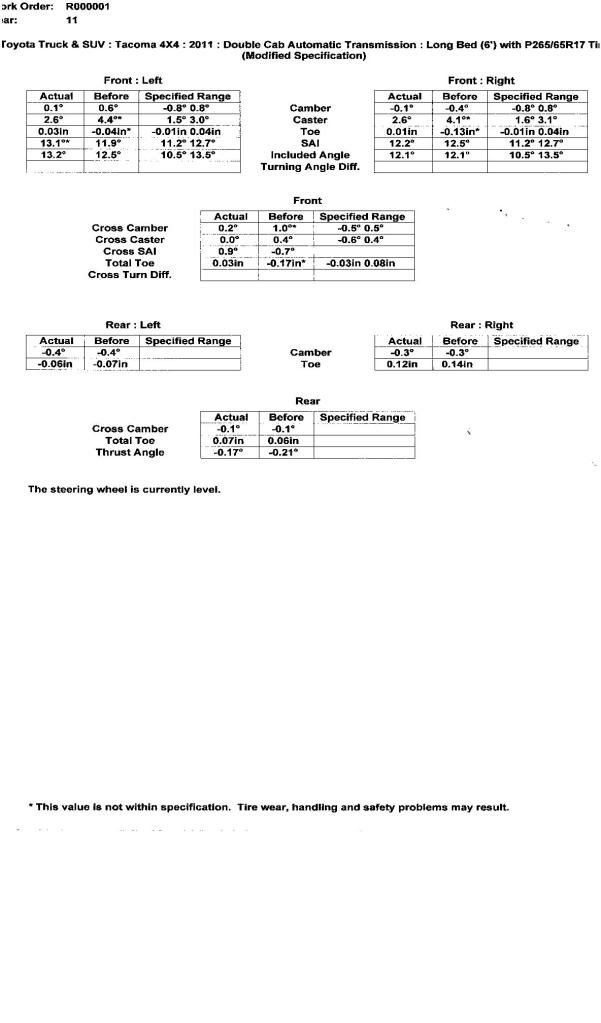

    After a Firestone missfire at an alignment I posted here and a TW guy stepped up, That Dude Tim who works for Premier Toyota of Amhurst Ohio got me straight. Props to you Timmy Boy. However as with sunshine comes a little rain. The alignment looks much better and I'm no longer concerned I'm going to run the $900.00 tires off the truck. Down side, I had to remove my front mud flaps and trim the bottom inside edges of the fender flairs - stink ! Well here are the numbers
