The $12 Two LED Panel Dome Light Mod

Discussion in '3rd Gen. Tacomas (2016+)' started by davidstacoma, Nov 1, 2020.

  1. Nov 1, 2020 at 3:20 PM
    #1
    davidstacoma

    davidstacoma [OP] Well-Known Member

    Joined:
    Nov 2, 2019
    Member:
    #309695
    Messages:
    1,285
    Gender:
    Male
    First Name:
    David
    NC
    Vehicle:
    2019 Tacoma SR Access cab - Utility
    *OEM Mods: Intermittent wipers, Fogs, Keyless Entry
    I had previously installed Fyre Fly LED interior lights, they were great for the map lights but the single bulb design of the Tacoma dome light just didn’t give me adequate light on both sides of the rear access cab. So I got two LED panel lights and installed in the dome, one on each side of the wide dome, amazingly good light on both sides now!

    I chose this method of increasing my rear cab lighting since I wanted to maintain the OEM look with the existing dome lens, and did not want it too bright, so no "ultimate" mod. Here is my install post for others who wish to do this mod.

    I did a lot of research into LED panels, some were listed as 8000K (bluish white) and others as 6000K (bright white or “zenon white” as these are listed), I wanted the 6000K bright white. I also took measurements inside of my dome with the lens removed to see what size LED panels would fit. I ending up buying the LivTee LED panel lights here:

    https://www.amazon.com/Festoon-Adap...ywords=livtee+led+panel&qid=1603157602&sr=8-3

    I knew I’d made the right choice when I saw a review by a Tacoma owner who did the same thing I was planning to do. I used 2 of the LED panels for the dome light and kept the other 2 for spares. After installing and leaving the LED lights on for over 5 minutes, the dome light lens was barely warm, so heat should not be an issue at all with these.

    Install Instructions – (method I used)

    1. Disconnect the Negative battery cable (wait a minute or two after popping the hood release and closing the door before removing the Negative cable to allow ECU to save data), OR remove the Dome light fuse in the interior fuse box. If you remove the Dome fuse, check with a voltmeter at the socket to any chassis ground to ensure you have no voltage present. Just turning the dome light switch to OFF will not remove the 12V which would still be present at the dome light socket. You can do more serious harm than just blowing a fuse if you accidentally cause a short (from posts I’ve seen on TW), so DO NOT SKIP THIS STEP.

    2. Cut the connectors off at the connector end of two of the LED panels, cut the connector off one of the festoon connector (bulb style with spring)

    3. Use wire strippers to strip the wires back about ¾ inch. The wires are quite small (22-26 awg), I suggest these inexpensive strippers which I bought after this mod and wish I had had them when I did it:

    https://www.amazon.com/Eclipse-CP-3...ire+strippers+22-26+awg&qid=1604267781&sr=8-6

    4. Twist each red wire individually to tighten up the strands, then twist all three red wires together, fold over in half and twist again, then screw on a small gray twist on connector. (the reason for the fold over is that even the standard small gray twist on connector available at auto stores is almost too large).

    5. Repeat step 4 for the three black wires.

    6. I used a 12V battery pack with a fused lead to test the assembly, and verified the LEDs all illuminated and that the red wires were the positive polarity, black wires negative. The LED panels got a little warm but not too hot to touch even after 5 minutes on. I recommend testing to ensure that the LEDs you get have the wire polarity the same as mine, with red being positive, if they are reversed then consider that in the instructions below.

    7. Remove the Dome light lens using a small plastic trim tool (a small screwdriver might also work but be careful not to break anything), there are two indents at the front facing side you can see, slip the tool between the gray bezel and the clear lens and just pop it down, one front side at a time.

    8. Prepare the area where the LED panels will be installed with an alcohol/lens cleaner pad, let it dry. Remove the sticky tape cover from the LED panels and install as shown and press to ensure good adhesion (avoid any raised tab areas on the dome light housing, mount as flat as possible):

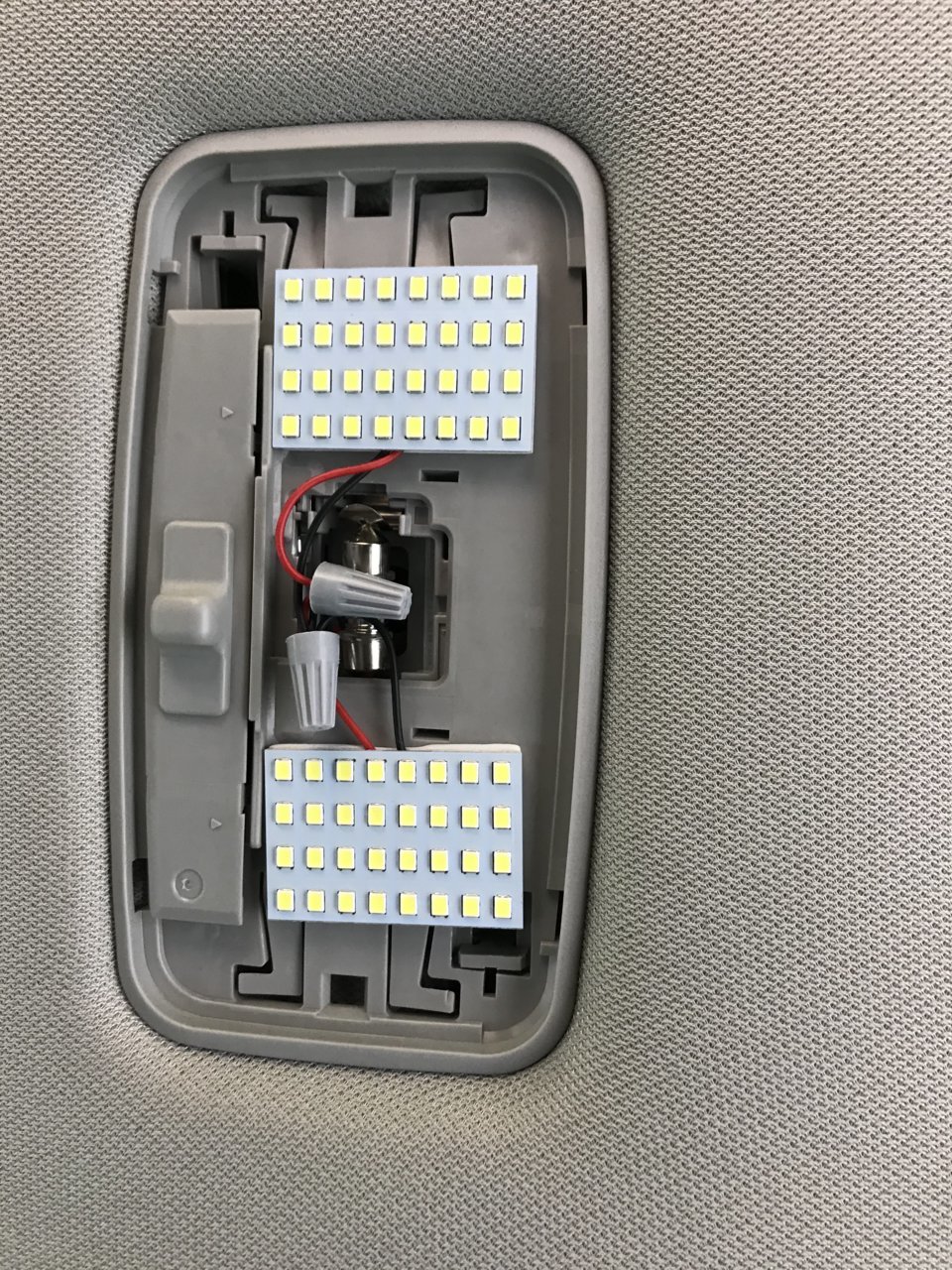

    9. Install the festoon connector in the bulb socket. Red wire (positive) end toward the driver side, black wire end toward the passenger side – this was the hardest part, if you notice the OEM bulb has little nipples at the ends to fit into the slots and make it easier to install, most aftermarket bulbs including the LED festoon connectors do not have these, so they tend to slide out of the socket holes. What worked best for me was to insert the end toward the passenger side first (the non-spring side of the socket), then compress the festoon spring by pressing on the other end of the festoon and slipping that end up into the spring socket (driver side).

    10. Reconnect the battery Negative terminal (or reinstall the Dome light fuse if that was removed). Test the lights to ensure they work (if you have the front Cabin light switch on “Door” they should come on when the door is open, and ON when turned to On.

    11.Turn off the lights (front cabin switch “OFF”), and re-install the Dome light lens, the two tabs inserted at the back toward the bed, then push up the front side to pop into place.

    12. Turn cabin switch to ‘Door” as desired.

    Install Instructions – Alternate methods
    There are many ways this install might be improved. Here are a few ways:

    1. Strip and prepare all wires, but wait until you install the festoon connector first to make this part of the install easier. Then install the LED panels, twist the wires together and screw on the twist on connectors.

    2. The gray connectors are larger than I would like, you can cut part of the plastic away to make them smaller and tape with electrical tape, this will make it easier to tuck them away in the dome housing.

    3. You can solder the wires together on the bench (not in the car!) and tape or use heat shrink tubing instead of using twist on connectors. I didn’t do this since if an LED goes out I want it to be easy to replace.

    4. I didn’t evaluate this, but it might be possible to cut wires at one of the festoons so you can use the connector and wire, then solder the wire with connector to another festoon, giving you two connectors off one festoon to connect to the two LED panel connectors.

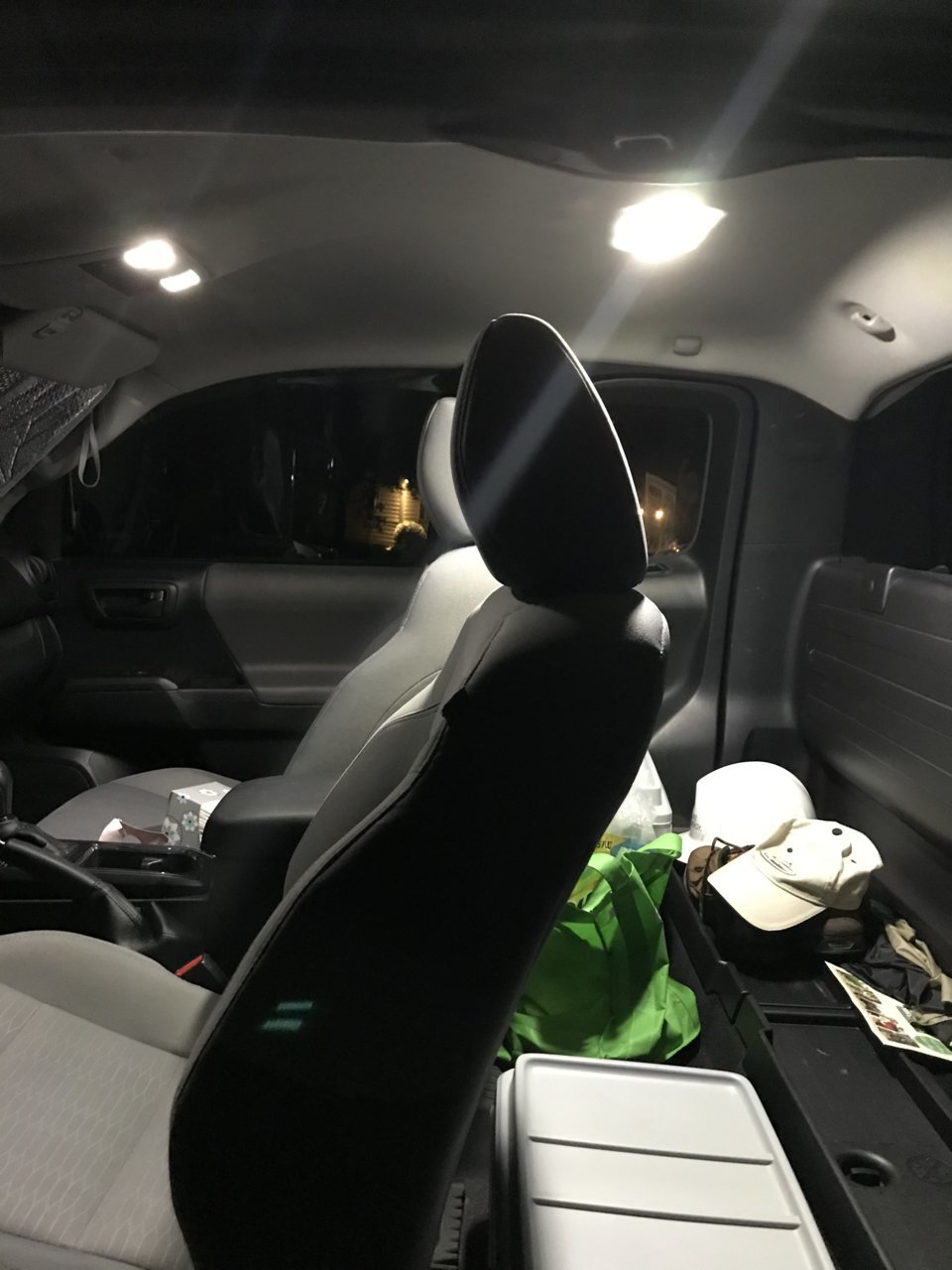

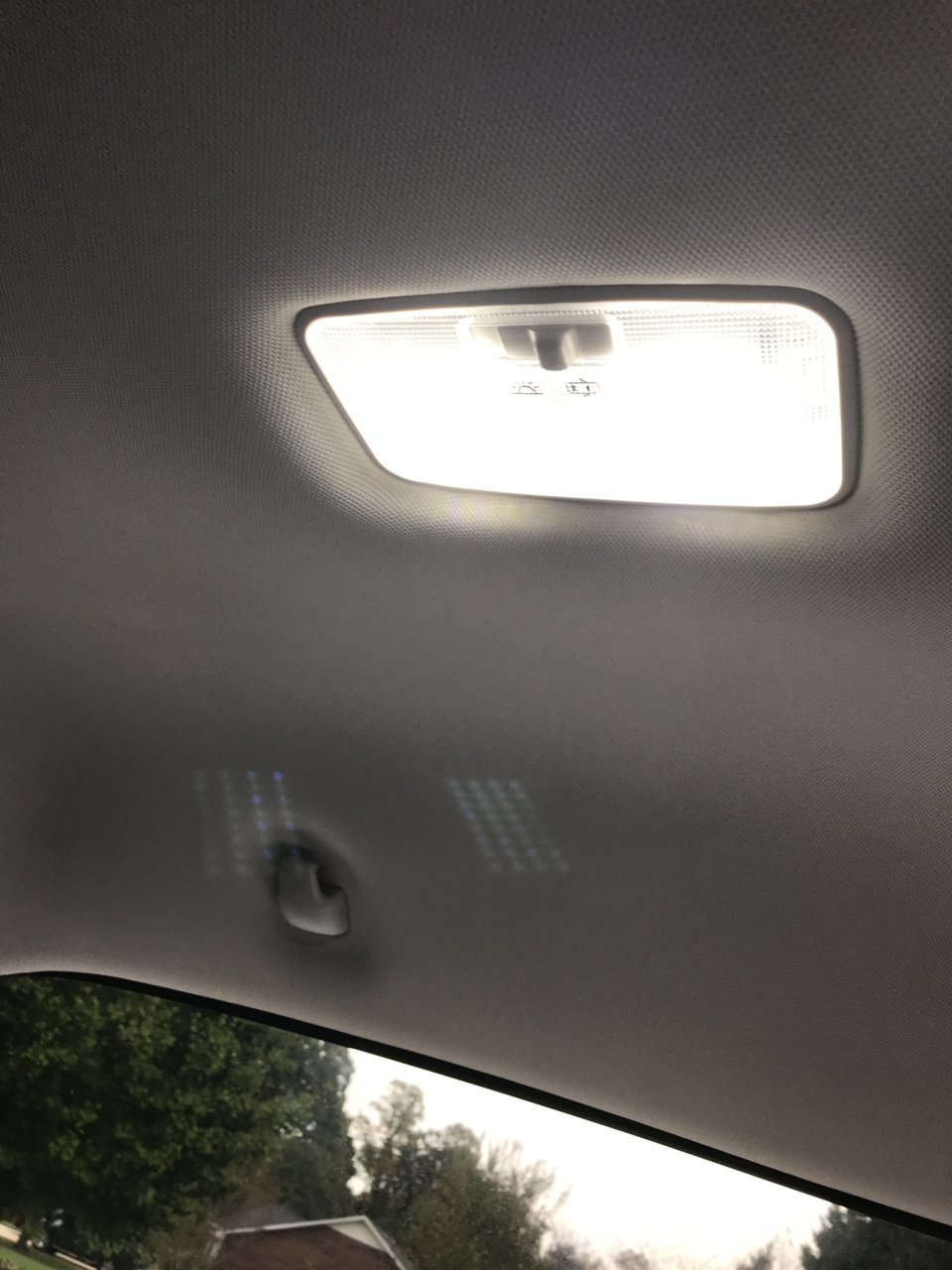

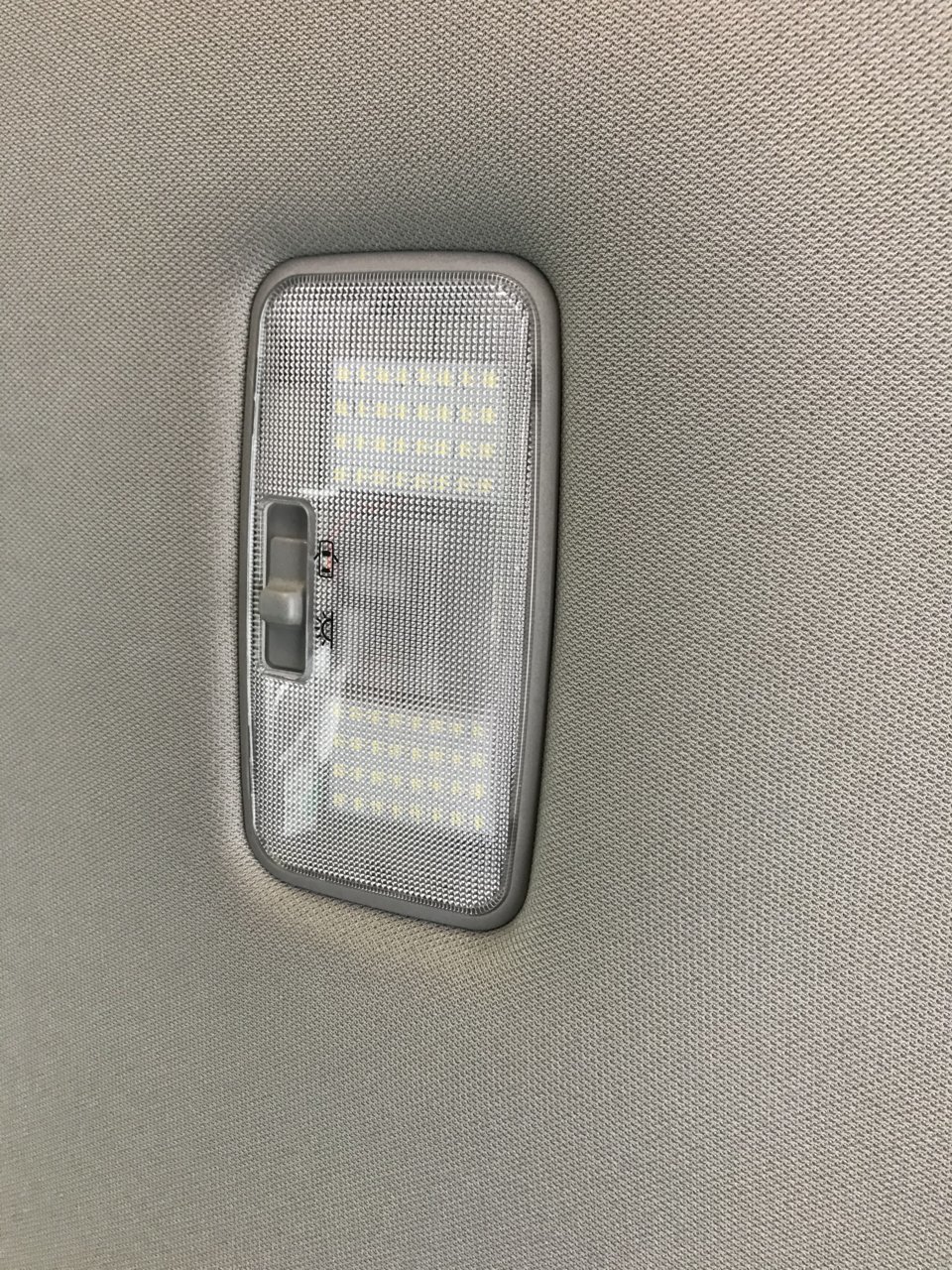

    More Photos:

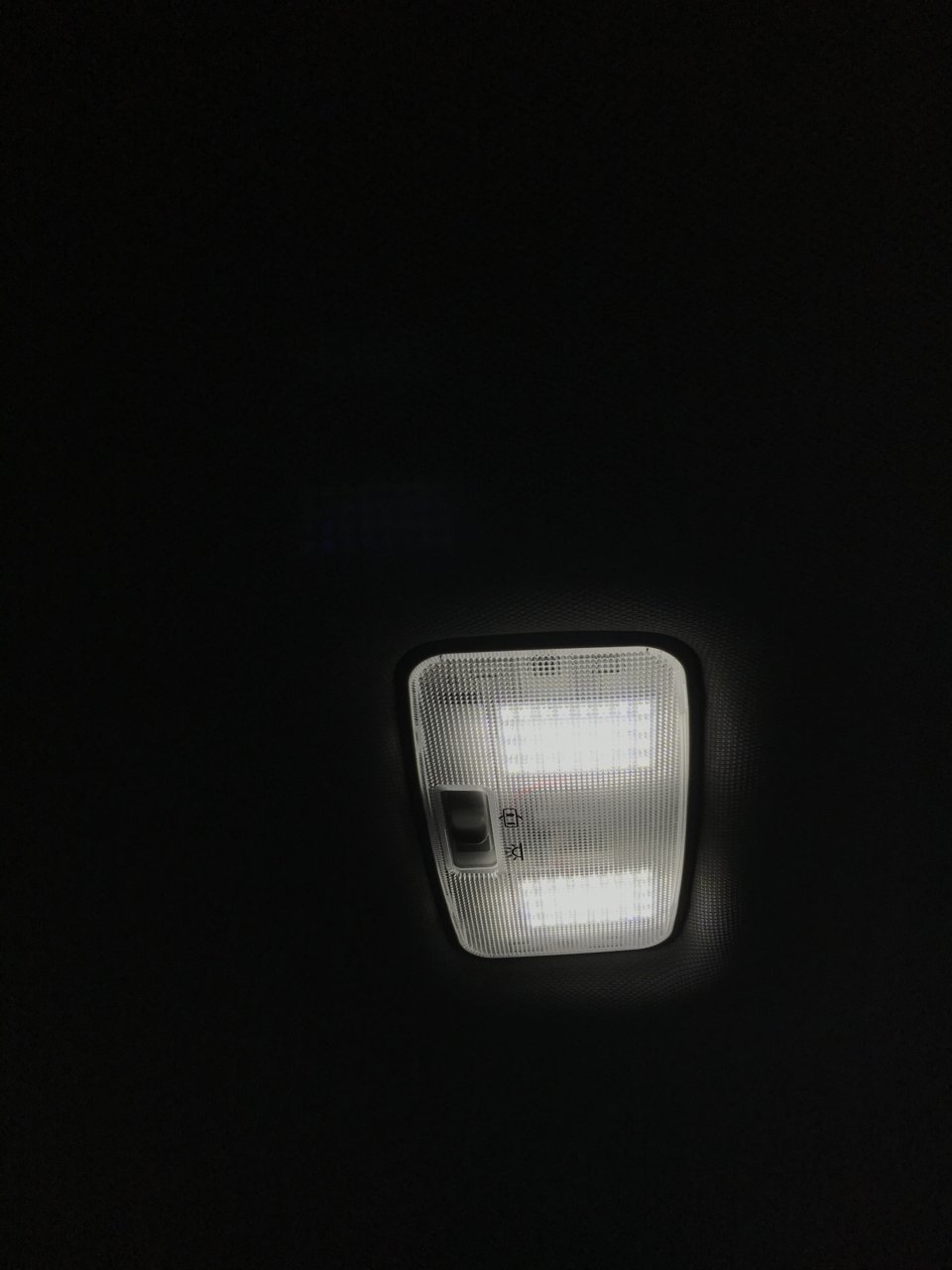

    Underexposed pic so you can see the LEDs:



    Last edited: Dec 24, 2020
