The Build

Discussion in '2nd Gen. Builds' started by Chickenmunga, Oct 17, 2010.

  1. Apr 10, 2013 at 2:12 PM
    #101
    Chickenmunga

    Chickenmunga [OP] Nuggety

    Joined:
    Apr 10, 2008
    Member:
    #5877
    Messages:
    6,355
    Gender:
    Male
    First Name:
    Mike
    Olympia, WA
    Vehicle:
    08 TRD Offroad DC 4x4 (read the build)
    Going to try the 2nd hole later tonight because it's definitely resting on the shackles. I can see the slight score marks from driving in to work today.

    Last edited: Oct 4, 2013
  2. Apr 10, 2013 at 10:14 PM
    #102
    all.on.black

    all.on.black Well-Known Member

    Joined:
    Jan 2, 2008
    Member:
    #4066
    Messages:
    1,481
    Gender:
    Male
    Auburn, WA
    Vehicle:
    06 Double Cab Sport with a few mods
    Your angle looks fine. But the shackle is resting on the mount. That looks like a crappy design to me. Even in the second hole you might run into the same problem on full compression.

  3. Apr 11, 2013 at 12:09 AM
    #103
    Chickenmunga

    Chickenmunga [OP] Nuggety

    Joined:
    Apr 10, 2008
    Member:
    #5877
    Messages:
    6,355
    Gender:
    Male
    First Name:
    Mike
    Olympia, WA
    Vehicle:
    08 TRD Offroad DC 4x4 (read the build)
    Just got in from redoing it all. Looking better I think but right now I'm too tired to post a pic.
    With what I know now, I think I agree the design could be better. It was trying to be one size fits all. I don't know how much it will compress and if it will smack. Do they normally come back far enough that the shackle would go more than 45 degrees?

  4. Apr 11, 2013 at 11:16 AM
    #104
    all.on.black

    all.on.black Well-Known Member

    Joined:
    Jan 2, 2008
    Member:
    #4066
    Messages:
    1,481
    Gender:
    Male
    Auburn, WA
    Vehicle:
    06 Double Cab Sport with a few mods
    It depends on your overall spring length. Some springs are a few inches longer than stock and have a larger arc, so when you compress them it'll drive the shackle far enough up to hit the shackle mount. You'd have to compress the spring to see if it hits.

  5. Apr 11, 2013 at 9:11 PM
    #105
    Chickenmunga

    Chickenmunga [OP] Nuggety

    Joined:
    Apr 10, 2008
    Member:
    #5877
    Messages:
    6,355
    Gender:
    Male
    First Name:
    Mike
    Olympia, WA
    Vehicle:
    08 TRD Offroad DC 4x4 (read the build)

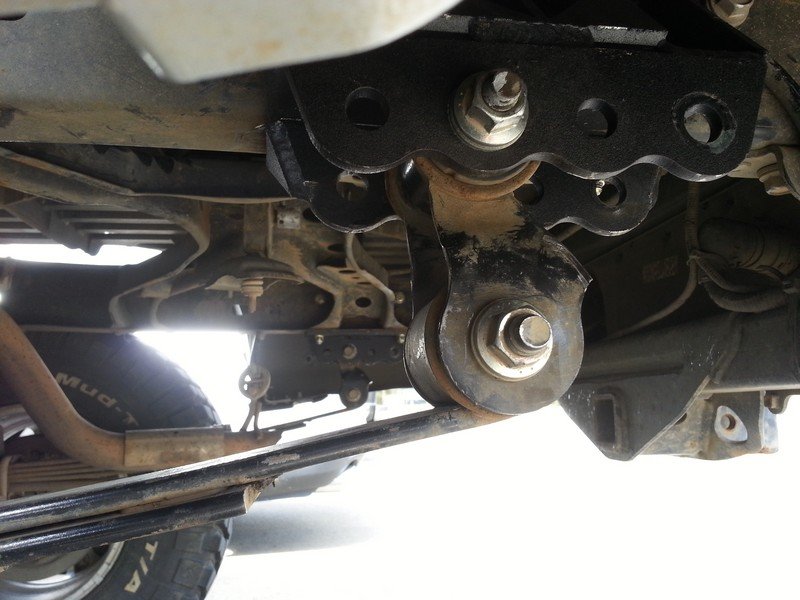

    I'm hoping this looks correct....

    [​IMG]

  6. Apr 11, 2013 at 11:02 PM
    #106
    all.on.black

    all.on.black Well-Known Member

    Joined:
    Jan 2, 2008
    Member:
    #4066
    Messages:
    1,481
    Gender:
    Male
    Auburn, WA
    Vehicle:
    06 Double Cab Sport with a few mods
    It's better but it really should be between the 1st and 2nd hole. Your springs will be softer with the shackles mounted that way. I'd get 1 inch longer shackles and go back to the first hole. You can try mine out if you want.

  7. May 6, 2013 at 5:17 PM
    #107
    BBtacosurfer

    BBtacosurfer Well-Known Member

    Joined:
    Nov 23, 2012
    Member:
    #91716
    Messages:
    3,114
    Gender:
    Male
    First Name:
    Dave
    Cali
    Vehicle:
    MGM 2012 4x4
    Icon stage 2 kit, LR UCA, SCS wheels wrapped in 33s,
    Subbed! Thank you for the write-ups, very helpful especially since now I'm deciding on tire sizing.

  8. May 13, 2013 at 12:47 PM
    #108
    Chickenmunga

    Chickenmunga [OP] Nuggety

    Joined:
    Apr 10, 2008
    Member:
    #5877
    Messages:
    6,355
    Gender:
    Male
    First Name:
    Mike
    Olympia, WA
    Vehicle:
    08 TRD Offroad DC 4x4 (read the build)
    Glad to be of help

    If I mange to meet up with you that would be great.
    Pavement so far has been fine, haven't made it out anywhere in a loooong time

  9. Jun 9, 2013 at 10:43 PM
    #109
    Chickenmunga

    Chickenmunga [OP] Nuggety

    Joined:
    Apr 10, 2008
    Member:
    #5877
    Messages:
    6,355
    Gender:
    Male
    First Name:
    Mike
    Olympia, WA
    Vehicle:
    08 TRD Offroad DC 4x4 (read the build)
    GPS RAM Mount

    I'm volunteering with a 4x4 Search & Rescue team these days. Part of the accessories required for the job include a better GPS, such as the Garmin 60csx or the 62 series. I got a lucky deal on a 62stc.
    Since it's a device that I need to reference a lot and also possibly take with me when I get out of the vehicle, I wanted a good mount. RAM Mounts delivered! I took a page from Benson X on this one and mounted to the A pillar's handle bolt.


    RAM Mount parts needed:
    RAM-B-367U
    RAP-B-200-2U
    RAM-B-238U
    RAM-HOL-GA41U

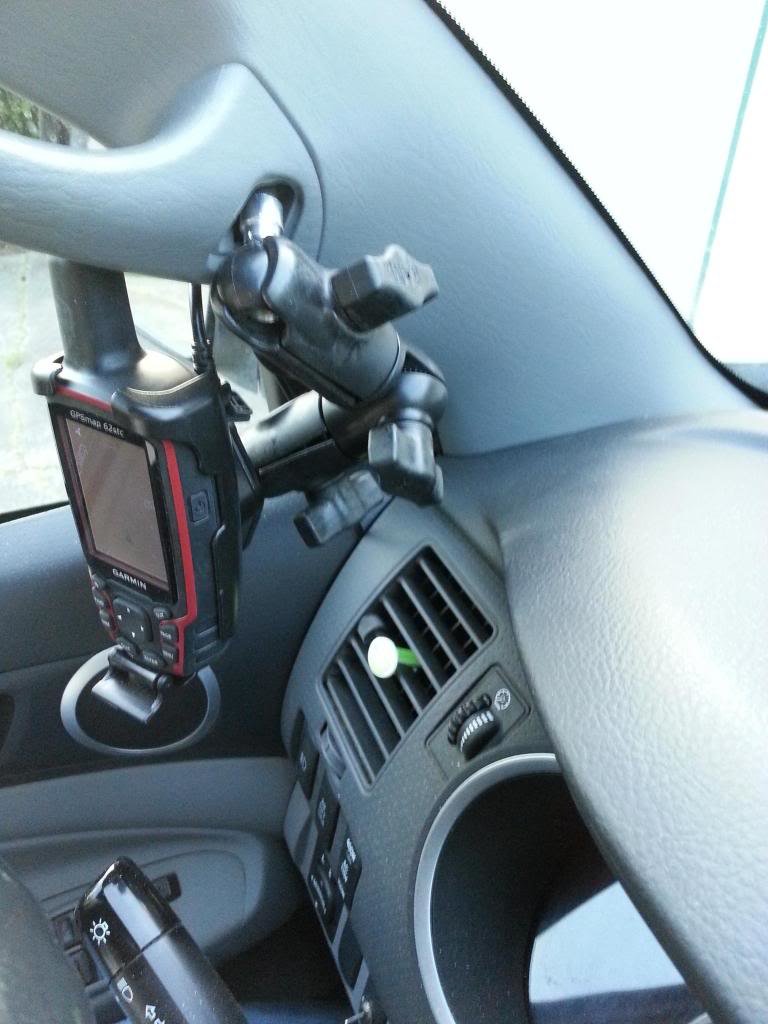

    [​IMG]

    [​IMG]

    Last edited: Apr 1, 2014
  10. Jun 9, 2013 at 10:55 PM
    #110
    Chickenmunga

    Chickenmunga [OP] Nuggety

    Joined:
    Apr 10, 2008
    Member:
    #5877
    Messages:
    6,355
    Gender:
    Male
    First Name:
    Mike
    Olympia, WA
    Vehicle:
    08 TRD Offroad DC 4x4 (read the build)
    Accessory Fuse Block

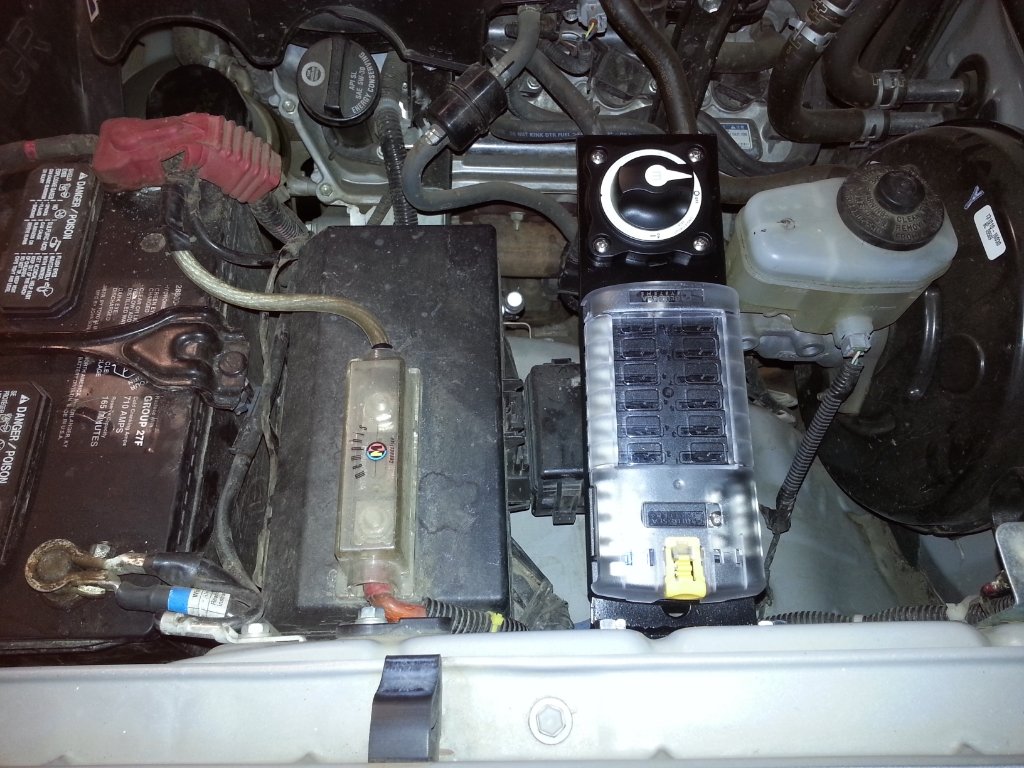

    I'm going to add a HAM radio soon. With all the added gear I have inside the vehicle that demands power, it's time to get better organized.

    I ordered a 12-circuit Blue Sea fuse block and, from a friend's recommendation, a master switch (also Blue Sea).

    First, I needed to move the winch controller from where it was to the passenger side near the radiator

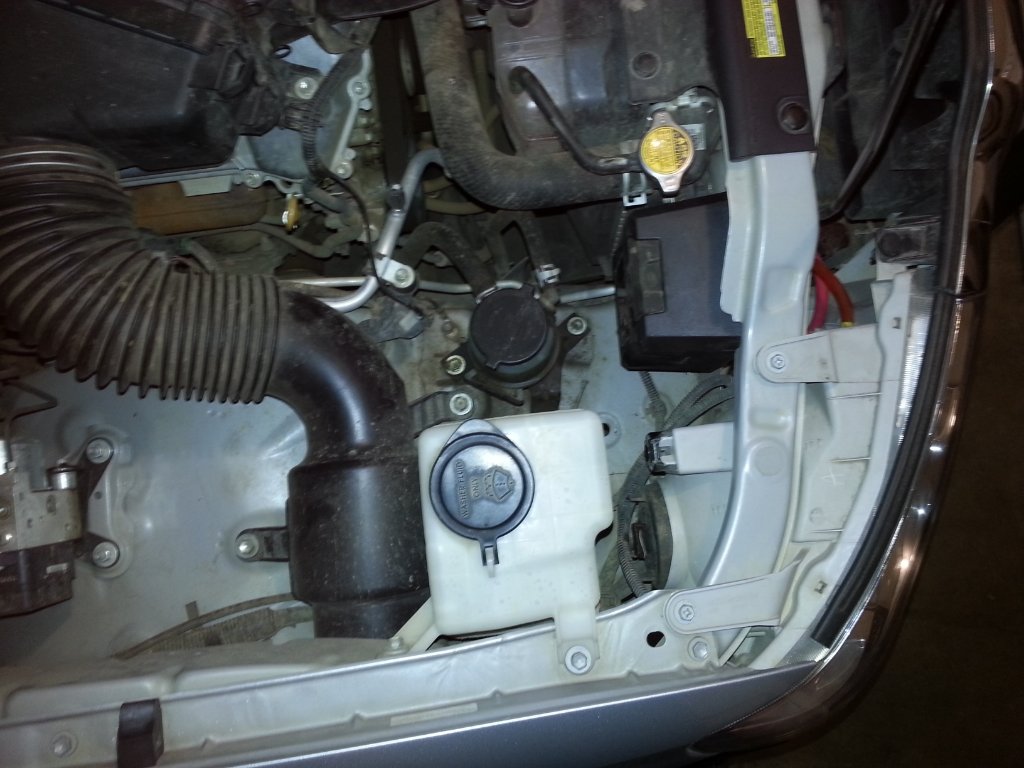

    [​IMG]


    This gives me room for the fuse box and related gear.


    The mount is re-purposed from leftover steel from Benson X's skid plate. Thanks to 55chevy05taco for the welding work. The steel is T-shaped and has two gussets on the bottom. It is held on to the side of the engine bay with two bolts that go into factory holes.

    Yes, it's a bit overkill, but use what ya got, right?


    I still have wiring to do, but all my wire is at my Dad's so it must wait.

    [​IMG]

    Last edited: Jun 9, 2013
  11. Jul 18, 2013 at 1:38 PM
    #111
    Chickenmunga

    Chickenmunga [OP] Nuggety

    Joined:
    Apr 10, 2008
    Member:
    #5877
    Messages:
    6,355
    Gender:
    Male
    First Name:
    Mike
    Olympia, WA
    Vehicle:
    08 TRD Offroad DC 4x4 (read the build)
    SnugTop Sportsman Canopy



    I bought a used canopy to keep my gear safe and dry. Benson X helped me find a good deal on a used cap.

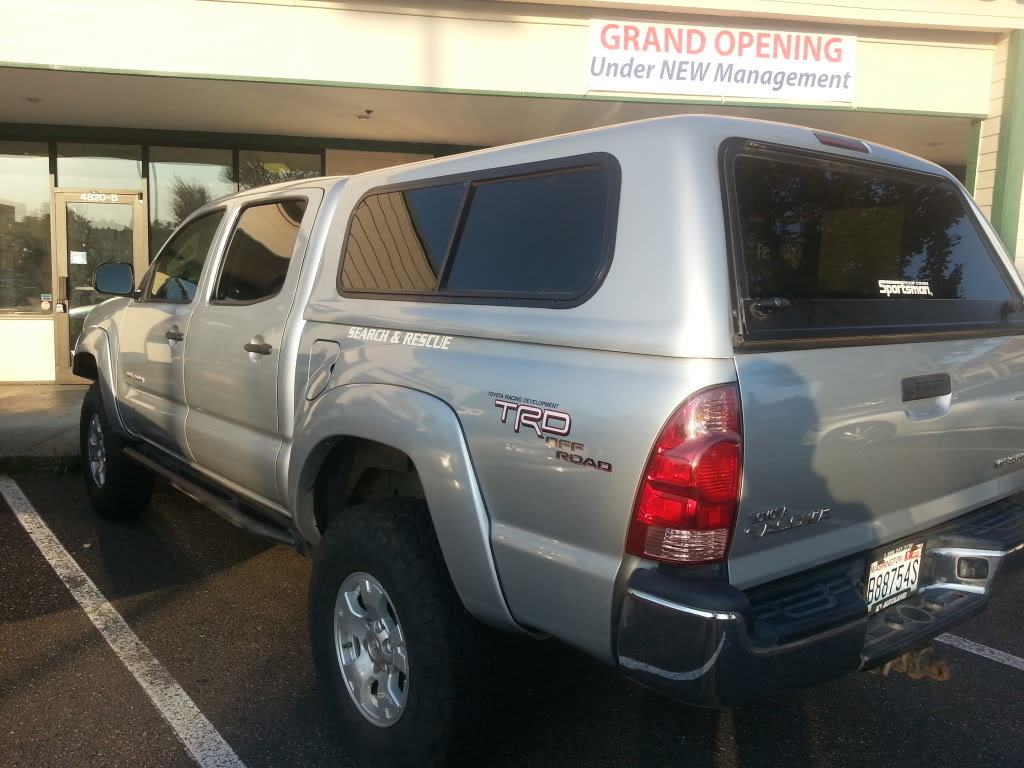

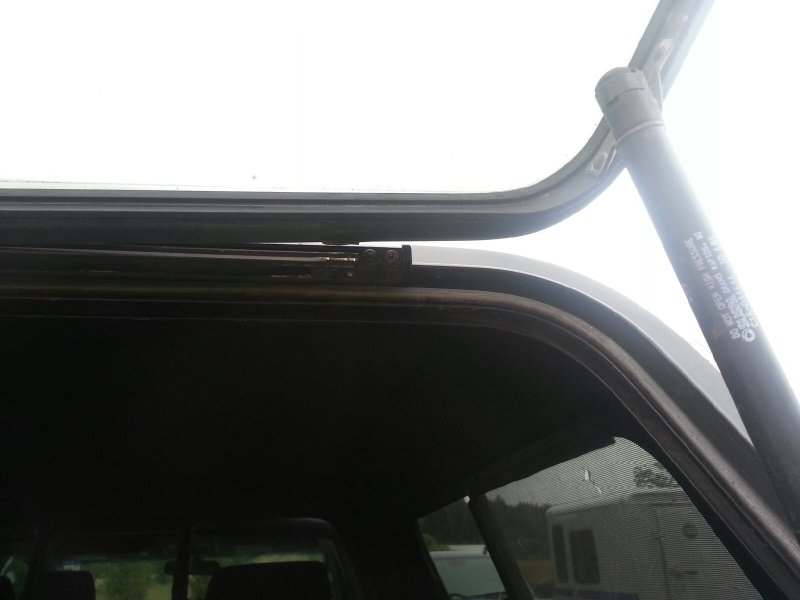

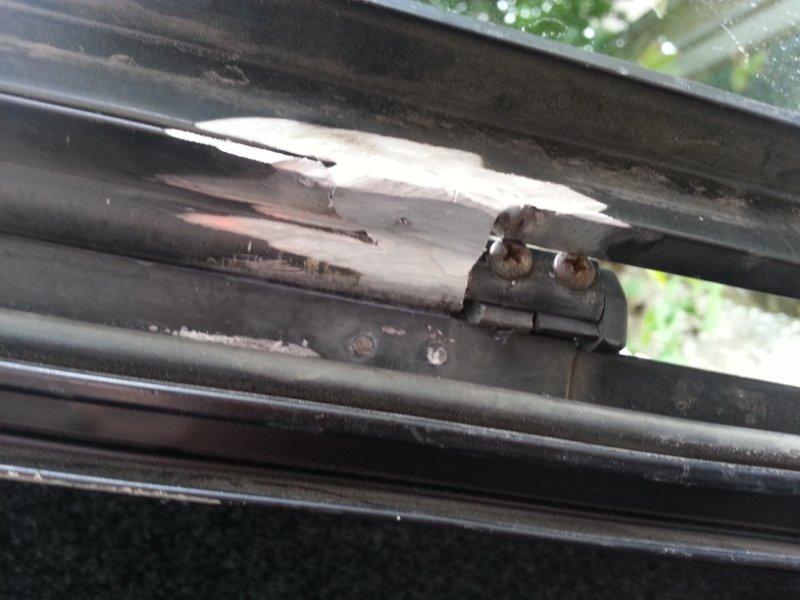

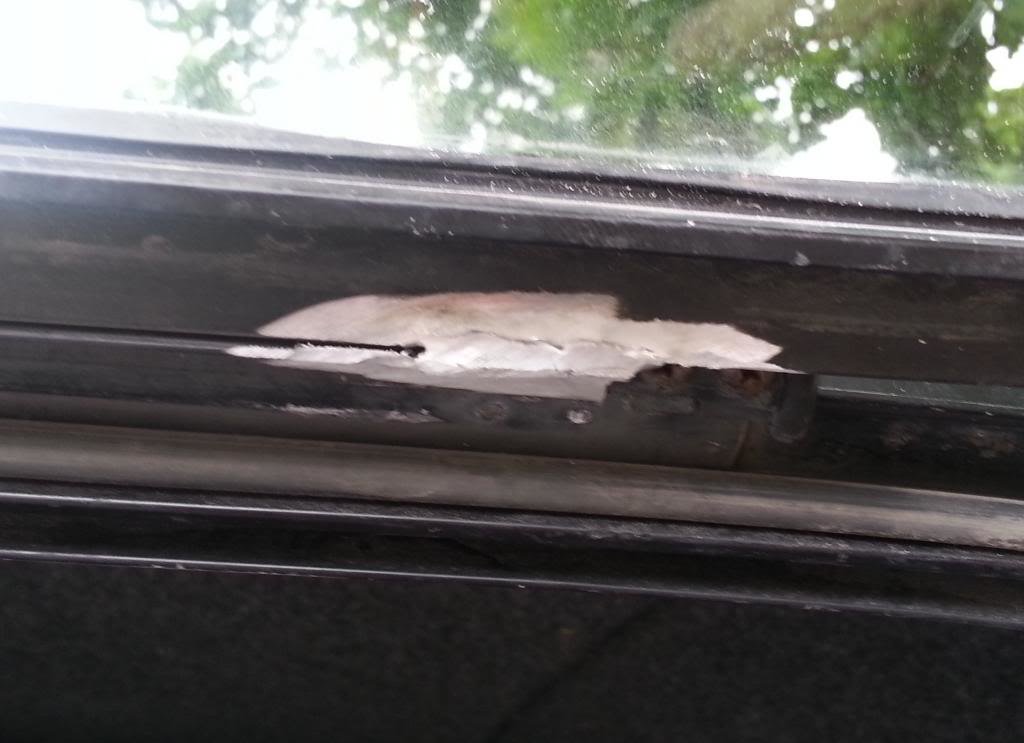

    unfortunately, when I got it home I noticed that the hinge holding on the rear glass was separating. The local canopy dealership said it's a non-serviceable part and would cost $350 for new glass. :eek: However, I took it to the local welding shop and they managed to do up a fix for under $30. :cool: Works better than ever

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  12. Jul 19, 2013 at 4:39 AM
    #112
    gottahot1

    gottahot1 Well-Known Member

    Joined:
    Dec 13, 2010
    Member:
    #47629
    Messages:
    162
    Gender:
    Male
    First Name:
    T.D.
    Arizona
    Vehicle:
    08 BLUE double cab 4x4 short bed Sport TRD
    'Caribe' fog light mod - Power port always on mod - Defrost A/C override mod - Illuminated 4x4 switch - Read diff breather relocation
    Did the seller disclose the issue with the hinge (that's why it was a good deal) or did you notice it before you bought it?

    *EDIT* I just re-read and it seems that you didn't notice it until you got home. At least you got an inexpensive fix out of it but shame on the seller for not mentioning it. It's probably the reason he/she was selling it in the first place.

    Last edited: Jul 19, 2013
  13. Jul 19, 2013 at 8:29 AM
    #113
    Chickenmunga

    Chickenmunga [OP] Nuggety

    Joined:
    Apr 10, 2008
    Member:
    #5877
    Messages:
    6,355
    Gender:
    Male
    First Name:
    Mike
    Olympia, WA
    Vehicle:
    08 TRD Offroad DC 4x4 (read the build)
    The seller's original intent was to sell it because he had bought a tan 2013 Tacoma. I called the seller and he sounded like he didn't know about the issue either, and originally was willing to take it back, but I think he got talking with family and they convinced him that it wasn't his problem.

    Oh well, all worked out in the end.

  14. Jul 19, 2013 at 12:15 PM
    #114
    Chickenmunga

    Chickenmunga [OP] Nuggety

    Joined:
    Apr 10, 2008
    Member:
    #5877
    Messages:
    6,355
    Gender:
    Male
    First Name:
    Mike
    Olympia, WA
    Vehicle:
    08 TRD Offroad DC 4x4 (read the build)
    Two hidden extra cigarette power adapters

    I did this which gives me a permanent power option for my GPS units, and wires into my fuse block.

  15. Sep 1, 2013 at 9:39 PM
    #115
    Chickenmunga

    Chickenmunga [OP] Nuggety

    Joined:
    Apr 10, 2008
    Member:
    #5877
    Messages:
    6,355
    Gender:
    Male
    First Name:
    Mike
    Olympia, WA
    Vehicle:
    08 TRD Offroad DC 4x4 (read the build)
    OTRATTW Dash Switches

    I never liked the stock fog light switch. It was too hard to tell if it was on or off. I even had one instance where I left covers on my Hellas and bumped the switch. I didn't melt anything, but I don't like burning those bulbs for nothing.

    Additionally, I wanted some good, quality switches for some of my other mods. I wanted:
    -Factory look
    -Readable switches
    -backlit in the same color as the rest of everything
    -rocker style so I know when it is ON!
    -a separate light that comes on when the switch is on, just as a secondary indicator
    After lots of searching, the Carling switches from OTRATTW were what I was looking for. They even let you customize the text!

    The switch models are as follows:
    VVPZCSC-1AL 'Apocalypse Lights' with custom text for 'ABS CANCEL'. Amber upper independent, daylight bright red lower dependent
    VVPZCG2-10R 'Off-road Lights'. Amber upper independent, daylight bright red lower dependent
    VVPZCGP-151 'GPS'. Amber upper independent, amber lower dependent

    To get the lights lit and dimmable, I made 'tail' wires. One end taps into factory wiring, the other end has a male spade connection. I then junctioned several wires into a female spade connector and plugged it together. This way I can branch the wires off to the switches. If I ever need more child wires, I can disconnect the spade and make another set of children.
    For the positive lead, I connected in to an unused set of wires (probably for DAC, LSD, or VSC, which I don't have). For the ground, I spliced into the dimmer switch. I believe it was a white/purple wire. If you don't use this wire, your switches won't dim!

    Since I was replacing the OEM fog light switch, I needed the pinout diagram. Fortunately, I ran across this post, which describes things perfectly. Note that both picture wiring is basically identical. The resistor that is added in the first picture is used to light up a dependent bulb on the switch (i.e., the red lower light of my new switch).

    The O/R lights and the ABS cancel switches are supposed to have a bottom non-dimmable red light that comes on when you turn on the switch.
    The O/R light needs a resistor that I didn't have on hand - so, a project for another day.
    AS for the ABS switch, I don't think I can make it light the bottom based on the connection (maybe just needs jumpering). Oh well, still rocker style.
    The GPS switch is a different style, and the bottom does light up properly. (not shown in the photo)

    Looks like I blew the light on the diff lock or maybe loose connection... problem for another day.

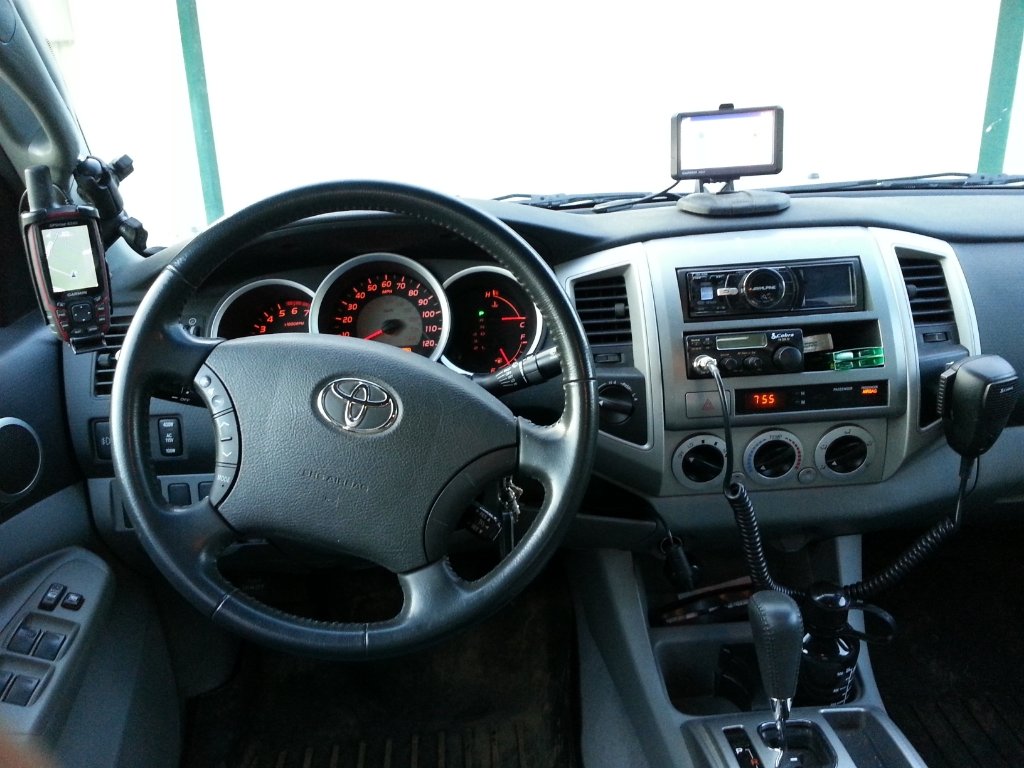

    [​IMG]

    [​IMG]

  16. Oct 16, 2013 at 2:02 PM
    #116
    Chickenmunga

    Chickenmunga [OP] Nuggety

    Joined:
    Apr 10, 2008
    Member:
    #5877
    Messages:
    6,355
    Gender:
    Male
    First Name:
    Mike
    Olympia, WA
    Vehicle:
    08 TRD Offroad DC 4x4 (read the build)
    Added Redline Tuning hood struts. My God, I'm doing this to all the vehicles I ever own. Fairly easy install and the benefits are so huge.

  17. Jan 1, 2014 at 6:36 PM
    #117
    Chickenmunga

    Chickenmunga [OP] Nuggety

    Joined:
    Apr 10, 2008
    Member:
    #5877
    Messages:
    6,355
    Gender:
    Male
    First Name:
    Mike
    Olympia, WA
    Vehicle:
    08 TRD Offroad DC 4x4 (read the build)
    Rear High Clearance Bumper

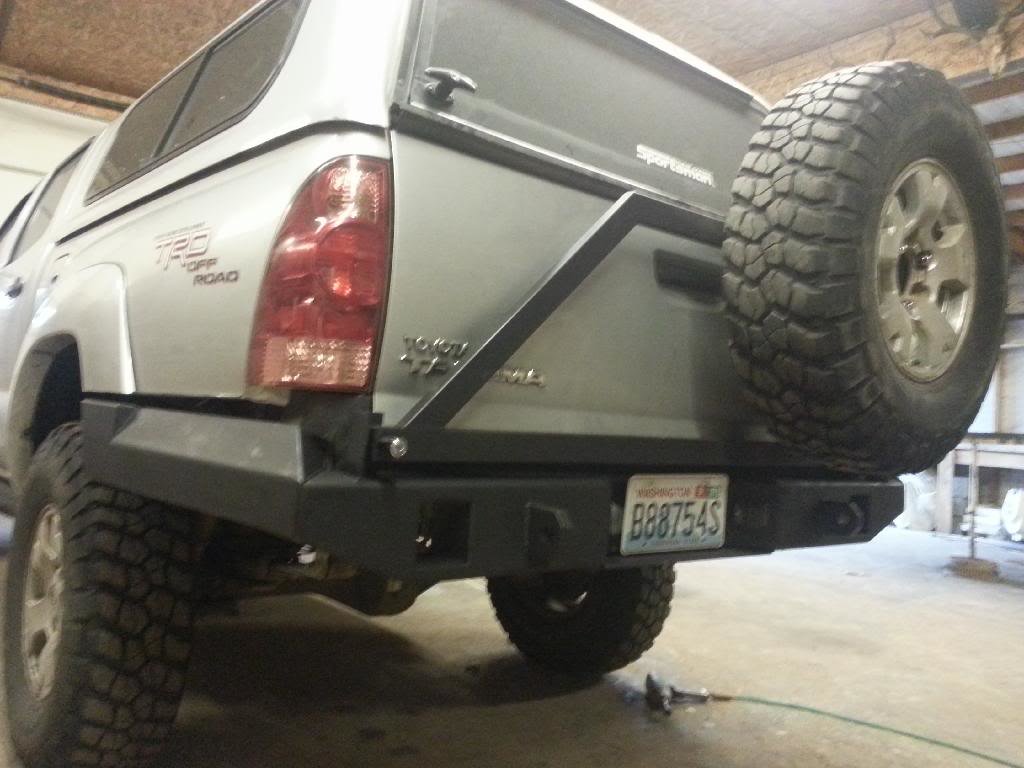

    I had enough of bumping the tow hitch around when offroading, being nervous about bedsides and bumpers (which have already seen some abuse), so I decided to do something about it.

    My original intention was to do a standard height wraparound bumper, but bent pieces needed to go, and grand plans began to unfold. A hidden hitch was needed! A tire gate! Rotopax! How about some lights? With plans swirling in my head, I just needed a fab guy, and 55chevy05taco stepped up to the plate. If he had known what it was going to take, I'm not sure he would have agreed!

    First up, getting rid of useless pieces. I'm getting more used to this now.

    [​IMG]

    Tonight's tools are sponsored by Office Depot. Our lift features height adjustment, lumbar support, and multi position armrests

    [​IMG]

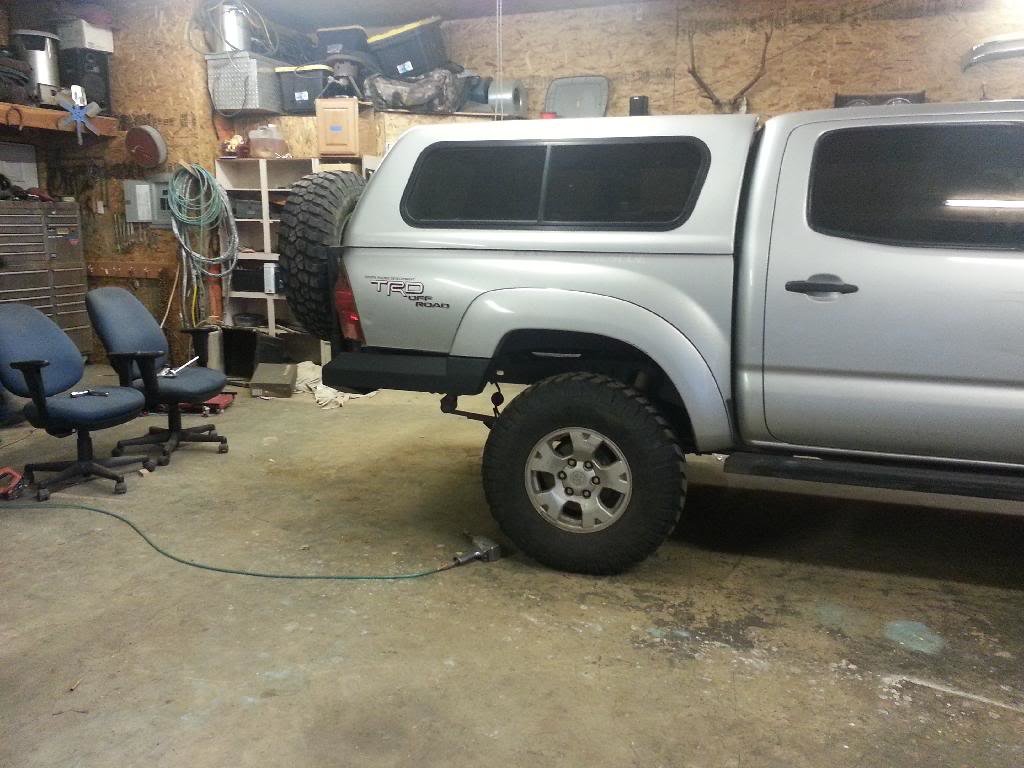

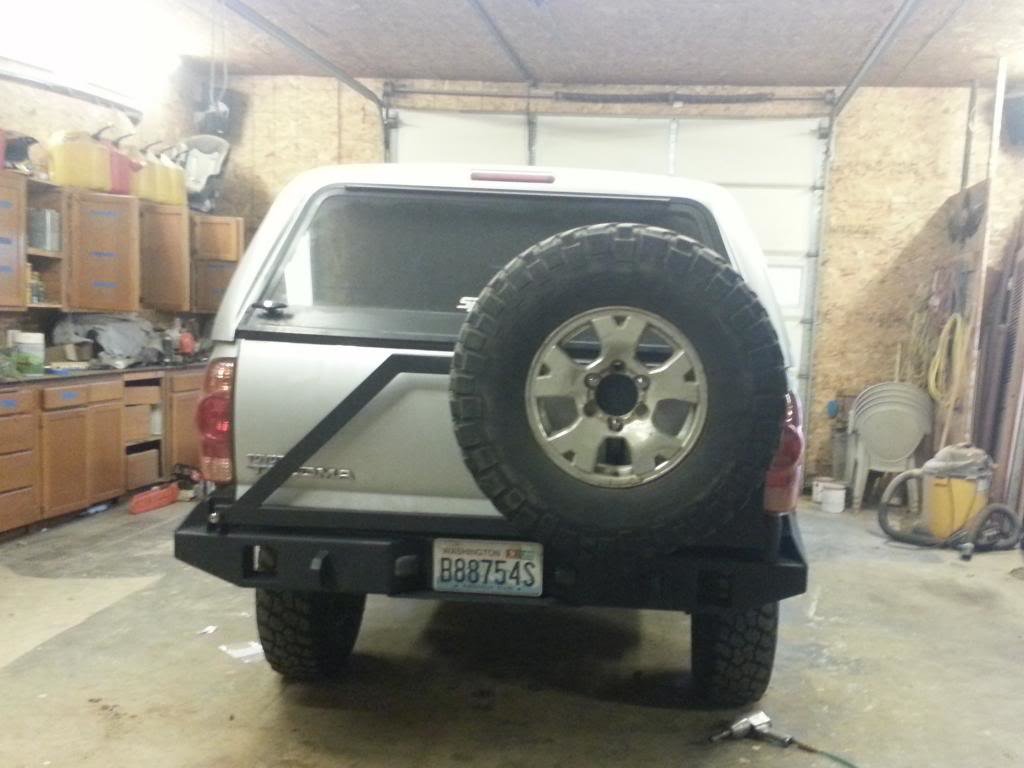

    First full fitting and driveable. I still need final paint (we intend to use Raptor Liner), and bump stop for the swing gate to prevent it going too wide, safety chain holders (for towing) and the lights.

    [​IMG]

    [​IMG]

    [​IMG]

    The bedsides are cut even with the bottom of the tail lights.
    Bumper is 5.5" tall on the sides
    Bottom of bumper is 28" from the ground

    From our guesstimates, I've gained at least 6-7 inches of side clearance, plus whatever the height of the hitch is for rear clearance.


    I have discovered one downside - ground clearance was directly proportional to garage clearance. If I want to close the garage door, I lose 6" of garage space :laugh:

  18. Jan 1, 2014 at 6:37 PM
    #118
    Justus

    Justus fucks not given

    Joined:
    Jan 4, 2013
    Member:
    #94417
    Messages:
    6,803
    Gender:
    Male
    First Name:
    Brock
    Paso Robles
    Vehicle:
    not so low, not so slow 2006 6 lug
    stockish
    it lives!

    why does this somewhat remind me of Seans truck?

  19. Mar 23, 2014 at 12:25 PM
    #119
    Chickenmunga

    Chickenmunga [OP] Nuggety

    Joined:
    Apr 10, 2008
    Member:
    #5877
    Messages:
    6,355
    Gender:
    Male
    First Name:
    Mike
    Olympia, WA
    Vehicle:
    08 TRD Offroad DC 4x4 (read the build)

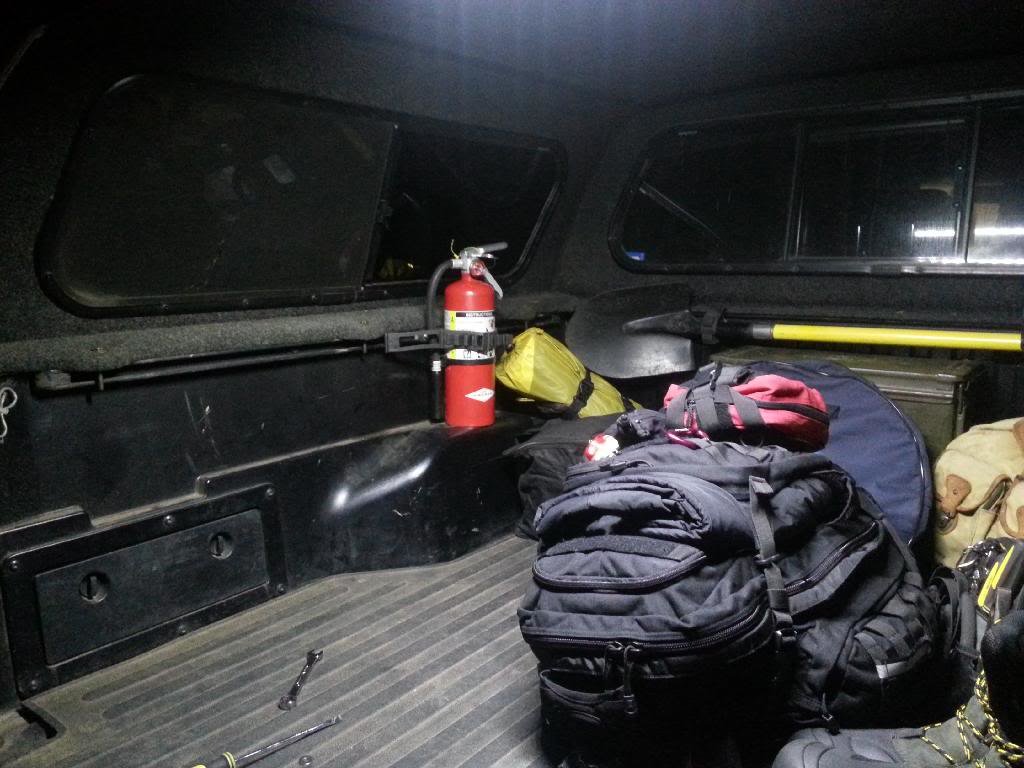

    Moved some stuff around and added an extinguisher

    By the way, this shot was taken at about 9pm with no flash. All light was supplied from the light bar I picked up from superbrightleds.com and mounted to the shell. steal of a deal and puts out a ton of light.

    [​IMG]

    Last edited: Mar 23, 2014
  20. Mar 23, 2014 at 3:59 PM
    #120
    Mitch

    Mitch Somebody call for a Wambulance?

    Joined:
    Jun 27, 2011
    Member:
    #58964
    Messages:
    5,843
    Gender:
    Male
    First Name:
    Mitch
    Tigard, OR
    Vehicle:
    2007 Access Cab SR5 4x4
    Lights, Siren, Drugs, Needles, Electricity
    What's the light bar look like
