The Drifter - Specs and FAQ

Discussion in 'Vagabond Outdoors' started by Iggy, Mar 26, 2018.

  1. Mar 26, 2018 at 12:22 PM
    #1
    Iggy

    Iggy [OP] Vagabond Outdoors Vendor

    Joined:
    Feb 2, 2012
    Member:
    #71971
    Messages:
    3,767
    Gender:
    Male
    Northern CA
    Vehicle:
    09 4x4 Off-Road Access Cab
    Check out the build
    BEGIN YOUR ADVENTURE


    We are pleased to introduce “The Drifter”. The all aluminum construction and lightweight camper built for whatever you can throw at it! It’s sized perfectly for mid-sized trucks, providing space and comfort without compromising weight or drivability.

    From concept to reality, establishing our business, setting up our new shop, and securing a patent pending design – we have made many refinements over the last year of beta testing and are incredibly excited to launch Vagabond Campers.

    FEATURES & SPECS

    Standard Features
    • Patent Pending.
    • Aluminum construction.
    • One-piece lid design.
    • Insulated ceiling.
    • Standing/sitting room and access to lower level with sleeping platform fully extended.
    • Entire truck bed is unobstructed when sleeping platform extension is retracted.
    • Concealed lift struts.
    • Waterproof tent with 3 windows.
    • Cab drop-down window and rear glass hatch.
    • High-density 2 piece mattress with cover.
    • Lower interior light with switch.
    • LED third brake light and wiring.
    • Concealed wire tray.
    • Adjustable & lockable stainless steel latches.
    • Three stainless steel hinges.
    • Camper attachment clamps and bulb seal gasket.
    Options
    • Sliding cab window.
    • Side Windows and Doors
    • Additional interior and ceiling lighting.
    • 12v power port and USB outlets.
    • 14" Fantastic Fan.
    • Powder Coating in white, grey, black.
    • Additional bed extension.
    • Roof mounted L-Track.
    • Lower side panel insulation.

    DETAILS

    Body

    Laser cut & CNC bent 1/8” 5052 aluminum sheeting.
    TIG welded, stainless steel bolts & nuts, and mil-spec aluminum rivets.
    Sealed panel connections.
    Attaches to truck bed with aluminum clamps and double bulb seal.

    Roof

    Single piece design reinforced with aluminum extruded awning tube.
    Insulated with durable ceiling panel.
    Lift struts are concealed and protected with roof in travel position.
    Three heavy- duty stainless steel hinges.
    Stainless steel adjustable draw hasps.

    Tent

    Waterproof, durable, 18 oz. polyester- coated vinyl.
    Large zippered side and rear window.
    Durable screen fabric.
    Clear vinyl side windows.
    Mesh and blackout curtains on three sides.

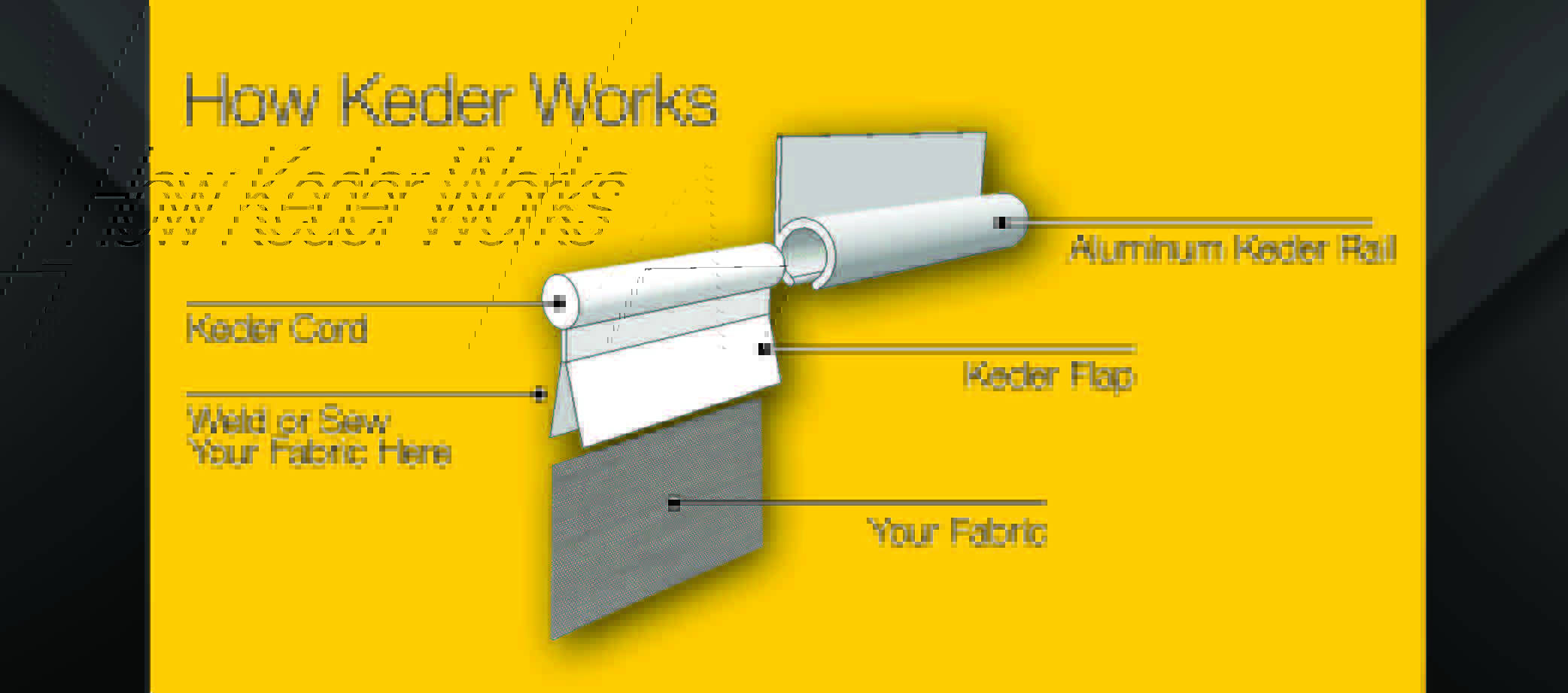

    Attached with Keder rope and extruded awning track for water, wind, and dust resistance.

    Sleeping Platform

    Extension panel retracts to cab wall for full use of living space.
    48"x80", 3” thick high-density 2 piece foam mattress with waterproof cover.

    PRICE

    $7250 for the base model+options
    Vagabondoutdoors.com
    Instagram.com/vagabond_outdoors

    Last edited: Dec 28, 2018
  2. Mar 26, 2018 at 12:22 PM
    #2
    Iggy

    Iggy [OP] Vagabond Outdoors Vendor

    Joined:
    Feb 2, 2012
    Member:
    #71971
    Messages:
    3,767
    Gender:
    Male
    Northern CA
    Vehicle:
    09 4x4 Off-Road Access Cab
    Check out the build
    FAQ

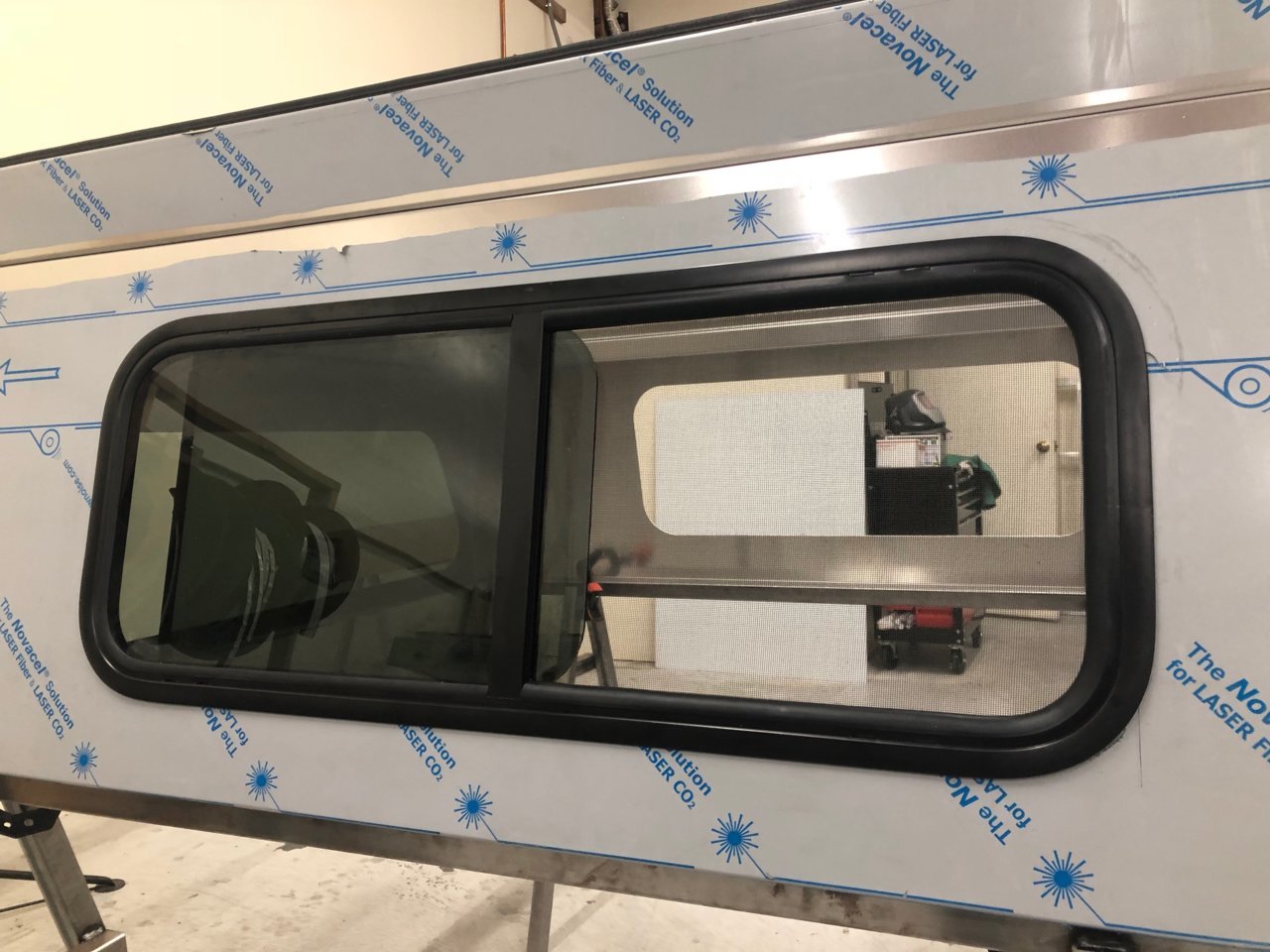

    What side window options do you offer?

    We have several! Here are pictures of each with pricing. And a long description here.

    Slider w/ Screen $350

    Glass Windoor $400


    Solid Windoor $450


    Solid Frontrunner (Really Popular) $800


    Glass Frontrunner $850

    Last edited: Mar 14, 2019
    Anderson likes this.
  3. Mar 26, 2018 at 12:22 PM
    #3
    Iggy

    Iggy [OP] Vagabond Outdoors Vendor

    Joined:
    Feb 2, 2012
    Member:
    #71971
    Messages:
    3,767
    Gender:
    Male
    Northern CA
    Vehicle:
    09 4x4 Off-Road Access Cab
    Check out the build




    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: May 7, 2018
  4. Mar 26, 2018 at 12:22 PM
    #4
    Iggy

    Iggy [OP] Vagabond Outdoors Vendor

    Joined:
    Feb 2, 2012
    Member:
    #71971
    Messages:
    3,767
    Gender:
    Male
    Northern CA
    Vehicle:
    09 4x4 Off-Road Access Cab
    Check out the build
    Reserved

    Anderson likes this.
  5. Mar 26, 2018 at 12:24 PM
    #5
    jberry813

    jberry813 Professional Fluffer Moderator

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    25,779
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    2012 DCSB Sport
    ...too much shit to list.
  6. Mar 26, 2018 at 12:27 PM
    #6
    Iggy

    Iggy [OP] Vagabond Outdoors Vendor

    Joined:
    Feb 2, 2012
    Member:
    #71971
    Messages:
    3,767
    Gender:
    Male
    Northern CA
    Vehicle:
    09 4x4 Off-Road Access Cab
    Check out the build
    More details to follow, the first post will be updated as we move along!

    Anderson likes this.
  7. Mar 26, 2018 at 12:31 PM
    #7
    Porter707

    Porter707 Red Raider

    Joined:
    May 17, 2016
    Member:
    #187231
    Messages:
    4,097
    Gender:
    Male
    First Name:
    James
    Lake County, CA
    Vehicle:
    2016 TRD OR DCSB
    20s, Rockstar XD Rims, 6" Lift
    :popcorn:

    Anderson likes this.
  8. Mar 26, 2018 at 12:32 PM
    #8
    Iggy

    Iggy [OP] Vagabond Outdoors Vendor

    Joined:
    Feb 2, 2012
    Member:
    #71971
    Messages:
    3,767
    Gender:
    Male
    Northern CA
    Vehicle:
    09 4x4 Off-Road Access Cab
    Check out the build
    Depends on the truck. If it's a 3rd gen it might fit, if its a 2nd, there's not enough room.

    Anderson likes this.
  9. Mar 26, 2018 at 12:42 PM
    #9
    blackradon

    blackradon Well-Known Member

    Joined:
    Jun 21, 2014
    Member:
    #132401
    Messages:
    166
    Gender:
    Male
    First Name:
    james
    YYC, Canada
    Vehicle:
    2014 sky silver metallic
    Looks awesome! Can top handle any weight?

    Anderson and Iggy [OP] like this.
  10. Mar 26, 2018 at 12:45 PM
    #10
    anomalyTRD

    anomalyTRD Well-Known Member

    Joined:
    Jul 12, 2013
    Member:
    #108160
    Messages:
    221
    Gender:
    Male
    Oakland, CA
    Vehicle:
    2015 Mag Grey DCLB SR5
    Drifter, supercharged, Pelfreybilt bumpers, 35s Toyo RTs on RAY10s, ARBs and 4.56s, triple battery setup, Icon Stage 5 lift w/ tubular UCA up front and All Pro Expo rear springs, etc...

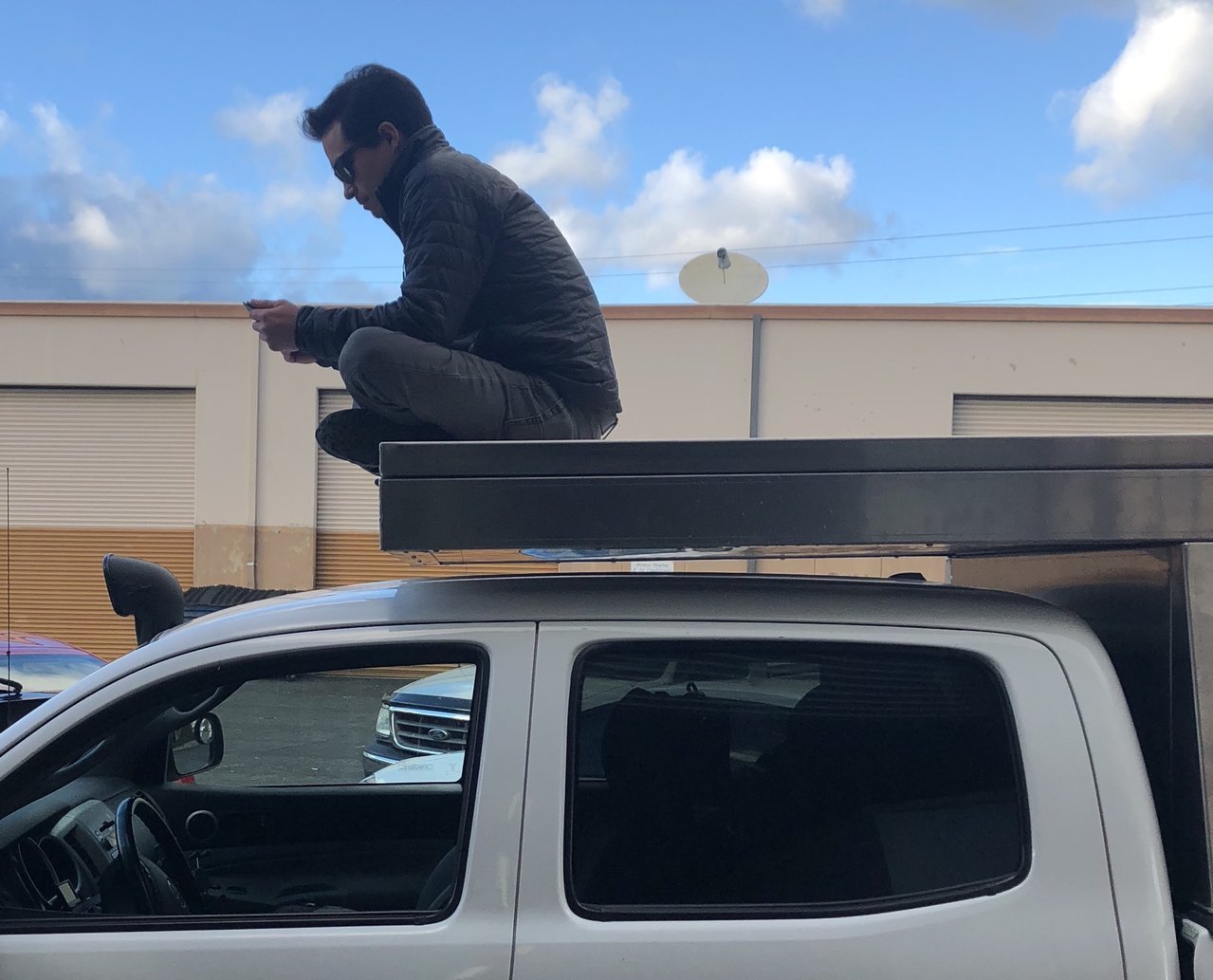

    Yes, they posted some photos in Iggy's other thread of people sitting on the front of the camper overhang and there was clearly very minimal deflection. I'm guessing the roof is fine to have a 200lb person walking on it semi-regularly.

    Anderson, Overlanerd and Iggy [OP] like this.
  11. Mar 26, 2018 at 12:47 PM
    #11
    sandsnek

    sandsnek Member

    Joined:
    Mar 28, 2017
    Member:
    #214721
    Messages:
    7
    You can have my money after you post up some interior shots.

    SR-71A, Chipskip, Anderson and 7 others like this.
  12. Mar 26, 2018 at 12:48 PM
    #12
    916TacoTruck

    916TacoTruck BallzDeep is how I go

    Joined:
    Jul 23, 2013
    Member:
    #108916
    Messages:
    2,998
    Gender:
    Male
    First Name:
    Mike
    Sactown
    Vehicle:
    '13 Money Pit.
    Vagabond Outdoors The Drifter
  13. Mar 26, 2018 at 12:49 PM
    #13
    JasonLee

    JasonLee Hello? I'm a truck.

    Joined:
    May 9, 2014
    Member:
    #129454
    Messages:
    1,842
    Gender:
    Male
    First Name:
    Jason
    Gold Hill, CO
    Vehicle:
    03 DC TRD 4x4
    OME suspension + Dakar AAL + 265/75R16 BFG KO2 + Snugtop XTR + Tundra brakes

  14. Mar 26, 2018 at 12:50 PM
    #14
    blackradon

    blackradon Well-Known Member

    Joined:
    Jun 21, 2014
    Member:
    #132401
    Messages:
    166
    Gender:
    Male
    First Name:
    james
    YYC, Canada
    Vehicle:
    2014 sky silver metallic
    That’s good, being able to mount/carry some gear up there is key.

  15. Mar 26, 2018 at 12:50 PM
    #15
    anomalyTRD

    anomalyTRD Well-Known Member

    Joined:
    Jul 12, 2013
    Member:
    #108160
    Messages:
    221
    Gender:
    Male
    Oakland, CA
    Vehicle:
    2015 Mag Grey DCLB SR5
    Drifter, supercharged, Pelfreybilt bumpers, 35s Toyo RTs on RAY10s, ARBs and 4.56s, triple battery setup, Icon Stage 5 lift w/ tubular UCA up front and All Pro Expo rear springs, etc...
    @Iggy will you support Anderson plugs for power?

  16. Mar 26, 2018 at 12:51 PM
    #16
    JasonLee

    JasonLee Hello? I'm a truck.

    Joined:
    May 9, 2014
    Member:
    #129454
    Messages:
    1,842
    Gender:
    Male
    First Name:
    Jason
    Gold Hill, CO
    Vehicle:
    03 DC TRD 4x4
    OME suspension + Dakar AAL + 265/75R16 BFG KO2 + Snugtop XTR + Tundra brakes
    Someone is going to ask, so I'll save you time.
    [​IMG]

    Foxtato, Chipskip, Anderson and 6 others like this.
  17. Mar 26, 2018 at 12:56 PM
    #17
    MJonaGS32

    MJonaGS32 MJ on a GS

    Joined:
    Apr 14, 2009
    Member:
    #15949
    Messages:
    11,905
    Gender:
    Male
    First Name:
    MJ
    SF Bay Area (East)
    Vehicle:
    07 Mid-Travel 4x4 DCSB 6spd
    Kings Mid Travel, Drifter, dual batt OBA, ARB locker, 4.56 gears
    Good to know more info on these.

    Concealed lift struts and adjustable latches! - Minor details that I'm glad you guys thought of! I'm glad the latches are adjustable in order to accommodate extra linens/pillows and weather (I imagine cold days to be a PITA with fixed latches). Also the concealed lift struts is major so that debris is minimized which should equate to longer life expectancy of the struts.

    Last edited: Mar 26, 2018
  18. Mar 26, 2018 at 1:05 PM
    #18
    Bentrodder

    Bentrodder PeeRunner Fanboy

    Joined:
    Oct 11, 2014
    Member:
    #140142
    Messages:
    6,232
    Gender:
    Male
    First Name:
    Peter
    Cotati, CA.
    Vehicle:
    2015 DCLBFTMFW TRD Sport
    Kings and a TW DECAL!!!
    Congrats guys! Super excited!

    Anderson, Gply, Porter707 and 3 others like this.
  19. Mar 26, 2018 at 1:12 PM
    #19
    Iggy

    Iggy [OP] Vagabond Outdoors Vendor

    Joined:
    Feb 2, 2012
    Member:
    #71971
    Messages:
    3,767
    Gender:
    Male
    Northern CA
    Vehicle:
    09 4x4 Off-Road Access Cab
    Check out the build
    Yes! It’s not something we recommend anyone doing, but we did it to prove the strength of the one piece design. Here’s a pic of Phil standing right in the middle of it and there’s no deflection.


  20. Mar 26, 2018 at 1:13 PM
    #20
    Iggy

    Iggy [OP] Vagabond Outdoors Vendor

    Joined:
    Feb 2, 2012
    Member:
    #71971
    Messages:
    3,767
    Gender:
    Male
    Northern CA
    Vehicle:
    09 4x4 Off-Road Access Cab
    Check out the build
    You got it! Get that wallet ready ;)
