The Install and Technical information on Fox 985-26-117

Discussion in 'Suspension' started by Bender581, Apr 8, 2016.

  1. Apr 8, 2016 at 2:31 PM
    #1
    Bender581

    Bender581 [OP] Well-Known Member

    Joined:
    Mar 31, 2012
    Member:
    #76015
    Messages:
    649
    Gender:
    Male
    First Name:
    AL
    Arkansas
    Vehicle:
    2012 4X4 Tacoma
    Gobi roof rack. Icon coilovers, Icon tubular UCAs, FOX 2.0 rear shocks, Icon 3-leaf progressive AAL.
    I replaced Icons with these. (These measurements apply to the 985-26-117 and also 985-24-117)





    When you are looking at Fox rear shocks, theses are listed for Tacomas with 2.0 to 2.5 inches of lift. The technical data says they extend to 23.8 inches and compress to 14.7 inches.

    My measurements were different. This is probably due to me measuring from different points on the shocks than where the Fox techs measured. I measured from the center of the eyelet mount to the center between the two rubber stem mount bushings. This was 25 inches with the shocks fully extend before installing. The technical specifications say 23.8. This measurement would be to the underside of the lower rubber stem mount bushing. My compressed measurement is 15.9 inches compared to technical specifications of 14.7.

    This picture is with the shock mounted and a jack holding the tire off the floor.



    This is with the tape measure pressed against the truck mounting bracket, which would be the same as between the two rubber stem mount bushing. It is 24.75 inches--if you were looking at a better angle than I could get the camera. This means the leaf springs are holding the weight of the axel 0.25 inches above the point before the shocks bottom out. The brake lines still had plenty of slack.

    This shows the truck on a level garage floor after a ten miles ride over a gravel road.



    This is 20.85 inches. The shocks are compressed 4.15 inches from fully extended.

    This shows how much more shock stem if left before being fully compressed.



    This is 4.95 inches. I measured the gap between the bump stop and the frame to be 4.0 inches. This gives 0.95 inches the bump stop will compress before the shock bottoms out.

    If you do the math on my measurements, the shock travel is 4.15+4.95= 9.1 inches, which is exactly what the technical specifications says. I'm just 1.2 inches longer on both the extended and compressed measurements.

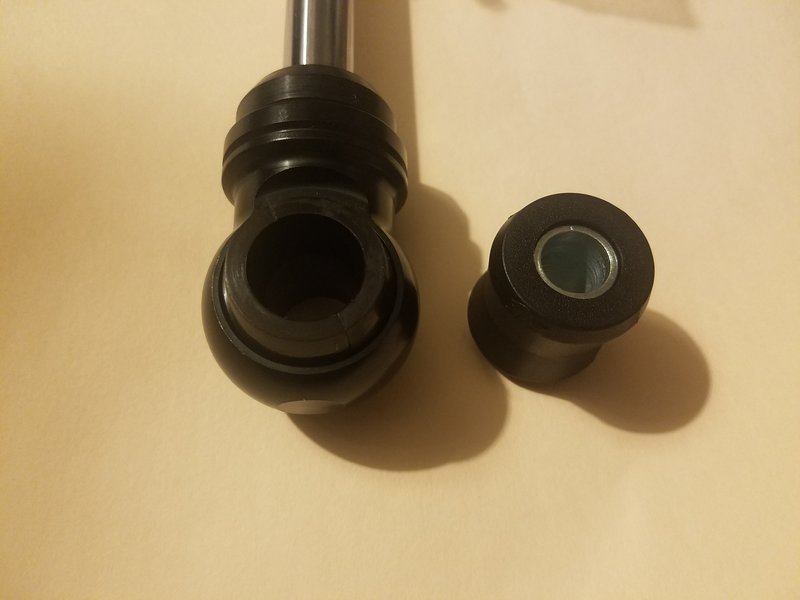

    Other things you need to know. The eyelet bushing that come installed in the shocks are too long. They send shorter ones. This picture shows both.



    You can pull the long bushings out with some pliers. I put a little oil on the new bushings and tapped them in with a rubber hammer.

    This shows one eyelet with the long bushing and one with the short bushing.




    The finished product.





    I installed an Icon 3-leaf AAL two years ago. At the time I removed the overload, but replaced the overload two weeks ago.

    Biscuits, lpfe42 and TRD_TAQUITO like this.
  2. Apr 8, 2016 at 7:35 PM
    #2
    Killbuzzjrad

    Killbuzzjrad Well-Known Member

    Joined:
    May 10, 2009
    Member:
    #17059
    Messages:
    173
    Gender:
    Male
    First Name:
    Jared
    San Antonio, TX
    Vehicle:
    2009 DCLB TRD Sport 4x4
    I'm looking at replacing my 5100s with a pair of these. What size tires are you running and what's the measurement from the ground to the fender?

  3. Apr 8, 2016 at 7:48 PM
    #3
    Bender581

    Bender581 [OP] Well-Known Member

    Joined:
    Mar 31, 2012
    Member:
    #76015
    Messages:
    649
    Gender:
    Male
    First Name:
    AL
    Arkansas
    Vehicle:
    2012 4X4 Tacoma
    Gobi roof rack. Icon coilovers, Icon tubular UCAs, FOX 2.0 rear shocks, Icon 3-leaf progressive AAL.
    Tires are 255/75/17. Ground to fender is 39.25 inches.

    Killbuzzjrad likes this.
  4. Apr 8, 2016 at 8:10 PM
    #4
    Killbuzzjrad

    Killbuzzjrad Well-Known Member

    Joined:
    May 10, 2009
    Member:
    #17059
    Messages:
    173
    Gender:
    Male
    First Name:
    Jared
    San Antonio, TX
    Vehicle:
    2009 DCLB TRD Sport 4x4
    Perfect. Thanks dude!

  5. Apr 10, 2016 at 12:20 AM
    #5
    Echodawg

    Echodawg Well-Known Member

    Joined:
    Jul 25, 2013
    Member:
    #109034
    Messages:
    713
    Gender:
    Male
    First Name:
    Chris
    Fremont, CA
    Vehicle:
    2014 TRD OR DCSB
    Stuff and Things!
    Curious as to why the brand switch? Currently debating between the two.

  6. Apr 10, 2016 at 4:55 PM
    #6
    Bender581

    Bender581 [OP] Well-Known Member

    Joined:
    Mar 31, 2012
    Member:
    #76015
    Messages:
    649
    Gender:
    Male
    First Name:
    AL
    Arkansas
    Vehicle:
    2012 4X4 Tacoma
    Gobi roof rack. Icon coilovers, Icon tubular UCAs, FOX 2.0 rear shocks, Icon 3-leaf progressive AAL.
    I do like my Icons, but with the light rear end on our trucks, the Icon were stiff at low speed on washboard gravel roads. If I kept above 35 or 40 the ride was smooth--unbelievably smooth. When below this speed the rear end sometimes wanted to bounce around. I guess this was due to the digressive valving on the Icons. I kept about 100 pounds of firewood in the back. This helped. I stillhave Icon in the front. You should not hesitate getting Icons just from my experience. So for the Fox rear shocks have been better for me, but that is comparing two years on the Icons and only two days on the Fox shocks. Both are really great shocks. You cannot go wrong with either.

  7. Apr 16, 2016 at 8:50 PM
    #7
    Daxdagr8t

    Daxdagr8t Well-Known Member

    Joined:
    Nov 9, 2014
    Member:
    #141987
    Messages:
    250
    Gender:
    Male
    Socal
    Vehicle:
    07 prerunner
    None
    Just finished installing my rear shock. The eyelet bushing was a pita. figured it will come correct from the factory. Anyway we cut off some tubes and used a vise to press out/in the bushings.


    TRD_TAQUITO likes this.
  8. Apr 16, 2016 at 8:52 PM
    #8
    Killbuzzjrad

    Killbuzzjrad Well-Known Member

    Joined:
    May 10, 2009
    Member:
    #17059
    Messages:
    173
    Gender:
    Male
    First Name:
    Jared
    San Antonio, TX
    Vehicle:
    2009 DCLB TRD Sport 4x4

    I just finished my install today as well!


    Did we just become best friends?

  9. Apr 16, 2016 at 9:02 PM
    #9
    Daxdagr8t

    Daxdagr8t Well-Known Member

    Joined:
    Nov 9, 2014
    Member:
    #141987
    Messages:
    250
    Gender:
    Male
    Socal
    Vehicle:
    07 prerunner
    None

    Sure wanna hold hands and skip around? Lol

    Last edited: Apr 16, 2016
    1truckdriver and TRD_TAQUITO like this.
  10. Apr 17, 2016 at 4:22 PM
    #10
    Bender581

    Bender581 [OP] Well-Known Member

    Joined:
    Mar 31, 2012
    Member:
    #76015
    Messages:
    649
    Gender:
    Male
    First Name:
    AL
    Arkansas
    Vehicle:
    2012 4X4 Tacoma
    Gobi roof rack. Icon coilovers, Icon tubular UCAs, FOX 2.0 rear shocks, Icon 3-leaf progressive AAL.
    I searched here on TW for anyone with Fox rears with resi before I bought mine. I wanted to ask for any opinions. Found only two, and one of them had the shocks with the body mounted down and the rod with stem mounted up.

    I would like to mount my reservoir differently, maybe horizontally and centered in the wheel opening

  11. Apr 17, 2016 at 4:28 PM
    #11
    Daxdagr8t

    Daxdagr8t Well-Known Member

    Joined:
    Nov 9, 2014
    Member:
    #141987
    Messages:
    250
    Gender:
    Male
    Socal
    Vehicle:
    07 prerunner
    None

    Don't know why fox wont do it like how kings mount their resi. Way easier to access if you have dsc adjusters too. But if you got fabricating skills might be able to fabricate some frame mounts. But ill imagine that will void your warranty with fox.

    I think the one you saw that is inverted are fox 2.5 rears, these are just fox 2.0

  12. Apr 19, 2016 at 12:17 PM
    #12
    Wcrumpler7

    Wcrumpler7 Member

    Joined:
    Dec 27, 2014
    Member:
    #145039
    Messages:
    7
    Gender:
    Male
    Santa Barbara, CA
    Vehicle:
    2020 Tacoma trd off-road
    I recently added these shocks to my truck. I love them but mine only came with about 5 inches of braided Line off the shock, which wasn't a problem at the time of install, but it gave me limited room to mount the resi to the shock without putting to much stress in the line. Couple days after install I wanted to check and make sure that I still had no issues and noticed that my resi was rubbing against the rear brake line (where the metal clip is right off the drum).so I had to make shift a resi mount. Cost me about 10 bucks from homedepot and I was able to mount the resi on the frame.


  13. Apr 20, 2016 at 1:46 PM
    #13
    kzrpk5

    kzrpk5 Well-Known Member

    Joined:
    Dec 18, 2015
    Member:
    #172532
    Messages:
    126
    Gender:
    Male
    First Name:
    Jeffrey
    Wisonsin
    Vehicle:
    2016 Tacoma
    Long Travel, Bed Cage, Fiberglass, 35"

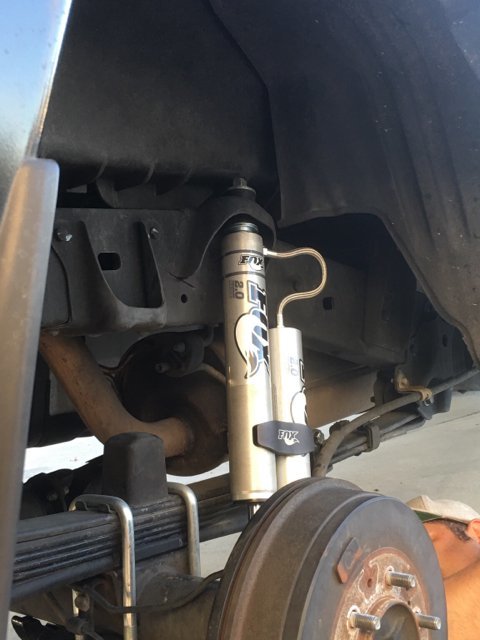

    I mounted mine on a bracket from Toytec. Drilled a hole and bolted it on. Strapped resi to bracket.

    IMG_0110 (2).jpg

    Lord Helmet likes this.
  14. Jun 9, 2017 at 10:12 PM
    #14
    k_j_souv

    k_j_souv Well-Known Member

    Joined:
    Dec 22, 2016
    Member:
    #205514
    Messages:
    182
    Gender:
    Male
    Am I suppose to press the eyelet bushing in, in order to fit the Tacoma?


  15. Jun 11, 2017 at 3:11 PM
    #15
    Bender581

    Bender581 [OP] Well-Known Member

    Joined:
    Mar 31, 2012
    Member:
    #76015
    Messages:
    649
    Gender:
    Male
    First Name:
    AL
    Arkansas
    Vehicle:
    2012 4X4 Tacoma
    Gobi roof rack. Icon coilovers, Icon tubular UCAs, FOX 2.0 rear shocks, Icon 3-leaf progressive AAL.
    Did you get the eyelet presses in? If not: take out the metal sleeve, put some light oil on the rubber eyelet, and it presses in with a little force.

  16. Jun 14, 2017 at 8:19 AM
    #16
    k_j_souv

    k_j_souv Well-Known Member

    Joined:
    Dec 22, 2016
    Member:
    #205514
    Messages:
    182
    Gender:
    Male
    To answer my own question. Yes, you do need to press the eyelet in with the metal insert, in order for it to fit a Tacoma.

    Last edited: Jun 14, 2017
  17. Jun 29, 2017 at 7:07 PM
    #17
    lpfe42

    lpfe42 Well-Known Member

    Joined:
    Jul 2, 2015
    Member:
    #158633
    Messages:
    385
    Gender:
    Male
    First Name:
    Kenny
    Santa Barbara County
    Vehicle:
    20 DCSB CEMENT
    5100/887 Icon uca
    How do you like the ride and the performance ??? Im looking to upgrade

  18. Jun 29, 2017 at 7:24 PM
    #18
    Bender581

    Bender581 [OP] Well-Known Member

    Joined:
    Mar 31, 2012
    Member:
    #76015
    Messages:
    649
    Gender:
    Male
    First Name:
    AL
    Arkansas
    Vehicle:
    2012 4X4 Tacoma
    Gobi roof rack. Icon coilovers, Icon tubular UCAs, FOX 2.0 rear shocks, Icon 3-leaf progressive AAL.
    Performance when moving fast is great. 40 mph or faster over washboard is unbelievably smooth. When under 30 mph on city streets it is stiff. I can hit a speed bump at 40 and not feel much. I can hit a sewer cover at 15 mph and feel it very much. I can't tell that the adjuster changes the ride very much. Over all I like the Fox shocks.

    k_j_souv and lpfe42 like this.
  19. Aug 28, 2018 at 8:19 PM
    #19
    gordi

    gordi Only had a wheel fall off once

    Joined:
    Jul 16, 2013
    Member:
    #108373
    Messages:
    2,904
    Gender:
    Male
    First Name:
    Josh
    North Idaho
    Vehicle:
    2011 DCSB trd sport
    Fox 2.5 extended travel, dakars, rear 5125 255/80/17 cooper maxx ST
    link to said toytec bracket?

  20. Aug 29, 2018 at 2:00 PM
    #20
    SUMOTNK

    SUMOTNK Pavement Pounder / Mall Crawler

    Joined:
    Sep 8, 2014
    Member:
    #137895
    Messages:
    1,129
    Gender:
    Male
    First Name:
    Eddie
    NorCal/South Bay Area
    Vehicle:
    '08 Indigo Ink Pearl DCSB
    TRD Supercharger w/ URD 2.85" pulley, TRD Gen1 Intake with Volant scoop, 76mm Tundra throttle body with URD adapter, URD 170 Performance Thermostat, URD/Walbro fuel pump kit, NST lightweight Wp/Alt/Crank pullies, URD Y-Pipe, Doug Thorley Shorty Headers, Custom WickedFlow Exhaust, OVT SC Ver2.0 Calibration, Fox Racing 2.5" ext. travel CO RR with DSC adjuster on Spindle-Source 4" lift spindles, LR UCAs, and OME Dakar rear leaf pack and 1.5" lift blocks with Fox Racing 2.0 with CD adjuster, 35x10.5x17 Kenda Klever RT on 17x8 SSR Auswuch 3pc wheels.
    gordi likes this.
