The LED SAE J583 Fog Pod & Fog Light Review

Discussion in 'Lighting' started by crashnburn80, Jun 20, 2018.

  1. Nov 8, 2018 at 7:27 PM
    #341
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,552
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    It isn't as complicated as it sounds. Low beam bulbs and fog bulbs have a glare cap on the tip of the bulb to not provide glare from the high intensity filament to oncoming drivers. High beam bulbs do not have this feature, as glare isn't a concern in a high beam. An H9 is a very high output high beam bulb, so it has no glare cap. In a projector headlight there is a light shield to control the glare, and in most reflector low beam reflector headlights there is a bucket over the end of the bulb to control glare. A fog light is open without a bucket or any other method to cover the end of the bulb, relying on the blacktop glare cap coating on the end of the bulb to do so. An H9 being intended for high beam, does not have one. So I purchased some H9s that were modified with OEM style glare caps so the system operates like stock, but is massively brighter. The Rigid pods are just shy of 1000 actual lumens. My H9 fogs are 2100 lumens, I then push that output further by running a standalone 12 gauge wiring harness drawing power directly from the battery to increase voltage to the bulb for higher output.

    JeffB likes this.
  2. Nov 9, 2018 at 12:58 PM
    #342
    mrCanoehead

    mrCanoehead Well-Known Member

    Joined:
    Nov 9, 2017
    Member:
    #235493
    Messages:
    291
    Gender:
    Male
    Thunder Bay
    Vehicle:
    2018 DCSB Sport manual 3.5 l
    I tried to buy a set of the Volsas but no soup for me. I was wondering if you could just cerakote the end of a regular H9 bulb?

  3. Nov 9, 2018 at 1:33 PM
    #343
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,552
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Interesting, I've not heard of that product. What is important is adhesion and heat durability. I used high temp ceramic paint to put a cap on some 9011s. You can see my write-up here:
    https://www.tacomaworld.com/threads/the-h10-to-9011-hir-foglight-upgrade-better-than-led.528143/

    Note that any spray type paint will off gas as it cures, and off gassing in a sealed headlight will put a thin coating on your reflector/lens which will reduce performance. From what I have read, generally 90%+ of off gassing is done in 2 weeks. So if attempting this, I would spray, wait 2 weeks then install. I've found a company that actually sells the bulb cap coating material, but they they sold commercial volumes and my request for a 'consumer batch' went unanswered.

  4. Nov 9, 2018 at 2:03 PM
    #344
    gulzeb

    gulzeb G

    Joined:
    Jul 1, 2016
    Member:
    #190998
    Messages:
    3,353
    Gender:
    Male
    First Name:
    Gulzeb
    Fort Worth, TX
    Vehicle:
    2015 Subaru Legacy
    In order of install: Tint all around Weathertech floormats Center console insert and tray 17x7.5 +15mm alloy FJ rims, painted black Morimoto 2stroke led low beams Toyota bed mat AVS in-channel vent visors Removed black stickers from doors Removed air dam Debadged JDM ASTAR reverse leds Door sill protectors Reflective black tailgate inserts Rear cam anytime Fabric console cover Extra coverage engine guards Rigid SAE fogs Kicker/Subaru in-dash speakers JBL GT7-96 front door speakers JBL GT7-6 rear door speakers Hushmat deadener and wave breakers in doors Noico deadener behind rear seats Timbren Tortun4L rear bumpstops Added Line-X'd OEM flares OEM mudflaps Skid from TRD OR Avid Off Road front bumper guard Fatmat hoodliner 2nd gen 5100's with 2885s Sway bar relocate Cut off exhaust behind spare Wet Okoles on front seats Wheelers Superbumps Wheelers 2” single AAL ATH corner tie-downs ATH bed stiffeners Line-X’d rear bumper end caps TRD Sport/OR tail lights OEM bed step TRD Pro grille Fortin remote start Leer 180 Sleeping platform in bed 265/70/17 Terra Grappler G2 BPF front recovery point OV Tune 1.04 87 Westin 30” hidden bumper light bar Rago hidden bumper brackets
    Maybe Vandelay Industries can get a free sample

    crashnburn80 [OP] and se7enine like this.
  5. Nov 12, 2018 at 11:49 AM
    #345
    Taylor@KC HiLiTES

    Taylor@KC HiLiTES Well-Known Member Vendor

    Joined:
    Nov 11, 2016
    Member:
    #202104
    Messages:
    1,016
    Gender:
    Male
    First Name:
    Taylor
    Arizona
    Vehicle:
    2010 DCSB TRD OR 4x4
    See build thread
    Hey folks, I hate to be the bearer of bad news but it looks like the Amber G4s won't be available for @crashnburn80 to test for a couple more months. Long story short, our factory has been busy going full force on building stock of a different product. Therefore, the Gravity G4 production stalled out for the time being. We're trying to have it back in action ASAP, in huge part due to the overwhelming positive demand from you all on TW for these fog lights!

  6. Nov 12, 2018 at 5:40 PM
    #346
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,552
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Thanks for the update Taylor! I really appreciate KC's support and willingness to contribute the amber G4 lights to this thread, but Tacoma World just cannot wait that long. I've ordered the amber G4s from a vendor that has them in stock and they should arrive on Wednesday. I plan on updating the thread that evening. :)

    ace7196 likes this.
  7. Nov 12, 2018 at 8:00 PM
    #347
    HeisKai

    HeisKai Member

    Joined:
    Sep 8, 2014
    Member:
    #137871
    Messages:
    15
    Gender:
    Male
    Thank you for the comprehensive and very technical review. I posted a question regarding fog light in FJ Cruiser group and got directed to this post. Definitely learned a ton and got a much better idea where to look.

    crashnburn80 [OP] likes this.
  8. Nov 13, 2018 at 1:32 PM
    #348
    vicali

    vicali tirekicker

    Joined:
    May 20, 2010
    Member:
    #37503
    Messages:
    714
    Gender:
    Male
    First Name:
    mike
    Kam,BC
    Vehicle:
    2017 TRD Sport 1D6
    xxTacocaTxx likes this.
  9. Nov 13, 2018 at 2:38 PM
    #349
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,552
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    I saw that. Looking forward to see what they come out with as they make very nice lights.

  10. Nov 13, 2018 at 7:51 PM
    #350
    DirtJumper14

    DirtJumper14 Well-Known Member

    Joined:
    Jun 26, 2007
    Member:
    #1918
    Messages:
    945
    Gender:
    Male
    SoCal
    Vehicle:
    2005 TRD OR
    5100's, BDF grills and light bracket, big 3 upgrade, ATH bed braces, snugtop xtra vision shell, (bed, shell, hood, rock, front, rear, footwell, glove box, center console led lighting), MESO Gasshole, MESO dome and map lights, Flyeyez center console light, custom fuse panel, TRD CAI, toyota bed mat, 2013 black carpet, 2015 side mirrors, BedRug, AJT key fob, ultraguage, 8 cadillac horns acdf, pop n lock tailgate lock, energy suspension bushings, spicer greasable ujoints, Rigid lights everywhere, kenwood stereo, led tube taillights (red), 2018 T4R trail wheels, rokblok mud flaps, TRD skid plate, RCi gas tank skid plate

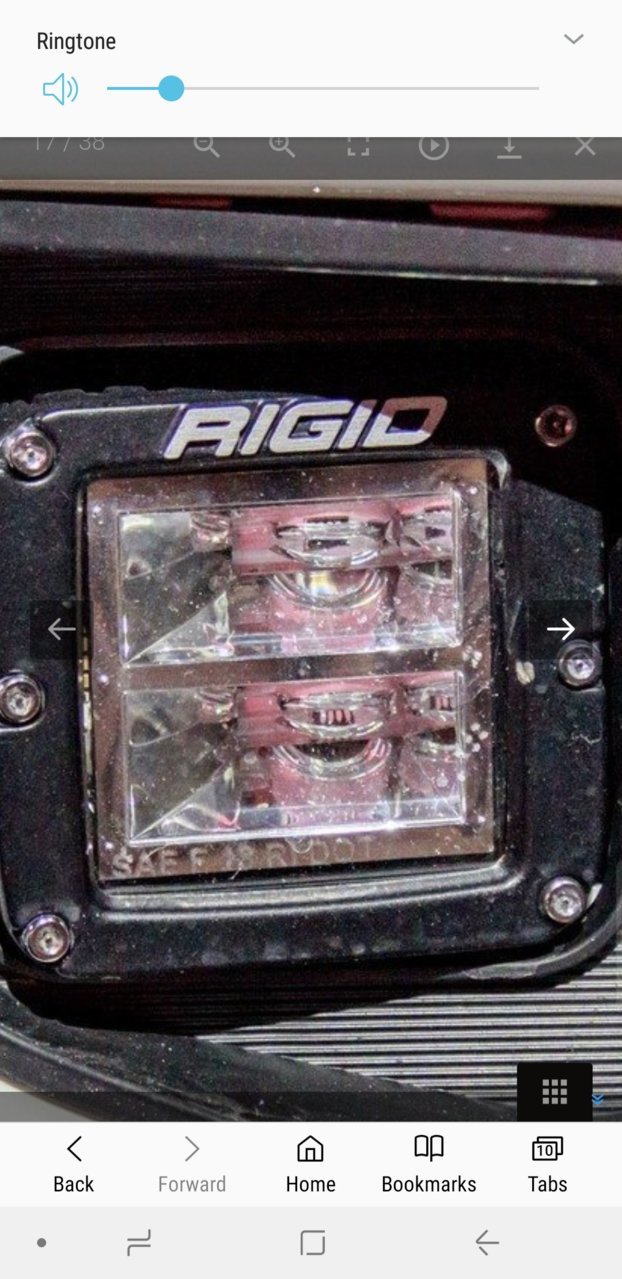

    It appears you may not be done with your comparisons just yet.....maybe

    Screenshot_20181113-194231_Samsung Internet.jpg

  11. Nov 13, 2018 at 8:05 PM
    #351
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,552
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Summit Racing. Toyota Amber KC G4s in stock with a $26 coupon code and free shipping. Use coupon code "ALWAYS".
    https://www.summitracing.com/parts/kcc-501/overview/

    Never done, but always staying on top of it all. I have a good hunch I know what those are, but I'll double check with my connections and report back. :)

    Taylor@KC HiLiTES and Rick_Taco like this.
  12. Nov 14, 2018 at 10:29 AM
    #352
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,552
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
  13. Nov 14, 2018 at 6:30 PM
    #353
    308savage

    308savage Well-Known Member

    Joined:
    Mar 6, 2016
    Member:
    #180389
    Messages:
    951
    Gender:
    Male
    First Name:
    Adam
    East Tennessee
    Vehicle:
    2012 Tacoma TRD Sport DCSB
    Leveling kit, BFG AT KO2, Warrior Products steps, roll bar
    Would these benefit from the upgraded harness?

  14. Nov 14, 2018 at 8:26 PM
    #354
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,552
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    No. Upgraded harnesses are helpful to halogens to deliver increased voltage which makes a halogen burn brighter. LEDs have a much higher tolerance to voltage variances, and the G4s only use 10w compared to the 55w the circuit is designed for, meaning the OEM circuit is already overkill.

    Rick_Taco and 308savage like this.
  15. Nov 14, 2018 at 11:19 PM
    #355
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,552
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Good question! As far as I know the G4s come only with the H11 connectors, @Taylor@KC HiLiTES could provide more information.

    ace7196 likes this.
  16. Nov 15, 2018 at 12:03 AM
    #356
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,552
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!

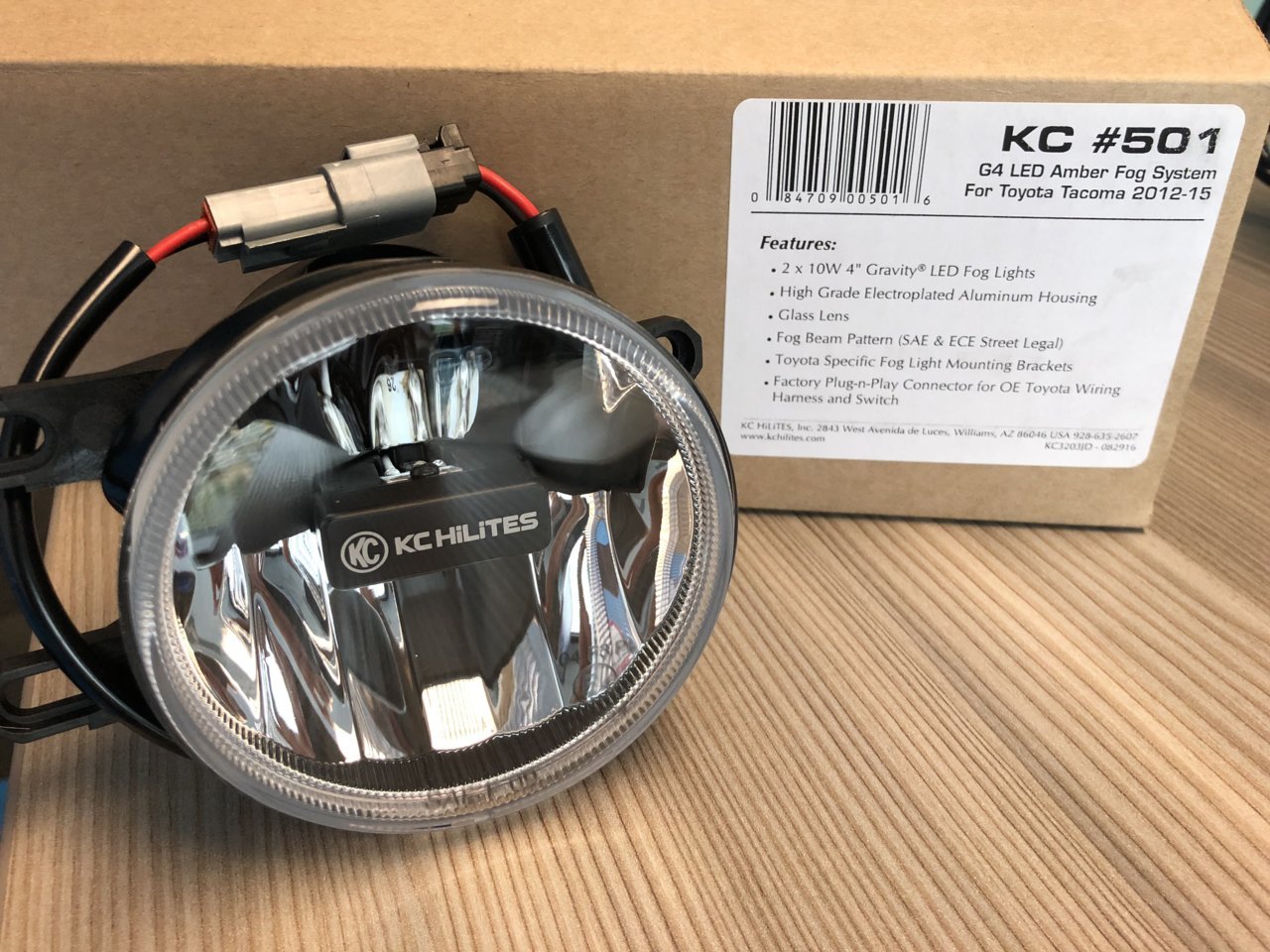

    So how do the KC Amber G4s stack up?



    The KC Amber G4 produce an outstanding amber color, I measured the color temp at about 1800k. These are very amber fogs and should do excellent in poor weather conditions.

    Comparing to the 5000k KC G4s
    You can see the output of the Amber G4s does pay a penalty compared to the white G4s.


    In inclement weather you want to avoid short wavelength light which refracts very easily, causing you to see the snow/rain/fog in the air and not the roadway past it. Eliminating the short wavelength light greatly reduces that refraction off the precipitation so you are not illuminating the fog as the light isn't 'bouncing back at you' and instead illuminating the roadway beyond it. You can see in the spectrum comparison that while the amber lights put out less overall light than the white G4s, the short wavelength light has been eliminated from the spectrum for better poor weather performance.



    Of all the fogs in this thread, in my mind there are only two real contenders, KC and Rigid. Everything else compromises on reduced beam coverage and lower output. So how do the heavy weights of KC's true amber G4s compare with Rigids filtered lens amber pod?

    Rigid pod top (3070k) vs KC Fog bottom (1790k)

    Pattern width. I checked horizontal throw, as this has come up as a hot topic. The KCs offer a wider throw pattern than Rigid.

    KC is far more amber vs Rigid's more yellow.

    What does this mean for lux?
    Rigid 318 lux vs KC 127 lux.

    Lots of info, what does it all mean? KC produces a better amber color light with a wider beam pattern meaning they should have superior performance in the worst foul weather conditions. However Rigid produces much more light overall though the beam pattern is narrower and the light color is yellower. Rigids higher light intensity and yellower color would be better for a multi-purpose light, providing improved performance over their white lights in fog but not matching KC's low amber color temp for extreme weather where you want to minimize refraction by using amber for best light 'penetration'.

    Last edited: Nov 15, 2018
  17. Nov 15, 2018 at 1:01 AM
    #357
    m603holden

    m603holden @Koditten Pirate Radio member #063

    Joined:
    Oct 18, 2014
    Member:
    #140581
    Messages:
    8,106
    Gender:
    Male
    First Name:
    Marteeen
    New England
    Vehicle:
    2017 Tacoma DCSB OR MT
    Lots of sail boat fuel
    Awesome. BTW both real truck and CARid show them in stock as well. CARid doesn't have them, and real truck has been back pedaling for a week. Thanks for the update on summit. Getting a refund from realtruck and calling Summit first thing in the morning.

    crashnburn80 [OP] likes this.
  18. Nov 15, 2018 at 1:13 AM
    #358
    m603holden

    m603holden @Koditten Pirate Radio member #063

    Joined:
    Oct 18, 2014
    Member:
    #140581
    Messages:
    8,106
    Gender:
    Male
    First Name:
    Marteeen
    New England
    Vehicle:
    2017 Tacoma DCSB OR MT
    Lots of sail boat fuel
    Btw sorry, I qouted you everywhere with that post to update the people who have been watching these and waiting for this review. Haha

    micwillia and crashnburn80 [OP] like this.
  19. Nov 15, 2018 at 4:09 AM
    #359
    MadRiverTaco

    MadRiverTaco Join TW, they said. It's free, they said

    Joined:
    Sep 10, 2015
    Member:
    #163915
    Messages:
    1,575
    Gender:
    Male
    First Name:
    Brenden
    Mad River Valley, VT
    Vehicle:
    2012 Black DCSB TRD OR
    ARE CX, 5100's FF, 5160's RR, 885X's, Dakars, SPC LR UCA's, ST Maxx's (265/75/16), BORA 1.25" spacers, Rigid Side shooter ditch lights, ATHF bedside reinforcements, NFab predator steps, OME carrier bearing drop bracket, extended rear brake lines, Northstar 27F battery, Yakima Jetsream crossbars, OEM roof rack, OEM skid plate, faux TRD Pro grill, BensonX bedside tool mounts, fire extinguisher bedside mount, AMP research bed step, Redline Tuning hood struts, ECGS needle bearing mod, Differential breather mod, A-pillar RAM mounts w/ cell phone holder, ProEFX tow mirrors with turn signals and heat, "Raptor" lights, DEPO taillights, motorized Pop n' Lock, AVS vent visors and bug deflector
    Thank you thank you thank you! I was researching an amber fog light for my harsh winter conditions and the G4's are it. The thoroughness on the data and testing is really appreciated :cheers:

    crashnburn80 [OP] likes this.
  20. Nov 15, 2018 at 5:53 AM
    #360
    Rick_Taco

    Rick_Taco I'll do it myself

    Joined:
    Feb 20, 2018
    Member:
    #245008
    Messages:
    558
    Gender:
    Male
    First Name:
    Rick
    Indiana
    Vehicle:
    '13 DCSB 4WD Limited MGM 64K Miles
    Bird Dog RVM Bracket, Tint 20% all around, Spider Trax 1.250" wheel spacers K&N Drop in air filter Ram Mount A Pillar (And hard wire charging) Dual 2.4amp Charging USB LED Lower Center Dash Light Center Console Light Trailer plug moved to bumper Tonneau Cover Air Pump Filter Upgrade (UNI Filter) Ultimate reverse light upgrade (Phillips 18161) Anytime Fog Lights Blue LED shift light Mods to Buy Short Term: Ultimate Headlight Upgrade Ultimate Fog light Upgrade Wheelers Bump Stops On Board Compressor Mods to Buy Long Term: Billys and 885's OME leafs & Billys BFG TA K02
    The Amber on the KC's is absolutely beautiful!!

    crashnburn80 [OP] likes this.
