The Lumpskie Build - '96 5-speed

Discussion in '1st Gen. Builds' started by Lumpskie, May 17, 2013.

  1. May 19, 2013 at 4:48 PM
    #41
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    50,183
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
    Yea looks I retesting..not sure what coils would fit them tho..I might look into it more. Would be cool for sure. I could sell my 5100s in a heart beat on here to help offset cost a bit. As could you. But not sure I'd want to if the jeep shocks didn't work! Haha

    And shit sorry. I forgot yours were 12"

    Extended is 27.68 collapsed is 16.10

    I doubt your at the bottom of 27" I know I'm pretty close if not maxing out my 10" ones.

  2. May 19, 2013 at 8:03 PM
    #42
    Lumpskie

    Lumpskie [OP] Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,897
    Gender:
    Male
    Colorado
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking
    Yeah, I'm in the same boat with the jeep shocks. I know there are a couple of other guys out here that might give it a try. If they prove it works, then I'll let you know:cheers:

    As far as the rear shocks go, it's good to know that I should still have some length to play with... just in case I decide to do something drastic down the road. (I'm sure you know what that feels like):spy:

  3. May 19, 2013 at 8:08 PM
    #43
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    50,183
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
    Honestly I dont think it would be worth it. The cvs will bind horribly with at much droop. Why the arms are longer too in LT.

    Drastic..I like drastic..:D

  4. May 20, 2013 at 12:44 PM
    #44
    Lumpskie

    Lumpskie [OP] Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,897
    Gender:
    Male
    Colorado
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking
    ^That's why you need to get your dual cases and a rear ARB. Go big or go home!:evil:

  5. May 20, 2013 at 12:54 PM
    #45
    NYCO

    NYCO ┌∩┐‹(ಠ_ಠ)›┌∩┐

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    15,868
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    nice build you have going on here :thumbsup:

  6. May 20, 2013 at 12:55 PM
    #46
    Davtopgun

    Davtopgun All go, No show

    Joined:
    Feb 17, 2011
    Member:
    #51350
    Messages:
    3,268
    Gender:
    Male
    First Name:
    David
    Central Alabama
    Vehicle:
    95 Tacoma Sr5 4x4
    Heavy duty 4.56 gears front and rear, ARB air lockers front and rear, WARN hubs, VIAIR ultra duty OBA, Addicted offroad winch bumper, Recon 10,500lb waterproof winch with synthetic line, ProComp Steelies wrapped in 35" general grabber red labels, dakar leaf pack with 2" toytec lift shackles, 10" Billies in the rear, OME 882's with OME Nitrochargers and LR UCA's in the front, WARN recovery kit, extra shackles, 60" Extreme Hi Lift, Hi Lift handle all, home made spare tire carrier, Stubbs welding HD SKO sliders, OTTRW Switches, 20" double row LED Lightbar, ARB Safari Snorkle, AFE Pro Dry S drop in air filter, Optima Yellow Top battery. Work in progress!
    :drool: I really want a crawl box. But, in the constant muddy terrain around here, I'm not sure it would make much of a difference.

    Don't forget the front ARB! It makes for a CV snapping good time!

  7. May 20, 2013 at 1:49 PM
    #47
    Lumpskie

    Lumpskie [OP] Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,897
    Gender:
    Male
    Colorado
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking
    Thanks man! If you're ever near chatfield lake, you should check it out!

    That's why I'm not locked up front... I'm skerred:tinfoilhat:

  8. May 20, 2013 at 3:17 PM
    #48
    Lumpskie

    Lumpskie [OP] Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,897
    Gender:
    Male
    Colorado
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking
    Ok, back to work on this thread. So, building a dual transfer case setup comes in three major sections...

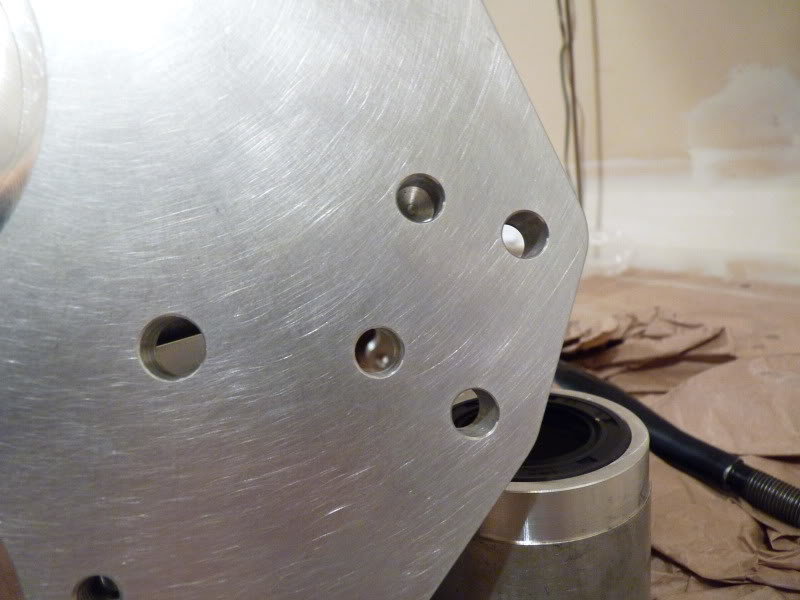

    #1 Drilling and prep (includes removal of stock t-case and driveshafts)
    #2 Dry fitting process
    #3 Final Install

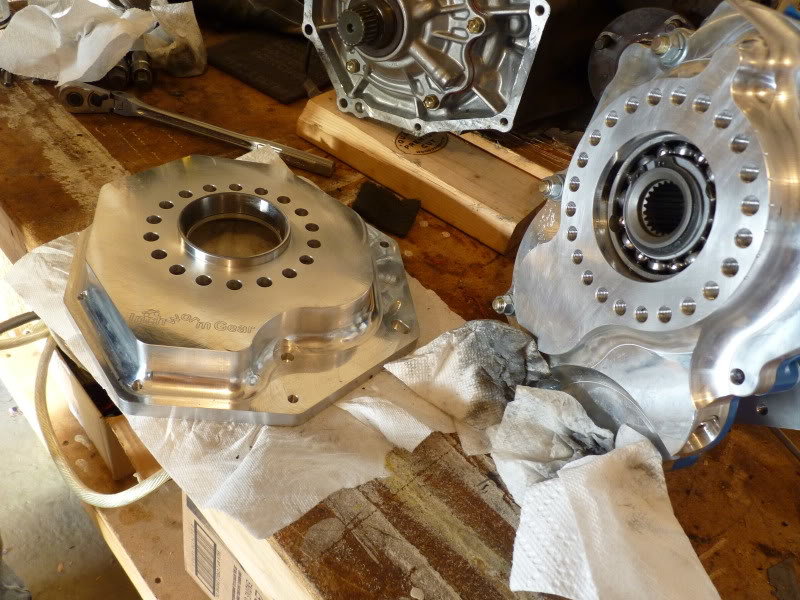

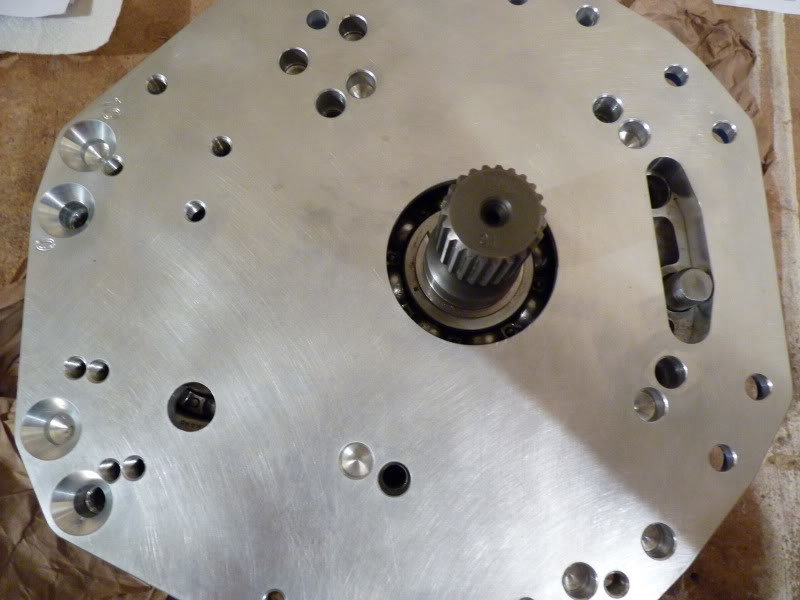

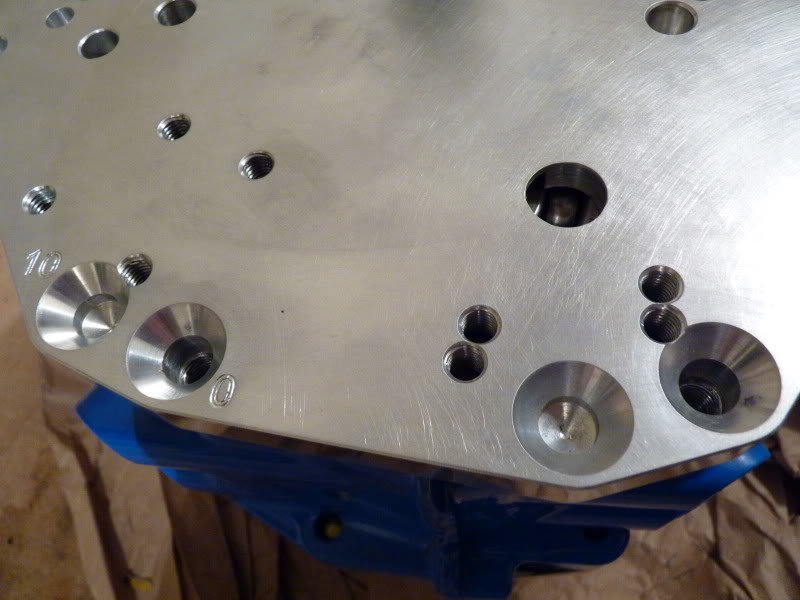

    So, the Inchworm adapter plate (t-case to t-case) comes with a 0 degree and 10 degree clocking option. This is the clocking for the crawl box. I chose the 0 degree option. With the help of a drill press owning buddy, I got 7 holes drilled into my front adapter plate. These holes will have the crawl box clocked at 0 degrees. We also filed down some burrs, and flattened out a section that wasn't quite flat.
    [​IMG]

    [​IMG]

    [​IMG]

  9. May 20, 2013 at 3:20 PM
    #49
    Lumpskie

    Lumpskie [OP] Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,897
    Gender:
    Male
    Colorado
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking
    Step #2


    The truck went beyond the point of no return, thanks to the the help of my buddy, Gerdo. Pulled off the driveshafts and dropped them off at Rocky Mountain Driveline. Then we got busy on the crawl box stuff. We pulled my transfer case off, split it, and resealed it. (it had a slow leak) Then we bolted the two cases together and started the dry-fit process. After some banging on the floor, we got the cases into what will be their final position. (~15* clock)


    Pictures:

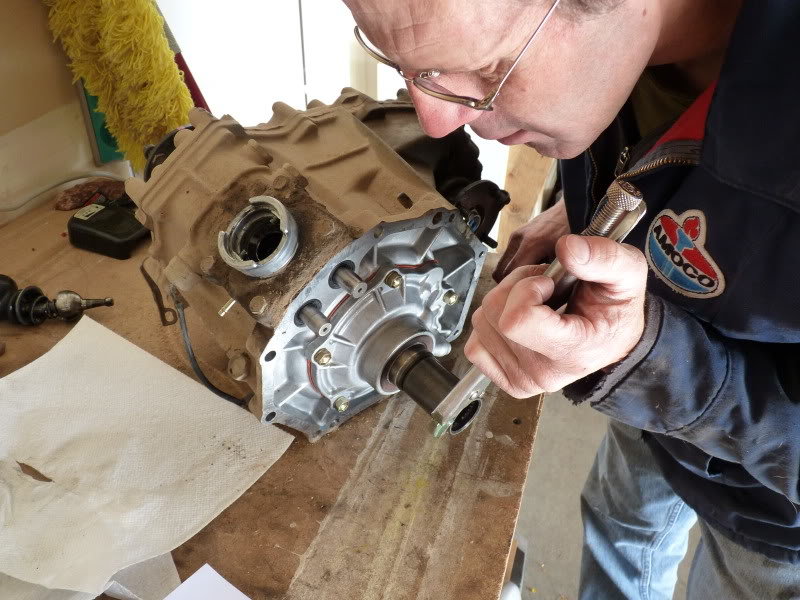

    Gerdo removing coupler from the stock t-case
    [​IMG]

    Floor Clearance done.
    [​IMG]

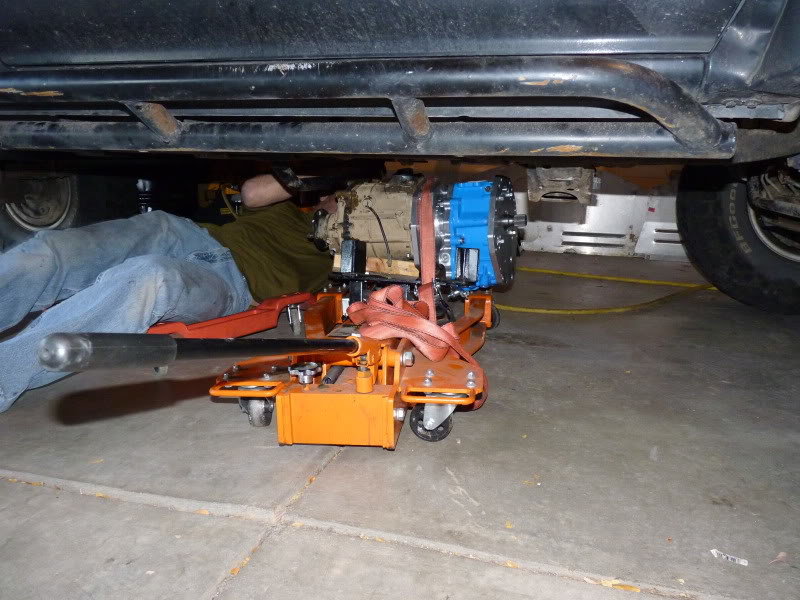

    On the jack, rolling under the truck (we ended up just bench pressing it)
    [​IMG]

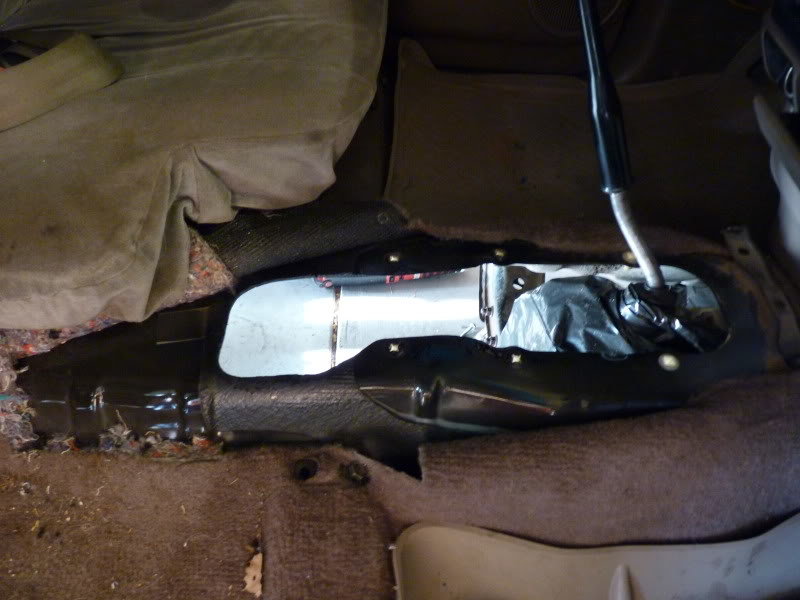

    View through the floor
    [​IMG]

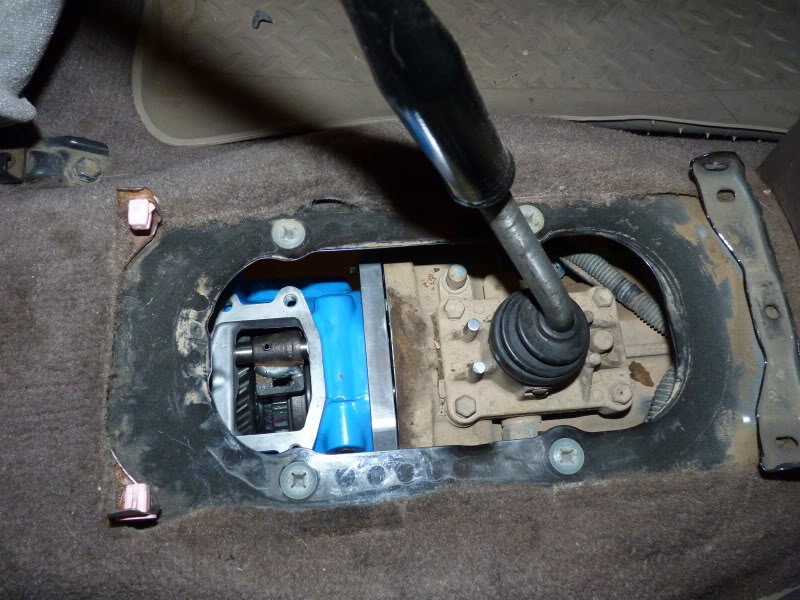

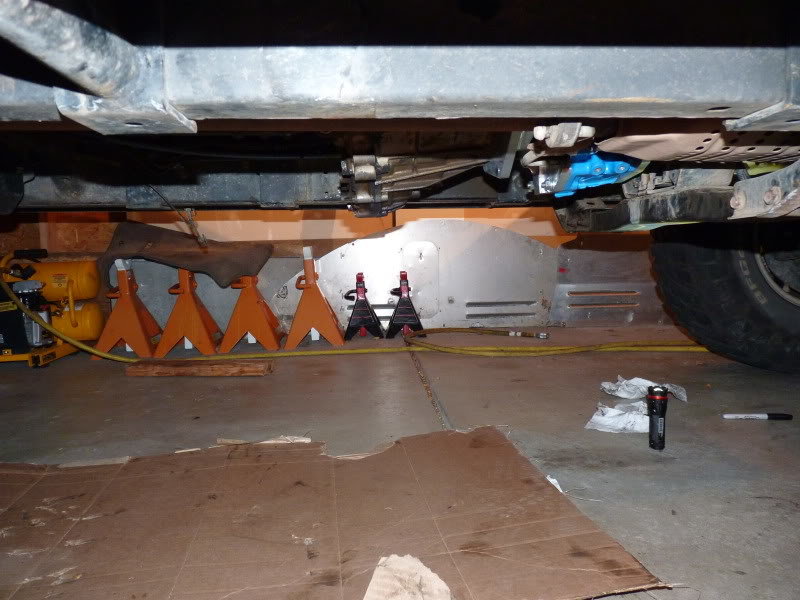

    View from under the truck. Clocked ~15 degrees, the T-case is almost flush with the frame rails. Close enough for me.
    [​IMG]

    [​IMG]

    Last edited: May 20, 2013
  10. May 20, 2013 at 3:24 PM
    #50
    Lumpskie

    Lumpskie [OP] Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,897
    Gender:
    Male
    Colorado
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking
    Step #3 Finish Floor mods and final install

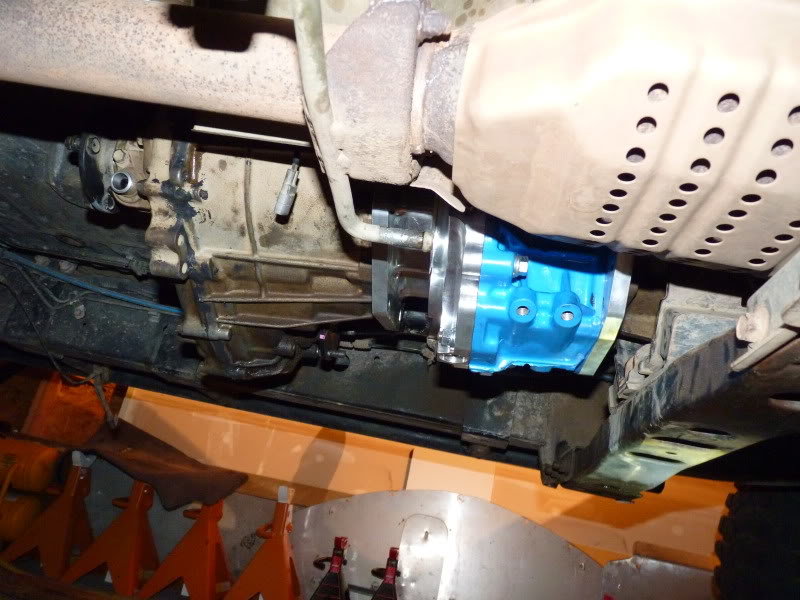

    Dual cases sealed.
    [​IMG]

    Floor cut for shifter.
    [​IMG]

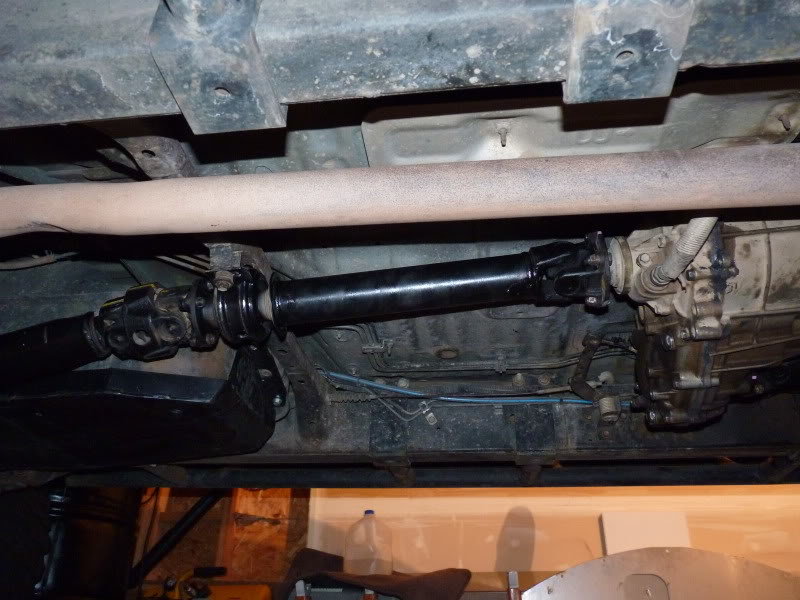

    Drive shafts modified and reinstalled.
    [​IMG]

  11. May 20, 2013 at 3:26 PM
    #51
    Lumpskie

    Lumpskie [OP] Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,897
    Gender:
    Male
    Colorado
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking

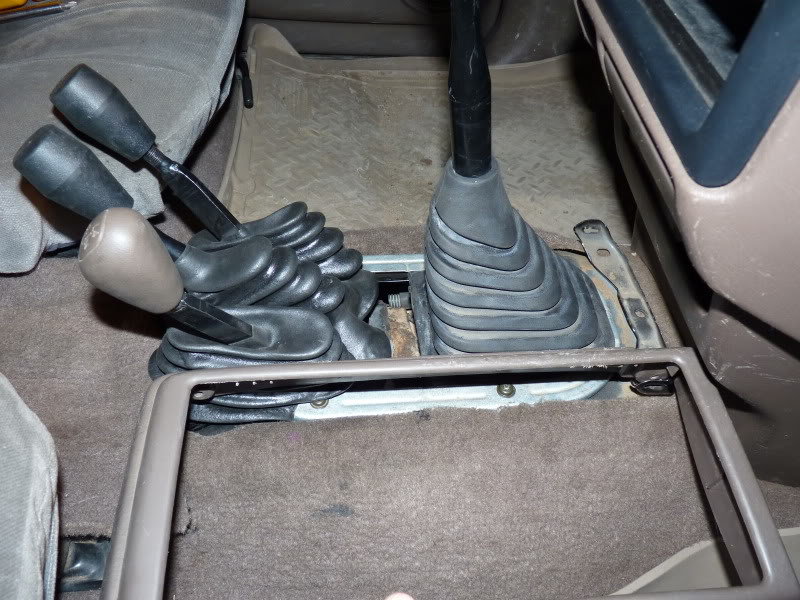

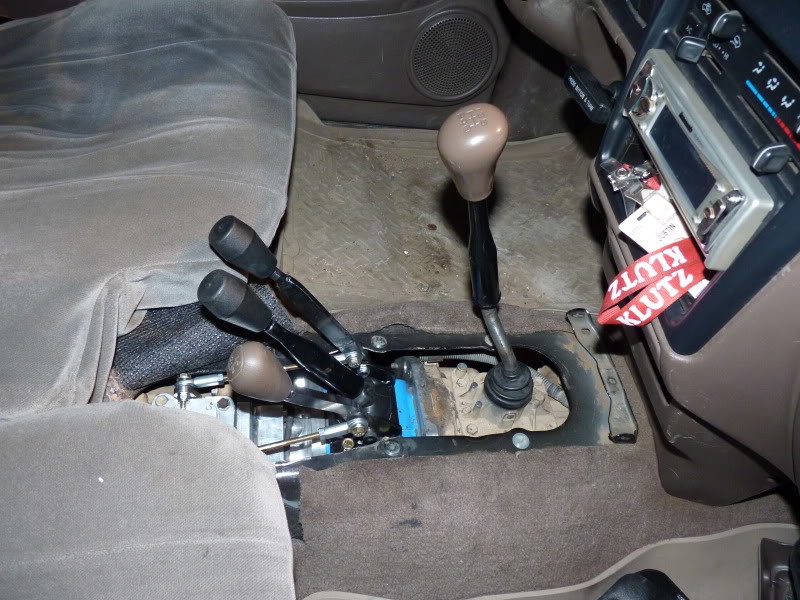

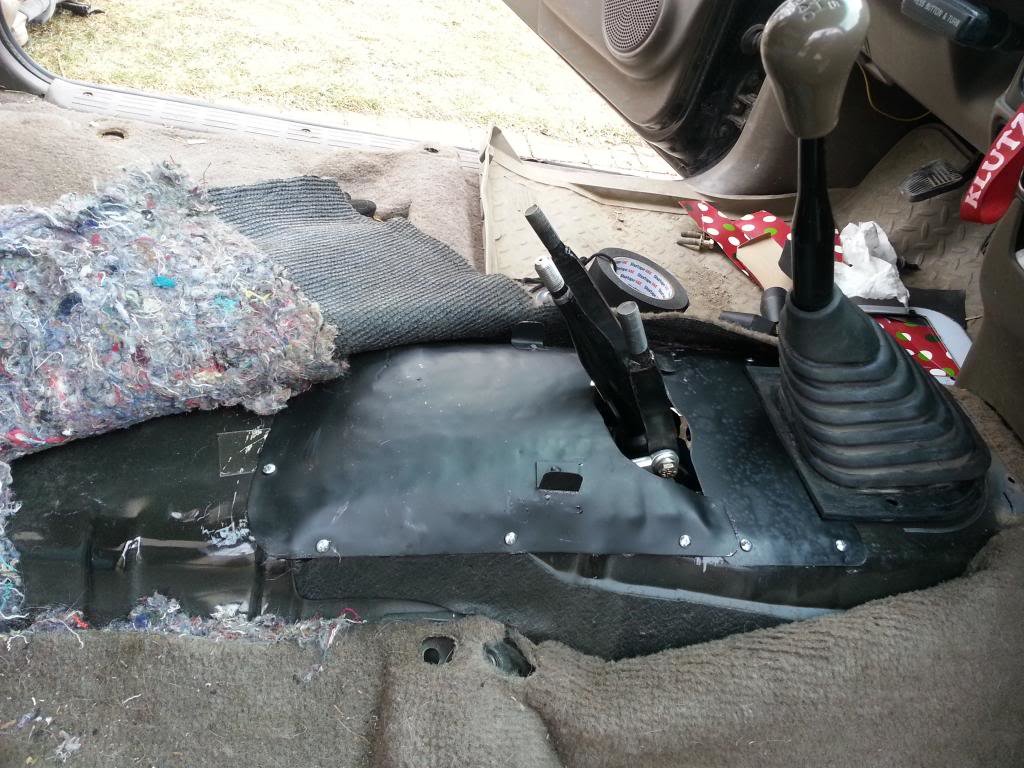

    So, that left me with an interior looking like this:

    [​IMG]

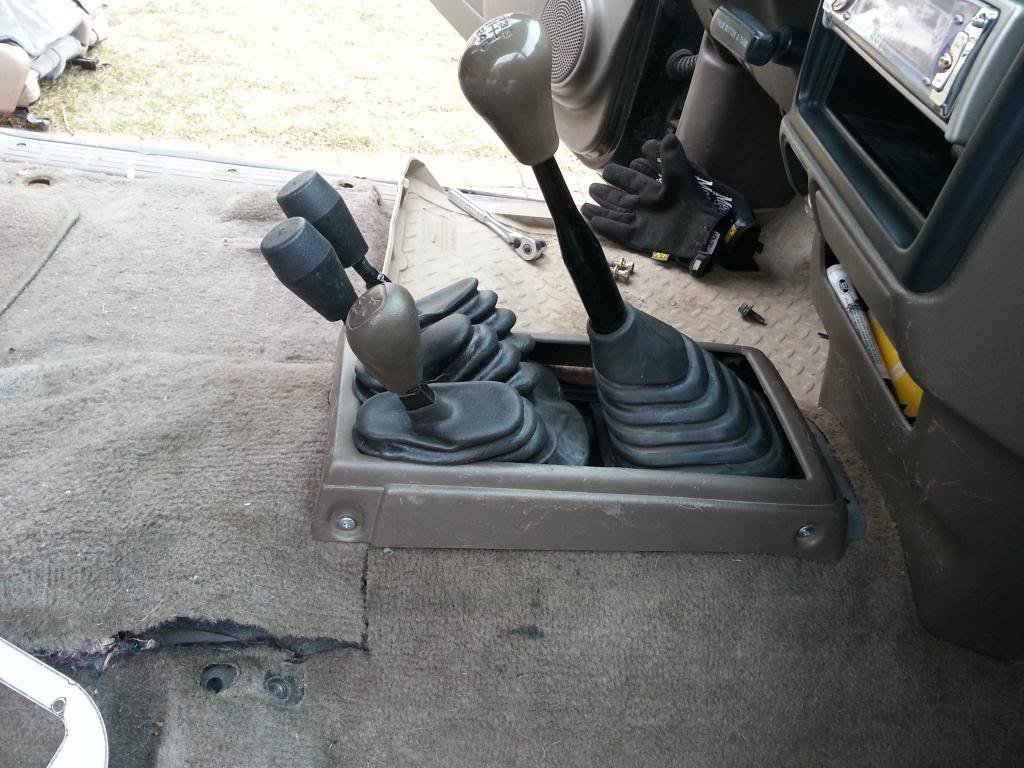

    But not for long... It was time for triple sticks....

    [​IMG]

  12. May 20, 2013 at 3:41 PM
    #52
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    50,183
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
    More like front and rears. Your even manual hubs!! Lucky. Great for front lockers.

  13. May 20, 2013 at 3:58 PM
    #53
    Lumpskie

    Lumpskie [OP] Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,897
    Gender:
    Male
    Colorado
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking
    You're right. They dual cases actually really help too. But... fixing that rear bind is objective #1 right now.

    A wise man once said Oh my... the plans... the money. He's right.

  14. May 20, 2013 at 4:34 PM
    #54
    Lumpskie

    Lumpskie [OP] Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,897
    Gender:
    Male
    Colorado
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking

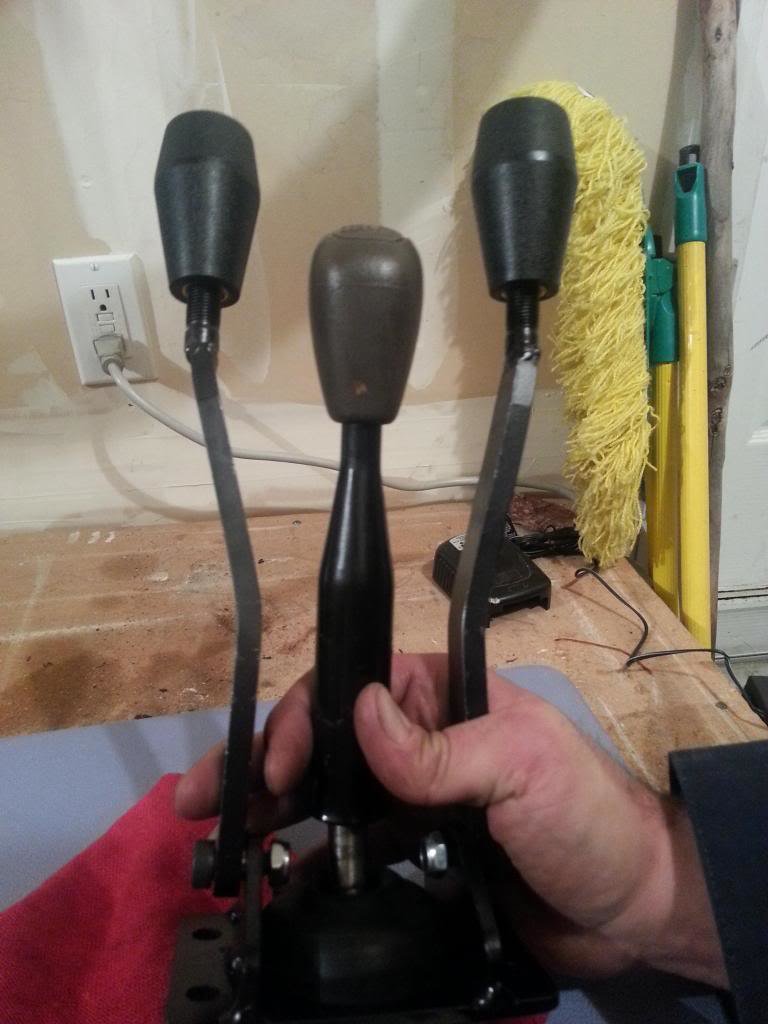

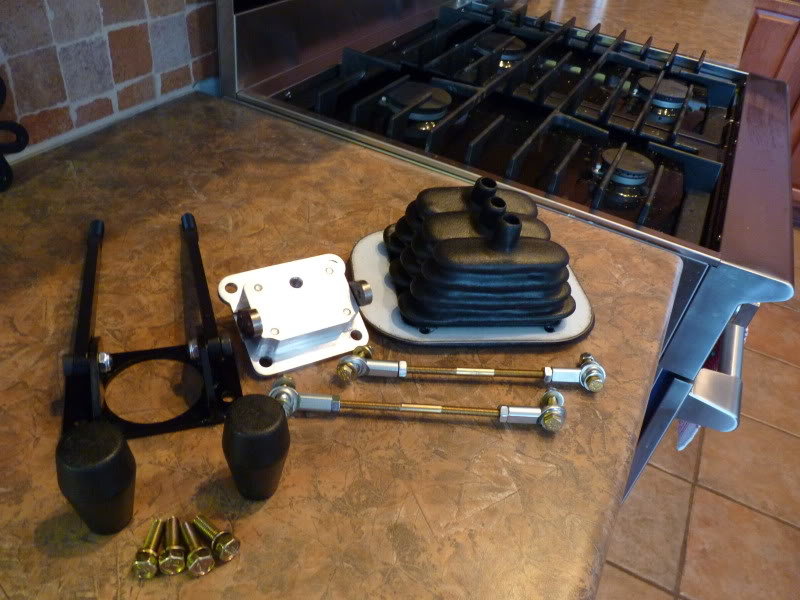

    Ok, so before I installed the triple sticks I modified them a bit. First, I bent the levers away from each other, then cut the levers to match the height of the crawl box shifter.

    [​IMG]

    iraked back the shifters 20 degrees or so and one of the lever arms underneath had to be re clearanced.

    [​IMG]

    Then I fit everything into the bezel. It have to be moved backward about 2 inches, but everything fit.
    [​IMG]

    Last edited: May 20, 2013
  15. May 20, 2013 at 6:39 PM
    #55
    toastyjosh

    toastyjosh Well-Known Member

    Joined:
    Mar 8, 2013
    Member:
    #99289
    Messages:
    318
    Gender:
    Male
    northern New mexico
    Vehicle:
    95 dark green taco
    sweet truck!!!!

    Did you use 2nd gen tundra shocks and coils?
    I will be watching about the jeep shocks as well!!

  16. May 20, 2013 at 7:13 PM
    #56
    Lumpskie

    Lumpskie [OP] Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,897
    Gender:
    Male
    Colorado
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking
    So, I used the Toytec coilover collars with 2nd gen tacoma 16" Toytec (eibach) coils. The shocks are from a first gen tundra. (I believe) What I like about this setup is that there is no spacer involved and my coilovers are set only about a third of the way up for about 3" of lift. This reduces the preload on the springs an allows them to flex really well.

    If you end up using the JK shocks, post up you experiences. I'm eager to hear how they work out!

  17. May 20, 2013 at 7:15 PM
    #57
    Lumpskie

    Lumpskie [OP] Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,897
    Gender:
    Male
    Colorado
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking

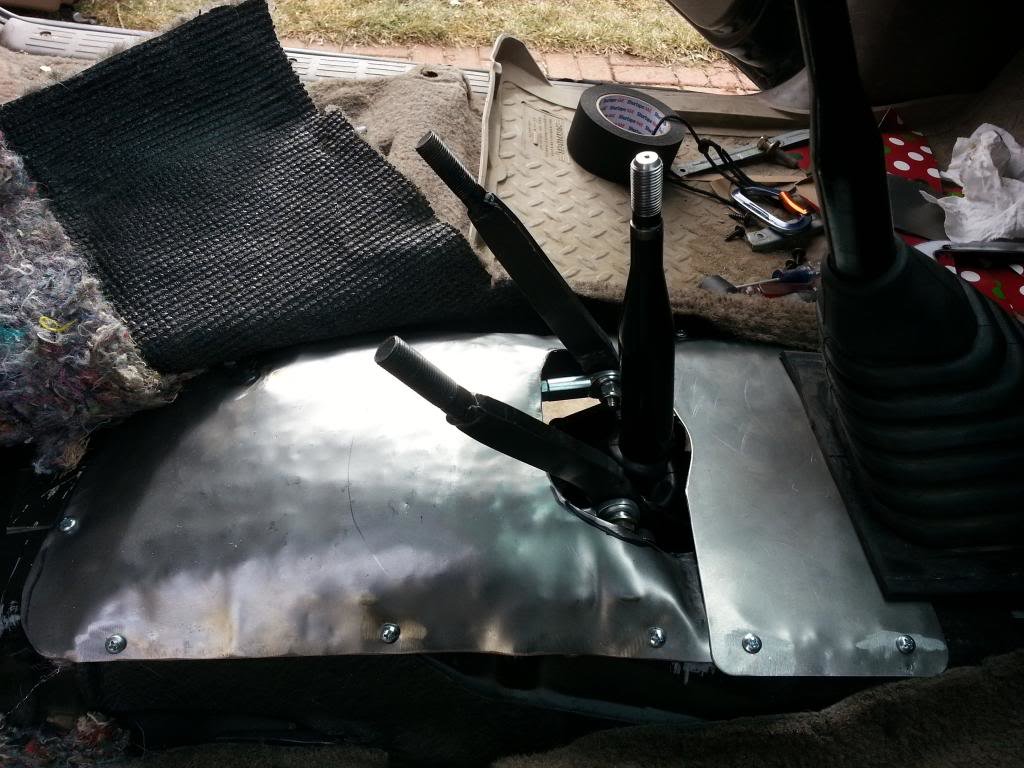

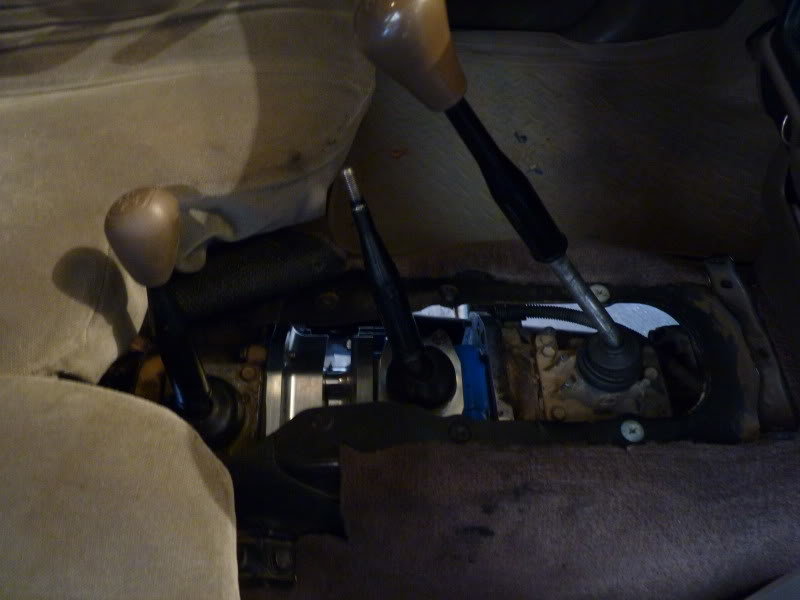

    So, after I installed the triple sticks, I had to come up with a way to hide the linkage. Most people have a center console to cover it all up but I do not. So, I decided that making a raised section of floor was the best solution. Once again, Gerdo to the rescue with his hammer on bean bag skills:


    [​IMG]

    [​IMG]

    [​IMG]

  18. May 20, 2013 at 7:23 PM
    #58
    x2468

    x2468 Well-Known Member

    Joined:
    Jul 19, 2009
    Member:
    #19879
    Messages:
    1,637
    Gender:
    Male
    Tallahassee
    Vehicle:
    '02 TRD 4wd V6 Xcab Sr5
    so what sold you on the twin stick upgrade?

  19. May 20, 2013 at 7:32 PM
    #59
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    50,183
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
    A wise man indeed :spy:

    i love that triple stick setup man..seriously so sick :drool:

    whats not to like? Have low range and low low range in 2wd drive so you can take sharp corners without the CVs binding. Freaking sweet.

  20. May 21, 2013 at 5:56 AM
    #60
    Lumpskie

    Lumpskie [OP] Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,897
    Gender:
    Male
    Colorado
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking
    So there were a couple of reasons I liked the Twin stick. The first one was related to my bench seat. The rear t-case shifter popped out just in front of the seat when I drove the truck. My wife needs the seat closer to the steering wheel to reach the pedals and she couldn't do that with the shifter there.

    The second reason was for the ability to choose 2-wheel high, 2-low, 4-low, low-low all independant of one another. I can choose where the loading in my drivetrain goes now. Also, if I choose to upgrade to 4.7 gears for the front case, I can go 2.57:1, 4.7:1 and 12.1:1 however I want.

    Finally was just aethetics. I think it looks nicer with all the shifter lined up in the stock bezel. I wanted it to look as stock as possible... I'm a nerd like that!:anonymous:
