The Torque Spec. Guide

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Benson X, Mar 1, 2014.

  1. Nov 4, 2017 at 10:40 PM
    #221
    steelhd

    steelhd Well-Known Member

    Joined:
    Dec 15, 2013
    Member:
    #118650
    Messages:
    2,845
    Gender:
    Male
    Eastern WA
    Vehicle:
    2011 DCSB TRD OR
    There is generally nothing unusual or manufacturer specific about torque specs. It's usually based on nothing more than fastener grade and diameter. When in doubt just use any of the readily available torque tables such as this one.
    http://www.engineershandbook.com/Tables/torque.htm
    Measuring fastener diameter is easy and head marking references for grade are also all over the internet.

    BudMan and Friedtacolover like this.
  2. Nov 8, 2017 at 2:49 PM
    #222
    Subway4X4

    Subway4X4 Shameless Copy Cat

    Joined:
    Nov 10, 2015
    Member:
    #169260
    Messages:
    12,045
    Gender:
    Male
    First Name:
    Lloyd
    NY/NJ
    Vehicle:
    05 Speedway Blue DCSB OR TRD
    Everything TW members recommend
    Does anyone know what the torque spec for the "jam nut" on the tie rod assembly? can't seem to find i anywhere.

    Schematic from the OP:



    Just spotted this same question:

    Last edited: Nov 8, 2017
  3. Nov 8, 2017 at 3:54 PM
    #223
    steelhd

    steelhd Well-Known Member

    Joined:
    Dec 15, 2013
    Member:
    #118650
    Messages:
    2,845
    Gender:
    Male
    Eastern WA
    Vehicle:
    2011 DCSB TRD OR
    Not sure there is one. On the "Snug" to "Put some ass into it" scale, I've always defaulted to "Put some ass into it". Not sure how that translates into Newtons or footpounds though. Sorry. :)

  4. Nov 8, 2017 at 4:19 PM
    #224
    Subway4X4

    Subway4X4 Shameless Copy Cat

    Joined:
    Nov 10, 2015
    Member:
    #169260
    Messages:
    12,045
    Gender:
    Male
    First Name:
    Lloyd
    NY/NJ
    Vehicle:
    05 Speedway Blue DCSB OR TRD
    Everything TW members recommend
    Found it! 41 ft-lbs

  5. Nov 8, 2017 at 4:37 PM
    #225
    steelhd

    steelhd Well-Known Member

    Joined:
    Dec 15, 2013
    Member:
    #118650
    Messages:
    2,845
    Gender:
    Male
    Eastern WA
    Vehicle:
    2011 DCSB TRD OR
    Hmmmm, guess I'll have to recalibrate to "Put a bit of ass into it".

  6. Nov 8, 2017 at 6:30 PM
    #226
    Subway4X4

    Subway4X4 Shameless Copy Cat

    Joined:
    Nov 10, 2015
    Member:
    #169260
    Messages:
    12,045
    Gender:
    Male
    First Name:
    Lloyd
    NY/NJ
    Vehicle:
    05 Speedway Blue DCSB OR TRD
    Everything TW members recommend
    You’re probably still right...

    If you have a scrawny little ass. :boink:

  7. Nov 8, 2017 at 6:46 PM
    #227
    jsucraig

    jsucraig Well-Known Member

    Joined:
    May 10, 2010
    Member:
    #36900
    Messages:
    729
    Gender:
    Male
    First Name:
    Craig
    Lynchburg, Virginia
    Vehicle:
    2013 Tacoma TRD Off-Road Double Cab
    Mudflaps removed, MESOJDM LED Interior lights, 886 Fog Lamps for Reverse Halogens, Redline Tuning Hood Struts, Garmin Dashcam 20, 17X8 Chrome Helo HE791 MAXX Wheels, Cooper Discoverer AT3 265/65R17, JBL Speakers, JL Sub, and Alpine & Memphis Amps, mattgecko LED Bed Light & Under Hood Kit, Truxedo Low Pro QT Tonneau Cover, OEM Bed Mat
    How's it going Mr Met... There's always next year.:fingerscrossed:

  8. Nov 17, 2017 at 3:18 PM
    #228
    TacoSauceHB

    TacoSauceHB Well-Known Member

    Joined:
    Sep 5, 2015
    Member:
    #163484
    Messages:
    828
    Gender:
    Male
    First Name:
    Brian
    Rathdrum, ID
    Vehicle:
    2017 _TRD Off-Road DCLB 4X4 Tech Package
    King 2.5 ext travel, Camburg uniball UCA, SCS Ray10 wheels, 285/75/16 Cooper STT Pro's, CMC , MBRP exhaust, K&N cai , OVTune 1.04 , T-rex billet grill, Rigid DS Pro ditch lights, SDHQ ditch light brackets, Leer 100XQ Shell.

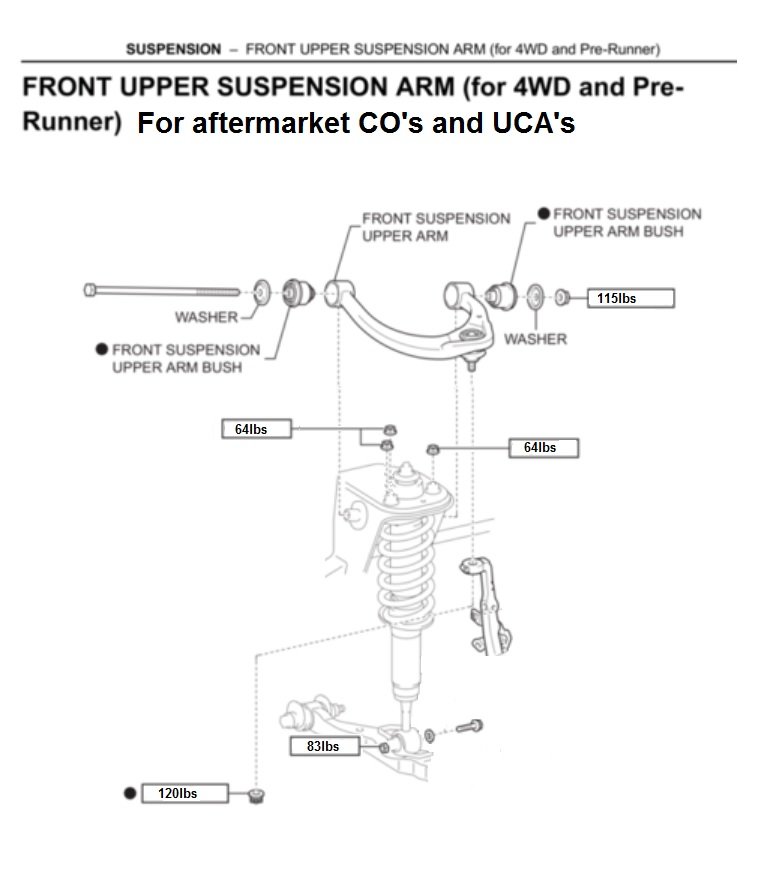

    Can anyone tell me if I got this right? Guys at Camburg told me to use 120lbs on the nut where there UCA bolts to the spindle. I made this so it was a bit easier to see when I print it out.
