The Torque Spec. Guide

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Benson X, Mar 1, 2014.

Page 18 of 19
  1. Jan 28, 2023 at 1:15 PM
    #341
    retired_librarian

    #341
    retired_librarian Member

    Joined:
    Oct 30, 2022
    Member:
    #409349
    Messages:
    9
    Gender:
    Male
    First Name:
    Theo
    Vehicle:
    2006 Toyota Tacoma
    This is terrific, thanks so much!

    retired_librarian, Jan 28, 2023
    #341
    Black97v6MT and Benson X[OP] like this.
  2. Mar 11, 2023 at 10:42 PM
    #342
    bullpen58

    #342
    bullpen58 Well-Known Member

    Joined:
    Dec 26, 2017
    Member:
    #239394
    Messages:
    92
    Gender:
    Male
    Peoria, AZ
    Vehicle:
    2021 Tacoma PRO 4x4
    Lift, wheels, tires, sliders, and skidplates...so far.
    This is probably a dumb question but when doing a torque check on suspension components, is it necessary to raise the truck off the ground or can they be torqued with weight on the springs?

    bullpen58, Mar 11, 2023
    #342
  3. Mar 12, 2023 at 1:56 AM
    #343
    Hilborn

    #343
    Hilborn Well-Known Member

    Joined:
    Dec 25, 2011
    Member:
    #69375
    Messages:
    631
    Gender:
    Male
    First Name:
    Michael
    Utah
    Vehicle:
    2009 Tacoma DCLB TRD Sport 4x4
    ADD W1 Oil Catch Can. AFE Magnum FORCE Stage-2 Si Cold Air Intake System. Anderson Engineering Solutions Manifold Spacer. ARK Splash Guards. AVS Door Sill Protectors. BAMF Bolt-On Rock Sliders. BAMF CMC Plates. BedRug. Bilstein 5100 Shocks. Brute Force HC Rear Bumper. C4 Engine Skid. C4 Transmission Skid. C4 Transfer Case Skid. C4 Fuel Tank Skid. C4 Rear Diff Skid. Cooper Discoverer ST Maxx 285/70-17. Detroit Trutrac Rear Differential. Dirt King Ball Joint Upper Control Arms. ECGS Bushing. Expedition Essentials Bedside ARB Air Compressor Mount. Genesis Gen 3 Dual Battery System w/ G Screen. HCF Delete. Husky Floor Liners. Hypertech In-Line Speedometer Calibrator (@1.038). IGGY Switch Panel. Leer 100XQ. Magnaflow Muffler. Method Vex Titanium 17x8.5. Yukon 4.56 Gears. Odyssey Performance Group 34 Batteries (2). OME 886x Coil Springs. OME Carrier Bearing Spacers. OME CS047R Dakar Leaf Springs w/ D29XL. Pakrax Tailgate Panel. Pinch Weld Mod. Pop n' Lock. Power Stop Z36 Truck and Tow Brake Pads. rcbs204 Illumited 4x4 Switch. Rear Differential Breather Relocation. Rexing V1 Dash Cam. Scanguage 2 w/ TFT. Stahlbus Oil Drain Plug. Stoptech Cryo-Treated Rotors. Sway Bar Delete. Toyota 70mm Throttle Body. ToyTec Axle Degree Shims. URD 170° Thermostat. URD 65 to 70mm Throttle Body Adapter. URD Exhaust Cam Gears. USA Spec IPod Interface. Vibrant Ultra Quiet Resonator. Voltage Booster Pro. Wheeler's 3/8" Top Plate Spacer (Driver). Wheeler's Brake Lines. Wheeler's Front SuperBumps with 3/8" Spacers. Wheeler's U-Bolt Flip Kit w/ SuperBumps.
    Some request that the vehicle be on the ground

    Hilborn, Mar 12, 2023
    #343
    bullpen58 likes this.
  4. Mar 12, 2023 at 4:56 AM
    #344
    Hook78

    #344
    Hook78 Well-Known Member

    Joined:
    Dec 3, 2017
    Member:
    #237571
    Messages:
    6,453
    Gender:
    Male
    Eastern NC
    Vehicle:
    2015 DCSB TRD OR
    Bilstein 6112/5160 Icon RXT
    Example: leaf spring / shackle attach bolts. Should be torqued with the vehicle sitting fully on the ground.

    Hook78, Mar 12, 2023
    #344
    bullpen58[QUOTED] likes this.
  5. Mar 12, 2023 at 10:24 AM
    #345
    WrecklessAbandon

    #345
    WrecklessAbandon They call me skippy

    Joined:
    Mar 25, 2019
    Member:
    #287913
    Messages:
    4,549
    Gender:
    Male
    First Name:
    Travis
    Olympia, WA
    Crocs with socks
    General rule of thumb, if it’s load bearing, torque on the ground esp if it has rubber bushings (ex - UCA, LCA, lower shock mount).

    WrecklessAbandon, Mar 12, 2023
    #345
    SR-71A, Toyotico and bullpen58[QUOTED] like this.
  6. Mar 12, 2023 at 10:29 AM
    #346
    smikski

    #346
    smikski Well-Known Member

    Joined:
    Mar 31, 2017
    Member:
    #214939
    Messages:
    156
    Vehicle:
    2016 4x4 2.7 - 3 pedals
    skid plates , leer cap , thule roof rack , tires 1 size up
    Thank you great information

    smikski, Mar 12, 2023
    #346
    Benson X[OP] likes this.
  7. Apr 7, 2023 at 9:24 AM
    #347
    Benson X

    #347
    Benson X [OP] My build thread sucks...

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    5,676
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    If you don't draw blood, you're doing it wrong!
    Z is ft./lbs.

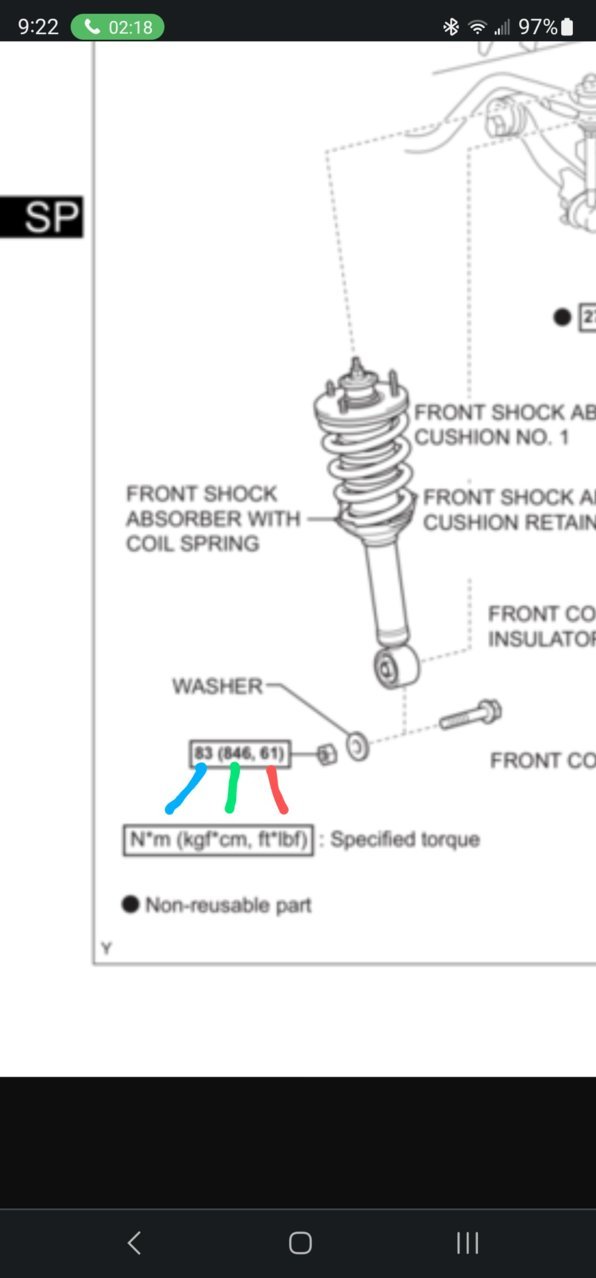

    There is a legend key at the bottom of each diagram to show what the numbers are:

    Benson X, Apr 7, 2023
    #347
    H3llRid3r likes this.
  8. May 23, 2023 at 1:29 PM
    #348
    Age315

    #348
    Age315 Well-Known Member

    Joined:
    Mar 9, 2016
    Member:
    #180757
    Messages:
    945
    Gender:
    Male
    First Name:
    AJ
    Castle Rock, CO
    Vehicle:
    2016 BBP Yeti Mobile
    TRD Baja Kit with JBA UCA's 1/2 inch spacer on top, Medium Dakars with BAMF hangars and super bumps all around. 285/75/16 Cooper Discoverer AT3 XLT's on graphite TRD faux beadlock wheels. Pro skid powder coated black with Pelfreybilt aluminum mid skid and aluminum gas tank skid.
    Helped me yet again. Thanks to everyone who has contributed

    Age315, May 23, 2023
    #348
    Benson X[OP] likes this.
  9. Sep 18, 2023 at 3:23 PM
    #349
    super_white

    #349
    super_white Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    6,960
    Gender:
    Male
    First Name:
    Harry
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    Some items are missing from the 1st page. Let me know if I missed something and can we get a mod to add the images to the first post?

    2WD

    4WD and Prerunner

    super_white, Sep 18, 2023
    #349
    Hook78 and Benson X[OP] like this.
  10. Sep 18, 2023 at 3:45 PM
    #350
    Benson X

    #350
    Benson X [OP] My build thread sucks...

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    5,676
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    If you don't draw blood, you're doing it wrong!
    Good catch - you're the first person in 9.5 years to catch that! :thumbsup:

    Those image links were broken from when the diagrams used to be hosted on DropBox. I updated and re-linked them to my TW Media Gallery, so the images/diagram should be working now.
    :cheers:

    Benson X, Sep 18, 2023
    #350
    Black97v6MT, Toyotico, Littles and 2 others like this.
  11. Sep 18, 2023 at 4:55 PM
    #351
    super_white

    #351
    super_white Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    6,960
    Gender:
    Male
    First Name:
    Harry
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    Had a mod day yesterday. I helped a friend replace his steering rack and saw the torque specs were missing so I had to add them.

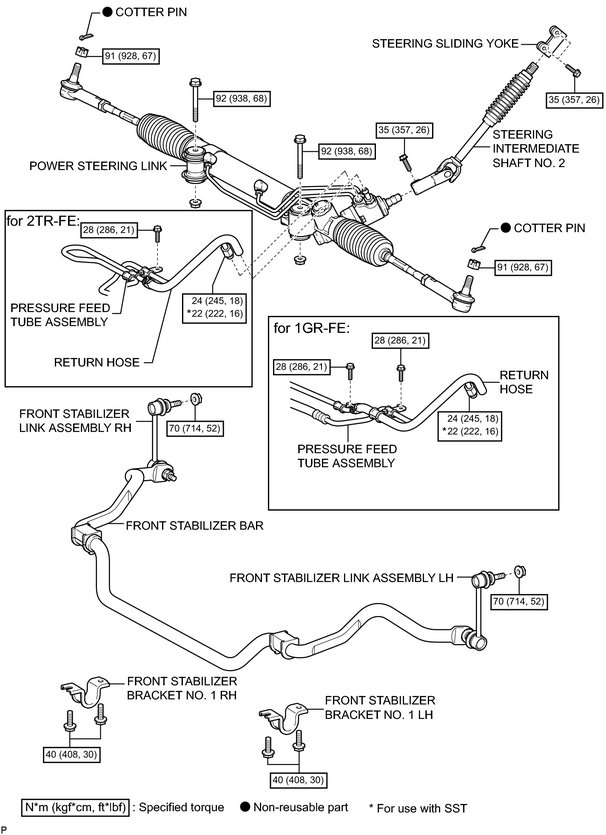

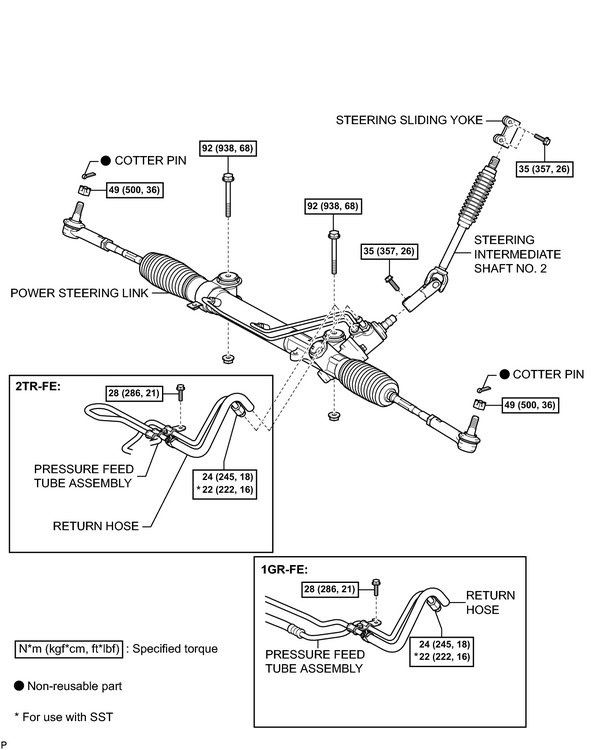

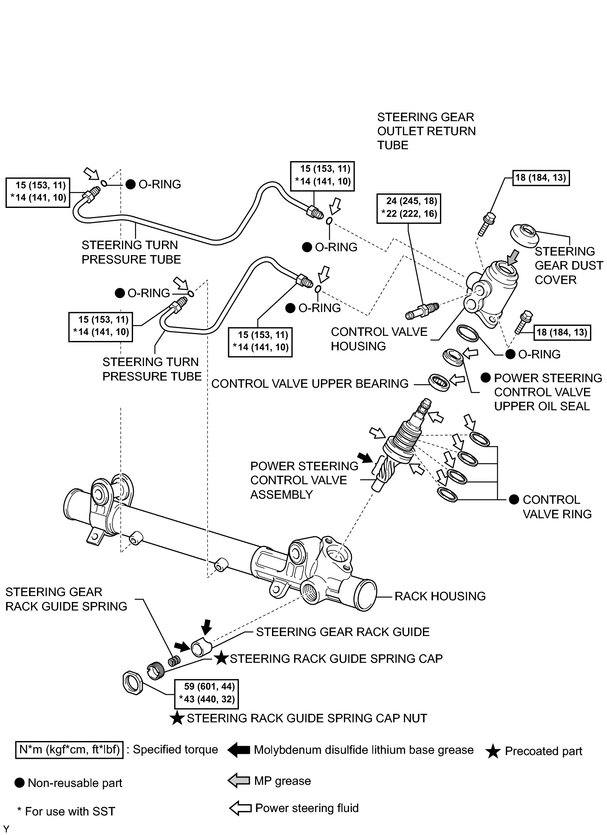

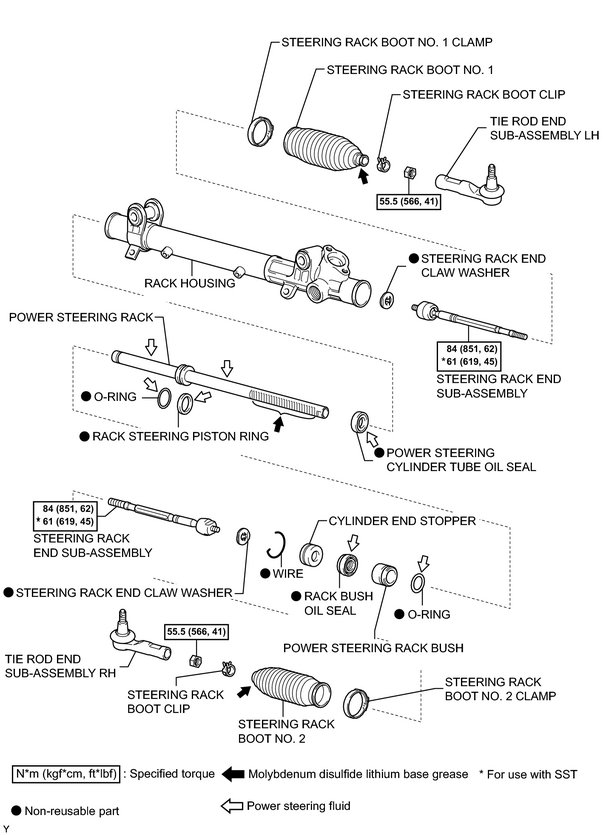

    super_white, Sep 18, 2023
    #351
    Black97v6MT, Benson X[QUOTED][OP], H3llRid3r and 1 other person like this.
  12. Jan 29, 2024 at 11:56 AM
    #352
    johnnytwotimes

    #352
    johnnytwotimes Well-Known Member

    Joined:
    Feb 3, 2021
    Member:
    #354931
    Messages:
    188
    Gender:
    Male
    SoCAL
    Vehicle:
    2021 TRD OR DCSB
    Torque specs for u bolts? I know it’s not 37 ft lbs can someone chime in?

    johnnytwotimes, Jan 29, 2024
    #352
  13. Jan 29, 2024 at 11:58 AM
    #353
    Benson X

    #353
    Benson X [OP] My build thread sucks...

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    5,676
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    If you don't draw blood, you're doing it wrong!
    It's been a topic of debate for years. 37 does seem way too low.

    I think the consensus is they must've transposed the numbers (should be 73 ft/lbs??) but I just tighten them down to about 80 ft/lbs, or 4-5 ugga-duggas and call it good.

    Benson X, Jan 29, 2024
    #353
    johnnytwotimes[QUOTED] and Yacob_D like this.
  14. Jan 29, 2024 at 12:03 PM
    #354
    Hook78

    #354
    Hook78 Well-Known Member

    Joined:
    Dec 3, 2017
    Member:
    #237571
    Messages:
    6,453
    Gender:
    Male
    Eastern NC
    Vehicle:
    2015 DCSB TRD OR
    Bilstein 6112/5160 Icon RXT
    Yep 73. Blame dyslexia?

    Hook78, Jan 29, 2024
    #354
  15. Jan 29, 2024 at 12:03 PM
    #355
    TnShooter

    #355
    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    18,630
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    The 2021 FSM says to use 52 ft/lbs

    TnShooter, Jan 29, 2024
    #355
    Benson X[OP] likes this.
  16. Jan 29, 2024 at 12:06 PM
    #356
    TnShooter

    #356
    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    18,630
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    TnShooter, Jan 29, 2024
    #356
  17. Jun 10, 2024 at 7:37 AM
    #357
    Black97v6MT

    #357
    Black97v6MT 357k on the 0D0 ... 5VZFE R150F 4WD

    Joined:
    May 9, 2024
    Member:
    #449422
    Messages:
    443
    27+ years of livin' Gen1 TacoLife...
    Last edited: Jun 10, 2024
    Black97v6MT, Jun 10, 2024
    #357
    Benson X[OP] likes this.
  18. Jun 10, 2024 at 9:27 AM
    #358
    Benson X

    #358
    Benson X [OP] My build thread sucks...

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    5,676
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    If you don't draw blood, you're doing it wrong!
    I can't find them in the FSM guide.

    I did find the install PDF for the OEM Skid Plate (
    $233 PT212-35075 Front Skid Plate
    PT212-35075) which uses that same sub-assy piece(s) and stock bolts for installation.

    The install PDF (attached herein) lists the torque specs for those bolts at 21ft/lbs.


    Attached Files:

    Benson X, Jun 10, 2024
    #358
    TnShooter likes this.
  19. Jun 11, 2024 at 4:28 AM
    #359
    Black97v6MT

    #359
    Black97v6MT 357k on the 0D0 ... 5VZFE R150F 4WD

    Joined:
    May 9, 2024
    Member:
    #449422
    Messages:
    443
    27+ years of livin' Gen1 TacoLife...
    is there a spec manual that an autobody tech might use?
    perhaps it is listed in something such as that?

    Black97v6MT, Jun 11, 2024
    #359
  20. Jun 11, 2024 at 6:57 AM
    #360
    crashngiggles

    #360
    crashngiggles Tacomaworld's Resident Psych Dr.

    Joined:
    May 17, 2015
    Member:
    #155446
    Messages:
    6,803
    Gender:
    Male
    First Name:
    Jared
    Wilbraham, Massachusetts
    Vehicle:
    2013 MGM TRD 4x4 DCLB Trail Limo
    @super_white Harry might be able to help with this......Tagging him

    crashngiggles, Jun 11, 2024
