The Ultimate Headlight Upgrade vs Philips LED headlights

Discussion in 'Lighting' started by crashnburn80, Nov 12, 2016.

  1. Nov 12, 2016 at 10:44 PM
    #1
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,747
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    I recently compared unshielded Opt7 LEDs against the ultimate headlight upgrade and the LEDs had significant glare issues and very poor beam performance. Philips claims to have clean cut offs and says directly on the box it will not inflict glare to oncoming drivers. Coming from a major name brand reputable manufacture, I was curious to give them a try and compare them to the ultimate headlight upgrade.

    Philips 2500 lumen LEDs vs Osram 5800 lumen high powered halogens

    LEDs:
    The Philips LEDs are intriguing as every aspect of the design seems to be done the right way. From a major well known manufacture, claims of actually being compatible with a stock halogen reflector and not producing glare and using innovative passive cooling technology while maintaining the OEM headlight seal. I purchased the Philips LEDs from XenonDepot on sale for $200.

    Halogens:
    The halogens in this experiment are the 5800 lumen Osrams from the Ultimate headlight upgrade. These bulbs are over 100% brighter than stock while still maintaining reasonable bulb life. These are a significant light output upgrade without compromising optics by utilizing technology that is designed for the stock reflector halogen lens. Cost about $120.

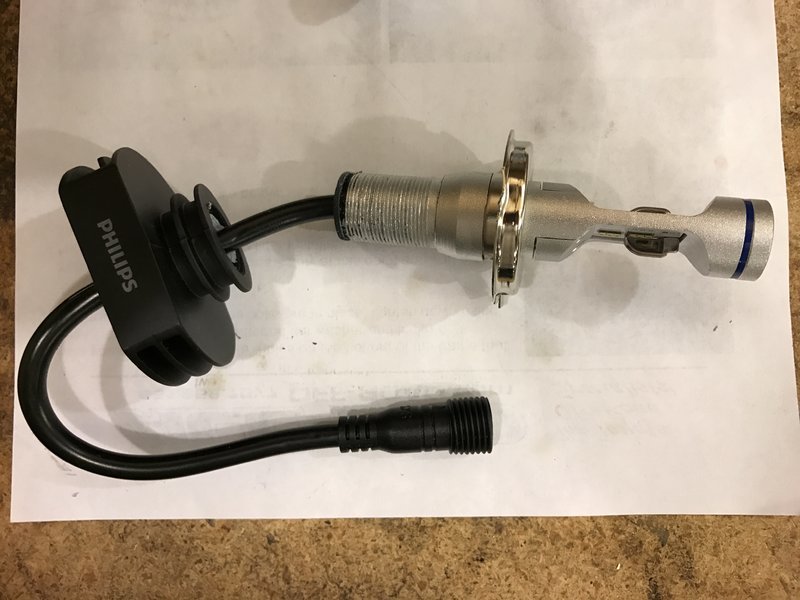

    Right on the Philips LED box, no glare to oncoming drivers.

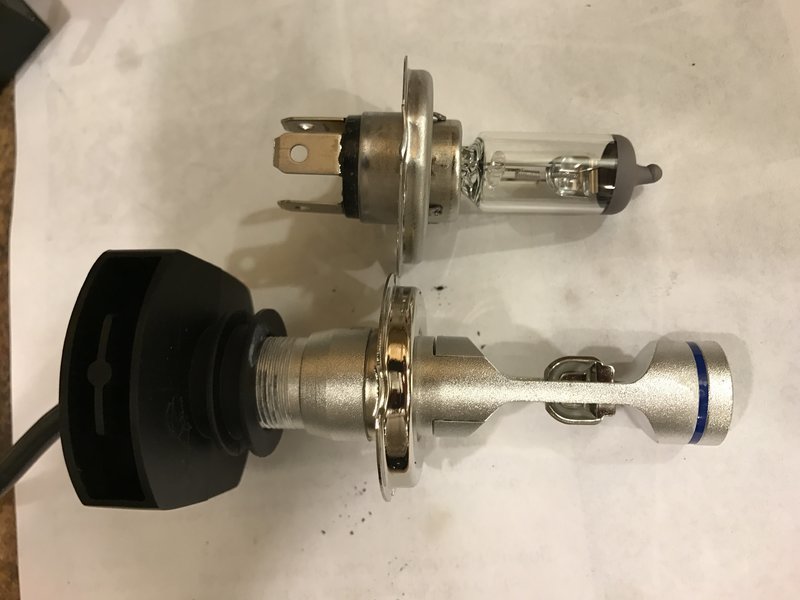

    Side by side comparison shots to halogen bulbs. The glare guards on the Philips LEDs are decently large.

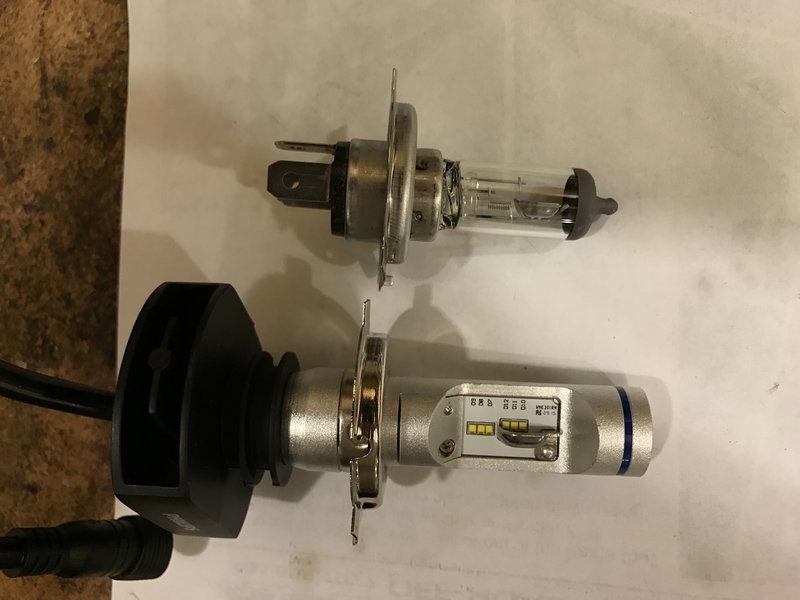

    Top down comparison. It is difficult to see in the photo, but the LEDs driver side glare guard is actually slightly longer than the passenger side. Thanks @StevoNB for pointing this out as it is very subtle. The longer glare guard on the driver side, and the smaller tighter control guard on the passenger side indicates this is likely designed for use in right hand drive vehicles. As would be consistent with the picture of the glare on the box.

    The design of the Philips LEDs is significantly better than the Opt7s, and most other LEDs. The Philips have glare guards, unlike the Opt7s. They also utilize a smart removable passive cooling system that does not use any moving parts to cool the LED circuit. By making the passive cooling sink removable, the the LED can be installed into the headlight housing, the OEM rubber boot reinstalled and then the cooling sink installed afterward. Many LEDs, especially those with cooling fans, require you to modify or cut the OEM boot to install the LED, which then allows moisture into the headlight resulting in condensation on interior of the lens. One very minor point for improvement, Philips could have aligned the cooling sink to line up perfectly vertically when screwed on all the way to optimize cooling. No failure prone moving parts, silent, and maintains the factory headlight seal. Smart.

    Comparing the LED headlight cut offs to the Ultimate headlight upgrade in the stock headlight assemblies. The ultimate headlight upgrade is on the left, the Philips LEDs on the right. The LED beam cut offs look spot on to the halogens, though the sign spotter beam above the horizon seem a little more prominent in the LEDs. The Philips has an outstanding cut off compared to the Opt7s.

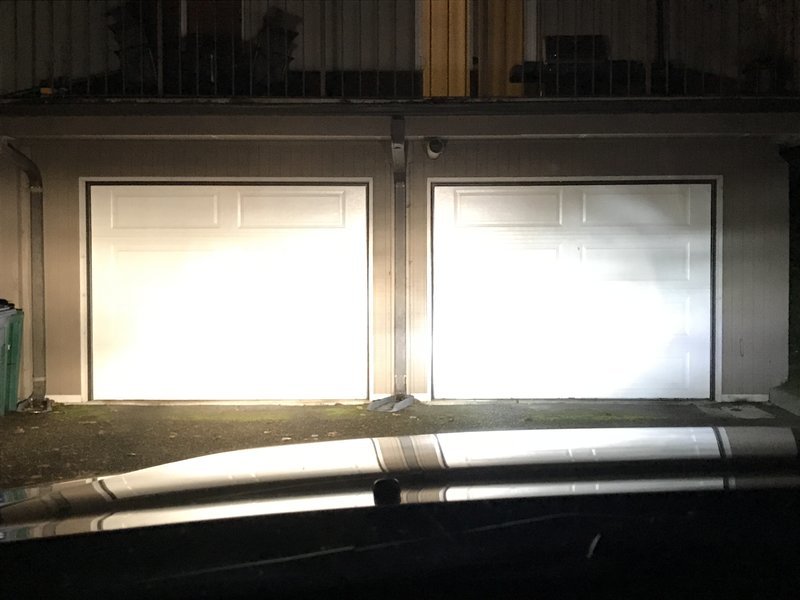

    Comparing high beam pattern pattern. Ultimate left, Philips LED right.

    While the beam patten doesn't tell much in the above photo, setting the camera to focus on the beam centers to close the aperture to capture the heart of the beam shows the similarities better. The ultimate upgrade is a little more full than the narrower LED on the right.

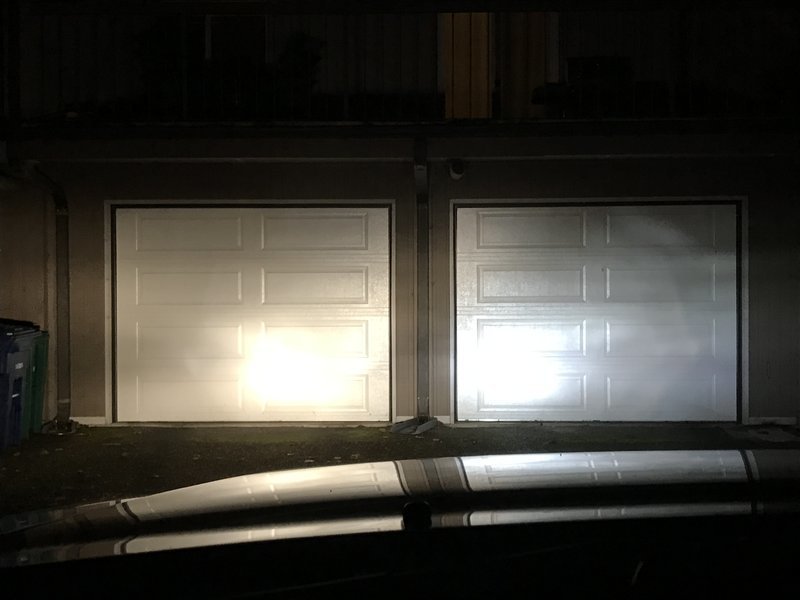

    Glare is of course the main offender in non-shielded LEDS. No excessive glare when facing oncoming drivers with the Philips, as advertised. Oncoming beam looks like stock.

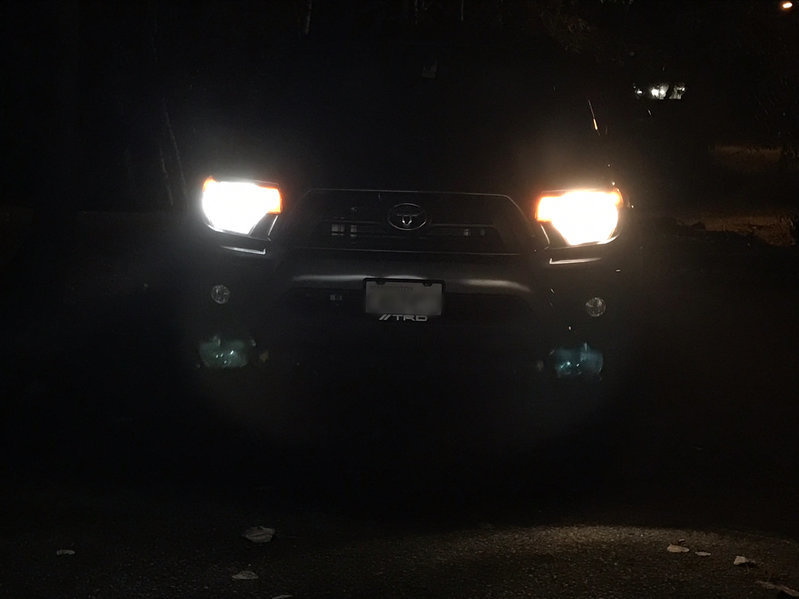

    Philips LED on left, Ultimate on right.

    What surprised me was how well the Philips did in the Lux rating. I got a high reading of 474. I couldn't say for sure if that was a hot spot in the beam but they seemed to do much better than their 2500 lumen rating would suggest. The Philips measured higher in my tests than the Opt7 LEDs, which were rated to be 7000 lumen, but the Opt7 had serious beam control issues which may have adversely affected their rating.

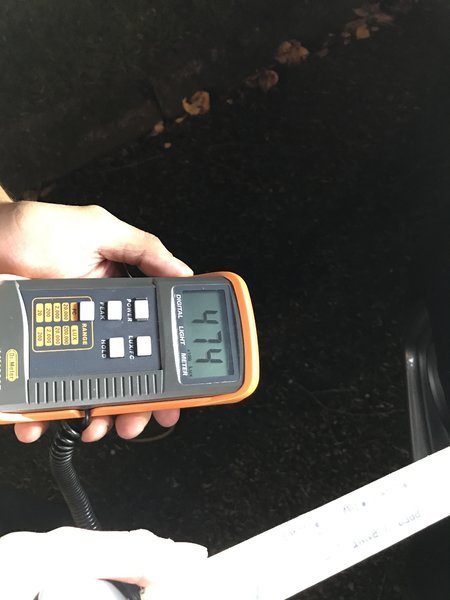

    Philips LED 474 Lux:


    While better, than the Opt7s the Philips still did not measure as high as the Osram halogens, which come in at nearly 30% brighter.
    Ultimate headlight upgrade 609 Lux:

    Output. Ultimate headlight upgrade on the left, Philips LED on right.

    Cut offs in a halogen reflector are only part of the story. Directional light LED diodes are not the same as omnidirectional light halogen filaments. You could actually tell this looking at the headlight reflector with the lights on, the LEDs had clear light hot spots to the right and left of the LED inside the reflector, whereas the entire reflector running the halogen bulb was lit uniformly. Meaning a more even, consistent saturated flood of light projected. I tried taking photos of the LED hotspots inside the reflector, but was too challenging for the camera.

    The Philips LEDs do maintain the cut off as advertised. Their output seems more uniform and full than the Opt7 LEDs, not to mention have vastly superior solid state cooling and no compromise of the headlight seals unlike other fan based LEDs. While the Philips LEDs are still outperformed by the ultimate halogen upgrade, if you were interested in getting LED headlights, the Philips LEDs seem like a great product without needing to do a projector retrofit, however the glare cut offs do not appear uniform so it may still will affect oncoming drivers to the distant left.

    Last edited: Feb 8, 2018
