Third brake light / cargo light *pics*

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Bryan07sport, Feb 21, 2010.

  1. Feb 21, 2010 at 7:40 PM
    #1
    Bryan07sport

    Bryan07sport [OP] Well-Known Member

    Joined:
    Sep 26, 2009
    Member:
    #23363
    Messages:
    360
    Gender:
    Male
    First Name:
    Bryan
    Newark, Delaware
    Vehicle:
    07 TRD Sport Access 6spd
    Hardwire GPS, 110v power outlet in cab, foglights anytime, mudflaps removed, pa-15 ipod interface, rear leaf tsb, URD short shift, integrated third brake/cargo light, ABS disable switch, BHLM, Dynomax super turbo muffler, Nitto Terra Grapplers 265/70/17, Front Bilstein 5100's at 1.75, Weathertech floormats, sockmonkey bedsides, bestop supertop, spidertrax
    Integrated cargo light in the third brake mod.
    Hey. Haven't seen anyone do this so i thought i'd share. Some of you have done great jobs with aftermarket lights in the bed but i wanted something a little more factory looking. Materials:

    -Light (I used one off the a chevy colorado. I looked at all the trucks with them and liked how they looked the best. Some mount at weird angles too, so they'd never work)

    -Switch (I used one of the ones on ebay with the yellow LED's that fit into our slots.

    -Add a circuit

    -Wire

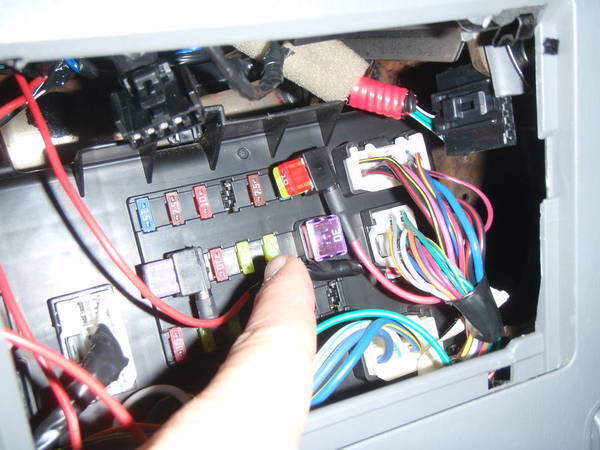

    I put the add a circuit in the power door locks slot because it's on whether the truck is or not.
    [​IMG]

    Ran the red wire to the supply on the switch, grounded the switch on one of the bolts down behind the kick panel, and ran the load wire down next to the seat under that cowling to the back panel with the seatbelt on it. That panel has a 10mm bolt that you need to take out to get it off. (just chased the brake light wire the whole way. Above the headliner and out through the hole.
    [​IMG]

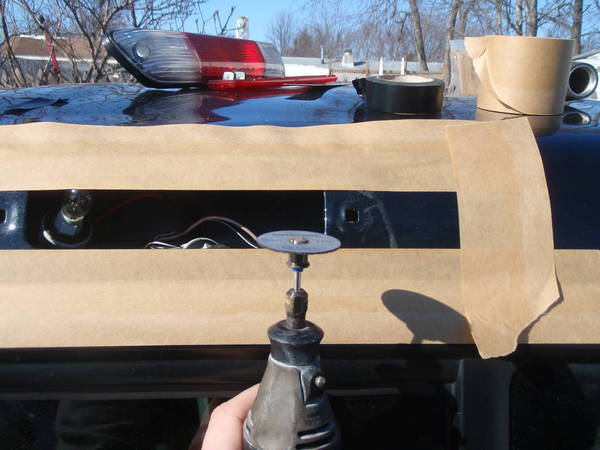

    The light was tough to get off, it has an adhesive gasket which i carefully ran a razor behind to cut off so as not to scratch or dent the metal around it.
    Measured the new light to determine the size hole i'd need to fit it in there. (had to cut about 1x3 inches off each side) This part was really scary. It's tough to cut into your truck. Used a dremel cutting disk. (Be careful, its easy for that disk to grab and want to run up your paint. I just used masking tape to mark the hole i needed and cut inside it.
    [​IMG]
    After the hole was cut i cut off the plug from the new light and from my truck and wired the grounds together, the brake light wire, and then the new wire which powers the white lights. (i wedged something against the brake pedal and tested the wires to determine which was which.)
    I just used black RTV silicone and ran a bead around the back of the light to seal it to the truck. Drilled 2 small pilot holes for the screws and just screwed them right into the metal.
    [​IMG]
    [​IMG]
    [​IMG]

    Don't mind the dents in the roof. they were there when i bought the truck, apparently used as a bench for a fatass. also sorry about all the salt. its snowed a ton here in the last week.

    Love this mod. used it tonight while sawing on the tailgate. Really bright and had it on for like 2 hours with the truck off and no problem. let me know what you think!

  2. Feb 21, 2010 at 7:46 PM
    #2
    EquinsuOcha

    EquinsuOcha Bourbon

    Joined:
    Mar 18, 2008
    Member:
    #5368
    Messages:
    3,664
    Gender:
    Male
    First Name:
    Casey
    Ft Worth, TX
    Vehicle:
    07 PreRunner
    AFE Drop-in filter, Wet Okole seat covers, Hifonics 6.5" components in front, MA Audio midbasses in rear, Kicker 8", RE Audio 2 channel for components, Elemental Designs bridged 2-channel for sub, CB, Devil Horns, Rancho QuickLift, Rancho RS9000XL rear shocks, Toytec AAL, stickers, things and stuff.
    Well done, sir!

  3. Feb 21, 2010 at 8:04 PM
    #3
    ilovetacos

    ilovetacos Well-Known Member

    Joined:
    Jan 27, 2008
    Member:
    #4464
    Messages:
    2,319
    Gender:
    Male
    First Name:
    Gavin
    Sacramento/Woodland
    Vehicle:
    2006 TRD Sport 4x4 DC
    Sold!
    That's nice! Great job!

  4. Feb 21, 2010 at 8:14 PM
    #4
    bigyetti

    bigyetti Well-Known Member

    Joined:
    Apr 12, 2009
    Member:
    #15880
    Messages:
    399
    Gender:
    Male
    First Name:
    mike
    asheville, nc
    Vehicle:
    08 taco dc 4x4 short bed
    sirius satilite radio, more on the way when i get more money. oh ya removed the secondary filter
    Sweet. i might have to give this one a shot some time. great write up

  5. Feb 21, 2010 at 8:15 PM
    #5
    Zac808

    Zac808 Custom User Title

    Joined:
    Aug 31, 2009
    Member:
    #22040
    Messages:
    2,819
    Gender:
    Male
    First Name:
    Zac
    Viva Las Vegas
    Vehicle:
    08 TRD DC SB 4x4
    In my sig
    Great mod.

  6. Feb 21, 2010 at 8:18 PM
    #6
    wildjerseyfirefighter

    wildjerseyfirefighter I sell fishing and fishing accessories

    Joined:
    Dec 17, 2008
    Member:
    #11677
    Messages:
    7,966
    Gender:
    Male
    First Name:
    Joe
    NJ
    Vehicle:
    05 Tacoma TRD Sport
    stock, for now
    great job!...I was going to do the same thing to my truck a couple years back, but pussied out once stuff started breaking..lol

  7. Feb 21, 2010 at 8:19 PM
    #7
    Stillfly199

    Stillfly199 ( . )( . )

    Joined:
    Feb 26, 2009
    Member:
    #14098
    Messages:
    5,006
    Gender:
    Male
    First Name:
    J.D.
    Bro Capital of the word
    Vehicle:
    2010 FJ Cruiser
    I always wondered why all trucks dont come with this done. I mean its so simple. Good job though, thanks for posting.

  8. Feb 21, 2010 at 8:23 PM
    #8
    Simon2150

    Simon2150 Well-Known Member

    Joined:
    Dec 22, 2008
    Member:
    #11809
    Messages:
    1,045
    Gender:
    Male
    Austin, TX
    Vehicle:
    06 Tacoma DoubleCab V6 SR5
    Looks great and it definitely looks oem-ish.

  9. Feb 21, 2010 at 8:46 PM
    #9
    Fortech

    Fortech Well-Known Member

    Joined:
    Mar 31, 2008
    Member:
    #5636
    Messages:
    878
    Gender:
    Male
    CANADA
    Vehicle:
    2005 Toyota Tacoma TRD OR
    Bilstein 5100's, rear TSB, Firestone bags
    Great Job!

  10. Feb 21, 2010 at 9:05 PM
    #10
    Kelson

    Kelson My Truck is Cuter than Yours

    Joined:
    May 13, 2008
    Member:
    #6597
    Messages:
    4,592
    Gender:
    Male
    First Name:
    Kelson
    Honolulu, Hawaii
    Vehicle:
    08 5-Lug Reg. Cab SR5
    SR5 Exterior/Interior (Color matched Front Bumper, Chrome Grille Surround and Chrome Rear Bumper/Silver Scoshe Dash Kit, A/C Bezel, A/C Vent Surround) LED license plate and white interior lights, Wet Okole Seat Covers, iPad in-Dash, JL CL-RLC, JL 13TW5 sub, JL 500/1 Slash V1 amp, JL XR 6.5 Components, Rockford Fosgate 6X9s in Boxes Front XRunner Coils, DJM Control Arms and Rear 4X4 Leafs, Custom 2" Angled Streetacos.com Blocks Front XR Bilstien Struts and Rear XR Bilstien Shocks, CravenSpeen Antennae, RX-8 Rims w/ Fronts:235/40-R18 Sumitomo HTR Rears:245/40-R18 Goodyear Eagle GT, 35% Tint front windows, OEM Sliding Privacy Glass w/ 5% Ceramic Tint, Flowmaster Super 44 dumped before the axle, URD Short Throw Shifter, Door Sill Protectors, Door Edge Guards, OEM Sport Pedals,The Retrofit Source Morimoto Mini D2S Stage III 35W 5K HID Headlights, OEM Fog Lights w/ piss yellow bulbs, OEM Cruise Control, Porsche 944 Bucket Seats, BeefedTaco Skid Plate, Whale
    haha nvm found this thread...looks mean! and i was right!

  11. Feb 21, 2010 at 9:39 PM
    #11
    Kyouto42

    Kyouto42 Iron Beard

    Joined:
    Aug 18, 2008
    Member:
    #8614
    Messages:
    9,156
    Gender:
    Male
    First Name:
    Jake
    Ahwatukee, AZ
    Vehicle:
    BSP '10 4x4 TRD Off-Road DC
    See build thread in signature
    Awesome, got ballz man. The only thing I might have done diff was put it upside-down... I think it'd flow with the truck's lines better. Still, awesome job!

  12. Feb 21, 2010 at 9:47 PM
    #12
    BeardedWeirdo

    BeardedWeirdo Junior Mint

    Joined:
    Feb 6, 2010
    Member:
    #30870
    Messages:
    624
    Gender:
    Male
    Texas
    Vehicle:
    2010 AC SR5 PreRunner
    Barcelona Red Pop & Lock, Tint, New Shoes, Removed Rear Headrests, Grille(in the works)
    Awesome mod! I miss not having a cargo light. It's one of those things that you never realize just how useful it is until you've had one.

  13. Feb 22, 2010 at 6:01 AM
    #13
    Bryan07sport

    Bryan07sport [OP] Well-Known Member

    Joined:
    Sep 26, 2009
    Member:
    #23363
    Messages:
    360
    Gender:
    Male
    First Name:
    Bryan
    Newark, Delaware
    Vehicle:
    07 TRD Sport Access 6spd
    Hardwire GPS, 110v power outlet in cab, foglights anytime, mudflaps removed, pa-15 ipod interface, rear leaf tsb, URD short shift, integrated third brake/cargo light, ABS disable switch, BHLM, Dynomax super turbo muffler, Nitto Terra Grapplers 265/70/17, Front Bilstein 5100's at 1.75, Weathertech floormats, sockmonkey bedsides, bestop supertop, spidertrax
    I know what you mean but it's not flat, it has an angle to it to compensate for the fact that the roof isn't flat there. if it was upside down it would point up in the air. thanks though!

  14. Feb 22, 2010 at 6:17 AM
    #14
    Lurkin

    Lurkin Well-Known Member

    Joined:
    May 21, 2009
    Member:
    #17497
    Messages:
    4,944
    First Name:
    Rod
    Pearland, TX
    Vehicle:
    09 PreRunner SR5 DC
    Nice. This needs to be added into the mods sticky.

    Don't think I have the nards myself to cut into my truck, but great work.

  15. Feb 22, 2010 at 6:22 AM
    #15
    2007TacBorla4X4

    2007TacBorla4X4 Well-Known Member

    Joined:
    Nov 24, 2009
    Member:
    #26469
    Messages:
    353
    Gender:
    Male
    First Name:
    Bob
    Jax, FL
    Vehicle:
    TRD Sport 4X4 Short Bed
    Borla cat back, K&N cold air, Silver star bulbs, Nerf bars,NEW BFG, Weather teck windows, Flash light on the drivers seat, TRD off Road ft tow hook, Rear driving lights on bumper, Weather teck windows & ft bug guard, 4X4 switch glows, Windows tinted 20% sun shade
    Looks GREAT.....

  16. Feb 22, 2010 at 12:45 PM
    #16
    tooxslick

    tooxslick Well-Known Member

    Joined:
    Jan 20, 2008
    Member:
    #4336
    Messages:
    61
    Gender:
    Male
    First Name:
    Gary
    San Gabriel, CA
    Vehicle:
    06 SR5 BSP Access Cab
    LED Interior, MagLite Mount, BHLM, Limo Tint, Fog Lights, HIDs, PA15-TOY, DTRL, ReadyLIFT SST 2.75", Maplight Mod, Secondary Air Filter Removal, Black Interior, Debadged, AFE Stage II Intake, "Deckplate Mod", Satoshi grill.
    Thanks Bryan. This is an awesome mod! I also agree that this sound be stickied.

  17. Feb 22, 2010 at 1:04 PM
    #17
    478DblSport

    478DblSport Thermonuclear Protection

    Joined:
    Feb 10, 2010
    Member:
    #31127
    Messages:
    705
    Gender:
    Male
    Byron, GA
    Vehicle:
    07 Silver Streak Mica PreRunner DC TRD Sport
    | EXTERIOR | Access Roll-up Tonneau Cover, Tailgate Hose Clamp Mod, Shortened OEM Antenna, DeeZee Bed Mat ---------------------------- | INTERIOR | Flyzeye V2W (Amber/White/Amber) Audio: Alpine CDA-117, PDX-5 (119Wx4+410W), Polk Audio MM6501 (F) & MM651 (R), JL Audio CP108LG-W3v3 (Sub), w/Monster, Rockford, & Streetwire cabling, Metra Dash Kit.
    Nice job Bryan! I was stopped @ a triffic light behind a Colorado last night and was thinking... Toyota should have cargo lights like that. Definitely got more nads than I do to go cuttin on my truck.

  18. Feb 22, 2010 at 1:06 PM
    #18
    06WHITETRD

    06WHITETRD Gotta Love my Taco!!!!

    Joined:
    Mar 31, 2008
    Member:
    #5630
    Messages:
    863
    Gender:
    Male
    So Cal
    Vehicle:
    06 Toyota Tacoma OFF-ROAD
    Tinted windows, window visors, XDI True Flow intake, White Devil Emblem, sport white grill, stubbie 6' antenna, TRD license plate frame,TRD Exhaust, weathertech floor front & rear, LED map/dome & license plate lights,Black Grille,T-Rex eyebrows,black Skid Plate,Lower bumper cover,Black emblems,white TRD Emblem,lamin-x yellow,Slotted & Cross Drilled rotors,Redline shocks(hood),HID 6k,more to come
    this should go on the mods thread.. great job.

  19. Feb 22, 2010 at 1:15 PM
    #19
    Outlaw

    Outlaw Well-Known Member

    Joined:
    Nov 5, 2008
    Member:
    #10513
    Messages:
    687
    Gender:
    Male
    Iowa City, Iowa
    Vehicle:
    '10 TRD SPORT Acc.Cab Mag Grey 4x4 Auto
    Weathertech floor liners, stone and bug deflector, Putco Element In Channel Window Visors, Viper remote starter, Harley lighted hitch cover, Harley front mudflaps, Metal Miller Harley Grill Emblem, Grillcraft grill, SockMonkey design Bedside Decals and 3rd Brake light TRD decal, K&N Air Filter, Goodyear Duratrac 265/70/17 C load, Valor Exhaust tip, De-badged tailgate, Advantage Tonneau Cover, Smoked license plate cover, NFab step bars. Custom Ipod holder. Stock Suspension :(
    Wow. Nice job Man! looks great!
    Curious why you put the 3rd brake light in so the contour sides go up instead of down?
    OEM light light goes this way,/ \ and the new light goes \ /
    Was that so it would fit?

  20. Feb 22, 2010 at 1:38 PM
    #20
    Bryan07sport

    Bryan07sport [OP] Well-Known Member

    Joined:
    Sep 26, 2009
    Member:
    #23363
    Messages:
    360
    Gender:
    Male
    First Name:
    Bryan
    Newark, Delaware
    Vehicle:
    07 TRD Sport Access 6spd
    Hardwire GPS, 110v power outlet in cab, foglights anytime, mudflaps removed, pa-15 ipod interface, rear leaf tsb, URD short shift, integrated third brake/cargo light, ABS disable switch, BHLM, Dynomax super turbo muffler, Nitto Terra Grapplers 265/70/17, Front Bilstein 5100's at 1.75, Weathertech floormats, sockmonkey bedsides, bestop supertop, spidertrax
    Yeah. Someone said the same thing on a different thread. And yes, the light is designed to fit on the back of the truck where it's contoured upward, so the light has a 30 degree or so bevel to it to make it point straight back and not up. Had to shop around to find one that mounted on a similar angle as the tacomas actually. all trucks have different shapes back there.
    So yes it is angled differently than OEM, but I didn't have a choice, and actually like this way better. On cars, \ / tends to be more sporty and aggressive than / \.
